Sayfa 4-42 - Isuzu EPC

4-42 — POWER STEERING OIL PUMP (#47738) — 198 parça

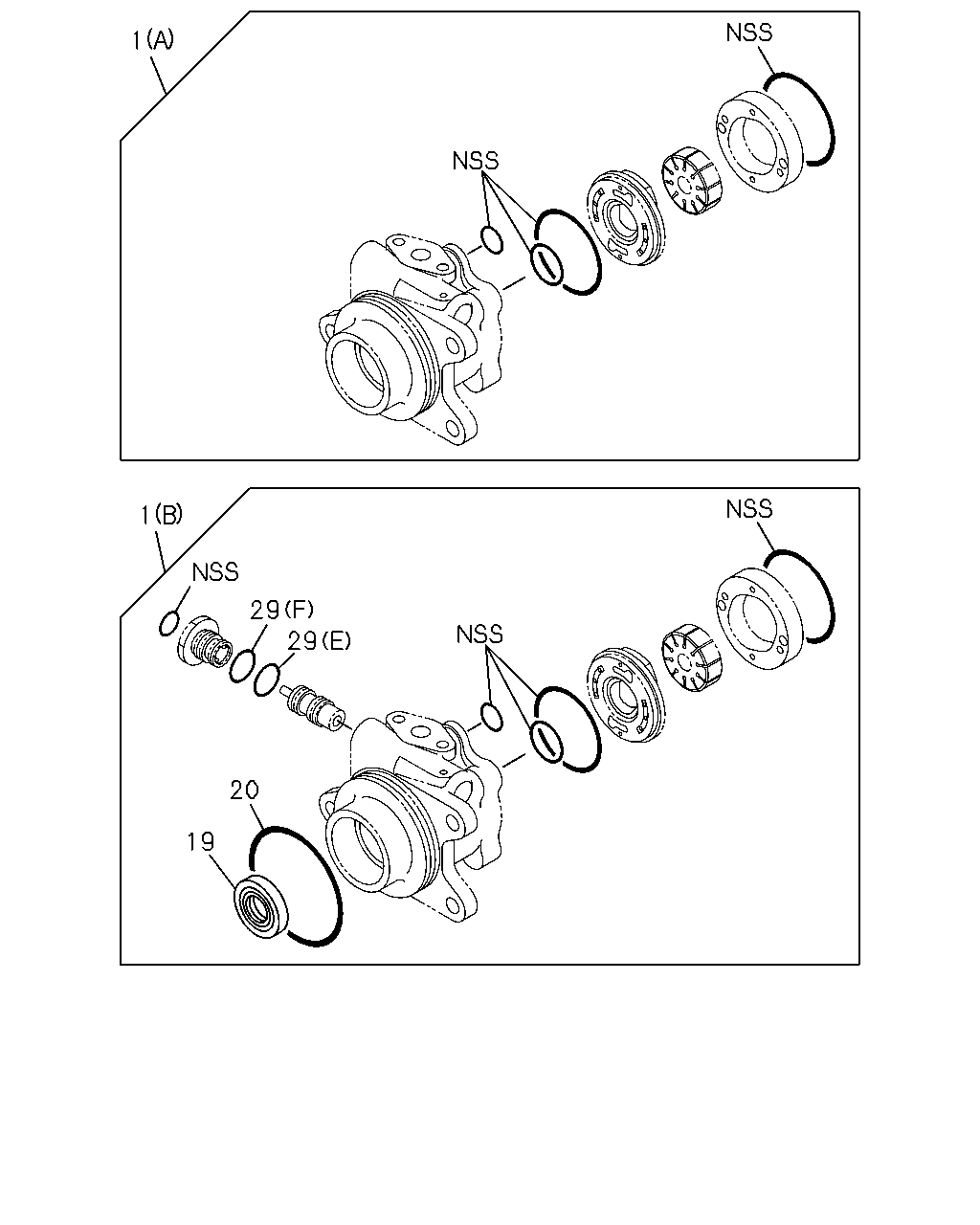

1 1 29 29 20 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97081-999-0, 97081999	8-94129-713-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97075-583-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97075-584-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97081-999-0, 97081999	8-97081-174-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-97084-207-0, 97084207	8-97084-209-0	01	1	-
19	06.617 SEAL; OIL,OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97075-577-0	01	1	-
19	06.617 SEAL; OIL,OIL PUMP ASM PART: A = 8-97081-999-0, 97081999	8-97081-172-0	01	1	-
20	06.635 GASKET; FRT,OIL PUMP ID=77 ASM PART: A = 8-97081-999-0, 97081999	1-09623-143-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: A = 8-97081-999-0, 97081999	5-09623-062-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.673, (E) ASM PART: A = 8-97081-999-0, 97081999	5-09623-064-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97075-581-0	01	1	-

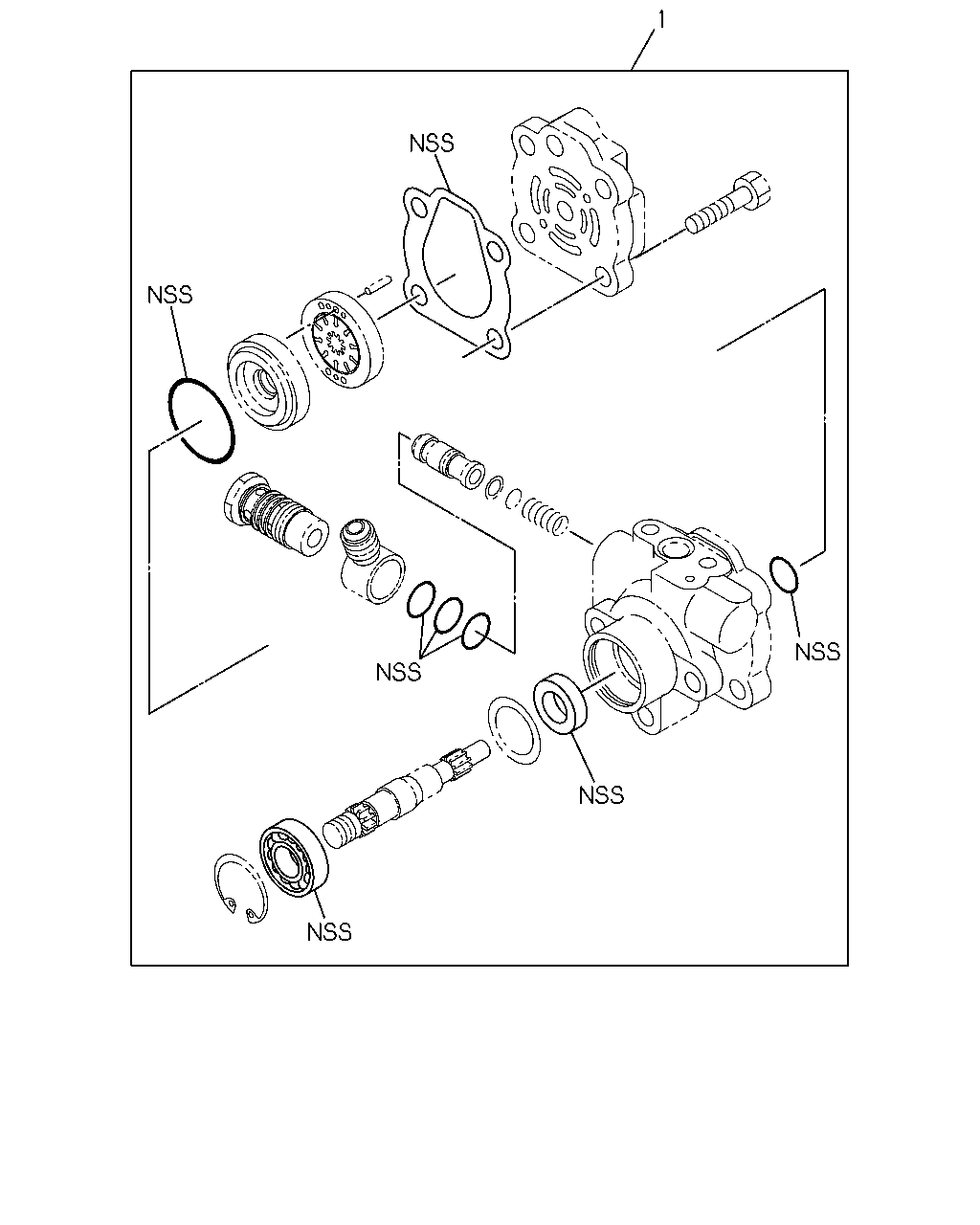

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97081-999-0, 97081999	8-94129-713-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97075-583-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97075-584-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97081-999-0, 97081999	8-97081-174-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-97084-207-0, 97084207	8-97084-209-0	01	1	-

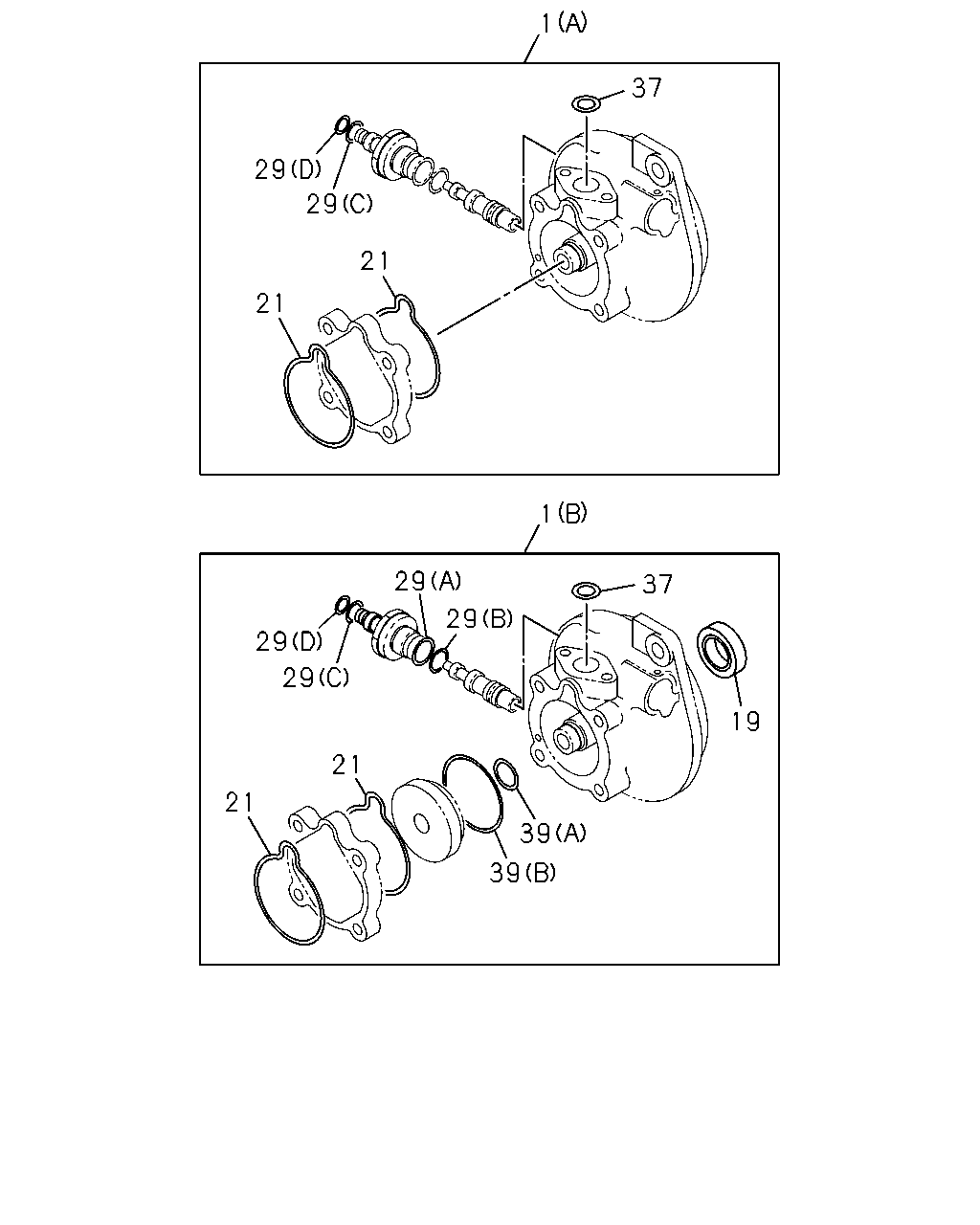

1 37 29 29 21 21 1 29 37 29 29 29 19 21 21 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97081-999-0, 97081999	8-94129-713-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97075-583-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97075-584-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97081-999-0, 97081999	8-97081-174-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-97084-207-0, 97084207	8-97084-209-0	01	1	-
19	06.617 SEAL; OIL,OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97075-577-0	01	1	-
19	06.617 SEAL; OIL,OIL PUMP ASM PART: A = 8-97081-999-0, 97081999	8-97081-172-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97062-329-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: A = 8-97081-999-0, 97081999	5-09623-062-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.673, (E) ASM PART: A = 8-97081-999-0, 97081999	5-09623-064-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97075-581-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-777-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: C = 8-97085-127-2, 97085127	8-94379-647-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: D = 8-97136-573-1, 97136573	8-94379-647-0	01	1	-9701
39	06.609 GASKET; OIL PUMP (B) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-94379-648-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: D = 8-97136-573-1, 97136573	8-97147-441-0	01	1	9702-

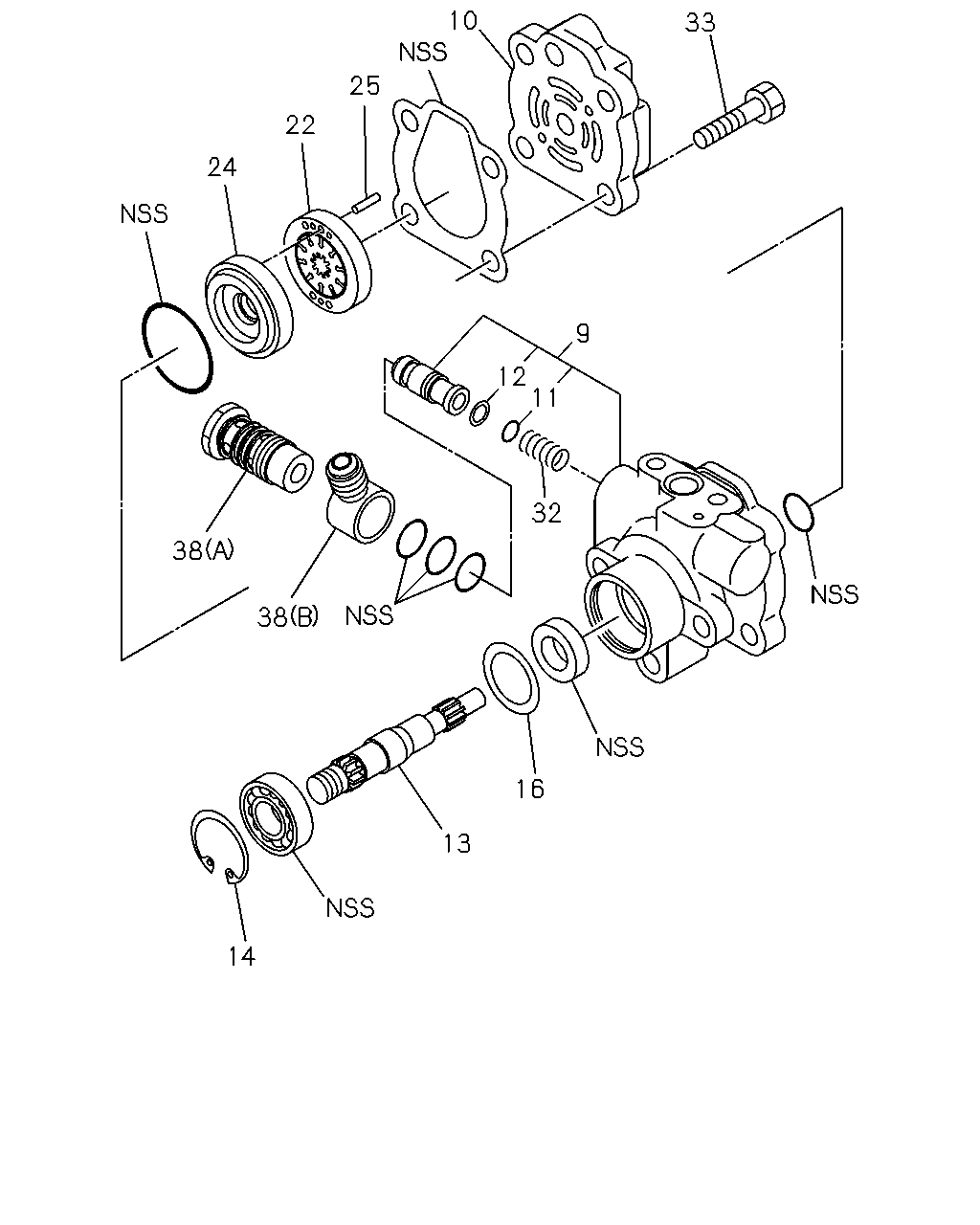

10 33 25 22 24 9 12 11 32 38 38 16 13 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-764-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97081-999-0, 97081999	8-97081-175-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97084-207-0, 97084207	8-97084-333-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP 06.609 ASM PART: A = 8-97081-999-0, 97081999	8-94129-728-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-772-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97084-207-0, 97084207	8-97076-460-0	01	1	-
11	06.616 RING; RET,OIL TANK ASM PART: B = 8-97084-207-0, 97084207	8-94175-185-0	01	1	-
12	06.616 FILTER; OIL PUMP 06.630 ASM PART: B = 8-97084-207-0, 97084207	8-94175-184-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: A = 8-97081-999-0, 97081999	8-94129-725-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-766-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: B = 8-97084-207-0, 97084207	8-97047-208-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97081-999-0, 97081999	5-09588-034-0	01	1	-
14	06.616 RING; RET,OIL PUMP 06.840, OD=37.8 ASM PART: B = 8-97084-207-0, 97084207	9-09180-135-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97081-999-0, 97081999	5-19529-005-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: B = 8-97084-207-0, 97084207	8-94475-374-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-768-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97081-999-0, 97081999	8-94129-727-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97084-207-0, 97084207	8-94475-369-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-97136-573-1, 97136573	8-97075-579-0	01	1	-9701
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-97085-127-2, 97085127	8-97075-579-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-97136-573-1, 97136573	8-97148-690-0	01	1	9702-
24	06.612 PLATE ASM; THRUST 06.609 ASM PART: B = 8-97084-207-0, 97084207	8-97063-133-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-97081-999-0, 97081999	5-09740-019-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-94379-646-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-97084-207-0, 97084207	8-94475-371-0	02	1	-
32	06.606 SPRING; OIL PUMP 06.609, (A) ASM PART: A = 8-97081-999-0, 97081999	5-09586-010-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612, (B) ASM PART: A = 8-97081-999-0, 97081999	5-09586-011-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612 ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-94379-654-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612 ASM PART: B = 8-97084-207-0, 97084207	8-94475-376-0	01	1	-
33	06.606 BOLT; COVER 06.609 ASM PART: A = 8-97081-999-0, 97081999	8-94129-729-0	04	1	-
33	06.606 BOLT; COVER 06.608 ASM PART: B = 8-97084-207-0, 97084207	8-94475-381-0	04	1	-
33	06.606 BOLT; COVER 06.608, (A) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-773-0	03	1	-
33	06.606 BOLT; COVER (B) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97075-585-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97081-999-0, 97081999	8-94129-730-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: B = 8-97084-207-0, 97084207	8-94475-377-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: B = 8-97084-207-0, 97084207	8-94475-382-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: A = 8-97081-999-0, 97081999	8-97014-586-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-775-1	01	1	-

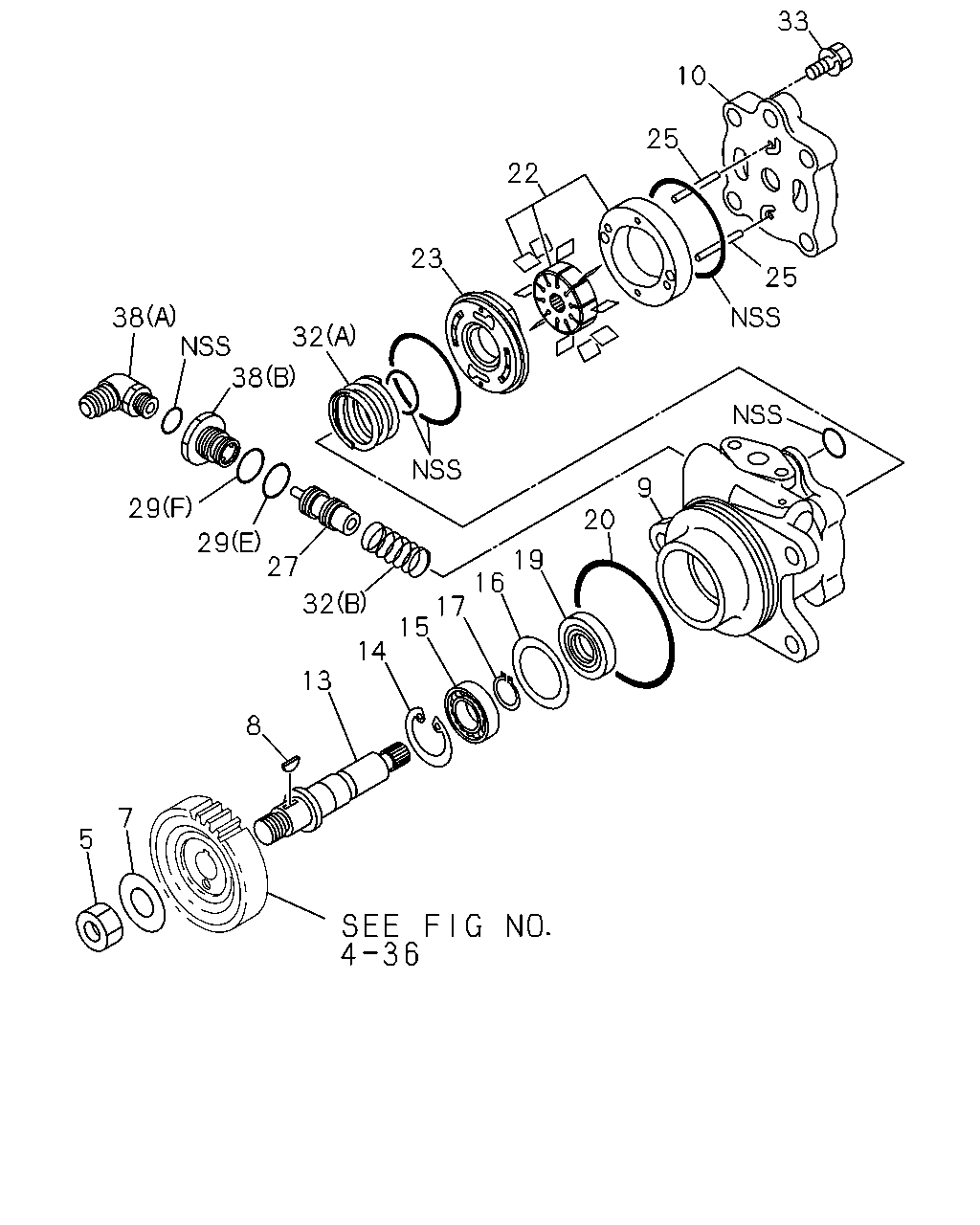

36 35 29 29 8 29 38 13 19 29 27 32 37 25 39 39 23 9 5 33 7 22 16 15 10 21 21 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	06.635 NUT; SHAFT,P/S PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-780-0	01	1	-
5	06.635 NUT; SHAFT,P/S PUMP 04.681, M16 ASM PART: A = 8-97081-999-0, 97081999	9-99111-416-0	01	1	-
7	06.635 WASHER; SHAFT 06.660 ASM PART: A = 8-97081-999-0, 97081999	5-09533-007-0	01	1	-
7	06.635 WASHER; SHAFT ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-779-0	01	1	-
8	06.616 KEY; SHAFT,OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-778-0	01	1	-
8	06.616 KEY; SHAFT,OIL PUMP ASM PART: A = 8-97081-999-0, 97081999	9-08055-413-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-764-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97081-999-0, 97081999	8-97081-175-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97084-207-0, 97084207	8-97084-333-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP 06.609 ASM PART: A = 8-97081-999-0, 97081999	8-94129-728-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-772-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97084-207-0, 97084207	8-97076-460-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: A = 8-97081-999-0, 97081999	8-94129-725-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-766-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: B = 8-97084-207-0, 97084207	8-97047-208-0	01	1	-
15	06.616 BEARING; BALL,OIL PUMP ASM PART: A = 8-97081-999-0, 97081999	5-09801-008-0	01	1	-
15	06.616 BEARING; BALL,OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97075-578-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97081-999-0, 97081999	5-19529-005-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: B = 8-97084-207-0, 97084207	8-94475-374-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-768-0	01	1	-
19	06.617 SEAL; OIL,OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97075-577-0	01	1	-
19	06.617 SEAL; OIL,OIL PUMP ASM PART: A = 8-97081-999-0, 97081999	8-97081-172-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97062-329-0	02	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97081-999-0, 97081999	8-94129-727-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97084-207-0, 97084207	8-94475-369-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-97136-573-1, 97136573	8-97075-579-0	01	1	-9701
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-97085-127-2, 97085127	8-97075-579-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-97136-573-1, 97136573	8-97148-690-0	01	1	9702-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97081-999-0, 97081999	8-94129-726-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: D = 8-97136-573-1, 97136573	8-97029-769-0	01	1	-9701
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: C = 8-97085-127-2, 97085127	8-97029-769-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: D = 8-97136-573-1, 97136573	8-97147-453-0	01	1	9702-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-97081-999-0, 97081999	5-09740-019-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-94379-646-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-97084-207-0, 97084207	8-94475-371-0	02	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97081-999-0, 97081999	8-97014-590-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97075-586-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: A = 8-97081-999-0, 97081999	5-09623-062-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.673, (E) ASM PART: A = 8-97081-999-0, 97081999	5-09623-064-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97075-581-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.609, (A) ASM PART: A = 8-97081-999-0, 97081999	5-09586-010-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612, (B) ASM PART: A = 8-97081-999-0, 97081999	5-09586-011-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612 ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-94379-654-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612 ASM PART: B = 8-97084-207-0, 97084207	8-94475-376-0	01	1	-
33	06.606 BOLT; COVER 06.609 ASM PART: A = 8-97081-999-0, 97081999	8-94129-729-0	04	1	-
33	06.606 BOLT; COVER 06.608 ASM PART: B = 8-97084-207-0, 97084207	8-94475-381-0	04	1	-
33	06.606 BOLT; COVER 06.608, (A) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-773-0	03	1	-
33	06.606 BOLT; COVER (B) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97075-585-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97091-932-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-94379-664-0	02	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-777-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97081-999-0, 97081999	8-94129-730-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: B = 8-97084-207-0, 97084207	8-94475-377-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: B = 8-97084-207-0, 97084207	8-94475-382-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: A = 8-97081-999-0, 97081999	8-97014-586-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-775-1	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: C = 8-97085-127-2, 97085127	8-94379-647-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: D = 8-97136-573-1, 97136573	8-94379-647-0	01	1	-9701
39	06.609 GASKET; OIL PUMP (B) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-94379-648-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: D = 8-97136-573-1, 97136573	8-97147-441-0	01	1	9702-

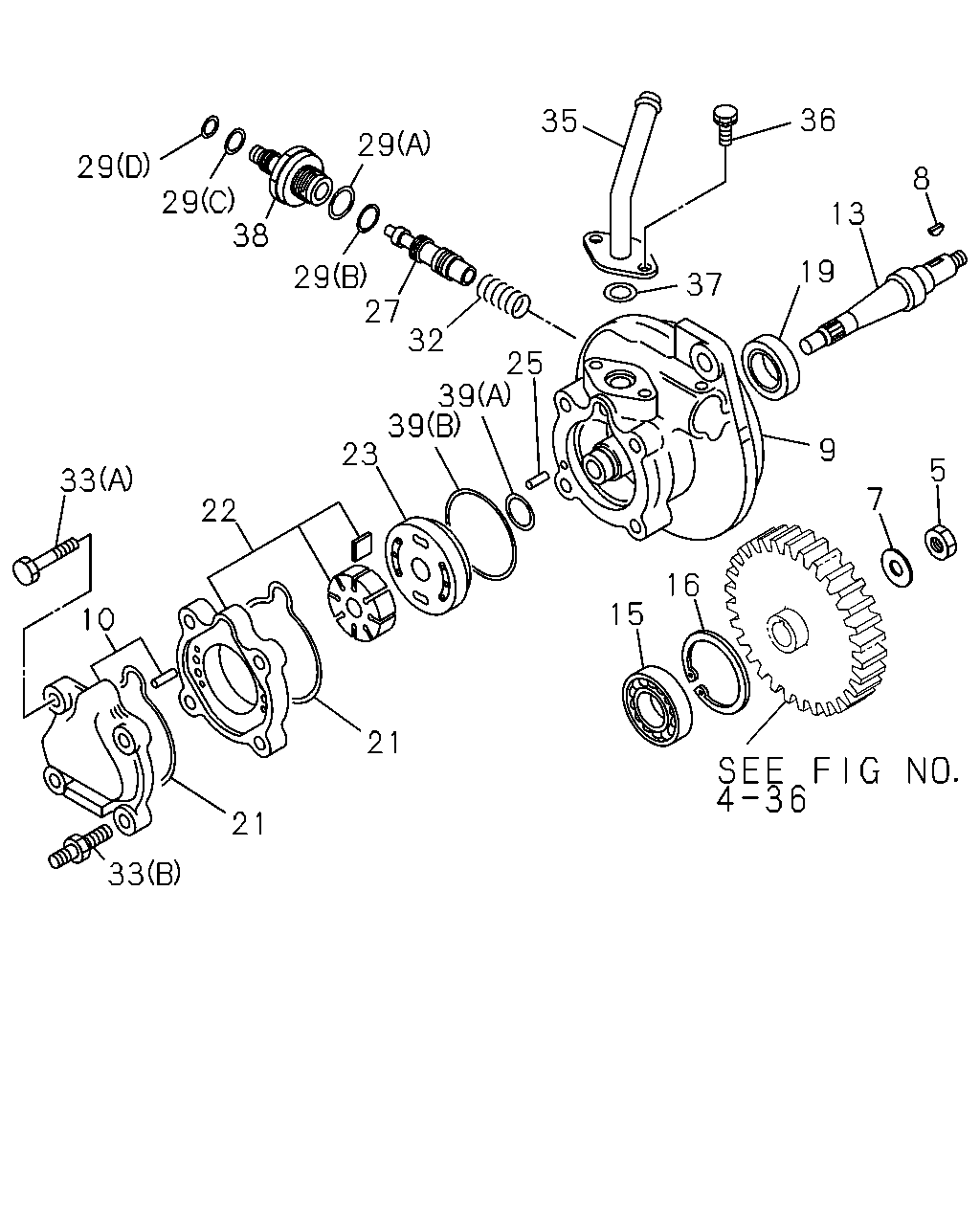

33 10 25 22 23 25 38 32 38 9 29 20 29 19 16 17 15 27 32 14 13 8 7 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	06.635 NUT; SHAFT,P/S PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-780-0	01	1	-
5	06.635 NUT; SHAFT,P/S PUMP 04.681, M16 ASM PART: A = 8-97081-999-0, 97081999	9-99111-416-0	01	1	-
7	06.635 WASHER; SHAFT 06.660 ASM PART: A = 8-97081-999-0, 97081999	5-09533-007-0	01	1	-
7	06.635 WASHER; SHAFT ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-779-0	01	1	-
8	06.616 KEY; SHAFT,OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-778-0	01	1	-
8	06.616 KEY; SHAFT,OIL PUMP ASM PART: A = 8-97081-999-0, 97081999	9-08055-413-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-764-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97081-999-0, 97081999	8-97081-175-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97084-207-0, 97084207	8-97084-333-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP 06.609 ASM PART: A = 8-97081-999-0, 97081999	8-94129-728-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-772-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97084-207-0, 97084207	8-97076-460-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: A = 8-97081-999-0, 97081999	8-94129-725-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-766-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: B = 8-97084-207-0, 97084207	8-97047-208-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97081-999-0, 97081999	5-09588-034-0	01	1	-
14	06.616 RING; RET,OIL PUMP 06.840, OD=37.8 ASM PART: B = 8-97084-207-0, 97084207	9-09180-135-0	01	1	-
15	06.616 BEARING; BALL,OIL PUMP ASM PART: A = 8-97081-999-0, 97081999	5-09801-008-0	01	1	-
15	06.616 BEARING; BALL,OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97075-578-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97081-999-0, 97081999	5-19529-005-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: B = 8-97084-207-0, 97084207	8-94475-374-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-768-0	01	1	-
17	06.616 RING; RET ASM PART: A = 8-97081-999-0, 97081999	5-09588-035-0	01	1	-
19	06.617 SEAL; OIL,OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97075-577-0	01	1	-
19	06.617 SEAL; OIL,OIL PUMP ASM PART: A = 8-97081-999-0, 97081999	8-97081-172-0	01	1	-
20	06.635 GASKET; FRT,OIL PUMP ID=77 ASM PART: A = 8-97081-999-0, 97081999	1-09623-143-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97081-999-0, 97081999	8-94129-727-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97084-207-0, 97084207	8-94475-369-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-97136-573-1, 97136573	8-97075-579-0	01	1	-9701
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-97085-127-2, 97085127	8-97075-579-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-97136-573-1, 97136573	8-97148-690-0	01	1	9702-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97081-999-0, 97081999	8-94129-726-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: D = 8-97136-573-1, 97136573	8-97029-769-0	01	1	-9701
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: C = 8-97085-127-2, 97085127	8-97029-769-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: D = 8-97136-573-1, 97136573	8-97147-453-0	01	1	9702-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-97081-999-0, 97081999	5-09740-019-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-94379-646-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-97084-207-0, 97084207	8-94475-371-0	02	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97081-999-0, 97081999	8-97014-590-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97075-586-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: A = 8-97081-999-0, 97081999	5-09623-062-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.673, (E) ASM PART: A = 8-97081-999-0, 97081999	5-09623-064-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97075-581-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.609, (A) ASM PART: A = 8-97081-999-0, 97081999	5-09586-010-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612, (B) ASM PART: A = 8-97081-999-0, 97081999	5-09586-011-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612 ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-94379-654-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612 ASM PART: B = 8-97084-207-0, 97084207	8-94475-376-0	01	1	-
33	06.606 BOLT; COVER 06.609 ASM PART: A = 8-97081-999-0, 97081999	8-94129-729-0	04	1	-
33	06.606 BOLT; COVER 06.608 ASM PART: B = 8-97084-207-0, 97084207	8-94475-381-0	04	1	-
33	06.606 BOLT; COVER 06.608, (A) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-773-0	03	1	-
33	06.606 BOLT; COVER (B) ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97075-585-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97081-999-0, 97081999	8-94129-730-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: B = 8-97084-207-0, 97084207	8-94475-377-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: B = 8-97084-207-0, 97084207	8-94475-382-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: A = 8-97081-999-0, 97081999	8-97014-586-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: C = 8-97085-127-2, 97085127, D = 8-97136-573-1, 97136573	8-97029-775-1	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
