◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#47737) — 209 parça

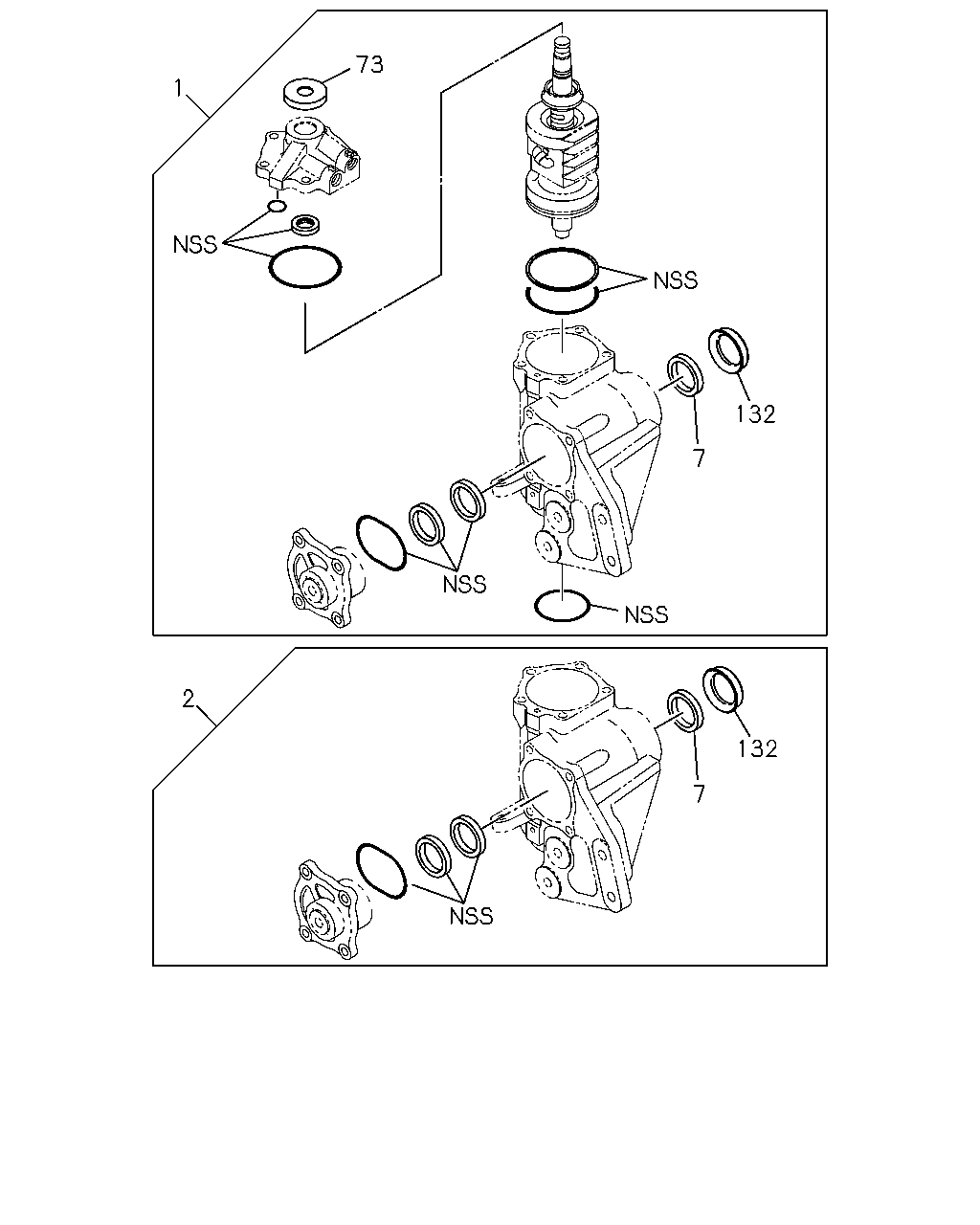

çizim 16761
73 1 132 7 2 132 7
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: C = 8-97073-159-2, 97073159 		8-97076-371-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953 		8-97076-871-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97073-158-1, 97073158 		8-97077-538-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: F = 8-97145-739-0, 97145739 		8-97147-041-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: G = 8-97145-740-0, 97145740 		8-97147-042-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: H = 8-97173-570-0, 97173570 		8-97173-572-0 01 1 -
2 06.507 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953 		8-97076-872-0 01 1 -
2 06.507 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: H = 8-97173-570-0, 97173570 		8-97173-573-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-97015-018-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		9-09924-502-0 01 1 -
73 06.840 COVER; DUST,STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-94116-495-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-94116-494-0 01 1 -

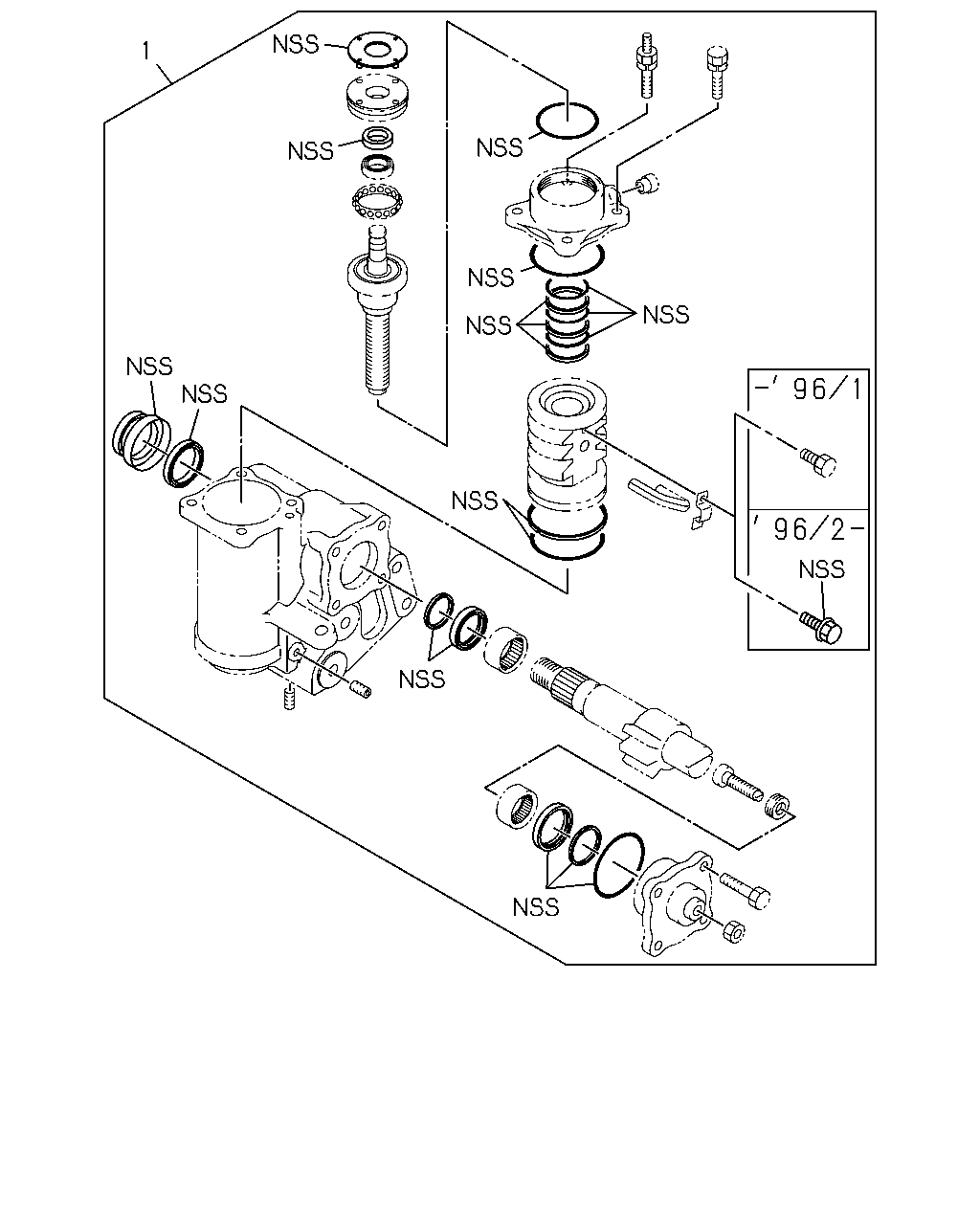

çizim 16994
1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: C = 8-97073-159-2, 97073159 		8-97076-371-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953 		8-97076-871-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97073-158-1, 97073158 		8-97077-538-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: F = 8-97145-739-0, 97145739 		8-97147-041-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: G = 8-97145-740-0, 97145740 		8-97147-042-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: H = 8-97173-570-0, 97173570 		8-97173-572-0 01 1 -

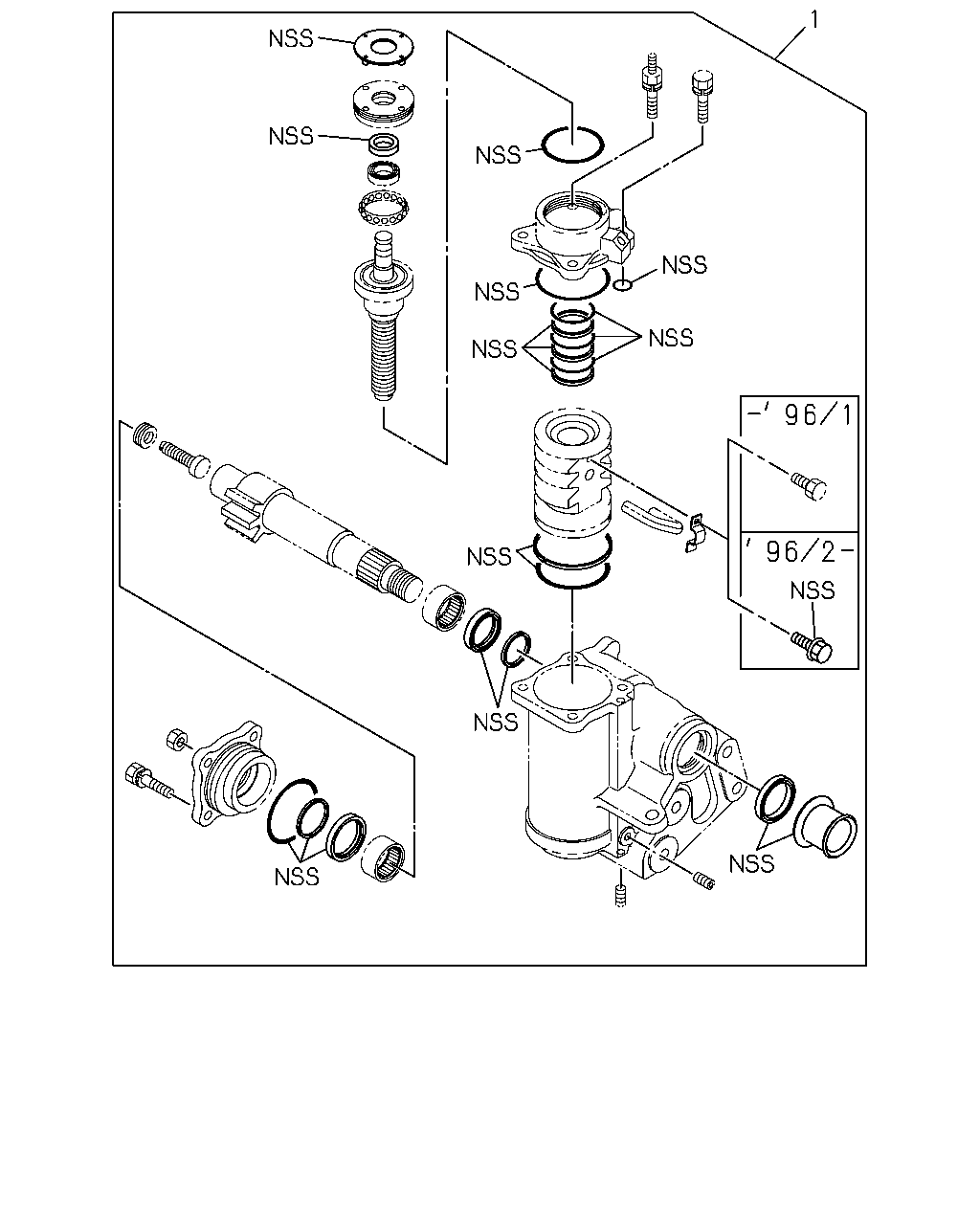

çizim 17797
1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: C = 8-97073-159-2, 97073159 		8-97076-371-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953 		8-97076-871-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97073-158-1, 97073158 		8-97077-538-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: F = 8-97145-739-0, 97145739 		8-97147-041-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: G = 8-97145-740-0, 97145740 		8-97147-042-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: H = 8-97173-570-0, 97173570 		8-97173-572-0 01 1 -

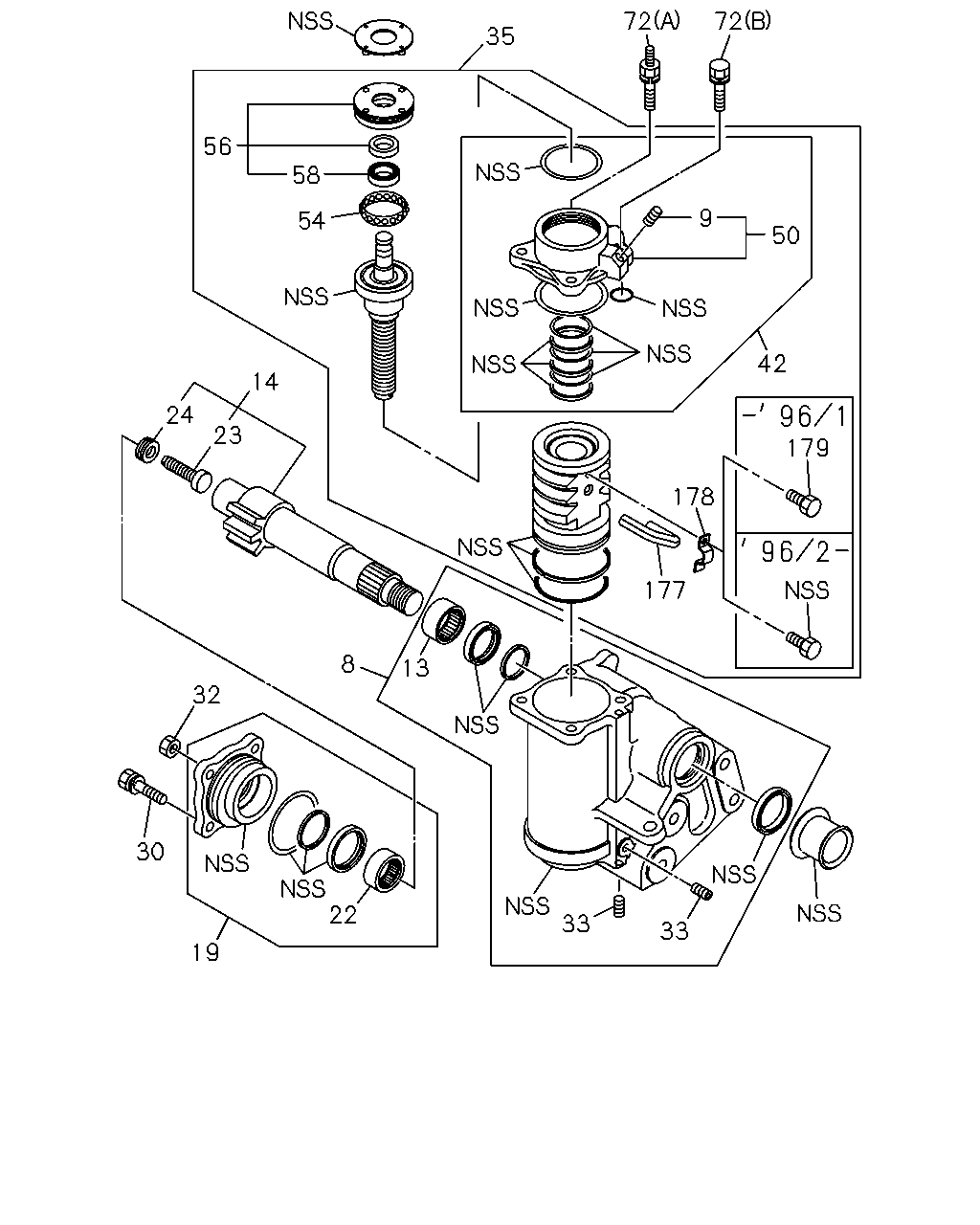

çizim 67469
72 72 35 56 58 9 54 50 42 14 24 23 179 178 177 8 13 32 30 22 33 33 19
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, F = 8-97145-739-0, 97145739 		8-97076-370-1 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: C = 8-97073-159-2, 97073159, G = 8-97145-740-0, 97145740 		8-97076-377-1 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953 		8-97076-876-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		8-97108-214-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: H = 8-97173-570-0, 97173570 		8-97173-575-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		5-09605-020-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-820-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: C = 8-97073-159-2, 97073159, G = 8-97145-740-0, 97145740 		8-97014-828-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: B = 8-97073-158-1, 97073158, F = 8-97145-739-0, 97145739 		8-97076-368-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, F = 8-97145-739-0, 97145739 		8-97076-374-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97073-159-2, 97073159, G = 8-97145-740-0, 97145740 		8-97076-379-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-97076-877-1 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		8-97107-730-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-933-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953 		8-97076-879-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		8-97107-733-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: H = 8-97173-570-0, 97173570 		8-97173-577-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: A = 8-97069-707-0, 97069707 		5-09811-039-0 02 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-839-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-842-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97069-707-0, 97069707 		9-44277-014-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-841-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-97018-931-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
09.181, M10X22 ASM PART: A = 8-97069-707-0, 97069707 		9-01911-022-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-94116-504-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: A = 8-97069-707-0, 97069707 		9-09111-410-0 01 1 -
33 06.806 PLUG; DRAIN,STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-820-0 02 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, F = 8-97145-739-0, 97145739 		8-97076-367-1 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 8-97073-159-2, 97073159, G = 8-97145-740-0, 97145740 		8-97076-375-2 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-97076-870-2 01 1 -
42 06.586 HOUSING & SEAL ASM; STRG UNIT
ASM PART: C = 8-97073-159-2, 97073159, G = 8-97145-740-0, 97145740 		8-97014-822-0 01 1 -
42 06.586 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, F = 8-97145-739-0, 97145739 		8-97076-366-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: C = 8-97073-159-2, 97073159, G = 8-97145-740-0, 97145740 		8-97014-821-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, F = 8-97145-739-0, 97145739 		8-97076-365-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, H = 8-97173-570-0, 97173570 		8-97076-880-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: E = 8-97132-953-0, 97132953 		8-97139-252-0 01 1 -
54 06.835 CASE; BEARING STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-810-0 01 1 -
56 06.560 PLUG & SEAL ASM; STRG UNIT
06.850 ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97076-364-1 01 1 -
58 06.835 BEARING; HSG STRG UNIT
(A) ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-94116-509-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-812-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
(B) ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-97076-865-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
(A), W/WASHER ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-94116-501-0 04 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (A) ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-835-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-836-0 03 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
(B) ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-97018-930-0 01 1 -
177 06.822 TUBE; BALL BRG STRG UNIT
ASM PART: C = 8-97073-159-2, 97073159, G = 8-97145-740-0, 97145740 		8-97014-809-0 02 1 -
177 06.822 TUBE; BALL BRG STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, F = 8-97145-739-0, 97145739 		8-97077-537-0 02 1 -
178 06.822 CLIP; BALL TUBE STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-808-0 01 1 -
179 06.822 SCREW; CLIP STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159 		8-97014-807-0 02 1 -

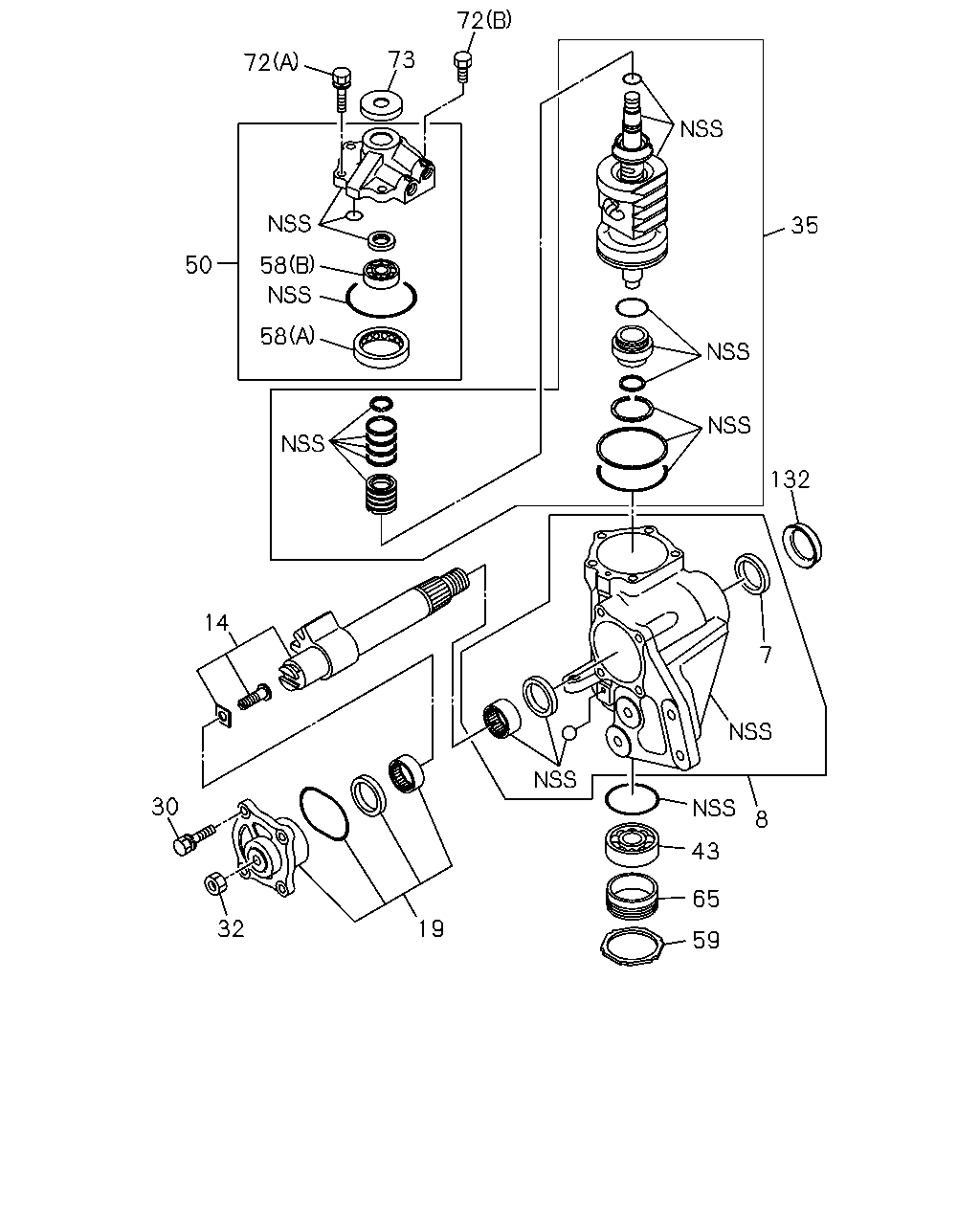

çizim 67774
72 73 72 35 50 58 58 132 14 7 30 8 43 65 32 19 59
BalonParca AdiParca NoAdetTipApplied Date
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-97015-018-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		9-09924-502-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, F = 8-97145-739-0, 97145739 		8-97076-370-1 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: C = 8-97073-159-2, 97073159, G = 8-97145-740-0, 97145740 		8-97076-377-1 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953 		8-97076-876-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		8-97108-214-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: H = 8-97173-570-0, 97173570 		8-97173-575-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, F = 8-97145-739-0, 97145739 		8-97076-374-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97073-159-2, 97073159, G = 8-97145-740-0, 97145740 		8-97076-379-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-97076-877-1 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		8-97107-730-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-933-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953 		8-97076-879-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		8-97107-733-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: H = 8-97173-570-0, 97173570 		8-97173-577-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-97018-931-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
09.181, M10X22 ASM PART: A = 8-97069-707-0, 97069707 		9-01911-022-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-94116-504-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: A = 8-97069-707-0, 97069707 		9-09111-410-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, F = 8-97145-739-0, 97145739 		8-97076-367-1 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 8-97073-159-2, 97073159, G = 8-97145-740-0, 97145740 		8-97076-375-2 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-97076-870-2 01 1 -
43 06.525 BEARING; WORM SHAFT,STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-94116-500-0 01 1 -
43 06.525 BEARING; WORM SHAFT,STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		8-94128-202-0 02 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: C = 8-97073-159-2, 97073159, G = 8-97145-740-0, 97145740 		8-97014-821-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, F = 8-97145-739-0, 97145739 		8-97076-365-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, H = 8-97173-570-0, 97173570 		8-97076-880-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: E = 8-97132-953-0, 97132953 		8-97139-252-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
(A) ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-94116-509-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-812-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
(B) ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-97076-865-0 01 1 -
59 06.521 NUT; COVER STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-94116-505-0 01 1 -
59 06.521 NUT; COVER STRG UNIT
M7.2 ASM PART: A = 8-97069-707-0, 97069707 		8-94128-207-0 01 1 -
65 06.518 COVER; FRT,STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-94116-506-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
(A), W/WASHER ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-94116-501-0 04 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (A) ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-835-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-836-0 03 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
(B) ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-97018-930-0 01 1 -
73 06.840 COVER; DUST,STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-94116-495-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-94116-494-0 01 1 -
çizim 68812
59 66 67 44 43 55 9 43 7 14 22 22 8 30 23 25 32 26 19
BalonParca AdiParca NoAdetTipApplied Date
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-97015-018-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		9-09924-502-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, F = 8-97145-739-0, 97145739 		8-97076-370-1 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: C = 8-97073-159-2, 97073159, G = 8-97145-740-0, 97145740 		8-97076-377-1 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953 		8-97076-876-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		8-97108-214-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: H = 8-97173-570-0, 97173570 		8-97173-575-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		5-09605-020-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-820-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, F = 8-97145-739-0, 97145739 		8-97076-374-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97073-159-2, 97073159, G = 8-97145-740-0, 97145740 		8-97076-379-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-97076-877-1 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		8-97107-730-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-933-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953 		8-97076-879-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		8-97107-733-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: H = 8-97173-570-0, 97173570 		8-97173-577-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: A = 8-97069-707-0, 97069707 		5-09811-039-0 02 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-839-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-842-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97069-707-0, 97069707 		9-44277-014-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.515-1.535 ASM PART: A = 8-97069-707-0, 97069707 		9-44279-008-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.545-1.565 ASM PART: A = 8-97069-707-0, 97069707 		9-44279-009-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.575-1.595 ASM PART: A = 8-97069-707-0, 97069707 		9-44279-010-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.605-1.625 ASM PART: A = 8-97069-707-0, 97069707 		9-44279-011-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.635-1.655 ASM PART: A = 8-97069-707-0, 97069707 		9-44279-012-0 AR 1 -
26 06.521 GASKET; COVER,STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		8-97107-737-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-97018-931-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
09.181, M10X22 ASM PART: A = 8-97069-707-0, 97069707 		9-01911-022-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-94116-504-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: A = 8-97069-707-0, 97069707 		9-09111-410-0 01 1 -
43 06.525 BEARING; WORM SHAFT,STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-94116-500-0 01 1 -
43 06.525 BEARING; WORM SHAFT,STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		8-94128-202-0 02 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.525 ASM PART: A = 8-97069-707-0, 97069707 		5-09625-070-0 01 1 -
55 06.524 WORM & BALL NUT ASM; STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		8-97108-219-0 01 1 -
59 06.521 NUT; COVER STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-94116-505-0 01 1 -
59 06.521 NUT; COVER STRG UNIT
M7.2 ASM PART: A = 8-97069-707-0, 97069707 		8-94128-207-0 01 1 -
66 06.518 COVER; REAR STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		8-97107-735-0 01 1 -
67 06.825 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		8-97107-738-0 01 1 -

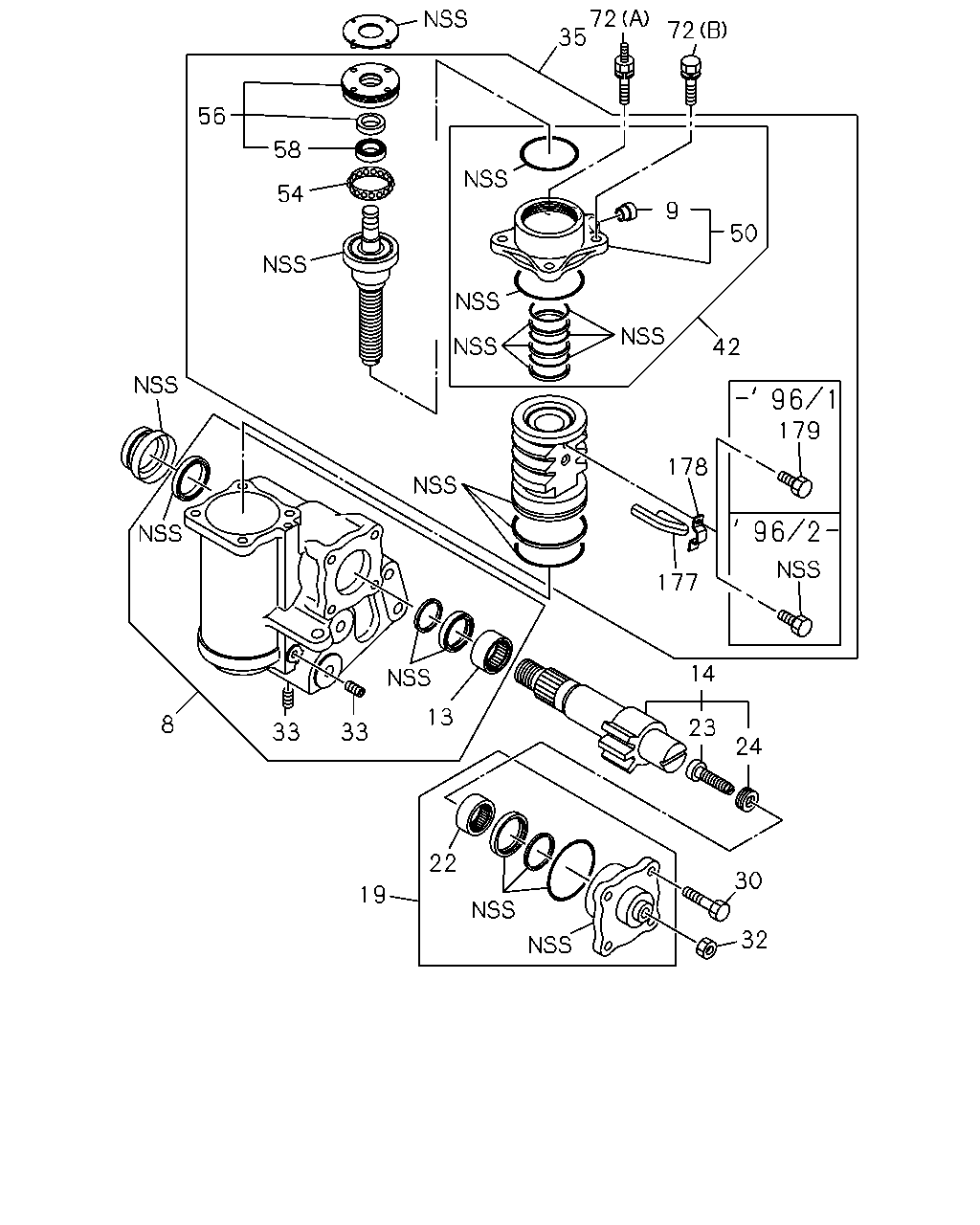

çizim 68822
72 35 72 56 58 54 9 50 42 179 178 177 14 13 8 2 33 33 24 22 30 19 32
BalonParca AdiParca NoAdetTipApplied Date
2 06.507 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953 		8-97076-872-0 01 1 -
2 06.507 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: H = 8-97173-570-0, 97173570 		8-97173-573-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, F = 8-97145-739-0, 97145739 		8-97076-370-1 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: C = 8-97073-159-2, 97073159, G = 8-97145-740-0, 97145740 		8-97076-377-1 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953 		8-97076-876-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		8-97108-214-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: H = 8-97173-570-0, 97173570 		8-97173-575-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		5-09605-020-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-820-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: C = 8-97073-159-2, 97073159, G = 8-97145-740-0, 97145740 		8-97014-828-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: B = 8-97073-158-1, 97073158, F = 8-97145-739-0, 97145739 		8-97076-368-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, F = 8-97145-739-0, 97145739 		8-97076-374-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97073-159-2, 97073159, G = 8-97145-740-0, 97145740 		8-97076-379-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-97076-877-1 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		8-97107-730-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-933-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953 		8-97076-879-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-707-0, 97069707 		8-97107-733-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: H = 8-97173-570-0, 97173570 		8-97173-577-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: A = 8-97069-707-0, 97069707 		5-09811-039-0 02 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-839-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-841-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-97018-931-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
09.181, M10X22 ASM PART: A = 8-97069-707-0, 97069707 		9-01911-022-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-94116-504-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: A = 8-97069-707-0, 97069707 		9-09111-410-0 01 1 -
33 06.806 PLUG; DRAIN,STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-820-0 02 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, F = 8-97145-739-0, 97145739 		8-97076-367-1 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 8-97073-159-2, 97073159, G = 8-97145-740-0, 97145740 		8-97076-375-2 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-97076-870-2 01 1 -
42 06.586 HOUSING & SEAL ASM; STRG UNIT
ASM PART: C = 8-97073-159-2, 97073159, G = 8-97145-740-0, 97145740 		8-97014-822-0 01 1 -
42 06.586 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, F = 8-97145-739-0, 97145739 		8-97076-366-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: C = 8-97073-159-2, 97073159, G = 8-97145-740-0, 97145740 		8-97014-821-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, F = 8-97145-739-0, 97145739 		8-97076-365-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: D = 8-97075-822-2, 97075822, H = 8-97173-570-0, 97173570 		8-97076-880-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: E = 8-97132-953-0, 97132953 		8-97139-252-0 01 1 -
54 06.835 CASE; BEARING STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-810-0 01 1 -
56 06.560 PLUG & SEAL ASM; STRG UNIT
06.850 ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97076-364-1 01 1 -
58 06.835 BEARING; HSG STRG UNIT
(A) ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-94116-509-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-812-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
(B) ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-97076-865-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
(A), W/WASHER ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-94116-501-0 04 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (A) ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-835-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-836-0 03 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
(B) ASM PART: D = 8-97075-822-2, 97075822, E = 8-97132-953-0, 97132953, H = 8-97173-570-0, 97173570 		8-97018-930-0 01 1 -
177 06.822 TUBE; BALL BRG STRG UNIT
ASM PART: C = 8-97073-159-2, 97073159, G = 8-97145-740-0, 97145740 		8-97014-809-0 02 1 -
177 06.822 TUBE; BALL BRG STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, F = 8-97145-739-0, 97145739 		8-97077-537-0 02 1 -
178 06.822 CLIP; BALL TUBE STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159, F = 8-97145-739-0, 97145739, G = 8-97145-740-0, 97145740 		8-97014-808-0 01 1 -
179 06.822 SCREW; CLIP STRG UNIT
ASM PART: B = 8-97073-158-1, 97073158, C = 8-97073-159-2, 97073159 		8-97014-807-0 02 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
