4-36 — POWER STEERING CONTROL; ENGINE SIDE (#47736) — 107 parça

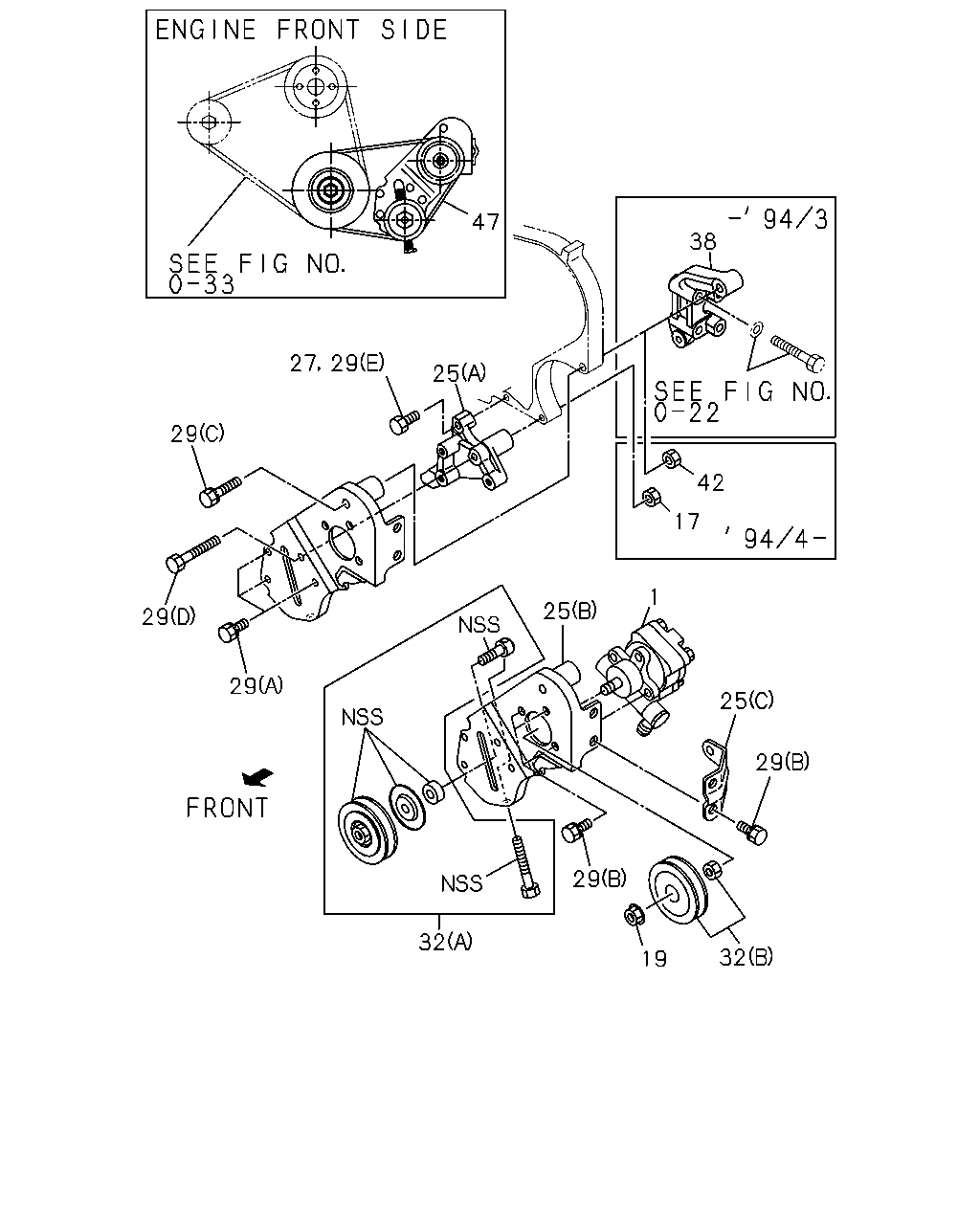

47 38 27 29 25 29 42 17 1 25 29 29 25 29 29 32 32 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JB1 ENG(RLF) POWER STEERING<N40>	8-97084-207-0	01	1	9312-9506	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97084-207-0	01	1	9507-	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4BE1 ENG(RLH) POWER STEERING<N40>	8-97081-999-0	01	1	9312-	●		●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HF1 ENG(RLS) POWER STEERING<N40>	8-97085-127-2	01	1	9312-9410				●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HF1 ENG(RLS) POWER STEERING<N40>	8-97136-573-0	01	1	9411-9510				●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HF1 ENG(RLS) POWER STEERING<N40>	8-97136-573-1	01	1	9511-9711			●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HF1 ENG(RLS) POWER STEERING<N40>	8-97136-573-1	01	1	9712-	●		●	●		●
17	06.606 NUT; POWER STRG PUMP 07.633 M8 FLANGE	0-91150-108-0	01	1	9404-9407	●	●	●	●	●	●
17	06.606 NUT; POWER STRG PUMP 4JB1 ENG(RLF) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	9408-9506	●	●	●	●	●	●
17	06.606 NUT; POWER STRG PUMP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	9507-	●	●	●	●	●	●
19	07.874 NUT; PULLEY,OIL PUMP 4JB1 ENG(RLF) POWER STEERING<N40> 06.606 M12	8-94139-015-0	01	1	9312-9506	●	●	●	●	●	●
19	07.874 NUT; PULLEY,OIL PUMP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 06.606 M12	8-94139-015-0	01	1	9507-	●	●	●	●	●	●
25	06.606 BRACKET; P/S PUMP 4JB1 ENG(RLF) POWER STEERING<N40> (B)	8-97065-974-0	01	1	9312-9506	●	●	●	●	●	●
25	06.606 BRACKET; P/S PUMP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (B)	8-97065-974-0	01	1	9507-	●	●	●	●	●	●
25	06.606 BRACKET; P/S PUMP 4JB1 ENG(RLF) POWER STEERING<N40> (A)	8-97065-975-0	01	1	9312-9405	●	●	●	●	●	●
25	06.606 BRACKET; P/S PUMP 4JB1 ENG(RLF) POWER STEERING<N40> (A)	8-97107-869-0	01	1	9406-9506	●	●	●	●	●	●
25	06.606 BRACKET; P/S PUMP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (A)	8-97107-869-0	01	1	9507-	●	●	●	●	●	●
25	06.606 BRACKET; P/S PUMP 4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-97065-976-0	01	1	9312-9403	●	●	●	●	●	●
25	06.606 BRACKET; P/S PUMP 4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-97107-872-0	01	1	9404-9506	●	●	●	●	●	●
25	06.606 BRACKET; P/S PUMP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-97107-872-0	01	1	9507-	●	●	●	●	●	●
27	06.606 BOLT; BRKT TO BODY 4JB1 ENG(RLF) POWER STEERING<N40> 00.206 M8X65 W/LK WASHER	8-94205-986-1	01	1	9312-9403	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> 04.785 (A) M8X18 W/LK WASHER	0-50040-818-0	03	1	9312-9506	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 04.785 (A) M8X18 W/LK WASHER	0-50040-818-0	03	1	9507-9706	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	9707-	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> 11.377 (B) M10X20 W/LK WASHER	0-50041-020-0	07	1	9312-9403	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> 11.377 (B) M10X20 W/LK WASHER	0-50041-020-0	05	1	9404-9506	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 11.377 (B) M10X20 W/LK WASHER	0-50041-020-0	05	1	9507-9706	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 03.611 (B) M10X20 FLANGE	0-28681-020-0	05	1	9707-	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> (C) M10X123	8-94134-127-1	01	1	9312-9403	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> 06.606 (C) M10X100 W/LK WASHER	0-50041-000-0	01	1	9404-9506	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 06.606 (C) M10X100 W/LK WASHER	0-50041-000-0	01	1	9507-9706	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 09.198 (C) M10X100 FLANGE	0-28081-000-0	01	1	9707-	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> (D) M8X105	8-94134-128-1	01	1	9312-9506	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (D) M8X105	8-94134-128-1	01	1	9507-9510	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> 00.206 (E) M8X65 W/LK WASHER	8-94205-986-1	01	1	9404-9506	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 00.206 (E) M8X65 W/LK WASHER	8-94205-986-1	01	1	9507-9706	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 01.251 (E) M8X60 FLANGE	0-28080-860-0	01	1	9707-	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (D) M8X105	8-94134-128-1	01	1	9511-9706	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 03.278 (D) M8X100 FLANGE	0-28080-800-0	01	1	9707-	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4HF1 ENG(RLS) POWER STEERING<N40> 06.672	8-97029-877-1	01	1	9312-9510				●
29	09.171 BOLT; BRKT,POWER STRG 4HF1 ENG(RLS) POWER STEERING<N40> 06.672	8-97029-877-1	01	1	9511-9710			●	●
29	09.171 BOLT; BRKT,POWER STRG 4HF1 ENG(RLS) 06.672	8-97029-877-1	01	1	9711-9711			●	●
29	09.171 BOLT; BRKT,POWER STRG 4HF1 ENG(RLS) M14X20 FLANGE	0-28881-420-0	01	1	9712-9802	●		●	●		●
29	09.171 BOLT; BRKT,POWER STRG 4HF1 ENG(RLS) POWER STEERING<N40> M14X20 FLANGE	0-28881-420-0	01	1	9803-	●		●	●		●
32	06.665 PULLEY; IDLER,P/S 4JB1 ENG(RLF) POWER STEERING<N40> 06.655 (A)	8-94128-866-0	01	1	9312-9506	●	●	●	●	●	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 06.655 (A)	8-94128-866-0	01	1	9507-	●	●	●	●	●	●
32	06.665 PULLEY; IDLER,P/S 4JB1 ENG(RLF) POWER STEERING<N40> (B)	8-97084-332-0	01	1	9312-9506	●	●	●	●	●	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (B)	8-97084-332-0	01	1	9507-	●	●	●	●	●	●
38	06.606 BRACKET; POWER STRG,ENG FOOT 4JB1 ENG(RLF) POWER STEERING<N40>	8-94141-413-2	01	1	9312-9403	●	●	●	●	●	●
42	06.672 NUT; ADJ PLATE 4JB1 ENG(RLF) POWER STEERING<N40> 04.785 M10 FLANGE	0-91150-110-0	02	1	9404-9404	●	●	●	●	●	●
42	06.672 NUT; ADJ PLATE 4JB1 ENG(RLF) POWER STEERING<N40> 04.785 M10 FLANGE	0-91150-110-0	01	1	9405-9506	●	●	●	●	●	●
42	06.672 NUT; ADJ PLATE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 04.785 M10 FLANGE	0-91150-110-0	01	1	9507-	●	●	●	●	●	●
42	06.672 NUT; ADJ PLATE 4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510				●
42	06.672 NUT; ADJ PLATE 4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711			●	●
42	06.672 NUT; ADJ PLATE 4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●		●	●		●
47	01.066 BELT; P/S PUMP 4JB1 ENG(RLF) POWER STEERING<N40>	8-97085-131-0	01	1	9312-9506	●	●	●	●	●	●
47	01.066 BELT; P/S PUMP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97085-131-0	01	1	9507-	●	●	●	●	●	●

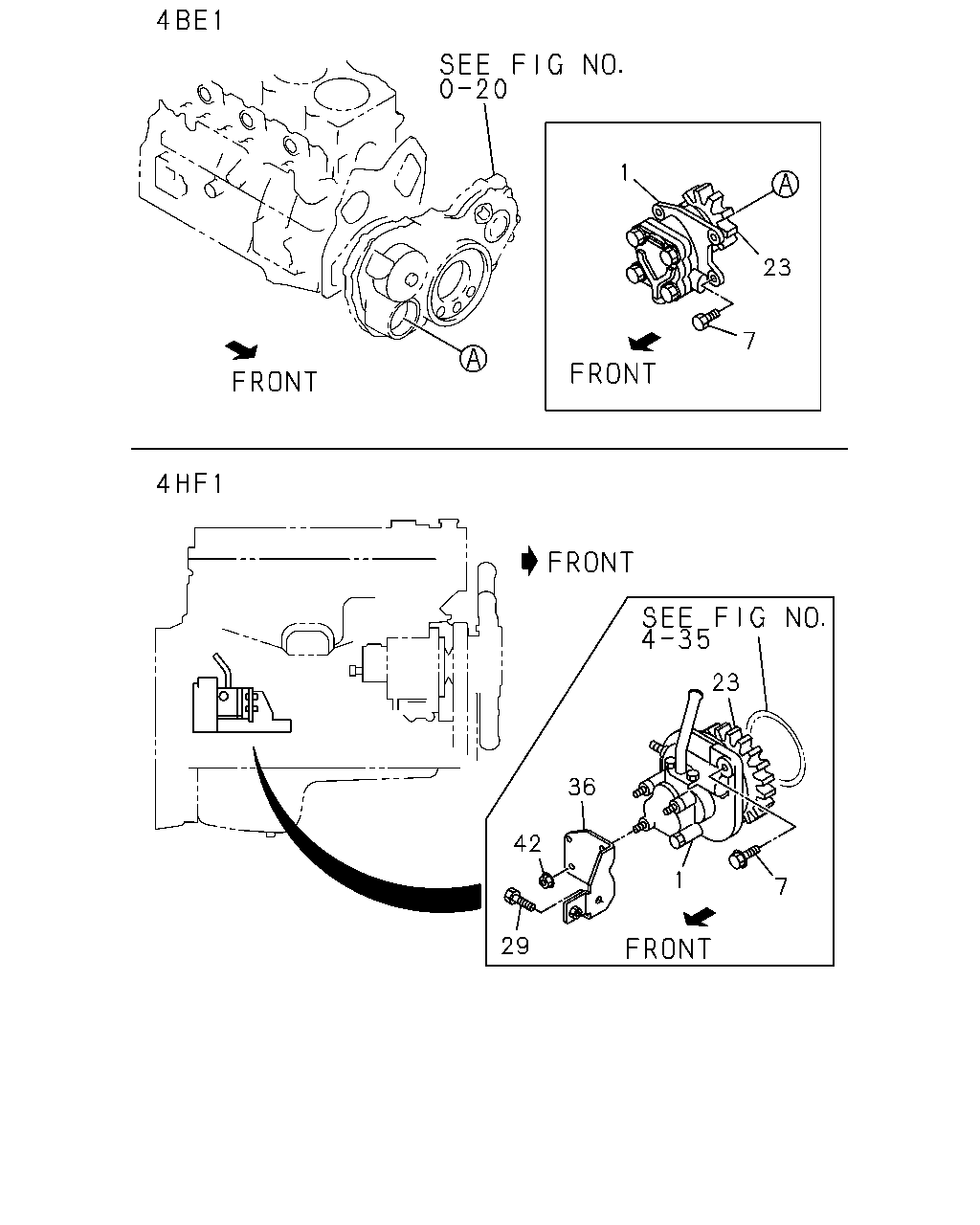

1 23 7 23 36 42 1 7 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JB1 ENG(RLF) POWER STEERING<N40>	8-97084-207-0	01	1	9312-9506	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97084-207-0	01	1	9507-	●	●	●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4BE1 ENG(RLH) POWER STEERING<N40>	8-97081-999-0	01	1	9312-	●		●	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HF1 ENG(RLS) POWER STEERING<N40>	8-97085-127-2	01	1	9312-9410				●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HF1 ENG(RLS) POWER STEERING<N40>	8-97136-573-0	01	1	9411-9510				●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HF1 ENG(RLS) POWER STEERING<N40>	8-97136-573-1	01	1	9511-9711			●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HF1 ENG(RLS) POWER STEERING<N40>	8-97136-573-1	01	1	9712-	●		●	●		●
7	09.181 BOLT; OIL PUMP,P/S 4BE1 ENG(RLH) POWER STEERING<N40> 04.104 M10X60 W/LK WASHER	0-50041-060-0	03	1	9312-	●		●	●	●	●
7	09.181 BOLT; OIL PUMP,P/S 4HF1 ENG(RLS) POWER STEERING<N40> 04.525 M10X25 FLANGE	0-28181-025-0	02	1	9312-9510				●
7	09.181 BOLT; OIL PUMP,P/S 4HF1 ENG(RLS) POWER STEERING<N40> 04.525 M10X25 FLANGE	0-28181-025-0	02	1	9511-9602			●	●
7	09.181 BOLT; OIL PUMP,P/S 4HF1 ENG(RLS) POWER STEERING<N40> 00.685 M10X28 FLANGE	0-28181-028-0	02	1	9603-9711			●	●
7	09.181 BOLT; OIL PUMP,P/S 4HF1 ENG(RLS) POWER STEERING<N40> 00.685 M10X28 FLANGE	0-28181-028-0	02	1	9712-	●		●	●		●
23	06.660 GEAR; OIL PUMP 4BE1 ENG(RLH) POWER STEERING<N40>	5-19581-005-0	01	1	9312-	●		●	●	●	●
23	06.660 GEAR; OIL PUMP 4HF1 ENG(RLS) POWER STEERING<N40>	8-94341-677-2	01	1	9312-9406				●
23	06.660 GEAR; OIL PUMP 4HF1 ENG(RLS) POWER STEERING<N40>	8-97114-550-0	01	1	9503-9510				●
23	06.660 GEAR; OIL PUMP 4HF1 ENG(RLS) POWER STEERING<N40>	8-97114-550-0	01	1	9511-9711			●	●
23	06.660 GEAR; OIL PUMP 4HF1 ENG(RLS) POWER STEERING<N40>	8-97114-550-0	01	1	9712-	●		●	●		●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> 04.785 (A) M8X18 W/LK WASHER	0-50040-818-0	03	1	9312-9506	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 04.785 (A) M8X18 W/LK WASHER	0-50040-818-0	03	1	9507-9706	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	9707-	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> 11.377 (B) M10X20 W/LK WASHER	0-50041-020-0	07	1	9312-9403	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> 11.377 (B) M10X20 W/LK WASHER	0-50041-020-0	05	1	9404-9506	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 11.377 (B) M10X20 W/LK WASHER	0-50041-020-0	05	1	9507-9706	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 03.611 (B) M10X20 FLANGE	0-28681-020-0	05	1	9707-	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> (C) M10X123	8-94134-127-1	01	1	9312-9403	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> 06.606 (C) M10X100 W/LK WASHER	0-50041-000-0	01	1	9404-9506	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 06.606 (C) M10X100 W/LK WASHER	0-50041-000-0	01	1	9507-9706	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 09.198 (C) M10X100 FLANGE	0-28081-000-0	01	1	9707-	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> (D) M8X105	8-94134-128-1	01	1	9312-9506	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (D) M8X105	8-94134-128-1	01	1	9507-9510	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) POWER STEERING<N40> 00.206 (E) M8X65 W/LK WASHER	8-94205-986-1	01	1	9404-9506	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 00.206 (E) M8X65 W/LK WASHER	8-94205-986-1	01	1	9507-9706	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 01.251 (E) M8X60 FLANGE	0-28080-860-0	01	1	9707-	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (D) M8X105	8-94134-128-1	01	1	9511-9706	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 03.278 (D) M8X100 FLANGE	0-28080-800-0	01	1	9707-	●	●	●	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 4HF1 ENG(RLS) POWER STEERING<N40> 06.672	8-97029-877-1	01	1	9312-9510				●
29	09.171 BOLT; BRKT,POWER STRG 4HF1 ENG(RLS) POWER STEERING<N40> 06.672	8-97029-877-1	01	1	9511-9710			●	●
29	09.171 BOLT; BRKT,POWER STRG 4HF1 ENG(RLS) 06.672	8-97029-877-1	01	1	9711-9711			●	●
29	09.171 BOLT; BRKT,POWER STRG 4HF1 ENG(RLS) M14X20 FLANGE	0-28881-420-0	01	1	9712-9802	●		●	●		●
29	09.171 BOLT; BRKT,POWER STRG 4HF1 ENG(RLS) POWER STEERING<N40> M14X20 FLANGE	0-28881-420-0	01	1	9803-	●		●	●		●
36	06.606 BRACKET; PLATE,P/S PUMP 4HF1 ENG(RLS) POWER STEERING<N40>	8-97028-812-0	01	1	9312-9510				●
36	06.606 BRACKET; PLATE,P/S PUMP 4HF1 ENG(RLS) POWER STEERING<N40>	8-97119-857-1	01	1	9511-9711			●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4HF1 ENG(RLS) POWER STEERING<N40>	8-97119-857-1	01	1	9712-9805	●		●	●		●
36	06.606 BRACKET; PLATE,P/S PUMP 4HF1 ENG(RLS) POWER STEERING<N40>	8-97209-356-0	01	1	9806-	●		●	●		●
42	06.672 NUT; ADJ PLATE 4JB1 ENG(RLF) POWER STEERING<N40> 04.785 M10 FLANGE	0-91150-110-0	02	1	9404-9404	●	●	●	●	●	●
42	06.672 NUT; ADJ PLATE 4JB1 ENG(RLF) POWER STEERING<N40> 04.785 M10 FLANGE	0-91150-110-0	01	1	9405-9506	●	●	●	●	●	●
42	06.672 NUT; ADJ PLATE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 04.785 M10 FLANGE	0-91150-110-0	01	1	9507-	●	●	●	●	●	●
42	06.672 NUT; ADJ PLATE 4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510				●
42	06.672 NUT; ADJ PLATE 4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711			●	●
42	06.672 NUT; ADJ PLATE 4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●		●	●		●
