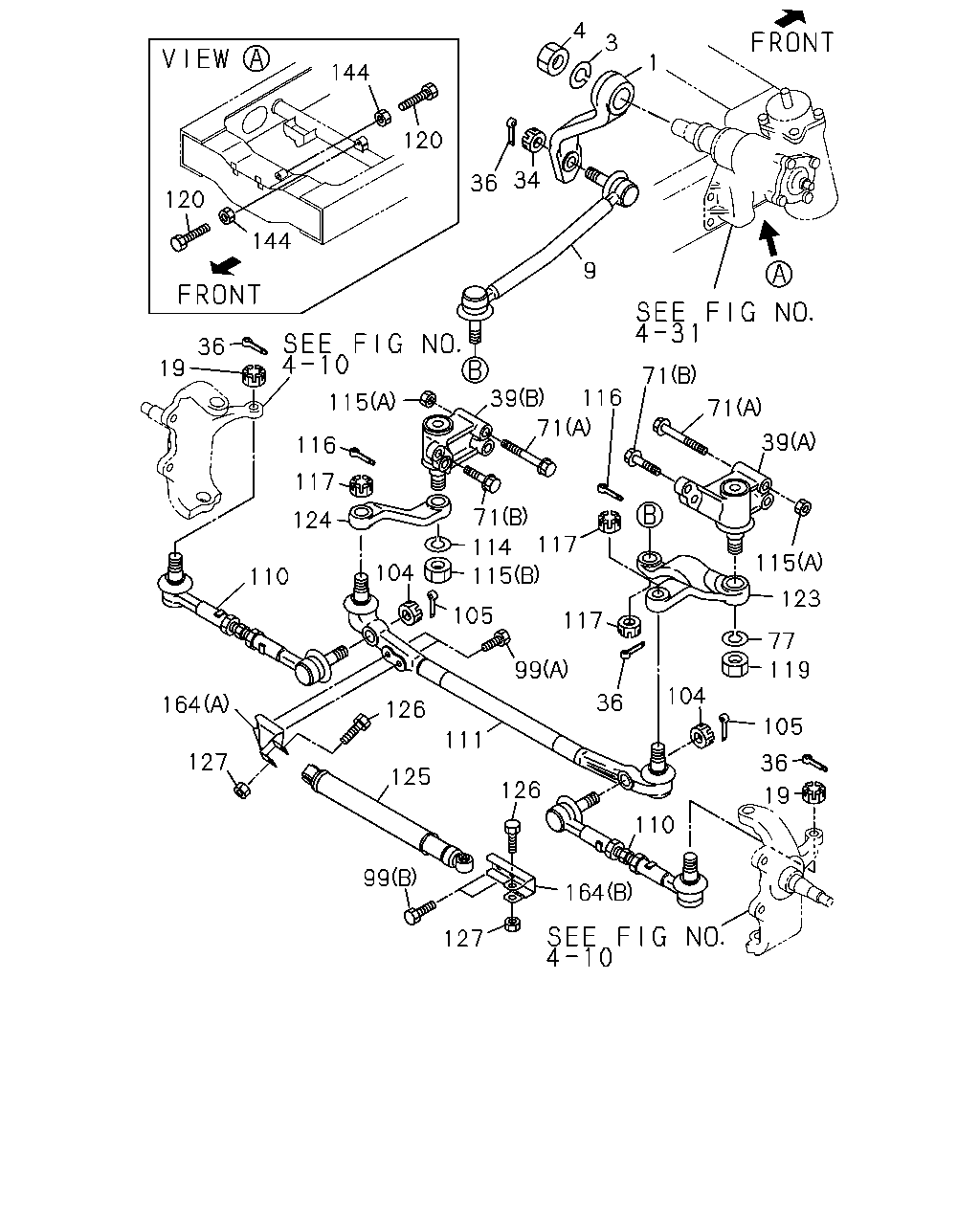

1 |
06.859 ARM; PITMAN,STRG
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97032-929-0 |
01 |
1 |
9312-9503 |
● |
● |
● |
● |
● |
● |
| |
1 |
06.859 ARM; PITMAN,STRG
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97109-289-1 |
01 |
1 |
9504- |
● |
● |
● |
● |
● |
● |
| |
1 |
06.859 ARM; PITMAN,STRG
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97070-362-1 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
1 |
06.859 ARM; PITMAN,STRG
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97070-362-2 |
01 |
1 |
9511- |
● |
|
|
|
|
|
| |
3 |
06.861 WASHER; LK,PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(6PP)
ID=22.5
|
9-09150-522-0 |
01 |
1 |
9312- |
● |
● |
● |
● |
● |
● |
| |
3 |
06.861 WASHER; LK,PITMAN ARM
FRT INDEPENDENT SUSPENSION(6PP)
08.931
ID=27.5
|
9-09150-527-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
3 |
06.861 WASHER; LK,PITMAN ARM
FRT INDEPENDENT SUSPENSION(6PP)
08.931
ID=27.5
|
9-09150-527-0 |
01 |
1 |
9511- |
● |
|
|
|
|
|
| |
4 |
06.861 NUT; PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(A)
M18 SLOTTED
|
8-97017-761-0 |
01 |
1 |
9312- |
● |
● |
● |
● |
● |
● |
| |
4 |
06.861 NUT; PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(6PP)
08.915
(B)
M22
|
9-09111-522-0 |
01 |
1 |
9312- |
● |
● |
● |
● |
● |
● |
| |
4 |
06.861 NUT; PITMAN ARM
FRT INDEPENDENT SUSPENSION(6PP)
M27
|
5-12378-002-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
4 |
06.861 NUT; PITMAN ARM
FRT INDEPENDENT SUSPENSION(6PP)
M27
|
5-12378-002-0 |
01 |
1 |
9511- |
● |
|
|
|
|
|
| |
9 |
06.870 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97107-332-1 |
01 |
1 |
9312-9711 |
● |
● |
● |
● |
● |
● |
| |
9 |
06.870 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97142-099-0 |
01 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
| |
9 |
06.870 LINK; DRAG
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97107-323-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
9 |
06.870 LINK; DRAG
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97107-323-0 |
01 |
1 |
9511- |
● |
|
|
|
|
|
| |
19 |
06.865 NUT; PITMAN ARM,STOPPER
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97017-762-0 |
02 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
19 |
06.865 NUT; PITMAN ARM,STOPPER
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97017-762-0 |
02 |
1 |
9511- |
● |
|
|
|
|
|
| |
34 |
06.233 NUT; DRAG LINK TO PITMAN ARM
FRT INDEPENDENT SUSPENSION(6PP)
06.861
M18 SLOTTED
|
8-97017-761-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
34 |
06.233 NUT; DRAG LINK TO PITMAN ARM
FRT INDEPENDENT SUSPENSION(6PP)
06.861
M18 SLOTTED
|
8-97017-761-0 |
01 |
1 |
9511- |
● |
|
|
|
|
|
| |
36 |
06.881 PIN; SPLIT,DRAG LINK
09.023
OD=3.7 L=30
|
9-08114-030-0 |
01 |
1 |
9312- |
● |
● |
● |
● |
● |
● |
| |
36 |
06.881 PIN; SPLIT,DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP)
09.023
OD=3.7 L=30
|
9-08114-030-0 |
03 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
36 |
06.881 PIN; SPLIT,DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP)
09.023
OD=3.7 L=30
|
9-08114-030-0 |
03 |
1 |
9511- |
● |
|
|
|
|
|
| |
39 |
06.896 LEVER ASM; RELAY,STRG LINKAGE
FRT INDEPENDENT SUSPENSION(6PP)
(B)
|
8-97107-325-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
39 |
06.896 LEVER ASM; RELAY,STRG LINKAGE
FRT INDEPENDENT SUSPENSION(6PP)
(B)
|
8-97107-325-0 |
01 |
1 |
9511-9712 |
● |
|
|
|
|
|
| |
39 |
06.896 LEVER ASM; RELAY,STRG LINKAGE
FRT INDEPENDENT SUSPENSION(6PP)
(B)
|
8-97189-457-0 |
01 |
1 |
9801- |
● |
|
|
|
|
|
| |
39 |
06.896 LEVER ASM; RELAY,STRG LINKAGE
FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
8-97107-324-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
39 |
06.896 LEVER ASM; RELAY,STRG LINKAGE
FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
8-97107-324-0 |
01 |
1 |
9511-9712 |
● |
|
|
|
|
|
| |
39 |
06.896 LEVER ASM; RELAY,STRG LINKAGE
FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
8-97189-455-0 |
01 |
1 |
9801- |
● |
|
|
|
|
|
| |
71 |
06.896 BOLT; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP)
EXC. KD PREPARATORY PACK<6HF>
(A)
M12X93.5
|
8-97085-383-0 |
04 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
71 |
06.896 BOLT; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP)
EXC. KD PREPARATORY PACK<6HF>
(A)
M12X93.5
|
8-97085-383-0 |
04 |
1 |
9511- |
● |
|
|
|
|
|
| |
71 |
06.896 BOLT; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP)
EXC. KD PREPARATORY PACK<6HF>
(B)
M12X43.5
|
8-97085-384-0 |
04 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
71 |
06.896 BOLT; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP)
EXC. KD PREPARATORY PACK<6HF>
(B)
M12X43.5
|
8-97085-384-0 |
04 |
1 |
9511- |
● |
|
|
|
|
|
| |
71 |
06.896 BOLT; RELAY LEVER BRKT
KD PREPARATORY PACK<6HF>
FRT INDEPENDENT SUSPENSION(6PP)
07.172
(A)
M12X90
|
0-10811-290-0 |
04 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
71 |
06.896 BOLT; RELAY LEVER BRKT
KD PREPARATORY PACK<6HF>
FRT INDEPENDENT SUSPENSION(6PP)
07.172
(A)
M12X90
|
0-10811-290-0 |
04 |
1 |
9511-9711 |
● |
|
|
|
|
|
| |
71 |
06.896 BOLT; RELAY LEVER BRKT
KD PREPARATORY PACK<6HF>
FRT INDEPENDENT SUSPENSION(6PP)
00.780
(A)
M12X90
|
0-28081-290-0 |
04 |
1 |
9712- |
● |
|
|
|
|
|
| |
71 |
06.896 BOLT; RELAY LEVER BRKT
KD PREPARATORY PACK<6HF>
FRT INDEPENDENT SUSPENSION(6PP)
03.890
(B)
M12X40
|
9-92061-240-0 |
04 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
71 |
06.896 BOLT; RELAY LEVER BRKT
KD PREPARATORY PACK<6HF>
FRT INDEPENDENT SUSPENSION(6PP)
03.890
(B)
M12X40
|
9-92061-240-0 |
04 |
1 |
9511- |
● |
|
|
|
|
|
| |
77 |
06.897 WASHER; LK,RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP)
08.931
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
77 |
06.897 WASHER; LK,RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP)
08.931
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9511- |
● |
|
|
|
|
|
| |
99 |
06.896 BOLT; BRKT
SHIMMY DAMPER<S3V>
FRT INDEPENDENT SUSPENSION(6PP)
09.008
(B)
M10X20 FLANGE
|
0-28081-020-0 |
02 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
99 |
06.896 BOLT; BRKT
SHIMMY DAMPER<S3V>
FRT INDEPENDENT SUSPENSION(6PP)
09.008
(B)
M10X20 FLANGE
|
0-28081-020-0 |
02 |
1 |
9511-9704 |
● |
|
|
|
|
|
| |
99 |
06.896 BOLT; BRKT
SHIMMY DAMPER<S3V>
FRT INDEPENDENT SUSPENSION(6PP)
03.611
(B)
M10X20 FLANGE
|
0-28681-020-0 |
02 |
1 |
9705- |
● |
|
|
|
|
|
| |
99 |
06.896 BOLT; BRKT
SHIMMY DAMPER<S3V>
FRT INDEPENDENT SUSPENSION(6PP)
00.685
(A)
M10X50 FLANGE
|
0-28081-050-0 |
02 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
99 |
06.896 BOLT; BRKT
SHIMMY DAMPER<S3V>
FRT INDEPENDENT SUSPENSION(6PP)
00.685
(A)
M10X50 FLANGE
|
0-28081-050-0 |
02 |
1 |
9511- |
● |
|
|
|
|
|
| |
104 |
06.233 NUT; ROD END
FRT INDEPENDENT SUSPENSION(6PP)
06.234
M16 SLOTTED
|
1-09442-021-1 |
02 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
104 |
06.233 NUT; ROD END
FRT INDEPENDENT SUSPENSION(6PP)
06.234
M16 SLOTTED
|
1-09442-021-1 |
02 |
1 |
9511- |
● |
|
|
|
|
|
| |
105 |
06.865 PIN; SPLIT,ROD END
FRT INDEPENDENT SUSPENSION(6PP)
06.022
OD=3.7 L=25
|
9-08114-025-0 |
02 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
105 |
06.865 PIN; SPLIT,ROD END
FRT INDEPENDENT SUSPENSION(6PP)
06.022
OD=3.7 L=25
|
9-08114-025-0 |
02 |
1 |
9511- |
● |
|
|
|
|
|
| |
110 |
06.870 ROD; TRACK,OUTER
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97107-318-0 |
02 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
110 |
06.870 ROD; TRACK,OUTER
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97107-318-0 |
02 |
1 |
9511- |
● |
|
|
|
|
|
| |
111 |
06.870 ROD; TRACK,CENTER
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97107-321-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
111 |
06.870 ROD; TRACK,CENTER
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97107-321-0 |
01 |
1 |
9511- |
● |
|
|
|
|
|
| |
114 |
06.515 WASHER; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP)
08.931
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
114 |
06.515 WASHER; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP)
08.931
ID=20.2
|
9-09150-520-0 |
01 |
1 |
9511- |
● |
|
|
|
|
|
| |
115 |
06.896 NUT; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP)
06.606
(A)
M12
|
8-94139-015-0 |
08 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
115 |
06.896 NUT; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP)
06.606
(A)
M12
|
8-94139-015-0 |
08 |
1 |
9511- |
● |
|
|
|
|
|
| |
115 |
06.896 NUT; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP)
08.915
(B)
M20
|
9-99111-520-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
115 |
06.896 NUT; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP)
08.915
(B)
M20
|
9-99111-520-0 |
01 |
1 |
9511- |
● |
|
|
|
|
|
| |
116 |
06.897 PIN; SPLIT,TRACK ROD,CENTER
09.023
OD=3.7 L=30
|
9-08114-030-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
| |
116 |
06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP)
09.023
OD=3.7 L=30
|
9-08114-030-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
116 |
06.897 PIN; SPLIT,TRACK ROD,CENTER
09.023
OD=3.7 L=30
|
9-08114-030-0 |
01 |
1 |
9511- |
● |
● |
● |
● |
● |
● |
| |
116 |
06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP)
09.023
OD=3.7 L=30
|
9-08114-030-0 |
01 |
1 |
9511- |
● |
|
|
|
|
|
| |
117 |
06.233 NUT; DRAG LINK
06.861
M18 SLOTTED
|
8-97017-761-0 |
01 |
1 |
9312- |
● |
● |
● |
● |
● |
● |
| |
117 |
06.233 NUT; DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP)
06.861
M18 SLOTTED
|
8-97017-761-0 |
02 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
117 |
06.233 NUT; DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP)
06.861
M18 SLOTTED
|
8-97017-761-0 |
02 |
1 |
9511- |
● |
|
|
|
|
|
| |
119 |
06.897 NUT; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP)
08.915
M20
|
9-99111-520-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
119 |
06.897 NUT; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP)
08.915
M20
|
9-99111-520-0 |
01 |
1 |
9511- |
● |
|
|
|
|
|
| |
120 |
06.897 BOLT; RELAY LEVER STOPPER
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97014-919-0 |
02 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
120 |
06.897 BOLT; RELAY LEVER STOPPER
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97014-919-0 |
02 |
1 |
9511- |
● |
|
|
|
|
|
| |
123 |
06.895 LEVER; RELAY,RH
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97031-398-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
123 |
06.895 LEVER; RELAY,RH
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97031-398-0 |
01 |
1 |
9511- |
● |
|
|
|
|
|
| |
124 |
06.859 LEVER; RELAY,STRG LINKAGE
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97036-547-1 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
124 |
06.859 LEVER; RELAY,STRG LINKAGE
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97036-547-1 |
01 |
1 |
9511- |
● |
|
|
|
|
|
| |
125 |
06.865 DAMPER; STEERING
SHIMMY DAMPER<S3V>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97012-618-1 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
125 |
06.865 DAMPER; STEERING
SHIMMY DAMPER<S3V>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97012-618-2 |
01 |
1 |
9511- |
● |
|
|
|
|
|
| |
126 |
06.865 BOLT; STRG DAMPER TO RELAY LEVER
SHIMMY DAMPER<S3V>
FRT INDEPENDENT SUSPENSION(6PP)
00.685
M10X45 FLANGE
|
0-28081-045-0 |
02 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
126 |
06.865 BOLT; STRG DAMPER TO RELAY LEVER
SHIMMY DAMPER<S3V>
FRT INDEPENDENT SUSPENSION(6PP)
00.685
M10X45 FLANGE
|
0-28081-045-0 |
02 |
1 |
9511- |
● |
|
|
|
|
|
| |
127 |
06.865 NUT; STRG DAMPER
SHIMMY DAMPER<S3V>
FRT INDEPENDENT SUSPENSION(6PP)
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
127 |
06.865 NUT; STRG DAMPER
SHIMMY DAMPER<S3V>
FRT INDEPENDENT SUSPENSION(6PP)
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9511- |
● |
|
|
|
|
|
| |
144 |
06.896 NUT; STOPPER BRKT
FRT INDEPENDENT SUSPENSION(6PP)
05.816
M12
|
9-99110-412-0 |
02 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
144 |
06.896 NUT; STOPPER BRKT
FRT INDEPENDENT SUSPENSION(6PP)
05.816
M12
|
9-99110-412-0 |
02 |
1 |
9511- |
● |
|
|
|
|
|
| |
164 |
06.896 BRACKET; STEERING DAMPER
SHIMMY DAMPER<S3V>
FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
8-97012-595-2 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
164 |
06.896 BRACKET; STEERING DAMPER
SHIMMY DAMPER<S3V>
FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
8-97012-595-2 |
01 |
1 |
9511- |
● |
|
|
|
|
|
| |
164 |
06.896 BRACKET; STEERING DAMPER
SHIMMY DAMPER<S3V>
FRT INDEPENDENT SUSPENSION(6PP)
(B)
|
8-97025-765-1 |
01 |
1 |
9312-9510 |
● |
|
|
|
|
● |
| |
164 |
06.896 BRACKET; STEERING DAMPER
SHIMMY DAMPER<S3V>
FRT INDEPENDENT SUSPENSION(6PP)
(B)
|
8-97025-765-1 |
01 |
1 |
9511- |
● |
|
|
|
|
|
