◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#47730) — 64 parça
çizim 11454
1 7 86 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-369-1 01 1 0211- ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-450-1 01 1 0211- ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-109-2 01 1 0211- ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-868-0 01 1 0211- ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-873-0 01 1 0211- ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-871-0 01 1 0211- ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-266-5 01 1 0211-0501 ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55> 		8-97851-266-7 01 1 0502-0506 ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-266-7 01 1 0507- ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-451-5 01 1 0211-0501 ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-378-5 01 1 0211-0501 ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-378-7 01 1 0502- ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-930-0 01 1 0211-0501 ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-930-2 01 1 0502- ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-934-0 01 1 0211-0501 ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-934-2 01 1 0502-0506 ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-934-2 01 1 0507- ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-932-0 01 1 0211-0501 ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-451-7 01 1 0507- ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-932-2 01 1 0507- ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97892-141-1 01 1 0211-0405 ● ● ● ● ● ●
80 16.585 PANEL; HEADER,ROOF 8-97583-505-0 01 1 0406-0501 ● ● ● ● ● ●
80 16.585 PANEL; HEADER,ROOF 8-97583-505-0 01 1 0502- ● ● ● ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 0211-0405 ● ● ● ● ● ●

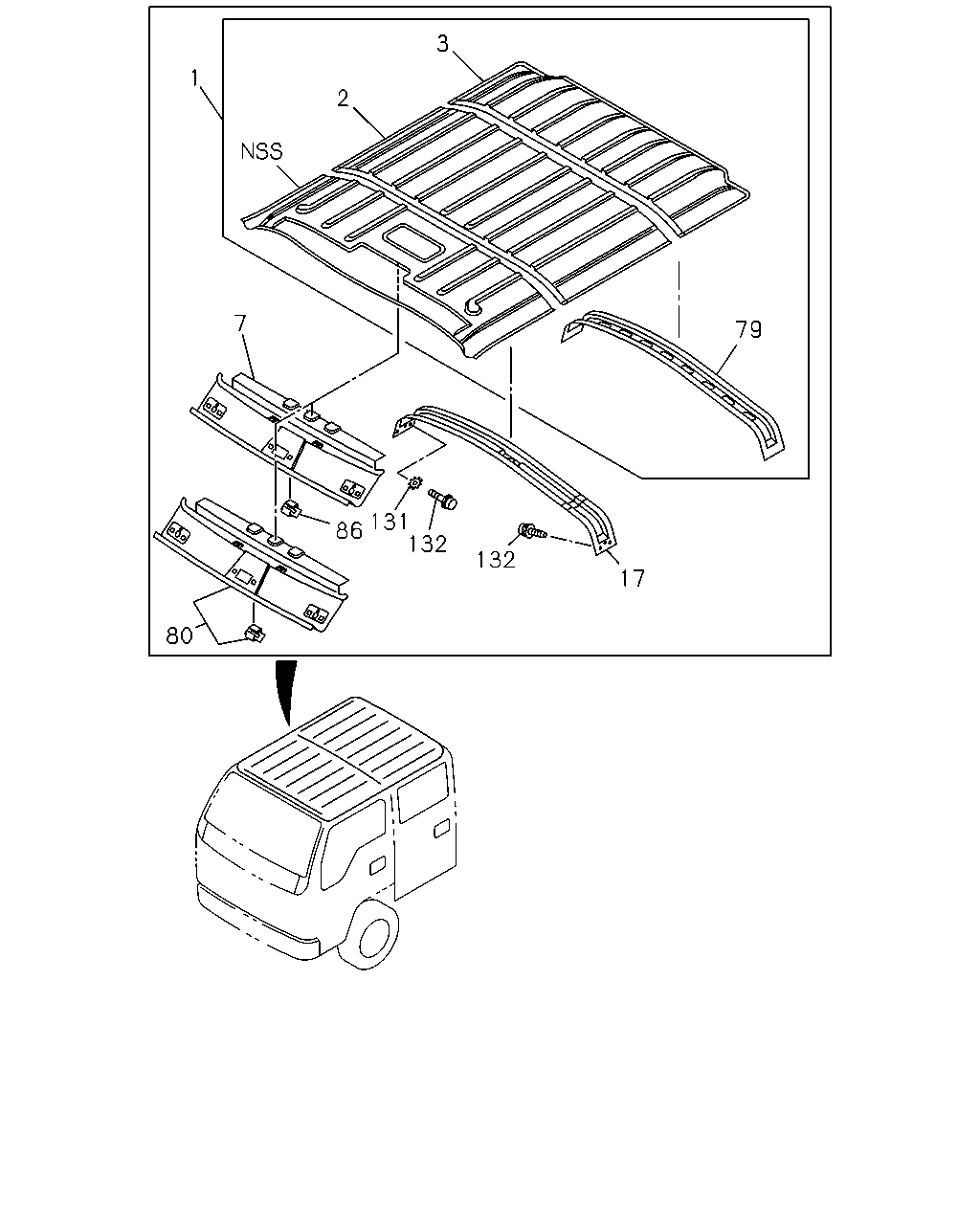

çizim 53052
3 1 2 7 79 131 86 132 132 17 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-369-1 01 1 0211- ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-450-1 01 1 0211- ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-109-2 01 1 0211- ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-868-0 01 1 0211- ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-873-0 01 1 0211- ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-871-0 01 1 0211- ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-266-5 01 1 0211-0501 ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55> 		8-97851-266-7 01 1 0502-0506 ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-266-7 01 1 0507- ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-451-5 01 1 0211-0501 ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-378-5 01 1 0211-0501 ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-378-7 01 1 0502- ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-930-0 01 1 0211-0501 ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-930-2 01 1 0502- ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-934-0 01 1 0211-0501 ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-934-2 01 1 0502-0506 ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-934-2 01 1 0507- ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-932-0 01 1 0211-0501 ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-451-7 01 1 0507- ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-932-2 01 1 0507- ●
2 16.585 PANEL; ROOF,CENTER 8-97851-264-2 01 1 0211-0501 ● ●
2 16.585 PANEL; ROOF,CENTER 8-97851-264-3 01 1 0502- ●
3 16.585 PANEL; ROOF,RR
IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-265-4 01 1 0211-0501 ● ●
3 16.585 PANEL; ROOF,RR
IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-265-4 01 1 0502- ●
3 16.585 PANEL; ROOF,RR
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-942-0 01 1 0211-0501 ● ●
3 16.585 PANEL; ROOF,RR
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-942-0 01 1 0502- ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97892-141-1 01 1 0211-0405 ● ● ● ● ● ●
17 16.570 REINFORCEMENT; ROOF PNL CENTER 8-97853-628-2 01 1 0211-0501 ● ●
17 16.570 REINFORCEMENT; ROOF PNL CENTER 8-97853-628-2 01 1 0502- ●
79 16.570 REINFORCEMENT; ROOF PANEL,RR 8-97851-410-0 01 1 0211-0501 ● ●
79 16.570 REINFORCEMENT; ROOF PANEL,RR 8-97851-410-0 01 1 0502- ●
80 16.585 PANEL; HEADER,ROOF 8-97583-505-0 01 1 0406-0501 ● ● ● ● ● ●
80 16.585 PANEL; HEADER,ROOF 8-97583-505-0 01 1 0502- ● ● ● ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 0211-0405 ● ● ● ● ● ●
131 16.585 WASHER; LOCK,ROOF REINF
00.002 ID=6.4 TOOTH LK INT-EXT 		9-09152-206-0 01 1 0211-0501 ● ●
131 16.585 WASHER; LOCK,ROOF REINF
00.002 ID=6.4 TOOTH LK INT-EXT 		9-09152-206-0 01 1 0502-0603 ●
131 16.585 WASHER; LOCK,ROOF REINF
ID=6.4 TOOTH LK INT-EXT 		0-91542-206-0 01 1 0604- ●
132 16.585 FASTENER; HEADER SHELF
16.742 		8-97892-737-0 04 1 0211-0501 ● ●
132 16.585 FASTENER; HEADER SHELF
16.742 		8-97892-737-0 04 1 0502-0612 ●
132 16.585 FASTENER; HEADER SHELF
16.742 M6X16 W/TORQUES 		8-98064-273-0 04 1 0701- ●
