6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#47718) — 90 parça

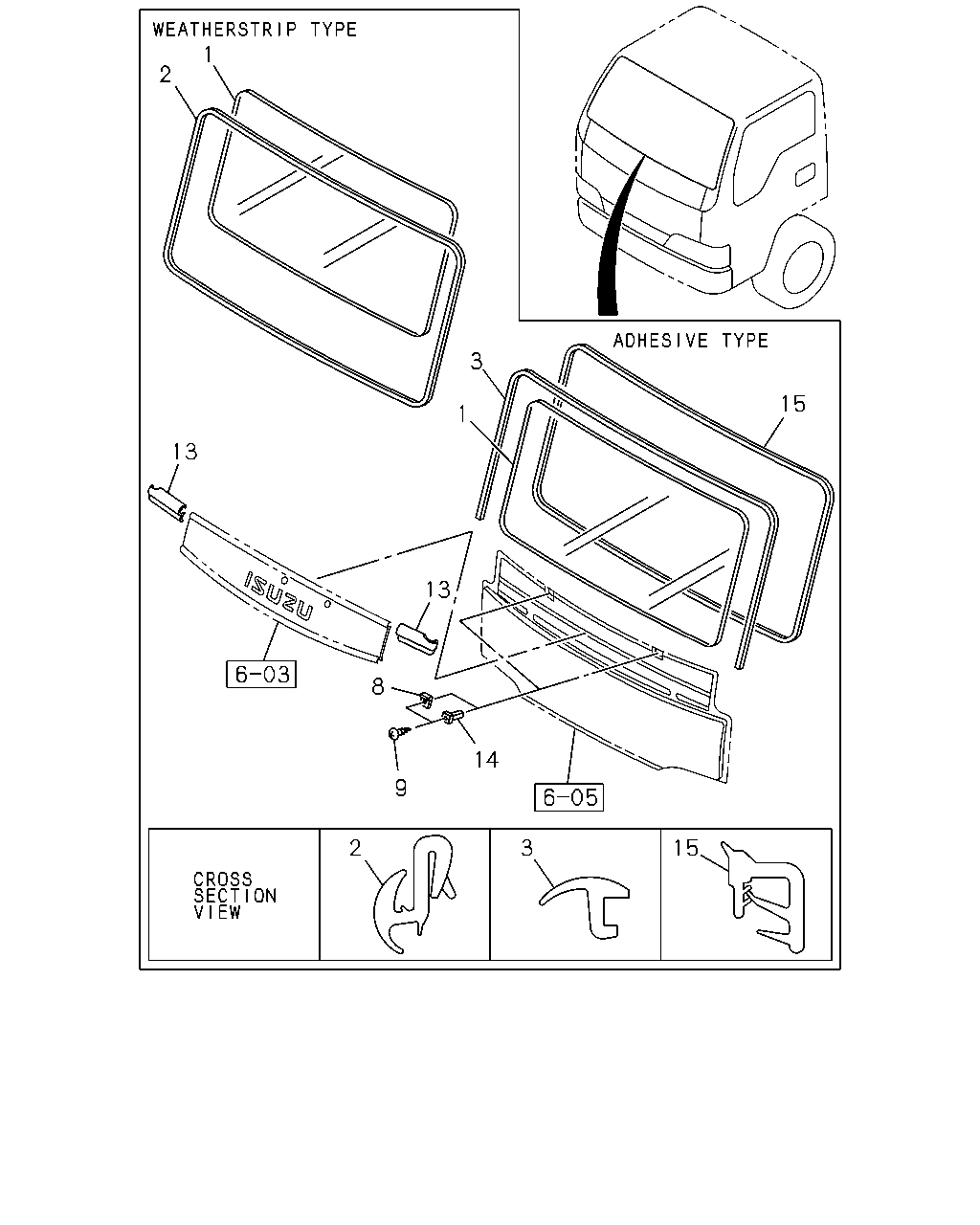

çizim 49736
1 2 3 15 1 13 13 8 14 9 2 3 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.005 GLASS; WINDSHIELD
INDONESIA EQUIPMENT(S4S) 		8-97117-890-0 01 1 0211- ● ●
1 16.005 GLASS; WINDSHIELD
EXC. INDONESIA EQUIPMENT(S4S) 		8-97869-124-0 01 1 0211-0501 ● ●
1 16.005 GLASS; WINDSHIELD 8-97869-124-0 01 1 0211-0501 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. INDONESIA EQUIPMENT(S4S) 		8-97869-124-0 01 1 0502-0805 ●
1 16.005 GLASS; WINDSHIELD
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97869-124-0 01 1 0502-0805 ●
1 16.005 GLASS; WINDSHIELD
EXC. HONG KONG EQUIPMENT(PQ1), INDONESIA EQUIPMENT(S4S) 		8-97869-124-0 01 1 0502-0805 ●
1 16.005 GLASS; WINDSHIELD 8-97869-124-0 01 1 0502-0805 ● ●
1 16.005 GLASS; WINDSHIELD
EXC. INDONESIA EQUIPMENT(S4S) 		8-97997-944-1 01 1 0806- ●
1 16.005 GLASS; WINDSHIELD
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97997-944-1 01 1 0806- ●
1 16.005 GLASS; WINDSHIELD
EXC. HONG KONG EQUIPMENT(PQ1), INDONESIA EQUIPMENT(S4S) 		8-97997-944-1 01 1 0806- ●
1 16.005 GLASS; WINDSHIELD 8-97997-944-1 01 1 0806- ● ●
1 16.005 GLASS; WINDSHIELD
HONG KONG EQUIPMENT(PQ1) 		8-97869-123-1 01 1 0502- ● ●
2 16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97856-351-3 01 1 0211-0501 ● ● ● ● ● ●
2 16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97856-351-4 01 1 0502- ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97890-214-2 01 1 0211-0501 ● ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD
INDONESIA EQUIPMENT(S4S) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97890-214-3 01 1 0502- ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. INDONESIA EQUIPMENT(S4S), WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-678-3 01 1 0502- ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-678-3 01 1 0502- ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97859-215-0 02 1 0211-0305 ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-0 02 1 0211-0305 ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-1 02 1 0306-0501 ● ● ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-1 02 1 0502-1304 ● ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-1 02 1 1305- ● ● ● ● ●
9 16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14 		8-94279-325-0 02 1 0211-0501 ● ● ● ● ● ●
9 16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14 		8-94279-325-0 02 1 0502-1304 ● ● ● ● ●
9 16.041 SCREW; STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14 		8-94279-325-0 02 1 1305- ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-787-4 01 1 0211-0501 ● ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
INDONESIA EQUIPMENT(S4S) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-787-4 01 1 0502- ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-786-3 01 1 0211-0501 ● ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
INDONESIA EQUIPMENT(S4S) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-786-3 01 1 0502- ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. INDONESIA EQUIPMENT(S4S), WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-618-3 01 1 0502- ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-618-3 01 1 0502- ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. INDONESIA EQUIPMENT(S4S), WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-617-4 01 1 0502- ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-617-4 01 1 0502- ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>,KD PREPARATORY PACK VAR.4<7TV> 12.182 D=7.9X7.9 L=11.4 M5 		8-94367-528-0 02 1 1305- ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK 		8-94279-714-0 04 1 0211-0501 ● ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK 		8-94279-714-0 04 1 0502- ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0211-0305 ● ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0306-0501 ● ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0502-1304 ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1305- ● ● ● ● ●
15 16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY 		8-97859-856-5 01 1 0211-0501 ● ● ● ● ● ●
15 16.041 FINISHER; WINDSHIELD
INTERIOR COLOR GRAY(153) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY 		8-97859-856-7 01 1 0502- ● ●
15 16.041 FINISHER; WINDSHIELD
INTERIOR COLOR BLUISH GRAY(158) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY 		8-97582-226-7 01 1 0502- ● ●
15 16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY 		8-97582-226-7 01 1 0502- ● ● ●

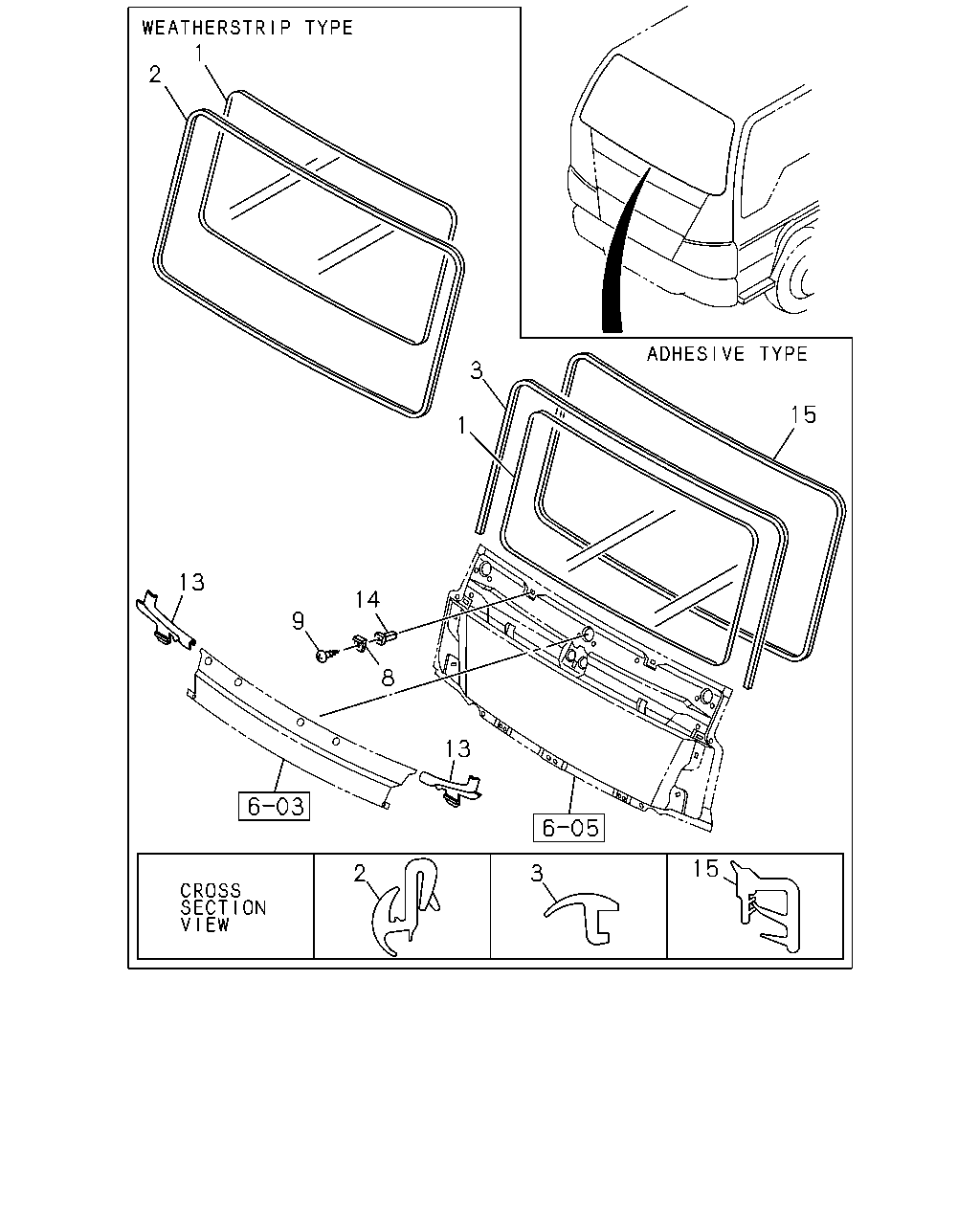

çizim 50077
15 3 1 2 1 13 9 14 8 13 15 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.005 GLASS; WINDSHIELD
INDONESIA EQUIPMENT(S4S) 		8-97117-890-0 01 1 0211- ● ●
1 16.005 GLASS; WINDSHIELD
EXC. INDONESIA EQUIPMENT(S4S) 		8-97869-124-0 01 1 0211-0501 ● ●
1 16.005 GLASS; WINDSHIELD 8-97869-124-0 01 1 0211-0501 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. INDONESIA EQUIPMENT(S4S) 		8-97869-124-0 01 1 0502-0805 ●
1 16.005 GLASS; WINDSHIELD
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97869-124-0 01 1 0502-0805 ●
1 16.005 GLASS; WINDSHIELD
EXC. HONG KONG EQUIPMENT(PQ1), INDONESIA EQUIPMENT(S4S) 		8-97869-124-0 01 1 0502-0805 ●
1 16.005 GLASS; WINDSHIELD 8-97869-124-0 01 1 0502-0805 ● ●
1 16.005 GLASS; WINDSHIELD
EXC. INDONESIA EQUIPMENT(S4S) 		8-97997-944-1 01 1 0806- ●
1 16.005 GLASS; WINDSHIELD
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97997-944-1 01 1 0806- ●
1 16.005 GLASS; WINDSHIELD
EXC. HONG KONG EQUIPMENT(PQ1), INDONESIA EQUIPMENT(S4S) 		8-97997-944-1 01 1 0806- ●
1 16.005 GLASS; WINDSHIELD 8-97997-944-1 01 1 0806- ● ●
1 16.005 GLASS; WINDSHIELD
HONG KONG EQUIPMENT(PQ1) 		8-97869-123-1 01 1 0502- ● ●
2 16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97856-351-3 01 1 0211-0501 ● ● ● ● ● ●
2 16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97856-351-4 01 1 0502- ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97890-214-2 01 1 0211-0501 ● ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD
INDONESIA EQUIPMENT(S4S) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97890-214-3 01 1 0502- ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. INDONESIA EQUIPMENT(S4S), WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-678-3 01 1 0502- ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-678-3 01 1 0502- ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97859-215-0 02 1 0211-0305 ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-0 02 1 0211-0305 ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-1 02 1 0306-0501 ● ● ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-1 02 1 0502-1304 ● ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-1 02 1 1305- ● ● ● ● ●
9 16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14 		8-94279-325-0 02 1 0211-0501 ● ● ● ● ● ●
9 16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14 		8-94279-325-0 02 1 0502-1304 ● ● ● ● ●
9 16.041 SCREW; STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14 		8-94279-325-0 02 1 1305- ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-787-4 01 1 0211-0501 ● ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
INDONESIA EQUIPMENT(S4S) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-787-4 01 1 0502- ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-786-3 01 1 0211-0501 ● ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
INDONESIA EQUIPMENT(S4S) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-786-3 01 1 0502- ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. INDONESIA EQUIPMENT(S4S), WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-618-3 01 1 0502- ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-618-3 01 1 0502- ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. INDONESIA EQUIPMENT(S4S), WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-617-4 01 1 0502- ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-617-4 01 1 0502- ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>,KD PREPARATORY PACK VAR.4<7TV> 12.182 D=7.9X7.9 L=11.4 M5 		8-94367-528-0 02 1 1305- ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK 		8-94279-714-0 04 1 0211-0501 ● ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK 		8-94279-714-0 04 1 0502- ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0211-0305 ● ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0306-0501 ● ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0502-1304 ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1305- ● ● ● ● ●
15 16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY 		8-97859-856-5 01 1 0211-0501 ● ● ● ● ● ●
15 16.041 FINISHER; WINDSHIELD
INTERIOR COLOR GRAY(153) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY 		8-97859-856-7 01 1 0502- ● ●
15 16.041 FINISHER; WINDSHIELD
INTERIOR COLOR BLUISH GRAY(158) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY 		8-97582-226-7 01 1 0502- ● ●
15 16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY 		8-97582-226-7 01 1 0502- ● ● ●
