6-03 — RADIATOR GRILLE (#47715) — 200 parça
çizim 11347
2 188 116 188 184 129 128 128 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-327-3 01 1 0211-0501 ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
INDONESIA EQUIPMENT(S4S) WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-327-4 01 1 0502- ● ●
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97859-463-3 01 1 0211-0501 ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
INDONESIA EQUIPMENT(S4S) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97859-463-4 01 1 0502- ● ●
2 01.266 GRILLE; ORNAMENT
EXC. INDONESIA EQUIPMENT(S4S), WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97581-679-5 01 1 0502- ● ●
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97581-679-5 01 1 0502- ● ● ●
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. INDONESIA EQUIPMENT(S4S) WO/DECAL 		8-97585-545-2 01 1 0502- ● ●
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97585-545-2 01 1 0502- ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 0211-0501 ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 0502- ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) WHITE 		8-97892-730-0 02 1 0211-0303 ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
EXC. INDONESIA EQUIPMENT(S4S) (A) WHITE 		8-97892-730-0 02 1 0304-0501 ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> (D) 		8-97581-651-2 04 1 0502- ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
INDONESIA EQUIPMENT(S4S) (C) WHITE 		8-97892-729-0 02 1 0304-0307 ● ●
11 01.269 CLIP; RAD GRILLE
EXTERIOR ORNAMENTATION DELUXE<B57> (C) WHITE 		8-97892-729-0 02 1 0308-0501 ● ● ●
11 01.269 CLIP; RAD GRILLE
INDONESIA EQUIPMENT(S4S) (C) WHITE 		8-97892-729-0 02 1 0308-0501 ● ●
11 01.269 CLIP; RAD GRILLE
INDONESIA EQUIPMENT(S4S) (C) WHITE 		8-97892-729-0 02 1 0502- ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-097-4 01 1 0211-0501 ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
INDONESIA EQUIPMENT(S4S) (B) 		8-97853-097-5 01 1 0502- ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97853-095-2 01 1 0211-0501 ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
INDONESIA EQUIPMENT(S4S) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97853-095-2 01 1 0502- ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. INDONESIA EQUIPMENT(S4S), WINDSHIELD WEATHERSTRIP TYPE<7EL> (C) 		8-97581-655-1 01 1 0502- ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (C) 		8-97581-655-1 01 1 0502- ● ● ●
128 01.267 COVER; HEADLAMP GRILLE
EXC. INDONESIA EQUIPMENT(S4S) 		8-97581-653-3 02 1 0502- ● ●
128 01.267 COVER; HEADLAMP GRILLE 8-97581-653-3 02 1 0502- ● ● ●
129 01.269 CLIP; COVER HEADLAMP GRILLE
EXC. INDONESIA EQUIPMENT(S4S) D=6.5 		8-97855-279-0 02 1 0502- ● ●
129 01.269 CLIP; COVER HEADLAMP GRILLE
D=6.5 		8-97855-279-0 02 1 0502- ● ● ●
184 01.269 GROMMET; ORNAMENT
EXC. INDONESIA EQUIPMENT(S4S) 		8-97581-668-0 03 1 0502-0602 ● ●
184 01.269 GROMMET; ORNAMENT 8-97581-668-0 03 1 0502-0602 ● ● ●
184 01.269 GROMMET; ORNAMENT
EXC. INDONESIA EQUIPMENT(S4S) 		8-97581-668-0 02 1 0603- ● ●
184 01.269 GROMMET; ORNAMENT 8-97581-668-0 02 1 0603- ● ● ●
188 08.010 SEAL; ORNAMENT
EXC. INDONESIA EQUIPMENT(S4S) 		8-97584-800-0 02 1 0502- ● ●
188 08.010 SEAL; ORNAMENT 8-97584-800-0 02 1 0502- ● ● ●

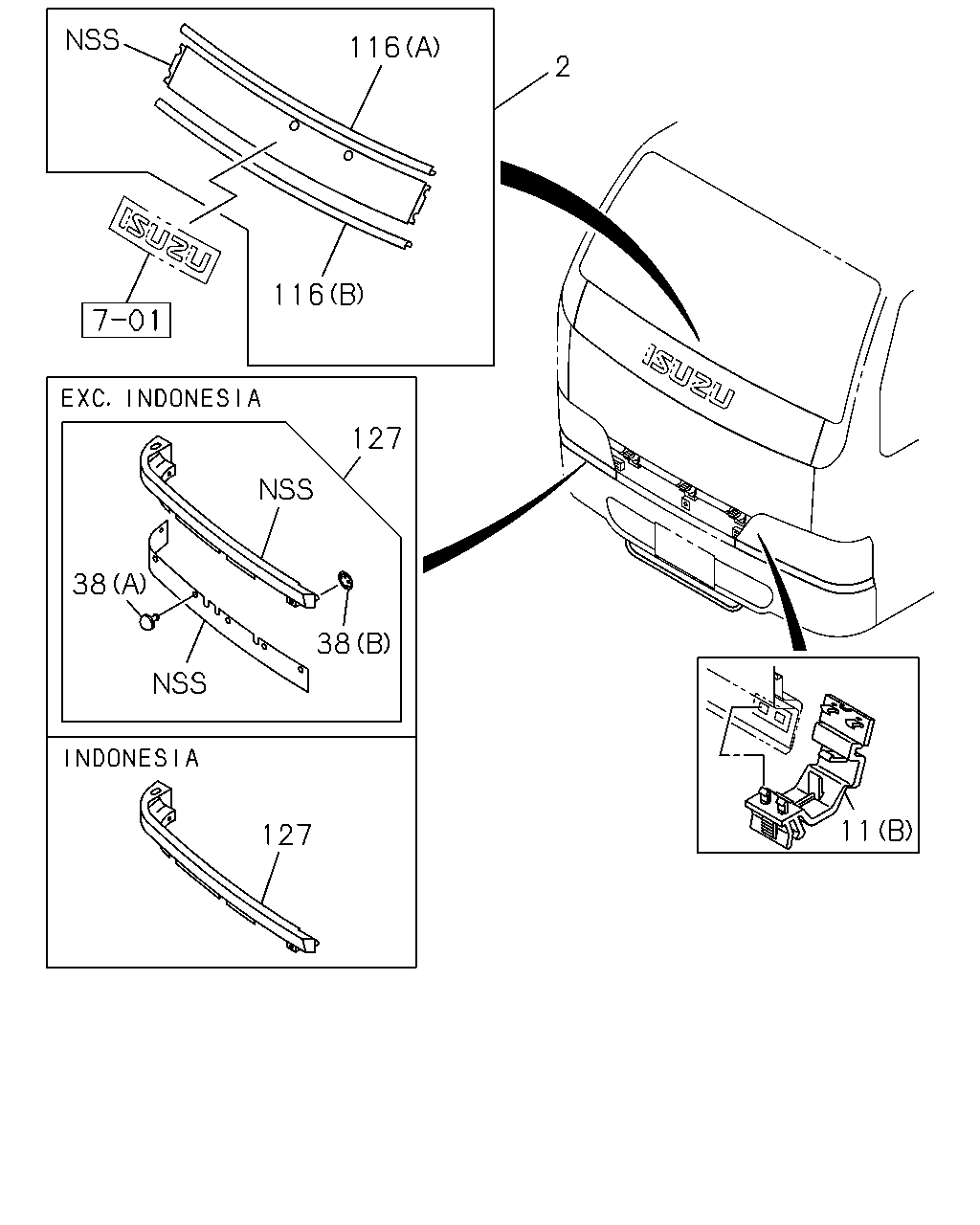

çizim 50297
116 2 116 127 38 38 11 127
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-327-3 01 1 0211-0501 ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
INDONESIA EQUIPMENT(S4S) WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-327-4 01 1 0502- ● ●
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97859-463-3 01 1 0211-0501 ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
INDONESIA EQUIPMENT(S4S) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97859-463-4 01 1 0502- ● ●
2 01.266 GRILLE; ORNAMENT
EXC. INDONESIA EQUIPMENT(S4S), WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97581-679-5 01 1 0502- ● ●
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97581-679-5 01 1 0502- ● ● ●
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. INDONESIA EQUIPMENT(S4S) WO/DECAL 		8-97585-545-2 01 1 0502- ● ●
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97585-545-2 01 1 0502- ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 0211-0501 ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 0502- ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) WHITE 		8-97892-730-0 02 1 0211-0303 ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
EXC. INDONESIA EQUIPMENT(S4S) (A) WHITE 		8-97892-730-0 02 1 0304-0501 ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> (D) 		8-97581-651-2 04 1 0502- ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
INDONESIA EQUIPMENT(S4S) (C) WHITE 		8-97892-729-0 02 1 0304-0307 ● ●
11 01.269 CLIP; RAD GRILLE
EXTERIOR ORNAMENTATION DELUXE<B57> (C) WHITE 		8-97892-729-0 02 1 0308-0501 ● ● ●
11 01.269 CLIP; RAD GRILLE
INDONESIA EQUIPMENT(S4S) (C) WHITE 		8-97892-729-0 02 1 0308-0501 ● ●
11 01.269 CLIP; RAD GRILLE
INDONESIA EQUIPMENT(S4S) (C) WHITE 		8-97892-729-0 02 1 0502- ● ●
38 01.269 CLIP; GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) D=6.5 		8-97855-279-0 09 1 0211-0501 ● ● ● ● ● ●
38 01.269 CLIP; GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (B) 		1-09987-180-0 01 1 0211-0501 ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-097-4 01 1 0211-0501 ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
INDONESIA EQUIPMENT(S4S) (B) 		8-97853-097-5 01 1 0502- ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97853-095-2 01 1 0211-0501 ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
INDONESIA EQUIPMENT(S4S) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97853-095-2 01 1 0502- ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. INDONESIA EQUIPMENT(S4S), WINDSHIELD WEATHERSTRIP TYPE<7EL> (C) 		8-97581-655-1 01 1 0502- ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (C) 		8-97581-655-1 01 1 0502- ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97898-387-1 01 1 0211-0305 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97898-387-1 01 1 0306-0501 ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97898-387-1 01 1 0306-0501 ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97898-366-1 01 1 0211-0305 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97898-366-1 01 1 0306-0501 ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97898-366-1 01 1 0306-0501 ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97898-391-1 01 1 0211-0305 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97898-391-1 01 1 0306-0501 ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97898-391-1 01 1 0306-0501 ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97898-370-1 01 1 0211-0305 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97898-370-1 01 1 0306-0501 ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97898-370-1 01 1 0306-0501 ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR 		8-97898-455-0 01 1 0211-0304 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
RADIATOR GRILLE NON PAINT<7LB> EXC. INDONESIA EQUIPMENT(S4S) PLEASE PAINT TO MATCH BODY COLOR 		8-97898-455-0 01 1 0305-0501 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR 		8-97898-454-0 01 1 0211-0304 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
RADIATOR GRILLE NON PAINT<7LB> EXC. INDONESIA EQUIPMENT(S4S) PLEASE PAINT TO MATCH BODY COLOR 		8-97898-454-0 01 1 0305-0501 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER 		8-97898-383-1 01 1 0211-0305 ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> SILVER 		8-97898-383-1 01 1 0306-0501 ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER 		8-97898-383-1 01 1 0306-0501 ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER 		8-97898-362-1 01 1 0211-0305 ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> SILVER 		8-97898-362-1 01 1 0306-0501 ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER 		8-97898-362-1 01 1 0306-0501 ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) INDONESIA EQUIPMENT(S4S) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97583-075-0 01 1 0306- ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) INDONESIA EQUIPMENT(S4S) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97583-072-0 01 1 0306- ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) INDONESIA EQUIPMENT(S4S) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97583-076-0 01 1 0306- ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) INDONESIA EQUIPMENT(S4S) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97583-073-0 01 1 0306- ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) INDONESIA EQUIPMENT(S4S) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER 		8-97583-074-0 01 1 0306- ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) INDONESIA EQUIPMENT(S4S) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER 		8-97583-071-0 01 1 0306- ● ●
127 01.266 GRILLE; HEADLAMP,LWR
INDONESIA EQUIPMENT(S4S) RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR 		8-97582-973-0 01 1 0305- ● ●
127 01.266 GRILLE; HEADLAMP,LWR
INDONESIA EQUIPMENT(S4S) RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR 		8-97582-972-0 01 1 0305- ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR FT ORANGE(609) EXC. RADIATOR GRILLE NON PAINT<7LB> ORANGE 		8-97898-526-1 01 1 0211-0305 ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR FT ORANGE(609) EXC. RADIATOR GRILLE NON PAINT<7LB> ORANGE 		8-97898-526-1 01 1 0306-0501 ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR FT ORANGE(609) EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> ORANGE 		8-97898-526-1 01 1 0306-0501 ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR FT ORANGE(609) EXC. RADIATOR GRILLE NON PAINT<7LB> ORANGE 		8-97898-525-1 01 1 0211-0305 ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR FT ORANGE(609) EXC. RADIATOR GRILLE NON PAINT<7LB> ORANGE 		8-97898-525-1 01 1 0306-0501 ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR FT ORANGE(609) EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> ORANGE 		8-97898-525-1 01 1 0306-0501 ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR FT ORANGE(609) INDONESIA EQUIPMENT(S4S) EXC. RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97583-078-0 01 1 0306- ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR FT ORANGE(609) INDONESIA EQUIPMENT(S4S) EXC. RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97583-077-0 01 1 0306- ●

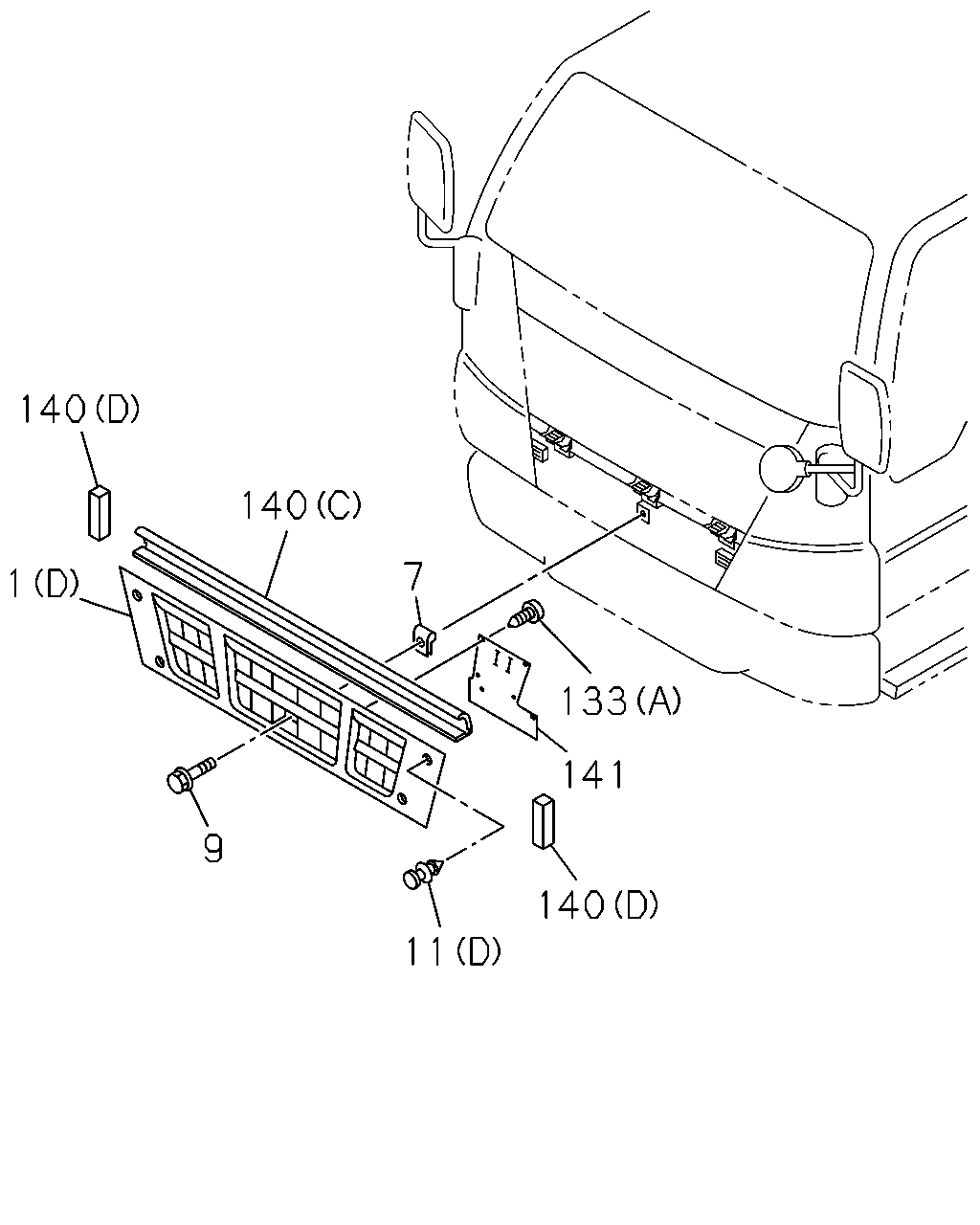

çizim 50848
140 140 7 1 133 141 9 140 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.266 GRILLE; RAD
(A) PLEASE PAINT TO MATCH BODY COLOR 		8-97890-871-1 01 1 0211-0303 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (C) WHITE 		8-97995-758-0 01 1 0308-0501 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR SILVER MET(845) EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> (D) SILVER 		8-97582-410-4 01 1 0502- ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) SILVER 		8-97582-410-4 01 1 0502- ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (B) 		8-97995-026-0 01 1 0308-0501 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR FT ORANGE(609) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) BEIGE 		8-97588-902-4 01 1 0502- ● ●
1 01.266 GRILLE; RAD
BODY COLOR FT ORANGE(609) EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> (D) BEIGE 		8-97588-902-4 01 1 0502- ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (C) BLUE 		8-97995-759-0 01 1 0308-0501 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR SILVER MET(845) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (C) SILVER 		8-97995-766-0 01 1 0308-0501 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> (D) WHITE 		8-97582-414-4 01 1 0502- ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) WHITE 		8-97582-414-4 01 1 0502- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> (D) BLUE 		8-97582-418-4 01 1 0502- ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) BLUE 		8-97582-418-4 01 1 0502- ● ●
1 01.266 GRILLE; RAD
INDONESIA EQUIPMENT(S4S) (A) PLEASE PAINT TO MATCH BODY COLOR 		8-97867-242-0 01 1 0304- ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> EXC. INDONESIA EQUIPMENT(S4S) (D) PLEASE PAINT TO MATCH BODY COLOR 		8-97581-825-2 01 1 0502- ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> (D) PLEASE PAINT TO MATCH BODY COLOR 		8-97581-825-2 01 1 0502- ● ● ●
1 01.266 GRILLE; RAD
EXC. INDONESIA EQUIPMENT(S4S) (A) PLEASE PAINT TO MATCH BODY COLOR 		8-97890-871-1 01 1 0304-0501 ● ● ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
08.155 		8-97805-829-0 01 1 0211-0501 ● ● ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
08.155 		8-97805-829-0 01 1 0502-0505 ● ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE 8-98014-760-0 01 1 0506- ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0211-0501 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0502-0805 ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.153 M6X20 W/PL WASHER 		8-98059-504-0 01 1 0806- ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 0211-0501 ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 0502- ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) WHITE 		8-97892-730-0 02 1 0211-0303 ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
EXC. INDONESIA EQUIPMENT(S4S) (A) WHITE 		8-97892-730-0 02 1 0304-0501 ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> (D) 		8-97581-651-2 04 1 0502- ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
INDONESIA EQUIPMENT(S4S) (C) WHITE 		8-97892-729-0 02 1 0304-0307 ● ●
11 01.269 CLIP; RAD GRILLE
EXTERIOR ORNAMENTATION DELUXE<B57> (C) WHITE 		8-97892-729-0 02 1 0308-0501 ● ● ●
11 01.269 CLIP; RAD GRILLE
INDONESIA EQUIPMENT(S4S) (C) WHITE 		8-97892-729-0 02 1 0308-0501 ● ●
11 01.269 CLIP; RAD GRILLE
INDONESIA EQUIPMENT(S4S) (C) WHITE 		8-97892-729-0 02 1 0502- ● ●
133 01.269 SCREW; COVER
BODY COLOR ARC WHITE(729),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (B) M5X12 		8-97995-036-0 06 1 0308-0501 ● ● ●
133 01.269 SCREW; COVER
RADIATOR GRILLE NON PAINT<7LB> 01.303 (A) M5X12 W/PL WASHER 		8-94385-565-0 05 1 0211-0501 ● ●
133 01.269 SCREW; COVER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> 01.303 (A) M5X12 W/PL WASHER 		8-94385-565-0 05 1 0211-0501 ● ●
133 01.269 SCREW; COVER
AIR INTAKE SYSTEM FRONT<6PC> RADIATOR GRILLE NON PAINT<7LB> 01.303 (A) M5X12 W/PL WASHER 		8-94385-565-0 05 1 0211-0501 ●
133 01.269 SCREW; COVER
AIR INTAKE SYSTEM FRONT<6PC> EXC. RADIATOR GRILLE NON PAINT<7LB> 01.303 (A) M5X12 W/PL WASHER 		8-94385-565-0 05 1 0211-0501 ●
133 01.269 SCREW; COVER
EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> 01.303 (A) M5X12 W/PL WASHER 		8-94385-565-0 06 1 0502- ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
(A) 		8-97061-039-3 02 1 0211-0303 ● ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
EXC. INDONESIA EQUIPMENT(S4S) (A) 		8-97061-039-3 02 1 0304-0501 ● ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> (D) 		8-97583-411-1 02 1 0502- ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (B) 		8-97995-037-0 01 1 0308-0501 ● ● ●
140 01.266 SEAL; RAD GRILLE
EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> (C) 		8-97581-664-0 01 1 0502- ● ● ● ● ●
141 01.266 COVER; RAD GRILLE
RADIATOR GRILLE NON PAINT<7LB> 		8-97890-638-1 01 1 0211-0501 ● ●
141 01.266 COVER; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> 		8-97890-638-1 01 1 0211-0501 ● ●
141 01.266 COVER; RAD GRILLE
AIR INTAKE SYSTEM FRONT<6PC> RADIATOR GRILLE NON PAINT<7LB> 		8-97890-638-1 01 1 0211-0501 ●
141 01.266 COVER; RAD GRILLE
AIR INTAKE SYSTEM FRONT<6PC> EXC. RADIATOR GRILLE NON PAINT<7LB> 		8-97890-638-1 01 1 0211-0501 ●
141 01.266 COVER; RAD GRILLE
EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> 		8-97581-648-1 01 1 0502- ● ● ● ● ●

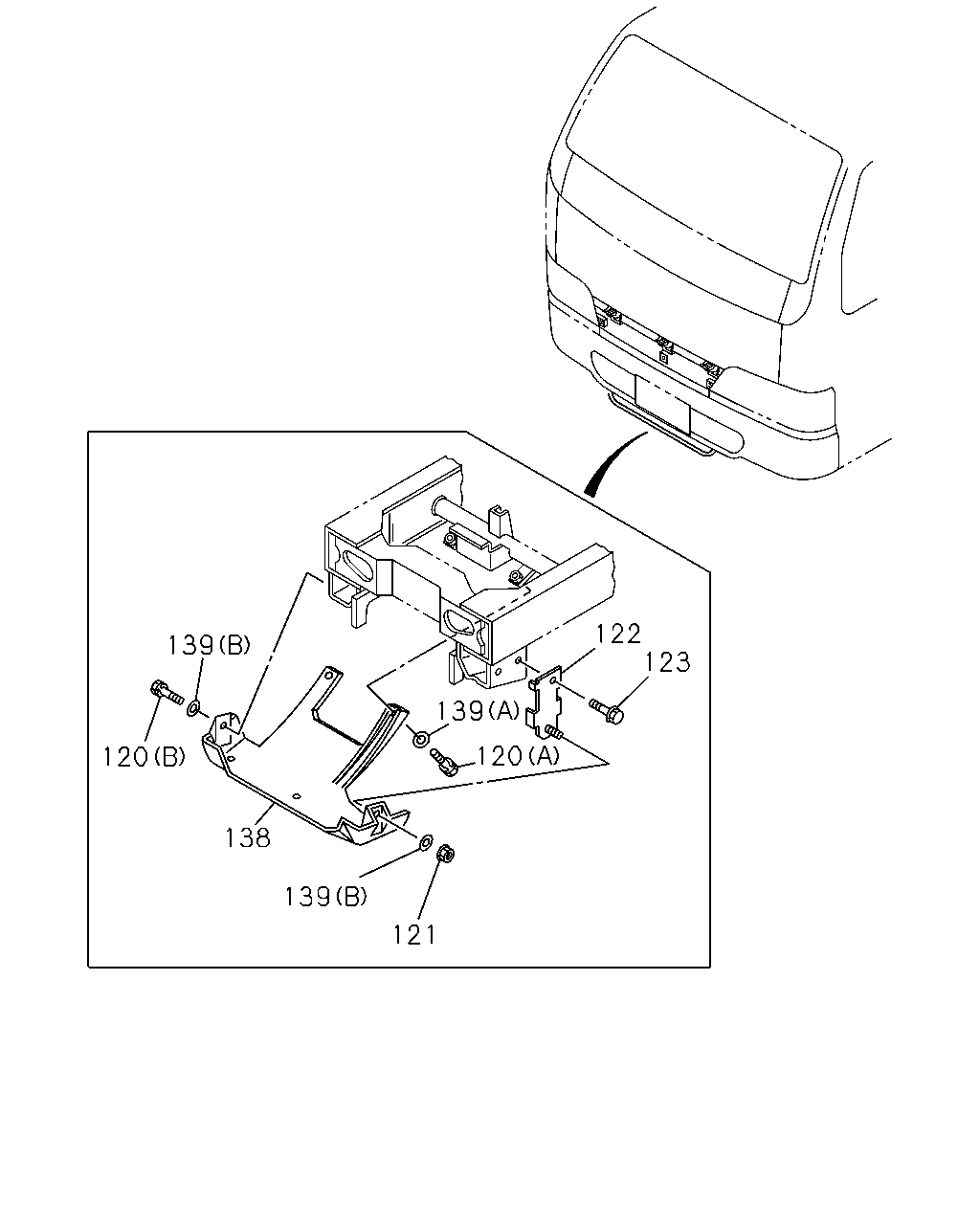

çizim 52628
122 123 139 139 120 120 138 139 121
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
120 01.266 BOLT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0211-0501 ●
120 01.266 BOLT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 04.930 (B) M6X20 FLANGE 		0-28680-620-0 01 1 0211-0501 ●
121 01.266 NUT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M6 FLANGE 		0-91150-206-0 01 1 0211-0501 ●
122 01.266 BRACKET; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-738-4 01 1 0211-0501 ●
123 01.266 BOLT; BRKT AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ●
138 01.266 GUIDE; AIR
FRT INDEPENDENT SUSPENSION(6PP) 		8-97037-229-0 01 1 0211-0501 ●
139 01.269 WASHER; PL,AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 06.760 (A) ID=8.4 OD=22 		9-09160-708-0 02 1 0211-0501 ●
139 01.269 WASHER; PL,AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 02.334 (B) ID=6.4 OD=22 		9-09164-806-0 02 1 0211-0501 ●

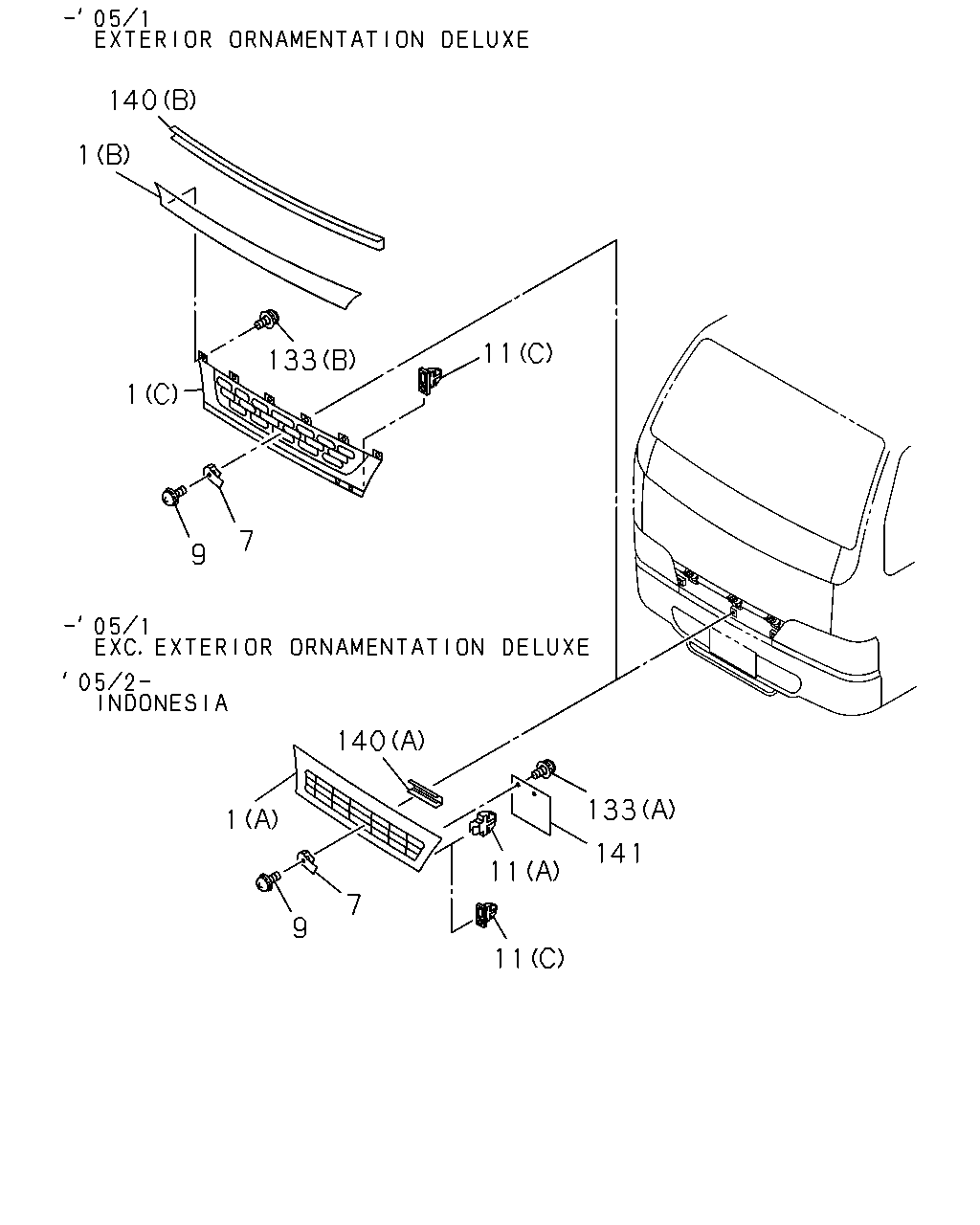

çizim 52775
140 1 11 133 1 7 9 140 133 1 141 11 7 9 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.266 GRILLE; RAD
(A) PLEASE PAINT TO MATCH BODY COLOR 		8-97890-871-1 01 1 0211-0303 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (C) WHITE 		8-97995-758-0 01 1 0308-0501 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR SILVER MET(845) EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> (D) SILVER 		8-97582-410-4 01 1 0502- ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) SILVER 		8-97582-410-4 01 1 0502- ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (B) 		8-97995-026-0 01 1 0308-0501 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR FT ORANGE(609) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) BEIGE 		8-97588-902-4 01 1 0502- ● ●
1 01.266 GRILLE; RAD
BODY COLOR FT ORANGE(609) EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> (D) BEIGE 		8-97588-902-4 01 1 0502- ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (C) BLUE 		8-97995-759-0 01 1 0308-0501 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR SILVER MET(845) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (C) SILVER 		8-97995-766-0 01 1 0308-0501 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> (D) WHITE 		8-97582-414-4 01 1 0502- ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) WHITE 		8-97582-414-4 01 1 0502- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> (D) BLUE 		8-97582-418-4 01 1 0502- ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) BLUE 		8-97582-418-4 01 1 0502- ● ●
1 01.266 GRILLE; RAD
INDONESIA EQUIPMENT(S4S) (A) PLEASE PAINT TO MATCH BODY COLOR 		8-97867-242-0 01 1 0304- ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> EXC. INDONESIA EQUIPMENT(S4S) (D) PLEASE PAINT TO MATCH BODY COLOR 		8-97581-825-2 01 1 0502- ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> (D) PLEASE PAINT TO MATCH BODY COLOR 		8-97581-825-2 01 1 0502- ● ● ●
1 01.266 GRILLE; RAD
EXC. INDONESIA EQUIPMENT(S4S) (A) PLEASE PAINT TO MATCH BODY COLOR 		8-97890-871-1 01 1 0304-0501 ● ● ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
08.155 		8-97805-829-0 01 1 0211-0501 ● ● ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
08.155 		8-97805-829-0 01 1 0502-0505 ● ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE 8-98014-760-0 01 1 0506- ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0211-0501 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0502-0805 ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.153 M6X20 W/PL WASHER 		8-98059-504-0 01 1 0806- ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 0211-0501 ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 0502- ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) WHITE 		8-97892-730-0 02 1 0211-0303 ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
EXC. INDONESIA EQUIPMENT(S4S) (A) WHITE 		8-97892-730-0 02 1 0304-0501 ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> (D) 		8-97581-651-2 04 1 0502- ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
INDONESIA EQUIPMENT(S4S) (C) WHITE 		8-97892-729-0 02 1 0304-0307 ● ●
11 01.269 CLIP; RAD GRILLE
EXTERIOR ORNAMENTATION DELUXE<B57> (C) WHITE 		8-97892-729-0 02 1 0308-0501 ● ● ●
11 01.269 CLIP; RAD GRILLE
INDONESIA EQUIPMENT(S4S) (C) WHITE 		8-97892-729-0 02 1 0308-0501 ● ●
11 01.269 CLIP; RAD GRILLE
INDONESIA EQUIPMENT(S4S) (C) WHITE 		8-97892-729-0 02 1 0502- ● ●
133 01.269 SCREW; COVER
BODY COLOR ARC WHITE(729),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (B) M5X12 		8-97995-036-0 06 1 0308-0501 ● ● ●
133 01.269 SCREW; COVER
RADIATOR GRILLE NON PAINT<7LB> 01.303 (A) M5X12 W/PL WASHER 		8-94385-565-0 05 1 0211-0501 ● ●
133 01.269 SCREW; COVER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> 01.303 (A) M5X12 W/PL WASHER 		8-94385-565-0 05 1 0211-0501 ● ●
133 01.269 SCREW; COVER
AIR INTAKE SYSTEM FRONT<6PC> RADIATOR GRILLE NON PAINT<7LB> 01.303 (A) M5X12 W/PL WASHER 		8-94385-565-0 05 1 0211-0501 ●
133 01.269 SCREW; COVER
AIR INTAKE SYSTEM FRONT<6PC> EXC. RADIATOR GRILLE NON PAINT<7LB> 01.303 (A) M5X12 W/PL WASHER 		8-94385-565-0 05 1 0211-0501 ●
133 01.269 SCREW; COVER
EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> 01.303 (A) M5X12 W/PL WASHER 		8-94385-565-0 06 1 0502- ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
(A) 		8-97061-039-3 02 1 0211-0303 ● ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
EXC. INDONESIA EQUIPMENT(S4S) (A) 		8-97061-039-3 02 1 0304-0501 ● ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> (D) 		8-97583-411-1 02 1 0502- ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (B) 		8-97995-037-0 01 1 0308-0501 ● ● ●
140 01.266 SEAL; RAD GRILLE
EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> (C) 		8-97581-664-0 01 1 0502- ● ● ● ● ●
141 01.266 COVER; RAD GRILLE
RADIATOR GRILLE NON PAINT<7LB> 		8-97890-638-1 01 1 0211-0501 ● ●
141 01.266 COVER; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> 		8-97890-638-1 01 1 0211-0501 ● ●
141 01.266 COVER; RAD GRILLE
AIR INTAKE SYSTEM FRONT<6PC> RADIATOR GRILLE NON PAINT<7LB> 		8-97890-638-1 01 1 0211-0501 ●
141 01.266 COVER; RAD GRILLE
AIR INTAKE SYSTEM FRONT<6PC> EXC. RADIATOR GRILLE NON PAINT<7LB> 		8-97890-638-1 01 1 0211-0501 ●
141 01.266 COVER; RAD GRILLE
EXC. INDONESIA EQUIPMENT(S4S), RADIATOR GRILLE NON PAINT<7LB> 		8-97581-648-1 01 1 0502- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
