Sayfa 5-10 - Isuzu EPC

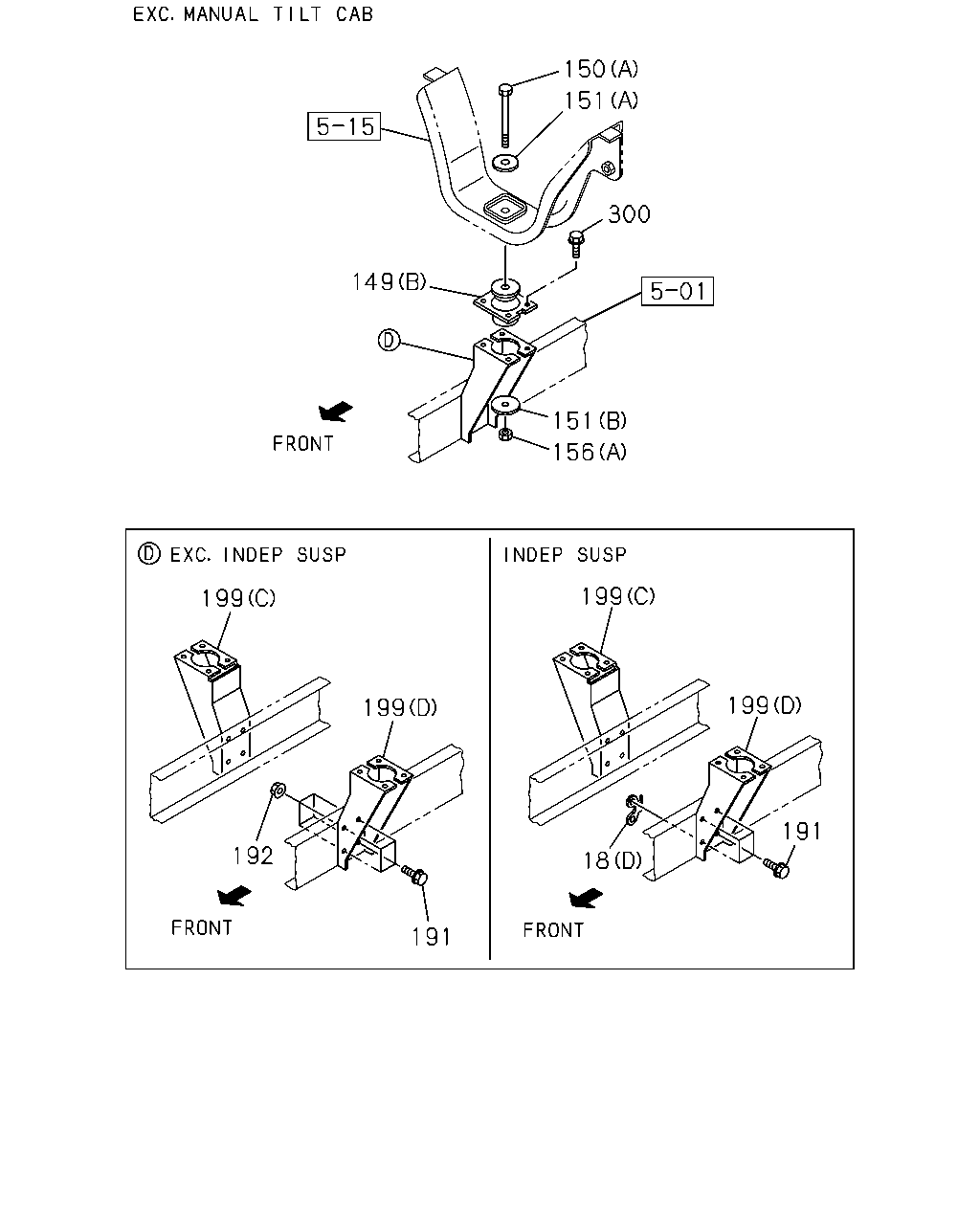

5-10 — CAB MOUNTING; FRAME SIDE (#47710) — 442 parça

150 151 300 149 151 156 199 199 199 199 191 192 18 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-139-2	02	1	0211-0501		●	●
18	09.003 PLATE; MTG BRKT FIX FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	02	1	0211-0501					●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	02	1	0502-	●				●	●
18	09.003 PLATE; MTG BRKT FIX FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-139-2	02	1	0502-			●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97093-741-1	02	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	01	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRAME-KICK UP<7EW> (B)	8-97034-139-2	01	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	01	1	0211-0501					●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	01	1	0502-	●				●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRAME-KICK UP<7EW> (B)	8-97034-139-2	01	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	01	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) (A)	8-97034-140-2	01	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	01	1	0211-0501					●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	01	1	0502-	●				●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) (A)	8-97034-140-2	01	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97076-469-2	01	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) (C)	8-97076-469-2	01	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0211-0501					●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0502-	●				●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) (C)	8-97076-469-2	01	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	0211-0501	●			●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-140-2	02	1	0211-0501		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (A)	8-97034-140-2	02	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	0502-	●			●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (A)	8-97034-140-2	02	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-140-2	02	1	0502-			●
18	09.003 PLATE; MTG BRKT FIX DUMP CHASSIS(V4D) (E)	8-97038-962-2	02	1	0211-				●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97216-458-0	02	1	0211-0501	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97095-149-2	02	1	0211-0501	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-97095-149-2	02	1	0211-0501				●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-97095-149-3	02	1	0502-0804	●			●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	0805-	●			●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-97086-442-4	02	1	0211-	●			●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=26.5	5-53459-041-0	02	1	0211-0501		●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=26.5	5-53459-041-0	02	1	0502-			●
149	09.023 RUBBER; MTG,CAB,UPR RR (E) H=30.6	8-94128-501-0	02	1	0211-0501		●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (E) H=30.6	8-94128-501-0	02	1	0502-			●
149	09.023 RUBBER; MTG,CAB,UPR RR (C)	8-97086-440-2	02	1	0211-0501		●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (C)	8-97086-440-3	02	1	0502-0612			●
149	09.023 RUBBER; MTG,CAB,UPR RR (C) H=94	8-98038-868-0	02	1	0701-			●
150	09.011 BOLT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (A)	0-28881-690-0	02	1	0211-0512	●			●	●	●
150	09.011 BOLT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (A)	0-28851-690-0	02	1	0601-	●			●	●	●
150	09.011 BOLT; CAB MTG RR (B) M10X105	8-94128-717-1	02	1	0211-0501		●	●
150	09.011 BOLT; CAB MTG RR (B) M10X105	8-94128-717-1	02	1	0502-0610			●
150	09.011 BOLT; CAB MTG RR (B) M10X105	8-98004-320-0	02	1	0611-			●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=16.4 OD=62	8-97034-382-0	02	1	0211-0611	●			●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=17 OD=62	8-97359-042-1	02	1	0612-	●			●	●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (A) ID=16.5 OD=58	8-97034-383-1	02	1	0211-0501	●			●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (A) ID=16.5 OD=58	8-97034-383-1	02	1	0211-0501		●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (A) ID=16.5 OD=58	8-97034-383-1	02	1	0502-0611	●			●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (A) ID=16.5 OD=58	8-97034-383-1	02	1	0502-0611			●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (A) ID=16.5 OD=58	8-97359-040-1	02	1	0612-	●			●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (A) ID=16.5 OD=58	8-97359-040-1	02	1	0612-			●
151	09.011 WASHER; CAB MTG,RR UPR 03.704 (C) OD=33 ID=10.2 T=3.2	9-09851-423-0	02	1	0211-0501		●	●
151	09.011 WASHER; CAB MTG,RR UPR 03.704 (C) OD=33 ID=10.2 T=3.2	9-09851-423-0	02	1	0502-0611			●
151	09.011 WASHER; CAB MTG,RR UPR (C) OD=33 ID=10.2 T=3.2	8-98004-321-0	02	1	0612-			●
151	09.011 WASHER; CAB MTG,RR UPR 09.023 (D) ID=14 OD=60	9-53459-048-0	02	1	0211-0501		●	●
151	09.011 WASHER; CAB MTG,RR UPR 09.023 (D) ID=14 OD=60	9-53459-048-0	02	1	0502-0610			●
151	09.011 WASHER; CAB MTG,RR UPR (D) ID=14 OD=60	8-98004-322-0	02	1	0611-			●
156	07.529 NUT; CAB MTG RR 04.681 (A) M16	9-99111-416-0	02	1	0211-0512	●			●	●	●
156	07.529 NUT; CAB MTG RR 00.785 (A) M16	0-91111-516-0	02	1	0601-	●			●	●	●
156	07.529 NUT; CAB MTG RR 03.613 (B) M14 FLANGE	0-91150-114-0	02	1	0211-0501		●	●
156	07.529 NUT; CAB MTG RR 03.613 (B) M14 FLANGE	0-91150-114-0	02	1	0502-0610			●
156	07.529 NUT; CAB MTG RR (B) M14 FLANGE	0-91180-114-0	02	1	0611-			●
156	07.529 NUT; CAB MTG RR 09.011 (C) M10	9-09110-410-0	04	1	0211-0501		●	●
156	07.529 NUT; CAB MTG RR 09.011 (C) M10	9-09110-410-0	04	1	0502-0512			●
156	07.529 NUT; CAB MTG RR 00.833 (C) M10	0-91110-510-0	04	1	0601-			●
191	09.003 BOLT; BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) 07.632 M12X35 FLANGE	0-28681-235-0	10	1	0211-0501	●
191	09.003 BOLT; BRKT FIX 07.632 M12X35 FLANGE	0-28681-235-0	08	1	0502-0512	●		●	●	●	●
191	09.003 BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	0601-	●		●	●	●	●
191	09.003 BOLT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.632 M12X35 FLANGE	0-28681-235-0	08	1	0211-0501	●
191	09.003 BOLT; BRKT FIX 07.632 M12X35 FLANGE	0-28681-235-0	08	1	0211-0501		●	●	●	●	●
192	09.003 NUT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.586 M12 FLANGE	0-91150-112-0	08	1	0211-0501	●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	08	1	0211-0501		●	●		●	●
192	09.003 NUT; BRKT FIX EXC. DUMP CHASSIS(V4D) 05.586 M12 FLANGE	0-91150-112-0	08	1	0211-0501				●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	08	1	0502-0602	●		●		●	●
192	09.003 NUT; BRKT FIX EXC. DUMP CHASSIS(V4D) 05.586 M12 FLANGE	0-91150-112-0	08	1	0502-0602				●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	0603-	●		●		●	●
192	09.003 NUT; BRKT FIX EXC. DUMP CHASSIS(V4D) 02.042 M12 FLANGE	0-91180-112-0	08	1	0603-				●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97086-448-2	01	1	0211-0501	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) EXC. MANUAL TILT CAB<RWZ> (D)	8-97086-446-2	01	1	0211-0501	●
199	09.003 BRACKET; CAB RR MTG EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97086-447-1	01	1	0211-0501	●
199	09.003 BRACKET; CAB RR MTG (C)	8-97086-447-1	01	1	0211-0501		●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG (C)	8-97086-447-1	01	1	0502-	●		●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97086-444-3	01	1	0211-0501	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97086-443-3	01	1	0211-0501	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-97086-443-3	01	1	0211-0501				●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-97086-443-3	01	1	0502-	●			●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97086-445-2	01	1	0211-0501	●
199	09.003 BRACKET; CAB RR MTG (D)	8-97086-445-2	01	1	0211-0501		●	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-97086-445-2	01	1	0211-0501				●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-97086-445-2	01	1	0502-	●			●	●	●
199	09.003 BRACKET; CAB RR MTG (D)	8-97086-445-2	01	1	0502-			●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-97035-310-4	02	1	0211-	●			●	●	●
300	09.003 BOLT; MTG RUBBER 03.611 M10X20 FLANGE	0-28681-020-0	08	1	0211-0501	●	●	●	●	●	●
300	09.003 BOLT; MTG RUBBER 03.611 M10X20 FLANGE	0-28681-020-0	08	1	0502-0512	●		●	●	●	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	0601-	●		●	●	●	●

150 156 157 151 149 300 149 149 151 151 156 156 199 199 192 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97216-458-0	02	1	0211-0501	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97095-149-2	02	1	0211-0501	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-97095-149-2	02	1	0211-0501				●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-97095-149-3	02	1	0502-0804	●			●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	0805-	●			●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-97086-442-4	02	1	0211-	●			●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=26.5	5-53459-041-0	02	1	0211-0501		●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=26.5	5-53459-041-0	02	1	0502-			●
149	09.023 RUBBER; MTG,CAB,UPR RR (E) H=30.6	8-94128-501-0	02	1	0211-0501		●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (E) H=30.6	8-94128-501-0	02	1	0502-			●
149	09.023 RUBBER; MTG,CAB,UPR RR (C)	8-97086-440-2	02	1	0211-0501		●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (C)	8-97086-440-3	02	1	0502-0612			●
149	09.023 RUBBER; MTG,CAB,UPR RR (C) H=94	8-98038-868-0	02	1	0701-			●
150	09.011 BOLT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (A)	0-28881-690-0	02	1	0211-0512	●			●	●	●
150	09.011 BOLT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (A)	0-28851-690-0	02	1	0601-	●			●	●	●
150	09.011 BOLT; CAB MTG RR (B) M10X105	8-94128-717-1	02	1	0211-0501		●	●
150	09.011 BOLT; CAB MTG RR (B) M10X105	8-94128-717-1	02	1	0502-0610			●
150	09.011 BOLT; CAB MTG RR (B) M10X105	8-98004-320-0	02	1	0611-			●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=16.4 OD=62	8-97034-382-0	02	1	0211-0611	●			●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=17 OD=62	8-97359-042-1	02	1	0612-	●			●	●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (A) ID=16.5 OD=58	8-97034-383-1	02	1	0211-0501	●			●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (A) ID=16.5 OD=58	8-97034-383-1	02	1	0211-0501		●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (A) ID=16.5 OD=58	8-97034-383-1	02	1	0502-0611	●			●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (A) ID=16.5 OD=58	8-97034-383-1	02	1	0502-0611			●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (A) ID=16.5 OD=58	8-97359-040-1	02	1	0612-	●			●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (A) ID=16.5 OD=58	8-97359-040-1	02	1	0612-			●
151	09.011 WASHER; CAB MTG,RR UPR 03.704 (C) OD=33 ID=10.2 T=3.2	9-09851-423-0	02	1	0211-0501		●	●
151	09.011 WASHER; CAB MTG,RR UPR 03.704 (C) OD=33 ID=10.2 T=3.2	9-09851-423-0	02	1	0502-0611			●
151	09.011 WASHER; CAB MTG,RR UPR (C) OD=33 ID=10.2 T=3.2	8-98004-321-0	02	1	0612-			●
151	09.011 WASHER; CAB MTG,RR UPR 09.023 (D) ID=14 OD=60	9-53459-048-0	02	1	0211-0501		●	●
151	09.011 WASHER; CAB MTG,RR UPR 09.023 (D) ID=14 OD=60	9-53459-048-0	02	1	0502-0610			●
151	09.011 WASHER; CAB MTG,RR UPR (D) ID=14 OD=60	8-98004-322-0	02	1	0611-			●
156	07.529 NUT; CAB MTG RR 04.681 (A) M16	9-99111-416-0	02	1	0211-0512	●			●	●	●
156	07.529 NUT; CAB MTG RR 00.785 (A) M16	0-91111-516-0	02	1	0601-	●			●	●	●
156	07.529 NUT; CAB MTG RR 03.613 (B) M14 FLANGE	0-91150-114-0	02	1	0211-0501		●	●
156	07.529 NUT; CAB MTG RR 03.613 (B) M14 FLANGE	0-91150-114-0	02	1	0502-0610			●
156	07.529 NUT; CAB MTG RR (B) M14 FLANGE	0-91180-114-0	02	1	0611-			●
156	07.529 NUT; CAB MTG RR 09.011 (C) M10	9-09110-410-0	04	1	0211-0501		●	●
156	07.529 NUT; CAB MTG RR 09.011 (C) M10	9-09110-410-0	04	1	0502-0512			●
156	07.529 NUT; CAB MTG RR 00.833 (C) M10	0-91110-510-0	04	1	0601-			●
157	09.023 RUBBER; MTG,CAB,TOP RR	9-53459-603-0	02	1	0211-0501		●	●
157	09.023 RUBBER; MTG,CAB,TOP RR	9-53459-603-0	02	1	0502-			●
191	09.003 BOLT; BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) 07.632 M12X35 FLANGE	0-28681-235-0	10	1	0211-0501	●
191	09.003 BOLT; BRKT FIX 07.632 M12X35 FLANGE	0-28681-235-0	08	1	0502-0512	●		●	●	●	●
191	09.003 BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	0601-	●		●	●	●	●
191	09.003 BOLT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.632 M12X35 FLANGE	0-28681-235-0	08	1	0211-0501	●
191	09.003 BOLT; BRKT FIX 07.632 M12X35 FLANGE	0-28681-235-0	08	1	0211-0501		●	●	●	●	●
192	09.003 NUT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.586 M12 FLANGE	0-91150-112-0	08	1	0211-0501	●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	08	1	0211-0501		●	●		●	●
192	09.003 NUT; BRKT FIX EXC. DUMP CHASSIS(V4D) 05.586 M12 FLANGE	0-91150-112-0	08	1	0211-0501				●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	08	1	0502-0602	●		●		●	●
192	09.003 NUT; BRKT FIX EXC. DUMP CHASSIS(V4D) 05.586 M12 FLANGE	0-91150-112-0	08	1	0502-0602				●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	0603-	●		●		●	●
192	09.003 NUT; BRKT FIX EXC. DUMP CHASSIS(V4D) 02.042 M12 FLANGE	0-91180-112-0	08	1	0603-				●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97086-448-2	01	1	0211-0501	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) EXC. MANUAL TILT CAB<RWZ> (D)	8-97086-446-2	01	1	0211-0501	●
199	09.003 BRACKET; CAB RR MTG EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97086-447-1	01	1	0211-0501	●
199	09.003 BRACKET; CAB RR MTG (C)	8-97086-447-1	01	1	0211-0501		●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG (C)	8-97086-447-1	01	1	0502-	●		●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97086-444-3	01	1	0211-0501	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97086-443-3	01	1	0211-0501	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-97086-443-3	01	1	0211-0501				●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-97086-443-3	01	1	0502-	●			●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97086-445-2	01	1	0211-0501	●
199	09.003 BRACKET; CAB RR MTG (D)	8-97086-445-2	01	1	0211-0501		●	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-97086-445-2	01	1	0211-0501				●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-97086-445-2	01	1	0502-	●			●	●	●
199	09.003 BRACKET; CAB RR MTG (D)	8-97086-445-2	01	1	0502-			●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-97035-310-4	02	1	0211-	●			●	●	●
300	09.003 BOLT; MTG RUBBER 03.611 M10X20 FLANGE	0-28681-020-0	08	1	0211-0501	●	●	●	●	●	●
300	09.003 BOLT; MTG RUBBER 03.611 M10X20 FLANGE	0-28681-020-0	08	1	0502-0512	●		●	●	●	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	0601-	●		●	●	●	●

1 7 20 2 1 2 20 7 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97163-030-0	01	1	0211-0501	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97170-220-0	01	1	0211-0501	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97170-220-0	01	1	0211-0501				●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97170-220-0	01	1	0502-	●			●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97096-894-1	01	1	0211-0501	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97096-894-1	01	1	0211-0501				●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97096-894-1	01	1	0502-	●			●	●	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0211-0501	●			●	●	●
1	09.003 BRACKET; CAB MTG	8-97033-350-3	01	1	0211-0501		●	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0502-	●			●	●	●
1	09.003 BRACKET; CAB MTG	8-97033-350-3	01	1	0502-			●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0211-0501	●			●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-348-5	01	1	0211-0501	●
1	09.003 BRACKET; CAB MTG	8-97033-348-5	01	1	0211-0501		●	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0502-	●			●	●	●
1	09.003 BRACKET; CAB MTG	8-97033-348-5	01	1	0502-			●
2	09.009 BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	0211-0501	●			●	●	●
2	09.009 BUSHING; TORSION BAR	8-97061-514-0	02	1	0211-0501		●	●
2	09.009 BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	0502-	●			●	●	●
2	09.009 BUSHING; TORSION BAR	8-97061-514-0	02	1	0502-			●
7	09.003 BOLT; BRKT,CAB TILT FRT INDEPENDENT SUSPENSION(6PP) EXC. MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28681-240-0	08	1	0211-0501	●
7	09.003 BOLT; BRKT,CAB TILT EXC. FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	0-28681-240-0	08	1	0211-0501	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0211-0501		●	●		●	●
7	09.003 BOLT; BRKT,CAB TILT EXC. FRAME-KICK UP<7EW> M12X40 FLANGE	0-28681-240-0	08	1	0211-0501				●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0502-0512	●		●		●	●
7	09.003 BOLT; BRKT,CAB TILT EXC. FRAME-KICK UP<7EW> M12X40 FLANGE	0-28681-240-0	08	1	0502-0512				●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0601-	●		●		●	●
7	09.003 BOLT; BRKT,CAB TILT EXC. FRAME-KICK UP<7EW> M12X40 FLANGE	0-28651-240-0	08	1	0601-				●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	0-28681-240-0	10	1	0211-0501	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRAME-KICK UP<7EW> M12X40 FLANGE	0-28681-240-0	10	1	0211-0501				●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRAME-KICK UP<7EW> M12X40 FLANGE	0-28681-240-0	10	1	0502-0512				●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRAME-KICK UP<7EW> M12X40 FLANGE	0-28651-240-0	10	1	0601-				●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-139-2	02	1	0211-0501		●	●
18	09.003 PLATE; MTG BRKT FIX FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	02	1	0211-0501					●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	02	1	0502-	●				●	●
18	09.003 PLATE; MTG BRKT FIX FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-139-2	02	1	0502-			●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97093-741-1	02	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	01	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRAME-KICK UP<7EW> (B)	8-97034-139-2	01	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	01	1	0211-0501					●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	01	1	0502-	●				●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRAME-KICK UP<7EW> (B)	8-97034-139-2	01	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	01	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) (A)	8-97034-140-2	01	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	01	1	0211-0501					●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	01	1	0502-	●				●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) (A)	8-97034-140-2	01	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97076-469-2	01	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) (C)	8-97076-469-2	01	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0211-0501					●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0502-	●				●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) (C)	8-97076-469-2	01	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	0211-0501	●			●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-140-2	02	1	0211-0501		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (A)	8-97034-140-2	02	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	0502-	●			●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (A)	8-97034-140-2	02	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-140-2	02	1	0502-			●
18	09.003 PLATE; MTG BRKT FIX DUMP CHASSIS(V4D) (E)	8-97038-962-2	02	1	0211-				●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97096-893-0	02	1	0211-0501	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97096-893-0	02	1	0211-0501				●	●	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97096-893-1	02	1	0502-	●			●	●	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-2	01	1	0211-0501	●			●	●	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-2	01	1	0211-0501	●			●	●	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-368-2	01	1	0211-0501	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-368-2	01	1	0211-0501	●
20	09.003 RUBBER; MTG,CAB BRKT	8-97033-368-2	01	1	0211-0501		●	●
20	09.003 RUBBER; MTG,CAB BRKT	8-97033-368-2	01	1	0211-0501		●	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	01	1	0502-	●			●	●	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	01	1	0502-	●			●	●	●
20	09.003 RUBBER; MTG,CAB BRKT	8-97033-368-3	01	1	0502-			●
20	09.003 RUBBER; MTG,CAB BRKT	8-97033-368-3	01	1	0502-			●

159 199 300 168 149 151 156 199 199 199 199 192 18 191 191 199 199 191 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-139-2	02	1	0211-0501		●	●
18	09.003 PLATE; MTG BRKT FIX FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	02	1	0211-0501					●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	02	1	0502-	●				●	●
18	09.003 PLATE; MTG BRKT FIX FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-139-2	02	1	0502-			●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97093-741-1	02	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	01	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRAME-KICK UP<7EW> (B)	8-97034-139-2	01	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	01	1	0211-0501					●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	01	1	0502-	●				●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRAME-KICK UP<7EW> (B)	8-97034-139-2	01	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	01	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) (A)	8-97034-140-2	01	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	01	1	0211-0501					●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	01	1	0502-	●				●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) (A)	8-97034-140-2	01	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97076-469-2	01	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) (C)	8-97076-469-2	01	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0211-0501					●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0502-	●				●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) (C)	8-97076-469-2	01	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	0211-0501	●			●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-140-2	02	1	0211-0501		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (A)	8-97034-140-2	02	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	0502-	●			●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (A)	8-97034-140-2	02	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-140-2	02	1	0502-			●
18	09.003 PLATE; MTG BRKT FIX DUMP CHASSIS(V4D) (E)	8-97038-962-2	02	1	0211-				●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97216-458-0	02	1	0211-0501	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97095-149-2	02	1	0211-0501	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-97095-149-2	02	1	0211-0501				●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-97095-149-3	02	1	0502-0804	●			●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	0805-	●			●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-97086-442-4	02	1	0211-	●			●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=26.5	5-53459-041-0	02	1	0211-0501		●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=26.5	5-53459-041-0	02	1	0502-			●
149	09.023 RUBBER; MTG,CAB,UPR RR (E) H=30.6	8-94128-501-0	02	1	0211-0501		●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (E) H=30.6	8-94128-501-0	02	1	0502-			●
149	09.023 RUBBER; MTG,CAB,UPR RR (C)	8-97086-440-2	02	1	0211-0501		●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (C)	8-97086-440-3	02	1	0502-0612			●
149	09.023 RUBBER; MTG,CAB,UPR RR (C) H=94	8-98038-868-0	02	1	0701-			●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=16.4 OD=62	8-97034-382-0	02	1	0211-0611	●			●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=17 OD=62	8-97359-042-1	02	1	0612-	●			●	●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (A) ID=16.5 OD=58	8-97034-383-1	02	1	0211-0501	●			●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (A) ID=16.5 OD=58	8-97034-383-1	02	1	0211-0501		●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (A) ID=16.5 OD=58	8-97034-383-1	02	1	0502-0611	●			●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (A) ID=16.5 OD=58	8-97034-383-1	02	1	0502-0611			●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (A) ID=16.5 OD=58	8-97359-040-1	02	1	0612-	●			●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (A) ID=16.5 OD=58	8-97359-040-1	02	1	0612-			●
151	09.011 WASHER; CAB MTG,RR UPR 03.704 (C) OD=33 ID=10.2 T=3.2	9-09851-423-0	02	1	0211-0501		●	●
151	09.011 WASHER; CAB MTG,RR UPR 03.704 (C) OD=33 ID=10.2 T=3.2	9-09851-423-0	02	1	0502-0611			●
151	09.011 WASHER; CAB MTG,RR UPR (C) OD=33 ID=10.2 T=3.2	8-98004-321-0	02	1	0612-			●
151	09.011 WASHER; CAB MTG,RR UPR 09.023 (D) ID=14 OD=60	9-53459-048-0	02	1	0211-0501		●	●
151	09.011 WASHER; CAB MTG,RR UPR 09.023 (D) ID=14 OD=60	9-53459-048-0	02	1	0502-0610			●
151	09.011 WASHER; CAB MTG,RR UPR (D) ID=14 OD=60	8-98004-322-0	02	1	0611-			●
156	07.529 NUT; CAB MTG RR 04.681 (A) M16	9-99111-416-0	02	1	0211-0512	●			●	●	●
156	07.529 NUT; CAB MTG RR 00.785 (A) M16	0-91111-516-0	02	1	0601-	●			●	●	●
156	07.529 NUT; CAB MTG RR 03.613 (B) M14 FLANGE	0-91150-114-0	02	1	0211-0501		●	●
156	07.529 NUT; CAB MTG RR 03.613 (B) M14 FLANGE	0-91150-114-0	02	1	0502-0610			●
156	07.529 NUT; CAB MTG RR (B) M14 FLANGE	0-91180-114-0	02	1	0611-			●
156	07.529 NUT; CAB MTG RR 09.011 (C) M10	9-09110-410-0	04	1	0211-0501		●	●
156	07.529 NUT; CAB MTG RR 09.011 (C) M10	9-09110-410-0	04	1	0502-0512			●
156	07.529 NUT; CAB MTG RR 00.833 (C) M10	0-91110-510-0	04	1	0601-			●
159	09.023 RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	0211-	●			●	●	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE	0-91150-108-0	04	1	0211-0602	●			●	●	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-	●			●	●	●
191	09.003 BOLT; BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) 07.632 M12X35 FLANGE	0-28681-235-0	10	1	0211-0501	●
191	09.003 BOLT; BRKT FIX 07.632 M12X35 FLANGE	0-28681-235-0	08	1	0502-0512	●		●	●	●	●
191	09.003 BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	0601-	●		●	●	●	●
191	09.003 BOLT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.632 M12X35 FLANGE	0-28681-235-0	08	1	0211-0501	●
191	09.003 BOLT; BRKT FIX 07.632 M12X35 FLANGE	0-28681-235-0	08	1	0211-0501		●	●	●	●	●
192	09.003 NUT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.586 M12 FLANGE	0-91150-112-0	08	1	0211-0501	●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	08	1	0211-0501		●	●		●	●
192	09.003 NUT; BRKT FIX EXC. DUMP CHASSIS(V4D) 05.586 M12 FLANGE	0-91150-112-0	08	1	0211-0501				●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	08	1	0502-0602	●		●		●	●
192	09.003 NUT; BRKT FIX EXC. DUMP CHASSIS(V4D) 05.586 M12 FLANGE	0-91150-112-0	08	1	0502-0602				●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	0603-	●		●		●	●
192	09.003 NUT; BRKT FIX EXC. DUMP CHASSIS(V4D) 02.042 M12 FLANGE	0-91180-112-0	08	1	0603-				●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97086-448-2	01	1	0211-0501	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) EXC. MANUAL TILT CAB<RWZ> (D)	8-97086-446-2	01	1	0211-0501	●
199	09.003 BRACKET; CAB RR MTG EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97086-447-1	01	1	0211-0501	●
199	09.003 BRACKET; CAB RR MTG (C)	8-97086-447-1	01	1	0211-0501		●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG (C)	8-97086-447-1	01	1	0502-	●		●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97086-444-3	01	1	0211-0501	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97086-443-3	01	1	0211-0501	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-97086-443-3	01	1	0211-0501				●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-97086-443-3	01	1	0502-	●			●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97086-445-2	01	1	0211-0501	●
199	09.003 BRACKET; CAB RR MTG (D)	8-97086-445-2	01	1	0211-0501		●	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-97086-445-2	01	1	0211-0501				●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-97086-445-2	01	1	0502-	●			●	●	●
199	09.003 BRACKET; CAB RR MTG (D)	8-97086-445-2	01	1	0502-			●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-97035-310-4	02	1	0211-	●			●	●	●
300	09.003 BOLT; MTG RUBBER 03.611 M10X20 FLANGE	0-28681-020-0	08	1	0211-0501	●	●	●	●	●	●
300	09.003 BOLT; MTG RUBBER 03.611 M10X20 FLANGE	0-28681-020-0	08	1	0502-0512	●		●	●	●	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	0601-	●		●	●	●	●

7 1 7 20 1 20 104 7 23 105 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97163-030-0	01	1	0211-0501	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97170-220-0	01	1	0211-0501	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97170-220-0	01	1	0211-0501				●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97170-220-0	01	1	0502-	●			●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97096-894-1	01	1	0211-0501	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97096-894-1	01	1	0211-0501				●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97096-894-1	01	1	0502-	●			●	●	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0211-0501	●			●	●	●
1	09.003 BRACKET; CAB MTG	8-97033-350-3	01	1	0211-0501		●	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0502-	●			●	●	●
1	09.003 BRACKET; CAB MTG	8-97033-350-3	01	1	0502-			●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0211-0501	●			●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-348-5	01	1	0211-0501	●
1	09.003 BRACKET; CAB MTG	8-97033-348-5	01	1	0211-0501		●	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0502-	●			●	●	●
1	09.003 BRACKET; CAB MTG	8-97033-348-5	01	1	0502-			●
7	09.003 BOLT; BRKT,CAB TILT FRT INDEPENDENT SUSPENSION(6PP) EXC. MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28681-240-0	08	1	0211-0501	●
7	09.003 BOLT; BRKT,CAB TILT EXC. FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	0-28681-240-0	08	1	0211-0501	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0211-0501		●	●		●	●
7	09.003 BOLT; BRKT,CAB TILT EXC. FRAME-KICK UP<7EW> M12X40 FLANGE	0-28681-240-0	08	1	0211-0501				●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0502-0512	●		●		●	●
7	09.003 BOLT; BRKT,CAB TILT EXC. FRAME-KICK UP<7EW> M12X40 FLANGE	0-28681-240-0	08	1	0502-0512				●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0601-	●		●		●	●
7	09.003 BOLT; BRKT,CAB TILT EXC. FRAME-KICK UP<7EW> M12X40 FLANGE	0-28651-240-0	08	1	0601-				●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	0-28681-240-0	10	1	0211-0501	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRAME-KICK UP<7EW> M12X40 FLANGE	0-28681-240-0	10	1	0211-0501				●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRAME-KICK UP<7EW> M12X40 FLANGE	0-28681-240-0	10	1	0502-0512				●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRAME-KICK UP<7EW> M12X40 FLANGE	0-28651-240-0	10	1	0601-				●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-139-2	02	1	0211-0501		●	●
18	09.003 PLATE; MTG BRKT FIX FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	02	1	0211-0501					●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	02	1	0502-	●				●	●
18	09.003 PLATE; MTG BRKT FIX FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-139-2	02	1	0502-			●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97093-741-1	02	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	01	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRAME-KICK UP<7EW> (B)	8-97034-139-2	01	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	01	1	0211-0501					●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	01	1	0502-	●				●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRAME-KICK UP<7EW> (B)	8-97034-139-2	01	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	01	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) (A)	8-97034-140-2	01	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	01	1	0211-0501					●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	01	1	0502-	●				●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) (A)	8-97034-140-2	01	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97076-469-2	01	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) (C)	8-97076-469-2	01	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0211-0501					●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0502-	●				●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) (C)	8-97076-469-2	01	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	0211-0501	●			●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	0211-0501	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-140-2	02	1	0211-0501		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (A)	8-97034-140-2	02	1	0211-0501				●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	0502-	●			●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (A)	8-97034-140-2	02	1	0502-				●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-140-2	02	1	0502-			●
18	09.003 PLATE; MTG BRKT FIX DUMP CHASSIS(V4D) (E)	8-97038-962-2	02	1	0211-				●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97096-893-0	02	1	0211-0501	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97096-893-0	02	1	0211-0501				●	●	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97096-893-1	02	1	0502-	●			●	●	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-2	01	1	0211-0501	●			●	●	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-2	01	1	0211-0501	●			●	●	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-368-2	01	1	0211-0501	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-368-2	01	1	0211-0501	●
20	09.003 RUBBER; MTG,CAB BRKT	8-97033-368-2	01	1	0211-0501		●	●
20	09.003 RUBBER; MTG,CAB BRKT	8-97033-368-2	01	1	0211-0501		●	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	01	1	0502-	●			●	●	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	01	1	0502-	●			●	●	●
20	09.003 RUBBER; MTG,CAB BRKT	8-97033-368-3	01	1	0502-			●
20	09.003 RUBBER; MTG,CAB BRKT	8-97033-368-3	01	1	0502-			●
23	09.003 NUT; MTG BRKT MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.586 M12 FLANGE	0-91150-112-0	02	1	0211-0501	●
23	09.003 NUT; MTG BRKT MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) 05.586 M12 FLANGE	0-91150-112-0	02	1	0211-0501				●
23	09.003 NUT; MTG BRKT MANUAL TILT CAB<RWZ> 05.586 M12 FLANGE	0-91150-112-0	02	1	0211-0501					●	●
23	09.003 NUT; MTG BRKT MANUAL TILT CAB<RWZ> 05.586 M12 FLANGE	0-91150-112-0	02	1	0502-0602	●				●	●
23	09.003 NUT; MTG BRKT MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) 05.586 M12 FLANGE	0-91150-112-0	02	1	0502-0602				●
23	09.003 NUT; MTG BRKT MANUAL TILT CAB<RWZ> 02.042 M12 FLANGE	0-91180-112-0	02	1	0603-	●				●	●
23	09.003 NUT; MTG BRKT MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) 02.042 M12 FLANGE	0-91180-112-0	02	1	0603-				●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97033-624-3	01	1	0211-	●			●	●	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28881-635-0	01	1	0211-0512	●			●	●	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28851-635-0	01	1	0601-	●			●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
