2 |

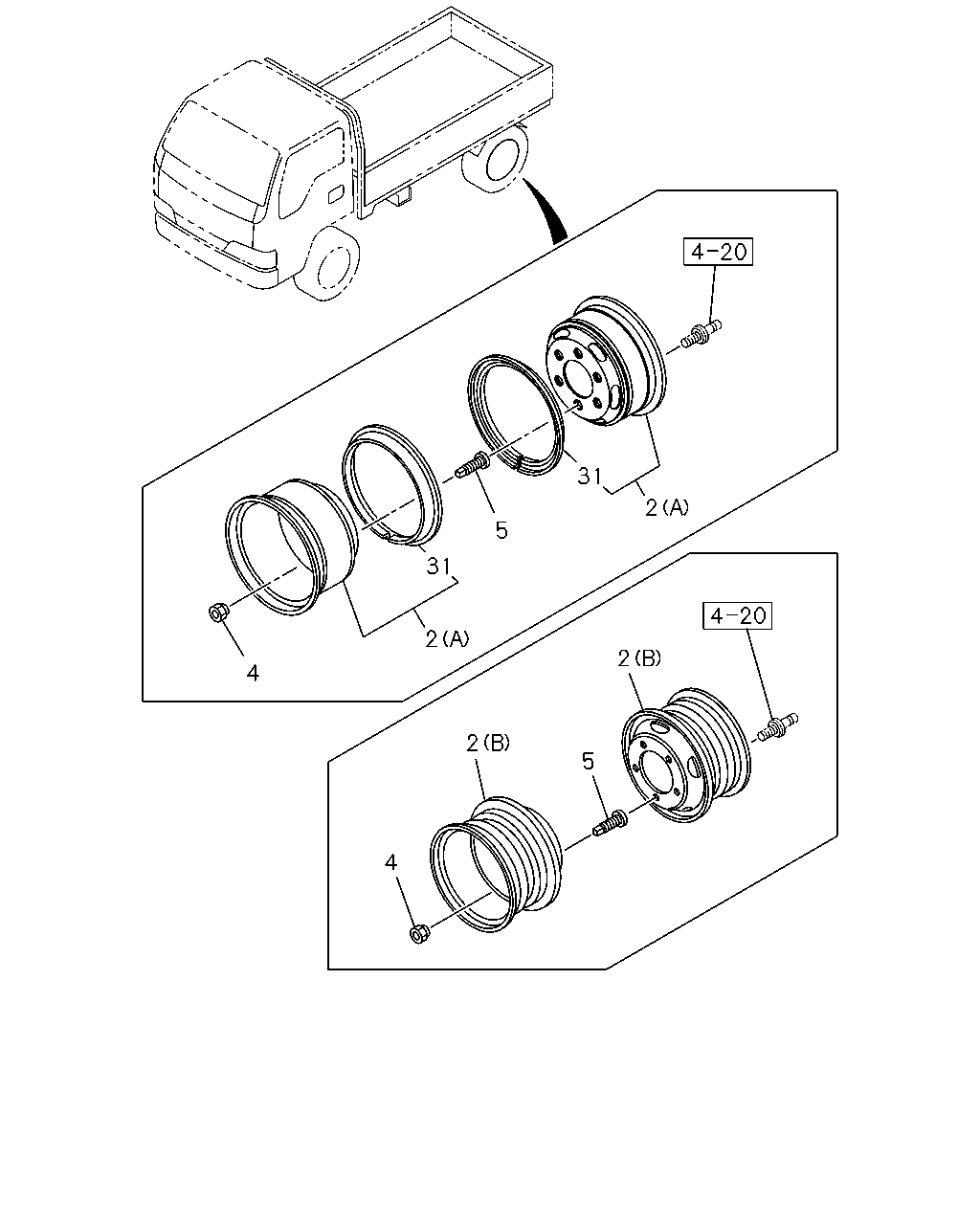

05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF)
(A) SPARE
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
01 |
1 |
1105- |
● |
|
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF)
(A) FRONT,REAR
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
06 |
1 |
1105- |
● |
|
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85
(ATB)
(B) SPARE
5.5JX16 OFFSET=85 6-HOLE
|
8-97162-604-0 |
01 |
1 |
0211-0307 |
|
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 185/85R16 16X5.5J-116.5 SILVER
DISC(BWN)
(B) SPARE
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
01 |
1 |
0308-0501 |
● |
|
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85
(ATB)
(B) FRONT,REAR
5.5JX16 OFFSET=85 6-HOLE
|
8-97162-604-0 |
04 |
1 |
0211-0307 |
|
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 185/85R16 16X5.5J-116.5 SILVER
DISC(BWN)
(B) FRONT,REAR
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
06 |
1 |
0308-0501 |
● |
|
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X
5.5J-85(CQS)
(B) SPARE
16X5.5J OFFSET=85 PLATINUM SILVER 6-H
OLE
|
8-97258-376-0 |
01 |
1 |
0303-0501 |
|
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X
5.5J-85(CQS)
(B) FRONT,REAR
16X5.5J OFFSET=85 PLATINUM SILVER 6-H
OLE
|
8-97258-376-0 |
04 |
1 |
0303-0501 |
|
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 195-85R16 DISC 16-5.5J-11
6.5(CPG)
(B) REAR
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
04 |
1 |
0502-0508 |
● |
|
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5
-WHL/NUT(CSK)
(B) REAR
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
04 |
1 |
0509-0910 |
● |
|
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT
7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25
(22H)
(A) SPARE
5.5FX15 OFFSET=25 BLACK 6-HOLE
|
8-94116-196-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5-15-10 5.5FX15-25(09V)
(A) SPARE
5.5FX15 OFFSET=25 BLACK 6-HOLE
|
8-94116-196-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT 7-15-8 5.5FX15-25 RR 6-13-8 4JX13
-98(37H)
(A) SPARE
5.5FX15 OFFSET=25 BLACK 6-HOLE
|
8-94116-196-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT
7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25
(22H)
(A) SPARE
5.5FX15 OFFSET=25 BLACK 6-HOLE
|
8-94116-196-0 |
01 |
1 |
0502-1404 |
|
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT
7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25
(22H)
(A) SPARE
5.5FX15 OFFSET=25 BLACK 6-HOLE
|
8-94116-196-0 |
01 |
1 |
1405- |
● |
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT
7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25
(22H)
(A) FRONT,REAR
5.5FX15 OFFSET=25 BLACK 6-HOLE
|
8-94116-196-0 |
02 |
1 |
0502- |
|
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT
7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25
(22H)
(A) FRONT,REAR
5.5FX15 OFFSET=25 BLACK 6-HOLE
|
8-94116-196-0 |
02 |
1 |
0502- |
|
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6
GSX15-25(25H)
(A) SPARE
6.0GSX15 OFFSET=25 BLACK 6-HOLE
|
8-94128-017-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6
GSX15-25(25H),FRT 7-15-8 5.5FX15-25
RR 7.5-15-12 6GSX15-25(31H)
(A) SPARE
6.0GSX15 OFFSET=25 BLACK 6-HOLE
|
8-94128-017-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6
GSX15-25(25H)
(A) SPARE
6.0GSX15 OFFSET=25 BLACK 6-HOLE
|
8-94128-017-0 |
01 |
1 |
0502-1003 |
|
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.
5F-15-25(CUQ),FRT 7-15-10 5.5FX15-25
RR 7.5-15-12 6GSX15-25(25H)
(A) SPARE
6.0GSX15 OFFSET=25 BLACK 6-HOLE
|
8-94128-017-0 |
01 |
1 |
1004-1404 |
|
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.
5F-15-25(CUQ),FRT 7-15-10 5.5FX15-25
RR 7.5-15-12 6GSX15-25(25H)
(A) SPARE
6.0GSX15 OFFSET=25 BLACK 6-HOLE
|
8-94128-017-0 |
01 |
1 |
1405- |
● |
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6
GSX15-25(25H)
(A) REAR
6.0GSX15 OFFSET=25 BLACK 6-HOLE
|
8-94128-017-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6
GSX15-25(25H),FRT 7-15-8 5.5FX15-25
RR 7.5-15-12 6GSX15-25(31H)
(A) REAR
6.0GSX15 OFFSET=25 BLACK 6-HOLE
|
8-94128-017-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6
GSX15-25(25H)
(A) REAR
6.0GSX15 OFFSET=25 BLACK 6-HOLE
|
8-94128-017-0 |
02 |
1 |
0502-1003 |
|
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.
5F-15-25(CUQ),FRT 7-15-10 5.5FX15-25
RR 7.5-15-12 6GSX15-25(25H)
(A) REAR
6.0GSX15 OFFSET=25 BLACK 6-HOLE
|
8-94128-017-0 |
02 |
1 |
1004-1404 |
|
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.
5F-15-25(CUQ),FRT 7-15-10 5.5FX15-25
RR 7.5-15-12 6GSX15-25(25H)
(A) REAR
6.0GSX15 OFFSET=25 BLACK 6-HOLE
|
8-94128-017-0 |
02 |
1 |
1405- |
● |
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6
GSX15-25(25H)
(A) FRONT
5.5FX15 OFFSET=25 BLACK 6-HOLE
|
8-94116-196-0 |
02 |
1 |
0502-1003 |
|
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.
5F-15-25(CUQ),FRT 7-15-10 5.5FX15-25
RR 7.5-15-12 6GSX15-25(25H)
(A) FRONT
5.5FX15 OFFSET=25 BLACK 6-HOLE
|
8-94116-196-0 |
02 |
1 |
1004- |
|
● |
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT
7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25
(22H)
(A) FRONT,REAR
5.5FX15 OFFSET=25 BLACK 6-HOLE
|
8-94116-196-0 |
02 |
1 |
0211-0501 |
|
● |
|
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT
7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25
(22H)
(A) FRONT,REAR
5.5FX15 OFFSET=25 BLACK 6-HOLE
|
8-94116-196-0 |
02 |
1 |
0211-0501 |
|
● |
|
● |
|
|
| |
2 |
05.803 WHEEL; DISC
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6
GSX15-25(25H),FRT 7-15-8 5.5FX15-25
RR 7.5-15-12 6GSX15-25(31H),FRT 7-15-8
5.5FX15-25 RR 6-13-8 4JX13-98(37H)
(A) FRONT
5.5FX15 OFFSET=25 BLACK 6-HOLE
|
8-94116-196-0 |
02 |
1 |
0211-0501 |
|
● |
|
● |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5(AZX),
FRT&RR 185/85R16 16X5.5J-116.5(BQX)
(B) SPARE
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
01 |
1 |
0211-0307 |
● |
|
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
(B) SPARE
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
01 |
1 |
0211-0307 |
|
|
|
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
(B) SPARE
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
01 |
1 |
0308-0501 |
● |
|
● |
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5(AZX),
FRT&RR TIRE 195-85R16 DISC 16-5.5J-116
.5(CPG)
(B) SPARE
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
01 |
1 |
0502-0508 |
● |
|
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
(B) SPARE
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
01 |
1 |
0502-0508 |
|
|
|
|
|
● |
| |
2 |
05.803 WHEEL; DISC
(B) SPARE
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
01 |
1 |
0502-0508 |
|
|
|
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
(B) SPARE
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
01 |
1 |
0509-0609 |
● |
|
● |
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
(B) FRONT,REAR
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
06 |
1 |
0610- |
● |
|
● |
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5(AZX),
FRT&RR 185/85R16 16X5.5J-116.5(BQX)
(B) FRONT,REAR
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
06 |
1 |
0211-0307 |
● |
|
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
(B) FRONT,REAR
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
06 |
1 |
0211-0307 |
|
|
|
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
(B) FRONT,REAR
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
06 |
1 |
0308-0609 |
● |
|
● |
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5(AZX)
(B) SPARE
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
01 |
1 |
0610- |
● |
|
● |
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5 SILVER
DISC(CNE)
(B) SPARE
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
01 |
1 |
0506-0508 |
● |
|
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5 SILVER
DISC(CNE),FRT&RR TIRE 195/85R16 16X5
.5J-116.5 5-WHL/NUT(CSK)
(B) SPARE
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
01 |
1 |
0509-0606 |
● |
|
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
(B) SPARE
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
01 |
1 |
0509-0606 |
|
|
|
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5 SILVER
DISC(CNE),FRT&RR TIRE 195/85R16 16X5
.5J-116.5 5-WHL/NUT(CSK)
(B) SPARE
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
01 |
1 |
0607-0910 |
|
|
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5 SILVER
DISC(CNE),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/8
5R16 16X5.5J-116.5 5-WHL/NUT(CSK)
(B) SPARE
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
01 |
1 |
0607-0910 |
● |
|
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
(B) SPARE
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
01 |
1 |
0607-0910 |
|
|
|
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5 SILVER
DISC(CNE)
(B) SPARE
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
01 |
1 |
0911- |
|
|
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5 SILVER
DISC(CNE),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB)
(B) SPARE
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
01 |
1 |
0911- |
● |
|
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
(B) SPARE
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
01 |
1 |
0911- |
|
|
|
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5 SILVER
DISC(CNE)
(B) FRONT,REAR
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
06 |
1 |
0506-0606 |
● |
|
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5 SILVER
DISC(CNE)
(B) FRONT,REAR
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
06 |
1 |
0607- |
|
|
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5 SILVER
DISC(CNE),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB)
(B) FRONT,REAR
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
06 |
1 |
0607- |
● |
|
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16
-115(AQE),FRT&RR 7R-16-8 FRT&RR
5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-11
5(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT
&RR 7-16-10 16X5.5F-115 T/VLV
TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VL
V TR177A(98H)
(A) SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
01 |
1 |
0211-0501 |
● |
|
● |
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR
7-16-10 16X5.5F-115 T/VLV TR177A(95H),FR
T&RR 7-16-10L 5.5FX16-115 T/VLV TR177
A(98H)
(A) SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
01 |
1 |
0502- |
|
|
● |
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16
-115(AQE),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),
FRT&RR 7-16-10 16X5.5F-115 T/VLV TR17
7A(95H),FRT&RR 7-16-10L 5.5FX16-115
T/VLV TR177A(98H)
(A) SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
01 |
1 |
0502- |
● |
|
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16
-115(AQE),FRT&RR 7R-16-8 FRT&RR
5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-11
5(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT
&RR 7-16-10 16X5.5F-115 T/VLV
TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VL
V TR177A(98H)
(A) FRONT,REAR
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
06 |
1 |
0211-0501 |
● |
|
● |
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR
7-16-10 16X5.5F-115 T/VLV TR177A(95H),FR
T&RR 7-16-10L 5.5FX16-115 T/VLV TR177
A(98H)
(A) FRONT,REAR
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
06 |
1 |
0502- |
|
|
● |
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16
-115(AQE),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),
FRT&RR 7-16-10 16X5.5F-115 T/VLV TR17
7A(95H),FRT&RR 7-16-10L 5.5FX16-115
T/VLV TR177A(98H)
(A) FRONT,REAR
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
06 |
1 |
0502- |
● |
|
|
|
|
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15
-10 5.5FX15-115(49H),FRT&RR 7-15-10L
5.5FX15-115(50H),FRT&RR 7R-15-10
5.5FX15-115(58H)
(A) SPARE
5.5FX15 OFFSET=115 BLACK 5-HOLE
|
8-94116-198-0 |
01 |
1 |
0211-0811 |
● |
|
● |
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15
-10 5.5FX15-115(49H),FRT&RR 7-15-10L
5.5FX15-115(50H),FRT&RR 7R-15-8
5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-1
15(58H)
(A) SPARE
5.5FX15 OFFSET=115 BLACK 5-HOLE
|
8-94116-198-0 |
01 |
1 |
0812- |
● |
|
● |
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15
-10 5.5FX15-115(49H),FRT&RR 7-15-10L
5.5FX15-115(50H),FRT&RR 7R-15-10
5.5FX15-115(58H)
(A) FRONT,REAR
5.5FX15 OFFSET=115 BLACK 5-HOLE
|
8-94116-198-0 |
06 |
1 |
0211-0811 |
● |
|
● |
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15
-10 5.5FX15-115(49H),FRT&RR 7-15-10L
5.5FX15-115(50H),FRT&RR 7R-15-8
5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-1
15(58H)
(A) FRONT,REAR
5.5FX15 OFFSET=115 BLACK 5-HOLE
|
8-94116-198-0 |
06 |
1 |
0812- |
● |
|
● |
|
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT 7-15-8 5.5FX15-25 RR 6-13-8 4JX13
-98(37H)
(B) SPARE
13X4J OFFSET=98 BLACK 6-HOLE
|
8-94116-197-2 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT 7-15-8 5.5FX15-25 RR 6-13-8 4JX13
-98(37H)
(B) REAR
13X4J OFFSET=98 BLACK 6-HOLE
|
8-94116-197-2 |
04 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT 7R-16-8 5.5FX16-25 RR 175R-14-8 5
JX14-104(91C)
(A) SPARE
5.5FX16 OFFSET=25 BLACK 6-HOLE
|
8-94128-561-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT 7R-16-8 5.5FX16-25 RR 175R-14-8 5
JX14-104(91C)
(A) FRONT
5.5FX16 OFFSET=25 BLACK 6-HOLE
|
8-94128-561-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 195-85R16 DISC 16-5.5J-11
6.5(CPG)
(A) FRONT
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
02 |
1 |
0502-0508 |
● |
|
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
(A) FRONT
16X5.5J OFFSET=116.5 BLACK 5-HOLE
|
8-97213-255-1 |
02 |
1 |
0502-0508 |
|
|
|
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5
-WHL/NUT(CSK)
(B) FRONT
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
02 |
1 |
0509-0910 |
● |
|
● |
|
|
|
| |
2 |
05.803 WHEEL; DISC
(B) FRONT
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
02 |
1 |
0509-0910 |
|
|
|
|
● |
|
| |
2 |
05.803 WHEEL; DISC
(B) FRONT
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
02 |
1 |
0911- |
|
|
|
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT 7R-16-8 5.5FX16-25 RR 175R-14-8 5
JX14-104(91C)
(B) SPARE
4.5JX14 OFFSET=100 BLACK 6-HOLE
|
8-94385-056-1 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
2 |
05.803 WHEEL; DISC
(B) SPARE
4.5JX14 OFFSET=100 BLACK 6-HOLE
|
8-94385-056-1 |
01 |
1 |
0502-0508 |
|
|
|
|
● |
|
| |
2 |
05.803 WHEEL; DISC
(B) SPARE
4.5JX14 OFFSET=100 PLATINUM SILVER
|
8-97145-128-0 |
01 |
1 |
0509- |
|
|
|
|
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT 7R-16-8 5.5FX16-25 RR 175R-14-8 5
JX14-104(91C)
(B) REAR
4.5JX14 OFFSET=100 BLACK 6-HOLE
|
8-94385-056-1 |
04 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
2 |
05.803 WHEEL; DISC
(B) REAR
4.5JX14 OFFSET=100 BLACK 6-HOLE
|
8-94385-056-1 |
04 |
1 |
0502-0508 |
|
|
|
|
● |
|
| |
2 |
05.803 WHEEL; DISC
(B) REAR
4.5JX14 OFFSET=100 PLATINUM SILVER
|
8-97145-128-0 |
04 |
1 |
0509- |
|
|
|
|
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
VIN MODEL YEAR 2012(VZC)
EXC. HONG KONG EQUIPMENT(PQ1),
AUSTRALIA EQUIPMENT(RR3)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
1105-1405 |
● |
|
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF)
EXC. HONG KONG EQUIPMENT(PQ1),
AUSTRALIA EQUIPMENT(RR3)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
1406- |
● |
|
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
VIN MODEL YEAR 2012(VZC)
EXC. HONG KONG EQUIPMENT(PQ1),
AUSTRALIA EQUIPMENT(RR3)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
1105-1405 |
● |
|
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF)
EXC. HONG KONG EQUIPMENT(PQ1),
AUSTRALIA EQUIPMENT(RR3)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
1406- |
● |
|
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M14 LH THREAD
|
5-42334-002-0 |
06 |
1 |
0211-0501 |
|
● |
|
● |
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M14 LH THREAD
|
5-42334-002-0 |
06 |
1 |
0502-0610 |
|
● |
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M14 LH THREAD
|
8-98007-906-0 |
06 |
1 |
0611-1406 |
|
● |
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.
5F-15-25(CUQ),FRT&RR 7.5-15-10
5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT
&RR 5.5FX15-25(22H),FRT 7-15-10
5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H)
M14 LH THREAD
|
8-98007-906-0 |
06 |
1 |
1407- |
● |
● |
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M14 RH THREAD
|
5-42333-008-0 |
06 |
1 |
0211-0501 |
|
● |
|
● |
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M14 RH THREAD
|
5-42333-008-0 |
06 |
1 |
0502-0610 |
|
● |
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M14 RH THREAD
|
8-98007-905-0 |
06 |
1 |
0611-1406 |
|
● |
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.
5F-15-25(CUQ),FRT&RR 7.5-15-10
5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT
&RR 5.5FX15-25(22H),FRT 7-15-10
5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H)
M14 RH THREAD
|
8-98007-905-0 |
06 |
1 |
1407- |
● |
● |
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD
|
8-94365-146-0 |
05 |
1 |
0211-0610 |
● |
|
● |
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
0611-1104 |
● |
|
● |
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
1105-1405 |
|
|
● |
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
1105-1405 |
● |
|
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
EXC. HONG KONG EQUIPMENT(PQ1),
AUSTRALIA EQUIPMENT(RR3),VIN MODEL YEAR
2012(VZC)
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
1105-1405 |
● |
|
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
1406- |
|
|
● |
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16
-115(AQE),FRT&RR 195/85R16
16X5.5J-116.5(AZX),FRT&RR 195/85R16
16X5.5J-116.5 SILVER DISC(CNE),FRT&RR TIRE
205/85R16 DISC 16-5.5J-116.5(CSB),F&R195/8
5R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT
(CVS),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),FRT&
RR 7-15-8L 5.5FX15-115(47H),FRT&RR
7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10
L 5.5FX15-115(50H),FRT&RR 7R-15-8
5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15
-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115
T/VLVTR177A(95H),FRT&RR 7-16-10L 5.5FX16-1
15 T/VLV TR177A(98H)
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
1406- |
● |
|
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD
|
8-94365-145-0 |
05 |
1 |
0211-0610 |
● |
|
● |
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
0611-1104 |
● |
|
● |
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
1105-1405 |
|
|
● |
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
HONG KONG EQUIPMENT(PQ1),AUSTRALIA
EQUIPMENT(RR3)
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
1105-1405 |
● |
|
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
EXC. HONG KONG EQUIPMENT(PQ1),
AUSTRALIA EQUIPMENT(RR3),VIN MODEL YEAR
2012(VZC)
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
1105-1405 |
● |
|
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
1406- |
|
|
● |
|
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16
-115(AQE),FRT&RR 195/85R16
16X5.5J-116.5(AZX),FRT&RR 195/85R16
16X5.5J-116.5 SILVER DISC(CNE),FRT&RR TIRE
205/85R16 DISC 16-5.5J-116.5(CSB),F&R195/8
5R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT
(CVS),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),FRT&
RR 7-15-8L 5.5FX15-115(47H),FRT&RR
7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10
L 5.5FX15-115(50H),FRT&RR 7R-15-8
5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15
-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115
T/VLVTR177A(95H),FRT&RR 7-16-10L 5.5FX16-1
15 T/VLV TR177A(98H)
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
1406- |
● |
|
|
|
|
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M25 LH THREAD
|
9-42334-009-0 |
06 |
1 |
0211-0610 |
|
|
|
|
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M25 LH THREAD
|
8-98007-831-0 |
06 |
1 |
0611- |
|
|
|
|
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M25 RH THREAD
|
9-42333-015-0 |
06 |
1 |
0211-0610 |
|
|
|
|
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M25 RH THREAD
|
8-98007-830-0 |
06 |
1 |
0611- |
|
|
|
|
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
VIN MODEL YEAR 2012(VZC)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
1105-1405 |
● |
|
|
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
1406- |
● |
|
|
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
VIN MODEL YEAR 2012(VZC)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
1105-1405 |
● |
|
|
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
1406- |
● |
|
|
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD
|
8-94365-144-1 |
05 |
1 |
0211-0610 |
● |
|
● |
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
0611-1104 |
● |
|
● |
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
1105-1405 |
|
|
● |
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
EXC. VIN MODEL YEAR 2012(VZC)
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
1105-1405 |
● |
|
|
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
1406- |
|
|
● |
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16
-115(AQE),FRT&RR 195/85R16
16X5.5J-116.5(AZX),FRT&RR 195/85R16
16X5.5J-116.5 SILVER DISC(CNE),FRT&RR TIRE
205/85R16 DISC 16-5.5J-116.5(CSB),F&R195/8
5R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT
(CVS),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),FRT&
RR 7-15-8L 5.5FX15-115(47H),FRT&RR
7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10
L 5.5FX15-115(50H),FRT&RR 7R-15-8
5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15
-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115
T/VLVTR177A(95H),FRT&RR 7-16-10L 5.5FX16-1
15 T/VLV TR177A(98H)
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
1406- |
● |
|
|
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD
|
8-94365-143-1 |
05 |
1 |
0211-0610 |
● |
|
● |
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
0611-1104 |
● |
|
● |
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
1105-1405 |
|
|
● |
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
EXC. VIN MODEL YEAR 2012(VZC)
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
1105-1405 |
● |
|
|
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
1406- |
|
|
● |
|
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16
-115(AQE),FRT&RR 195/85R16
16X5.5J-116.5(AZX),FRT&RR 195/85R16
16X5.5J-116.5 SILVER DISC(CNE),FRT&RR TIRE
205/85R16 DISC 16-5.5J-116.5(CSB),F&R195/8
5R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT
(CVS),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),FRT&
RR 7-15-8L 5.5FX15-115(47H),FRT&RR
7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10
L 5.5FX15-115(50H),FRT&RR 7R-15-8
5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15
-115(58H),FRT&RR 7-16-8
16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115
T/VLVTR177A(95H),FRT&RR 7-16-10L 5.5FX16-1
15 T/VLV TR177A(98H)
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
1406- |
● |
|
|
|
|
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 LH THREAD
|
5-42336-001-1 |
06 |
1 |
0211-0610 |
|
|
|
|
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 LH THREAD
|
8-98007-829-0 |
06 |
1 |
0611- |
|
|
|
|
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 RH THREAD
|
5-42335-001-1 |
06 |
1 |
0211-0610 |
|
|
|
|
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 RH THREAD
|
8-98007-828-0 |
06 |
1 |
0611- |
|
|
|
|
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF)
SPARE
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
01 |
1 |
1105- |
● |
|
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
06 |
1 |
1105- |
● |
|
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT
7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25
(22H)
SPARE
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-15-10 5.5FX15-25(09V)
SPARE
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15
-10 5.5FX15-115(49H),FRT&RR 7-15-10L
5.5FX15-115(50H),FRT&RR 7R-15-10
5.5FX15-115(58H)
SPARE
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
01 |
1 |
0211-0501 |
● |
|
● |
|
|
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT 7-15-8 5.5FX15-25 RR 6-13-8 4JX13
-98(37H)
SPARE
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT
7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25
(22H)
SPARE
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
01 |
1 |
0502-0811 |
|
● |
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15
-10 5.5FX15-115(49H),FRT&RR 7-15-10L
5.5FX15-115(50H),FRT&RR 7R-15-10
5.5FX15-115(58H)
SPARE
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
01 |
1 |
0502-0811 |
● |
|
● |
|
|
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT
7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25
(22H)
SPARE
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
01 |
1 |
0812-1404 |
|
● |
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15
-10 5.5FX15-115(49H),FRT&RR 7-15-10L
5.5FX15-115(50H),FRT&RR 7R-15-8
5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-1
15(58H)
SPARE
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
01 |
1 |
0812-1404 |
● |
|
● |
|
|
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT
7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25
(22H)
SPARE
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
01 |
1 |
1405- |
|
● |
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15
-10 5.5FX15-115(49H),FRT&RR 7-15-10L
5.5FX15-115(50H),FRT&RR 7R-15-8
5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-1
15(58H)
SPARE
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
01 |
1 |
1405- |
|
|
● |
|
|
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT
7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25
(22H),FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR 7-15-8L 5.5FX15-115(47H),
FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-1
5-10L 5.5FX15-115(50H),FRT&RR
7R-15-85.5FX15-115(57H),FRT&RR 7R-15-10 5.5
FX15-115(58H)
SPARE
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT
7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25
(22H)
FRONT,REAR
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
02 |
1 |
0502- |
|
● |
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT
7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25
(22H)
FRONT,REAR
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
02 |
1 |
0502- |
|
● |
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6
GSX15-25(25H)
SPARE
15X6.00GS STAMP, BLACK
|
8-94135-600-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6
GSX15-25(25H),FRT 7-15-8 5.5FX15-25
RR 7.5-15-12 6GSX15-25(31H)
SPARE
15X6.00GS STAMP, BLACK
|
8-94135-600-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6
GSX15-25(25H)
SPARE
15X6.00GS STAMP, BLACK
|
8-94135-600-0 |
01 |
1 |
0502-1003 |
|
● |
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.
5F-15-25(CUQ),FRT 7-15-10 5.5FX15-25
RR 7.5-15-12 6GSX15-25(25H)
SPARE
15X6.00GS STAMP, BLACK
|
8-94135-600-0 |
01 |
1 |
1004-1404 |
|
● |
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.
5F-15-25(CUQ),FRT 7-15-10 5.5FX15-25
RR 7.5-15-12 6GSX15-25(25H)
SPARE
15X6.00GS STAMP, BLACK
|
8-94135-600-0 |
01 |
1 |
1405- |
● |
● |
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6
GSX15-25(25H)
REAR
15X6.00GS STAMP, BLACK
|
8-94135-600-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6
GSX15-25(25H),FRT 7-15-8 5.5FX15-25
RR 7.5-15-12 6GSX15-25(31H)
REAR
15X6.00GS STAMP, BLACK
|
8-94135-600-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6
GSX15-25(25H)
REAR
15X6.00GS STAMP, BLACK
|
8-94135-600-0 |
02 |
1 |
0502-1003 |
|
● |
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.
5F-15-25(CUQ),FRT 7-15-10 5.5FX15-25
RR 7.5-15-12 6GSX15-25(25H)
REAR
15X6.00GS STAMP, BLACK
|
8-94135-600-0 |
02 |
1 |
1004-1404 |
|
● |
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.
5F-15-25(CUQ),FRT 7-15-10 5.5FX15-25
RR 7.5-15-12 6GSX15-25(25H)
REAR
15X6.00GS STAMP, BLACK
|
8-94135-600-0 |
02 |
1 |
1405- |
● |
● |
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6
GSX15-25(25H)
FRONT
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
02 |
1 |
0502-1003 |
|
● |
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.
5F-15-25(CUQ),FRT 7-15-10 5.5FX15-25
RR 7.5-15-12 6GSX15-25(25H)
FRONT
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
02 |
1 |
1004- |
|
● |
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT
7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25
(22H)
FRONT,REAR
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
02 |
1 |
0211-0501 |
|
● |
|
● |
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT
7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25
(22H)
FRONT,REAR
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
02 |
1 |
0211-0501 |
|
● |
|
● |
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6
GSX15-25(25H),FRT 7-15-8 5.5FX15-25
RR 7.5-15-12 6GSX15-25(31H),FRT 7-15-8
5.5FX15-25 RR 6-13-8 4JX13-98(37H)
FRONT
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
02 |
1 |
0211-0501 |
|
● |
|
● |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16
-115(AQE),FRT&RR 7R-16-8 FRT&RR
5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-11
5(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT
&RR 7-16-10 16X5.5F-115 T/VLV
TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VL
V TR177A(98H)
FRONT,REAR
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
06 |
1 |
0211-0501 |
● |
|
● |
|
|
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR
7-16-10 16X5.5F-115 T/VLV TR177A(95H),FR
T&RR 7-16-10L 5.5FX16-115 T/VLV TR177
A(98H)
FRONT,REAR
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
06 |
1 |
0502-0609 |
|
|
● |
|
|
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16
-115(AQE),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),
FRT&RR 7-16-10 16X5.5F-115 T/VLV TR17
7A(95H),FRT&RR 7-16-10L 5.5FX16-115
T/VLV TR177A(98H)
FRONT,REAR
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
06 |
1 |
0502-0609 |
● |
|
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR
7-16-10 16X5.5F-115 T/VLV TR177A(95H),FR
T&RR 7-16-10L 5.5FX16-115 T/VLV TR177
A(98H)
SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
01 |
1 |
0610- |
|
|
● |
|
|
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16
-115(AQE),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),
FRT&RR 7-16-10 16X5.5F-115 T/VLV TR17
7A(95H),FRT&RR 7-16-10L 5.5FX16-115
T/VLV TR177A(98H)
SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
01 |
1 |
0610- |
● |
|
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15
-10 5.5FX15-115(49H),FRT&RR 7-15-10L
5.5FX15-115(50H),FRT&RR 7R-15-10
5.5FX15-115(58H)
FRONT,REAR
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
06 |
1 |
0211-0811 |
● |
|
● |
|
|
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 5.5FX15-115(46H),
FRT&RR7-15-8L 5.5FX15-115(47H),FRT&RR 7-15
-10 5.5FX15-115(49H),FRT&RR 7-15-10L
5.5FX15-115(50H),FRT&RR 7R-15-8
5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-1
15(58H)
FRONT,REAR
15X5.50F STAMP, BLACK
|
8-94135-599-0 |
06 |
1 |
0812- |
● |
|
● |
|
|
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16
-115(AQE),FRT&RR 7R-16-8 FRT&RR
5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-11
5(06H),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT 7R-16-8 5.5FX16-25 RR
175R-14-8 5JX14-104(91C),FRT&RR 7-16-8 16X5.5
F-115(94H),FRT&RR 7-16-10
16X5.5F-115T/VLV TR177A(95H),FRT&RR 7-16-10L
5.5FX16-115 T/VLV TR177A(98H)
SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
01 |
1 |
0211-0501 |
● |
|
● |
|
● |
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR
7-16-10 16X5.5F-115 T/VLV TR177A(95H),FR
T&RR 7-16-10L 5.5FX16-115 T/VLV TR177
A(98H)
SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
01 |
1 |
0502-0609 |
|
|
● |
|
|
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16
-115(AQE),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),
FRT&RR 7-16-10 16X5.5F-115 T/VLV TR17
7A(95H),FRT&RR 7-16-10L 5.5FX16-115
T/VLV TR177A(98H)
SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
01 |
1 |
0502-0609 |
● |
|
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR
7-16-10 16X5.5F-115 T/VLV TR177A(95H),FR
T&RR 7-16-10L 5.5FX16-115 T/VLV TR177
A(98H)
FRONT,REAR
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
06 |
1 |
0610- |
|
|
● |
|
|
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16
-115(AQE),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),
FRT&RR 7-16-10 16X5.5F-115 T/VLV TR17
7A(95H),FRT&RR 7-16-10L 5.5FX16-115
T/VLV TR177A(98H)
FRONT,REAR
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
06 |
1 |
0610- |
● |
|
|
|
|
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT 7R-16-8 5.5FX16-25 RR 175R-14-8 5
JX14-104(91C)
FRONT
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
|
