4-65E — REAR LEAF SPRING (#47707) — 30 parça

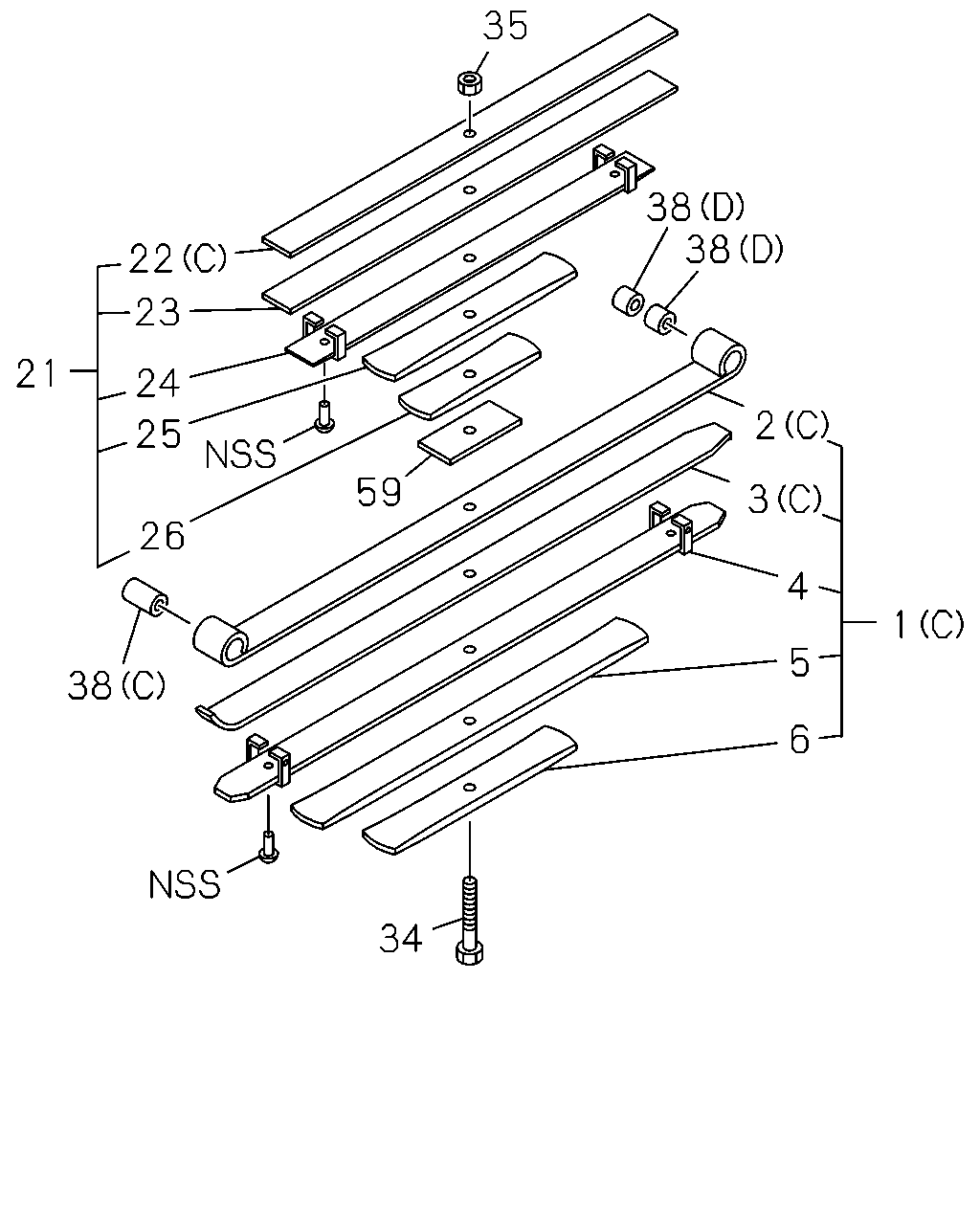

çizim 52230
35 38 38 22 23 21 24 2 25 59 3 26 4 1 5 38 6 34
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
(C) ASM PART: B = 8-97073-224-1, 97073224 		8-97103-035-0 01 1 -
1 07.503 SPRING ASM; LEAF,RR MAIN
(C) ASM PART: A = 8-97070-509-1, 97070509 		8-97108-417-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
(C) ASM PART: B = 8-97073-224-1, 97073224 		8-97103-036-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
(C) ASM PART: A = 8-97070-509-1, 97070509 		8-97108-407-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
(C) ASM PART: B = 8-97073-224-1, 97073224 		8-97103-037-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
(C) ASM PART: A = 8-97070-509-1, 97070509 		8-97108-408-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 8-97073-224-1, 97073224 		8-97103-038-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-97070-509-1, 97070509 		8-97108-409-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: B = 8-97073-224-1, 97073224 		8-97103-039-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-97070-509-1, 97070509 		8-97108-410-0 01 1 -
6 07.505 SPRING; LEAF,NO 5,RR MAIN
ASM PART: B = 8-97073-224-1, 97073224 		8-97103-041-0 01 1 -
6 07.505 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-97070-509-1, 97070509 		8-97108-411-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: B = 8-97073-224-1, 97073224 		8-97103-042-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-97070-509-1, 97070509 		8-97108-418-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
(C) ASM PART: B = 8-97073-224-1, 97073224 		8-97103-043-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
(C) ASM PART: A = 8-97070-509-1, 97070509 		8-97108-412-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: B = 8-97073-224-1, 97073224 		8-97103-044-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-97070-509-1, 97070509 		8-97108-413-0 01 1 -
24 07.505 SPRING; LEAF,NO 3,RR SUB
ASM PART: B = 8-97073-224-1, 97073224 		8-97103-045-0 01 1 -
24 07.505 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 8-97070-509-1, 97070509 		8-97108-414-0 01 1 -
25 07.505 SPRING; LEAF,NO 4,RR SUB
ASM PART: B = 8-97073-224-1, 97073224 		8-97103-046-0 01 1 -
25 07.505 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 8-97070-509-1, 97070509 		8-97108-415-0 01 1 -
26 07.505 SPRING; LEAF,NO 5,RR SUB
ASM PART: B = 8-97073-224-1, 97073224 		8-97103-047-0 01 1 -
26 07.505 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 8-97070-509-1, 97070509 		8-97108-416-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=125 ASM PART: A = 8-97070-509-1, 97070509, B = 8-97073-224-1, 97073224 		8-94165-311-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-97070-509-1, 97070509, B = 8-97073-224-1, 97073224 		9-99110-512-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(C), BEST VALUE PARTS ASM PART: A = 8-97070-509-1, 97070509, B = 8-97073-224-1, 97073224 		5-87610-163-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (D) ASM PART: A = 8-97070-509-1, 97070509, B = 8-97073-224-1, 97073224 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(C), OD=42 L=81 ASM PART: A = 8-97070-509-1, 97070509, B = 8-97073-224-1, 97073224 		8-97074-826-0 01 1 -
59 07.513 SEAT; RR SPRING,SUB
07.518, T=6 ASM PART: A = 8-97070-509-1, 97070509, B = 8-97073-224-1, 97073224 		8-94367-965-1 01 1 -
