◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65C - REAR LEAF SPRING ▶
4-65C — REAR LEAF SPRING (#47705) — 29 parça

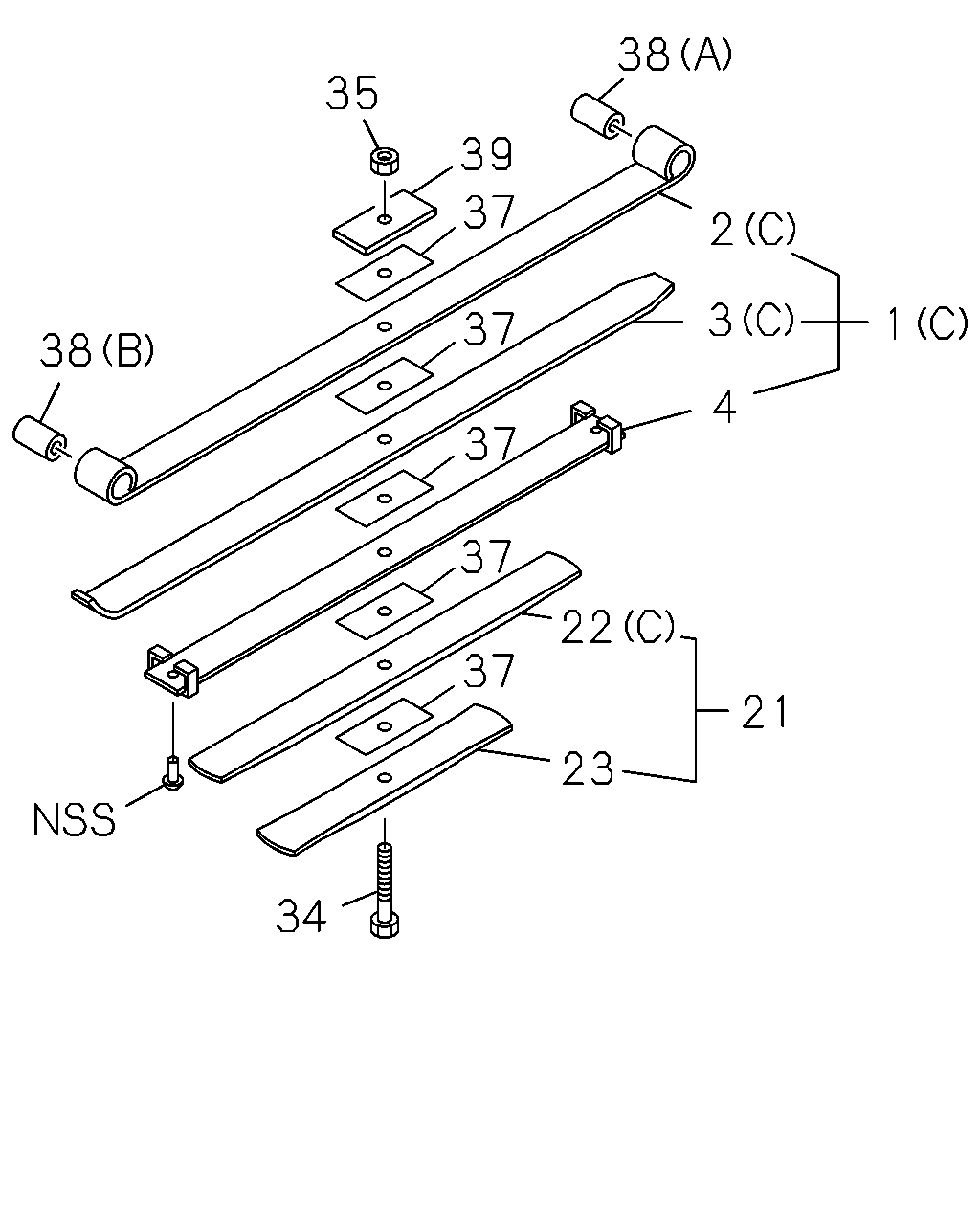

çizim 52216
38 35 39 37 2 3 1 37 38 4 37 37 22 37 21 23 34
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
(C) ASM PART: A = 8-97033-500-1, 97033500 		8-97085-567-0 01 1 -
1 07.503 SPRING ASM; LEAF,RR MAIN
(C) ASM PART: B = 8-97033-505-1, 97033505 		8-97085-589-0 01 1 -
1 07.503 SPRING ASM; LEAF,RR MAIN
(C) ASM PART: C = 8-97208-025-0, 97208025 		8-97218-156-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
(C) ASM PART: A = 8-97033-500-1, 97033500 		8-97085-568-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
(C) ASM PART: B = 8-97033-505-1, 97033505 		8-97085-590-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
(C) ASM PART: C = 8-97208-025-0, 97208025 		8-97218-158-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
(C) ASM PART: A = 8-97033-500-1, 97033500 		8-97085-569-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
(C) ASM PART: B = 8-97033-505-1, 97033505 		8-97085-591-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
(C) ASM PART: C = 8-97208-025-0, 97208025 		8-97218-159-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-97033-500-1, 97033500 		8-97085-570-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 8-97033-505-1, 97033505 		8-97085-592-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: C = 8-97208-025-0, 97208025 		8-97218-160-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-97033-500-1, 97033500 		8-97085-571-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: B = 8-97033-505-1, 97033505 		8-97085-593-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: C = 8-97208-025-0, 97208025 		8-97218-157-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
(C) ASM PART: A = 8-97033-500-1, 97033500 		8-97085-572-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
(C) ASM PART: B = 8-97033-505-1, 97033505 		8-97085-594-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
(C) ASM PART: C = 8-97208-025-0, 97208025 		8-97218-161-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-97033-500-1, 97033500 		8-97085-573-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: B = 8-97033-505-1, 97033505 		8-97085-595-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: C = 8-97208-025-0, 97208025 		8-97218-162-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=95 ASM PART: A = 8-97033-500-1, 97033500, C = 8-97208-025-0, 97208025 		8-94165-305-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=100 ASM PART: B = 8-97033-505-1, 97033505 		8-94165-306-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-97033-500-1, 97033500, B = 8-97033-505-1, 97033505, C = 8-97208-025-0, 97208025 		9-99110-512-0 01 1 -
37 07.518 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-97033-500-1, 97033500, B = 8-97033-505-1, 97033505, C = 8-97208-025-0, 97208025 		8-94448-734-0 05 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), BEST VALUE PARTS ASM PART: A = 8-97033-500-1, 97033500, B = 8-97033-505-1, 97033505, C = 8-97208-025-0, 97208025 		5-87610-162-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.105, (B) ASM PART: A = 8-97033-500-1, 97033500, B = 8-97033-505-1, 97033505, C = 8-97208-025-0, 97208025 		8-94130-354-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), OD=42 L=85.2 ASM PART: A = 8-97033-500-1, 97033500, B = 8-97033-505-1, 97033505, C = 8-97208-025-0, 97208025 		8-97034-380-0 01 1 -
39 07.518 SEAT; LEAF SPR,RR MAIN
T=12 ASM PART: A = 8-97033-500-1, 97033500, B = 8-97033-505-1, 97033505, C = 8-97208-025-0, 97208025 		8-94407-146-1 01 1 -
