4-65A — REAR LEAF SPRING (#47703) — 39 parça

38 35 2 3 38 37 22 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: A = 8-97033-488-1, 97033488	8-97083-756-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: B = 8-97353-120-0, 97353120	8-97353-818-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN (C) ASM PART: A = 8-97033-488-1, 97033488	8-97083-757-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN (C) ASM PART: B = 8-97353-120-0, 97353120	8-97353-819-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB (C) ASM PART: A = 8-97033-488-1, 97033488	8-97083-758-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB (C) ASM PART: B = 8-97353-120-0, 97353120	8-97353-820-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=60 ASM PART: A = 8-97033-488-1, 97033488	8-94165-292-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=120 ASM PART: B = 8-97353-120-0, 97353120	8-94165-310-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-97033-488-1, 97033488, B = 8-97353-120-0, 97353120	9-99110-512-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-97033-488-1, 97033488	8-94448-734-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: B = 8-97353-120-0, 97353120	8-94448-734-0	03	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), BEST VALUE PARTS ASM PART: A = 8-97033-488-1, 97033488	5-87610-162-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (C), BEST VALUE PARTS ASM PART: B = 8-97353-120-0, 97353120	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (D) ASM PART: B = 8-97353-120-0, 97353120	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.105, (B) ASM PART: A = 8-97033-488-1, 97033488	8-94130-354-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), OD=42 L=85.2 ASM PART: A = 8-97033-488-1, 97033488	8-97034-380-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (C), OD=42 L=81 ASM PART: B = 8-97353-120-0, 97353120	8-97074-826-0	01	1	-

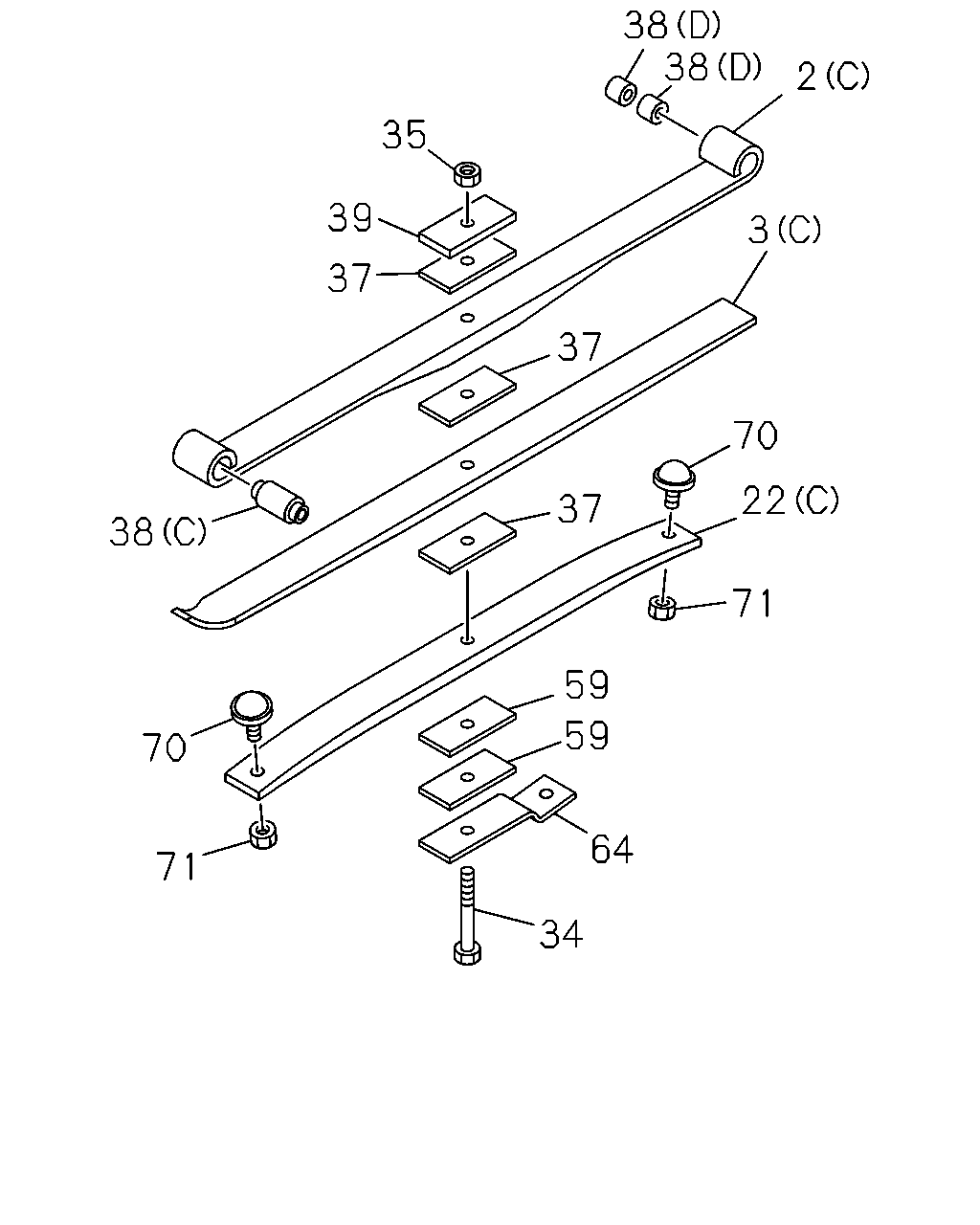

38 38 2 35 39 3 37 37 70 22 37 38 71 59 59 70 64 71 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: A = 8-97033-488-1, 97033488	8-97083-756-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: B = 8-97353-120-0, 97353120	8-97353-818-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN (C) ASM PART: A = 8-97033-488-1, 97033488	8-97083-757-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN (C) ASM PART: B = 8-97353-120-0, 97353120	8-97353-819-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB (C) ASM PART: A = 8-97033-488-1, 97033488	8-97083-758-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB (C) ASM PART: B = 8-97353-120-0, 97353120	8-97353-820-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=60 ASM PART: A = 8-97033-488-1, 97033488	8-94165-292-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=120 ASM PART: B = 8-97353-120-0, 97353120	8-94165-310-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-97033-488-1, 97033488, B = 8-97353-120-0, 97353120	9-99110-512-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-97033-488-1, 97033488	8-94448-734-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: B = 8-97353-120-0, 97353120	8-94448-734-0	03	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), BEST VALUE PARTS ASM PART: A = 8-97033-488-1, 97033488	5-87610-162-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (C), BEST VALUE PARTS ASM PART: B = 8-97353-120-0, 97353120	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (D) ASM PART: B = 8-97353-120-0, 97353120	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.105, (B) ASM PART: A = 8-97033-488-1, 97033488	8-94130-354-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), OD=42 L=85.2 ASM PART: A = 8-97033-488-1, 97033488	8-97034-380-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (C), OD=42 L=81 ASM PART: B = 8-97353-120-0, 97353120	8-97074-826-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN T=12 ASM PART: B = 8-97353-120-0, 97353120	8-94169-454-0	01	1	-
59	07.513 SEAT; RR SPRING,SUB T=8 ASM PART: B = 8-97353-120-0, 97353120	8-97353-806-0	02	1	-
64	07.513 SUPPORT; RR SPR ASM PART: B = 8-97353-120-0, 97353120	8-94342-863-0	01	1	-
70	07.505 RUBBER; LEAF SPR,RR ASM PART: B = 8-97353-120-0, 97353120	8-97353-807-0	02	1	-
71	07.505 NUT; RUBBER,RR LEAF SPR 07.506, M10 ASM PART: B = 8-97353-120-0, 97353120	9-09110-010-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
