4-60 — REAR SUSPENSION (#47701) — 128 parça
çizim 11457
227 225 264 225
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
225 07.535 RUBBER; CUSHION,RR SPR
(A) 		8-94142-044-3 02 1 0211-0501 ● ●
225 07.535 RUBBER; CUSHION,RR SPR
(A) 		8-94142-044-4 02 1 0502- ●
225 07.535 RUBBER; CUSHION,RR SPR
DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97035-815-1 02 1 0211- ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. DUMP CHASSIS(V4D) (A) 		8-94118-510-5 02 1 0211- ●
225 07.535 RUBBER; CUSHION,RR SPR
(A) 		8-94118-510-5 02 1 0211- ● ●
225 07.535 RUBBER; CUSHION,RR SPR
(A) 		8-94258-734-2 02 1 0211-1103 ●
225 07.535 RUBBER; CUSHION,RR SPR
(A) 		8-98187-341-0 02 1 1104- ●
227 07.535 NUT; CUSHION RUBBER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0211-0501 ● ● ● ● ●
227 07.535 NUT; CUSHION RUBBER
EXC. DUMP CHASSIS(V4D) 05.586 M12 FLANGE 		0-91150-112-0 02 1 0211-0501 ●
227 07.535 NUT; CUSHION RUBBER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0502-0602 ● ● ● ●
227 07.535 NUT; CUSHION RUBBER
EXC. DUMP CHASSIS(V4D) 05.586 M12 FLANGE 		0-91150-112-0 02 1 0502-0602 ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 0603- ● ● ● ●
227 07.535 NUT; CUSHION RUBBER
EXC. DUMP CHASSIS(V4D) 02.042 M12 FLANGE 		0-91180-112-0 02 1 0603- ●
264 07.529 BOLT; CUSHION RUBBER TO BRKT
DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE 		0-28681-025-0 04 1 0211-0512 ●
264 07.529 BOLT; CUSHION RUBBER TO BRKT
DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●

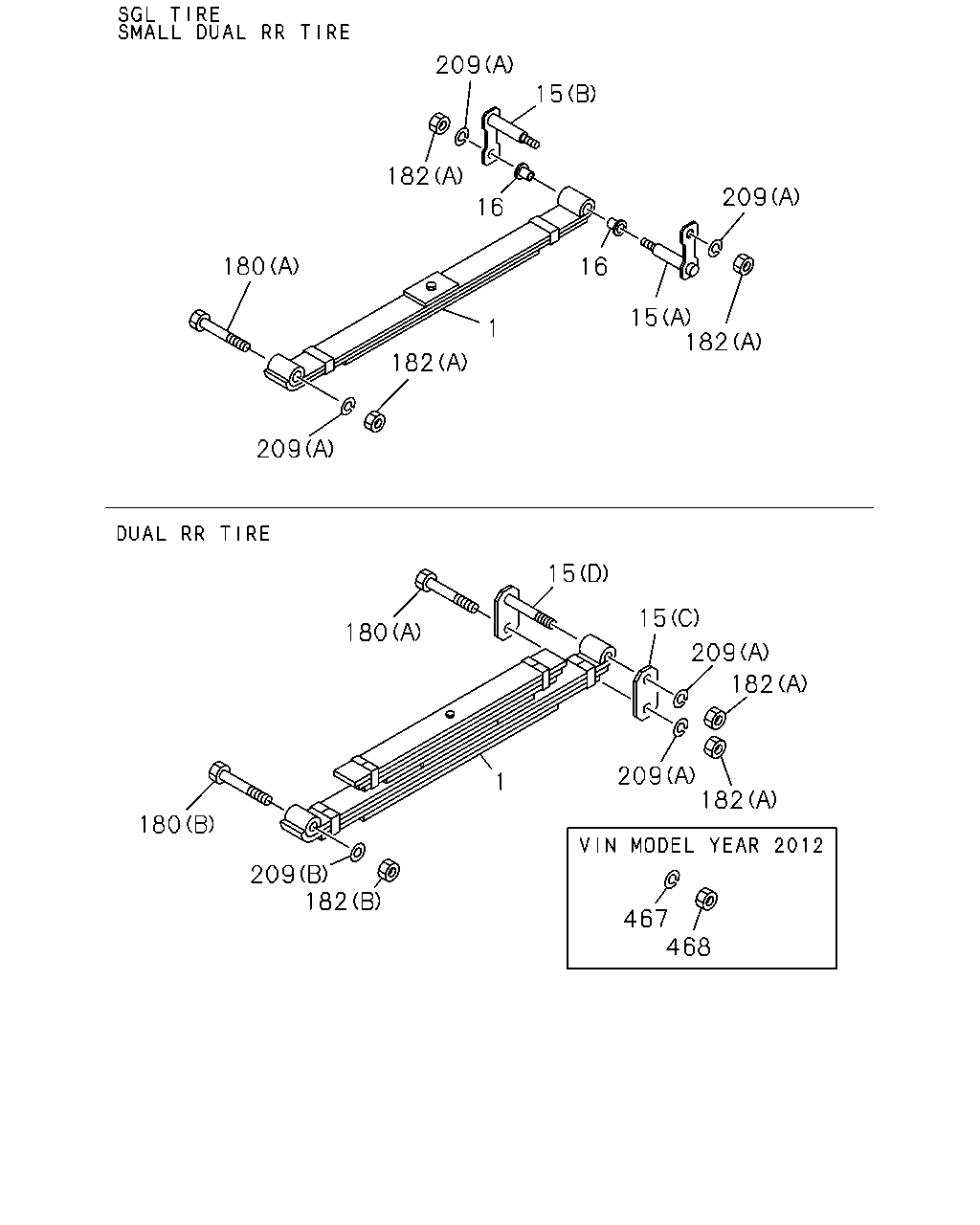

çizim 52359
15 180 180 209 182 1 467 468 182 209 209 15 182 182 180 209 182 1 16 15 209 16 209 15 182
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) EXC. HONG KONG EQUIPMENT(PQ1) 5-LEAF 		8-97033-500-1 02 1 0211-0501 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 3-LEAF 		8-97353-120-0 02 1 0502- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) 5-LEAF 		8-97033-505-1 02 1 0211-0501 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-97033-505-1 02 1 0211-0501 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-97033-505-1 02 1 0502- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1) G.V.W. 3.5-4.0TON(RPQ) 5-LEAF 		8-97208-025-0 02 1 0211-0501 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) 6-LEAF 		8-97033-562-3 02 1 0502- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) 10-LEAF 		8-97073-224-1 02 1 0211-0501 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 10-LEAF 		8-97073-224-1 02 1 0211-0501 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF 		8-97073-224-1 02 1 0211-0501 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. HONG KONG EQUIPMENT(PQ1),DUMP CHASSIS(V4D) 10-LEAF 		8-97073-224-1 02 1 0502- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 4-LEAF 		8-97183-796-0 02 1 0211-0501 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 4-LEAF 		8-97374-857-0 02 1 0502- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) 4-LEAF 		8-97033-492-4 02 1 0211-0501 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 10-LEAF 		8-97070-509-1 02 1 0211- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF 		8-97033-488-1 02 1 0211- ●
15 07.523 SHACKLE; RR SPR
(A) OUTSIDE 		8-94113-322-3 02 1 0211-0501 ● ● ●
15 07.523 SHACKLE; RR SPR
(A) OUTSIDE 		8-94113-322-3 02 1 0502- ● ●
15 07.523 SHACKLE; RR SPR
(B) INSIDE 		8-97033-966-1 02 1 0211-0501 ● ● ●
15 07.523 SHACKLE; RR SPR
(B) INSIDE 		8-97033-966-1 02 1 0502- ● ●
15 07.523 SHACKLE; RR SPR
(C) 		8-94118-511-3 02 1 0211- ● ● ●
15 07.523 SHACKLE; RR SPR
(D) W/PIN 		8-94118-512-4 02 1 0211-0611 ● ● ●
15 07.523 SHACKLE; RR SPR
(D) W/PIN 		8-97360-011-0 02 1 0612- ● ● ●
16 07.524 BUSHING; SHACKLE,RR SPR 8-94113-323-2 04 1 0211-0501 ● ● ●
16 07.524 BUSHING; SHACKLE,RR SPR 8-94113-323-2 04 1 0502- ● ●
16 07.524 BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS 		5-87610-160-0 04 1 0211-0501 ● ● ●
16 07.524 BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS 		5-87610-160-0 04 1 0502- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 0211-0501 ● ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 0502-0611 ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 0612- ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 0211-0501 ● ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 0502-0610 ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 0611- ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 0211-0611 ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 0612- ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 0211-0610 ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 0611- ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 08.915 (A) M16 		9-99110-516-0 04 1 0211-0501 ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 08.915 (A) M16 		9-99110-516-0 04 1 0502-0512 ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) M16 		0-91110-516-0 04 1 0601- ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97147-389-0 04 1 0211-0501 ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97147-389-0 04 1 0502-0610 ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 0611- ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 08.915 (A) M16 		9-99110-516-0 02 1 0211-0501 ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 08.915 (A) M16 		9-99110-516-0 02 1 0502-0512 ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) M16 		0-91110-516-0 02 1 0601- ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97147-389-0 02 1 0211-0501 ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97147-389-0 02 1 0502-0610 ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 02 1 0611- ● ●
182 07.529 NUT; PIN,RR SPR
06.216 (B) M18 		9-99110-518-0 02 1 0211-0512 ● ● ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 0601- ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 (A) ID=16.5 		8-97070-925-1 04 1 0211-0501 ● ● ● ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 (A) ID=16.5 		8-97070-925-1 04 1 0502-0611 ● ● ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5 		8-98011-489-0 04 1 0612- ● ● ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 (A) ID=16.5 		8-97070-925-1 02 1 0211-0501 ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 (A) ID=16.5 		8-97070-925-1 02 1 0502-0611 ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5 		8-98011-489-0 02 1 0612- ● ●
209 07.529 WASHER; PL
(B) ID=19 		8-97073-435-1 02 1 0211-0611 ● ● ●
209 07.529 WASHER; PL
(B) ID=19 		8-97360-119-0 02 1 0612- ● ● ●
467 07.529 NUT; SPRING PIN
INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2012(VZC) 00.833 M10 		0-91110-510-0 06 1 1201-1405 ●
467 07.529 NUT; SPRING PIN
INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 00.833 M10 		0-91110-510-0 06 1 1406- ●
468 07.529 WASHER; LK,SPRING PIN
INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2012(VZC) 02.277 ID=10.2 		0-91510-810-0 06 1 1201-1405 ●
468 07.529 WASHER; LK,SPRING PIN
INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 02.277 ID=10.2 		0-91510-810-0 06 1 1406- ●

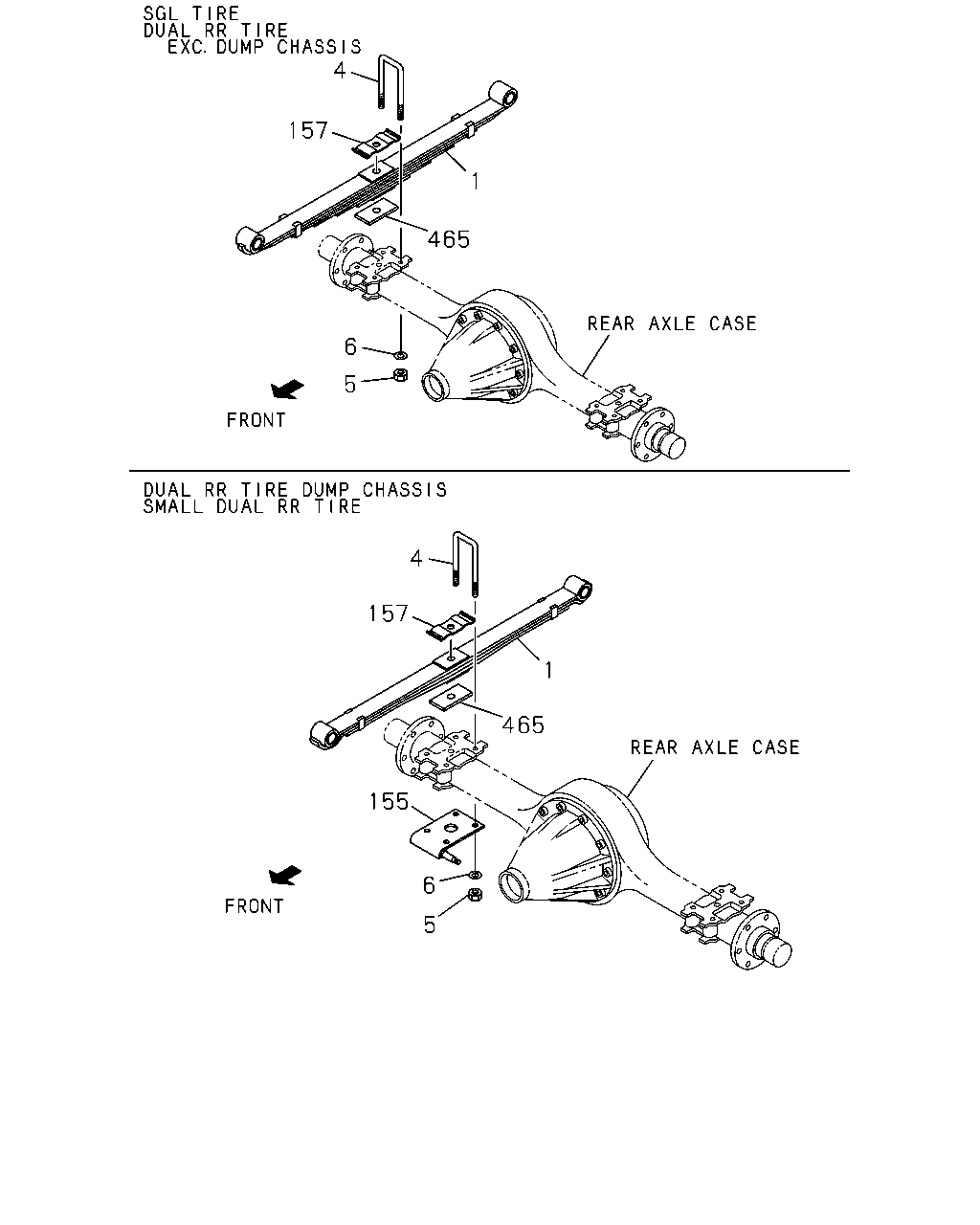

çizim 53741
4 157 1 465 6 5 4 157 1 465 155 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) EXC. HONG KONG EQUIPMENT(PQ1) 5-LEAF 		8-97033-500-1 02 1 0211-0501 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 3-LEAF 		8-97353-120-0 02 1 0502- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) 5-LEAF 		8-97033-505-1 02 1 0211-0501 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-97033-505-1 02 1 0211-0501 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-97033-505-1 02 1 0502- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1) G.V.W. 3.5-4.0TON(RPQ) 5-LEAF 		8-97208-025-0 02 1 0211-0501 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) 6-LEAF 		8-97033-562-3 02 1 0502- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) 10-LEAF 		8-97073-224-1 02 1 0211-0501 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 10-LEAF 		8-97073-224-1 02 1 0211-0501 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF 		8-97073-224-1 02 1 0211-0501 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. HONG KONG EQUIPMENT(PQ1),DUMP CHASSIS(V4D) 10-LEAF 		8-97073-224-1 02 1 0502- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 4-LEAF 		8-97183-796-0 02 1 0211-0501 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 4-LEAF 		8-97374-857-0 02 1 0502- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) 4-LEAF 		8-97033-492-4 02 1 0211-0501 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 10-LEAF 		8-97070-509-1 02 1 0211- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF 		8-97033-488-1 02 1 0211- ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP),REAR AXLE HEAVY DUTY 343MM(8BW) REAR SPRING HEAVY DUTY<G50> G.V.W. 6.5-7.0TON(RPW) L=275 		8-94127-924-3 04 1 1510- ●
4 07.516 U-BOLT; RR SPR
L=235 		8-94127-920-2 04 1 0211-0501 ● ●
4 07.516 U-BOLT; RR SPR
EXC. REAR WIDE TREAD(V4T) L=235 		8-94127-920-2 04 1 0211-0501 ●
4 07.516 U-BOLT; RR SPR
L=235 		8-94127-920-3 04 1 0502- ●
4 07.516 U-BOLT; RR SPR
EXC. REAR WIDE TREAD(V4T) L=235 		8-94127-920-3 04 1 0502- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) L=265 		8-94127-923-2 04 1 0211-0501 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) L=265 		8-94127-923-2 04 1 0211-0501 ●
4 07.516 U-BOLT; RR SPR
L=265 		8-94127-923-2 04 1 0211-0501 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. HONG KONG EQUIPMENT(PQ1),DUMP CHASSIS(V4D) L=265 		8-94127-923-3 04 1 0502- ● ● ●
4 07.516 U-BOLT; RR SPR
AUSTRALIA EQUIPMENT(RR3) G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) L=255 		8-94127-922-3 04 1 0502- ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) L=245 		8-94127-921-2 04 1 0211-0501 ● ●
4 07.516 U-BOLT; RR SPR
HONG KONG EQUIPMENT(PQ1) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) L=245 		8-94127-921-3 04 1 0502- ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.5-7.0TON(RPW) L=285 		8-97141-874-0 04 1 0211-1509 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.5-7.0TON(RPW) EXC. REAR SPRING HEAVY DUTY<G50> L=285 		8-97141-874-0 04 1 1510- ●
4 07.516 U-BOLT; RR SPR
L=215 		8-94127-918-3 04 1 0211- ●
5 07.529 NUT; U-BOLT,RR SPR
07.516 M16 		8-94107-767-0 08 1 0211-0501 ● ● ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
07.516 M16 		8-94107-767-0 08 1 0502-0611 ● ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 0612- ● ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-94137-482-1 08 1 0211-0501 ● ● ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-94137-482-1 08 1 0502-0610 ● ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 0611- ● ● ● ● ●
155 07.380 BRACKET; S/ABS
DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-94128-363-3 01 1 0211- ●
155 07.380 BRACKET; S/ABS
DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-94128-362-3 01 1 0211- ●
155 07.380 BRACKET; S/ABS 8-94128-361-4 01 1 0211- ●
155 07.380 BRACKET; S/ABS 8-94128-360-4 01 1 0211- ●
157 07.518 CLAMP; UPR,RR SPR
REAR AXLE HEAVY DUTY 343MM(8BW) INDONESIA EQUIPMENT(S4S) 07.506 L=150 T=4.5 		8-98297-180-0 02 1 1510- ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) L=130 T=4.5 		8-94119-069-2 02 1 0211-0501 ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) L=130 T=4.5 		8-94119-069-2 02 1 0502- ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> L=168 T=8 		8-94118-111-3 02 1 0211- ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 6.5-7.0TON(RPW) L=140 T=4.5 		8-94118-509-1 02 1 0211-1509 ●
157 07.518 CLAMP; UPR,RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.5-7.0TON(RPW) L=140 T=4.5 		8-94118-509-1 02 1 1510- ●
157 07.518 CLAMP; UPR,RR SPR
L=130 T=8 		8-94128-484-3 02 1 0211- ●
465 07.518 SHIM; ADJ
RR BODY FLAT BED(RS6) 		8-97072-589-0 AR 1 0211-0501 ● ●
465 07.518 SHIM; ADJ
RR BODY NON FLAT BED(RS5) 		8-97072-589-0 AR 1 0211-0501 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
