0-61B — BATTERY AND ENGINE ELECTRICAL PARTS (#4770) — 124 parça

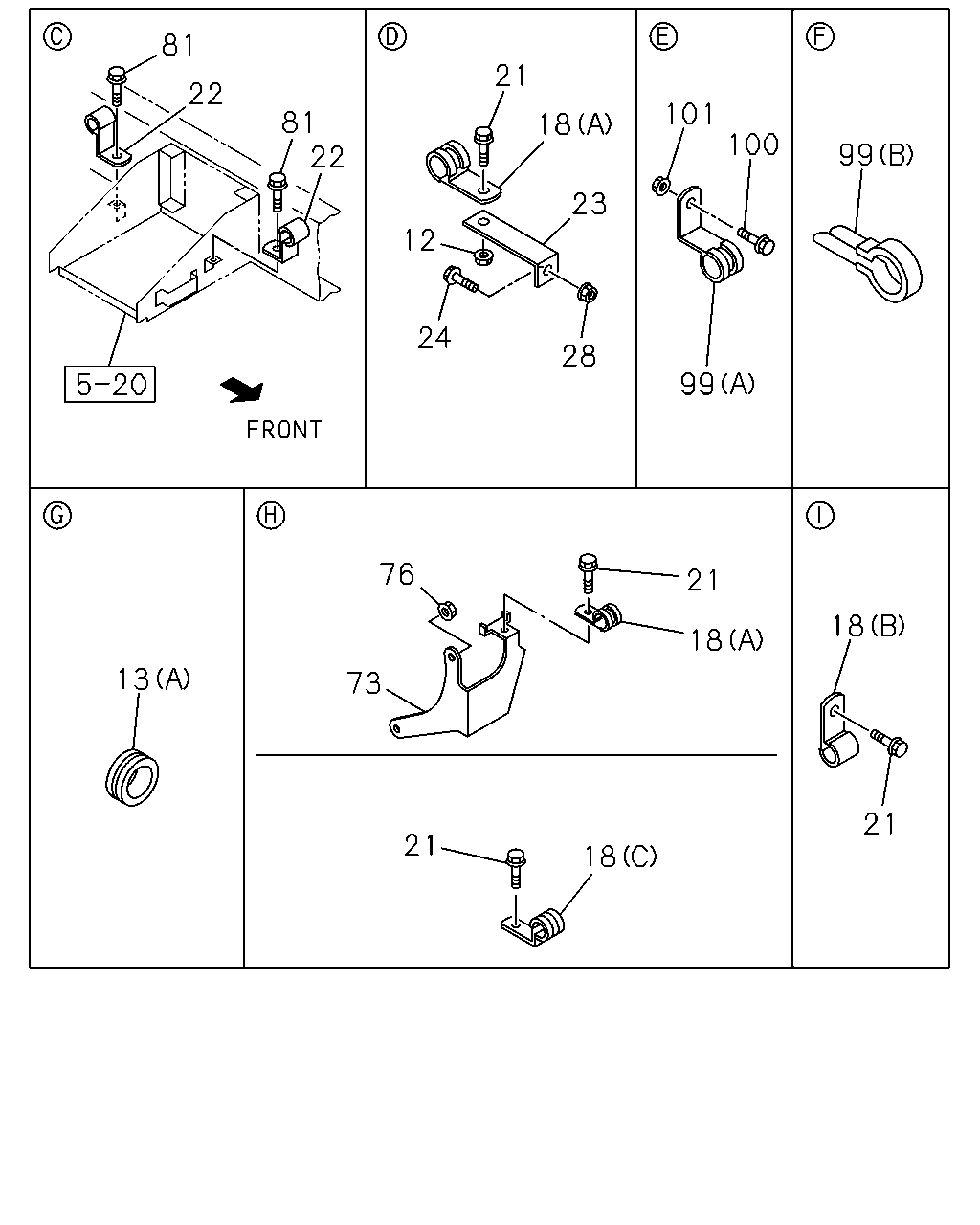

81 21 22 101 81 22 18 100 99 23 12 24 28 99 76 21 18 18 13 73 21 21 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NUT; BATTERY CABLE CLIP M8	9-09110-408-0	03	1	9601-9606	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9610	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	03	1	9611-9904	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	03	1	9905-	●	●
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	9601-9610	●
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	9611-9904	●
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	9905-	●	●
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	9606-9610	●
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	9611-9904	●
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	9905-	●	●
18	CLIP; BATTERY CABLE (A) ID=18 L=28	1-09701-067-0	03	1	9601-9610	●
18	CLIP; BATTERY CABLE (A) ID=18 L=28	1-09701-067-0	03	1	9611-9904	●
18	CLIP; BATTERY CABLE (A) ID=18 L=28	1-09701-067-0	03	1	9905-	●	●
18	CLIP; BATTERY CABLE (B) ID=19 L=28	9-09525-856-0	01	1	9601-9610	●
18	CLIP; BATTERY CABLE (B) ID=19 L=28	9-09525-856-0	01	1	9611-9904	●
18	CLIP; BATTERY CABLE (B) ID=19 L=28	9-09525-856-0	01	1	9905-	●	●
18	CLIP; BATTERY CABLE ISUZU M/T<X9A> (A) ID=18 L=28	1-09701-067-0	01	1	9601-9610	●
18	CLIP; BATTERY CABLE ISUZU M/T<X9A> (A) ID=18 L=28	1-09701-067-0	01	1	9611-9904	●
18	CLIP; BATTERY CABLE ISUZU M/T<X9A> (A) ID=18 L=28	1-09701-067-0	01	1	9905-	●	●
18	CLIP; BATTERY CABLE ZF M/T<X9E> (C) ID=20 H=23 L=27	1-09700-861-0	01	1	9601-9610	●
18	CLIP; BATTERY CABLE ZF M/T<X9E> (C) ID=20 H=23 L=27	1-09700-861-0	01	1	9611-9904	●
18	CLIP; BATTERY CABLE ZF M/T<X9E> (C) ID=20 H=23 L=27	1-09700-861-0	01	1	9905-	●	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	01	1	9601-9603	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	02	1	9604-9610	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28680-820-0	02	1	9611-9904	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28680-820-0	03	1	9601-9601	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	03	1	9602-9610	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28680-820-0	03	1	9611-9904	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28680-820-0	03	1	9905-	●	●
22	CLIP; BATTERY CABLE ID=18 H=23 L=28	1-09701-070-0	02	1	9601-9610	●
22	CLIP; BATTERY CABLE ID=18 H=23 L=28	1-09701-070-0	02	1	9611-9904	●
22	CLIP; BATTERY CABLE ID=18 H=23 L=28	1-09701-070-0	02	1	9905-	●	●
23	BRACKET; CABLE CLIP TO FRAME L=95	1-82699-085-0	03	1	9601-9610	●
23	BRACKET; CABLE CLIP TO FRAME L=95	1-82699-085-0	03	1	9611-9904	●
23	BRACKET; CABLE CLIP TO FRAME L=95	1-82699-085-0	03	1	9905-	●	●
24	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28080-825-0	03	1	9601-9610	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28680-830-0	03	1	9611-9904	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28680-830-0	03	1	9905-	●	●
28	NUT; BRKT TO FRAME M8	9-09110-408-0	03	1	9601-9610	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	03	1	9611-9904	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	03	1	9905-	●	●
73	BRACKET; BATTERY CABLE ISUZU M/T<X9A>	1-82699-822-0	01	1	9601-9610	●
73	BRACKET; BATTERY CABLE ISUZU M/T<X9A>,FULLER M/T<X9B>	1-82699-822-0	01	1	9611-9903	●
73	BRACKET; BATTERY CABLE ISUZU M/T<X9A>,FULLER M/T<X9B>	1-82698-139-0	01	1	9904-9904	●
73	BRACKET; BATTERY CABLE ISUZU M/T<X9A>,ZF M/T<X9E>	1-82698-139-0	01	1	9905-	●	●
76	NUT; BATTERY CABLE ISUZU M/T<X9A> M10 FLANGE	0-91150-110-0	02	1	9601-9606	●
76	NUT; BATTERY CABLE ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9607-9610	●
76	NUT; BATTERY CABLE ISUZU M/T<X9A>,FULLER M/T<X9B> M10 FLANGE	0-91150-210-0	02	1	9611-9904	●
76	NUT; BATTERY CABLE ISUZU M/T<X9A>,FULLER M/T<X9B> M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28080-820-0	02	1	9601-9610	●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28680-820-0	02	1	9611-9904	●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	01	1	9601-9610	●
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	01	1	9611-9904	●
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	01	1	9905-	●	●
99	CLIP; BATTERY CABLE (B) ID=20 L=50	9-09917-430-0	02	1	9601-9610	●
99	CLIP; BATTERY CABLE (B) ID=20 L=50	9-09917-430-0	02	1	9611-9904	●
99	CLIP; BATTERY CABLE (B) ID=20 L=50	9-09917-430-0	02	1	9905-	●	●
100	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9601-9610	●
100	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28680-820-0	01	1	9611-9904	●
100	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●
101	NUT; BATTERY CABLE CLIP M8	9-09110-408-0	01	1	9601-9610	●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9611-9904	●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-	●	●

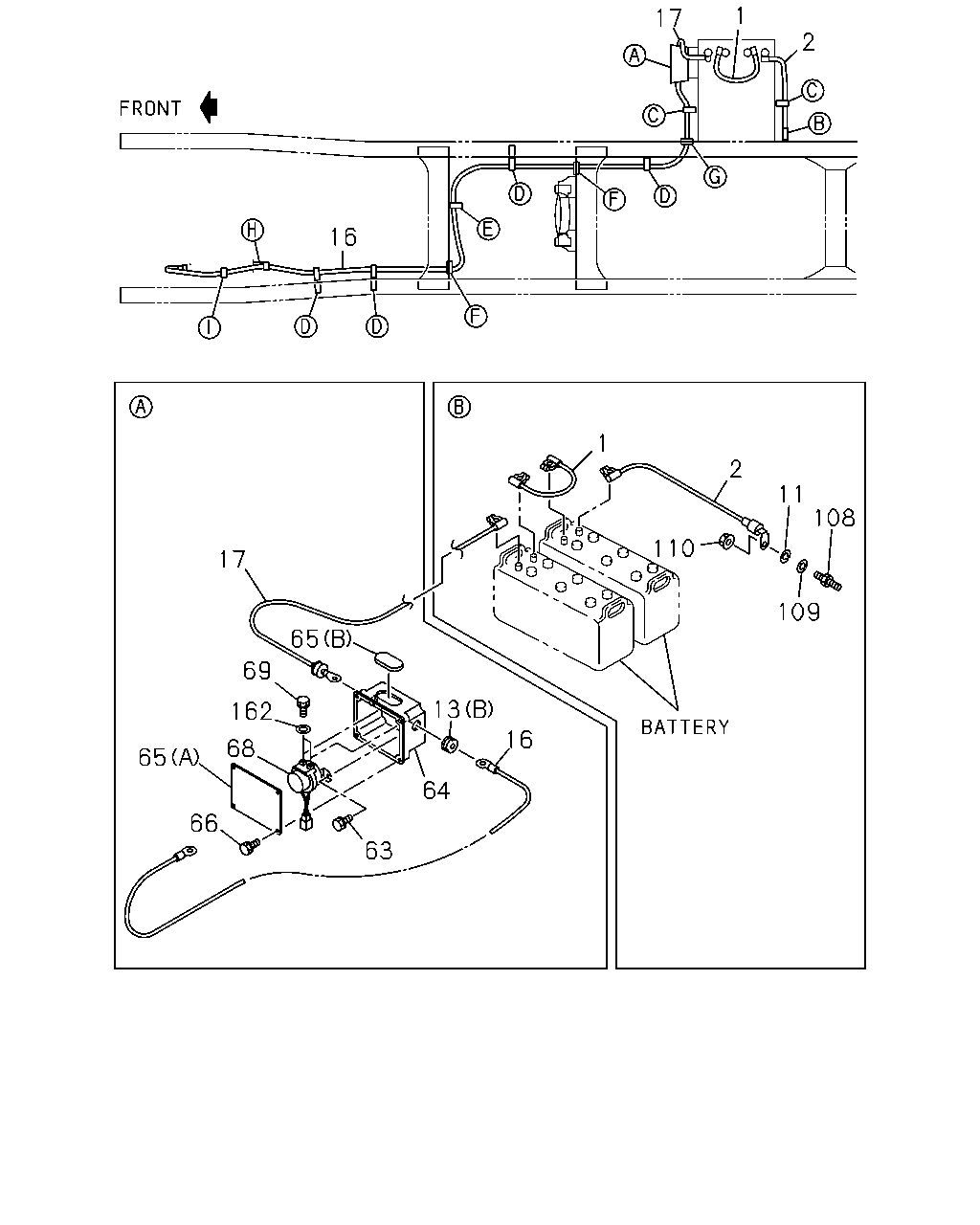

1 17 2 16 1 2 11 108 110 17 109 65 69 13 162 16 68 65 64 66 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450	1-82650-281-2	01	1	9601-9610	●
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450	1-82650-281-2	01	1	9611-9904	●
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450	1-82650-281-2	01	1	9905-	●	●
1	CABLE; BATTERY EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180	1-82650-280-2	01	1	9601-9610	●
1	CABLE; BATTERY EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180	1-82650-280-2	01	1	9611-9904	●
1	CABLE; BATTERY EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180	1-82650-280-2	01	1	9905-	●	●
2	CABLE; BATTERY L=690	1-82650-147-0	01	1	9601-9610	●
2	CABLE; BATTERY L=690	1-82650-147-0	01	1	9611-9904	●
2	CABLE; BATTERY L=690	1-82650-147-0	01	1	9905-	●	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	9601-9610	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	9611-9904	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	9905-	●	●
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	9601-9610	●
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	9611-9904	●
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	9905-	●	●
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	9606-9610	●
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	9611-9904	●
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	9905-	●	●
16	CABLE; STARTER TO RELAY L=3350	1-82652-527-2	01	1	9601-9601	●
16	CABLE; STARTER TO RELAY L=3850	1-82652-601-0	01	1	9602-9608	●
16	CABLE; STARTER TO RELAY L=2790	1-82652-634-0	01	1	9609-9904	●
16	CABLE; STARTER TO RELAY L=2790	1-82652-634-0	01	1	9905-	●	●
17	CABLE; BATTERY (+) TO RELAY L=390	1-82652-531-0	01	1	9601-9610	●
17	CABLE; BATTERY (+) TO RELAY L=390	1-82652-531-0	01	1	9611-9904	●
17	CABLE; BATTERY (+) TO RELAY L=390	1-82652-531-0	01	1	9905-	●	●
63	BOLT; RELAY BATTERY M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	9601-9610	●
63	BOLT; RELAY BATTERY M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	9611-9904	●
63	BOLT; RELAY BATTERY M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	9905-	●	●
64	BOX; BATTERY RELAY	1-82699-352-2	01	1	9601-9611	●
64	BOX; BATTERY RELAY	1-82699-947-0	01	1	9611-9904	●
64	BOX; BATTERY RELAY	1-82699-947-0	01	1	9905-	●	●
65	COVER; BATTERY RELAY (A)	1-82699-353-1	01	1	9601-9610	●
65	COVER; BATTERY RELAY (A)	1-82699-353-1	01	1	9611-9904	●
65	COVER; BATTERY RELAY (A)	1-82699-353-1	01	1	9905-	●	●
65	COVER; BATTERY RELAY (B)	1-82699-354-2	01	1	9601-9611	●
65	COVER; BATTERY RELAY (B)	1-82699-980-0	01	1	9611-9904	●
65	COVER; BATTERY RELAY (B)	1-82699-980-0	01	1	9905-	●	●
66	BOLT; COVER,BATTERY RELAY M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9601-9610	●
66	BOLT; COVER,BATTERY RELAY M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9611-9904	●
66	BOLT; COVER,BATTERY RELAY M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9905-	●	●
68	RELAY; BATTERY	1-82550-228-2	01	1	9601-9711	●
68	RELAY; BATTERY	1-82550-282-0	01	1	9611-9904	●
68	RELAY; BATTERY	1-82550-282-0	01	1	9905-	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9601-9610	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9611-9904	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9905-	●	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	9601-9610	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	9611-9904	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	9905-	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	9601-9603	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-508-0	01	1	9604-9810	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	9611-9904	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	9905-	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	9601-9610	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	9611-9904	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	9905-	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	9601-9610	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	9611-9904	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	9905-	●	●
