1-41A — FUEL PIPING; CHASSIS (#477) — 92 parça

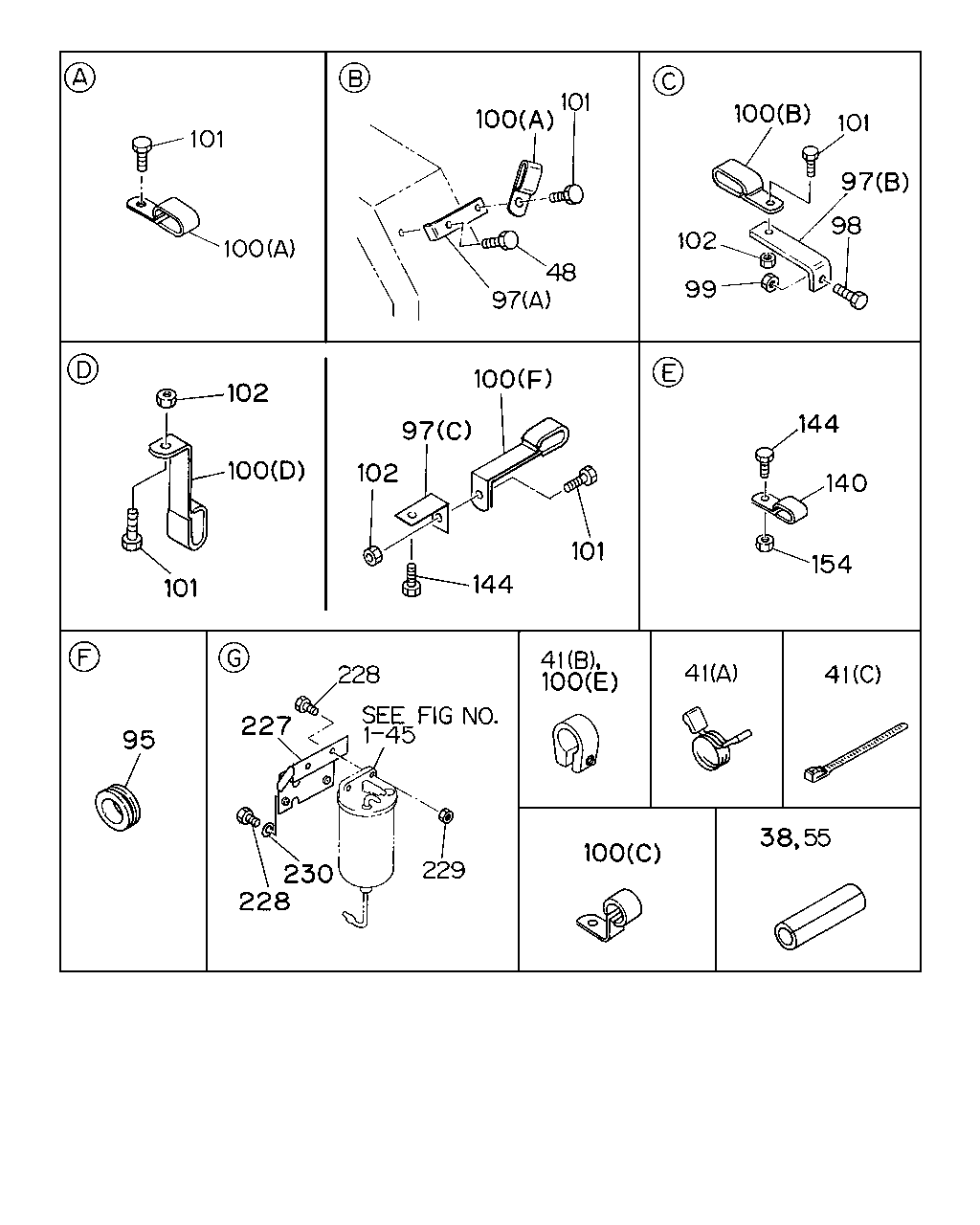

101 100 100 101 48 97 100 101 97 98 102 99 144 140 154 41 41 38 55 100 41 100 229 230 228 227 228 95 101 100 102 102 144 101 100 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
38	SLEEVE; RUBBER,RUBBER HOSE L=1300	1-09360-677-1	02	1	9307-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) L=250	5-09707-030-0	06	1	8712-9001	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) L=250	5-09707-030-0	04	1	9002-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	9307-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=15	9-09715-098-0	02	1	9307-	●
48	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	01	1	8712-9204	●	●	●
48	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●	●
48	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	9303-	●	●
55	COVER; PIPE,FUEL TANK L=150	1-09369-006-1	03	1	8712-8801	●	●	●
55	COVER; PIPE,FUEL TANK L=150	1-09369-006-1	02	1	8802-9306	●	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-1	01	1	8712-8802	●	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	8803-	●	●	●
97	BRACKET; CLIP (B) L=135	1-22518-099-0	05	1	8712-9008	●	●	●
97	BRACKET; CLIP (A) L=158	1-47475-395-0	01	1	8712-	●	●	●
97	BRACKET; CLIP NYLON TUBE AIR PIPING<Z29> (C) 25X37	1-34656-004-0	01	1	9405-	●
97	BRACKET; CLIP (B) L=135	1-22518-099-0	06	1	9009-	●	●
98	BOLT; BRKT,FUEL PIPE M8X30 W/LK WASHER	9-01900-830-0	04	1	8712-9001	●	●	●
98	BOLT; BRKT,FUEL PIPE M8X30 W/LK WASHER	9-01900-830-0	05	1	9002-9008	●	●
98	BOLT; BRKT,FUEL PIPE M8X30 W/LK WASHER	9-01900-830-0	06	1	9009-9204	●	●
98	BOLT; BRKT,FUEL PIPE M8X30 W/LK WASHER	0-50040-830-0	06	1	9205-9302	●	●
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28080-830-0	06	1	9303-	●	●
99	NUT; BRKT,CLIP,FUEL TANK M8	9-09110-408-0	05	1	8712-9008	●	●	●
99	NUT; BRKT,CLIP,FUEL TANK M8	9-09110-408-0	06	1	9009-	●	●
100	CLIP; FUEL PIPE (D) ID=16X2 L=65	1-09700-430-0	01	1	8712-9001	●	●	●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	05	1	8712-9001	●	●	●
100	CLIP; FUEL PIPE (A) ID=16X2 L=50	9-09535-586-0	02	1	8712-	●	●	●
100	CLIP; FUEL PIPE (E) ID=15	9-09715-098-0	06	1	8712-9306	●	●	●
100	CLIP; FUEL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5) (C) ID=16 H=24 L=20	9-09527-015-0	01	1	8712-9001	●	●	●
100	CLIP; FUEL PIPE (F) ID=20 L=70	1-09701-033-0	01	1	9002-	●	●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	05	1	9002-9008	●	●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	06	1	9009-	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	9-01900-820-0	04	1	8712-9001	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	9-01900-820-0	05	1	8712-9008	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	9-01900-820-0	06	1	9009-9204	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	0-50040-820-0	06	1	9205-9302	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	06	1	9303-	●	●
101	BOLT; CLIP,FUEL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5) M6X20 W/LK WASHER	9-01900-620-0	01	1	8712-9001	●	●	●
101	BOLT; CLIP,FUEL PIPE NYLON TUBE AIR PIPING<Z29> M8X16 FLANGE	0-28080-816-0	01	1	9405-	●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9303-9404	●	●
101	BOLT; CLIP,FUEL PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9405-	●
101	BOLT; CLIP,FUEL PIPE ISUZU M/T<X9A> M8X20 FLANGE	0-28080-820-0	01	1	9405-	●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	9-01900-820-0	01	1	8712-	●	●	●
102	NUT; CLIP,FUEL PIPE M6	9-09110-406-0	01	1	8712-9001	●	●	●
102	NUT; CLIP,FUEL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5) M6	9-09110-406-0	01	1	8712-9001	●	●	●
102	NUT; CLIP,FUEL PIPE NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9405-	●
102	NUT; CLIP,FUEL PIPE M8	9-09110-408-0	01	1	9002-9404	●	●
102	NUT; CLIP,FUEL PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9405-	●
140	CLIP; FUEL PIPE,C/MBR L=20 ID=16X2 L=20	9-09535-536-0	02	1	9002-	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9405-	●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●
154	NUT; CLIP,FUEL PIPE,C/MBR M8	9-09110-408-0	02	1	9002-	●	●
227	BRACKET; FUEL SEDIMENTER	1-22518-087-1	01	1	8712-	●	●	●
228	BOLT; BRKT,SEDIMENTER M14X45	9-91056-445-0	02	1	8712-9001	●	●	●
228	BOLT; BRKT,SEDIMENTER M14X45	9-92051-445-0	02	1	9002-9005	●	●
228	BOLT; BRKT,SEDIMENTER M14X45	0-20801-445-0	02	1	9006-	●	●
228	BOLT; BRKT,SEDIMENTER M12X35	9-92061-235-0	04	1	8712-	●	●	●
229	NUT; BRKT,FUEL FILTER M14	9-99110-414-0	02	1	8712-	●	●	●
230	WASHER; LK,BRKT,FUEL TANK ID=12.2	9-09150-812-0	04	1	8712-	●	●	●

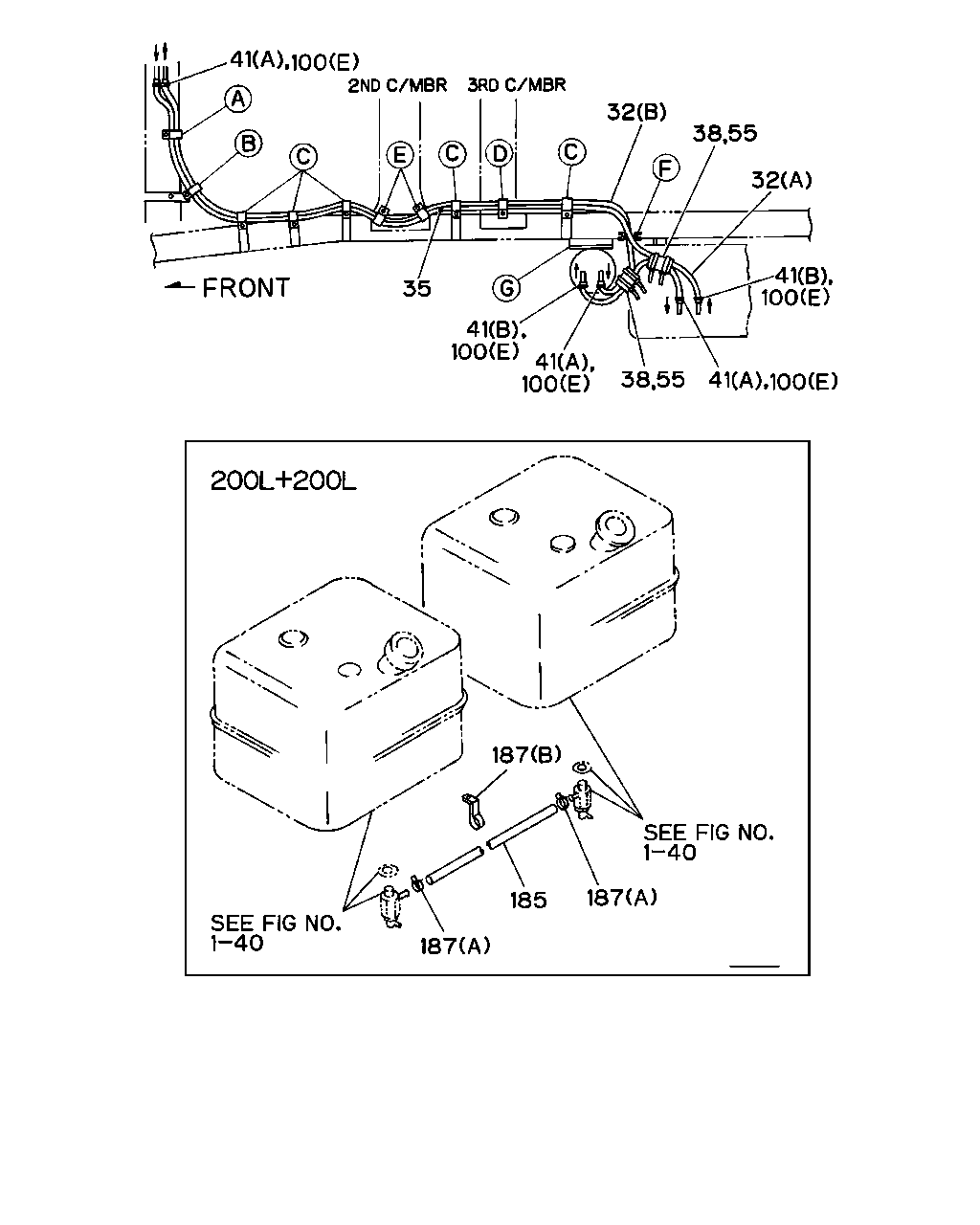

41 100 35 32 38 55 32 41 100 41 100 38 55 41 100 41 100 187 187 185 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	PIPE; DELIVERY,FUEL TANK (A) L=970 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	8712-9001	●	●	●
32	PIPE; DELIVERY,FUEL TANK (B) L=3550 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	8712-9306	●	●	●
32	PIPE; DELIVERY,FUEL TANK (B) L=3600 SERVICED BY L=8000	0-01160-800-0	01	1	9307-9307	●
32	PIPE; DELIVERY,FUEL TANK (B) L=3600 SERVICED BY L=8000	0-01260-800-0	01	1	9308-	●
32	PIPE; DELIVERY,FUEL TANK (A) L=900 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●
35	PIPE; FUEL TANK,RETURN L=3700 SERVICED BY L=10000	9-09914-701-0	01	1	8712-9306	●	●	●
35	PIPE; FUEL TANK,RETURN L=3750 SERVICED BY L=8000	0-01260-800-0	01	1	9307-	●
38	SLEEVE; RUBBER,RUBBER HOSE L=1300	1-09360-677-1	02	1	9307-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) L=250	5-09707-030-0	06	1	8712-9001	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) L=250	5-09707-030-0	04	1	9002-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	9307-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=15	9-09715-098-0	02	1	9307-	●
55	COVER; PIPE,FUEL TANK L=150	1-09369-006-1	03	1	8712-8801	●	●	●
55	COVER; PIPE,FUEL TANK L=150	1-09369-006-1	02	1	8802-9306	●	●	●
100	CLIP; FUEL PIPE (D) ID=16X2 L=65	1-09700-430-0	01	1	8712-9001	●	●	●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	05	1	8712-9001	●	●	●
100	CLIP; FUEL PIPE (A) ID=16X2 L=50	9-09535-586-0	02	1	8712-	●	●	●
100	CLIP; FUEL PIPE (E) ID=15	9-09715-098-0	06	1	8712-9306	●	●	●
100	CLIP; FUEL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5) (C) ID=16 H=24 L=20	9-09527-015-0	01	1	8712-9001	●	●	●
100	CLIP; FUEL PIPE (F) ID=20 L=70	1-09701-033-0	01	1	9002-	●	●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	05	1	9002-9008	●	●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	06	1	9009-	●	●
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+200L<NF7> L=900 ID=12	1-09366-106-0	01	1	8712-9306	●	●	●
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+200L<NF7> L=900 ID=12 SERVICED BY L=10000	9-09914-914-0	01	1	9307-	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (B)	1-09700-807-0	02	1	8910-9001	●	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (A) ID=18	1-09707-011-1	02	1	8712-	●	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (B) ID=17	1-09700-840-0	02	1	9002-	●	●
