Sayfa 4-40B - Isuzu EPC

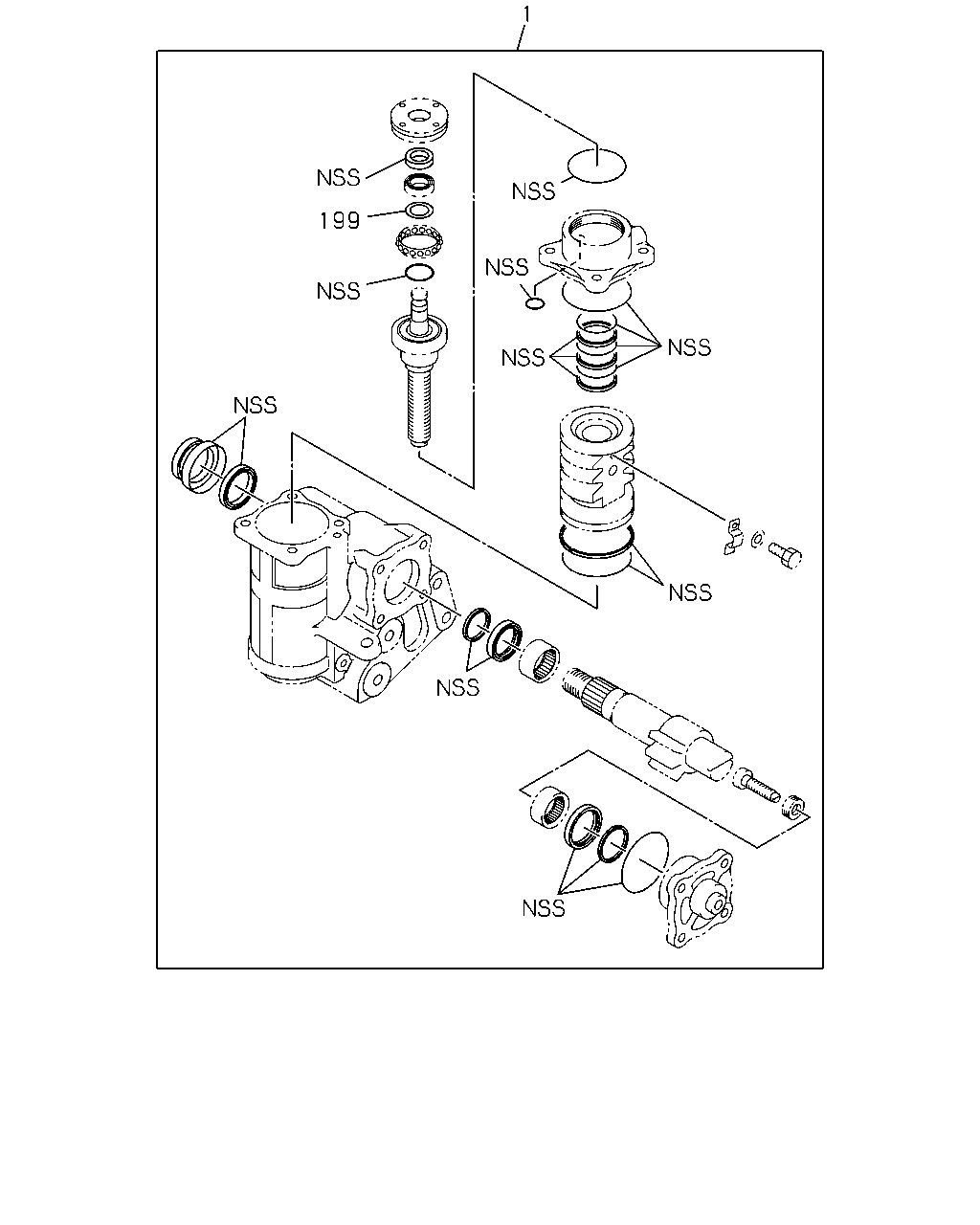

1 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: B = 8-97300-420-0, 97300420	8-97218-602-1	01	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: C = 8-97356-103-8, 97356103	8-97356-138-0	01	1	-1203
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: D = 8-98251-945-0, 98251945	8-98171-736-0	01	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: C = 8-97356-103-8, 97356103	8-98171-736-0	01	1	1204-
199	06.521 WASHER; WAVE,STRG UNIT ASM PART: B = 8-97300-420-0, 97300420	8-97201-812-0	01	1	-

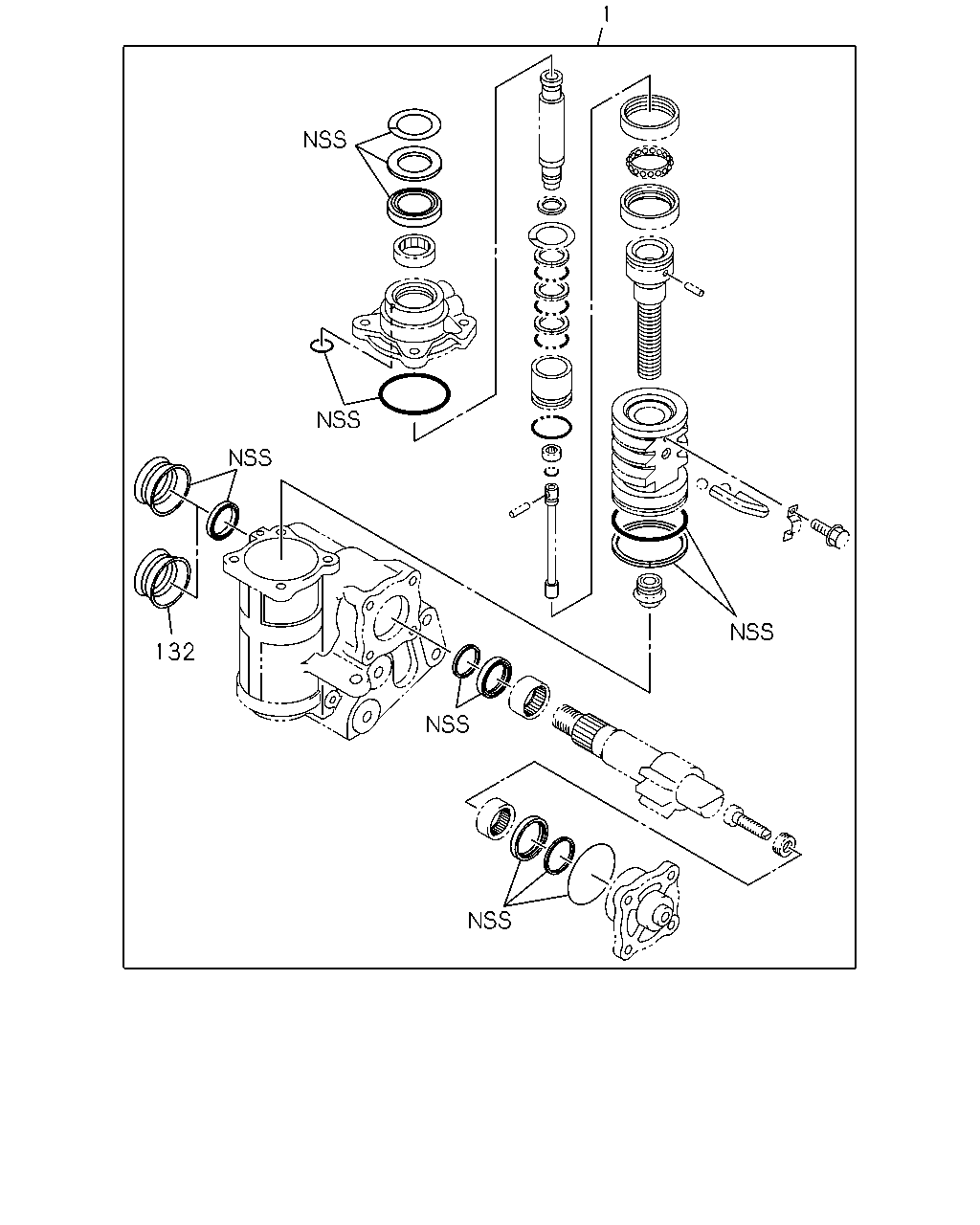

1 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: B = 8-97300-420-0, 97300420	8-97218-602-1	01	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: C = 8-97356-103-8, 97356103	8-97356-138-0	01	1	-1203
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: D = 8-98251-945-0, 98251945	8-98171-736-0	01	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: C = 8-97356-103-8, 97356103	8-98171-736-0	01	1	1204-
132	06.822 COVER; DUST,STRG UNIT ASM PART: D = 8-98251-945-0, 98251945	8-97076-372-0	01	1	-

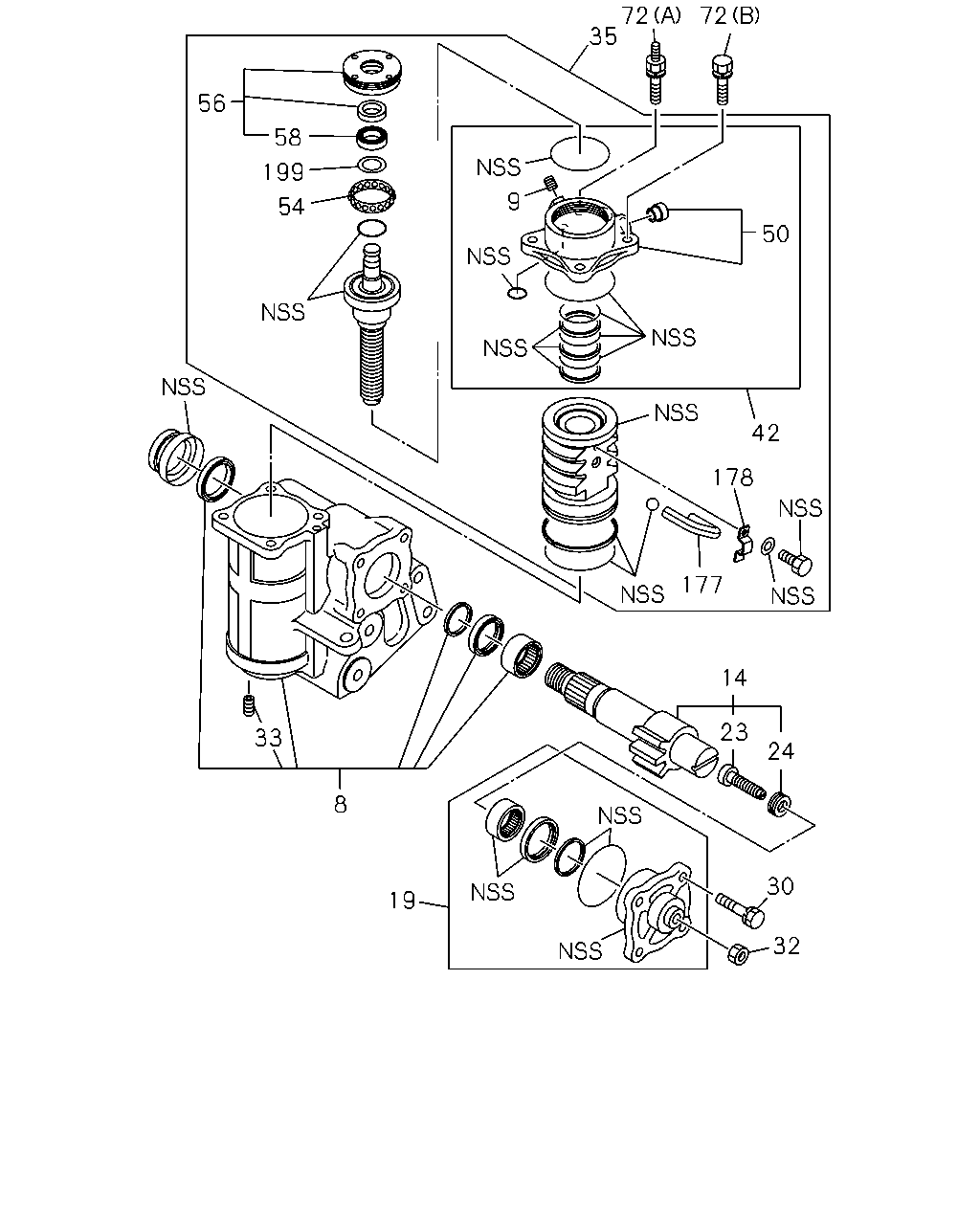

72 35 72 56 58 199 9 54 42 178 177 14 23 33 24 8 30 19 32 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	06.803 BOX ASM; STRG UNIT ASM PART: A = 8-97069-707-0, 97069707	8-97108-214-0	01	1	-
8	06.803 BOX ASM; STRG UNIT ASM PART: B = 8-97300-420-0, 97300420	8-97261-061-0	01	1	-
8	06.803 BOX ASM; STRG UNIT ASM PART: D = 8-98251-945-0, 98251945	8-97356-125-0	01	1	-
8	06.803 BOX ASM; STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-97356-128-0	01	1	-
9	06.806 PLUG; FILLER,STRG UNIT ASM PART: A = 8-97069-707-0, 97069707	5-09605-020-0	01	1	-
9	06.806 PLUG; FILLER,STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-97014-820-0	02	1	1204-
9	06.806 PLUG; FILLER,STRG UNIT ASM PART: D = 8-98251-945-0, 98251945	8-97014-820-0	02	1	-
9	06.806 PLUG; FILLER,STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-97014-820-0	01	1	-1203
9	06.806 PLUG; FILLER,STRG UNIT ASM PART: B = 8-97300-420-0, 97300420	8-97014-820-0	01	1	-
14	06.850 SHAFT; SECTOR,STRG UNIT ASM PART: A = 8-97069-707-0, 97069707	8-97107-730-0	01	1	-
14	06.850 SHAFT; SECTOR,STRG UNIT ASM PART: B = 8-97300-420-0, 97300420	8-97300-350-0	01	1	-
14	06.850 SHAFT; SECTOR,STRG UNIT ASM PART: C = 8-97356-103-8, 97356103, D = 8-98251-945-0, 98251945	8-97356-136-0	01	1	-
19	06.807 COVER; SIDE STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-97014-933-1	01	1	-0702
19	06.807 COVER; SIDE STRG UNIT ASM PART: A = 8-97069-707-0, 97069707	8-97107-733-0	01	1	-
19	06.807 COVER; SIDE STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-98036-333-0	01	1	0703-
19	06.807 COVER; SIDE STRG UNIT ASM PART: B = 8-97300-420-0, 97300420, D = 8-98251-945-0, 98251945	8-98036-333-0	01	1	-
23	06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI ASM PART: B = 8-97300-420-0, 97300420, C = 8-97356-103-8, 97356103, D = 8-98251-945-0, 98251945	8-97014-842-0	01	1	-
23	06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI ASM PART: A = 8-97069-707-0, 97069707	9-44277-014-0	01	1	-
24	06.822 RETAINER; STRG UNIT ASM PART: B = 8-97300-420-0, 97300420, C = 8-97356-103-8, 97356103, D = 8-98251-945-0, 98251945	8-97014-841-0	01	1	-
30	06.809 BOLT; COVER STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-97014-836-0	04	1	-0702
30	06.809 BOLT; COVER STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-98036-336-0	04	1	0703-
30	06.809 BOLT; COVER STRG UNIT ASM PART: B = 8-97300-420-0, 97300420, D = 8-98251-945-0, 98251945	8-98036-336-0	04	1	-
30	06.809 BOLT; COVER STRG UNIT 09.181, M10X22 ASM PART: A = 8-97069-707-0, 97069707	9-01911-022-0	04	1	-
32	06.822 NUT; ADJ SCREW,STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-97014-834-0	01	1	-0702
32	06.822 NUT; ADJ SCREW,STRG UNIT ASM PART: B = 8-97300-420-0, 97300420, C = 8-97356-103-8, 97356103, D = 8-98251-945-0, 98251945	8-98036-337-0	01	1	-
32	06.822 NUT; ADJ SCREW,STRG UNIT M10 ASM PART: A = 8-97069-707-0, 97069707	9-09111-410-0	01	1	-
33	06.806 PLUG; DRAIN,STRG UNIT ASM PART: B = 8-97300-420-0, 97300420	8-97014-820-0	02	1	-
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: B = 8-97300-420-0, 97300420	8-97300-352-0	01	1	-
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-97356-134-1	01	1	-0803
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-98112-931-3	01	1	0804-
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: D = 8-98251-945-0, 98251945	8-98112-931-3	01	1	-
42	06.586 HOUSING & SEAL ASM; STRG UNIT ASM PART: B = 8-97300-420-0, 97300420	8-97076-366-0	01	1	-
50	06.586 HOUSING ASM; VALVE STRG UNIT ASM PART: B = 8-97300-420-0, 97300420	8-97076-365-0	01	1	-
54	06.835 CASE; BEARING STRG UNIT ASM PART: B = 8-97300-420-0, 97300420	8-97014-810-0	01	1	-
56	06.560 PLUG & SEAL ASM; STRG UNIT 06.850 ASM PART: B = 8-97300-420-0, 97300420	8-97076-364-1	01	1	-
58	06.835 BEARING; HSG STRG UNIT ASM PART: B = 8-97300-420-0, 97300420	8-97014-812-0	01	1	-
72	06.550 BOLT; HSG FIX STRG UNIT 06.809, (A) ASM PART: B = 8-97300-420-0, 97300420, C = 8-97356-103-8, 97356103, D = 8-98251-945-0, 98251945	8-97014-835-0	01	1	-
72	06.550 BOLT; HSG FIX STRG UNIT 06.809, (B) ASM PART: C = 8-97356-103-8, 97356103	8-97014-836-0	03	1	-0702
72	06.550 BOLT; HSG FIX STRG UNIT 06.809, (B) ASM PART: B = 8-97300-420-0, 97300420, D = 8-98251-945-0, 98251945	8-98036-336-0	03	1	-
72	06.550 BOLT; HSG FIX STRG UNIT 06.809, (B) ASM PART: C = 8-97356-103-8, 97356103	8-98036-336-0	03	1	0703-
177	06.822 TUBE; BALL BRG STRG UNIT ASM PART: B = 8-97300-420-0, 97300420	8-97077-537-0	02	1	-
178	06.822 CLIP; BALL TUBE STRG UNIT ASM PART: B = 8-97300-420-0, 97300420	8-97014-808-0	01	1	-
199	06.521 WASHER; WAVE,STRG UNIT ASM PART: B = 8-97300-420-0, 97300420	8-97201-812-0	01	1	-

59 66 67 44 43 55 9 43 7 14 22 22 8 30 23 25 32 26 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	06.855 SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 8-97069-707-0, 97069707	9-09924-502-0	01	1	-
8	06.803 BOX ASM; STRG UNIT ASM PART: A = 8-97069-707-0, 97069707	8-97108-214-0	01	1	-
8	06.803 BOX ASM; STRG UNIT ASM PART: B = 8-97300-420-0, 97300420	8-97261-061-0	01	1	-
8	06.803 BOX ASM; STRG UNIT ASM PART: D = 8-98251-945-0, 98251945	8-97356-125-0	01	1	-
8	06.803 BOX ASM; STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-97356-128-0	01	1	-
9	06.806 PLUG; FILLER,STRG UNIT ASM PART: A = 8-97069-707-0, 97069707	5-09605-020-0	01	1	-
9	06.806 PLUG; FILLER,STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-97014-820-0	02	1	1204-
9	06.806 PLUG; FILLER,STRG UNIT ASM PART: D = 8-98251-945-0, 98251945	8-97014-820-0	02	1	-
9	06.806 PLUG; FILLER,STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-97014-820-0	01	1	-1203
9	06.806 PLUG; FILLER,STRG UNIT ASM PART: B = 8-97300-420-0, 97300420	8-97014-820-0	01	1	-
14	06.850 SHAFT; SECTOR,STRG UNIT ASM PART: A = 8-97069-707-0, 97069707	8-97107-730-0	01	1	-
14	06.850 SHAFT; SECTOR,STRG UNIT ASM PART: B = 8-97300-420-0, 97300420	8-97300-350-0	01	1	-
14	06.850 SHAFT; SECTOR,STRG UNIT ASM PART: C = 8-97356-103-8, 97356103, D = 8-98251-945-0, 98251945	8-97356-136-0	01	1	-
19	06.807 COVER; SIDE STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-97014-933-1	01	1	-0702
19	06.807 COVER; SIDE STRG UNIT ASM PART: A = 8-97069-707-0, 97069707	8-97107-733-0	01	1	-
19	06.807 COVER; SIDE STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-98036-333-0	01	1	0703-
19	06.807 COVER; SIDE STRG UNIT ASM PART: B = 8-97300-420-0, 97300420, D = 8-98251-945-0, 98251945	8-98036-333-0	01	1	-
22	06.786 BEARING; SHAFT,COVER SIDE,STRG U ASM PART: A = 8-97069-707-0, 97069707	5-09811-039-0	02	1	-
23	06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI ASM PART: B = 8-97300-420-0, 97300420, C = 8-97356-103-8, 97356103, D = 8-98251-945-0, 98251945	8-97014-842-0	01	1	-
23	06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI ASM PART: A = 8-97069-707-0, 97069707	9-44277-014-0	01	1	-
25	06.822 SHIM; ADJ SCREW,STRG UNIT 06.828, T=1.515-1.535 ASM PART: A = 8-97069-707-0, 97069707	9-44279-008-0	AR	1	-
25	06.822 SHIM; ADJ SCREW,STRG UNIT 06.828, T=1.545-1.565 ASM PART: A = 8-97069-707-0, 97069707	9-44279-009-0	AR	1	-
25	06.822 SHIM; ADJ SCREW,STRG UNIT 06.828, T=1.575-1.595 ASM PART: A = 8-97069-707-0, 97069707	9-44279-010-0	AR	1	-
25	06.822 SHIM; ADJ SCREW,STRG UNIT 06.828, T=1.605-1.625 ASM PART: A = 8-97069-707-0, 97069707	9-44279-011-0	AR	1	-
25	06.822 SHIM; ADJ SCREW,STRG UNIT 06.828, T=1.635-1.655 ASM PART: A = 8-97069-707-0, 97069707	9-44279-012-0	AR	1	-
26	06.521 GASKET; COVER,STRG UNIT ASM PART: A = 8-97069-707-0, 97069707	8-97107-737-0	01	1	-
30	06.809 BOLT; COVER STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-97014-836-0	04	1	-0702
30	06.809 BOLT; COVER STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-98036-336-0	04	1	0703-
30	06.809 BOLT; COVER STRG UNIT ASM PART: B = 8-97300-420-0, 97300420, D = 8-98251-945-0, 98251945	8-98036-336-0	04	1	-
30	06.809 BOLT; COVER STRG UNIT 09.181, M10X22 ASM PART: A = 8-97069-707-0, 97069707	9-01911-022-0	04	1	-
32	06.822 NUT; ADJ SCREW,STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-97014-834-0	01	1	-0702
32	06.822 NUT; ADJ SCREW,STRG UNIT ASM PART: B = 8-97300-420-0, 97300420, C = 8-97356-103-8, 97356103, D = 8-98251-945-0, 98251945	8-98036-337-0	01	1	-
32	06.822 NUT; ADJ SCREW,STRG UNIT M10 ASM PART: A = 8-97069-707-0, 97069707	9-09111-410-0	01	1	-
43	06.525 BEARING; WORM SHAFT,STRG UNIT ASM PART: A = 8-97069-707-0, 97069707	8-94128-202-0	02	1	-
44	06.840 SEAL; OIL,SHAFT STRG UNIT 06.525 ASM PART: A = 8-97069-707-0, 97069707	5-09625-070-0	01	1	-
55	06.524 WORM & BALL NUT ASM; STRG UNIT ASM PART: A = 8-97069-707-0, 97069707	8-97108-219-0	01	1	-
59	06.521 NUT; COVER STRG UNIT M7.2 ASM PART: A = 8-97069-707-0, 97069707	8-94128-207-0	01	1	-
66	06.518 COVER; REAR STRG UNIT ASM PART: A = 8-97069-707-0, 97069707	8-97107-735-0	01	1	-
67	06.825 SEAL; OIL,PLUG,STRG UNIT ASM PART: A = 8-97069-707-0, 97069707	8-97107-738-0	01	1	-

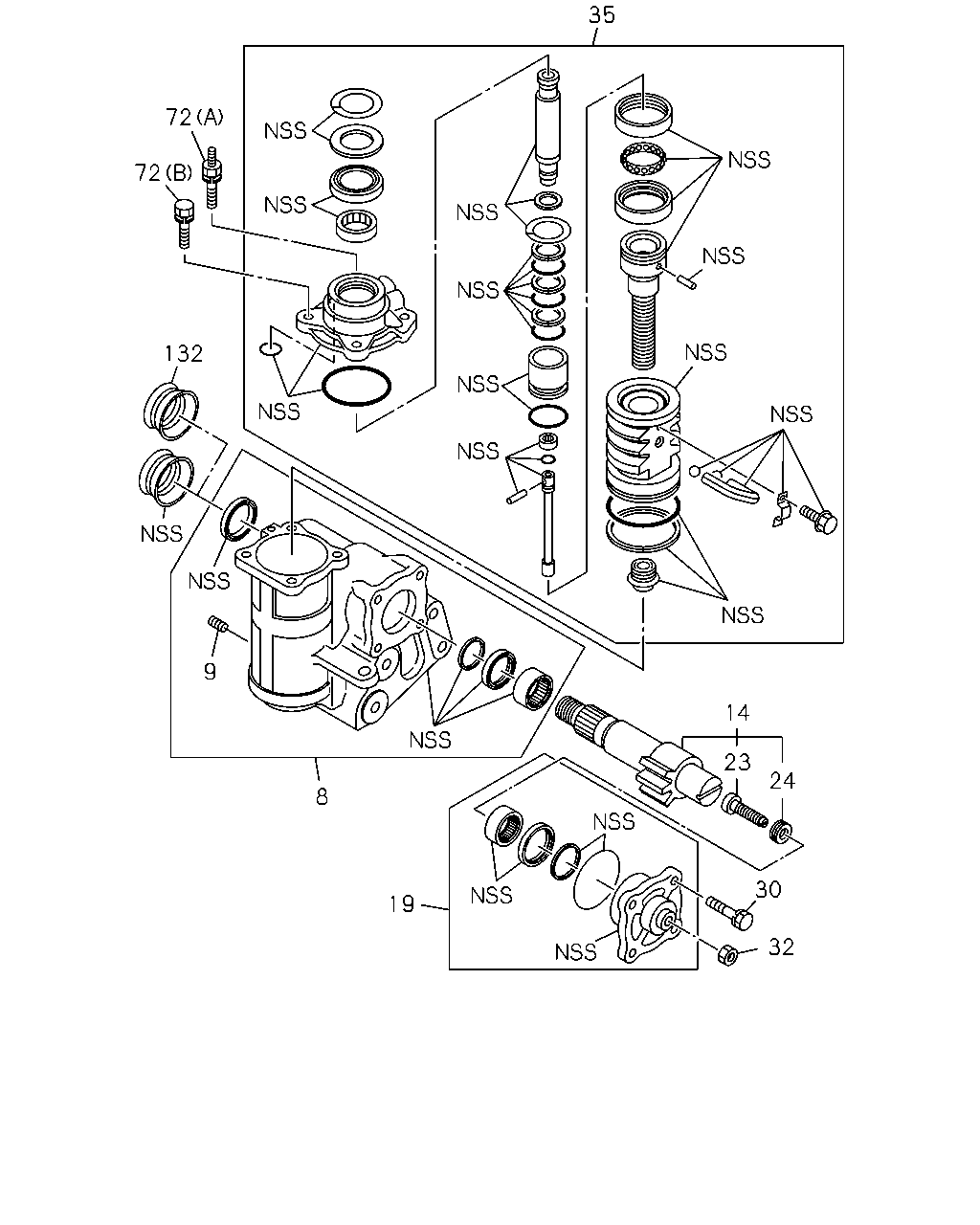

35 72 72 132 9 8 19 32 30 24 23 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	06.803 BOX ASM; STRG UNIT ASM PART: A = 8-97069-707-0, 97069707	8-97108-214-0	01	1	-
8	06.803 BOX ASM; STRG UNIT ASM PART: B = 8-97300-420-0, 97300420	8-97261-061-0	01	1	-
8	06.803 BOX ASM; STRG UNIT ASM PART: D = 8-98251-945-0, 98251945	8-97356-125-0	01	1	-
8	06.803 BOX ASM; STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-97356-128-0	01	1	-
9	06.806 PLUG; FILLER,STRG UNIT ASM PART: A = 8-97069-707-0, 97069707	5-09605-020-0	01	1	-
9	06.806 PLUG; FILLER,STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-97014-820-0	02	1	1204-
9	06.806 PLUG; FILLER,STRG UNIT ASM PART: D = 8-98251-945-0, 98251945	8-97014-820-0	02	1	-
9	06.806 PLUG; FILLER,STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-97014-820-0	01	1	-1203
9	06.806 PLUG; FILLER,STRG UNIT ASM PART: B = 8-97300-420-0, 97300420	8-97014-820-0	01	1	-
14	06.850 SHAFT; SECTOR,STRG UNIT ASM PART: A = 8-97069-707-0, 97069707	8-97107-730-0	01	1	-
14	06.850 SHAFT; SECTOR,STRG UNIT ASM PART: B = 8-97300-420-0, 97300420	8-97300-350-0	01	1	-
14	06.850 SHAFT; SECTOR,STRG UNIT ASM PART: C = 8-97356-103-8, 97356103, D = 8-98251-945-0, 98251945	8-97356-136-0	01	1	-
19	06.807 COVER; SIDE STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-97014-933-1	01	1	-0702
19	06.807 COVER; SIDE STRG UNIT ASM PART: A = 8-97069-707-0, 97069707	8-97107-733-0	01	1	-
19	06.807 COVER; SIDE STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-98036-333-0	01	1	0703-
19	06.807 COVER; SIDE STRG UNIT ASM PART: B = 8-97300-420-0, 97300420, D = 8-98251-945-0, 98251945	8-98036-333-0	01	1	-
23	06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI ASM PART: B = 8-97300-420-0, 97300420, C = 8-97356-103-8, 97356103, D = 8-98251-945-0, 98251945	8-97014-842-0	01	1	-
23	06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI ASM PART: A = 8-97069-707-0, 97069707	9-44277-014-0	01	1	-
24	06.822 RETAINER; STRG UNIT ASM PART: B = 8-97300-420-0, 97300420, C = 8-97356-103-8, 97356103, D = 8-98251-945-0, 98251945	8-97014-841-0	01	1	-
30	06.809 BOLT; COVER STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-97014-836-0	04	1	-0702
30	06.809 BOLT; COVER STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-98036-336-0	04	1	0703-
30	06.809 BOLT; COVER STRG UNIT ASM PART: B = 8-97300-420-0, 97300420, D = 8-98251-945-0, 98251945	8-98036-336-0	04	1	-
30	06.809 BOLT; COVER STRG UNIT 09.181, M10X22 ASM PART: A = 8-97069-707-0, 97069707	9-01911-022-0	04	1	-
32	06.822 NUT; ADJ SCREW,STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-97014-834-0	01	1	-0702
32	06.822 NUT; ADJ SCREW,STRG UNIT ASM PART: B = 8-97300-420-0, 97300420, C = 8-97356-103-8, 97356103, D = 8-98251-945-0, 98251945	8-98036-337-0	01	1	-
32	06.822 NUT; ADJ SCREW,STRG UNIT M10 ASM PART: A = 8-97069-707-0, 97069707	9-09111-410-0	01	1	-
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: B = 8-97300-420-0, 97300420	8-97300-352-0	01	1	-
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-97356-134-1	01	1	-0803
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: C = 8-97356-103-8, 97356103	8-98112-931-3	01	1	0804-
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: D = 8-98251-945-0, 98251945	8-98112-931-3	01	1	-
72	06.550 BOLT; HSG FIX STRG UNIT 06.809, (A) ASM PART: B = 8-97300-420-0, 97300420, C = 8-97356-103-8, 97356103, D = 8-98251-945-0, 98251945	8-97014-835-0	01	1	-
72	06.550 BOLT; HSG FIX STRG UNIT 06.809, (B) ASM PART: C = 8-97356-103-8, 97356103	8-97014-836-0	03	1	-0702
72	06.550 BOLT; HSG FIX STRG UNIT 06.809, (B) ASM PART: B = 8-97300-420-0, 97300420, D = 8-98251-945-0, 98251945	8-98036-336-0	03	1	-
72	06.550 BOLT; HSG FIX STRG UNIT 06.809, (B) ASM PART: C = 8-97356-103-8, 97356103	8-98036-336-0	03	1	0703-
132	06.822 COVER; DUST,STRG UNIT ASM PART: D = 8-98251-945-0, 98251945	8-97076-372-0	01	1	-
