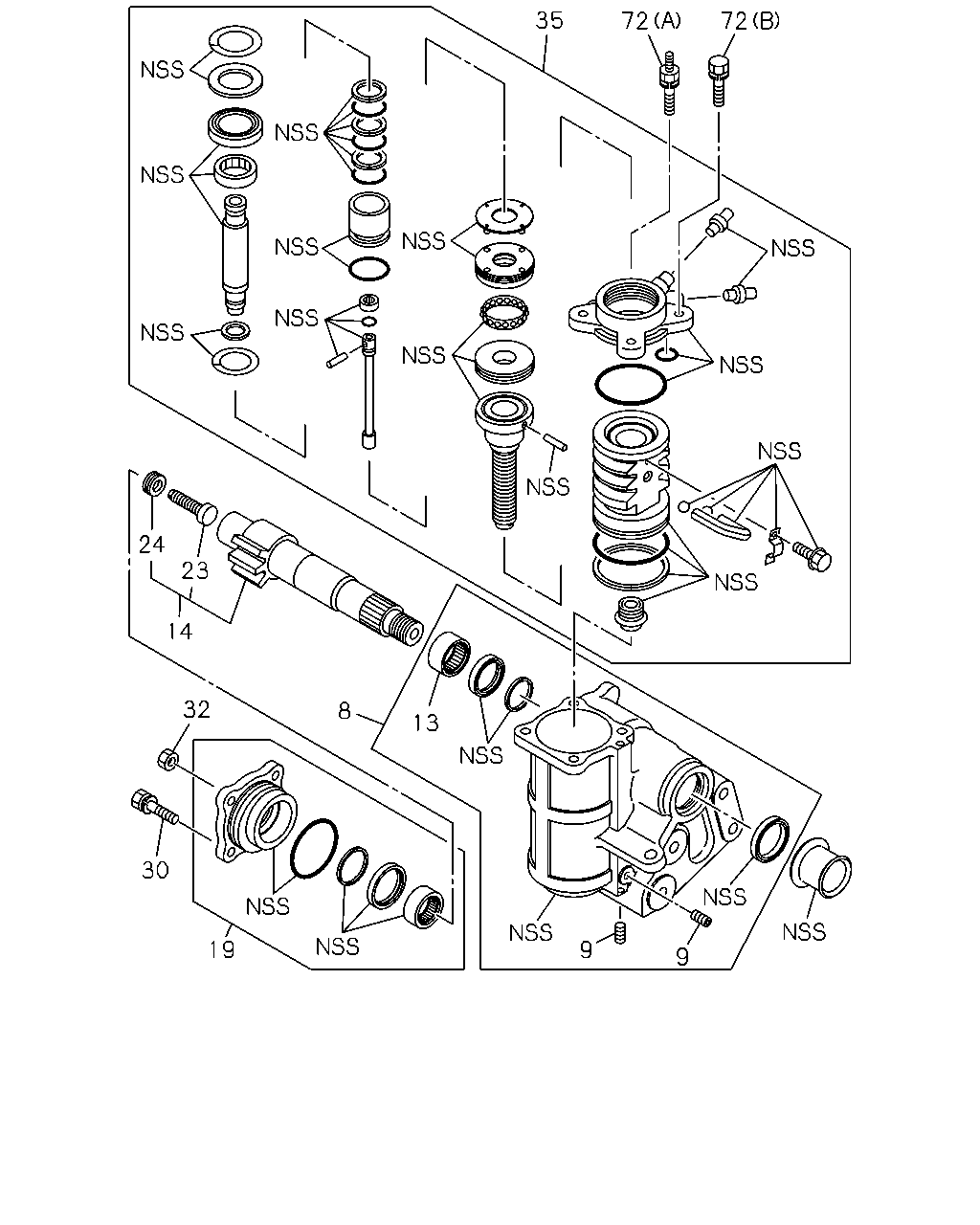

4-40A — STEERING UNIT (#47693) — 13 parça

35 72 72 24 23 14 32 8 13 30 19 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	06.803 BOX ASM; STRG UNIT ASM PART: A = 8-97251-842-1, 97251842	8-97202-842-1	01	1	-
9	06.806 PLUG; FILLER,STRG UNIT ASM PART: A = 8-97251-842-1, 97251842	8-97014-820-0	02	1	-
13	06.786 BEARING; SHAFT,BOX SIDE,STRG UNI ASM PART: A = 8-97251-842-1, 97251842	8-97014-828-0	01	1	-
14	06.850 SHAFT; SECTOR,STRG UNIT ASM PART: A = 8-97251-842-1, 97251842	8-97202-843-0	01	1	-
19	06.807 COVER; SIDE STRG UNIT ASM PART: A = 8-97251-842-1, 97251842	8-97014-933-1	01	1	-
23	06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI ASM PART: A = 8-97251-842-1, 97251842	8-97014-842-0	01	1	-
24	06.822 RETAINER; STRG UNIT ASM PART: A = 8-97251-842-1, 97251842	8-97014-841-0	01	1	-
30	06.809 BOLT; COVER STRG UNIT ASM PART: A = 8-97251-842-1, 97251842	8-97014-836-0	04	1	-
32	06.822 NUT; ADJ SCREW,STRG UNIT ASM PART: A = 8-97251-842-1, 97251842	8-97014-834-0	01	1	-
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: A = 8-97251-842-1, 97251842	8-97287-221-0	01	1	-
72	06.550 BOLT; HSG FIX STRG UNIT (B) ASM PART: A = 8-97251-842-1, 97251842	1-44519-110-0	03	1	-
72	06.550 BOLT; HSG FIX STRG UNIT 06.809, (A) ASM PART: A = 8-97251-842-1, 97251842	8-97078-178-0	01	1	-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

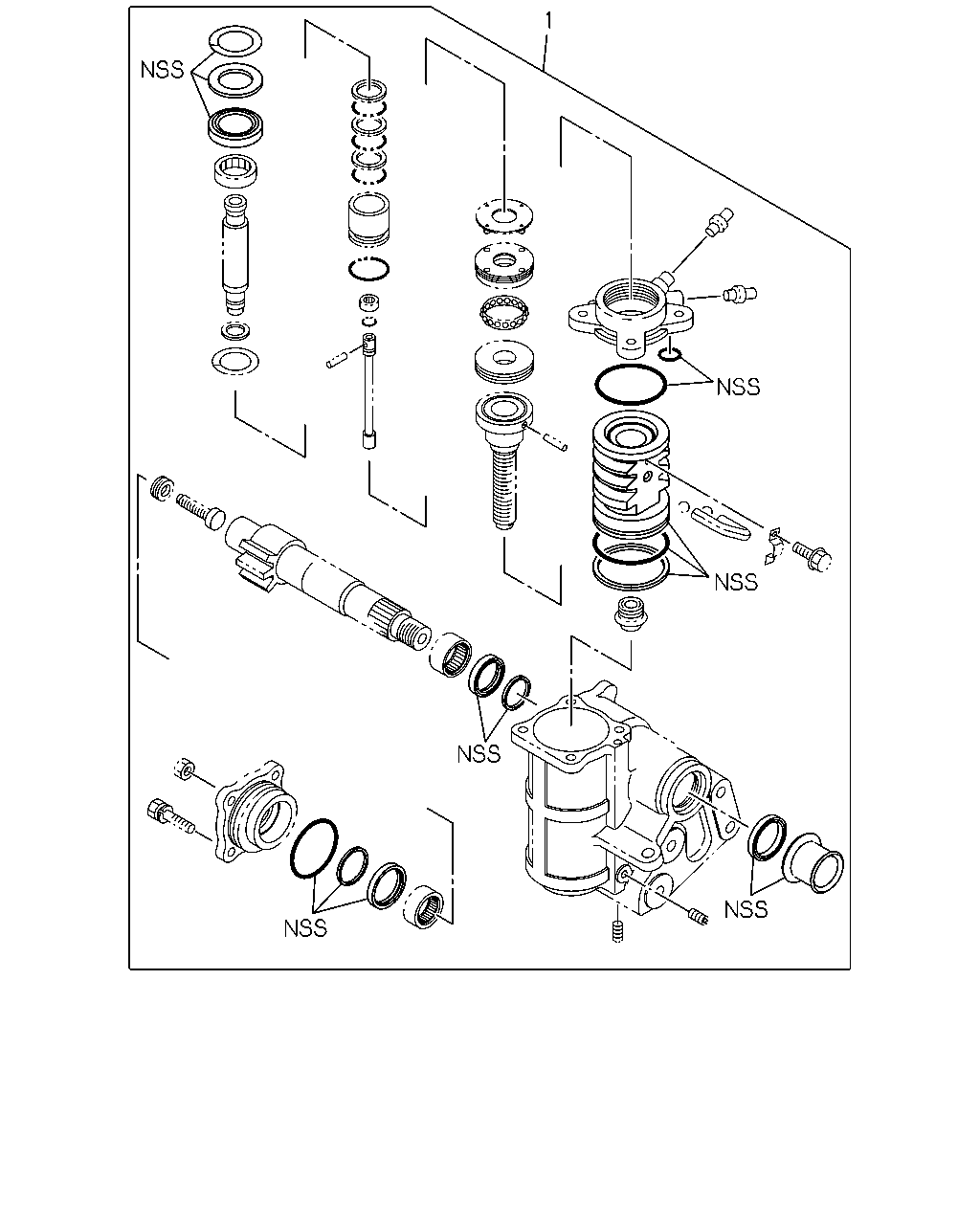

	1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: A = 8-97251-842-1, 97251842	8-97264-465-0	01	1	-
