◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#47692) — 146 parça
çizim 11762
23 42 1 7 29 36 7 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1-S ENG(RLS) POWER STEERING<N40> (A) 		8-97136-573-1 01 1 0211-0304 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1-S ENG(RLS) POWER STEERING<N40> (B) 		8-97357-214-0 01 1 0305-0409 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1-S ENG(RLS) POWER STEERING<N40> (B) 		8-97388-650-0 01 1 0410-0501 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> (B) 		8-97388-650-0 01 1 0502-0609 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> (B) 		8-97388-650-1 01 1 0610-0812 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> (B) 		8-98138-130-2 01 1 0901- ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> (C) 		8-97354-730-0 01 1 0211-0501 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> (C) 		8-97354-730-0 01 1 0211-0501 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> (C) 		8-97354-730-1 01 1 0502-0609 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> (C) 		8-97354-730-1 01 1 0610-1303 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> (C) 		8-98217-772-0 01 1 1304- ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
4HG1 ENG(RJH),4HF1-S ENG(RLS) POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0211-0501 ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0502-0609 ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0610-0805 ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> 04.439 M10X28 FLANGE 		8-98044-944-0 02 1 0806-1010 ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> 00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1011- ● ● ● ●
23 06.660 GEAR; OIL PUMP
4HG1 ENG(RJH),4HF1-S ENG(RLS) POWER STEERING<N40> 		8-97114-550-0 01 1 0211-0304 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1-S ENG(RLS) POWER STEERING<N40> (F) M14X20 FLANGE 		0-28881-420-0 01 1 0211-0501 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> (F) M14X20 FLANGE 		0-28881-420-0 01 1 0502-0512 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> (F) M14X20 FLANGE 		0-28851-420-0 01 1 0601-0609 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> (F) M14X20 FLANGE 		0-28851-420-0 01 1 0610- ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 0211-0501 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 0211-0501 ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 0502-0512 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 00.386 (D) M8X100 FLANGE 		0-28050-800-0 01 1 0601-0609 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> 00.386 (D) M8X100 FLANGE 		0-28050-800-0 01 1 0610- ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0211-0501 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0211-0501 ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0502-0512 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 0601-0609 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> 02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 0610- ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 0211-0501 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 0211-0501 ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 0502-0512 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 04.686 (E) M8X60 FLANGE 		0-28050-860-0 01 1 0601-0609 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> 04.686 (E) M8X60 FLANGE 		0-28050-860-0 01 1 0610- ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 0211-0501 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 0211-0501 ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 0502-0512 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 09.181 (C) M10X100 FLANGE 		0-28051-000-0 01 1 0601-0609 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> 09.181 (C) M10X100 FLANGE 		0-28051-000-0 01 1 0610- ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 0211-0501 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 0211-0501 ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 0502-0512 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 02.343 (B) M10X20 FLANGE 		0-28651-020-0 05 1 0601-0609 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> 02.343 (B) M10X20 FLANGE 		0-28651-020-0 05 1 0610- ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH),4HF1-S ENG(RLS) POWER STEERING<N40> 		8-97112-866-0 01 1 0211-0501 ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> 		8-97112-866-0 01 1 0502-0609 ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> 		8-97112-866-0 01 1 0610- ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1-S ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0609 ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0610- ● ● ● ●
42 06.672 NUT; ADJ PLATE
4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ● ● ● ●
42 06.672 NUT; ADJ PLATE
POWER STEERING<N40> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ●
42 06.672 NUT; ADJ PLATE
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ● ● ● ●
42 06.672 NUT; ADJ PLATE
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-0609 ● ● ● ●
42 06.672 NUT; ADJ PLATE
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0610- ● ● ● ●

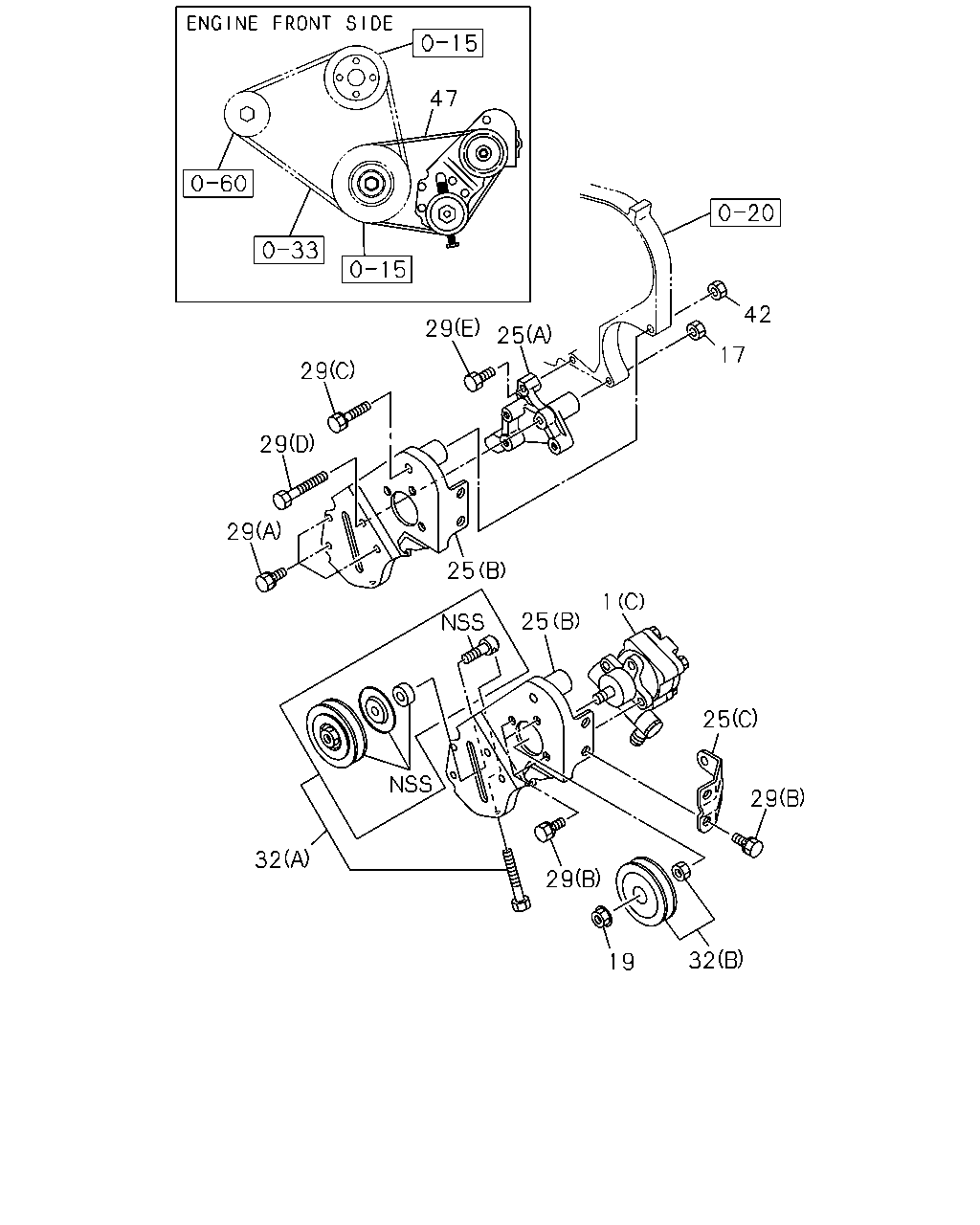

çizim 52242
47 42 29 25 17 29 29 29 25 1 25 25 29 32 29 32 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1-S ENG(RLS) POWER STEERING<N40> (A) 		8-97136-573-1 01 1 0211-0304 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1-S ENG(RLS) POWER STEERING<N40> (B) 		8-97357-214-0 01 1 0305-0409 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1-S ENG(RLS) POWER STEERING<N40> (B) 		8-97388-650-0 01 1 0410-0501 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> (B) 		8-97388-650-0 01 1 0502-0609 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> (B) 		8-97388-650-1 01 1 0610-0812 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> (B) 		8-98138-130-2 01 1 0901- ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> (C) 		8-97354-730-0 01 1 0211-0501 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> (C) 		8-97354-730-0 01 1 0211-0501 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> (C) 		8-97354-730-1 01 1 0502-0609 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> (C) 		8-97354-730-1 01 1 0610-1303 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> (C) 		8-98217-772-0 01 1 1304- ● ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ●
17 06.606 NUT; POWER STRG PUMP
POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
17 06.606 NUT; POWER STRG PUMP
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0609 ● ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0610- ● ● ● ●
19 07.874 NUT; PULLEY,OIL PUMP
4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 06.606 M12 		8-94139-015-0 01 1 0211-0501 ● ● ● ●
19 07.874 NUT; PULLEY,OIL PUMP
POWER STEERING<N40> 06.606 M12 		8-94139-015-0 01 1 0211-0501 ●
19 07.874 NUT; PULLEY,OIL PUMP
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 06.606 M12 		8-94139-015-0 01 1 0502-0609 ● ● ● ●
19 07.874 NUT; PULLEY,OIL PUMP
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> 06.606 M12 		8-94139-015-0 01 1 0610-0610 ● ● ● ●
19 07.874 NUT; PULLEY,OIL PUMP
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> 07.395 M12 		8-97360-126-0 01 1 0611- ● ● ● ●
25 06.606 BRACKET; P/S PUMP
4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> (B) 		8-97065-974-0 01 1 0211-0501 ● ● ● ●
25 06.606 BRACKET; P/S PUMP
POWER STEERING<N40> (B) 		8-97065-974-0 01 1 0211-0501 ●
25 06.606 BRACKET; P/S PUMP
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> (B) 		8-97065-974-0 01 1 0502-0609 ● ● ● ●
25 06.606 BRACKET; P/S PUMP
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> (B) 		8-97065-974-0 01 1 0610- ● ● ● ●
25 06.606 BRACKET; P/S PUMP
4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> (A) 		8-97107-869-0 01 1 0211-0501 ● ● ● ●
25 06.606 BRACKET; P/S PUMP
POWER STEERING<N40> (A) 		8-97107-869-0 01 1 0211-0501 ●
25 06.606 BRACKET; P/S PUMP
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> (A) 		8-97107-869-0 01 1 0502-0609 ● ● ● ●
25 06.606 BRACKET; P/S PUMP
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> (A) 		8-97107-869-0 01 1 0610- ● ● ● ●
25 06.606 BRACKET; P/S PUMP
4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> (C) 		8-97107-872-0 01 1 0211-0501 ● ● ● ●
25 06.606 BRACKET; P/S PUMP
POWER STEERING<N40> (C) 		8-97107-872-0 01 1 0211-0501 ●
25 06.606 BRACKET; P/S PUMP
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> (C) 		8-97107-872-0 01 1 0502-0609 ● ● ● ●
25 06.606 BRACKET; P/S PUMP
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> (C) 		8-97107-872-0 01 1 0610- ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1-S ENG(RLS) POWER STEERING<N40> (F) M14X20 FLANGE 		0-28881-420-0 01 1 0211-0501 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> (F) M14X20 FLANGE 		0-28881-420-0 01 1 0502-0512 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> (F) M14X20 FLANGE 		0-28851-420-0 01 1 0601-0609 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> (F) M14X20 FLANGE 		0-28851-420-0 01 1 0610- ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 0211-0501 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 0211-0501 ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 0502-0512 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 00.386 (D) M8X100 FLANGE 		0-28050-800-0 01 1 0601-0609 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> 00.386 (D) M8X100 FLANGE 		0-28050-800-0 01 1 0610- ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0211-0501 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0211-0501 ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0502-0512 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 0601-0609 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> 02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 0610- ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 0211-0501 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 0211-0501 ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 0502-0512 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 04.686 (E) M8X60 FLANGE 		0-28050-860-0 01 1 0601-0609 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> 04.686 (E) M8X60 FLANGE 		0-28050-860-0 01 1 0610- ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 0211-0501 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 0211-0501 ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 0502-0512 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 09.181 (C) M10X100 FLANGE 		0-28051-000-0 01 1 0601-0609 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> 09.181 (C) M10X100 FLANGE 		0-28051-000-0 01 1 0610- ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 0211-0501 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 0211-0501 ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 0502-0512 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 02.343 (B) M10X20 FLANGE 		0-28651-020-0 05 1 0601-0609 ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> 02.343 (B) M10X20 FLANGE 		0-28651-020-0 05 1 0610- ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 06.655 (A) 		8-94128-866-0 01 1 0211-0501 ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
POWER STEERING<N40> 06.655 (A) 		8-94128-866-0 01 1 0211-0501 ●
32 06.665 PULLEY; IDLER,P/S
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 06.655 (A) 		8-94128-866-0 01 1 0502-0609 ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> 06.655 (A) 		8-94128-866-0 01 1 0610- ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> (B) 		8-97084-332-2 01 1 0211-0501 ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
POWER STEERING<N40> (B) 		8-97084-332-2 01 1 0211-0501 ●
32 06.665 PULLEY; IDLER,P/S
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> (B) 		8-97084-332-2 01 1 0502-0609 ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> (B) 		8-97084-332-2 01 1 0610-1303 ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> (B) 		8-98217-771-0 01 1 1304- ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1-S ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0609 ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0610- ● ● ● ●
42 06.672 NUT; ADJ PLATE
4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ● ● ● ●
42 06.672 NUT; ADJ PLATE
POWER STEERING<N40> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ●
42 06.672 NUT; ADJ PLATE
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ● ● ● ●
42 06.672 NUT; ADJ PLATE
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-0609 ● ● ● ●
42 06.672 NUT; ADJ PLATE
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0610- ● ● ● ●
47 01.066 BELT; P/S PUMP
4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 		8-97085-131-0 01 1 0211-0501 ● ● ● ●
47 01.066 BELT; P/S PUMP
POWER STEERING<N40> 		8-97085-131-0 01 1 0211-0501 ●
47 01.066 BELT; P/S PUMP
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> 		8-97085-131-0 01 1 0502-0609 ● ● ● ●
47 01.066 BELT; P/S PUMP
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> 		8-97085-131-0 01 1 0610- ● ● ● ●
47 01.066 BELT; P/S PUMP
4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> BEST VALUE PARTS 		5-87610-096-0 01 1 0211-0501 ● ● ● ●
47 01.066 BELT; P/S PUMP
POWER STEERING<N40> BEST VALUE PARTS 		5-87610-096-0 01 1 0211-0501 ●
47 01.066 BELT; P/S PUMP
4JH1-TC ENG(RDM),4JB1 ENG(RLF) POWER STEERING<N40> BEST VALUE PARTS 		5-87610-096-0 01 1 0502-0609 ● ● ● ●
47 01.066 BELT; P/S PUMP
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) POWER STEERING<N40> BEST VALUE PARTS 		5-87610-096-0 01 1 0610- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
