◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#47690) — 129 parça
çizim 10917
3 4 1 4 9 116 117 36 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.859 ARM; PITMAN,STRG
FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-362-2 01 1 0211-0501 ●
1 06.859 ARM; PITMAN,STRG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97109-289-1 01 1 0211-0308 ●
1 06.859 ARM; PITMAN,STRG 8-97109-289-1 01 1 0211-0308 ● ● ● ● ●
1 06.859 ARM; PITMAN,STRG
EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97109-289-1 01 1 0309-0501 ●
1 06.859 ARM; PITMAN,STRG 8-97109-289-1 01 1 0309-0501 ● ● ● ● ●
1 06.859 ARM; PITMAN,STRG 8-97109-289-1 01 1 0502- ● ● ● ● ●
3 06.861 WASHER; LK,PITMAN ARM
FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=27.5 		9-09150-527-0 01 1 0211-0501 ●
3 06.861 WASHER; LK,PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=22.5 		9-09150-522-0 01 1 0211-0501 ●
3 06.861 WASHER; LK,PITMAN ARM
ID=22.5 		9-09150-522-0 01 1 0211-0501 ● ● ● ● ●
3 06.861 WASHER; LK,PITMAN ARM
ID=22.5 		9-09150-522-0 01 1 0502-0603 ● ● ● ● ●
3 06.861 WASHER; LK,PITMAN ARM
ID=22.5 		0-91510-522-0 01 1 0604- ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
FRT INDEPENDENT SUSPENSION(6PP) (C) M27 		5-12378-002-0 01 1 0211-0501 ●
4 06.861 NUT; PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M18 SLOTTED 		8-97017-761-0 01 1 0211-0308 ●
4 06.861 NUT; PITMAN ARM
(A) M18 SLOTTED 		8-97017-761-0 01 1 0211-0308 ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) (A) M18 SLOTTED 		8-97017-761-0 01 1 0309-0501 ●
4 06.861 NUT; PITMAN ARM
(A) M18 SLOTTED 		8-97017-761-0 01 1 0309-0501 ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
(A) M18 SLOTTED 		8-97017-761-0 01 1 0502-0805 ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
06.174 (A) M18 SLOTTED 		8-97245-632-0 01 1 0806- ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.915 (B) M22 		9-09111-522-0 01 1 0211-0501 ●
4 06.861 NUT; PITMAN ARM
08.915 (B) M22 		9-09111-522-0 01 1 0211-0501 ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
08.915 (B) M22 		9-09111-522-0 01 1 0502-0512 ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
(B) M22 		0-91111-522-0 01 1 0601- ● ● ● ● ●
9 06.870 LINK; DRAG
FRT INDEPENDENT SUSPENSION(6PP) 		8-97107-323-0 01 1 0211-0501 ●
9 06.870 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97142-099-0 01 1 0211-0308 ●
9 06.870 LINK; DRAG 8-97142-099-0 01 1 0211-0308 ● ● ● ● ●
9 06.870 LINK; DRAG
EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97142-099-0 01 1 0309-0501 ●
9 06.870 LINK; DRAG 8-97142-099-0 01 1 0309-0501 ● ● ● ● ●
9 06.870 LINK; DRAG 8-97142-099-1 01 1 0502- ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP) (A) L=19 		8-97349-766-0 03 1 0211-0501 ●
36 06.881 PIN; SPLIT,DRAG LINK
(C) L=19 		8-97349-766-0 01 1 0502-0611 ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
(C) L=19 		8-97387-864-0 01 1 0612-0612 ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
(C) L=19 		8-97349-766-0 01 1 0701-0804 ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
(C) L=19 		8-98098-024-0 01 1 0805- ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP) 09.023 (B) OD=3.7 L=30 		9-08114-030-0 01 1 0211-0212 ●
36 06.881 PIN; SPLIT,DRAG LINK
EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) L=19 		8-97349-766-0 01 1 0211-0212 ●
36 06.881 PIN; SPLIT,DRAG LINK
(C) L=19 		8-97349-766-0 01 1 0211-0212 ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
(D) L=19 		8-97349-766-0 01 1 0301-0501 ● ● ● ● ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 06.881 (A) L=19 		8-97349-766-0 01 1 0211-0212 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
06.881 (C) L=19 		8-97349-766-0 01 1 0301-0308 ● ● ● ● ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 06.881 (C) L=19 		8-97349-766-0 01 1 0301-0308 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) 06.881 (C) L=19 		8-97349-766-0 01 1 0309-0501 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 06.881 (C) L=19 		8-97349-766-0 01 1 0309-0501 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 06.881 (C) L=19 		8-97349-766-0 01 1 0309-0501 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
06.881 (C) L=19 		8-97349-766-0 01 1 0309-0501 ● ● ● ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
06.881 (B) L=19 		8-97349-766-0 01 1 0502- ● ● ● ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
09.023 (B) OD=3.7 L=30 		9-08114-030-0 01 1 0211-0212 ● ● ● ● ● ●
117 06.233 NUT; DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED 		8-97017-761-0 02 1 0211-0501 ●
117 06.233 NUT; DRAG LINK
06.861 M18 SLOTTED 		8-97017-761-0 01 1 0502-0610 ● ● ● ● ●
117 06.233 NUT; DRAG LINK
06.174 M18 SLOTTED 		8-97245-632-0 01 1 0611- ● ● ● ● ●
117 06.233 NUT; DRAG LINK
06.861 M18 SLOTTED 		8-97017-761-0 01 1 0211-0501 ● ● ● ● ● ●

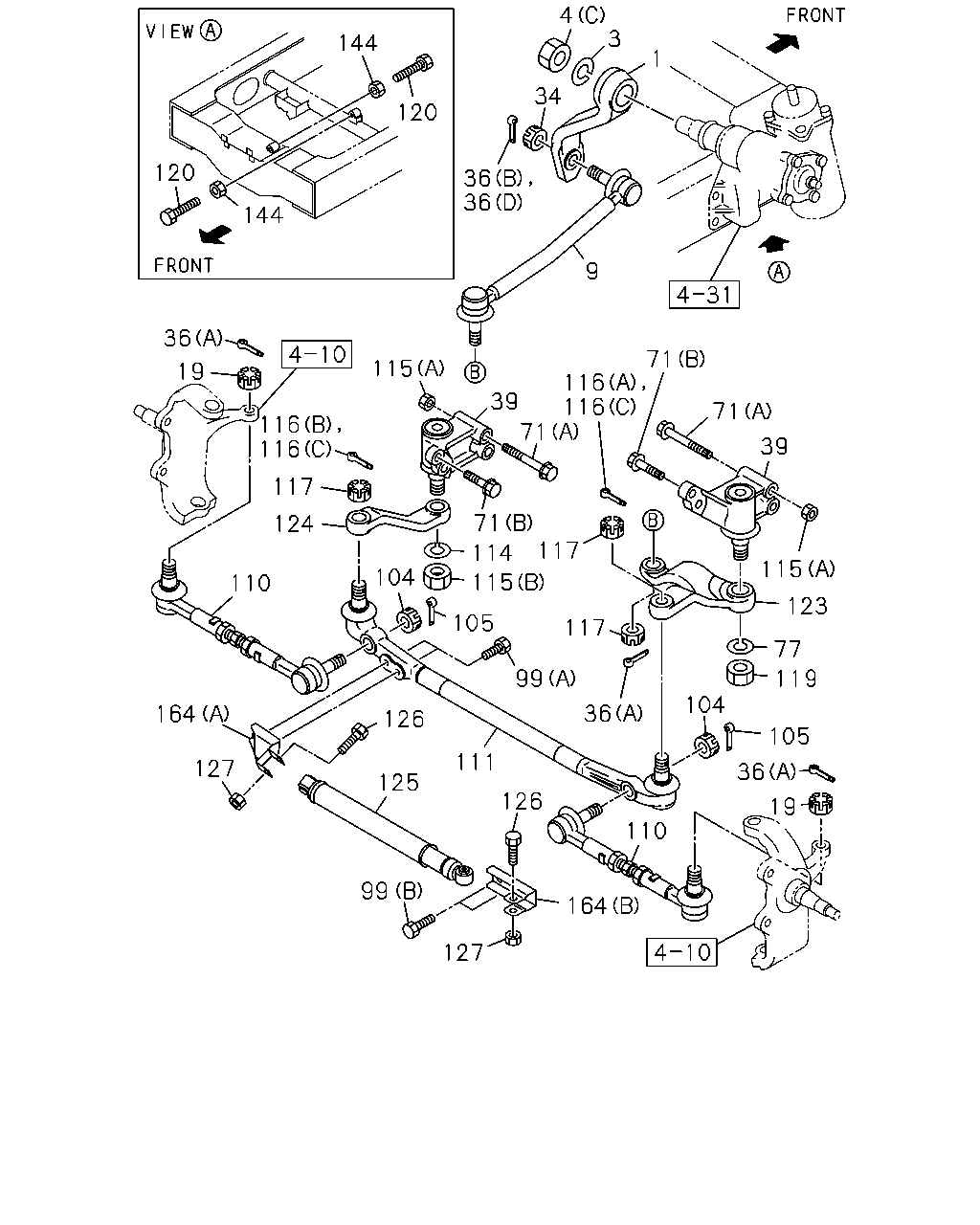

çizim 11832
4 3 144 1 34 120 120 36 36 144 9 36 71 116 116 71 115 19 39 71 116 116 39 117 71 117 124 104 114 115 115 110 123 105 117 77 99 104 36 164 126 105 111 127 36 125 126 19 110 99 164 127 119
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.859 ARM; PITMAN,STRG
FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-362-2 01 1 0211-0501 ●
1 06.859 ARM; PITMAN,STRG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97109-289-1 01 1 0211-0308 ●
1 06.859 ARM; PITMAN,STRG 8-97109-289-1 01 1 0211-0308 ● ● ● ● ●
1 06.859 ARM; PITMAN,STRG
EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97109-289-1 01 1 0309-0501 ●
1 06.859 ARM; PITMAN,STRG 8-97109-289-1 01 1 0309-0501 ● ● ● ● ●
1 06.859 ARM; PITMAN,STRG 8-97109-289-1 01 1 0502- ● ● ● ● ●
3 06.861 WASHER; LK,PITMAN ARM
FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=27.5 		9-09150-527-0 01 1 0211-0501 ●
3 06.861 WASHER; LK,PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=22.5 		9-09150-522-0 01 1 0211-0501 ●
3 06.861 WASHER; LK,PITMAN ARM
ID=22.5 		9-09150-522-0 01 1 0211-0501 ● ● ● ● ●
3 06.861 WASHER; LK,PITMAN ARM
ID=22.5 		9-09150-522-0 01 1 0502-0603 ● ● ● ● ●
3 06.861 WASHER; LK,PITMAN ARM
ID=22.5 		0-91510-522-0 01 1 0604- ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
FRT INDEPENDENT SUSPENSION(6PP) (C) M27 		5-12378-002-0 01 1 0211-0501 ●
4 06.861 NUT; PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M18 SLOTTED 		8-97017-761-0 01 1 0211-0308 ●
4 06.861 NUT; PITMAN ARM
(A) M18 SLOTTED 		8-97017-761-0 01 1 0211-0308 ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) (A) M18 SLOTTED 		8-97017-761-0 01 1 0309-0501 ●
4 06.861 NUT; PITMAN ARM
(A) M18 SLOTTED 		8-97017-761-0 01 1 0309-0501 ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
(A) M18 SLOTTED 		8-97017-761-0 01 1 0502-0805 ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
06.174 (A) M18 SLOTTED 		8-97245-632-0 01 1 0806- ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.915 (B) M22 		9-09111-522-0 01 1 0211-0501 ●
4 06.861 NUT; PITMAN ARM
08.915 (B) M22 		9-09111-522-0 01 1 0211-0501 ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
08.915 (B) M22 		9-09111-522-0 01 1 0502-0512 ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
(B) M22 		0-91111-522-0 01 1 0601- ● ● ● ● ●
9 06.870 LINK; DRAG
FRT INDEPENDENT SUSPENSION(6PP) 		8-97107-323-0 01 1 0211-0501 ●
9 06.870 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97142-099-0 01 1 0211-0308 ●
9 06.870 LINK; DRAG 8-97142-099-0 01 1 0211-0308 ● ● ● ● ●
9 06.870 LINK; DRAG
EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97142-099-0 01 1 0309-0501 ●
9 06.870 LINK; DRAG 8-97142-099-0 01 1 0309-0501 ● ● ● ● ●
9 06.870 LINK; DRAG 8-97142-099-1 01 1 0502- ● ● ● ● ●
19 06.865 NUT; PITMAN ARM,STOPPER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97017-762-0 02 1 0211-0501 ●
34 06.233 NUT; DRAG LINK TO PITMAN ARM
FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED 		8-97017-761-0 01 1 0211-0501 ●
36 06.881 PIN; SPLIT,DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP) (A) L=19 		8-97349-766-0 03 1 0211-0501 ●
36 06.881 PIN; SPLIT,DRAG LINK
(C) L=19 		8-97349-766-0 01 1 0502-0611 ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
(C) L=19 		8-97387-864-0 01 1 0612-0612 ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
(C) L=19 		8-97349-766-0 01 1 0701-0804 ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
(C) L=19 		8-98098-024-0 01 1 0805- ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP) 09.023 (B) OD=3.7 L=30 		9-08114-030-0 01 1 0211-0212 ●
36 06.881 PIN; SPLIT,DRAG LINK
EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) L=19 		8-97349-766-0 01 1 0211-0212 ●
36 06.881 PIN; SPLIT,DRAG LINK
(C) L=19 		8-97349-766-0 01 1 0211-0212 ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
(D) L=19 		8-97349-766-0 01 1 0301-0501 ● ● ● ● ● ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97189-457-0 01 1 0211-0501 ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97189-455-0 01 1 0211-0501 ●
71 06.896 BOLT; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> (A) M12X93.5 		8-97085-383-0 04 1 0211-0501 ●
71 06.896 BOLT; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> (B) M12X43.5 		8-97085-384-0 04 1 0211-0501 ●
71 06.896 BOLT; RELAY LEVER BRKT
KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 00.780 (A) M12X90 		0-28081-290-0 04 1 0211-0501 ●
71 06.896 BOLT; RELAY LEVER BRKT
KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 03.890 (B) M12X40 		9-92061-240-0 04 1 0211-0501 ●
77 06.897 WASHER; LK,RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=20.2 		9-09150-520-0 01 1 0211-0501 ●
99 06.896 BOLT; BRKT
SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 00.685 (A) M10X50 FLANGE 		0-28081-050-0 02 1 0211-0501 ●
99 06.896 BOLT; BRKT
SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 03.611 (B) M10X20 FLANGE 		0-28681-020-0 02 1 0211-0501 ●
104 06.233 NUT; ROD END
FRT INDEPENDENT SUSPENSION(6PP) 06.234 M16 SLOTTED 		1-09442-021-1 02 1 0211-0501 ●
105 06.865 PIN; SPLIT,ROD END
FRT INDEPENDENT SUSPENSION(6PP) 06.022 OD=3.7 L=25 		9-08114-025-0 02 1 0211-0212 ●
105 06.865 PIN; SPLIT,ROD END
FRT INDEPENDENT SUSPENSION(6PP) 06.881 L=19 		8-97349-766-0 02 1 0301-0501 ●
110 06.870 ROD; TRACK,OUTER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97107-318-1 02 1 0211-0501 ●
111 06.870 ROD; TRACK,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97107-321-0 01 1 0211-0501 ●
114 06.515 WASHER; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=20.2 		9-09150-520-0 01 1 0211-0501 ●
115 06.896 NUT; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP) 06.606 (A) M12 		8-94139-015-0 08 1 0211-0501 ●
115 06.896 NUT; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP) 08.915 (B) M20 		9-99111-520-0 01 1 0211-0501 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 06.881 (A) L=19 		8-97349-766-0 01 1 0211-0212 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
06.881 (C) L=19 		8-97349-766-0 01 1 0301-0308 ● ● ● ● ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 06.881 (C) L=19 		8-97349-766-0 01 1 0301-0308 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
EXC. SHIMMY DAMPER<S3V>,FRT INDEPENDENT SUSPENSION(6PP) 06.881 (C) L=19 		8-97349-766-0 01 1 0309-0501 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 06.881 (C) L=19 		8-97349-766-0 01 1 0309-0501 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 06.881 (C) L=19 		8-97349-766-0 01 1 0309-0501 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
06.881 (C) L=19 		8-97349-766-0 01 1 0309-0501 ● ● ● ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
06.881 (B) L=19 		8-97349-766-0 01 1 0502- ● ● ● ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
09.023 (B) OD=3.7 L=30 		9-08114-030-0 01 1 0211-0212 ● ● ● ● ● ●
117 06.233 NUT; DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED 		8-97017-761-0 02 1 0211-0501 ●
117 06.233 NUT; DRAG LINK
06.861 M18 SLOTTED 		8-97017-761-0 01 1 0502-0610 ● ● ● ● ●
117 06.233 NUT; DRAG LINK
06.174 M18 SLOTTED 		8-97245-632-0 01 1 0611- ● ● ● ● ●
117 06.233 NUT; DRAG LINK
06.861 M18 SLOTTED 		8-97017-761-0 01 1 0211-0501 ● ● ● ● ● ●
119 06.897 NUT; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) 08.915 M20 		9-99111-520-0 01 1 0211-0501 ●
120 06.897 BOLT; RELAY LEVER STOPPER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97014-919-0 02 1 0211-0501 ●
123 06.895 LEVER; RELAY,RH
FRT INDEPENDENT SUSPENSION(6PP) 		8-97031-398-0 01 1 0211-0501 ●
124 06.859 LEVER; RELAY,STRG LINKAGE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97036-547-1 01 1 0211-0501 ●
125 06.865 DAMPER; STEERING
SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 		8-97012-618-3 01 1 0211-0501 ●
126 06.865 BOLT; STRG DAMPER TO RELAY LEVER
SHIMMY DAMPER<S3V> 00.685 M10X45 FLANGE 		0-28081-045-0 02 1 0211-0501 ●
127 06.865 NUT; STRG DAMPER
SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE 		0-91150-210-0 02 1 0211-0501 ●
144 06.896 NUT; STOPPER BRKT
FRT INDEPENDENT SUSPENSION(6PP) 05.816 M12 		9-99110-412-0 02 1 0211-0501 ●
164 06.896 BRACKET; STEERING DAMPER
SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97012-595-2 01 1 0211-0501 ●
164 06.896 BRACKET; STEERING DAMPER
SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97025-765-1 01 1 0211-0501 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
