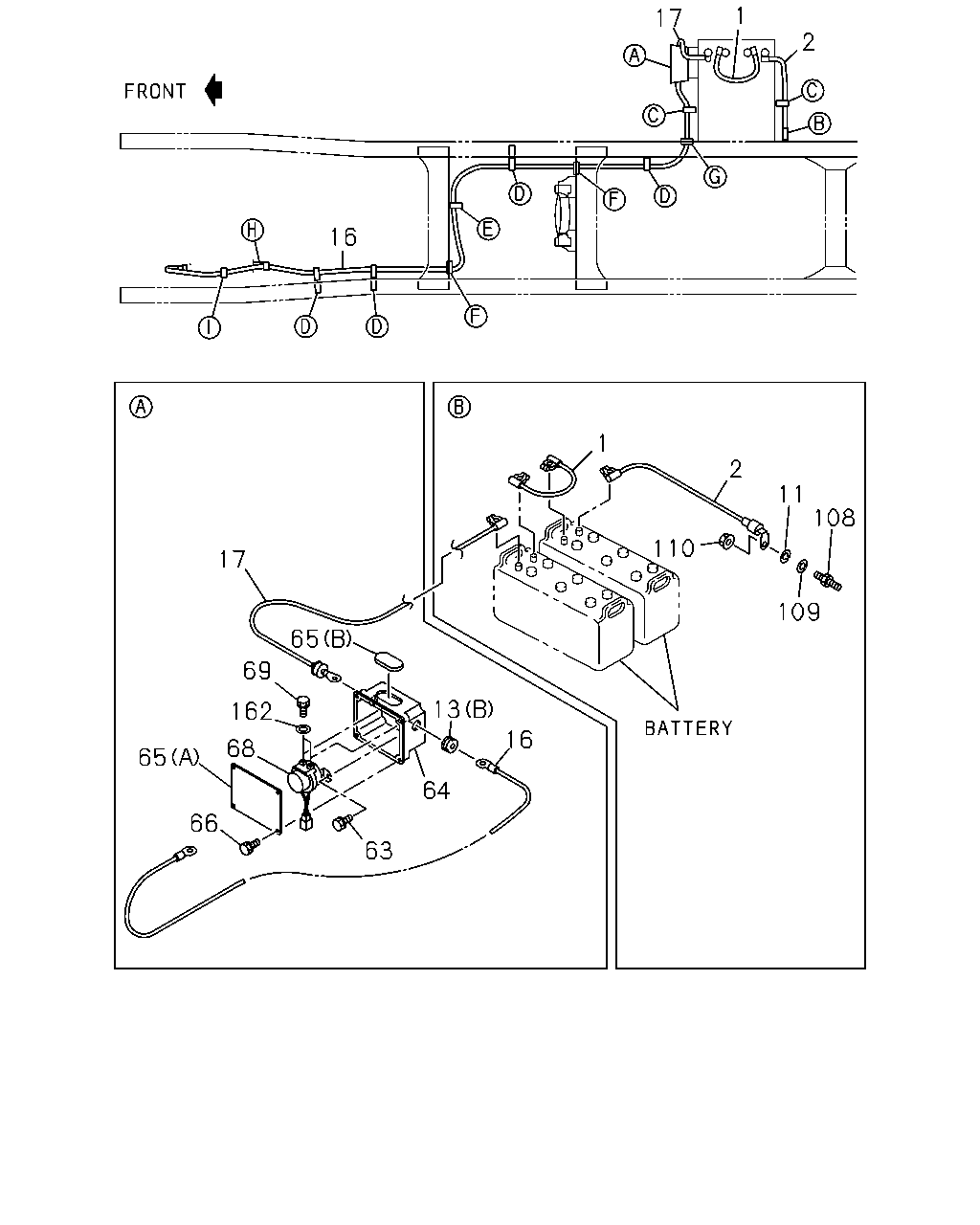

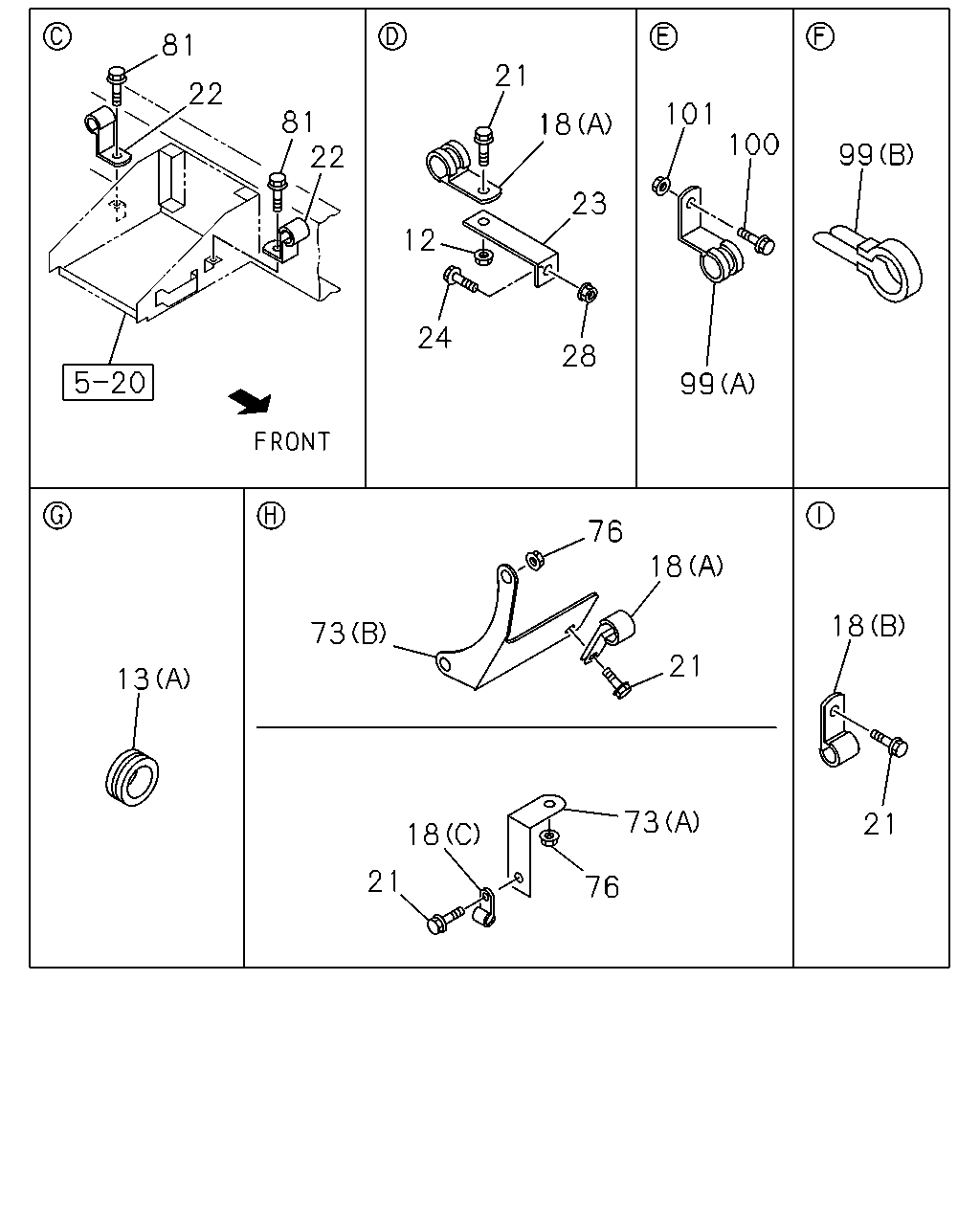

0-61A — BATTERY AND ENGINE ELECTRICAL PARTS (#4769) — 134 parça

1 17 2 16 1 2 11 108 110 17 109 65 69 13 162 16 68 65 64 66 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450	1-82650-281-2	01	1	9601-9610	●
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450	1-82650-281-2	01	1	9611-9904	●	●
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450	1-82650-281-2	01	1	9905-		●	●	●
1	CABLE; BATTERY EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180	1-82650-280-2	01	1	9601-9610	●
1	CABLE; BATTERY EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180	1-82650-280-2	01	1	9611-9904	●	●
1	CABLE; BATTERY EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180	1-82650-280-2	01	1	9905-		●	●	●
2	CABLE; BATTERY L=690	1-82650-147-0	01	1	9601-9610	●
2	CABLE; BATTERY L=690	1-82650-147-0	01	1	9611-9904	●	●
2	CABLE; BATTERY L=690	1-82650-147-0	01	1	9905-		●	●	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	9601-9610	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	9611-9904	●	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	9905-		●	●	●
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	9601-9610	●
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	9611-9904	●	●
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	9905-		●	●	●
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	9606-9610	●
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	9611-9904	●	●
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	9905-		●	●	●
16	CABLE; STARTER TO RELAY L=3220	1-82652-481-3	01	1	9601-9601	●
16	CABLE; STARTER TO RELAY L=3350	1-82652-602-0	01	1	9602-9610	●
16	CABLE; STARTER TO RELAY L=3350	1-82652-635-0	01	1	9611-9904	●	●
16	CABLE; STARTER TO RELAY L=3350	1-82652-635-0	01	1	9905-		●	●	●
17	CABLE; BATTERY (+) TO RELAY L=390	1-82652-531-0	01	1	9601-9610	●
17	CABLE; BATTERY (+) TO RELAY L=390	1-82652-531-0	01	1	9611-9904	●	●
17	CABLE; BATTERY (+) TO RELAY L=390	1-82652-531-0	01	1	9905-		●	●	●
63	BOLT; RELAY BATTERY M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	9601-9610	●
63	BOLT; RELAY BATTERY M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	9611-9904	●	●
63	BOLT; RELAY BATTERY M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	9905-		●	●	●
64	BOX; BATTERY RELAY	1-82699-352-2	01	1	9601-9611	●
64	BOX; BATTERY RELAY	1-82699-947-0	01	1	9611-9904	●	●
64	BOX; BATTERY RELAY	1-82699-947-0	01	1	9905-		●	●	●
65	COVER; BATTERY RELAY (A)	1-82699-353-1	01	1	9601-9610	●
65	COVER; BATTERY RELAY (A)	1-82699-353-1	01	1	9611-9904	●	●
65	COVER; BATTERY RELAY (A)	1-82699-353-1	01	1	9905-		●	●	●
65	COVER; BATTERY RELAY (B)	1-82699-354-2	01	1	9601-9611	●
65	COVER; BATTERY RELAY (B)	1-82699-980-0	01	1	9611-9904	●	●
65	COVER; BATTERY RELAY (B)	1-82699-980-0	01	1	9905-		●	●	●
66	BOLT; COVER,BATTERY RELAY M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9601-9610	●
66	BOLT; COVER,BATTERY RELAY M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9611-9904	●	●
66	BOLT; COVER,BATTERY RELAY M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9905-		●	●	●
68	RELAY; BATTERY	1-82550-228-2	01	1	9601-9711	●
68	RELAY; BATTERY	1-82550-282-0	01	1	9611-9904	●	●
68	RELAY; BATTERY	1-82550-282-0	01	1	9905-		●	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9601-9610	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9611-9904	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9905-		●	●	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	9601-9610	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	9611-9904	●	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	9905-		●	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	9601-9603	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-508-0	01	1	9604-9810	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	9611-9904	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	9905-		●	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	9601-9610	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	9611-9904	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	9905-		●	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	9601-9610	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	9611-9904	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	9905-		●	●	●

81 21 22 101 1 22 18 100 99 23 12 24 28 99 76 18 18 73 21 13 73 21 18 21 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450	1-82650-281-2	01	1	9601-9610	●
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450	1-82650-281-2	01	1	9611-9904	●	●
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450	1-82650-281-2	01	1	9905-		●	●	●
1	CABLE; BATTERY EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180	1-82650-280-2	01	1	9601-9610	●
1	CABLE; BATTERY EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180	1-82650-280-2	01	1	9611-9904	●	●
1	CABLE; BATTERY EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180	1-82650-280-2	01	1	9905-		●	●	●
12	NUT; BATTERY CABLE CLIP M8	9-09110-408-0	03	1	9601-9606	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9610	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	03	1	9611-9904	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	03	1	9905-		●	●	●
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	9601-9610	●
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	9611-9904	●	●
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	9905-		●	●	●
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	9606-9610	●
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	9611-9904	●	●
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	9905-		●	●	●
18	CLIP; BATTERY CABLE (A) ID=18 L=28	1-09701-067-0	03	1	9601-9610	●
18	CLIP; BATTERY CABLE (A) ID=18 L=28	1-09701-067-0	03	1	9611-9904	●	●
18	CLIP; BATTERY CABLE (A) ID=18 L=28	1-09701-067-0	03	1	9905-		●	●	●
18	CLIP; BATTERY CABLE (B) ID=19 L=28	9-09525-856-0	01	1	9601-9610	●
18	CLIP; BATTERY CABLE (B) ID=19 L=28	9-09525-856-0	01	1	9611-9904	●	●
18	CLIP; BATTERY CABLE (B) ID=19 L=28	9-09525-856-0	01	1	9905-		●	●	●
18	CLIP; BATTERY CABLE ISUZU M/T<X9A> (A) ID=18 L=28	1-09701-067-0	01	1	9601-9610	●
18	CLIP; BATTERY CABLE ISUZU M/T<X9A> (A) ID=18 L=28	1-09701-067-0	01	1	9611-9904	●
18	CLIP; BATTERY CABLE FULLER M/T<X9B> (A) ID=18 L=28	1-09701-067-0	01	1	9611-9904		●
18	CLIP; BATTERY CABLE ISUZU M/T<X9A>,FULLER M/T<X9B> (A) ID=18 L=28	1-09701-067-0	01	1	9905-		●	●	●
18	CLIP; BATTERY CABLE ZF M/T<X9E> (C) ID=20 H=23 L=27	1-09700-861-0	01	1	9601-9610	●
18	CLIP; BATTERY CABLE ZF M/T<X9E> (C) ID=20 H=23 L=27	1-09700-861-0	01	1	9611-9904	●	●
18	CLIP; BATTERY CABLE ZF M/T<X9E> (C) ID=20 H=23 L=27	1-09700-861-0	01	1	9905-		●	●	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	01	1	9601-9603	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	02	1	9604-9610	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28680-820-0	02	1	9611-9904	●	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28680-820-0	02	1	9905-		●	●	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28680-820-0	03	1	9601-9601	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	03	1	9602-9610	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28680-820-0	03	1	9611-9904	●	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28680-820-0	03	1	9905-		●	●	●
22	CLIP; BATTERY CABLE ID=18 H=23 L=28	1-09701-070-0	02	1	9601-9610	●
22	CLIP; BATTERY CABLE ID=18 H=23 L=28	1-09701-070-0	02	1	9611-9904	●	●
22	CLIP; BATTERY CABLE ID=18 H=23 L=28	1-09701-070-0	02	1	9905-		●	●	●
23	BRACKET; CABLE CLIP TO FRAME L=95	1-82699-085-0	03	1	9601-9610	●
23	BRACKET; CABLE CLIP TO FRAME L=95	1-82699-085-0	03	1	9611-9904	●	●
23	BRACKET; CABLE CLIP TO FRAME L=95	1-82699-085-0	03	1	9905-		●	●	●
24	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28080-825-0	03	1	9601-9610	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28680-830-0	03	1	9611-9904	●	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28680-830-0	03	1	9905-		●	●	●
28	NUT; BRKT TO FRAME M8	9-09110-408-0	03	1	9601-9610	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	03	1	9611-9904	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	03	1	9905-		●	●	●
73	BRACKET; BATTERY CABLE ISUZU M/T<X9A> (B)	1-82699-493-0	01	1	9601-9610	●
73	BRACKET; BATTERY CABLE ISUZU M/T<X9A> (B)	1-82699-493-0	01	1	9611-9904	●	●
73	BRACKET; BATTERY CABLE ISUZU M/T<X9A> (B)	1-82699-493-0	01	1	9905-		●	●	●
73	BRACKET; BATTERY CABLE FULLER M/T<X9B> (A)	1-82699-104-0	01	1	9611-9904		●
73	BRACKET; BATTERY CABLE FULLER M/T<X9B> (A)	1-82699-104-0	01	1	9905-			●
76	NUT; BATTERY CABLE ISUZU M/T<X9A> M10 FLANGE	0-91150-110-0	02	1	9601-9606	●
76	NUT; BATTERY CABLE ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9607-9610	●
76	NUT; BATTERY CABLE ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9611-9904	●	●
76	NUT; BATTERY CABLE ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9905-		●	●	●
76	NUT; BATTERY CABLE FULLER M/T<X9B> M10 FLANGE	0-91150-210-0	01	1	9611-9904		●
76	NUT; BATTERY CABLE FULLER M/T<X9B> M10 FLANGE	0-91150-210-0	01	1	9905-			●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28080-820-0	02	1	9601-9610	●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28680-820-0	02	1	9611-9904	●	●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28680-820-0	02	1	9905-		●	●	●
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	01	1	9601-9610	●
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	01	1	9611-9904	●	●
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	01	1	9905-		●	●	●
99	CLIP; BATTERY CABLE (B) ID=20 L=50	9-09917-430-0	02	1	9601-9610	●
99	CLIP; BATTERY CABLE (B) ID=20 L=50	9-09917-430-0	02	1	9611-9904	●	●
99	CLIP; BATTERY CABLE (B) ID=20 L=50	9-09917-430-0	02	1	9905-		●	●	●
100	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9601-9610	●
100	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28680-820-0	01	1	9611-9904	●	●
100	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28680-820-0	01	1	9905-		●	●	●
101	NUT; BATTERY CABLE CLIP M8	9-09110-408-0	01	1	9601-9610	●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9611-9904	●	●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-		●	●	●
