1 |

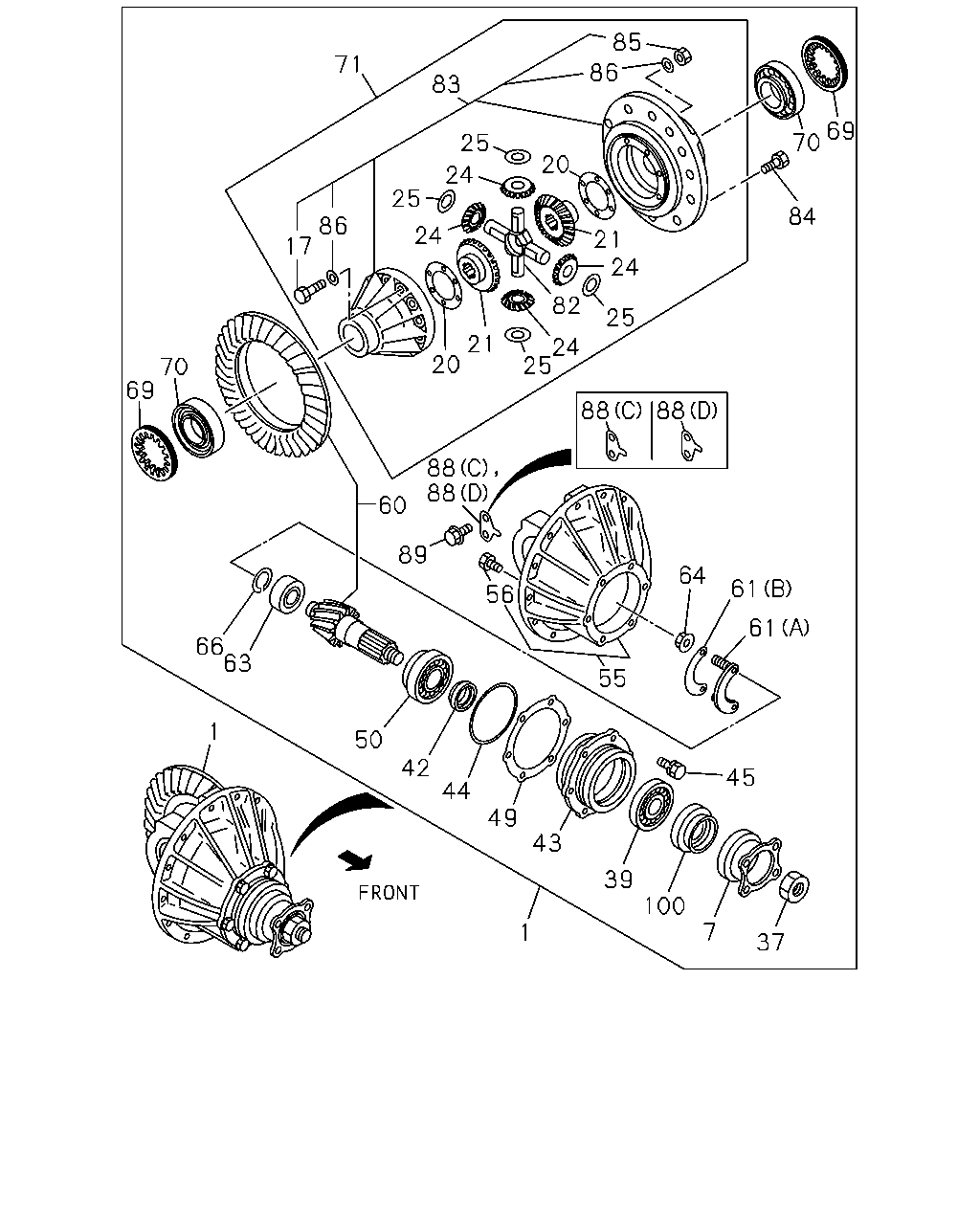

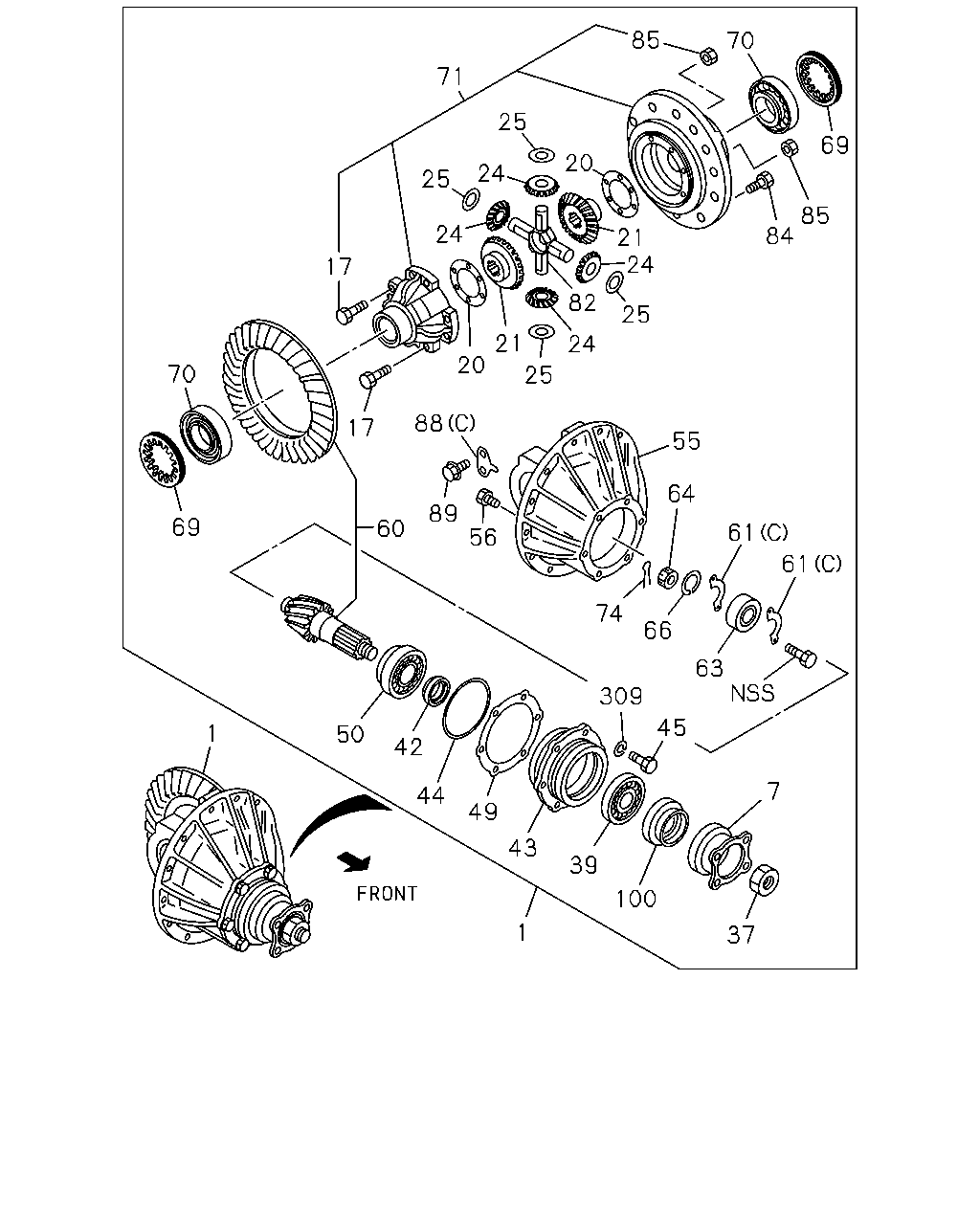

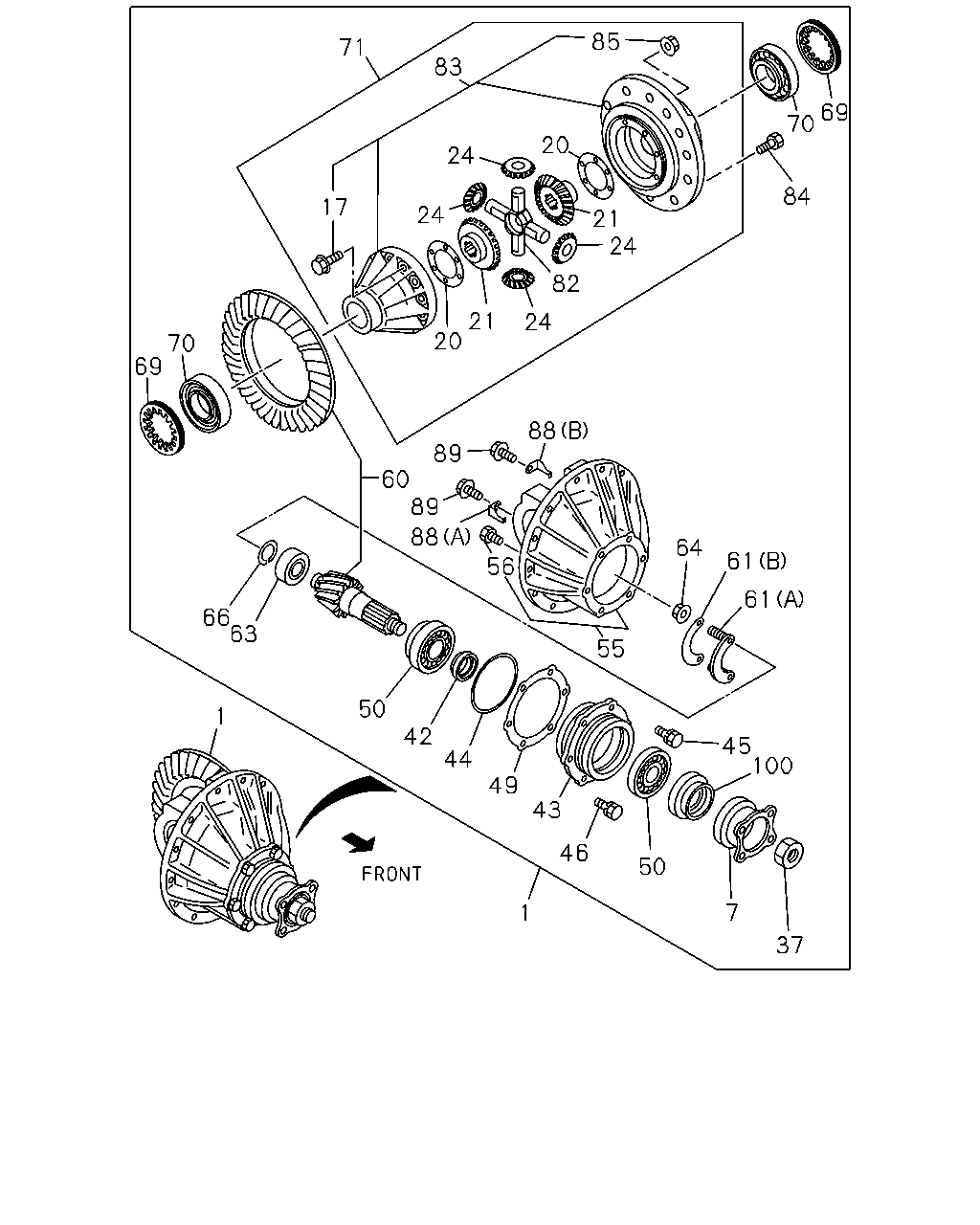

05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 343MM(8BW)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-98322-554-0 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 343MM(8BW)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-98322-555-0 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 343MM(8BW)
FINAL GEAR RATIO 39/6(R43)
39/6
|
8-98321-280-0 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5)
41/10
|
8-98015-135-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-98015-137-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/10(S7C)
43/10
|
8-98015-136-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JB1-TC ENG(RDT)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-98015-145-0 |
01 |
1 |
0801-0910 |
● |
|
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JB1-TC ENG(RDT)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-98015-145-0 |
01 |
1 |
0911- |
● |
● |
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/8(R40)
43/8
|
8-97319-256-0 |
01 |
1 |
0211-0303 |
|
● |
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/8(R40)
43/8
|
8-97356-438-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/8(R40)
43/8
|
8-97363-111-0 |
01 |
1 |
0304-0501 |
|
● |
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/8(R40)
43/8
|
8-97363-111-0 |
01 |
1 |
0502-0510 |
|
● |
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/8(R40)
43/8
|
8-98015-140-0 |
01 |
1 |
0511-0606 |
|
● |
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1-N ENG(RJZ)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/8(R40)
43/8
|
8-98015-140-0 |
01 |
1 |
0607- |
|
● |
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JB1-TC ENG(RDT)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-98015-145-0 |
01 |
1 |
0610-0610 |
|
● |
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97094-682-0 |
01 |
1 |
0611- |
● |
|
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR

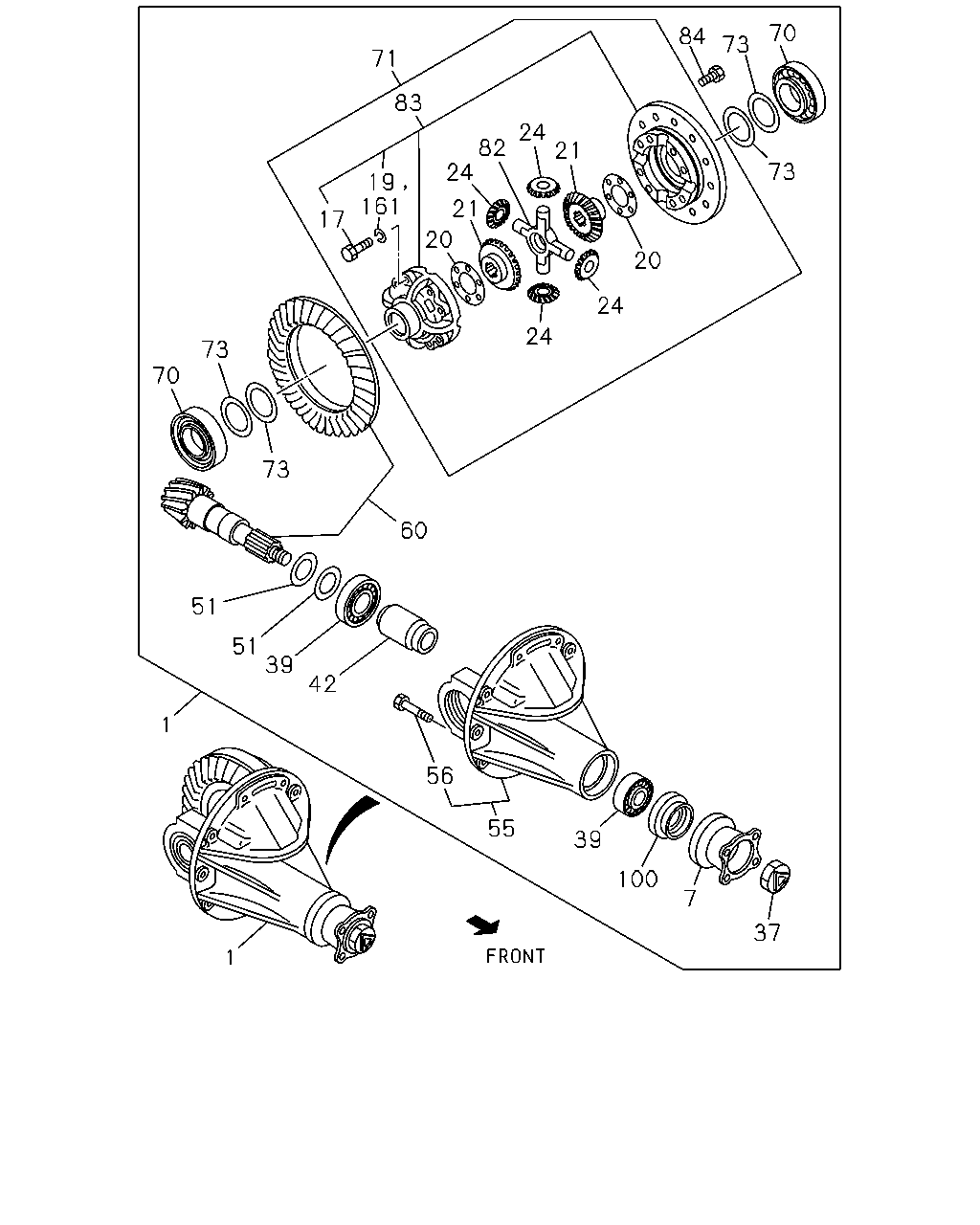

REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97076-936-0 |
01 |
1 |
0211-0304 |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97367-501-0 |
01 |
1 |
0305-0501 |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97367-501-0 |
01 |
1 |
0502- |
|
● |
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97076-937-0 |
01 |
1 |
0211-0304 |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97367-502-0 |
01 |
1 |
0305-0501 |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97367-502-0 |
01 |
1 |
0502- |
|
● |
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JH1 ENG(RJX),4HF1-S ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97319-258-0 |
01 |
1 |
0211-0303 |
● |
● |
|
● |
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JH1 ENG(RJX),4HF1-S ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97356-440-0 |
01 |
1 |
0304-0304 |
● |
● |
|
● |
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JH1 ENG(RJX),4HF1-S ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97363-113-0 |
01 |
1 |
0304-0501 |
● |
● |
|
● |
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97363-113-0 |
01 |
1 |
0502-0510 |
|
● |
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97363-113-0 |
01 |
1 |
0502-0510 |
● |
|
|
● |
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-98015-142-0 |
01 |
1 |
0511- |
|
● |
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-98015-142-0 |
01 |
1 |
0511- |
● |
|
|
● |
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
BRK WHL LK CONT LSPV<6PH>
43/9
|
8-97319-254-0 |
01 |
1 |
0211-0303 |
|
● |
|
|
|
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
BRK WHL LK CONT LSPV<6PH>
43/9
|
8-97356-436-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
|
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
BRK WHL LK CONT LSPV<6PH>
43/9
|
8-97363-109-0 |
01 |
1 |
0304-0501 |
|
● |
|
|
|
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
43/9
|
8-97363-109-0 |
01 |
1 |
0502-0510 |
|
|
|
|
|
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
43/9
|
8-98015-138-0 |
01 |
1 |
0511-1003 |
|
|
|
|
|
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/9(S2J)
43/9
|
8-98015-138-0 |
01 |
1 |
1004- |
● |
|
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
43/9
|
8-98015-138-0 |
01 |
1 |
1004- |
|
|
|
|
|
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/6(R43)
39/6
|
8-97354-151-0 |
01 |
1 |
0211-0303 |
● |
|
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/6(R43)
39/6
|
8-97356-478-0 |
01 |
1 |
0304-0304 |
● |
|
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/6(R43)
39/6
|
8-97363-121-0 |
01 |
1 |
0304-0510 |
● |
|
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/6(R43)
39/6
|
8-98015-170-0 |
01 |
1 |
0511-0712 |
● |
|
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JB1-TC ENG(RDT),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/6(R43)
39/6
|
8-98015-170-0 |
01 |
1 |
0801- |
● |
|
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97319-262-0 |
01 |
1 |
0211-0303 |
● |
|
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97356-444-0 |
01 |
1 |
0304-0304 |
● |
|
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97363-117-0 |
01 |
1 |
0304-0510 |
● |
|
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-98015-146-0 |
01 |
1 |
0511-0712 |
● |
|
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JB1-TC ENG(RDT),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-98015-146-0 |
01 |
1 |
0801- |
● |
● |
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97319-263-0 |
01 |
1 |
0211-0303 |
● |
|
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97356-445-0 |
01 |
1 |
0304-0304 |
● |
|
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97363-118-0 |
01 |
1 |
0304-0510 |
● |
|
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-98015-147-0 |
01 |
1 |
0511-0712 |
● |
|
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JB1-TC ENG(RDT),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-98015-147-0 |
01 |
1 |
0801- |
● |
|
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JH1-TC ENG(RDM)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 5.0-5.5TON(RPT)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
41/7
|
8-98024-938-0 |
01 |
1 |
0601-0604 |
● |
|
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1-N ENG(RJZ)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>,INDONESIA
EQUIPMENT(S4S),DUMP CHASSIS(V4D),BRK WH
L LK CONT LSPV<6PH>
41/7
|
8-98024-938-0 |
01 |
1 |
0601-0604 |
● |
|
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-98024-938-0 |
01 |
1 |
0601-0604 |
|
|
|
|
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97319-257-0 |
01 |
1 |
0211-0303 |
● |
|
|
● |
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97356-439-0 |
01 |
1 |
0304-0304 |
● |
|
|
● |
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97363-112-0 |
01 |
1 |
0304-0510 |
● |
|
|
● |
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-98015-141-0 |
01 |
1 |
0511- |
● |
|
|
● |
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JH1 ENG(RJX),4HF1-S ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97319-259-0 |
01 |
1 |
0211-0303 |
● |
|
|
● |
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JH1 ENG(RJX),4HF1-S ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97356-441-0 |
01 |
1 |
0304-0304 |
● |
|
|
● |
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JH1 ENG(RJX),4HF1-S ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97363-114-0 |
01 |
1 |
0304-0501 |
● |
|
|
● |
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97363-114-0 |
01 |
1 |
0502-0510 |
● |
|
|
● |
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-98015-143-0 |
01 |
1 |
0511- |
● |
|
|
● |
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/8(RU1)
41/8
|
8-98015-139-0 |
01 |
1 |
0610- |
● |
|
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 6.5-7.0TON(RPW)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
39/7
|
8-97121-902-0 |
01 |
1 |
0608-0610 |
● |
|
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/6(R43)
39/6
|
8-97209-167-0 |
01 |
1 |
0611- |
● |
|
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/6(6YB)
41/6
|
8-97094-685-0 |
01 |
1 |
0211- |
● |
|
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97094-684-0 |
01 |
1 |
0211- |
● |
|
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/8(RV9)
EXC. BRK WHL LK CONT LSPV<6PH>
39/8
|
8-97035-403-0 |
01 |
1 |
0211-0211 |
|
|
|
|
|
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/8(RV9)
39/8
|
8-97035-403-0 |
01 |
1 |
0212-0304 |
|
|
|
|
|
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/8(RV9)
39/8
|
8-97367-499-0 |
01 |
1 |
0305-0501 |
|
|
|
|
|
● |
| |
7 |
05.545 FLANGE; FINAL
REAR AXLE HEAVY DUTY 343MM(8BW)
|
8-98321-245-0 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
7 |
05.545 FLANGE; FINAL
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94477-723-4 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
● |
| |
7 |
05.545 FLANGE; FINAL
4JH1 ENG(RJX),4HF1-S ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94477-723-4 |
01 |
1 |
0211-0501 |
● |
|
|
● |
● |
|
| |
7 |
05.545 FLANGE; FINAL
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94477-723-4 |
01 |
1 |
0502-0609 |
|
● |
|
|
|
|
| |
7 |
05.545 FLANGE; FINAL
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94477-723-4 |
01 |
1 |
0502-0609 |
● |
|
|
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
|
8-94477-723-4 |
01 |
1 |
0502-0609 |
|
|
|
|
● |
● |
| |
7 |
05.545 FLANGE; FINAL
4HF1-N ENG(RJZ)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94477-723-4 |
01 |
1 |
0610- |
|
● |
|
|
|
|
| |
7 |
05.545 FLANGE; FINAL
4JH1-TC ENG(RDM),4HG1-T ENG(RDP),
4HF1-N ENG(RJZ)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94477-723-4 |
01 |
1 |
0610- |
● |
|
|
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
|
8-94477-723-4 |
01 |
1 |
0610- |
|
|
|
|
● |
● |
| |
7 |
05.545 FLANGE; FINAL
REAR AXLE STANDARD 244MM(R39)
|
8-97075-216-3 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
● |
| |
7 |
05.545 FLANGE; FINAL
|
8-97075-216-3 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
| |
7 |
05.545 FLANGE; FINAL
REAR AXLE STANDARD 244MM(R39)
|
8-97075-216-3 |
01 |
1 |
0502- |
|
● |
|
|
|
|
| |
7 |
05.545 FLANGE; FINAL
4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94426-787-4 |
01 |
1 |
0211-0609 |
● |
|
|
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
4JB1-TC ENG(RDT)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94426-787-4 |
01 |
1 |
0610-0712 |
|
● |
|
|
|
|
| |
7 |
05.545 FLANGE; FINAL
4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94426-787-4 |
01 |
1 |
0610-0712 |
● |
|
|
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
4JB1-TC ENG(RDT)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94426-787-4 |
01 |
1 |
0801- |
|
● |
|
|
|
|
| |
7 |
05.545 FLANGE; FINAL
4JB1-TC ENG(RDT),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94426-787-4 |
01 |
1 |
0801- |
● |
|
|
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97073-802-2 |
01 |
1 |
0211- |
● |
|
|
|
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 343MM(8BW)
M14X85
|
1-09044-023-0 |
08 |
1 |
1510- |
● |
|
|
|
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
M10X75 FLANGE
|
8-97232-161-0 |
12 |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
M10X75 FLANGE
|
8-97232-161-0 |
12 |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
M10X75 FLANGE
|
8-97232-161-0 |
12 |
1 |
0502- |
● |
● |
|
|
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
M10X75 FLANGE
|
8-97232-161-0 |
12 |
1 |
0502- |
|
|
|
● |
● |
● |
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE STANDARD 244MM(R39)
05.650
M12X58
|
8-97314-497-0 |
08 |
1 |
0211-0501 |
|
● |
|
|
|
● |
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
05.650
M12X58
|
8-97314-497-0 |
08 |
1 |
0211-0501 |
|
|
● |
|
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE STANDARD 244MM(R39)
05.650
M12X58
|
8-97314-497-0 |
08 |
1 |
0502- |
|
● |
|
|
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
M12X90
|
8-97047-295-0 |
12 |
1 |
0211-1208 |
● |
|
|
|
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
M12X90
|
8-98219-448-0 |
12 |
1 |
1209- |
● |
|
|
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
T=1.40
|
9-41562-601-0 |
02 |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=1.40
|
9-41562-601-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
T=1.40
|
9-41562-601-0 |
02 |
1 |
0502- |
● |
● |
|
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=1.40
|
9-41562-601-0 |
02 |
1 |
0502- |
|
|
|
● |
● |
● |
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE STANDARD 244MM(R39)
T=1.00
|
9-41562-602-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
|
● |
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=1.00
|
9-41562-602-0 |
02 |
1 |
0211-0501 |
|
|
● |
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE STANDARD 244MM(R39)
T=1.00
|
9-41562-602-0 |
02 |
1 |
0502- |
|
● |
|
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=2.80
|
1-41562-073-0 |
AR |
1 |
0211-1509 |
● |
|
|
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLE HEAVY DUTY 343MM(8BW)
T=2.80
|
1-41562-073-0 |
AR |
1 |
1510- |
● |
|
|
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=2.90
|
1-41562-074-0 |
AR |
1 |
0211-1509 |
● |
|
|
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLE HEAVY DUTY 343MM(8BW)
T=2.90
|
1-41562-074-0 |
AR |
1 |
1510- |
● |
|
|
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.00
|
1-41562-075-0 |
AR |
1 |
0211-1509 |
● |
|
|
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLE HEAVY DUTY 343MM(8BW)
T=3.00
|
1-41562-075-0 |
AR |
1 |
1510- |
● |
|
|
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.10
|
1-41562-076-0 |
AR |
1 |
0211-1509 |
● |
|
|
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLE HEAVY DUTY 343MM(8BW)
T=3.10
|
1-41562-076-0 |
AR |
1 |
1510- |
● |
|
|
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.20
|
1-41562-077-0 |
AR |
1 |
0211-1509 |
● |
|
|
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLE HEAVY DUTY 343MM(8BW)
T=3.20
|
1-41562-077-0 |
AR |
1 |
1510- |
● |
|
|
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.30
|
1-41562-078-0 |
AR |
1 |
0211-1509 |
● |
|
|
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLE HEAVY DUTY 343MM(8BW)
T=3.30
|
1-41562-078-0 |
AR |
1 |
1510- |
● |
|
|
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.40
|
1-41562-079-0 |
AR |
1 |
0211-1509 |
● |
|
|
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLE HEAVY DUTY 343MM(8BW)
T=3.40
|
1-41562-079-0 |
AR |
1 |
1510- |
● |
|
|
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 343MM(8BW)
Z=16
|
1-41561-150-0 |
02 |
1 |
1510- |
● |
|
|
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
Z=20
|
8-97300-269-0 |
02 |
1 |
0211-0303 |
● |
● |
|
|
|
● |
| |
21 |
05.528 GEAR; SIDE,DIFF
Z=20
|
8-97300-269-0 |
02 |
1 |
0211-0303 |
|
|
|
● |
● |
|
| |
21 |
05.528 GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
05.515
Z=20
|
8-97362-599-0 |
02 |
1 |
0304-0501 |
● |
● |
|
|
|
● |
| |
21 |
05.528 GEAR; SIDE,DIFF
05.515
Z=20
|
8-97362-599-0 |
02 |
1 |
0304-0501 |
|
|
|
● |
● |
|
| |
21 |
05.528 GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
05.515
Z=20
|
8-97362-599-1 |
02 |
1 |
0502- |
● |
● |
|
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
05.515
Z=20
|
8-97362-599-1 |
02 |
1 |
0502- |
|
|
|
● |
● |
● |
| |
21 |
05.528 GEAR; SIDE,DIFF
REAR AXLE STANDARD 244MM(R39)
Z=18
|
8-97226-764-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
|
● |
| |
21 |
05.528 GEAR; SIDE,DIFF
Z=18
|
8-97226-764-0 |
02 |
1 |
0211-0501 |
|
|
● |
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
REAR AXLE STANDARD 244MM(R39)
Z=18
|
8-97226-764-0 |
02 |
1 |
0502-1105 |
|
● |
|
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
REAR AXLE STANDARD 244MM(R39)
Z=18
|
8-98190-383-1 |
02 |
1 |
1106- |
|
● |
|
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
Z=16
|
1-41561-093-0 |
02 |
1 |
0211-1004 |
● |
|
|
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
Z=16
|
8-98165-935-0 |
02 |
1 |
1005- |
● |
|
|
|
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
Z=10
|
8-97300-265-0 |
04 |
1 |
0211-0303 |
● |
● |
|
|
|
● |
| |
24 |
05.526 GEAR; PINION,DIFF
Z=10
|
8-97300-265-0 |
04 |
1 |
0211-0303 |
|
|
|
● |
● |
|
| |
24 |
05.526 GEAR; PINION,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
Z=10
|
8-97356-349-0 |
04 |
1 |
0304-0501 |
● |
● |
|
|
|
● |
| |
24 |
05.526 GEAR; PINION,DIFF
Z=10
|
8-97356-349-0 |
04 |
1 |
0304-0501 |
|
|
|
● |
● |
|
| |
24 |
05.526 GEAR; PINION,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
Z=10
|
8-97356-349-0 |
04 |
1 |
0502-0510 |
● |
● |
|
|
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
Z=10
|
8-97356-349-0 |
04 |
1 |
0502-0510 |
|
|
|
● |
● |
● |
| |
24 |
05.526 GEAR; PINION,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
Z=10
|
8-98015-202-0 |
04 |
1 |
0511- |
● |
● |
|
|
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
Z=10
|
8-98015-202-0 |
04 |
1 |
0511- |
|
|
|
● |
● |
● |
| |
24 |
05.526 GEAR; PINION,DIFF
REAR AXLE STANDARD 244MM(R39)
Z=10
|
8-97226-762-0 |
04 |
1 |
0211-0501 |
|
● |
|
|
|
● |
| |
24 |
05.526 GEAR; PINION,DIFF
Z=10
|
8-97226-762-0 |
04 |
1 |
0211-0501 |
|
|
● |
|
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
REAR AXLE STANDARD 244MM(R39)
Z=10
|
8-97226-762-0 |
04 |
1 |
0502-1105 |
|
● |
|
|
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
REAR AXLE STANDARD 244MM(R39)
Z=10
|
8-98186-829-0 |
04 |
1 |
1106- |
|
● |
|
|
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
Z=10
|
1-41551-024-0 |
04 |
1 |
0211-1004 |
● |
|
|
|
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
Z=10
|
1-41551-050-0 |
04 |
1 |
1005-1509 |
● |
|
|
|
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLE HEAVY DUTY 343MM(8BW)
Z=10
|
1-41551-050-0 |
04 |
1 |
1510- |
● |
|
|
|
|
|
| |
25 |
05.528 WASHER; THRUST,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
|
1-41552-020-0 |
04 |
1 |
0211-1509 |
● |
|
|
|
|
|
| |
25 |
05.528 WASHER; THRUST,PINION
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLE HEAVY DUTY 343MM(8BW)
|
1-41552-020-0 |
04 |
1 |
1510- |
● |
|
|
|
|
|
| |
37 |
05.595 NUT; DRIVING PINION
REAR AXLE HEAVY DUTY 343MM(8BW)
M30 FLANGE
|
1-09449-066-1 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
37 |
05.595 NUT; DRIVING PINION
REAR AXLE HEAVY DUTY 292MM(G73)
M24 FLANGE
|
8-94329-526-1 |
01 |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
37 |
05.595 NUT; DRIVING PINION
M24 FLANGE
|
8-94329-526-1 |
01 |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
37 |
05.595 NUT; DRIVING PINION
REAR AXLE HEAVY DUTY 292MM(G73)
M24 FLANGE
|
8-94329-526-1 |
01 |
1 |
0502- |
● |
● |
|
|
|
|
| |
37 |
05.595 NUT; DRIVING PINION
M24 FLANGE
|
8-94329-526-1 |
01 |
1 |
0502- |
|
|
|
● |
● |
● |
| |
37 |
05.595 NUT; DRIVING PINION
REAR AXLE STANDARD 244MM(R39)
M24 FLANGE
|
8-94376-261-1 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
● |
| |
37 |
05.595 NUT; DRIVING PINION
M24 FLANGE
|
8-94376-261-1 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
| |
37 |
05.595 NUT; DRIVING PINION
REAR AXLE STANDARD 244MM(R39)
M24 FLANGE
|
8-94376-261-1 |
01 |
1 |
0502- |
|
● |
|
|
|
|
| |
37 |
05.595 NUT; DRIVING PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
M30 FLANGE
|
8-97047-146-0 |
01 |
1 |
0211- |
● |
|
|
|
|
|
| |
39 |
05.484 BEARING; FINAL PINION
REAR AXLE STANDARD 244MM(R39)
NSK
|
9-00093-078-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
● |
| |
39 |
05.484 BEARING; FINAL PINION
NSK
|
9-00093-078-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
| |
39 |
05.484 BEARING; FINAL PINION
REAR AXLE STANDARD 244MM(R39)
NSK
|
9-00093-078-0 |
01 |
1 |
0502- |
|
● |
|
|
|
|
| |
39 |
05.484 BEARING; FINAL PINION
REAR AXLE STANDARD 244MM(R39)
05.447
JTEKT
|
9-00093-079-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
● |
| |
39 |
05.484 BEARING; FINAL PINION
05.447
JTEKT
|
9-00093-079-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
| |
39 |
05.484 BEARING; FINAL PINION
REAR AXLE STANDARD 244MM(R39)
05.447
JTEKT
|
9-00093-079-1 |
01 |
1 |
0502- |
|
● |
|
|
|
|
| |
39 |
05.484 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
JTEKT
|
5-09812-062-1 |
01 |
1 |
0211-1509 |
● |
|
|
|
|
|
| |
39 |
05.484 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLE HEAVY DUTY 343MM(8BW)
JTEKT
|
5-09812-062-1 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
39 |
05.484 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
NSK
|
5-09812-063-0 |
01 |
1 |
0211-1509 |
● |
|
|
|
|
|
| |
39 |
05.484 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLE HEAVY DUTY 343MM(8BW)
NSK
|
5-09812-063-0 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
REAR AXLE HEAVY DUTY 343MM(8BW)
T=15.75
|
1-41219-004-0 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
REAR AXLE HEAVY DUTY 292MM(G73)
L=19.6
|
9-41219-603-1 |
01 |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
L=19.6
|
9-41219-603-1 |
01 |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
REAR AXLE HEAVY DUTY 292MM(G73)
L=19.6
|
9-41219-603-1 |
01 |
1 |
0502- |
● |
● |
|
|
|
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
L=19.6
|
9-41219-603-1 |
01 |
1 |
0502- |
|
|
|
● |
● |
● |
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
REAR AXLE STANDARD 244MM(R39)
L=53.35
|
9-41219-634-1 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
● |
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
L=53.35
|
9-41219-634-1 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
REAR AXLE STANDARD 244MM(R39)
L=53.35
|
9-41219-634-1 |
01 |
1 |
0502- |
|
● |
|
|
|
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-097-0 |
01 |
1 |
0211- |
● |
|
|
|
|
|
| |
43 |
05.453 CAGE; FINAL PINION
REAR AXLE HEAVY DUTY 343MM(8BW)
|
1-41151-063-0 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
43 |
05.453 CAGE; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94400-890-0 |
01 |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
43 |
05.453 CAGE; FINAL PINION
|
8-94400-890-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
43 |
05.453 CAGE; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94400-890-0 |
01 |
1 |
0502- |
● |
● |
|
|
|
|
| |
43 |
05.453 CAGE; FINAL PINION
|
8-94400-890-0 |
01 |
1 |
0502- |
|
|
|
● |
● |
● |
| |
43 |
05.453 CAGE; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-098-0 |
01 |
1 |
0211- |
● |
|
|
|
|
|
| |
44 |
05.476 GASKET; PINION CAGE
REAR AXLE HEAVY DUTY 343MM(8BW)
05.595
ID=35.7 T=5
|
1-09623-379-0 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
44 |
05.476 GASKET; PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
05.458
|
9-09720-505-0 |
01 |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
44 |
05.476 GASKET; PINION CAGE
05.458
|
9-09720-505-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
44 |
05.476 GASKET; PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
05.458
|
9-09720-505-0 |
01 |
1 |
0502- |
● |
● |
|
|
|
|
| |
44 |
05.476 GASKET; PINION CAGE
05.458
|
9-09720-505-0 |
01 |
1 |
0502- |
|
|
|
● |
● |
● |
| |
44 |
05.476 GASKET; PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97048-053-0 |
01 |
1 |
0211- |
● |
|
|
|
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 343MM(8BW)
M12X40
|
9-02361-240-0 |
06 |
1 |
1510- |
● |
|
|
|
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
M12X38 W/LK WASHER
|
0-50051-238-0 |
05 |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
45 |
05.453 BOLT; FINAL PINION CAGE
M12X38 W/LK WASHER
|
0-50051-238-0 |
05 |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
M12X38 W/LK WASHER
|
0-50051-238-0 |
05 |
1 |
0502-0909 |
● |
● |
|
|
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
M12X38 W/LK WASHER
|
0-50051-238-0 |
05 |
1 |
0502-0909 |
|
|
|
● |
● |
● |
| |
45 |
05.453 BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
M12X38 W/LK WASHER
|
0-50551-238-0 |
05 |
1 |
0910-1311 |
● |
● |
|
|
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
M12X38 W/LK WASHER
|
0-50551-238-0 |
05 |
1 |
0910-1311 |
|
|
|
● |
● |
● |
| |
45 |
05.453 BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
M12X38 W/LK WASHER
|
8-98221-264-0 |
05 |
1 |
1312- |
● |
● |
|
|
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
M12X38 W/LK WASHER
|
8-98221-264-0 |
05 |
1 |
1312- |
|
|
|
● |
● |
● |
| |
45 |
05.453 BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
M12X40 W/LK WASHER
|
0-50071-240-0 |
06 |
1 |
0211-0909 |
● |
|
|
|
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
16.545
M12X40 W/LK WASHER
|
0-50571-240-0 |
06 |
1 |
0910-1209 |
● |
|
|
|
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
M12X40 W/LK WASHER
|
8-98220-227-0 |
06 |
1 |
1210- |
● |
|
|
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 343MM(8BW)
T=0.50
|
1-41154-021-1 |
AR |
1 |
1510- |
● |
|
|
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 343MM(8BW)
T=0.30
|
1-41154-051-1 |
AR |
1 |
1510- |
● |
|
|
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 343MM(8BW)
T=0.40
|
1-41154-052-1 |
AR |
1 |
1510- |
● |
|
|
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 343MM(8BW)
T=1.00
|
1-41154-053-1 |
AR |
1 |
1510- |
● |
|
|
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.10
|
8-94401-335-0 |
AR |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.10
|
8-94401-335-0 |
AR |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.10
|
8-94401-335-0 |
AR |
1 |
0502- |
● |
● |
|
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.10
|
8-94401-335-0 |
AR |
1 |
0502- |
|
|
|
● |
● |
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.12
|
8-94401-336-0 |
AR |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.12
|
8-94401-336-0 |
AR |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.12
|
8-94401-336-0 |
AR |
1 |
0502- |
● |
● |
|
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.12
|
8-94401-336-0 |
AR |
1 |
0502- |
|
|
|
● |
● |
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.14
|
8-94401-337-0 |
AR |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.14
|
8-94401-337-0 |
AR |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.14
|
8-94401-337-0 |
AR |
1 |
0502- |
● |
● |
|
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.14
|
8-94401-337-0 |
AR |
1 |
0502- |
|
|
|
● |
● |
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.16
|
8-94401-338-0 |
AR |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.16
|
8-94401-338-0 |
AR |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.16
|
8-94401-338-0 |
AR |
1 |
0502- |
● |
● |
|
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.16
|
8-94401-338-0 |
AR |
1 |
0502- |
|
|
|
● |
● |
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.18
|
8-94401-339-0 |
AR |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.18
|
8-94401-339-0 |
AR |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.18
|
8-94401-339-0 |
AR |
1 |
0502- |
● |
● |
|
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.18
|
8-94401-339-0 |
AR |
1 |
0502- |
|
|
|
● |
● |
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.20
|
8-94401-340-0 |
AR |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.20
|
8-94401-340-0 |
AR |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.20
|
8-94401-340-0 |
AR |
1 |
0502- |
● |
● |
|
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.20
|
8-94401-340-0 |
AR |
1 |
0502- |
|
|
|
● |
● |
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.12
|
8-97047-298-0 |
AR |
1 |
0211- |
● |
|
|
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.15
|
8-97047-299-0 |
AR |
1 |
0211- |
● |
|
|
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.20
|
8-97047-300-0 |
AR |
1 |
0211- |
● |
|
|
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.25
|
8-97048-418-0 |
AR |
1 |
0211- |
● |
|
|
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
05.528
ID=142 T=0.50
|
8-97048-419-0 |
AR |
1 |
0211- |
● |
|
|
|
|
|
| |
50 |
05.447 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
JTEKT
|
1-09812-042-1 |
01 |
1 |
0701-1509 |
● |
|
|
|
|
|
| |
50 |
05.447 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLE HEAVY DUTY 343MM(8BW)
JTEKT
|
1-09812-042-1 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
50 |
05.447 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
05.484
JTEKT
|
5-09812-062-1 |
02 |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
50 |
05.447 BEARING; FINAL PINION
05.484
JTEKT
|
5-09812-062-1 |
02 |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
50 |
05.447 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
05.484
JTEKT
|
5-09812-062-1 |
02 |
1 |
0502- |
● |
● |
|
|
|
|
| |
50 |
05.447 BEARING; FINAL PINION
05.484
JTEKT
|
5-09812-062-1 |
02 |
1 |
0502- |
|
|
|
● |
● |
● |
| |
50 |
05.447 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
05.484
NSK
|
5-09812-063-0 |
02 |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
50 |
05.447 BEARING; FINAL PINION
05.484
NSK
|
5-09812-063-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
50 |
05.447 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
05.484
NSK
|
5-09812-063-0 |
02 |
1 |
0502- |
● |
● |
|
|
|
|
| |
50 |
05.447 BEARING; FINAL PINION
05.484
NSK
|
5-09812-063-0 |
02 |
1 |
0502- |
|
|
|
● |
● |
● |
| |
50 |
05.447 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
05.484
NSK
|
1-09812-041-2 |
01 |
1 |
0211-1509 |
● |
|
|
|
|
|
| |
50 |
05.447 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLE HEAVY DUTY 343MM(8BW)
05.484
NSK
|
1-09812-041-2 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
55 |
05.505 CARRIER; DIFF
REAR AXLE HEAVY DUTY 343MM(8BW)
|
1-41110-105-0 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
55 |
05.505 CARRIER; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-97307-760-0 |
01 |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
55 |
05.505 CARRIER; DIFF
|
8-97307-760-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
55 |
05.505 CARRIER; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-97307-760-0 |
01 |
1 |
0502- |
● |
● |
|
|
|
|
| |
55 |
05.505 CARRIER; DIFF
|
8-97307-760-0 |
01 |
1 |
0502- |
|
|
|
● |
● |
● |
| |
55 |
05.505 CARRIER; DIFF
REAR AXLE STANDARD 244MM(R39)
|
8-94376-227-3 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
● |
| |
55 |
05.505 CARRIER; DIFF
|
8-94376-227-3 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
| |
55 |
05.505 CARRIER; DIFF
REAR AXLE STANDARD 244MM(R39)
|
8-94376-227-3 |
01 |
1 |
0502- |
|
● |
|
|
|
|
| |
55 |
05.505 CARRIER; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97094-637-0 |
01 |
1 |
0211- |
● |
|
|
|
|
|
| |
56 |
05.506 BOLT; BRG CAP
REAR AXLE HEAVY DUTY 292MM(G73),REAR
AXLE STANDARD 244MM(R39)
05.387
M14X80
|
8-94365-377-3 |
04 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
● |
| |
56 |
05.506 BOLT; BRG CAP
05.387
M14X80
|
8-94365-377-3 |
04 |
1 |
0502- |
|
● |
|
● |
● |
● |
| |
56 |
05.506 BOLT; BRG CAP
REAR AXLE HEAVY DUTY 292MM(G73)
05.387
M14X80
|
8-94365-377-3 |
04 |
1 |
0502- |
● |
|
|
|
|
|
| |
56 |
05.506 BOLT; BRG CAP
REAR AXLE HEAVY DUTY 320MM(6CP)
M14X95 FLANGE
|
1-09070-027-0 |
04 |
1 |
0211-1509 |
● |
|
|
|
|
|
| |
56 |
05.506 BOLT; BRG CAP
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLE HEAVY DUTY 343MM(8BW)
M14X95 FLANGE
|
1-09070-027-0 |
04 |
1 |
1510- |
● |
|
|
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 343MM(8BW)
FINAL GEAR RATIO 41/7(R41)
41/7
|
1-41210-530-0 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 343MM(8BW)
FINAL GEAR RATIO 43/7(R42),FINAL
GEARRATIO 39/6(R43)
43/7
|
1-41210-531-0 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97319-161-0 |
01 |
1 |
1312- |
● |
● |
|
● |
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5)
41/10
|
8-98092-055-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-98092-049-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/10(S7C)
43/10
|
8-98092-052-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/6(R43)
39/6
|
8-97209-168-0 |
01 |
1 |
0611- |
● |
|
|
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/8(R40)
43/8
|
8-97319-159-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/8(R40)
43/8
|
8-97319-159-0 |
01 |
1 |
0502-0606 |
|
● |
|
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HF1-N ENG(RJZ)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/8(R40)
43/8
|
8-97319-159-0 |
01 |
1 |
0607- |
|
● |
|
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97035-433-0 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97035-433-0 |
01 |
1 |
0502- |
|
● |
|
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97076-938-0 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97076-938-0 |
01 |
1 |
0502- |
|
● |
|
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97319-161-0 |
01 |
1 |
0211-1201 |
● |
● |
|
● |
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-98092-031-1 |
01 |
1 |
1202- |
● |
● |
|
● |
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
BRK WHL LK CONT LSPV<6PH>
43/9
|
8-97319-157-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
● |
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
43/9
|
8-97319-157-0 |
01 |
1 |
0502-1003 |
|
|
|
|
|
● |
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/9(S2J)
43/9
|
8-97319-157-0 |
01 |
1 |
1004- |
● |
|
|
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
43/9
|
8-97319-157-0 |
01 |
1 |
1004- |
|
|
|
|
|
● |
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/6(R43)
39/6
|
8-97319-162-0 |
01 |
1 |
0211-0712 |
● |
|
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4JB1-TC ENG(RDT),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/6(R43)
39/6
|
8-97319-162-0 |
01 |
1 |
0801- |
● |
|
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97319-160-0 |
01 |
1 |
0211-0609 |
● |
|
|
● |
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97319-160-0 |
01 |
1 |
0610- |
● |
● |
|
● |
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97320-103-0 |
01 |
1 |
0211- |
● |
|
|
● |
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/8(RU1)
41/8
|
8-97319-158-0 |
01 |
1 |
0610- |
● |
|
|
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 6.5-7.0TON(RPW)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
39/7
|
8-97121-593-1 |
01 |
1 |
0608-0610 |
● |
|
|
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97083-126-0 |
01 |
1 |
0611- |
● |
|
|
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/6(6YB)
41/6
|
8-97047-092-1 |
01 |
1 |
0211- |
● |
|
|
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97092-946-0 |
01 |
1 |
0211- |
● |
|
|
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/8(RV9)
EXC. BRK WHL LK CONT LSPV<6PH>
39/8
|
8-97035-431-0 |
01 |
1 |
0211-0211 |
|
|
|
|
|
● |
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE STANDARD 244MM(R39)
FINAL GEAR RATIO 39/8(RV9)
39/8
|
8-97035-431-0 |
01 |
1 |
0212-0501 |
|
|
|
|
|
● |
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 343MM(8BW)
(C)
|
9-41227-006-0 |
02 |
1 |
1510- |
● |
|
|
|
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 292MM(G73)
(A)
W/STUD
|
5-41227-001-0 |
01 |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(A)
W/STUD
|
5-41227-001-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 292MM(G73)
(A)
W/STUD
|
5-41227-001-0 |
01 |
1 |
0502- |
● |
● |
|
|
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(A)
W/STUD
|
5-41227-001-0 |
01 |
1 |
0502- |
|
|
|
● |
● |
● |
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 292MM(G73)
(B)
|
9-41227-601-0 |
01 |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(B)
|
9-41227-601-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 292MM(G73)
(B)
|
9-41227-601-0 |
01 |
1 |
0502- |
● |
● |
|
|
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(B)
|
9-41227-601-0 |
01 |
1 |
0502- |
|
|
|
● |
● |
● |
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
(A)
W/STUD
|
8-97047-149-0 |
01 |
1 |
0211- |
● |
|
|
|
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
(B)
|
8-97047-150-0 |
01 |
1 |
0211- |
● |
|
|
|
|
|
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 343MM(8BW)
NSK
|
1-09810-062-1 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 343MM(8BW)
JTEKT
|
1-09810-063-2 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 292MM(G73)
NSK
|
5-09810-008-1 |
01 |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
63 |
05.447 BEARING; PINION PILOT
NSK
|
5-09810-008-1 |
01 |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 292MM(G73)
NSK
|
5-09810-008-1 |
01 |
1 |
0502- |
● |
● |
|
|
|
|
| |
63 |
05.447 BEARING; PINION PILOT
NSK
|
5-09810-008-1 |
01 |
1 |
0502- |
|
|
|
● |
● |
● |
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 292MM(G73)
JTEKT
|
8-97107-548-0 |
01 |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
63 |
05.447 BEARING; PINION PILOT
JTEKT
|
8-97107-548-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 292MM(G73)
JTEKT
|
8-97107-548-0 |
01 |
1 |
0502- |
● |
● |
|
|
|
|
| |
63 |
05.447 BEARING; PINION PILOT
JTEKT
|
8-97107-548-0 |
01 |
1 |
0502- |
|
|
|
● |
● |
● |
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 320MM(6CP)
NSK
|
8-97047-296-0 |
01 |
1 |
0211- |
● |
|
|
|
|
|
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 320MM(6CP)
JTEKT
|
8-97047-928-0 |
01 |
1 |
0211- |
● |
|
|
|
|
|
| |
64 |
05.476 NUT; RET
REAR AXLE HEAVY DUTY 343MM(8BW)
M8 SLOTTED
|
0-91117-508-0 |
02 |
1 |
1510- |
● |
|
|
|
|
|
| |
64 |
05.476 NUT; RET
REAR AXLE HEAVY DUTY 292MM(G73),REAR
AXLE HEAVY DUTY 320MM(6CP)
04.594
M6 FLANGE
|
0-91150-106-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
● |
| |
64 |
05.476 NUT; RET
REAR AXLE HEAVY DUTY 292MM(G73),REAR
AXLE HEAVY DUTY 320MM(6CP)
04.594
M6 FLANGE
|
0-91150-106-0 |
02 |
1 |
0502-0602 |
● |
● |
|
● |
● |
● |
| |
64 |
05.476 NUT; RET
REAR AXLE HEAVY DUTY 292MM(G73),REAR
AXLE HEAVY DUTY 320MM(6CP)
01.062
M6 FLANGE
|
0-91180-106-0 |
02 |
1 |
0603- |
● |
● |
|
● |
● |
● |
| |
66 |
05.476 RING; SNAP,PILOT BRG
REAR AXLE HEAVY DUTY 343MM(8BW)
OD=32.2
|
1-09588-065-2 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
66 |
05.476 RING; SNAP,PILOT BRG
REAR AXLE HEAVY DUTY 292MM(G73)
|
9-09752-002-0 |
01 |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
66 |
05.476 RING; SNAP,PILOT BRG
|
9-09752-002-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
66 |
05.476 RING; SNAP,PILOT BRG
REAR AXLE HEAVY DUTY 292MM(G73)
|
9-09752-002-0 |
01 |
1 |
0502- |
● |
● |
|
|
|
|
| |
66 |
05.476 RING; SNAP,PILOT BRG
|
9-09752-002-0 |
01 |
1 |
0502- |
|
|
|
● |
● |
● |
| |
66 |
05.476 RING; SNAP,PILOT BRG
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-297-0 |
01 |
1 |
0211- |
● |
|
|
|
|
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
REAR AXLE HEAVY DUTY 343MM(8BW)
M115 H=26
|
1-41121-028-0 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
REAR AXLE HEAVY DUTY 343MM(8BW)
M115 H=20
|
1-41121-039-0 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
M110 H=10
|
5-41121-001-0 |
02 |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
M110 H=10
|
5-41121-001-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
M110 H=10
|
5-41121-001-0 |
02 |
1 |
0502- |
● |
● |
|
|
|
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
M110 H=10
|
5-41121-001-0 |
02 |
1 |
0502- |
|
|
|
● |
● |
● |
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
M115 H=20
|
1-41121-039-0 |
02 |
1 |
0211- |
● |
|
|
|
|
|
| |
70 |
05.536 BEARING; DIFF CAGE
REAR AXLE STANDARD 244MM(R39)
JTEKT
|
8-98003-043-0 |
02 |
1 |
0504- |
|
● |
|
|
|
|
| |
70 |
05.536 BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
NSK
|
9-00093-602-0 |
02 |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
70 |
05.536 BEARING; DIFF CAGE
NSK
|
9-00093-602-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
70 |
05.536 BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
NSK
|
9-00093-602-0 |
02 |
1 |
0502- |
● |
● |
|
|
|
|
| |
70 |
05.536 BEARING; DIFF CAGE
NSK
|
9-00093-602-0 |
02 |
1 |
0502- |
|
|
|
● |
● |
● |
| |
70 |
05.536 BEARING; DIFF CAGE
REAR AXLE STANDARD 244MM(R39)
NSK
|
9-00032-211-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
|
● |
| |
70 |
05.536 BEARING; DIFF CAGE
NSK
|
9-00032-211-0 |
02 |
1 |
0211-0501 |
|
|
● |
|
|
|
| |
70 |
05.536 BEARING; DIFF CAGE
REAR AXLE STANDARD 244MM(R39)
NSK
|
9-00032-211-0 |
02 |
1 |
0502- |
|
● |
|
|
|
|
| |
70 |
05.536 BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
JTEKT ID=66.7 OD=113 T=30
|
9-00093-130-0 |
02 |
1 |
0211-1509 |
● |
|
|
|
|
|
| |
70 |
05.536 BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLE HEAVY DUTY 343MM(8BW)
JTEKT ID=66.7 OD=113 T=30
|
9-00093-130-0 |
02 |
1 |
1510- |
● |
|
|
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 343MM(8BW)
|
1-41510-298-0 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. BRK WHL LK CONT LSPV<6PH>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97319-040-0 |
01 |
1 |
0211-0303 |
|
● |
|
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-97319-040-0 |
01 |
1 |
0211-0303 |
● |
|
|
● |
● |
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. BRK WHL LK CONT LSPV<6PH>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97356-486-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-97356-486-0 |
01 |
1 |
0304-0304 |
● |
|
|
● |
● |
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. BRK WHL LK CONT LSPV<6PH>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97363-159-0 |
01 |
1 |
0304-0501 |
|
● |
|
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-97363-159-0 |
01 |
1 |
0304-0501 |
● |
|
|
● |
● |
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-97363-159-0 |
01 |
1 |
0502-0510 |
● |
● |
|
● |
● |
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-98015-182-0 |
01 |
1 |
0511-0910 |
● |
● |
|
● |
● |
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-98015-182-1 |
01 |
1 |
0911- |
|
● |
|
● |
● |
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/8(RU1),FINAL GEAR RATIO 41/
7(R41),FINAL GEAR RATIO 43/7(R42),
FINAL GEAR RATIO 39/6(R43)
|
8-98015-182-1 |
01 |
1 |
0911- |
● |
|
|
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
BRK WHL LK CONT LSPV<6PH>
|
8-97319-043-0 |
01 |
1 |
0211-0303 |
|
● |
|
|
|
● |
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
BRK WHL LK CONT LSPV<6PH>
|
8-97356-485-0 |
01 |
1 |
0304-0304 |
|
● |
|
|
|
● |
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
BRK WHL LK CONT LSPV<6PH>
|
8-97363-158-0 |
01 |
1 |
0304-0501 |
|
● |
|
|
|
● |
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
|
8-97363-158-0 |
01 |
1 |
0502-0510 |
|
|
|
|
|
● |
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
|
8-98015-181-0 |
01 |
1 |
0511-1003 |
|
|
|
|
|
● |
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 43/9(S2J)
|
8-98015-181-1 |
01 |
1 |
1004-1404 |
● |
|
|
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
|
8-98015-181-1 |
01 |
1 |
1004-1404 |
|
|
|
|
|
● |
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43
/9(S2J),FINAL GEAR RATIO 43/10(S7C)
|
8-98015-181-1 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
|
8-98015-181-1 |
01 |
1 |
1405- |
|
|
|
|
|
● |
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE STANDARD 244MM(R39)
|
8-97228-309-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
● |
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
|
8-97228-309-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE STANDARD 244MM(R39)
|
8-97228-309-0 |
01 |
1 |
0502-1105 |
|
● |
|
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE STANDARD 244MM(R39)
05.453
|
8-98191-996-1 |
01 |
1 |
1106- |
|
● |
|
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-100-4 |
01 |
1 |
0211- |
● |
|
|
|
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 292MM(G73)
05.520
|
5-41521-008-0 |
01 |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
82 |
05.517 SPIDER; DIFF PINION
05.520
|
5-41521-008-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 292MM(G73)
05.520
|
5-41521-008-0 |
01 |
1 |
0502- |
● |
● |
|
|
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
05.520
|
5-41521-008-0 |
01 |
1 |
0502- |
|
|
|
● |
● |
● |
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE STANDARD 244MM(R39)
|
9-41521-611-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
● |
| |
82 |
05.517 SPIDER; DIFF PINION
|
9-41521-611-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE STANDARD 244MM(R39)
|
9-41521-611-0 |
01 |
1 |
0502- |
|
● |
|
|
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
05.520
|
1-41521-035-2 |
01 |
1 |
0211-1004 |
● |
|
|
|
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
|
1-41521-062-0 |
01 |
1 |
1005-1309 |
● |
|
|
|
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
05.520
|
1-41521-035-2 |
01 |
1 |
1310-1509 |
● |
|
|
|
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLE HEAVY DUTY 343MM(8BW)
05.520
|
1-41521-035-2 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. BRK WHL LK CONT LSPV<6PH>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97319-396-1 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-97319-396-1 |
01 |
1 |
0211-0501 |
● |
|
|
● |
● |
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-97319-396-1 |
01 |
1 |
0502-0910 |
● |
● |
|
● |
● |
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-97319-396-1 |
01 |
1 |
0911- |
|
● |
|
● |
● |
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/8(RU1),FINAL GEAR RATIO 41/
7(R41),FINAL GEAR RATIO 43/7(R42),
FINAL GEAR RATIO 39/6(R43)
|
8-97319-396-1 |
01 |
1 |
0911- |
● |
|
|
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
BRK WHL LK CONT LSPV<6PH>
|
8-97319-398-1 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
● |
| |
83 |
05.510 CAGE ASM; DIFF
|
8-97319-398-1 |
01 |
1 |
0502-1003 |
|
|
|
|
|
● |
| |
83 |
05.510 CAGE ASM; DIFF
FINAL GEAR RATIO 43/9(S2J)
|
8-97319-398-1 |
01 |
1 |
1004-1404 |
● |
|
|
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
|
8-97319-398-1 |
01 |
1 |
1004-1404 |
|
|
|
|
|
● |
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43
/9(S2J),FINAL GEAR RATIO 43/10(S7C)
|
8-97319-398-1 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
|
8-97319-398-1 |
01 |
1 |
1405- |
|
|
|
|
|
● |
| |
83 |
05.510 CAGE ASM; DIFF
FINAL GEAR RATIO 43/9(S2J)
|
8-97388-898-0 |
01 |
1 |
1004-1404 |
● |
|
|
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
|
8-97388-898-0 |
01 |
1 |
1004-1404 |
|
|
|
|
|
● |
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43
/9(S2J),FINAL GEAR RATIO 43/10(S7C)
|
8-97388-898-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
|
8-97388-898-0 |
01 |
1 |
1405- |
|
|
|
|
|
● |
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE STANDARD 244MM(R39)
|
9-41510-610-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
● |
| |
83 |
05.510 CAGE ASM; DIFF
|
9-41510-610-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE STANDARD 244MM(R39)
|
9-41510-610-0 |
01 |
1 |
0502- |
|
● |
|
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-117-2 |
01 |
1 |
0211-1208 |
● |
|
|
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-98219-707-0 |
01 |
1 |
1209- |
● |
|
|
|
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 343MM(8BW)
M14X29.5 FLANGE
|
1-09070-085-0 |
16 |
1 |
1510- |
● |
|
|
|
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
M14X25
|
8-97318-938-1 |
12 |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
M14X25
|
8-97318-938-1 |
12 |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
M14X25
|
8-97318-938-1 |
12 |
1 |
0502- |
● |
● |
|
|
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
M14X25
|
8-97318-938-1 |
12 |
1 |
0502- |
|
|
|
● |
● |
● |
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE STANDARD 244MM(R39)
M12X25
|
9-09606-505-2 |
12 |
1 |
0211-0501 |
|
● |
|
|
|
● |
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
M12X25
|
9-09606-505-2 |
12 |
1 |
0211-0501 |
|
|
● |
|
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE STANDARD 244MM(R39)
M12X25
|
9-09606-505-2 |
12 |
1 |
0502- |
|
● |
|
|
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
M16X30
|
8-97047-147-0 |
12 |
1 |
0211- |
● |
|
|
|
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 343MM(8BW)
M14
|
1-09400-077-1 |
08 |
1 |
1510- |
● |
|
|
|
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
85 |
05.510 NUT; DIFF CAGE SETTING
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
0502-0602 |
● |
● |
|
|
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
0502-0602 |
|
|
|
● |
● |
● |
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
04.085
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
0603- |
● |
● |
|
|
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
04.085
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
0603- |
|
|
|
● |
● |
● |
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
M12
|
8-97065-214-0 |
12 |
1 |
0211- |
● |
|
|
|
|
|
| |
86 |
05.510 WASHER; PL,DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=12.5 OD=22 T=2
|
8-97047-294-0 |
24 |
1 |
0211-1208 |
● |
|
|
|
|
|
| |
86 |
05.510 WASHER; PL,DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=12.5 OD=22 T=2
|
8-97047-294-0 |
12 |
1 |
1209- |
● |
|
|
|
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 343MM(8BW)
(C)
T=2.3
|
9-41124-015-0 |
02 |
1 |
1510- |
● |
|
|
|
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 292MM(G73)
(A)
|
8-97027-281-0 |
AR |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
88 |
05.506 PLATE; LK,ADJ NUT
(A)
|
8-97027-281-0 |
AR |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 292MM(G73)
(A)
|
8-97027-281-0 |
AR |
1 |
0502- |
● |
● |
|
|
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
(A)
|
8-97027-281-0 |
AR |
1 |
0502- |
|
|
|
● |
● |
● |
| |
88 |
05.506 PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 292MM(G73)
(B)
|
8-97027-282-0 |
AR |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
88 |
05.506 PLATE; LK,ADJ NUT
(B)
|
8-97027-282-0 |
AR |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 292MM(G73)
(B)
|
8-97027-282-0 |
AR |
1 |
0502- |
● |
● |
|
|
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
(B)
|
8-97027-282-0 |
AR |
1 |
0502- |
|
|
|
● |
● |
● |
| |
88 |
05.506 PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 320MM(6CP)
(D)
T=2.3
|
8-97087-821-0 |
AR |
1 |
0211- |
● |
|
|
|
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 320MM(6CP)
(C)
T=2.3
|
9-41124-015-0 |
AR |
1 |
0211- |
● |
|
|
|
|
|
| |
89 |
05.506 BOLT; LK PLATE
REAR AXLE HEAVY DUTY 343MM(8BW)
M8X16
|
0-20850-816-0 |
04 |
1 |
1510- |
● |
|
|
|
|
|
| |
89 |
05.506 BOLT; LK PLATE
REAR AXLE HEAVY DUTY 292MM(G73)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
89 |
05.506 BOLT; LK PLATE
01.062
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
89 |
05.506 BOLT; LK PLATE
REAR AXLE HEAVY DUTY 292MM(G73)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0502-0512 |
● |
● |
|
|
|
|
| |
89 |
05.506 BOLT; LK PLATE
01.062
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0502-0512 |
|
|
|
● |
● |
● |
| |
89 |
05.506 BOLT; LK PLATE
REAR AXLE HEAVY DUTY 292MM(G73)
02.343
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0601- |
● |
● |
|
|
|
|
| |
89 |
05.506 BOLT; LK PLATE
02.343
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0601- |
|
|
|
● |
● |
● |
| |
89 |
05.506 BOLT; LK PLATE
4JH1-TC ENG(RDM)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 5.0-5.5TON(RPT)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
01.062
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0601-0604 |
● |
|
|
● |
|
|
| |
89 |
05.506 BOLT; LK PLATE
4HF1-N ENG(RJZ)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
G.V.W. 5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>,INDONESIA
EQUIPMENT(S4S),DUMP CHASSIS(V4D),BRK WH
L LK CONT LSPV<6PH>
01.062
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0601-0604 |
● |
|
|
● |
|
|
| |
89 |
05.506 BOLT; LK PLATE
FINAL GEAR RATIO 41/7(R41)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0601-0604 |
|
|
|
|
● |
|
| |
89 |
05.506 BOLT; LK PLATE
REAR AXLE HEAVY DUTY 320MM(6CP)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0211-0512 |
● |
|
|
|
|
|
| |
89 |
05.506 BOLT; LK PLATE
REAR AXLE HEAVY DUTY 320MM(6CP)
02.343
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
0601- |
● |
|
|
|
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP),REAR
AXLE HEAVY DUTY 343MM(8BW)
NOK
|
1-09625-484-1 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
OD=103
|
8-94408-083-0 |
01 |
1 |
0211-0501 |
● |
● |
|
|
|
● |
| |
100 |
05.469 SEAL; OIL,FINAL PINION
OD=103
|
8-94408-083-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
OD=103
|
8-94408-083-0 |
01 |
1 |
0502- |
● |
● |
|
|
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
OD=103
|
8-94408-083-0 |
01 |
1 |
0502- |
|
|
|
● |
● |
● |
| |
100 |
05.469 SEAL; OIL,FINAL PINION
REAR AXLE STANDARD 244MM(R39)
NOK
|
8-94408-084-1 |
01 |
1 |
0211-0412 |
|
● |
|
|
|
● |
| |
100 |
05.469 SEAL; OIL,FINAL PINION
NOK
|
8-94408-084-1 |
01 |
1 |
0211-0412 |
|
|
● |
|
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
REAR AXLE STANDARD 244MM(R39)
NOK
|
8-97328-648-0 |
01 |
1 |
0501-0501 |
|
● |
|
|
|
● |
| |
100 |
05.469 SEAL; OIL,FINAL PINION
NOK
|
8-97328-648-0 |
01 |
1 |
0501-0501 |
|
|
● |
|
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
REAR AXLE STANDARD 244MM(R39)
NOK
|
8-97328-648-0 |
01 |
1 |
0502- |
|
● |
|
|
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
REAR AXLE STANDARD 244MM(R39)
TKK
|
8-94408-085-1 |
01 |
1 |
0211-0412 |
|
● |
|
|
|
● |
| |
100 |
05.469 SEAL; OIL,FINAL PINION
TKK
|
8-94408-085-1 |
01 |
1 |
0211-0412 |
|
|
● |
|
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
NOK
|
8-97047-609-0 |
01 |
1 |
0211-0406 |
● |
|
|
|
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
NOK
|
1-09625-484-1 |
01 |
1 |
0407-1509 |
● |
|
|
|
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
REAR AXLE HEAVY DUTY 343MM(8BW)
TKK
|
1-09625-637-0 |
01 |
1 |
1510- |
● |
|
|
|
|
|
