◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#47685) — 327 parça

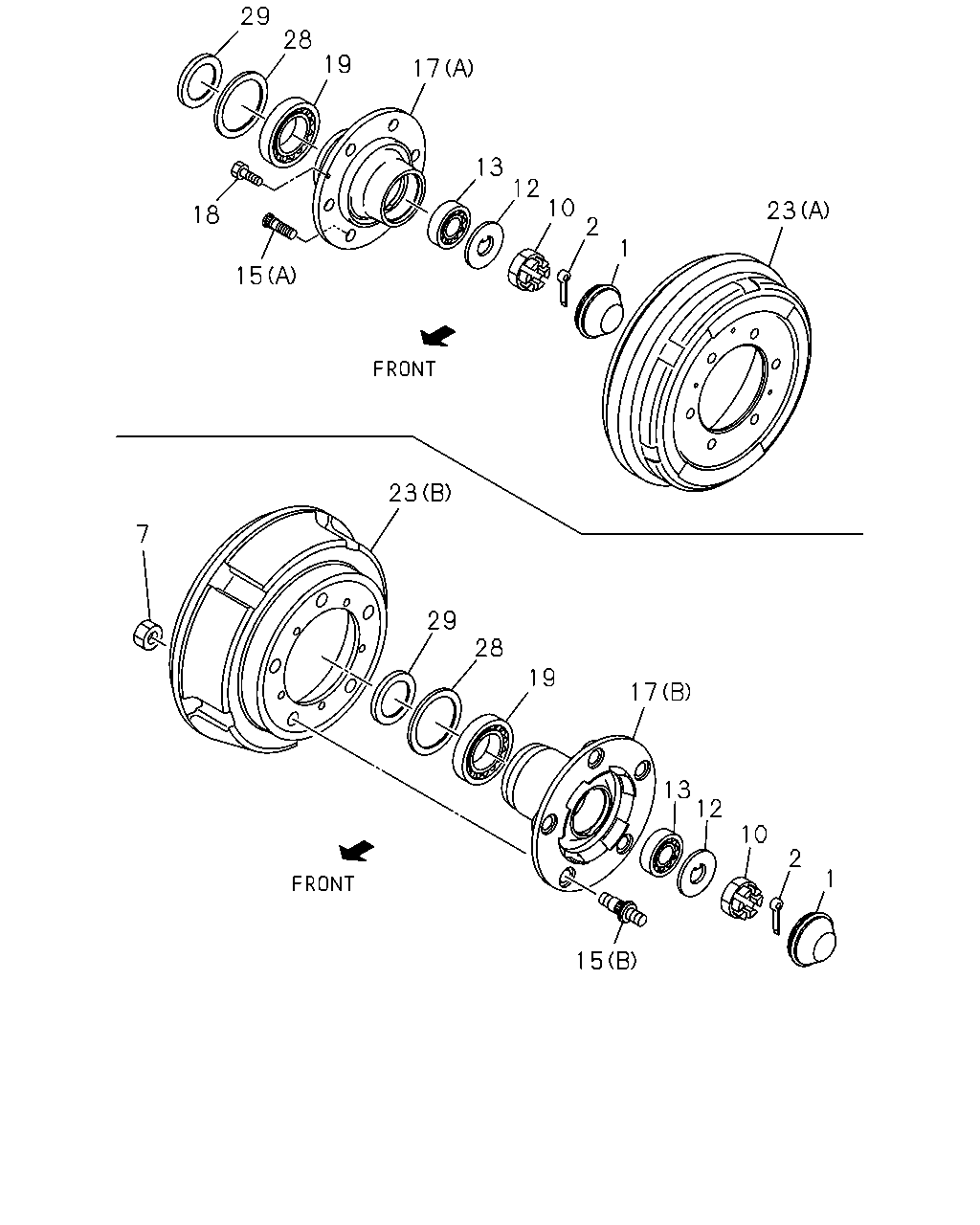

çizim 49417
29 28 19 17 13 12 10 2 23 18 1 15 23 7 29 28 19 17 13 12 10 2 1 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0211-0501 ● ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0502-0611 ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0612-1407 ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-98276-604-0 02 1 1408-1511 ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-98331-242-0 02 1 1512- ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0211-0501 ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0502-0606 ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0607- ● ● ● ● ●
7 05.812 NUT; FRT HUB
G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52> M20 		0-91110-520-0 20 1 0601-1104 ●
7 05.812 NUT; FRT HUB
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> M20 		0-91110-520-0 20 1 0601-1104 ●
7 05.812 NUT; FRT HUB
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> M20 		0-91110-520-0 20 1 1105-1405 ●
7 05.812 NUT; FRT HUB
G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52>,VIN MODEL YEAR 2012(VZC) M20 		0-91110-520-0 20 1 1105-1405 ●
7 05.812 NUT; FRT HUB
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> M20 		0-91110-520-0 20 1 1406- ●
7 05.812 NUT; FRT HUB
G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52>,VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) ,VIN MODEL YEAR 2015(VZF) M20 		0-91110-520-0 20 1 1406- ●
7 05.812 NUT; FRT HUB
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 07.172 M22 		0-91110-522-0 12 1 1105-1404 ●
7 05.812 NUT; FRT HUB
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. DISC BRAKE FRT<J52> 07.172 M22 		0-91110-522-0 12 1 1405-1405 ●
7 05.812 NUT; FRT HUB
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. DISC BRAKE FRT<J52> 07.172 M22 		0-91110-522-0 12 1 1406- ●
7 05.812 NUT; FRT HUB
00.050 M20 		9-99110-520-0 10 1 0211-0501 ● ● ●
7 05.812 NUT; FRT HUB
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52> 00.050 M20 		9-99110-520-0 10 1 0502-0512 ● ● ●
7 05.812 NUT; FRT HUB
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DISC BRAKE FRT<J52> M20 		0-91110-520-0 10 1 0601- ● ●
7 05.812 NUT; FRT HUB
G.V.W. 5.0-5.5TON(RPT) EXC. DISC BRAKE FRT<J52> M20 		0-91110-520-0 10 1 0601- ●
7 05.812 NUT; FRT HUB
G.V.W. 5.5-6.0TON(RPU) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS(V4B) M20 		0-91110-520-0 10 1 0601- ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0211-0501 ● ● ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0502- ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-94247-356-1 02 1 0211-0501 ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0211-0501 ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0502-1502 ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
05.812 		8-98282-435-0 02 1 1503- ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0211-0501 ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0502- ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0211-0501 ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0502- ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0611-1104 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0611-1104 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 1105-1405 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52>,VIN MODEL YEAR 2012(VZC) (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 1105-1405 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 1406- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52>,VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) ,VIN MODEL YEAR 2015(VZF) (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 1406- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0611-1104 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0611-1104 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 1105-1405 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52>,VIN MODEL YEAR 2012(VZC) (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 1105-1405 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 1406- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52>,VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) ,VIN MODEL YEAR 2015(VZF) (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 1406- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) M20X28,M22X57 RH THREAD 		8-97081-584-4 06 1 1105-1404 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. DISC BRAKE FRT<J52> (B) M20X28,M22X57 RH THREAD 		8-97081-584-4 06 1 1405-1405 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. DISC BRAKE FRT<J52> (B) M20X28,M22X57 RH THREAD 		8-97081-584-4 06 1 1406- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-4 06 1 1105-1404 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. DISC BRAKE FRT<J52> (B) M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-4 06 1 1405-1405 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. DISC BRAKE FRT<J52> (B) M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-4 06 1 1406- ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 LH THREAD 		9-42332-605-4 06 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M14X50 LH THREAD 		9-42332-605-4 06 1 0211-0501 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M14X50 LH THREAD 		9-42332-605-5 06 1 0502-1404 ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M14X50 LH THREAD 		9-42332-605-5 06 1 1405- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) M14X50 LH THREAD 		9-42332-605-5 06 1 1405- ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 RH THREAD 		9-42331-605-4 06 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M14X50 RH THREAD 		9-42331-605-4 06 1 0211-0501 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M14X50 RH THREAD 		9-42331-605-5 06 1 0502-1404 ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M14X50 RH THREAD 		9-42331-605-5 06 1 1405- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) M14X50 RH THREAD 		9-42331-605-5 06 1 1405- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) M14X39 LH THREAD 		8-97126-491-0 06 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) (C) M18X46 LH THREAD 		8-97017-042-0 05 1 0502-0504 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 LH THREAD 		8-97017-042-0 05 1 0502-0504 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> (C) M18X46 LH THREAD 		8-97017-042-0 05 1 0505-0605 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 LH THREAD 		8-97017-042-0 05 1 0505-0605 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> (C) M18X46 LH THREAD 		8-98028-533-1 05 1 0606- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 LH THREAD 		8-98028-533-1 05 1 0606- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) M14X39 RH THREAD 		8-97126-490-0 06 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) (C) M18X46 RH THREAD 		8-97017-041-0 05 1 0502-0504 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 RH THREAD 		8-97017-041-0 05 1 0502-0504 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> (C) M18X46 RH THREAD 		8-97017-041-0 05 1 0505-0605 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 RH THREAD 		8-97017-041-0 05 1 0505-0605 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> (C) M18X46 RH THREAD 		8-98028-532-1 05 1 0606- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 RH THREAD 		8-98028-532-1 05 1 0606- ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 0211-0501 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 0502-0606 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 0607-0609 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0611- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT) EXC. DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0611- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.5-6.0TON(RPU) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS(V4B) (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0611- ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 0211-0501 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 0502-0606 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 0607-0609 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0611- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT) EXC. DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0611- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.5-6.0TON(RPU) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS(V4B) (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0611- ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97081-322-0 02 1 1105-1404 ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. DISC BRAKE FRT<J52> (B) 		8-97081-322-0 02 1 1405-1405 ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. DISC BRAKE FRT<J52> (B) 		8-97081-322-0 02 1 1406- ●
17 06.307 HUB; FRT AXLE
EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94420-597-1 02 1 0211-0501 ●
17 06.307 HUB; FRT AXLE
(A) 		8-94420-597-1 02 1 0211-0501 ● ●
17 06.307 HUB; FRT AXLE
(A) 		8-94420-597-1 02 1 0502-1404 ●
17 06.307 HUB; FRT AXLE
(A) 		8-94420-597-1 02 1 1405- ●
17 06.307 HUB; FRT AXLE
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) 		8-94420-597-1 02 1 1405- ●
17 06.307 HUB; FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97090-751-0 02 1 0211-0501 ●
17 06.307 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) (C) 		8-97035-160-0 02 1 0502- ● ●
17 06.307 HUB; FRT AXLE
(C) 		8-97035-160-0 02 1 0502- ●
17 06.307 HUB; FRT AXLE
DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97017-193-0 02 1 0505- ● ●
17 06.307 HUB; FRT AXLE
(B) 		8-94365-459-0 02 1 0211-0501 ● ● ●
17 06.307 HUB; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-94365-459-0 02 1 0502-1104 ● ●
17 06.307 HUB; FRT AXLE
(B) 		8-94365-459-0 02 1 0502-1104 ●
17 06.307 HUB; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,VIN MODEL YEAR 2012(VZC) (B) 		8-94365-459-0 02 1 1105- ● ●
17 06.307 HUB; FRT AXLE
(B) 		8-94365-459-0 02 1 1105- ●
18 06.022 BOLT; DRUM TO HUB
EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 04.012 M6X18 		0-20800-618-0 02 1 0211-0501 ●
18 06.022 BOLT; DRUM TO HUB
04.012 M6X18 		0-20800-618-0 02 1 0211-0501 ● ●
18 06.022 BOLT; DRUM TO HUB
04.012 M6X18 		0-20800-618-0 02 1 0502-1404 ●
18 06.022 BOLT; DRUM TO HUB
04.012 M6X18 		0-20800-618-0 02 1 1405- ●
18 06.022 BOLT; DRUM TO HUB
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 04.012 M6X18 		0-20800-618-0 02 1 1405- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) NSK 		8-94336-289-0 02 1 0211-0501 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) JTEKT 		8-94248-088-2 02 1 0211-0501 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0211-0501 ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0502-1009 ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) NSK 		9-00093-149-0 02 1 0211-0501 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0211-0501 ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0502-1009 ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS 		1-87610-134-0 02 1 1010- ● ● ● ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97081-218-2 02 1 1105-1404 ●
23 05.809 DRUM; BRK,FRT
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. DISC BRAKE FRT<J52> (B) 		8-97081-218-2 02 1 1405-1405 ●
23 05.809 DRUM; BRK,FRT
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. DISC BRAKE FRT<J52> (B) 		8-97081-218-2 02 1 1406- ●
23 05.809 DRUM; BRK,FRT
EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-071-1 02 1 0211-0501 ●
23 05.809 DRUM; BRK,FRT
(A) 		8-97085-071-1 02 1 0211-0501 ● ●
23 05.809 DRUM; BRK,FRT
(A) 		8-97085-071-2 02 1 0502-1306 ●
23 05.809 DRUM; BRK,FRT
(A) 		8-98242-348-0 02 1 1307-1404 ●
23 05.809 DRUM; BRK,FRT
(A) 		8-98242-348-0 02 1 1405- ●
23 05.809 DRUM; BRK,FRT
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) 		8-98242-348-0 02 1 1405- ●
23 05.809 DRUM; BRK,FRT
G.V.W. 4.0-4.5TON(RPR) (B) 		8-94385-650-3 02 1 0211-0501 ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.5-6.0TON(RPU) EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-94385-650-3 02 1 0211-0501 ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) INDONESIA EQUIPMENT(S4S) (B) 		8-94385-650-3 02 1 0211-0501 ●
23 05.809 DRUM; BRK,FRT
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195-85R16 DISC 16-5.5J-116.5(CPG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F- 115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5F X16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,MINI BUS CHASSIS(V4B) (B) 		8-94385-650-3 02 1 0502-0502 ●
23 05.809 DRUM; BRK,FRT
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195-85R16 DISC 16-5.5J-116.5(CPG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F- 115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5F X16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,MINI BUS CHASSIS(V4B) (B) 		8-94385-650-3 02 1 0502-0508 ●
23 05.809 DRUM; BRK,FRT
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT&RR 7R-16- 10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F- 115 T/VLV TR177A(95H),FRT&RR 7-16-10L5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,MINI BUS CHASSIS(V4B) (B) 		8-94385-650-3 02 1 0509-0606 ●
23 05.809 DRUM; BRK,FRT
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,MINI BUS CHASSIS(V4B) (B) 		8-94385-650-3 02 1 0607-0706 ●
23 05.809 DRUM; BRK,FRT
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT&RR 7R-16- 10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F- 115 T/VLV TR177A(95H),FRT&RR 7-16-10L5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,MINI BUS CHASSIS(V4B) (B) 		8-94385-650-3 02 1 0707-0707 ●
23 05.809 DRUM; BRK,FRT
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,MINI BUS CHASSIS(V4B) (B) 		8-94385-650-3 02 1 0707-0910 ●
23 05.809 DRUM; BRK,FRT
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,MINI BUS CHASSIS(V4B) (B) 		8-94385-650-3 02 1 0911- ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.0-5.5TON(RPT) (B) 		8-97094-434-2 02 1 0211-0501 ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S) (B) 		8-97094-434-2 02 1 0211-0501 ● ●
23 05.809 DRUM; BRK,FRT
(B) 		8-97094-434-2 02 1 0211-0501 ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 0502-0505 ●
23 05.809 DRUM; BRK,FRT
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195-85R16 DISC 16-5.5J-116.5(CPG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F- 115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5F X16-115 T/VLV TR177A(98H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,INDONESIA EQUIPMENT(S4S),MINI BUS CHASSIS(V4B) (B) 		8-97094-434-2 02 1 0502-0505 ●
23 05.809 DRUM; BRK,FRT
FRT&RR 195/85R16 16X5.5J-116.5(AZX), FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5 .5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 0502-0505 ●
23 05.809 DRUM; BRK,FRT
(B) 		8-97094-434-2 02 1 0502-0505 ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 0506-0508 ●
23 05.809 DRUM; BRK,FRT
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195-85R16 DISC 16-5.5J-116.5(CPG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F- 115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5F X16-115 T/VLV TR177A(98H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,INDONESIA EQUIPMENT(S4S),MINI BUS CHASSIS(V4B) (B) 		8-97094-434-2 02 1 0506-0508 ●
23 05.809 DRUM; BRK,FRT
FRT&RR 195/85R16 16X5.5J-116.5(AZX), FRT&RR 195/85R16 16X5.5J-116.5 SILVER DISC(CNE),FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),F RT&RR 7-15-10 5.5FX15-115(49H), FRT&RR7-15-10L 5.5FX15-115(50H),FRT&RR 7R- 15-10 5.5FX15-115(58H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 0506-0508 ●
23 05.809 DRUM; BRK,FRT
(B) 		8-97094-434-2 02 1 0506-0508 ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 0509-0606 ●
23 05.809 DRUM; BRK,FRT
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT&RR 7R-16- 10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F- 115 T/VLV TR177A(95H),FRT&RR 7-16-10L5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,INDONESIA EQUIPMENT(S4S),MINI BUS CHASSIS(V4B) (B) 		8-97094-434-2 02 1 0509-0606 ●
23 05.809 DRUM; BRK,FRT
FRT&RR 195/85R16 16X5.5J-116.5(AZX), FRT&RR 195/85R16 16X5.5J-116.5 SILVER DISC(CNE),FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),F RT&RR 7-15-10 5.5FX15-115(49H), FRT&RR7-15-10L 5.5FX15-115(50H),FRT&RR 7R- 15-10 5.5FX15-115(58H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 0509-0606 ●
23 05.809 DRUM; BRK,FRT
(B) 		8-97094-434-2 02 1 0509-0606 ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 0607-0706 ●
23 05.809 DRUM; BRK,FRT
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,INDONESIA EQUIPMENT(S4S),MINI BUS CHASSIS(V4B) (B) 		8-97094-434-2 02 1 0607-0706 ●
23 05.809 DRUM; BRK,FRT
FRT&RR 195/85R16 16X5.5J-116.5(AZX), FRT&RR 195/85R16 16X5.5J-116.5 SILVER DISC(CNE),FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),F RT&RR 7-15-10 5.5FX15-115(49H), FRT&RR7-15-10L 5.5FX15-115(50H),FRT&RR 7R- 15-10 5.5FX15-115(58H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 0607-0706 ●
23 05.809 DRUM; BRK,FRT
(B) 		8-97094-434-2 02 1 0607-0706 ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 0707-0707 ●
23 05.809 DRUM; BRK,FRT
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT&RR 7R-16- 10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F- 115 T/VLV TR177A(95H),FRT&RR 7-16-10L5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,INDONESIA EQUIPMENT(S4S),MINI BUS CHASSIS(V4B) (B) 		8-97094-434-2 02 1 0707-0707 ●
23 05.809 DRUM; BRK,FRT
FRT&RR 195/85R16 16X5.5J-116.5(AZX), FRT&RR 195/85R16 16X5.5J-116.5 SILVER DISC(CNE),FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),F RT&RR 7-15-10 5.5FX15-115(49H), FRT&RR7-15-10L 5.5FX15-115(50H),FRT&RR 7R- 15-10 5.5FX15-115(58H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 0707-0707 ●
23 05.809 DRUM; BRK,FRT
(B) 		8-97094-434-2 02 1 0707-0707 ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 0707-0811 ●
23 05.809 DRUM; BRK,FRT
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,INDONESIA EQUIPMENT(S4S),MINI BUS CHASSIS(V4B) (B) 		8-97094-434-2 02 1 0707-0811 ●
23 05.809 DRUM; BRK,FRT
FRT&RR 195/85R16 16X5.5J-116.5(AZX), FRT&RR 195/85R16 16X5.5J-116.5 SILVER DISC(CNE),FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),F RT&RR 7-15-10 5.5FX15-115(49H), FRT&RR7-15-10L 5.5FX15-115(50H),FRT&RR 7R- 15-10 5.5FX15-115(58H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 0707-0811 ●
23 05.809 DRUM; BRK,FRT
(B) 		8-97094-434-2 02 1 0707-0811 ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 0812-0910 ●
23 05.809 DRUM; BRK,FRT
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,INDONESIA EQUIPMENT(S4S),MINI BUS CHASSIS(V4B) (B) 		8-97094-434-2 02 1 0812-0910 ●
23 05.809 DRUM; BRK,FRT
FRT&RR 195/85R16 16X5.5J-116.5(AZX), FRT&RR 195/85R16 16X5.5J-116.5 SILVER DISC(CNE),FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),F RT&RR 7-15-10 5.5FX15-115(49H), FRT&RR7-15-10L 5.5FX15-115(50H),FRT&RR 7R- 15-8 5.5FX15-115(57H),FRT&RR 7R-15-105.5FX15-115(58H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 0812-0910 ●
23 05.809 DRUM; BRK,FRT
(B) 		8-97094-434-2 02 1 0812-0910 ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 0911- ●
23 05.809 DRUM; BRK,FRT
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,INDONESIA EQUIPMENT(S4S),MINI BUS CHASSIS(V4B) (B) 		8-97094-434-2 02 1 0911- ●
23 05.809 DRUM; BRK,FRT
FRT&RR 195/85R16 16X5.5J-116.5(AZX), FRT&RR 195/85R16 16X5.5J-116.5 SILVER DISC(CNE),FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),F RT&RR 7-15-10 5.5FX15-115(49H), FRT&RR7-15-10L 5.5FX15-115(50H),FRT&RR 7R- 15-8 5.5FX15-115(57H),FRT&RR 7R-15-105.5FX15-115(58H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 0911- ●
23 05.809 DRUM; BRK,FRT
(B) 		8-97094-434-2 02 1 0911- ●
23 05.809 DRUM; BRK,FRT
G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) (B) 		8-97036-366-2 02 1 0211-0311 ●
23 05.809 DRUM; BRK,FRT
G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) (B) 		8-97036-366-2 02 1 0312-0501 ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) (B) 		8-97036-366-2 02 1 0312-0501 ●
23 05.809 DRUM; BRK,FRT
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195-85R16 DISC 16-5.5J-116.5(CPG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F- 115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5F X16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> (B) 		8-97036-366-2 02 1 0502-0502 ●
23 05.809 DRUM; BRK,FRT
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195-85R16 DISC 16-5.5J-116.5(CPG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F- 115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5F X16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> (B) 		8-97036-366-2 02 1 0502-0508 ●
23 05.809 DRUM; BRK,FRT
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195-85R16 DISC 16-5.5J-116.5(CPG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F- 115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5F X16-115 T/VLV TR177A(98H) G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) EXC. DISC BRAKE FRT<J52> (B) 		8-97036-366-2 02 1 0502-0508 ●
23 05.809 DRUM; BRK,FRT
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT&RR 7R-16- 10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F- 115 T/VLV TR177A(95H),FRT&RR 7-16-10L5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> (B) 		8-97036-366-2 02 1 0509-0606 ●
23 05.809 DRUM; BRK,FRT
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT&RR 7R-16- 10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F- 115 T/VLV TR177A(95H),FRT&RR 7-16-10L5.5FX16-115 T/VLV TR177A(98H) G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) EXC. DISC BRAKE FRT<J52> (B) 		8-97036-366-2 02 1 0509-0606 ●
23 05.809 DRUM; BRK,FRT
G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52> (B) 		8-97036-366-2 02 1 0607-1104 ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> (B) 		8-97036-366-2 02 1 0607-1104 ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> (B) 		8-97036-366-2 02 1 1105-1405 ●
23 05.809 DRUM; BRK,FRT
G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52>,VIN MODEL YEAR 2012(VZC) (B) 		8-97036-366-2 02 1 1105-1405 ●
23 05.809 DRUM; BRK,FRT
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> (B) 		8-97036-366-2 02 1 1406- ●
23 05.809 DRUM; BRK,FRT
G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52>,VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) ,VIN MODEL YEAR 2015(VZF) (B) 		8-97036-366-2 02 1 1406- ●
28 06.326 SEAL; OIL,FRT HUB
EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-94248-117-1 02 1 0211-0501 ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0211-0501 ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0502- ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
FRT INDEPENDENT SUSPENSION(6PP) 		8-97211-082-0 02 1 0211-0501 ●
29 06.326 DISTANCE PIECE; HUB BRKT
EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) NTN 		8-97234-513-0 02 1 0211-0501 ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0211-0501 ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0502- ● ● ● ● ●

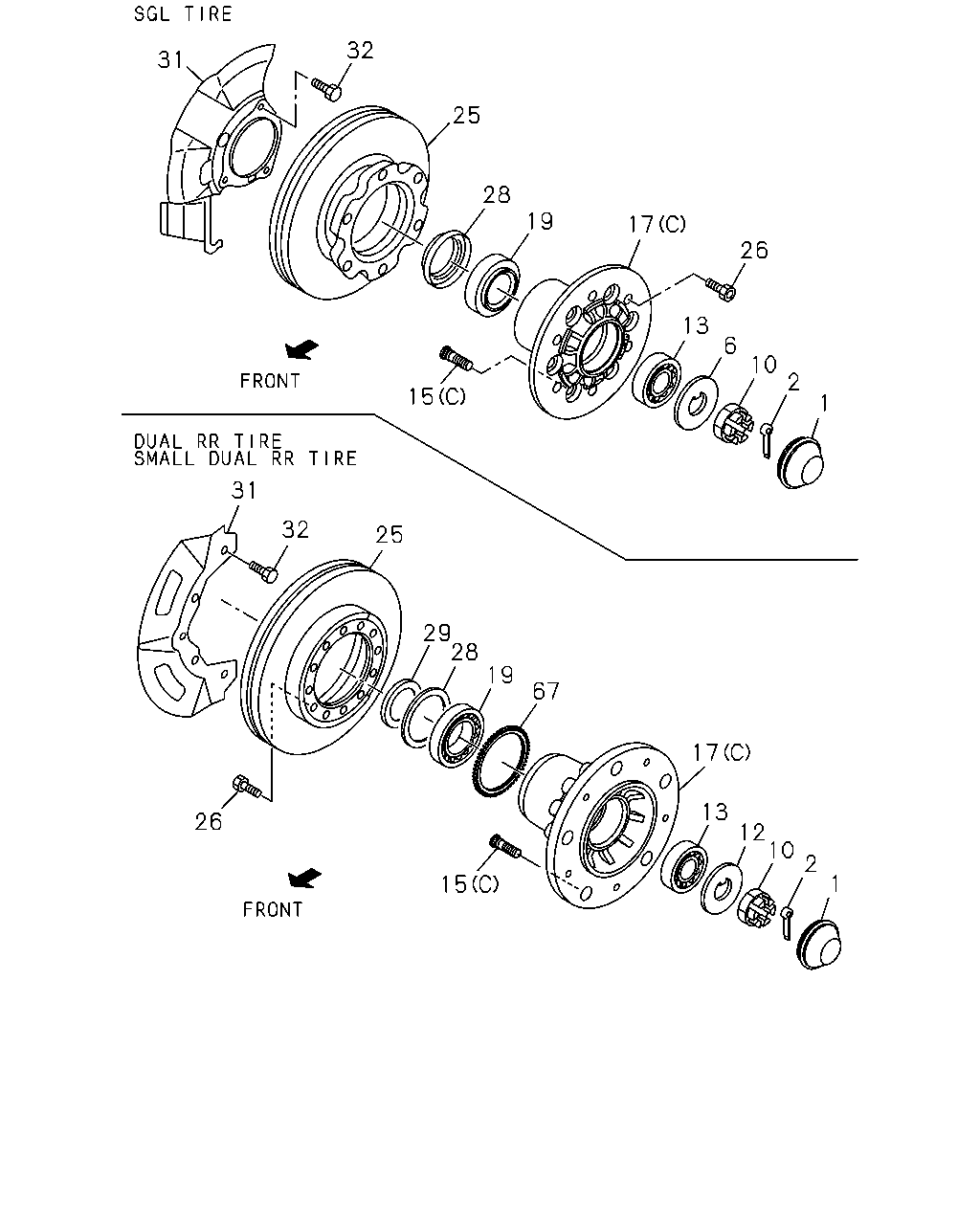

çizim 50766
32 31 25 28 19 17 26 13 6 10 2 15 1 31 32 25 29 28 19 67 17 13 26 12 10 2 1 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0211-0501 ● ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0502-0611 ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0612-1407 ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-98276-604-0 02 1 1408-1511 ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-98331-242-0 02 1 1512- ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0211-0501 ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0502-0606 ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0607- ● ● ● ● ●
6 05.812 WASHER; LK,FRT HUB
FRT INDEPENDENT SUSPENSION(6PP) 06.321 		8-94247-356-1 02 1 0211-0501 ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0211-0501 ● ● ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0502- ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-94247-356-1 02 1 0211-0501 ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0211-0501 ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0502-1502 ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
05.812 		8-98282-435-0 02 1 1503- ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0211-0501 ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0502- ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0211-0501 ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0502- ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0611-1104 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0611-1104 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 1105-1405 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52>,VIN MODEL YEAR 2012(VZC) (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 1105-1405 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 1406- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52>,VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) ,VIN MODEL YEAR 2015(VZF) (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 1406- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0611-1104 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0611-1104 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 1105-1405 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52>,VIN MODEL YEAR 2012(VZC) (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 1105-1405 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 1406- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52>,VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) ,VIN MODEL YEAR 2015(VZF) (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 1406- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) M20X28,M22X57 RH THREAD 		8-97081-584-4 06 1 1105-1404 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. DISC BRAKE FRT<J52> (B) M20X28,M22X57 RH THREAD 		8-97081-584-4 06 1 1405-1405 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. DISC BRAKE FRT<J52> (B) M20X28,M22X57 RH THREAD 		8-97081-584-4 06 1 1406- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-4 06 1 1105-1404 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. DISC BRAKE FRT<J52> (B) M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-4 06 1 1405-1405 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. DISC BRAKE FRT<J52> (B) M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-4 06 1 1406- ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 LH THREAD 		9-42332-605-4 06 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M14X50 LH THREAD 		9-42332-605-4 06 1 0211-0501 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M14X50 LH THREAD 		9-42332-605-5 06 1 0502-1404 ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M14X50 LH THREAD 		9-42332-605-5 06 1 1405- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) M14X50 LH THREAD 		9-42332-605-5 06 1 1405- ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 RH THREAD 		9-42331-605-4 06 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M14X50 RH THREAD 		9-42331-605-4 06 1 0211-0501 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M14X50 RH THREAD 		9-42331-605-5 06 1 0502-1404 ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M14X50 RH THREAD 		9-42331-605-5 06 1 1405- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) M14X50 RH THREAD 		9-42331-605-5 06 1 1405- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) M14X39 LH THREAD 		8-97126-491-0 06 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) (C) M18X46 LH THREAD 		8-97017-042-0 05 1 0502-0504 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 LH THREAD 		8-97017-042-0 05 1 0502-0504 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> (C) M18X46 LH THREAD 		8-97017-042-0 05 1 0505-0605 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 LH THREAD 		8-97017-042-0 05 1 0505-0605 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> (C) M18X46 LH THREAD 		8-98028-533-1 05 1 0606- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 LH THREAD 		8-98028-533-1 05 1 0606- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) M14X39 RH THREAD 		8-97126-490-0 06 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) (C) M18X46 RH THREAD 		8-97017-041-0 05 1 0502-0504 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 RH THREAD 		8-97017-041-0 05 1 0502-0504 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> (C) M18X46 RH THREAD 		8-97017-041-0 05 1 0505-0605 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 RH THREAD 		8-97017-041-0 05 1 0505-0605 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> (C) M18X46 RH THREAD 		8-98028-532-1 05 1 0606- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 RH THREAD 		8-98028-532-1 05 1 0606- ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 0211-0501 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 0502-0606 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 0607-0609 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0611- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT) EXC. DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0611- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.5-6.0TON(RPU) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS(V4B) (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0611- ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 0211-0501 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 0502-0606 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 0607-0609 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0611- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT) EXC. DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0611- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.5-6.0TON(RPU) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS(V4B) (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0611- ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97081-322-0 02 1 1105-1404 ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. DISC BRAKE FRT<J52> (B) 		8-97081-322-0 02 1 1405-1405 ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. DISC BRAKE FRT<J52> (B) 		8-97081-322-0 02 1 1406- ●
17 06.307 HUB; FRT AXLE
EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94420-597-1 02 1 0211-0501 ●
17 06.307 HUB; FRT AXLE
(A) 		8-94420-597-1 02 1 0211-0501 ● ●
17 06.307 HUB; FRT AXLE
(A) 		8-94420-597-1 02 1 0502-1404 ●
17 06.307 HUB; FRT AXLE
(A) 		8-94420-597-1 02 1 1405- ●
17 06.307 HUB; FRT AXLE
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) 		8-94420-597-1 02 1 1405- ●
17 06.307 HUB; FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97090-751-0 02 1 0211-0501 ●
17 06.307 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) (C) 		8-97035-160-0 02 1 0502- ● ●
17 06.307 HUB; FRT AXLE
(C) 		8-97035-160-0 02 1 0502- ●
17 06.307 HUB; FRT AXLE
DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97017-193-0 02 1 0505- ● ●
17 06.307 HUB; FRT AXLE
(B) 		8-94365-459-0 02 1 0211-0501 ● ● ●
17 06.307 HUB; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-94365-459-0 02 1 0502-1104 ● ●
17 06.307 HUB; FRT AXLE
(B) 		8-94365-459-0 02 1 0502-1104 ●
17 06.307 HUB; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,VIN MODEL YEAR 2012(VZC) (B) 		8-94365-459-0 02 1 1105- ● ●
17 06.307 HUB; FRT AXLE
(B) 		8-94365-459-0 02 1 1105- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) NSK 		8-94336-289-0 02 1 0211-0501 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) JTEKT 		8-94248-088-2 02 1 0211-0501 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0211-0501 ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0502-1009 ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) NSK 		9-00093-149-0 02 1 0211-0501 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0211-0501 ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0502-1009 ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS 		1-87610-134-0 02 1 1010- ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97031-007-1 02 1 0211-0501 ●
25 05.809 ROTOR; DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97371-876-0 02 1 0502-0504 ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-97371-876-0 02 1 0502-0504 ●
25 05.809 ROTOR; DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-97371-876-0 02 1 0505-0612 ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-97371-876-0 02 1 0505-0612 ●
25 05.809 ROTOR; DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-97387-229-0 02 1 0701- ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-97387-229-0 02 1 0701- ●
26 05.812 BOLT; BRK,DISC TO HUB
FRT INDEPENDENT SUSPENSION(6PP) 		8-97081-913-0 12 1 0211-0501 ●
26 05.812 BOLT; BRK,DISC TO HUB
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-94474-923-0 24 1 0502-0504 ● ●
26 05.812 BOLT; BRK,DISC TO HUB 8-94474-923-0 24 1 0502-0504 ●
26 05.812 BOLT; BRK,DISC TO HUB
DISC BRAKE FRT<J52> 		8-94474-923-0 24 1 0505- ● ●
26 05.812 BOLT; BRK,DISC TO HUB 8-94474-923-0 24 1 0505- ●
28 06.326 SEAL; OIL,FRT HUB
EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-94248-117-1 02 1 0211-0501 ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0211-0501 ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0502- ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
FRT INDEPENDENT SUSPENSION(6PP) 		8-97211-082-0 02 1 0211-0501 ●
29 06.326 DISTANCE PIECE; HUB BRKT
EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) NTN 		8-97234-513-0 02 1 0211-0501 ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0211-0501 ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0502- ● ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97332-208-0 01 1 0211-0501 ●
31 04.665 COVER; DUST,FRT BRAKE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97332-207-0 01 1 0211-0501 ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97332-209-1 02 1 0502-0504 ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-97332-209-1 02 1 0502-0504 ●
31 04.665 COVER; DUST,FRT BRAKE
DISC BRAKE FRT<J52> 		8-97332-209-1 02 1 0505-0703 ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-97332-209-1 02 1 0505-0703 ●
31 04.665 COVER; DUST,FRT BRAKE
DISC BRAKE FRT<J52> 		8-98037-377-0 02 1 0704- ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-98037-377-0 02 1 0704- ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
FRT INDEPENDENT SUSPENSION(6PP) M8X10 W/LK WASHER 		8-97025-916-0 06 1 0211-0501 ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 08.900 M8X12 FLANGE 		0-28080-812-0 08 1 0502-0504 ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
08.900 M8X12 FLANGE 		0-28080-812-0 08 1 0502-0504 ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
DISC BRAKE FRT<J52> 08.900 M8X12 FLANGE 		0-28080-812-0 08 1 0505-0512 ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
08.900 M8X12 FLANGE 		0-28080-812-0 08 1 0505-0512 ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
DISC BRAKE FRT<J52> 02.343 M8X12 FLANGE 		0-28050-812-0 08 1 0601- ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
02.343 M8X12 FLANGE 		0-28050-812-0 08 1 0601- ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97206-773-0 02 1 0502- ● ●
67 05.811 ROTOR; SENSOR 8-97206-773-0 02 1 0502- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
