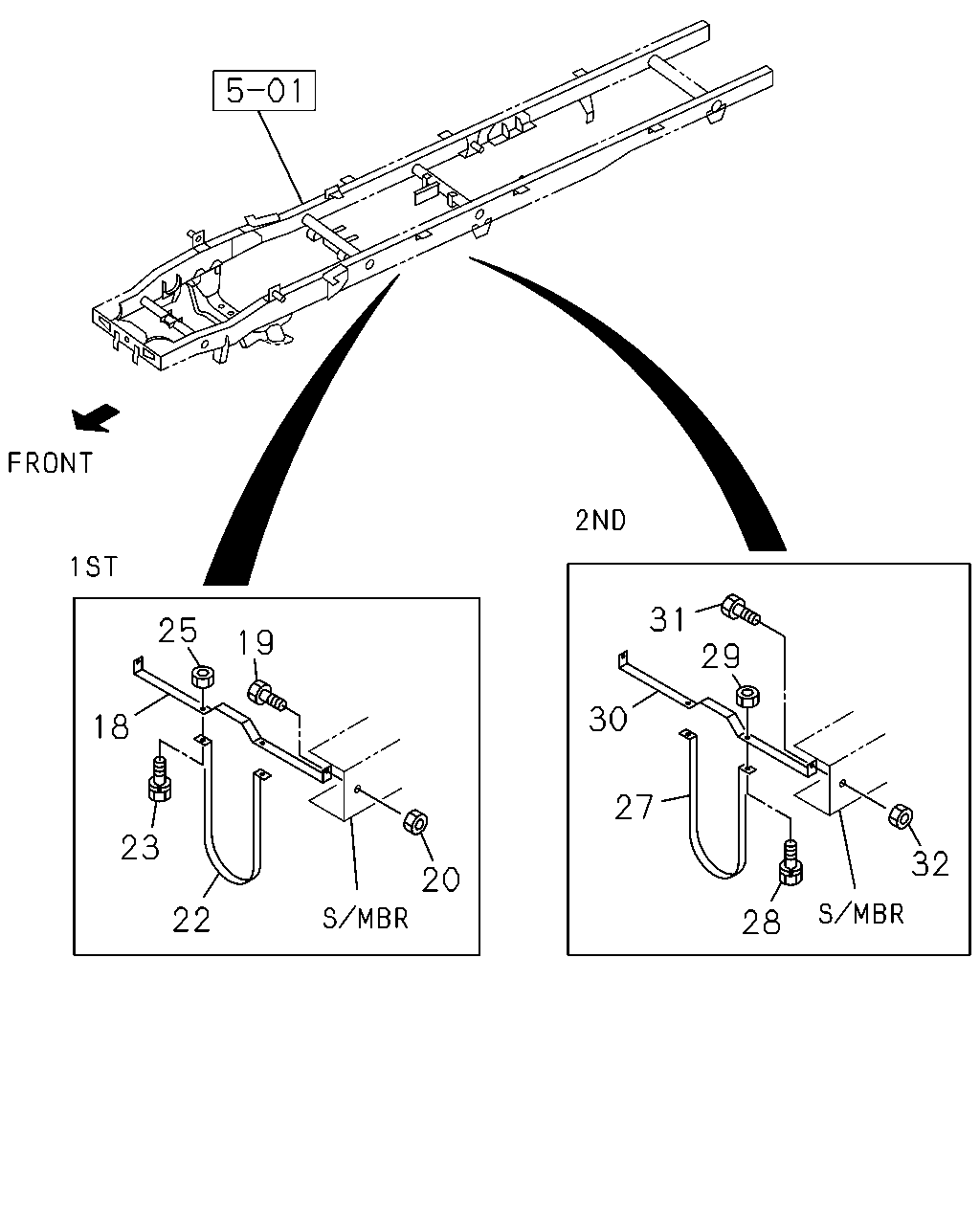

4-02 — PROPELLER SHAFT GUARD (#47683) — 26 parça

31 25 19 29 30 18 27 23 32 20 22 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	05.546 BRACKET; PROP SHAFT GUARD GUARD PROP SHAFT<7NK>	8-97035-289-1	01	1	0211-0501	●
18	05.546 BRACKET; PROP SHAFT GUARD GUARD PROP SHAFT<7NK>	8-97035-290-0	01	1	0211-		●
19	05.546 BOLT; BRKT,PROP SHAFT GUARD GUARD PROP SHAFT<7NK> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0211-0501	●	●
19	05.546 BOLT; BRKT,PROP SHAFT GUARD GUARD PROP SHAFT<7NK> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0502-0512		●
19	05.546 BOLT; BRKT,PROP SHAFT GUARD GUARD PROP SHAFT<7NK> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-		●
20	05.546 NUT; BRKT,PROP SHAFT GUARD GUARD PROP SHAFT<7NK> 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501	●	●
20	05.546 NUT; BRKT,PROP SHAFT GUARD GUARD PROP SHAFT<7NK> 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602		●
20	05.546 NUT; BRKT,PROP SHAFT GUARD GUARD PROP SHAFT<7NK> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-		●
22	05.546 GUARD; PROP SHAFT GUARD PROP SHAFT<7NK> L=220	8-94115-619-0	01	1	0211-0501	●
22	05.546 GUARD; PROP SHAFT GUARD PROP SHAFT<7NK> L=227	8-94116-995-1	01	1	0211-		●
23	05.546 BOLT; GUARD GUARD PROP SHAFT<7NK> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●	●
23	05.546 BOLT; GUARD GUARD PROP SHAFT<7NK> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●
23	05.546 BOLT; GUARD GUARD PROP SHAFT<7NK> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
25	05.546 NUT; GUARD GUARD PROP SHAFT<7NK> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●	●
25	05.546 NUT; GUARD GUARD PROP SHAFT<7NK> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●
25	05.546 NUT; GUARD GUARD PROP SHAFT<7NK> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●
27	05.546 GUARD; PROP SHAFT,2ND GUARD PROP SHAFT<7NK> L=227	8-94116-995-1	01	1	0211-		●
28	05.546 BOLT; GUARD,PROP SHAFT,2ND GUARD PROP SHAFT<7NK> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●
28	05.546 BOLT; GUARD,PROP SHAFT,2ND GUARD PROP SHAFT<7NK> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
29	05.546 NUT; GUARD,PROP SHAFT,2ND GUARD PROP SHAFT<7NK> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602		●
29	05.546 NUT; GUARD,PROP SHAFT,2ND GUARD PROP SHAFT<7NK> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●
30	05.546 BRACKET; PROP SHAFT,2ND GUARD PROP SHAFT<7NK>	8-97035-290-0	01	1	0211-		●
31	05.546 BOLT; BRKT,PROP SHAFT,2ND,GUARD GUARD PROP SHAFT<7NK> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0211-0512		●
31	05.546 BOLT; BRKT,PROP SHAFT,2ND,GUARD GUARD PROP SHAFT<7NK> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-		●
32	05.546 NUT; BRKT,PROP SHAFT,2ND,GUARD GUARD PROP SHAFT<7NK> 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0602		●
32	05.546 NUT; BRKT,PROP SHAFT,2ND,GUARD GUARD PROP SHAFT<7NK> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-		●
