◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25C - SPEEDOMETER DRIVEN GEAR ▶
2-25C — SPEEDOMETER DRIVEN GEAR (#4768) — 25 parça

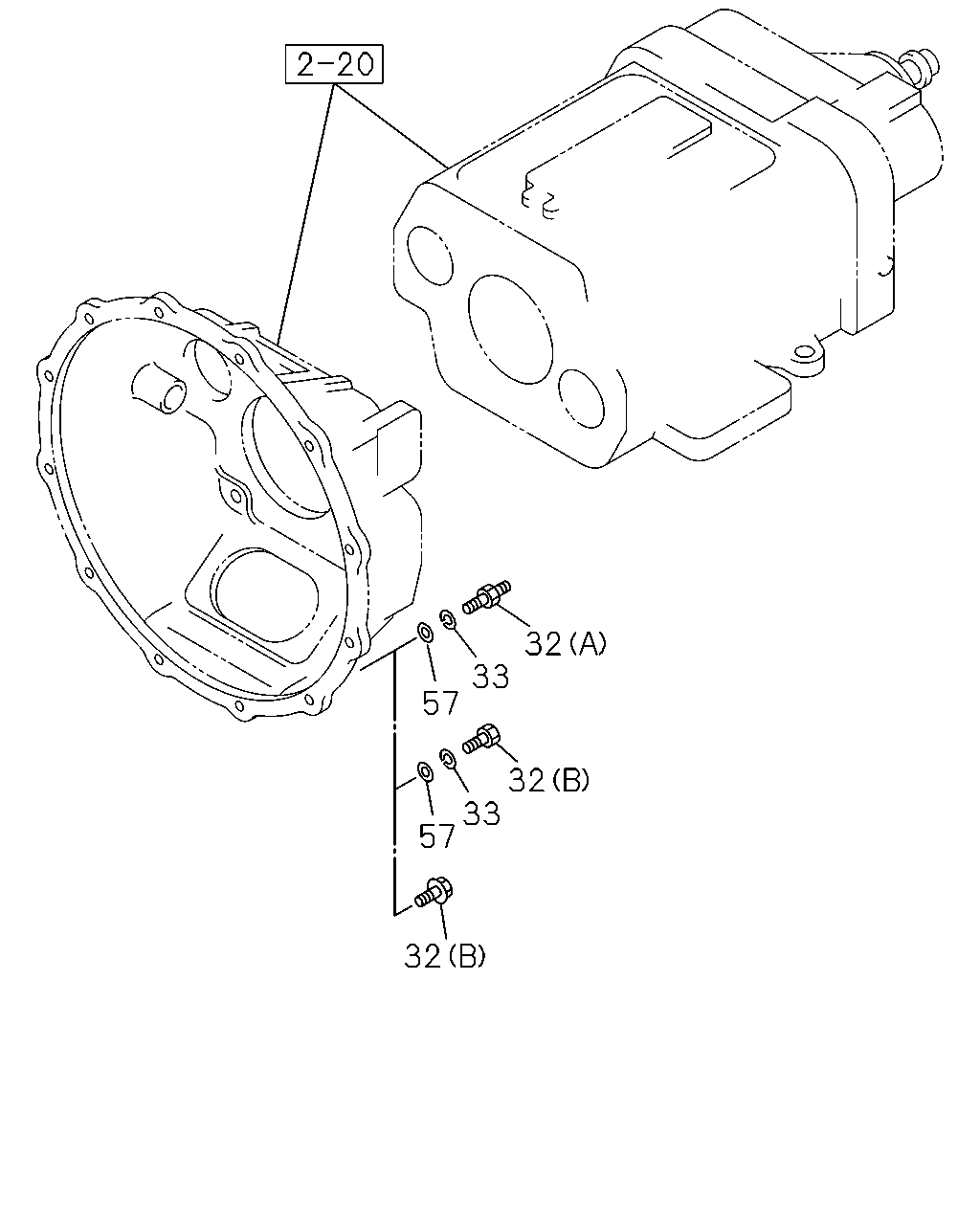

çizim 7750
32 33 57 32 33 57 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
32 BOLT; CLU HSG TO FLYWHEEL HSG
SHORT CHASSIS&RHD(EXZ5MC) (A) M12X35 FLANGE 		0-28781-235-0 06 1 9607-9711 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X35 FLANGE 		0-28781-235-0 08 1 9905- ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
SHORT CHASSIS&RHD(EXZ5MC) (A) M12X35 FLANGE 		0-28781-235-0 08 1 9712-9802 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X35 FLANGE 		0-28781-235-0 08 1 9803-9904 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M12X35 W/LK&PL WASHER 		0-50151-235-0 07 1 9603-9606 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M12X35 FLANGE 		0-28781-235-0 07 1 9607-9607 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M12X45 		0-50151-245-0 03 1 9603-9606 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M12X40 FLANGE 		0-28181-240-0 03 1 9607-9802 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M12X40 FLANGE 		0-28181-240-0 03 1 9803-9904 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M12X40 FLANGE 		0-28181-240-0 03 1 9905- ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X16,M12X35 L=59 		1-09029-031-1 02 1 9603-9606 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X16,M12X35 L=59 		1-09029-031-1 03 1 9607-9711 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X16,M12X35 L=59 		1-09029-031-1 01 1 9712-9802 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X16,M12X35 L=59 		1-09029-031-1 01 1 9803-9904 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X16,M12X35 L=59 		1-09029-031-1 01 1 9905- ● ● ● ●
33 WASHER; LK,CLU HSG
ID=12.2 		9-09150-612-0 02 1 9603-9606 ●
33 WASHER; LK,CLU HSG
ID=12.2 		9-09150-612-0 03 1 9607-9711 ●
33 WASHER; LK,CLU HSG
ID=12.2 		9-09150-612-0 01 1 9712-9802 ●
33 WASHER; LK,CLU HSG
ID=12.2 		9-09150-612-0 01 1 9803-9904 ● ●
33 WASHER; LK,CLU HSG
ID=12.2 		9-09150-612-0 01 1 9905- ● ● ● ●
57 WASHER; PL,CLU HSG
ID=12.5 		9-09164-512-0 02 1 9603-9606 ●
57 WASHER; PL,CLU HSG
ID=12.5 		9-09164-512-0 03 1 9607-9711 ●
57 WASHER; PL,CLU HSG
ID=12.5 		9-09164-512-0 01 1 9712-9802 ●
57 WASHER; PL,CLU HSG
ID=12.5 		9-09164-512-0 01 1 9803-9904 ● ●
57 WASHER; PL,CLU HSG
ID=12.5 		9-09164-512-0 01 1 9905- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
