◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#47678) — 1125 parça

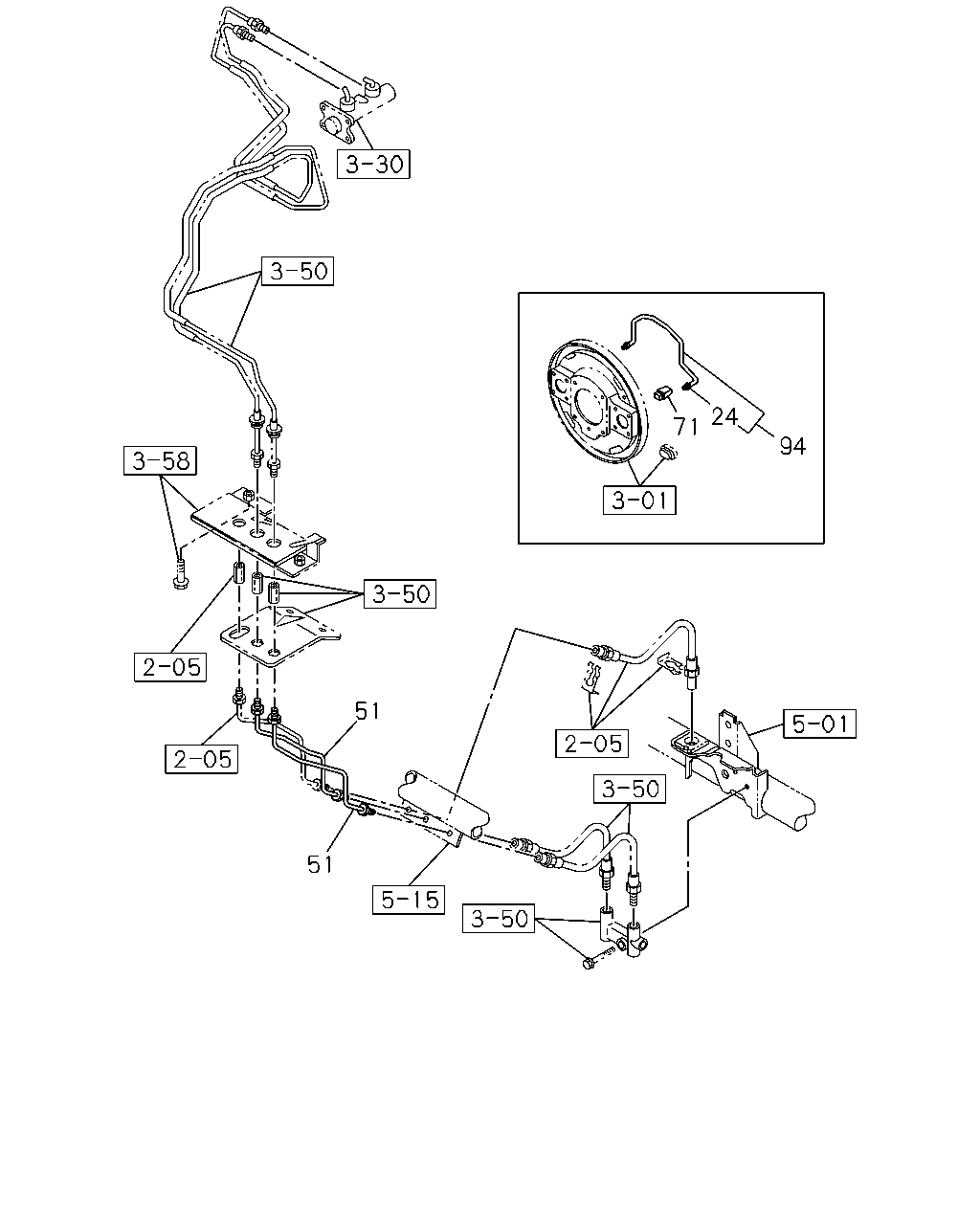

çizim 10089
24 71 94 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
24 04.686 NUT; UNION,OIL PIPE
EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 08.963 		9-09217-625-0 02 1 0211-0501 ●
24 04.686 NUT; UNION,OIL PIPE
08.963 		9-09217-625-0 02 1 0211-0501 ● ● ●
24 04.686 NUT; UNION,OIL PIPE
G.V.W. 5.0-5.5TON(RPT) 08.963 		9-09217-625-0 02 1 0211-0501 ● ●
24 04.686 NUT; UNION,OIL PIPE
G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S) 08.963 		9-09217-625-0 02 1 0211-0501 ● ●
24 04.686 NUT; UNION,OIL PIPE
08.963 		9-09217-625-0 02 1 0502-0607 ● ●
24 04.686 NUT; UNION,OIL PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 08.963 		9-09217-625-0 02 1 0502-0607 ● ●
24 04.686 NUT; UNION,OIL PIPE 0-92107-605-0 02 1 0608- ● ●
24 04.686 NUT; UNION,OIL PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		0-92107-605-0 02 1 0608- ● ●
51 04.685 PIPE; BRK 8-97035-978-0 02 1 0211-0501 ● ● ● ● ● ●
51 04.685 PIPE; BRK 8-97035-978-0 02 1 0502- ● ● ● ● ●
71 04.686 GROMMET; OIL PIPE
EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 05.002 		9-09756-034-0 02 1 0211-0311 ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 0211-0311 ● ● ● ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 05.002 		9-09756-034-0 02 1 0211-0311 ●
71 04.686 GROMMET; OIL PIPE
EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 05.002 		9-09756-034-0 02 1 0312-0501 ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 0312-0501 ● ● ● ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 05.002 		9-09756-034-0 02 1 0312-0501 ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 5.5-6.0TON(RPU) EXC. ENGINE POWER N-SPEC(7QV) 05.002 		9-09756-034-0 02 1 0312-0501 ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS(V4B) 05.002 		9-09756-034-0 02 1 0312-0501 ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S) 05.002 		9-09756-034-0 02 1 0312-0501 ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 0502-0502 ● ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 		9-09756-034-0 02 1 0502-0502 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195-85R16 DISC 16-5.5J-116.5(CPG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F- 115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5F X16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,MINI BUS CHASSIS(V4B) 05.002 		9-09756-034-0 02 1 0502-0502 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195-85R16 DISC 16-5.5J-116.5(CPG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F- 115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5F X16-115 T/VLV TR177A(98H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,INDONESIA EQUIPMENT(S4S),MINI BUS CHASSIS(V4B) 05.002 		9-09756-034-0 02 1 0502-0502 ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 195/85R16 16X5.5J-116.5(AZX), FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5 .5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 		9-09756-034-0 02 1 0502-0502 ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25 (22H),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) 05.002 		9-09756-034-0 02 1 0502-0505 ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 195/85R16 16X5.5J-116.5(AZX), FRT&RR TIRE 195-85R16 DISC 16-5.5J-116 .5(CPG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),FR T&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5. 5FX16-115 T/VLV TR177A(98H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 		9-09756-034-0 02 1 0502-0505 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195-85R16 DISC 16-5.5J-116.5(CPG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F- 115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5F X16-115 T/VLV TR177A(98H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,INDONESIA EQUIPMENT(S4S),MINI BUS CHASSIS(V4B) 05.002 		9-09756-034-0 02 1 0502-0505 ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 195/85R16 16X5.5J-116.5(AZX), FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5 .5FX15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 		9-09756-034-0 02 1 0502-0505 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195-85R16 DISC 16-5.5J-116.5(CPG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F- 115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5F X16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,MINI BUS CHASSIS(V4B) 05.002 		9-09756-034-0 02 1 0502-0505 ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 195/85R16 16X5.5J-116.5(AZX), FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15 -8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX 15-115(50H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) 05.002 		9-09756-034-0 02 1 0502-0505 ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 0506-0508 ● ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 		9-09756-034-0 02 1 0506-0508 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195-85R16 DISC 16-5.5J-116.5(CPG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F- 115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5F X16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,MINI BUS CHASSIS(V4B) 05.002 		9-09756-034-0 02 1 0506-0508 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195-85R16 DISC 16-5.5J-116.5(CPG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F- 115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5F X16-115 T/VLV TR177A(98H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,INDONESIA EQUIPMENT(S4S),MINI BUS CHASSIS(V4B) 05.002 		9-09756-034-0 02 1 0506-0508 ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 195/85R16 16X5.5J-116.5(AZX), FRT&RR 195/85R16 16X5.5J-116.5 SILVER DISC(CNE),FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),F RT&RR 7-15-10 5.5FX15-115(49H), FRT&RR7-15-10L 5.5FX15-115(50H),FRT&RR 7R- 15-10 5.5FX15-115(58H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 		9-09756-034-0 02 1 0506-0508 ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 0509-0606 ● ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 		9-09756-034-0 02 1 0509-0606 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT&RR 7R-16- 10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F- 115 T/VLV TR177A(95H),FRT&RR 7-16-10L5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,MINI BUS CHASSIS(V4B) 05.002 		9-09756-034-0 02 1 0509-0606 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT&RR 7R-16- 10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F- 115 T/VLV TR177A(95H),FRT&RR 7-16-10L5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,INDONESIA EQUIPMENT(S4S),MINI BUS CHASSIS(V4B) 05.002 		9-09756-034-0 02 1 0509-0606 ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 195/85R16 16X5.5J-116.5(AZX), FRT&RR 195/85R16 16X5.5J-116.5 SILVER DISC(CNE),FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),F RT&RR 7-15-10 5.5FX15-115(49H), FRT&RR7-15-10L 5.5FX15-115(50H),FRT&RR 7R- 15-10 5.5FX15-115(58H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 		9-09756-034-0 02 1 0509-0606 ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 0607-0706 ● ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 		9-09756-034-0 02 1 0607-0706 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,MINI BUS CHASSIS(V4B) 05.002 		9-09756-034-0 02 1 0607-0706 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,INDONESIA EQUIPMENT(S4S),MINI BUS CHASSIS(V4B) 05.002 		9-09756-034-0 02 1 0607-0706 ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 195/85R16 16X5.5J-116.5(AZX), FRT&RR 195/85R16 16X5.5J-116.5 SILVER DISC(CNE),FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),F RT&RR 7-15-10 5.5FX15-115(49H), FRT&RR7-15-10L 5.5FX15-115(50H),FRT&RR 7R- 15-10 5.5FX15-115(58H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 		9-09756-034-0 02 1 0607-0706 ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 0707-0707 ● ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 		9-09756-034-0 02 1 0707-0707 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT&RR 7R-16- 10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F- 115 T/VLV TR177A(95H),FRT&RR 7-16-10L5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,MINI BUS CHASSIS(V4B) 05.002 		9-09756-034-0 02 1 0707-0707 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT&RR 7R-16- 10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F- 115 T/VLV TR177A(95H),FRT&RR 7-16-10L5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,INDONESIA EQUIPMENT(S4S),MINI BUS CHASSIS(V4B) 05.002 		9-09756-034-0 02 1 0707-0707 ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 195/85R16 16X5.5J-116.5(AZX), FRT&RR 195/85R16 16X5.5J-116.5 SILVER DISC(CNE),FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),F RT&RR 7-15-10 5.5FX15-115(49H), FRT&RR7-15-10L 5.5FX15-115(50H),FRT&RR 7R- 15-10 5.5FX15-115(58H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 		9-09756-034-0 02 1 0707-0707 ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 0707-0811 ● ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 		9-09756-034-0 02 1 0707-0811 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,MINI BUS CHASSIS(V4B) 05.002 		9-09756-034-0 02 1 0707-0811 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,INDONESIA EQUIPMENT(S4S),MINI BUS CHASSIS(V4B) 05.002 		9-09756-034-0 02 1 0707-0811 ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 195/85R16 16X5.5J-116.5(AZX), FRT&RR 195/85R16 16X5.5J-116.5 SILVER DISC(CNE),FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),F RT&RR 7-15-10 5.5FX15-115(49H), FRT&RR7-15-10L 5.5FX15-115(50H),FRT&RR 7R- 15-10 5.5FX15-115(58H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 		9-09756-034-0 02 1 0707-0811 ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 0812-0910 ● ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 		9-09756-034-0 02 1 0812-0910 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,MINI BUS CHASSIS(V4B) 05.002 		9-09756-034-0 02 1 0812-0910 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,INDONESIA EQUIPMENT(S4S),MINI BUS CHASSIS(V4B) 05.002 		9-09756-034-0 02 1 0812-0910 ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 195/85R16 16X5.5J-116.5(AZX), FRT&RR 195/85R16 16X5.5J-116.5 SILVER DISC(CNE),FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),F RT&RR 7-15-10 5.5FX15-115(49H), FRT&RR7-15-10L 5.5FX15-115(50H),FRT&RR 7R- 15-8 5.5FX15-115(57H),FRT&RR 7R-15-105.5FX15-115(58H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 		9-09756-034-0 02 1 0812-0910 ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 0911-1404 ● ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 		9-09756-034-0 02 1 0911-1404 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,MINI BUS CHASSIS(V4B) 05.002 		9-09756-034-0 02 1 0911-1404 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,INDONESIA EQUIPMENT(S4S),MINI BUS CHASSIS(V4B) 05.002 		9-09756-034-0 02 1 0911-1404 ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 195/85R16 16X5.5J-116.5(AZX), FRT&RR 195/85R16 16X5.5J-116.5 SILVER DISC(CNE),FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),F RT&RR 7-15-10 5.5FX15-115(49H), FRT&RR7-15-10L 5.5FX15-115(50H),FRT&RR 7R- 15-8 5.5FX15-115(57H),FRT&RR 7R-15-105.5FX15-115(58H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 		9-09756-034-0 02 1 0911-1404 ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 1405- ● ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 		9-09756-034-0 02 1 1405- ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,MINI BUS CHASSIS(V4B) 05.002 		9-09756-034-0 02 1 1405- ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,INDONESIA EQUIPMENT(S4S),MINI BUS CHASSIS(V4B) 05.002 		9-09756-034-0 02 1 1405- ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 195/85R16 16X5.5J-116.5(AZX), FRT&RR 195/85R16 16X5.5J-116.5 SILVER DISC(CNE),FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),F RT&RR 7-15-10 5.5FX15-115(49H), FRT&RR7-15-10L 5.5FX15-115(50H),FRT&RR 7R- 15-8 5.5FX15-115(57H),FRT&RR 7R-15-105.5FX15-115(58H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 		9-09756-034-0 02 1 1405- ●
71 04.686 GROMMET; OIL PIPE
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5. 5F-15-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT &RR 5.5FX15-25(22H),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 		9-09756-034-0 02 1 1405- ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) 05.002 		8-97044-742-1 02 1 0211-0311 ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 05.002 		8-97044-742-1 02 1 0312-0501 ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) 05.002 		8-97044-742-1 02 1 0312-0501 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195-85R16 DISC 16-5.5J-116.5(CPG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F- 115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5F X16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> 05.002 		8-97044-742-1 02 1 0502-0502 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195-85R16 DISC 16-5.5J-116.5(CPG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F- 115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5F X16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> 05.002 		8-97044-742-1 02 1 0502-0508 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195-85R16 DISC 16-5.5J-116.5(CPG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F- 115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5F X16-115 T/VLV TR177A(98H) G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) EXC. DISC BRAKE FRT<J52> 05.002 		8-97044-742-1 02 1 0502-0508 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT&RR 7R-16- 10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F- 115 T/VLV TR177A(95H),FRT&RR 7-16-10L5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> 05.002 		8-97044-742-1 02 1 0509-0606 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT&RR 7R-16- 10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F- 115 T/VLV TR177A(95H),FRT&RR 7-16-10L5.5FX16-115 T/VLV TR177A(98H) G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) EXC. DISC BRAKE FRT<J52> 05.002 		8-97044-742-1 02 1 0509-0606 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> 05.002 		8-97044-742-1 02 1 0607-0706 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) EXC. DISC BRAKE FRT<J52> 05.002 		8-97044-742-1 02 1 0607-0706 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT&RR 7R-16- 10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F- 115 T/VLV TR177A(95H),FRT&RR 7-16-10L5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> 05.002 		8-97044-742-1 02 1 0707-0707 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT&RR 7R-16- 10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F- 115 T/VLV TR177A(95H),FRT&RR 7-16-10L5.5FX16-115 T/VLV TR177A(98H) G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) EXC. DISC BRAKE FRT<J52> 05.002 		8-97044-742-1 02 1 0707-0707 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> 05.002 		8-97044-742-1 02 1 0707-0910 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) EXC. DISC BRAKE FRT<J52> 05.002 		8-97044-742-1 02 1 0707-0910 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> 05.002 		8-97044-742-1 02 1 0911-1104 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) EXC. DISC BRAKE FRT<J52> 05.002 		8-97044-742-1 02 1 0911-1104 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> 05.002 		8-97044-742-1 02 1 1105-1404 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) EXC. DISC BRAKE FRT<J52>,VIN MODEL YEAR 2012(VZC) 05.002 		8-97044-742-1 02 1 1105-1404 ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2012(VZC) EXC. DISC BRAKE FRT<J52> 05.002 		8-97044-742-1 02 1 1105-1404 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> 05.002 		8-97044-742-1 02 1 1405-1405 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) EXC. DISC BRAKE FRT<J52>,VIN MODEL YEAR 2012(VZC) 05.002 		8-97044-742-1 02 1 1405-1405 ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. DISC BRAKE FRT<J52> 05.002 		8-97044-742-1 02 1 1405-1405 ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) EXC. DISC BRAKE FRT<J52> 05.002 		8-97044-742-1 02 1 1406- ●
71 04.686 GROMMET; OIL PIPE
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16 -115(AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),FRT& RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) EXC. DISC BRAKE FRT<J52>,VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) ,VIN MODEL YEAR 2015(VZF) 05.002 		8-97044-742-1 02 1 1406- ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. DISC BRAKE FRT<J52> 05.002 		8-97044-742-1 02 1 1406- ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-223-0 01 1 0211-0501 ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 0211-0501 ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 5.0-5.5TON(RPT) 		8-97019-223-0 01 1 0211-0501 ● ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S) 		8-97019-223-0 01 1 0211-0501 ● ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 0502- ● ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97019-223-0 01 1 0502- ● ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-222-0 01 1 0211-0501 ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 0211-0501 ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 5.0-5.5TON(RPT) 		8-97019-222-0 01 1 0211-0501 ● ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 5.5-6.0TON(RPU) ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S) 		8-97019-222-0 01 1 0211-0501 ● ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 0502- ● ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97019-222-0 01 1 0502- ● ●
çizim 10678
13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 04.685 PIPE; OIL,UNION TO UNION
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> 		8-98167-275-0 01 1 1008- ●
13 04.685 PIPE; OIL,UNION TO UNION 8-98167-275-0 01 1 1008- ●
13 04.685 PIPE; OIL,UNION TO UNION
4JH1 ENG(RJX),4HF1-S ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97325-933-0 01 1 0211-0501 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HF1-N ENG(RJZ) REAR AXLE HEAVY DUTY 292MM(G73) 		8-97325-933-0 01 1 0502-0606 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HF1-N ENG(RJZ) REAR AXLE HEAVY DUTY 292MM(G73) 		8-97325-933-0 01 1 0607-0609 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HF1-N ENG(RJZ) REAR AXLE HEAVY DUTY 292MM(G73) 		8-97325-933-0 01 1 0607-0609 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HF1-N ENG(RJZ) REAR AXLE HEAVY DUTY 292MM(G73) 		8-97325-933-0 01 1 0610-0612 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) REAR AXLE HEAVY DUTY 292MM(G73) 		8-97325-933-0 01 1 0610-0612 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HF1-N ENG(RJZ) REAR AXLE HEAVY DUTY 292MM(G73) 		8-97325-933-0 01 1 0701-1007 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HF1-N ENG(RJZ) REAR AXLE HEAVY DUTY 292MM(G73) 		8-98167-274-0 01 1 1008- ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1 ENG(RLF) REAR AXLE STANDARD 244MM(R39) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97300-213-0 01 1 0211-0501 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1 ENG(RLF) REAR AXLE STANDARD 244MM(R39) 		8-97300-213-0 01 1 0502-0612 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 		8-97300-213-0 01 1 0701- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 		8-97325-936-0 01 1 0211-0501 ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME-KICK UP<7EW> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> 		8-97325-936-0 01 1 0502- ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>, CHARGEAIR COOLER<6PL>,FRAME-KICK UP<7EW> 		8-97166-500-0 01 1 0211-0501 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> 		8-97166-500-0 01 1 0502- ●
13 04.685 PIPE; OIL,UNION TO UNION
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> 		8-97325-934-0 01 1 0211-0501 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> 		8-97325-934-0 01 1 0502- ●
13 04.685 PIPE; OIL,UNION TO UNION
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97325-935-0 01 1 0211-0501 ●
13 04.685 PIPE; OIL,UNION TO UNION 8-97325-935-0 01 1 0211-0501 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> 		8-97325-935-0 01 1 0502-0609 ●
13 04.685 PIPE; OIL,UNION TO UNION 8-97325-935-0 01 1 0502-0609 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HG1ENG(RJH),4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> 		8-97325-935-0 01 1 0610-1007 ●
13 04.685 PIPE; OIL,UNION TO UNION 8-97325-935-0 01 1 0610-1007 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> 		8-97325-935-0 01 1 1008- ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1 ENG(RLF) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97178-897-0 01 1 0211-0501 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> 		8-97178-897-0 01 1 0502-0712 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> 		8-97178-897-0 01 1 0801- ●
çizim 11809
48 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
46 04.685 PIPE; BRK,JOINT TO VLV
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> FRONT 		8-97325-937-1 01 1 0211-0501 ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> FRONT 		8-97325-937-1 01 1 0211-0501 ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> FRONT 		8-97325-938-0 01 1 0211-0501 ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> FRONT 		8-97325-938-0 01 1 0502- ●
46 04.685 PIPE; BRK,JOINT TO VLV
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> FRONT 		8-97325-939-0 01 1 0211-0501 ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT 		8-97325-939-0 01 1 0502- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> REAR 		8-97325-943-1 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> REAR 		8-97325-943-1 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
REAR 		8-97325-943-1 01 1 0502- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> REAR 		8-97325-944-0 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> REAR 		8-97325-944-0 01 1 0502- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> REAR 		8-97325-945-0 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) BRK WHL LK CONT LSPV<6PH> REAR 		8-97325-945-0 01 1 0502- ●

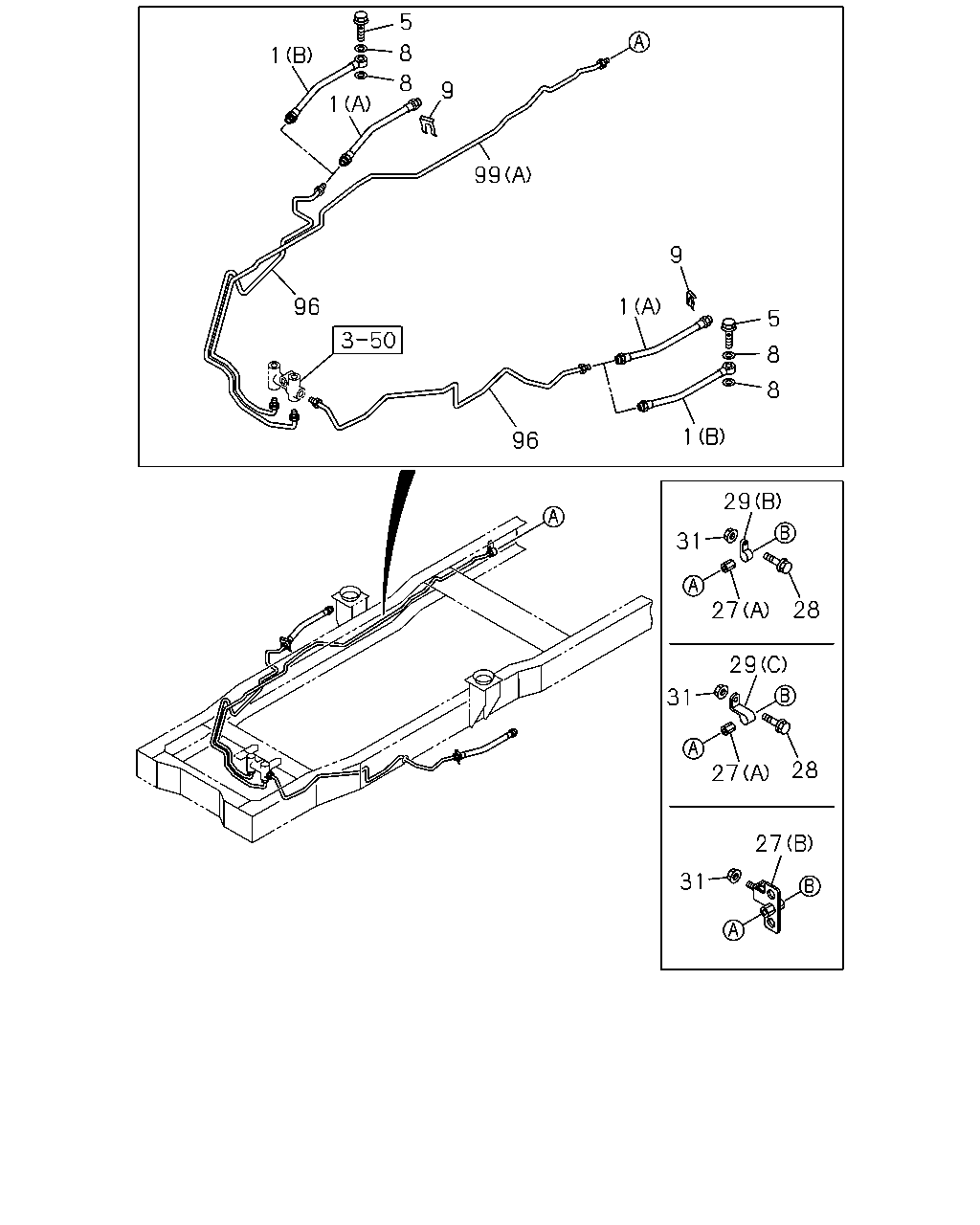

çizim 50722
5 8 1 8 9 1 99 9 1 96 5 8 8 1 96 29 31 28 27 29 31 28 27 27 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-064-0 02 1 0211-0501 ●
1 04.680 HOSE; FLEX,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-97316-734-0 02 1 0502-0502 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97316-734-0 02 1 0502-0502 ●
1 04.680 HOSE; FLEX,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-97366-925-0 02 1 0502-0504 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97366-925-0 02 1 0502-0504 ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> (B) 		8-97366-925-0 02 1 0505-0606 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97366-925-0 02 1 0505-0606 ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 5.0-5.5TON(RPT) DISC BRAKE FRT<J52> (B) 		8-97366-925-0 02 1 0607-0706 ● ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97366-925-0 02 1 0607-0706 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97366-925-0 02 1 0607-0706 ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> (B) 		8-97366-925-0 02 1 0707-0707 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97366-925-0 02 1 0707-0707 ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 5.0-5.5TON(RPT) DISC BRAKE FRT<J52> (B) 		8-97366-925-1 02 1 0707- ● ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 4.0-4.5TON(RPR) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-97366-925-1 02 1 0707- ● ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97366-925-1 02 1 0707- ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) L=310 		8-97035-063-0 02 1 0211-0501 ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-0 02 1 0211-0501 ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-1 02 1 0502-0606 ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (A) L=310 		8-97035-063-1 02 1 0502-0606 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-1 02 1 0607-0706 ● ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) L=310 		8-97035-063-1 02 1 0607-0706 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-1 02 1 0707-0707 ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (A) L=310 		8-97035-063-1 02 1 0707-0707 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-1 02 1 0707-1404 ● ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) L=310 		8-97035-063-1 02 1 0707-1404 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-1 02 1 1405- ● ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU), G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) L=310 		8-97035-063-1 02 1 1405- ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 04.665 M10X22 		5-09675-017-0 02 1 0211-0410 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) M10X22 		8-97381-454-0 02 1 0411-0501 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> M10X22 		8-97381-454-0 02 1 0502-0504 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-97381-454-0 02 1 0502-0504 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> M10X22 		8-97381-454-0 02 1 0505-0606 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-97381-454-0 02 1 0505-0606 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT) DISC BRAKE FRT<J52> M10X22 		8-97381-454-0 02 1 0607-0610 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M10X22 		8-97381-454-0 02 1 0607-0610 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-97381-454-0 02 1 0607-0610 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT) DISC BRAKE FRT<J52> M10X22 		8-98014-005-0 02 1 0611-0706 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M10X22 		8-98014-005-0 02 1 0611-0706 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 0611-0706 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> M10X22 		8-98014-005-0 02 1 0707-0707 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 0707-0707 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT) DISC BRAKE FRT<J52> M10X22 		8-98014-005-0 02 1 0707- ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
G.V.W. 4.0-4.5TON(RPR) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> M10X22 		8-98014-005-0 02 1 0707- ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 0707- ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0211-0501 ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0502-0504 ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0502-0504 ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0505-0606 ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0505-0606 ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT) DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0607-0706 ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0607-0706 ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0607-0706 ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0707-0707 ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0707-0707 ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT) DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0707- ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
G.V.W. 4.0-4.5TON(RPR) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0707- ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0707- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0211-0501 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.681 		8-94137-662-0 02 1 0211-0501 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0211-0501 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0502-0606 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0502-0606 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. DISC BRAKE FRT<J52> 04.681 		8-94137-662-0 02 1 0502-0606 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0607-0610 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0607-0610 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 04.681 		8-94137-662-0 02 1 0607-0610 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611-0706 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611-0706 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97360-054-0 02 1 0611-0706 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0707-0707 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0707-0707 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. DISC BRAKE FRT<J52> 		8-97360-054-0 02 1 0707-0707 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0707-1404 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0707-1404 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97360-054-0 02 1 0707-1404 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1405- ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1405- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU), G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97360-054-0 02 1 1405- ● ●
27 04.686 UNION; BRK PIPE
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> (B) 		8-97287-444-0 01 1 0211-0501 ● ● ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 0502-0609 ● ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HG1ENG(RJH),4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 0610-1007 ● ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 1008- ● ●
27 04.686 UNION; BRK PIPE
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (C) 		8-97259-943-0 01 1 0211-0501 ● ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> (C) 		8-97259-943-1 01 1 0502- ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0211-0501 ● ● ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0502-0607 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0608-0712 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0801- ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0801- ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ● ● ● ●
27 04.686 UNION; BRK PIPE
08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0607 ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0607 ● ● ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0607 ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0609 ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0609 ● ● ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0609 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0610-0712 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0610-0712 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0610-0712 ● ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0610-0712 ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 01 1 0610-0712 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ● ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> (E) 		8-97314-636-0 01 1 0502- ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97314-636-0 01 1 0502- ●
27 04.686 UNION; BRK PIPE
(E) 		8-97314-636-0 01 1 0502- ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97257-650-1 01 1 0502- ● ●
27 04.686 UNION; BRK PIPE
(D) 		8-97257-650-1 01 1 0502- ●
28 04.686 BOLT; UNION CLIP
4JB1 ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ● ● ● ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ●
28 04.686 BOLT; UNION CLIP
4JB1 ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ● ● ●
28 04.686 BOLT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ●
28 04.686 BOLT; UNION CLIP
4JB1 ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-0609 ● ● ●
28 04.686 BOLT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-0609 ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-0609 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0610-0712 ●
28 04.686 BOLT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0610-0712 ● ●
28 04.686 BOLT; UNION CLIP
4JB1 ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0610-0712 ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0610-0712 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0801-0911 ● ●
28 04.686 BOLT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0801-0911 ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0801-0911 ●
28 04.686 BOLT; UNION CLIP
4JB1 ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0801-0911 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ●
28 04.686 BOLT; UNION CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		9-09535-533-0 01 1 0211-0501 ● ● ● ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=16X2 L=20 		9-09535-533-0 01 1 0502-0606 ● ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=16X2 L=20 		0-95325-533-0 01 1 0607-0712 ● ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=16X2 L=20 		0-95325-533-0 01 1 0801- ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=16X2 L=20 		0-95325-533-0 01 1 0801- ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0211-0501 ● ● ● ●
29 04.686 CLIP; UNION
03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0211-0501 ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0502-0606 ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0502-0606 ● ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0607-0609 ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0607-0609 ● ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0610-0712 ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0610-0712 ● ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0801-0910 ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0801-0910 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0801-0910 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0912- ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0912- ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0912- ●
29 04.686 CLIP; UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 02.343 (C) ID=16 H=24 L=20 		9-09527-015-0 01 1 0211-0501 ●
29 04.686 CLIP; UNION
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (C) ID=16 H=24 L=20 		9-09527-015-0 01 1 0502-0606 ● ●
29 04.686 CLIP; UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 02.343 (C) ID=16 H=24 L=20 		9-09527-015-0 01 1 0502-0606 ●
29 04.686 CLIP; UNION
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (C) ID=16 H=24 L=20 		0-95207-315-0 01 1 0607- ● ●
29 04.686 CLIP; UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (C) ID=16 H=24 L=20 		0-95207-315-0 01 1 0607- ●
29 04.686 CLIP; UNION
04.785 (D) ID=16 H=30 L=30 		1-09701-080-0 01 1 0502- ●
31 04.686 NUT; UNION CLIP
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ● ●
31 04.686 NUT; UNION CLIP
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
4JH1 ENG(RJX),4JB1 ENG(RLF) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ● ● ● ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ●
31 04.686 NUT; UNION CLIP
EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-1007 ● ● ● ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-1007 ●
31 04.686 NUT; UNION CLIP
EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-1007 ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-1007 ●
31 04.686 NUT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
31 04.686 NUT; UNION CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ●
96 04.686 PIPE ASM; 6 WAY
4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV <6PH>,FRAME-KICK UP<7EW> 		8-98167-272-0 01 1 1008- ● ● ●
96 04.686 PIPE ASM; 6 WAY 8-98167-272-0 01 1 1008- ●
96 04.686 PIPE ASM; 6 WAY
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> 		8-98002-749-1 01 1 0505- ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT) 		8-97205-104-0 01 1 0610-0712 ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT) 		8-97205-104-0 01 1 0801- ● ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX) DISC BRAKE FRT<J52> FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-920-0 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX) DISC BRAKE FRT<J52> FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-916-0 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-918-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-914-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> 		8-98002-748-1 01 1 0502- ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1 ENG(RLF) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENS ION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97100-833-3 01 1 0211-0501 ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV <6PH>,FRAME-KICK UP<7EW> 04.685 		8-97100-833-3 01 1 0502- ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1 ENG(RLF) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 04.685 L=918 		8-94249-679-4 01 1 0211-0501 ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME-KICK UP<7EW> 04.685 L=918 		8-94249-679-4 01 1 0502-0609 ● ● ●
96 04.686 PIPE ASM; 6 WAY
4HG1-T ENG(RDP),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME-KICK UP<7EW> 04.685 L=918 		8-94249-679-4 01 1 0610-0612 ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME-KICK UP<7EW> 04.685 L=918 		8-94249-679-4 01 1 0701- ● ● ●
96 04.686 PIPE ASM; 6 WAY
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 		8-97325-919-1 01 1 0211-0501 ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME-KICK UP<7EW> 		8-97325-919-1 01 1 0502- ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 		8-97325-915-1 01 1 0211-0501 ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME-KICK UP<7EW> 		8-97325-915-1 01 1 0502-1007 ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME-KICK UP<7EW> 		8-97325-915-1 01 1 1008- ● ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> 		8-97325-921-0 01 1 0211-0304 ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> 		8-97367-554-0 01 1 0305-0501 ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97367-554-0 01 1 0502- ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 		8-97325-917-0 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV <6PH> 		8-97325-917-0 01 1 0502- ●
96 04.686 PIPE ASM; 6 WAY
4HG1-T ENG(RDP) 		8-97361-323-0 01 1 0610- ●
96 04.686 PIPE ASM; 6 WAY
4HG1-T ENG(RDP) 		8-97361-322-0 01 1 0610- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) (A) REAR 		8-98167-273-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) (A) REAR 		8-98106-749-0 01 1 0801- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (A) REAR 		8-97301-505-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (A) REAR 		8-97301-505-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 05.476 (A) REAR 		8-97301-505-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) 05.476 (A) REAR 		8-97301-505-0 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) (A) REAR 		8-97205-103-0 01 1 0610-1108 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) (A) REAR 		8-98187-608-0 01 1 1109- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (B) FRONT 		8-97325-928-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-97325-931-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) FRONT 		8-97325-927-1 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97325-927-1 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(B) FRONT 		8-97325-927-1 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-97325-930-1 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) (A) REAR 		8-97325-930-1 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) (A) REAR 		8-97325-930-1 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97325-930-1 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97325-930-1 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME-KICK UP<7EW> (A) REAR 		8-97325-932-1 01 1 0211- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> 05.476 (A) REAR 		8-97173-706-0 01 1 0211- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 05.476 (A) REAR 		8-97173-706-0 01 1 0211- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) FRONT 		8-97325-926-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97325-926-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) FRONT 		8-97363-950-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97363-950-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) FRONT 		8-97363-950-0 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97363-950-0 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) REAR 		8-97325-929-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) (A) REAR 		8-97325-929-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97325-929-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) REAR 		8-97363-974-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) (A) REAR 		8-97363-974-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97363-974-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (A) REAR 		8-97363-974-0 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) (A) REAR 		8-97363-974-0 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97363-974-0 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM) EXC. FRAME-KICK UP<7EW> (A) REAR 		8-97363-974-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM) (A) REAR 		8-97363-974-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1-T ENG(RDP) (A) REAR 		8-97363-966-0 01 1 0610-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> (A) REAR 		8-97363-966-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1-T ENG(RDP) (A) REAR 		8-97363-966-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97363-966-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97363-966-0 01 1 1008- ●

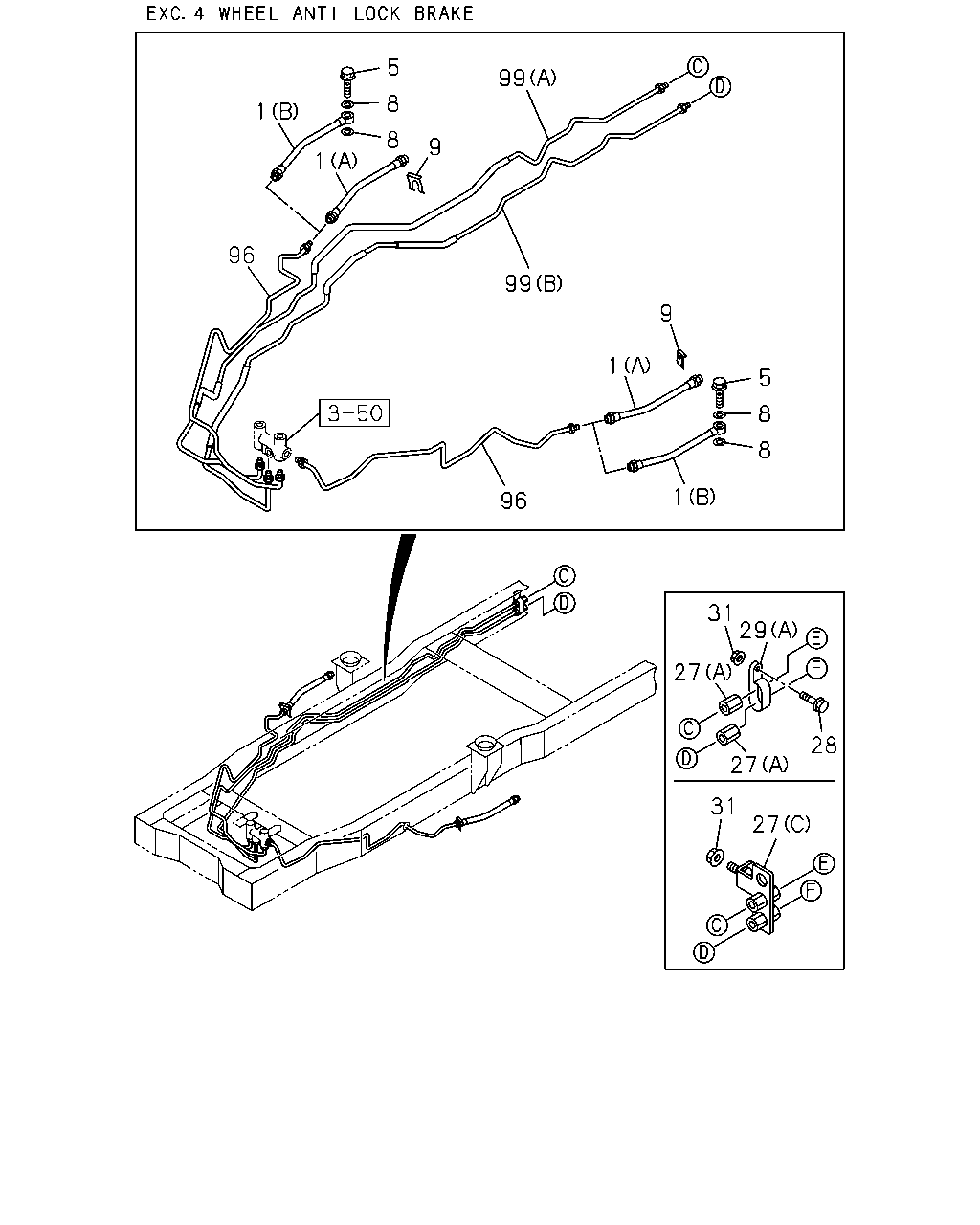

çizim 51387
5 99 8 1 8 9 1 96 99 9 1 5 8 8 1 96 31 29 27 28 27 31 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-064-0 02 1 0211-0501 ●
1 04.680 HOSE; FLEX,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-97316-734-0 02 1 0502-0502 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97316-734-0 02 1 0502-0502 ●
1 04.680 HOSE; FLEX,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-97366-925-0 02 1 0502-0504 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97366-925-0 02 1 0502-0504 ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> (B) 		8-97366-925-0 02 1 0505-0606 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97366-925-0 02 1 0505-0606 ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 5.0-5.5TON(RPT) DISC BRAKE FRT<J52> (B) 		8-97366-925-0 02 1 0607-0706 ● ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97366-925-0 02 1 0607-0706 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97366-925-0 02 1 0607-0706 ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> (B) 		8-97366-925-0 02 1 0707-0707 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97366-925-0 02 1 0707-0707 ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 5.0-5.5TON(RPT) DISC BRAKE FRT<J52> (B) 		8-97366-925-1 02 1 0707- ● ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 4.0-4.5TON(RPR) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-97366-925-1 02 1 0707- ● ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97366-925-1 02 1 0707- ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) L=310 		8-97035-063-0 02 1 0211-0501 ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-0 02 1 0211-0501 ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-1 02 1 0502-0606 ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (A) L=310 		8-97035-063-1 02 1 0502-0606 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-1 02 1 0607-0706 ● ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) L=310 		8-97035-063-1 02 1 0607-0706 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-1 02 1 0707-0707 ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (A) L=310 		8-97035-063-1 02 1 0707-0707 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-1 02 1 0707-1404 ● ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) L=310 		8-97035-063-1 02 1 0707-1404 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-1 02 1 1405- ● ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU), G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) L=310 		8-97035-063-1 02 1 1405- ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 04.665 M10X22 		5-09675-017-0 02 1 0211-0410 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) M10X22 		8-97381-454-0 02 1 0411-0501 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> M10X22 		8-97381-454-0 02 1 0502-0504 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-97381-454-0 02 1 0502-0504 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> M10X22 		8-97381-454-0 02 1 0505-0606 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-97381-454-0 02 1 0505-0606 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT) DISC BRAKE FRT<J52> M10X22 		8-97381-454-0 02 1 0607-0610 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M10X22 		8-97381-454-0 02 1 0607-0610 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-97381-454-0 02 1 0607-0610 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT) DISC BRAKE FRT<J52> M10X22 		8-98014-005-0 02 1 0611-0706 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M10X22 		8-98014-005-0 02 1 0611-0706 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 0611-0706 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> M10X22 		8-98014-005-0 02 1 0707-0707 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 0707-0707 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT) DISC BRAKE FRT<J52> M10X22 		8-98014-005-0 02 1 0707- ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
G.V.W. 4.0-4.5TON(RPR) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> M10X22 		8-98014-005-0 02 1 0707- ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 0707- ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0211-0501 ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0502-0504 ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0502-0504 ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0505-0606 ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0505-0606 ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT) DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0607-0706 ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0607-0706 ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0607-0706 ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0707-0707 ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0707-0707 ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT) DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0707- ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
G.V.W. 4.0-4.5TON(RPR) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0707- ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0707- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0211-0501 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.681 		8-94137-662-0 02 1 0211-0501 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0211-0501 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0502-0606 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0502-0606 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. DISC BRAKE FRT<J52> 04.681 		8-94137-662-0 02 1 0502-0606 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0607-0610 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0607-0610 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 04.681 		8-94137-662-0 02 1 0607-0610 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611-0706 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611-0706 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97360-054-0 02 1 0611-0706 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0707-0707 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0707-0707 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. DISC BRAKE FRT<J52> 		8-97360-054-0 02 1 0707-0707 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0707-1404 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0707-1404 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97360-054-0 02 1 0707-1404 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1405- ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1405- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU), G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97360-054-0 02 1 1405- ● ●
27 04.686 UNION; BRK PIPE
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> (B) 		8-97287-444-0 01 1 0211-0501 ● ● ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 0502-0609 ● ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HG1ENG(RJH),4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 0610-1007 ● ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 1008- ● ●
27 04.686 UNION; BRK PIPE
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (C) 		8-97259-943-0 01 1 0211-0501 ● ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> (C) 		8-97259-943-1 01 1 0502- ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0211-0501 ● ● ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0502-0607 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0608-0712 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0801- ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0801- ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ● ● ● ●
27 04.686 UNION; BRK PIPE
08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0607 ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0607 ● ● ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0607 ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0609 ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0609 ● ● ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0609 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0610-0712 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0610-0712 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0610-0712 ● ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0610-0712 ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 01 1 0610-0712 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ● ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> (E) 		8-97314-636-0 01 1 0502- ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97314-636-0 01 1 0502- ●
27 04.686 UNION; BRK PIPE
(E) 		8-97314-636-0 01 1 0502- ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97257-650-1 01 1 0502- ● ●
27 04.686 UNION; BRK PIPE
(D) 		8-97257-650-1 01 1 0502- ●
28 04.686 BOLT; UNION CLIP
4JB1 ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ● ● ● ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ●
28 04.686 BOLT; UNION CLIP
4JB1 ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ● ● ●
28 04.686 BOLT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ●
28 04.686 BOLT; UNION CLIP
4JB1 ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-0609 ● ● ●
28 04.686 BOLT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-0609 ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-0609 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0610-0712 ●
28 04.686 BOLT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0610-0712 ● ●
28 04.686 BOLT; UNION CLIP
4JB1 ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0610-0712 ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0610-0712 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0801-0911 ● ●
28 04.686 BOLT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0801-0911 ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0801-0911 ●
28 04.686 BOLT; UNION CLIP
4JB1 ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0801-0911 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ●
28 04.686 BOLT; UNION CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		9-09535-533-0 01 1 0211-0501 ● ● ● ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=16X2 L=20 		9-09535-533-0 01 1 0502-0606 ● ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=16X2 L=20 		0-95325-533-0 01 1 0607-0712 ● ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=16X2 L=20 		0-95325-533-0 01 1 0801- ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=16X2 L=20 		0-95325-533-0 01 1 0801- ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0211-0501 ● ● ● ●
29 04.686 CLIP; UNION
03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0211-0501 ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0502-0606 ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0502-0606 ● ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0607-0609 ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0607-0609 ● ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0610-0712 ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0610-0712 ● ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0801-0910 ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0801-0910 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0801-0910 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0912- ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0912- ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0912- ●
29 04.686 CLIP; UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 02.343 (C) ID=16 H=24 L=20 		9-09527-015-0 01 1 0211-0501 ●
29 04.686 CLIP; UNION
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (C) ID=16 H=24 L=20 		9-09527-015-0 01 1 0502-0606 ● ●
29 04.686 CLIP; UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 02.343 (C) ID=16 H=24 L=20 		9-09527-015-0 01 1 0502-0606 ●
29 04.686 CLIP; UNION
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (C) ID=16 H=24 L=20 		0-95207-315-0 01 1 0607- ● ●
29 04.686 CLIP; UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (C) ID=16 H=24 L=20 		0-95207-315-0 01 1 0607- ●
29 04.686 CLIP; UNION
04.785 (D) ID=16 H=30 L=30 		1-09701-080-0 01 1 0502- ●
31 04.686 NUT; UNION CLIP
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ● ●
31 04.686 NUT; UNION CLIP
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
4JH1 ENG(RJX),4JB1 ENG(RLF) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ● ● ● ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ●
31 04.686 NUT; UNION CLIP
EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-1007 ● ● ● ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-1007 ●
31 04.686 NUT; UNION CLIP
EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-1007 ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-1007 ●
31 04.686 NUT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
31 04.686 NUT; UNION CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ●
96 04.686 PIPE ASM; 6 WAY
4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV <6PH>,FRAME-KICK UP<7EW> 		8-98167-272-0 01 1 1008- ● ● ●
96 04.686 PIPE ASM; 6 WAY 8-98167-272-0 01 1 1008- ●
96 04.686 PIPE ASM; 6 WAY
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> 		8-98002-749-1 01 1 0505- ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT) 		8-97205-104-0 01 1 0610-0712 ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT) 		8-97205-104-0 01 1 0801- ● ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX) DISC BRAKE FRT<J52> FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-920-0 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX) DISC BRAKE FRT<J52> FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-916-0 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-918-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97325-914-1 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> 		8-98002-748-1 01 1 0502- ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1 ENG(RLF) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENS ION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97100-833-3 01 1 0211-0501 ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV <6PH>,FRAME-KICK UP<7EW> 04.685 		8-97100-833-3 01 1 0502- ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1 ENG(RLF) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 04.685 L=918 		8-94249-679-4 01 1 0211-0501 ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME-KICK UP<7EW> 04.685 L=918 		8-94249-679-4 01 1 0502-0609 ● ● ●
96 04.686 PIPE ASM; 6 WAY
4HG1-T ENG(RDP),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME-KICK UP<7EW> 04.685 L=918 		8-94249-679-4 01 1 0610-0612 ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME-KICK UP<7EW> 04.685 L=918 		8-94249-679-4 01 1 0701- ● ● ●
96 04.686 PIPE ASM; 6 WAY
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 		8-97325-919-1 01 1 0211-0501 ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME-KICK UP<7EW> 		8-97325-919-1 01 1 0502- ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 		8-97325-915-1 01 1 0211-0501 ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME-KICK UP<7EW> 		8-97325-915-1 01 1 0502-1007 ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,FRAME-KICK UP<7EW> 		8-97325-915-1 01 1 1008- ● ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> 		8-97325-921-0 01 1 0211-0304 ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> 		8-97367-554-0 01 1 0305-0501 ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97367-554-0 01 1 0502- ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 		8-97325-917-0 01 1 0211-0501 ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV <6PH> 		8-97325-917-0 01 1 0502- ●
96 04.686 PIPE ASM; 6 WAY
4HG1-T ENG(RDP) 		8-97361-323-0 01 1 0610- ●
96 04.686 PIPE ASM; 6 WAY
4HG1-T ENG(RDP) 		8-97361-322-0 01 1 0610- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) (A) REAR 		8-98167-273-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) (A) REAR 		8-98106-749-0 01 1 0801- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (A) REAR 		8-97301-505-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (A) REAR 		8-97301-505-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 05.476 (A) REAR 		8-97301-505-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) 05.476 (A) REAR 		8-97301-505-0 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) (A) REAR 		8-97205-103-0 01 1 0610-1108 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) (A) REAR 		8-98187-608-0 01 1 1109- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (B) FRONT 		8-97325-928-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-97325-931-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) FRONT 		8-97325-927-1 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97325-927-1 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(B) FRONT 		8-97325-927-1 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-97325-930-1 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) (A) REAR 		8-97325-930-1 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) (A) REAR 		8-97325-930-1 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97325-930-1 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97325-930-1 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME-KICK UP<7EW> (A) REAR 		8-97325-932-1 01 1 0211- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> 05.476 (A) REAR 		8-97173-706-0 01 1 0211- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 05.476 (A) REAR 		8-97173-706-0 01 1 0211- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) FRONT 		8-97325-926-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97325-926-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) FRONT 		8-97363-950-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97363-950-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) FRONT 		8-97363-950-0 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97363-950-0 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) REAR 		8-97325-929-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) (A) REAR 		8-97325-929-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97325-929-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) REAR 		8-97363-974-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) (A) REAR 		8-97363-974-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97363-974-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (A) REAR 		8-97363-974-0 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) (A) REAR 		8-97363-974-0 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97363-974-0 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM) EXC. FRAME-KICK UP<7EW> (A) REAR 		8-97363-974-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM) (A) REAR 		8-97363-974-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1-T ENG(RDP) (A) REAR 		8-97363-966-0 01 1 0610-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> (A) REAR 		8-97363-966-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1-T ENG(RDP) (A) REAR 		8-97363-966-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97363-966-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97363-966-0 01 1 1008- ●
çizim 52597
88 103 48 26 89 89 122 99 99 88 26 122 28 27 103 29 31 27 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME-KICK UP<7EW> 		8-98002-753-1 01 1 0502- ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME-KICK UP<7EW> 		8-98002-751-1 01 1 0502- ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY 8-98002-752-2 01 1 0502- ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY 8-98002-750-1 01 1 0502- ●
27 04.686 UNION; BRK PIPE
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> (B) 		8-97287-444-0 01 1 0211-0501 ● ● ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 0502-0609 ● ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HG1ENG(RJH),4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 0610-1007 ● ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 1008- ● ●
27 04.686 UNION; BRK PIPE
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (C) 		8-97259-943-0 01 1 0211-0501 ● ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> (C) 		8-97259-943-1 01 1 0502- ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0211-0501 ● ● ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0502-0607 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0608-0712 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0801- ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0801- ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ● ● ● ●
27 04.686 UNION; BRK PIPE
08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0607 ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0607 ● ● ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0607 ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0609 ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0609 ● ● ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0609 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0610-0712 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0610-0712 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0610-0712 ● ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0610-0712 ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 01 1 0610-0712 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ● ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> (E) 		8-97314-636-0 01 1 0502- ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97314-636-0 01 1 0502- ●
27 04.686 UNION; BRK PIPE
(E) 		8-97314-636-0 01 1 0502- ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97257-650-1 01 1 0502- ● ●
27 04.686 UNION; BRK PIPE
(D) 		8-97257-650-1 01 1 0502- ●
28 04.686 BOLT; UNION CLIP
4JB1 ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ● ● ● ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ●
28 04.686 BOLT; UNION CLIP
4JB1 ENG(RLF) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ● ● ●
28 04.686 BOLT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ●
28 04.686 BOLT; UNION CLIP
4JB1 ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-0609 ● ● ●
28 04.686 BOLT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-0609 ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-0609 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0610-0712 ●
28 04.686 BOLT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0610-0712 ● ●
28 04.686 BOLT; UNION CLIP
4JB1 ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0610-0712 ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0610-0712 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0801-0911 ● ●
28 04.686 BOLT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0801-0911 ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0801-0911 ●
28 04.686 BOLT; UNION CLIP
4JB1 ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0801-0911 ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ● ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0912- ●
28 04.686 BOLT; UNION CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ●
28 04.686 BOLT; UNION CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		9-09535-533-0 01 1 0211-0501 ● ● ● ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=16X2 L=20 		9-09535-533-0 01 1 0502-0606 ● ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=16X2 L=20 		0-95325-533-0 01 1 0607-0712 ● ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=16X2 L=20 		0-95325-533-0 01 1 0801- ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=16X2 L=20 		0-95325-533-0 01 1 0801- ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0211-0501 ● ● ● ●
29 04.686 CLIP; UNION
03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0211-0501 ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0502-0606 ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0502-0606 ● ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0607-0609 ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0607-0609 ● ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0610-0712 ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0610-0712 ● ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0801-0910 ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0801-0910 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0801-0910 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0911-0911 ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B) ID=16 L=20 		0-95235-532-0 01 1 0912- ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0912- ●
29 04.686 CLIP; UNION
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (B) ID=16 L=20 		0-95235-532-0 01 1 0912- ●
29 04.686 CLIP; UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 02.343 (C) ID=16 H=24 L=20 		9-09527-015-0 01 1 0211-0501 ●
29 04.686 CLIP; UNION
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (C) ID=16 H=24 L=20 		9-09527-015-0 01 1 0502-0606 ● ●
29 04.686 CLIP; UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 02.343 (C) ID=16 H=24 L=20 		9-09527-015-0 01 1 0502-0606 ●
29 04.686 CLIP; UNION
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (C) ID=16 H=24 L=20 		0-95207-315-0 01 1 0607- ● ●
29 04.686 CLIP; UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (C) ID=16 H=24 L=20 		0-95207-315-0 01 1 0607- ●
29 04.686 CLIP; UNION
04.785 (D) ID=16 H=30 L=30 		1-09701-080-0 01 1 0502- ●
31 04.686 NUT; UNION CLIP
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ● ●
31 04.686 NUT; UNION CLIP
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
4JH1 ENG(RJX),4JB1 ENG(RLF) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ● ● ● ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ●
31 04.686 NUT; UNION CLIP
EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-1007 ● ● ● ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-1007 ●
31 04.686 NUT; UNION CLIP
EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-1007 ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-1007 ●
31 04.686 NUT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
31 04.686 NUT; UNION CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ●
44 04.686 BOLT; JOINT
4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0502-0512 ● ●
44 04.686 BOLT; JOINT
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0502-0512 ●
44 04.686 BOLT; JOINT
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ●
44 04.686 BOLT; JOINT
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> REAR 		8-97325-943-1 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> REAR 		8-97325-943-1 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
REAR 		8-97325-943-1 01 1 0502- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> REAR 		8-97325-944-0 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> REAR 		8-97325-944-0 01 1 0502- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> REAR 		8-97325-945-0 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) BRK WHL LK CONT LSPV<6PH> REAR 		8-97325-945-0 01 1 0502- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-97325-965-0 01 1 0502- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-97325-962-0 01 1 0502- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97325-966-0 01 1 0502- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97325-963-0 01 1 0502- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97325-964-1 01 1 0502- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97325-961-0 01 1 0502- ●
89 04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-97325-971-0 01 1 0502- ●
89 04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-97325-968-0 01 1 0502- ●
89 04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97325-972-0 01 1 0502- ●
89 04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97325-969-0 01 1 0502- ●
89 04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 8-97325-970-0 01 1 0502- ●
89 04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 8-97325-967-0 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) (A) REAR 		8-98167-273-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) (A) REAR 		8-98106-749-0 01 1 0801- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (A) REAR 		8-97301-505-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (A) REAR 		8-97301-505-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 05.476 (A) REAR 		8-97301-505-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) 05.476 (A) REAR 		8-97301-505-0 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) (A) REAR 		8-97205-103-0 01 1 0610-1108 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) (A) REAR 		8-98187-608-0 01 1 1109- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (B) FRONT 		8-97325-928-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-97325-931-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) FRONT 		8-97325-927-1 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97325-927-1 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(B) FRONT 		8-97325-927-1 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-97325-930-1 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) (A) REAR 		8-97325-930-1 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) (A) REAR 		8-97325-930-1 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97325-930-1 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97325-930-1 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME-KICK UP<7EW> (A) REAR 		8-97325-932-1 01 1 0211- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> 05.476 (A) REAR 		8-97173-706-0 01 1 0211- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 05.476 (A) REAR 		8-97173-706-0 01 1 0211- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) FRONT 		8-97325-926-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97325-926-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) FRONT 		8-97363-950-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97363-950-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) FRONT 		8-97363-950-0 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97363-950-0 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) REAR 		8-97325-929-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) (A) REAR 		8-97325-929-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97325-929-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) REAR 		8-97363-974-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) (A) REAR 		8-97363-974-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97363-974-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (A) REAR 		8-97363-974-0 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) (A) REAR 		8-97363-974-0 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97363-974-0 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM) EXC. FRAME-KICK UP<7EW> (A) REAR 		8-97363-974-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM) (A) REAR 		8-97363-974-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1-T ENG(RDP) (A) REAR 		8-97363-966-0 01 1 0610-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> (A) REAR 		8-97363-966-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1-T ENG(RDP) (A) REAR 		8-97363-966-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97363-966-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97363-966-0 01 1 1008- ●
103 04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-97325-958-0 01 1 0502- ●
103 04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97325-959-0 01 1 0502- ●
103 04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 8-97325-957-0 01 1 0502- ●
122 04.685 PIPE ASM; BRK,2 WAY
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-97325-941-0 01 1 0502- ●
122 04.685 PIPE ASM; BRK,2 WAY
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97325-942-0 01 1 0502- ●
122 04.685 PIPE ASM; BRK,2 WAY 8-97325-940-1 01 1 0502- ●
çizim 53576
88 99 48 99 122 88 26 26 2 31 5 4 8 8 1 9 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-064-0 02 1 0211-0501 ●
1 04.680 HOSE; FLEX,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-97316-734-0 02 1 0502-0502 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97316-734-0 02 1 0502-0502 ●
1 04.680 HOSE; FLEX,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-97366-925-0 02 1 0502-0504 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97366-925-0 02 1 0502-0504 ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> (B) 		8-97366-925-0 02 1 0505-0606 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97366-925-0 02 1 0505-0606 ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 5.0-5.5TON(RPT) DISC BRAKE FRT<J52> (B) 		8-97366-925-0 02 1 0607-0706 ● ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-97366-925-0 02 1 0607-0706 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97366-925-0 02 1 0607-0706 ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> (B) 		8-97366-925-0 02 1 0707-0707 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97366-925-0 02 1 0707-0707 ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 5.0-5.5TON(RPT) DISC BRAKE FRT<J52> (B) 		8-97366-925-1 02 1 0707- ● ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 4.0-4.5TON(RPR) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-97366-925-1 02 1 0707- ● ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97366-925-1 02 1 0707- ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) L=310 		8-97035-063-0 02 1 0211-0501 ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-0 02 1 0211-0501 ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-1 02 1 0502-0606 ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (A) L=310 		8-97035-063-1 02 1 0502-0606 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-1 02 1 0607-0706 ● ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) L=310 		8-97035-063-1 02 1 0607-0706 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-1 02 1 0707-0707 ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (A) L=310 		8-97035-063-1 02 1 0707-0707 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-1 02 1 0707-1404 ● ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) L=310 		8-97035-063-1 02 1 0707-1404 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(A) L=310 		8-97035-063-1 02 1 1405- ● ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU), G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) L=310 		8-97035-063-1 02 1 1405- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME-KICK UP<7EW> 		8-98002-746-0 01 1 0502- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 		8-98002-746-0 01 1 0502- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-98002-746-0 01 1 0502- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME-KICK UP<7EW> 		8-98002-747-0 01 1 0502- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 		8-98002-747-0 01 1 0502- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-98002-747-0 01 1 0502- ●
4 04.686 NUT; FLEX HOSE BRKT,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME-KICK UP<7EW> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ●
4 04.686 NUT; FLEX HOSE BRKT,FRT BRK
DISC BRAKE FRT<J52> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ●
4 04.686 NUT; FLEX HOSE BRKT,FRT BRK
07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ●
4 04.686 NUT; FLEX HOSE BRKT,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ●
4 04.686 NUT; FLEX HOSE BRKT,FRT BRK
DISC BRAKE FRT<J52> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ●
4 04.686 NUT; FLEX HOSE BRKT,FRT BRK
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 04.665 M10X22 		5-09675-017-0 02 1 0211-0410 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) M10X22 		8-97381-454-0 02 1 0411-0501 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> M10X22 		8-97381-454-0 02 1 0502-0504 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-97381-454-0 02 1 0502-0504 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> M10X22 		8-97381-454-0 02 1 0505-0606 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-97381-454-0 02 1 0505-0606 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT) DISC BRAKE FRT<J52> M10X22 		8-97381-454-0 02 1 0607-0610 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M10X22 		8-97381-454-0 02 1 0607-0610 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-97381-454-0 02 1 0607-0610 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT) DISC BRAKE FRT<J52> M10X22 		8-98014-005-0 02 1 0611-0706 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M10X22 		8-98014-005-0 02 1 0611-0706 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 0611-0706 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> M10X22 		8-98014-005-0 02 1 0707-0707 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 0707-0707 ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT) DISC BRAKE FRT<J52> M10X22 		8-98014-005-0 02 1 0707- ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
G.V.W. 4.0-4.5TON(RPR) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> M10X22 		8-98014-005-0 02 1 0707- ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 0707- ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0211-0501 ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0502-0504 ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0502-0504 ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0505-0606 ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0505-0606 ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT) DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0607-0706 ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
G.V.W. 4.0-4.5TON(RPR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0607-0706 ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0607-0706 ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0707-0707 ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0707-0707 ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT) DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0707- ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
G.V.W. 4.0-4.5TON(RPR) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0707- ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0707- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0211-0501 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.681 		8-94137-662-0 02 1 0211-0501 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0211-0501 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0502-0606 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0502-0606 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. DISC BRAKE FRT<J52> 04.681 		8-94137-662-0 02 1 0502-0606 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0607-0610 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0607-0610 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 04.681 		8-94137-662-0 02 1 0607-0610 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611-0706 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611-0706 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97360-054-0 02 1 0611-0706 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0707-0707 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0707-0707 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. DISC BRAKE FRT<J52> 		8-97360-054-0 02 1 0707-0707 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0707-1404 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0707-1404 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97360-054-0 02 1 0707-1404 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1405- ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1405- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU), G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97360-054-0 02 1 1405- ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME-KICK UP<7EW> 		8-98002-753-1 01 1 0502- ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRAME-KICK UP<7EW> 		8-98002-751-1 01 1 0502- ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY 8-98002-752-2 01 1 0502- ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY 8-98002-750-1 01 1 0502- ●
27 04.686 UNION; BRK PIPE
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> (B) 		8-97287-444-0 01 1 0211-0501 ● ● ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 0502-0609 ● ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HG1ENG(RJH),4HF1-N ENG(RJZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 0610-1007 ● ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 1008- ● ●
27 04.686 UNION; BRK PIPE
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (C) 		8-97259-943-0 01 1 0211-0501 ● ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> (C) 		8-97259-943-1 01 1 0502- ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0211-0501 ● ● ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0502-0607 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0608-0712 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0801- ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 02 1 0801- ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ● ● ● ●
27 04.686 UNION; BRK PIPE
08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501 ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0607 ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0607 ● ● ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0502-0607 ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0609 ● ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0609 ● ● ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608-0609 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0610-0712 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0610-0712 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0610-0712 ● ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0610-0712 ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 01 1 0610-0712 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 01 1 0801-0910 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 01 1 0911-1007 ●
27 04.686 UNION; BRK PIPE
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF) (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ● ●
27 04.686 UNION; BRK PIPE
4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 01 1 1008- ● ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> (E) 		8-97314-636-0 01 1 0502- ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97314-636-0 01 1 0502- ●
27 04.686 UNION; BRK PIPE
(E) 		8-97314-636-0 01 1 0502- ●
27 04.686 UNION; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97257-650-1 01 1 0502- ● ●
27 04.686 UNION; BRK PIPE
(D) 		8-97257-650-1 01 1 0502- ●
31 04.686 NUT; UNION CLIP
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ● ●
31 04.686 NUT; UNION CLIP
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
4JH1 ENG(RJX),4JB1 ENG(RLF) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ● ● ● ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ●
31 04.686 NUT; UNION CLIP
EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-1007 ● ● ● ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-1007 ●
31 04.686 NUT; UNION CLIP
EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-1007 ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-1007 ●
31 04.686 NUT; UNION CLIP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ●
31 04.686 NUT; UNION CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
31 04.686 NUT; UNION CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> REAR 		8-97325-943-1 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> REAR 		8-97325-943-1 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
REAR 		8-97325-943-1 01 1 0502- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> REAR 		8-97325-944-0 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> REAR 		8-97325-944-0 01 1 0502- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> REAR 		8-97325-945-0 01 1 0211-0501 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) BRK WHL LK CONT LSPV<6PH> REAR 		8-97325-945-0 01 1 0502- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-97325-965-0 01 1 0502- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-97325-962-0 01 1 0502- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97325-966-0 01 1 0502- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97325-963-0 01 1 0502- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97325-964-1 01 1 0502- ●
88 04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 8-97325-961-0 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) (A) REAR 		8-98167-273-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) (A) REAR 		8-98106-749-0 01 1 0801- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (A) REAR 		8-97301-505-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (A) REAR 		8-97301-505-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 05.476 (A) REAR 		8-97301-505-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) 05.476 (A) REAR 		8-97301-505-0 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) (A) REAR 		8-97205-103-0 01 1 0610-1108 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) (A) REAR 		8-98187-608-0 01 1 1109- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (B) FRONT 		8-97325-928-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-97325-931-0 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) FRONT 		8-97325-927-1 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97325-927-1 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(B) FRONT 		8-97325-927-1 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-97325-930-1 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) (A) REAR 		8-97325-930-1 01 1 0211-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) (A) REAR 		8-97325-930-1 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97325-930-1 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97325-930-1 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME-KICK UP<7EW> (A) REAR 		8-97325-932-1 01 1 0211- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> 05.476 (A) REAR 		8-97173-706-0 01 1 0211- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 05.476 (A) REAR 		8-97173-706-0 01 1 0211- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) FRONT 		8-97325-926-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97325-926-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) FRONT 		8-97363-950-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97363-950-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) FRONT 		8-97363-950-0 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97363-950-0 01 1 0502- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) REAR 		8-97325-929-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) (A) REAR 		8-97325-929-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97325-929-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) REAR 		8-97363-974-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) (A) REAR 		8-97363-974-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97363-974-0 01 1 0302-0501 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (A) REAR 		8-97363-974-0 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) (A) REAR 		8-97363-974-0 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97363-974-0 01 1 0502-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM) EXC. FRAME-KICK UP<7EW> (A) REAR 		8-97363-974-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1-TC ENG(RDM) (A) REAR 		8-97363-974-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1-T ENG(RDP) (A) REAR 		8-97363-966-0 01 1 0610-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1-N ENG(RJZ) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> (A) REAR 		8-97363-966-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1-T ENG(RDP) (A) REAR 		8-97363-966-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97363-966-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY
(A) REAR 		8-97363-966-0 01 1 1008- ●
122 04.685 PIPE ASM; BRK,2 WAY
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> 		8-97325-941-0 01 1 0502- ●
122 04.685 PIPE ASM; BRK,2 WAY
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97325-942-0 01 1 0502- ●
122 04.685 PIPE ASM; BRK,2 WAY 8-97325-940-1 01 1 0502- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
