◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#47674) — 166 parça

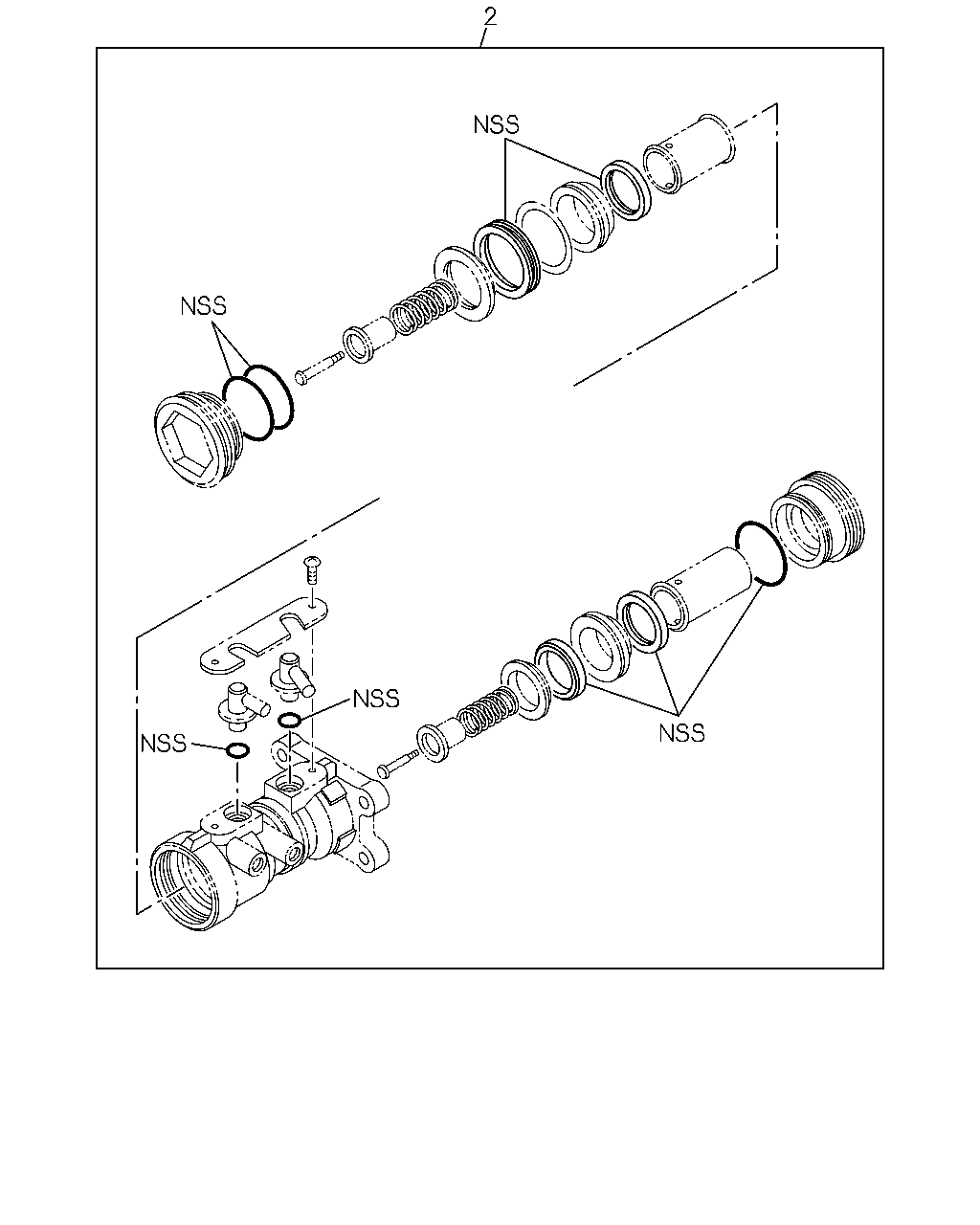

çizim 10679
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 3.5-4.0TON(RPQ) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97141-423-0 01 1 0211-0501 ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 		8-97130-470-0 01 1 0211-0311 ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 3.5-4.0TON(RPQ) FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-470-0 01 1 0211-0311 ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97130-470-0 01 1 0312-0501 ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 3.5-4.0TON(RPQ) FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-470-0 01 1 0312-0501 ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-470-0 01 1 0502- ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. DISC BRAKE FRT<J52> 		8-97130-470-0 01 1 0502- ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 5.5-6.0TON(RPU) 		8-97130-470-0 01 1 0502- ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97130-470-0 01 1 0502- ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97130-471-0 01 1 0211-0311 ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 		8-97130-471-0 01 1 0312-0501 ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97130-471-0 01 1 0312-0501 ●
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97130-471-0 01 1 0502- ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 		8-97130-471-0 01 1 0502- ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97130-471-0 01 1 0502- ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-471-0 01 1 0502- ●

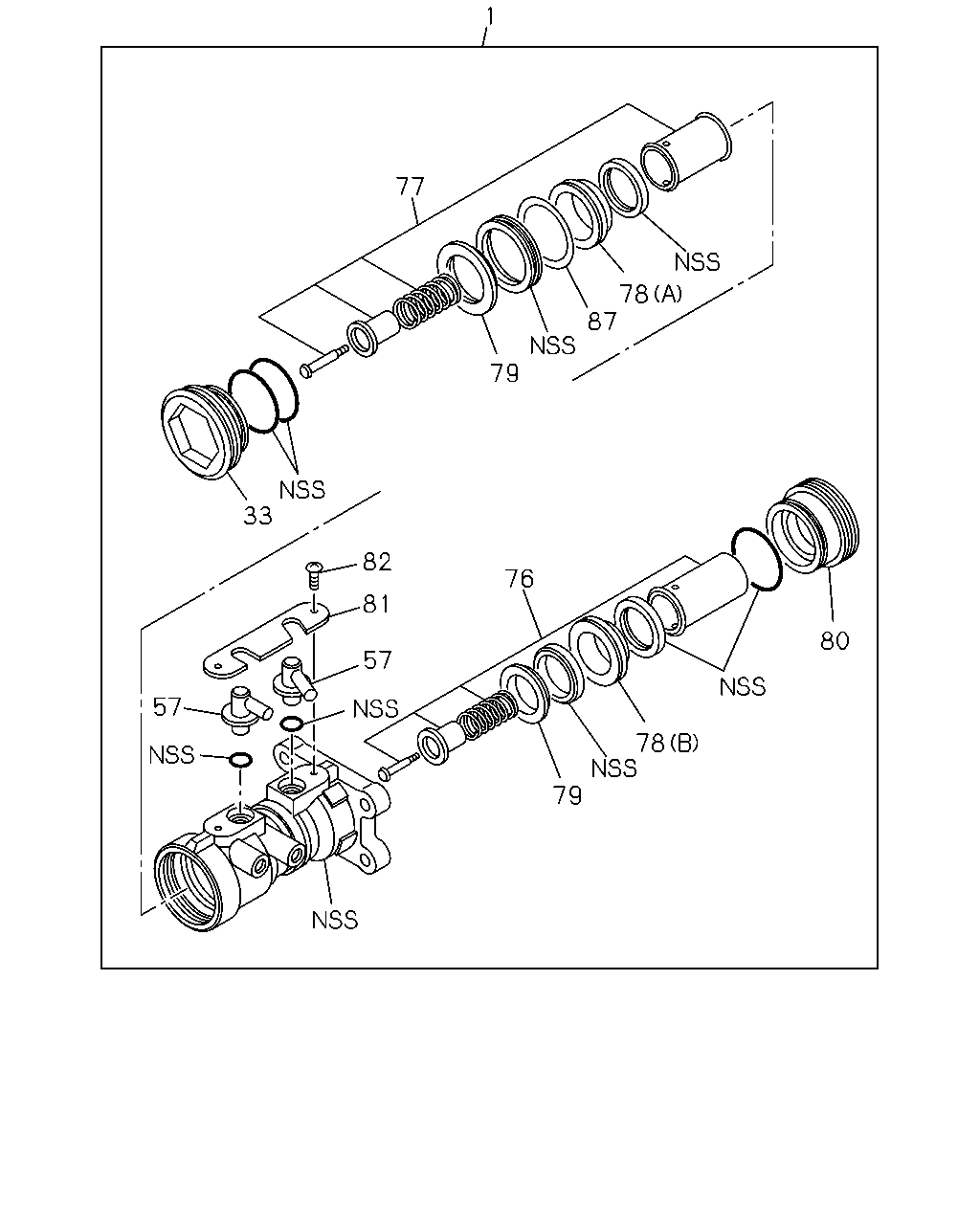

çizim 51388
1 77 78 87 79 33 82 76 81 80 57 57 78 79
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.5-4.0TON(RPQ) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97224-368-0 01 1 0211-0501 ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 		8-97224-373-0 01 1 0211-0311 ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.5-4.0TON(RPQ) FRT INDEPENDENT SUSPENSION(6PP) 		8-97224-373-0 01 1 0211-0311 ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97224-373-0 01 1 0312-0501 ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.5-4.0TON(RPQ) FRT INDEPENDENT SUSPENSION(6PP) 		8-97224-373-0 01 1 0312-0501 ●
1 04.650 CYLINDER ASM; BRK MASTER 8-97224-373-0 01 1 0502- ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. DISC BRAKE FRT<J52> 		8-97224-373-0 01 1 0502- ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 5.5-6.0TON(RPU) 		8-97224-373-0 01 1 0502- ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97224-373-0 01 1 0502- ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.5-7.0TON(RPW) 		8-97224-370-0 01 1 0211-0311 ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 		8-97224-370-0 01 1 0312-0501 ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.5-7.0TON(RPW) 		8-97224-370-0 01 1 0312-0501 ●
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97224-370-0 01 1 0502- ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 		8-97224-370-0 01 1 0502- ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.5-7.0TON(RPW) 		8-97224-370-0 01 1 0502- ●
1 04.650 CYLINDER ASM; BRK MASTER 8-97224-370-0 01 1 0502- ●
33 04.661 PLUG; END,M/CYL
G.V.W. 3.5-4.0TON(RPQ) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97186-698-0 01 1 0211-0501 ●
33 04.661 PLUG; END,M/CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 		8-97186-696-0 01 1 0211-0311 ● ● ● ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 3.5-4.0TON(RPQ) FRT INDEPENDENT SUSPENSION(6PP) 		8-97186-696-0 01 1 0211-0311 ●
33 04.661 PLUG; END,M/CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97186-696-0 01 1 0312-0501 ● ● ● ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 3.5-4.0TON(RPQ) FRT INDEPENDENT SUSPENSION(6PP) 		8-97186-696-0 01 1 0312-0501 ●
33 04.661 PLUG; END,M/CYL 8-97186-696-0 01 1 0502- ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. DISC BRAKE FRT<J52> 		8-97186-696-0 01 1 0502- ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 5.5-6.0TON(RPU) 		8-97186-696-0 01 1 0502- ●
33 04.661 PLUG; END,M/CYL
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97186-696-0 01 1 0502- ●
33 04.661 PLUG; END,M/CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97186-697-0 01 1 0211-0311 ●
33 04.661 PLUG; END,M/CYL
G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 		8-97186-697-0 01 1 0312-0501 ●
33 04.661 PLUG; END,M/CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97186-697-0 01 1 0312-0501 ●
33 04.661 PLUG; END,M/CYL
DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97186-697-0 01 1 0502- ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 		8-97186-697-0 01 1 0502- ●
33 04.661 PLUG; END,M/CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97186-697-0 01 1 0502- ●
33 04.661 PLUG; END,M/CYL 8-97186-697-0 01 1 0502- ●
57 04.651 NIPPLE; BRK M/CYL 8-97130-442-0 02 1 0211-0501 ● ● ● ● ● ●
57 04.651 NIPPLE; BRK M/CYL 8-97130-442-0 02 1 0502- ● ● ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 3.5-4.0TON(RPQ) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97224-639-0 01 1 0211-0501 ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 		8-97224-636-0 01 1 0211-0311 ● ● ● ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 3.5-4.0TON(RPQ) FRT INDEPENDENT SUSPENSION(6PP) 		8-97224-636-0 01 1 0211-0311 ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97224-636-0 01 1 0312-0501 ● ● ● ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 3.5-4.0TON(RPQ) FRT INDEPENDENT SUSPENSION(6PP) 		8-97224-636-0 01 1 0312-0501 ●
76 04.653 PISTON ASM; PRIMARY 8-97224-636-0 01 1 0502- ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. DISC BRAKE FRT<J52> 		8-97224-636-0 01 1 0502- ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 5.5-6.0TON(RPU) 		8-97224-636-0 01 1 0502- ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97224-636-0 01 1 0502- ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 6.5-7.0TON(RPW) 		8-97224-643-0 01 1 0211-0311 ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 		8-97224-643-0 01 1 0312-0501 ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 6.5-7.0TON(RPW) 		8-97224-643-0 01 1 0312-0501 ●
76 04.653 PISTON ASM; PRIMARY
DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97224-643-0 01 1 0502- ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 		8-97224-643-0 01 1 0502- ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 6.5-7.0TON(RPW) 		8-97224-643-0 01 1 0502- ●
76 04.653 PISTON ASM; PRIMARY 8-97224-643-0 01 1 0502- ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 3.5-4.0TON(RPQ) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97224-637-0 01 1 0211-0501 ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 		8-97224-635-0 01 1 0211-0311 ● ● ● ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 3.5-4.0TON(RPQ) FRT INDEPENDENT SUSPENSION(6PP) 		8-97224-635-0 01 1 0211-0311 ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97224-635-0 01 1 0312-0501 ● ● ● ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 3.5-4.0TON(RPQ) FRT INDEPENDENT SUSPENSION(6PP) 		8-97224-635-0 01 1 0312-0501 ●
77 04.653 PISTON ASM; SECONDARY 8-97224-635-0 01 1 0502- ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. DISC BRAKE FRT<J52> 		8-97224-635-0 01 1 0502- ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 5.5-6.0TON(RPU) 		8-97224-635-0 01 1 0502- ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97224-635-0 01 1 0502- ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 6.5-7.0TON(RPW) 		8-97224-642-0 01 1 0211-0311 ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 		8-97224-642-0 01 1 0312-0501 ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 6.5-7.0TON(RPW) 		8-97224-642-0 01 1 0312-0501 ●
77 04.653 PISTON ASM; SECONDARY
DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97224-642-0 01 1 0502- ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 		8-97224-642-0 01 1 0502- ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 6.5-7.0TON(RPW) 		8-97224-642-0 01 1 0502- ●
77 04.653 PISTON ASM; SECONDARY 8-97224-642-0 01 1 0502- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97141-410-0 01 1 0211-0501 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97217-830-0 01 1 0211-0501 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) (A) 		8-97130-454-0 01 1 0211-0311 ● ● ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97130-454-0 01 1 0211-0311 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) (A) 		8-97130-454-0 01 1 0312-0501 ● ● ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97130-454-0 01 1 0312-0501 ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-454-0 01 1 0502- ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. DISC BRAKE FRT<J52> (A) 		8-97130-454-0 01 1 0502- ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) (A) 		8-97130-454-0 01 1 0502- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) (A) 		8-97130-454-0 01 1 0502- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) (B) 		8-97217-310-0 01 1 0211-0311 ● ● ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97217-310-0 01 1 0211-0311 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) (B) 		8-97217-310-0 01 1 0312-0501 ● ● ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97217-310-0 01 1 0312-0501 ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-310-0 01 1 0502- ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. DISC BRAKE FRT<J52> (B) 		8-97217-310-0 01 1 0502- ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) (B) 		8-97217-310-0 01 1 0502- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) (B) 		8-97217-310-0 01 1 0502- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.5-7.0TON(RPW) (A) 		8-97130-455-0 01 1 0211-0311 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) (A) 		8-97130-455-0 01 1 0312-0501 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.5-7.0TON(RPW) (A) 		8-97130-455-0 01 1 0312-0501 ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) (A) 		8-97130-455-0 01 1 0502- ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) (A) 		8-97130-455-0 01 1 0502- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.5-7.0TON(RPW) (A) 		8-97130-455-0 01 1 0502- ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-455-0 01 1 0502- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.5-7.0TON(RPW) (B) 		8-97217-312-0 01 1 0211-0311 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) (B) 		8-97217-312-0 01 1 0312-0501 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.5-7.0TON(RPW) (B) 		8-97217-312-0 01 1 0312-0501 ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) (B) 		8-97217-312-0 01 1 0502- ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) (B) 		8-97217-312-0 01 1 0502- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.5-7.0TON(RPW) (B) 		8-97217-312-0 01 1 0502- ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-312-0 01 1 0502- ●
79 04.651 SUPPORTER; CUP
G.V.W. 3.5-4.0TON(RPQ) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97141-417-0 02 1 0211-0501 ●
79 04.651 SUPPORTER; CUP
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 		8-97130-462-0 02 1 0211-0311 ● ● ● ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 3.5-4.0TON(RPQ) FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-462-0 02 1 0211-0311 ●
79 04.651 SUPPORTER; CUP
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97130-462-0 02 1 0312-0501 ● ● ● ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 3.5-4.0TON(RPQ) FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-462-0 02 1 0312-0501 ●
79 04.651 SUPPORTER; CUP 8-97130-462-0 02 1 0502- ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. DISC BRAKE FRT<J52> 		8-97130-462-0 02 1 0502- ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 5.5-6.0TON(RPU) 		8-97130-462-0 02 1 0502- ●
79 04.651 SUPPORTER; CUP
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97130-462-0 02 1 0502- ●
79 04.651 SUPPORTER; CUP
G.V.W. 6.5-7.0TON(RPW) 		8-97130-463-0 02 1 0211-0311 ●
79 04.651 SUPPORTER; CUP
G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 		8-97130-463-0 02 1 0312-0501 ●
79 04.651 SUPPORTER; CUP
G.V.W. 6.5-7.0TON(RPW) 		8-97130-463-0 02 1 0312-0501 ●
79 04.651 SUPPORTER; CUP
DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97130-463-0 02 1 0502- ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 		8-97130-463-0 02 1 0502- ●
79 04.651 SUPPORTER; CUP
G.V.W. 6.5-7.0TON(RPW) 		8-97130-463-0 02 1 0502- ●
79 04.651 SUPPORTER; CUP 8-97130-463-0 02 1 0502- ●
80 04.651 COVER; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97141-404-0 01 1 0211-0501 ●
80 04.651 COVER; MASTER CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 		8-97130-448-0 01 1 0211-0311 ● ● ● ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ) FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-448-0 01 1 0211-0311 ●
80 04.651 COVER; MASTER CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97130-448-0 01 1 0312-0501 ● ● ● ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ) FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-448-0 01 1 0312-0501 ●
80 04.651 COVER; MASTER CYL 8-97130-448-0 01 1 0502- ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. DISC BRAKE FRT<J52> 		8-97130-448-0 01 1 0502- ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) 		8-97130-448-0 01 1 0502- ●
80 04.651 COVER; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97130-448-0 01 1 0502- ●
80 04.651 COVER; MASTER CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97130-449-0 01 1 0211-0311 ●
80 04.651 COVER; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 		8-97130-449-0 01 1 0312-0501 ●
80 04.651 COVER; MASTER CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97130-449-0 01 1 0312-0501 ●
80 04.651 COVER; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97130-449-0 01 1 0502- ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 		8-97130-449-0 01 1 0502- ●
80 04.651 COVER; MASTER CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97130-449-0 01 1 0502- ●
80 04.651 COVER; MASTER CYL 8-97130-449-0 01 1 0502- ●
81 04.651 HOLDER; NIPPLE 8-97130-445-0 01 1 0211-0501 ● ● ● ● ● ●
81 04.651 HOLDER; NIPPLE 8-97130-445-0 01 1 0502- ● ● ● ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 0211-0501 ● ● ● ● ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 0502- ● ● ● ● ●
87 04.662 SPACER; CUP
G.V.W. 3.5-4.0TON(RPQ) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97141-413-0 01 1 0211-0501 ●
87 04.662 SPACER; CUP
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 		8-97130-458-0 01 1 0211-0311 ● ● ● ● ● ●
87 04.662 SPACER; CUP
G.V.W. 3.5-4.0TON(RPQ) FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-458-0 01 1 0211-0311 ●
87 04.662 SPACER; CUP
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97130-458-0 01 1 0312-0501 ● ● ● ● ● ●
87 04.662 SPACER; CUP
G.V.W. 3.5-4.0TON(RPQ) FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-458-0 01 1 0312-0501 ●
87 04.662 SPACER; CUP 8-97130-458-0 01 1 0502- ● ●
87 04.662 SPACER; CUP
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. DISC BRAKE FRT<J52> 		8-97130-458-0 01 1 0502- ● ●
87 04.662 SPACER; CUP
G.V.W. 5.5-6.0TON(RPU) 		8-97130-458-0 01 1 0502- ●
87 04.662 SPACER; CUP
G.V.W. 5.5-6.0TON(RPU) EXC. MINI BUS CHASSIS(V4B) 		8-97130-458-0 01 1 0502- ●
87 04.662 SPACER; CUP
G.V.W. 6.5-7.0TON(RPW) 		8-97130-459-0 01 1 0211-0311 ●
87 04.662 SPACER; CUP
G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 		8-97130-459-0 01 1 0312-0501 ●
87 04.662 SPACER; CUP
G.V.W. 6.5-7.0TON(RPW) 		8-97130-459-0 01 1 0312-0501 ●
87 04.662 SPACER; CUP
DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97130-459-0 01 1 0502- ● ●
87 04.662 SPACER; CUP
G.V.W. 5.5-6.0TON(RPU) INDONESIA EQUIPMENT(S4S) MINI BUS CHASSIS(V4B) 		8-97130-459-0 01 1 0502- ●
87 04.662 SPACER; CUP
G.V.W. 6.5-7.0TON(RPW) 		8-97130-459-0 01 1 0502- ●
87 04.662 SPACER; CUP 8-97130-459-0 01 1 0502- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
