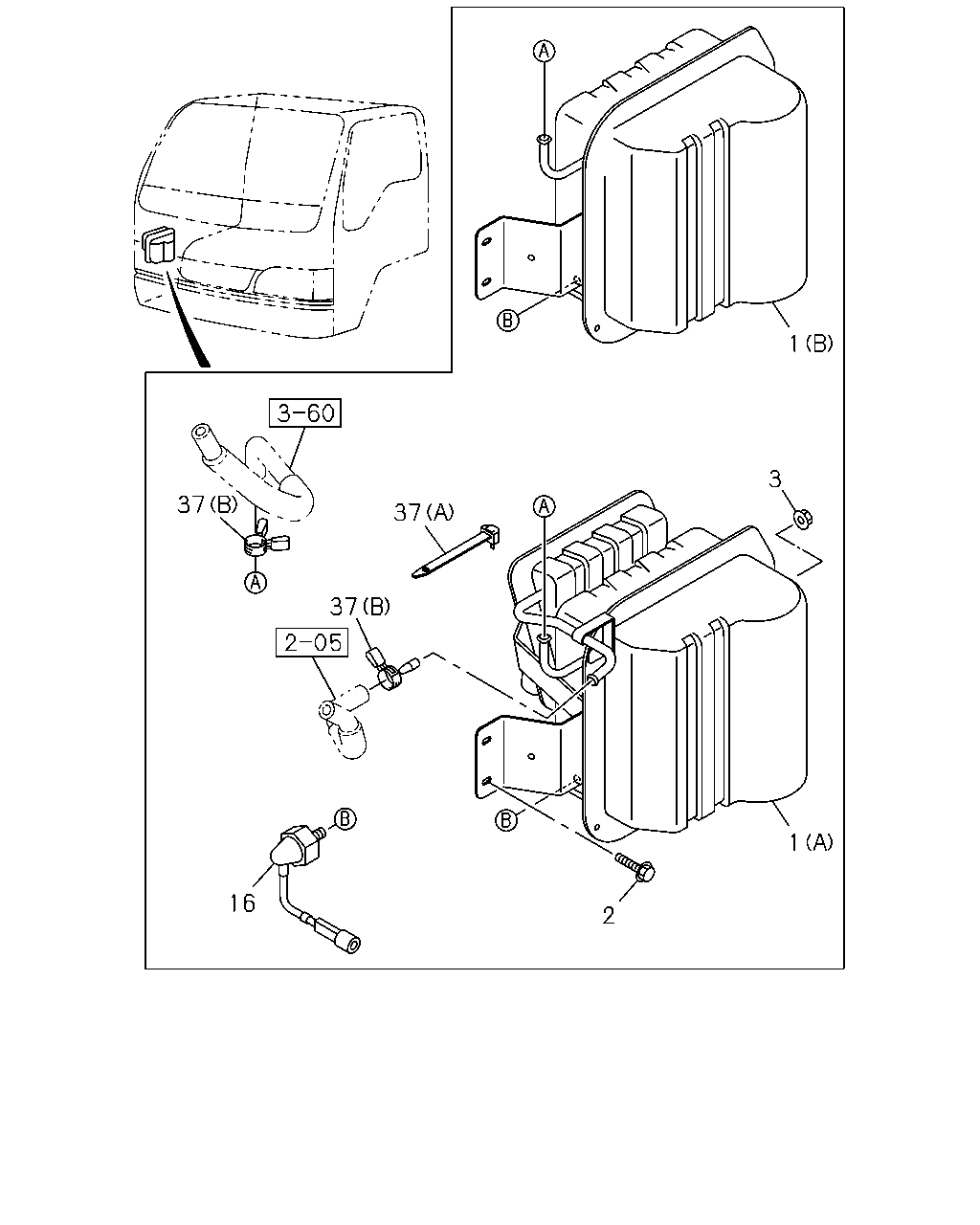

3-21 — VACUUM TANK (#47673) — 18 parça

1 37 3 37 37 1 16 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH<S2T> (A)	8-97062-399-5	01	1	0211-	●	●	●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH<S2T> (B)	8-97073-471-4	01	1	0211-0501	●	●	●	●	●
1	04.902 TANK; VAC,MAIN (B)	8-97073-471-4	01	1	0211-0501						●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH<S2T> (B)	8-97073-471-4	01	1	0502-	●	●	●	●	●
2	04.902 BOLT; VAC TANK 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●	●	●	●	●	●
2	04.902 BOLT; VAC TANK 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●	●	●	●	●
2	04.902 BOLT; VAC TANK 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●	●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0212	●	●	●	●	●	●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0501	●	●	●	●	●	●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●	●	●	●	●
3	04.902 NUT; VAC TANK TO BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●	●
16	04.906 SWITCH; VAC	8-97073-374-1	01	1	0211-0501	●	●	●	●	●	●
16	04.906 SWITCH; VAC	8-97073-374-1	01	1	0502-	●	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> 02.559 (A) L=219.5	1-09987-136-0	01	1	0211-	●	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> 04.930 (B) ID=16	8-94238-568-0	02	1	0211-	●	●	●	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH<S2T> 04.930 (B) ID=16	8-94238-568-0	01	1	0211-0501	●	●	●	●	●
37	04.902 CLIP; RUBBER HOSE 04.930 (B) ID=16	8-94238-568-0	01	1	0211-0501						●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH<S2T> 04.930 (B) ID=16	8-94238-568-0	01	1	0502-	●	●	●	●	●
