◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 3 - Brakes, Brake System ▶ 3-15 - ANTILOCK BRAKE SYSTEM(A.B.S.) ▶
3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#47672) — 20 parça

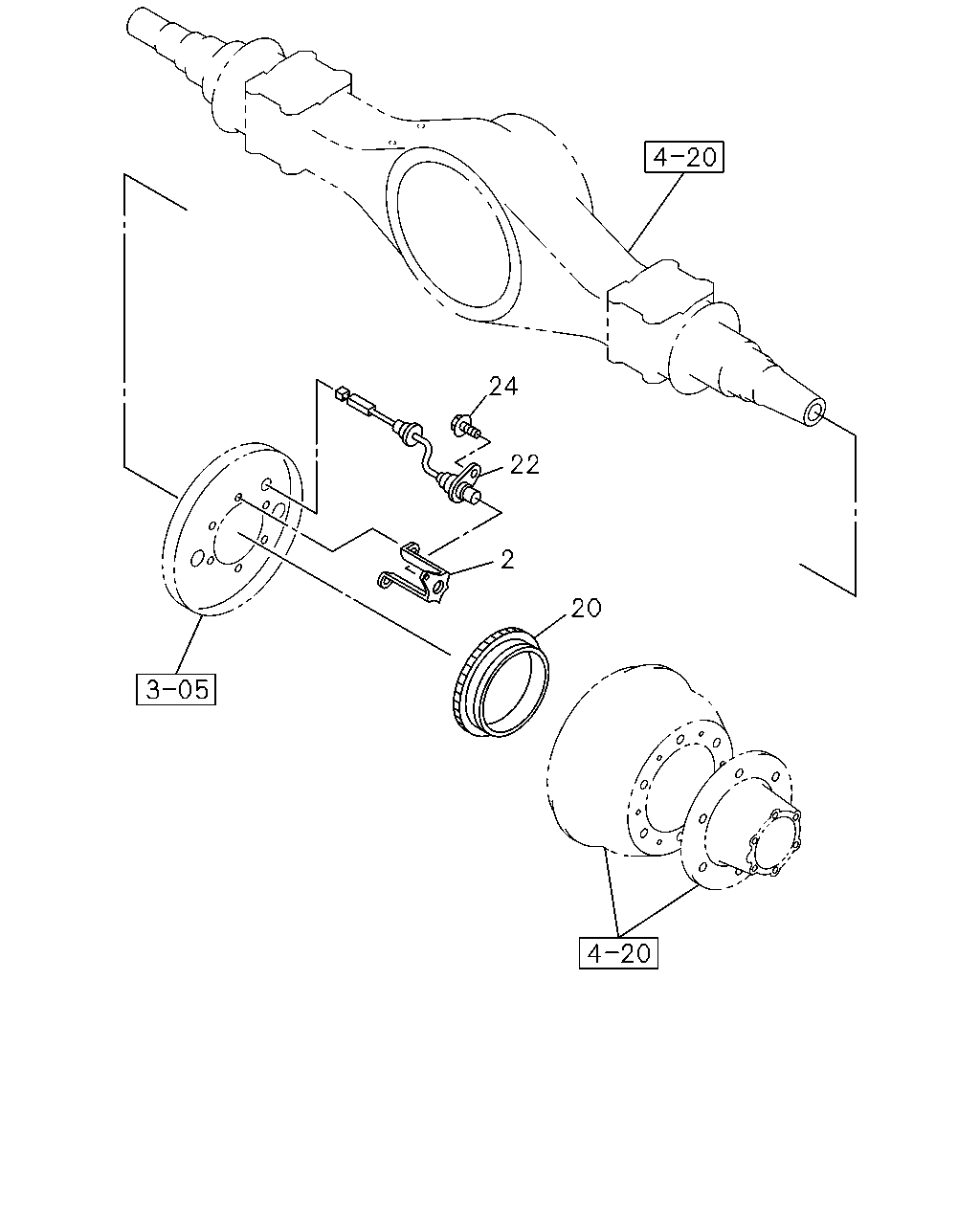

çizim 11479
24 22 2 20
BalonParca AdiParca NoAdetTipApplied Date A B C
2 04.730 BRACKET; SENSOR
4JH1-TC ENG(RDM) REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97314-120-0 02 1 0502-0609 ● ●
2 04.730 BRACKET; SENSOR
4JH1-TC ENG(RDM) REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97314-120-0 02 1 0610- ● ●
2 04.730 BRACKET; SENSOR
4JB1-TC ENG(RDT) REAR AXLE HEAVY DUTY 292MM(G73) BRK WHL LK CONT LSPV<6PH> EXC. DISC BRAKE FRT<J52> 		8-97314-120-0 02 1 0610- ●
2 04.730 BRACKET; SENSOR 8-97239-531-1 01 1 0502- ●
2 04.730 BRACKET; SENSOR 8-97239-530-1 01 1 0502- ●
20 04.710 ROTOR; SENSOR
4JH1-TC ENG(RDM) REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97234-459-2 02 1 0502-0609 ● ●
20 04.710 ROTOR; SENSOR
4JH1-TC ENG(RDM) REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97234-459-3 02 1 0610- ● ●
20 04.710 ROTOR; SENSOR
4JB1-TC ENG(RDT) REAR AXLE HEAVY DUTY 292MM(G73) BRK WHL LK CONT LSPV<6PH> EXC. DISC BRAKE FRT<J52> 		8-97234-459-3 02 1 0610- ●
20 04.710 ROTOR; SENSOR 8-97258-319-0 02 1 0502- ●
22 04.710 SENSOR; SPEED
4JH1-TC ENG(RDM) REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97184-314-4 02 1 0502-0609 ● ●
22 04.710 SENSOR; SPEED
4JH1-TC ENG(RDM) REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97184-314-4 02 1 0610- ● ●
22 04.710 SENSOR; SPEED
4JB1-TC ENG(RDT) REAR AXLE HEAVY DUTY 292MM(G73) BRK WHL LK CONT LSPV<6PH> EXC. DISC BRAKE FRT<J52> 		8-97184-314-4 02 1 0610- ●
22 04.710 SENSOR; SPEED 8-97264-516-2 02 1 0502- ●
24 04.730 BOLT; SENSOR
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0502-0512 ● ●
24 04.730 BOLT; SENSOR
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0502-0512 ●
24 04.730 BOLT; SENSOR
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-0910 ● ●
24 04.730 BOLT; SENSOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-0910 ●
24 04.730 BOLT; SENSOR
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0911- ● ●
24 04.730 BOLT; SENSOR
4JB1-TC ENG(RDT) REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> EXC. DISC BRAKE FRT<J52> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0911- ●
24 04.730 BOLT; SENSOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0911- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
