Sayfa 3-11 - Isuzu EPC

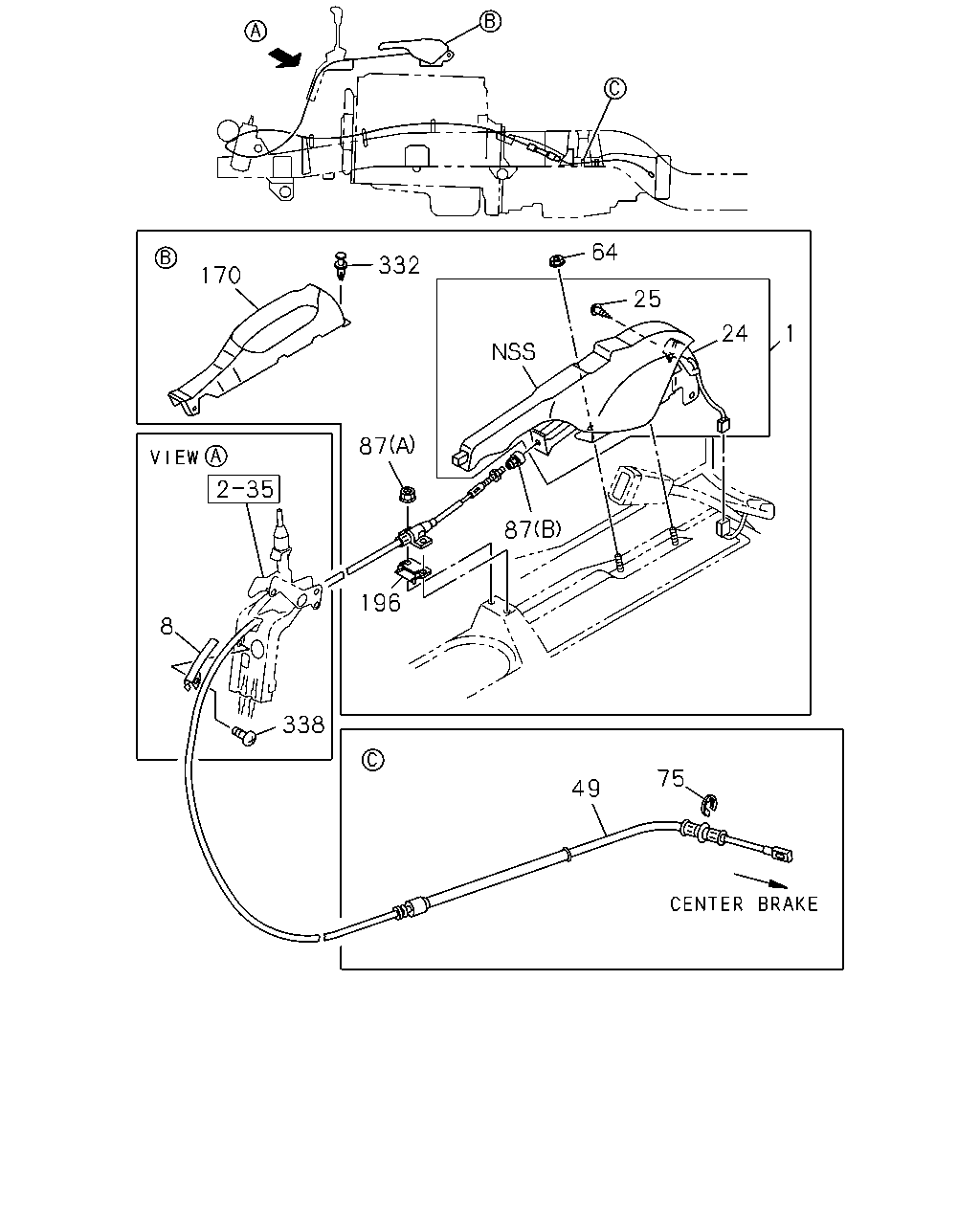

3-11 — PARKING BRAKE CONTROL (#47671) — 154 parça

225 89 224 91 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
89	04.785 BRACKET; CLIP 4JB1 ENG(RLF)	8-97113-984-1	01	1	0211-0501	●	●	●	●
89	04.785 BRACKET; CLIP	8-97113-984-1	01	1	0211-0501					●
89	04.785 BRACKET; CLIP 4JB1 ENG(RLF)	8-97113-984-1	01	1	0502-0609	●	●	●
89	04.785 BRACKET; CLIP 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97113-984-1	01	1	0610-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	0211-0501	●	●	●	●		●
91	04.785 CLIP; PARKING BRK CABLE 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	0502-0609	●	●	●	●		●
91	04.785 CLIP; PARKING BRK CABLE 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HG1ENG(RJH),4HF1-N ENG(RJZ) 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	0610-	●	●	●	●		●
91	04.785 CLIP; PARKING BRK CABLE 4JB1 ENG(RLF) (B) ID=13 L=50	9-09525-286-0	01	1	0211-0501	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (B) ID=13 L=50	9-09525-286-0	01	1	0211-0501					●
91	04.785 CLIP; PARKING BRK CABLE 4JB1 ENG(RLF) (B) ID=13 L=50	9-09525-286-0	01	1	0502-0606	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4JB1 ENG(RLF) (B) ID=13 L=50	0-95235-286-0	01	1	0607-0609	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B) ID=13 L=50	0-95235-286-0	01	1	0610-	●	●	●
181	04.785 BOLT; BRKT 4JB1 ENG(RLF) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●
181	04.785 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501					●
181	04.785 BOLT; BRKT 4JB1 ENG(RLF) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●	●	●
181	04.785 BOLT; BRKT 4JB1 ENG(RLF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0609	●	●	●
181	04.785 BOLT; BRKT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0610-	●	●	●
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0211-0501	●	●	●	●		●
224	04.785 BOLT; CABLE CLIP 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0502-0512	●	●	●	●		●
224	04.785 BOLT; CABLE CLIP 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. FRAME-KICK UP<7EW> 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0601-0609	●	●	●	●		●
224	04.785 BOLT; CABLE CLIP 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HG1ENG(RJH),4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0610-	●	●	●	●		●
224	04.785 BOLT; CABLE CLIP 4JB1 ENG(RLF) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501					●
224	04.785 BOLT; CABLE CLIP 4JB1 ENG(RLF) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●	●	●
224	04.785 BOLT; CABLE CLIP 4JB1 ENG(RLF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0609	●	●	●
224	04.785 BOLT; CABLE CLIP 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0610-	●	●	●
225	04.785 NUT; CABLE CLIP 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) M10 FLANGE	0-91150-110-0	01	1	0211-0501	●	●	●	●		●
225	04.785 NUT; CABLE CLIP 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) M10 FLANGE	0-91150-110-0	01	1	0502-0602	●	●	●	●		●
225	04.785 NUT; CABLE CLIP 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0609	●	●	●	●		●
225	04.785 NUT; CABLE CLIP 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HG1ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0610-	●	●	●	●		●
225	04.785 NUT; CABLE CLIP 4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501					●
225	04.785 NUT; CABLE CLIP 4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●	●	●
225	04.785 NUT; CABLE CLIP 4JB1 ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0609	●	●	●
225	04.785 NUT; CABLE CLIP 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-	●	●	●

324 236 324 236 91 225 225 236 91 235 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
91	04.785 CLIP; PARKING BRK CABLE 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	0211-0501	●	●	●	●		●
91	04.785 CLIP; PARKING BRK CABLE 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	0502-0609	●	●	●	●		●
91	04.785 CLIP; PARKING BRK CABLE 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HG1ENG(RJH),4HF1-N ENG(RJZ) 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	0610-	●	●	●	●		●
91	04.785 CLIP; PARKING BRK CABLE 4JB1 ENG(RLF) (B) ID=13 L=50	9-09525-286-0	01	1	0211-0501	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE (B) ID=13 L=50	9-09525-286-0	01	1	0211-0501					●
91	04.785 CLIP; PARKING BRK CABLE 4JB1 ENG(RLF) (B) ID=13 L=50	9-09525-286-0	01	1	0502-0606	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4JB1 ENG(RLF) (B) ID=13 L=50	0-95235-286-0	01	1	0607-0609	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B) ID=13 L=50	0-95235-286-0	01	1	0610-	●	●	●
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0211-0501	●	●	●	●		●
224	04.785 BOLT; CABLE CLIP 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0502-0512	●	●	●	●		●
224	04.785 BOLT; CABLE CLIP 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. FRAME-KICK UP<7EW> 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0601-0609	●	●	●	●		●
224	04.785 BOLT; CABLE CLIP 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HG1ENG(RJH),4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0610-	●	●	●	●		●
224	04.785 BOLT; CABLE CLIP 4JB1 ENG(RLF) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501					●
224	04.785 BOLT; CABLE CLIP 4JB1 ENG(RLF) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●	●	●
224	04.785 BOLT; CABLE CLIP 4JB1 ENG(RLF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0609	●	●	●
224	04.785 BOLT; CABLE CLIP 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0610-	●	●	●
225	04.785 NUT; CABLE CLIP 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) M10 FLANGE	0-91150-110-0	01	1	0211-0501	●	●	●	●		●
225	04.785 NUT; CABLE CLIP 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) M10 FLANGE	0-91150-110-0	01	1	0502-0602	●	●	●	●		●
225	04.785 NUT; CABLE CLIP 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0609	●	●	●	●		●
225	04.785 NUT; CABLE CLIP 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HG1ENG(RJH),4HF1-N ENG(RJZ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0610-	●	●	●	●		●
225	04.785 NUT; CABLE CLIP 4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501					●
225	04.785 NUT; CABLE CLIP 4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●	●	●
225	04.785 NUT; CABLE CLIP 4JB1 ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0609	●	●	●
225	04.785 NUT; CABLE CLIP 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-	●	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME FRAME-KICK UP<7EW>	8-97176-465-1	01	1	0211-		●
236	04.785 BOLT; BRKT TO FRAME 4JH1 ENG(RJX),4HF1-S ENG(RLS) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●	●
236	04.785 BOLT; BRKT TO FRAME FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501		●
236	04.785 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S ENG(RLS) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501			●
236	04.785 BOLT; BRKT TO FRAME 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501						●
236	04.785 BOLT; BRKT TO FRAME 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501				●
236	04.785 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512	●	●	●	●		●
236	04.785 BOLT; BRKT TO FRAME FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●
236	04.785 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0609	●	●	●	●		●
236	04.785 BOLT; BRKT TO FRAME FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0609		●
236	04.785 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4HG1ENG(RJH),4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0610-	●	●	●	●		●
236	04.785 BOLT; BRKT TO FRAME FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0610-		●
324	04.785 BRACKET 4HF1-S ENG(RLS) (A)	8-97357-242-0	01	1	0211-0501	●	●
324	04.785 BRACKET 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97357-242-0	01	1	0211-0501			●
324	04.785 BRACKET (A)	8-97357-242-0	01	1	0211-0501						●
324	04.785 BRACKET 4HF1-N ENG(RJZ) (A)	8-97357-242-0	01	1	0502-0609	●	●
324	04.785 BRACKET 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97357-242-0	01	1	0502-0609			●
324	04.785 BRACKET (A)	8-97357-242-0	01	1	0502-0609						●
324	04.785 BRACKET 4HF1-N ENG(RJZ) (A)	8-97357-242-0	01	1	0610-	●	●
324	04.785 BRACKET 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97357-242-0	01	1	0610-			●
324	04.785 BRACKET (A)	8-97357-242-0	01	1	0610-						●
324	04.785 BRACKET 4JH1 ENG(RJX) (B)	8-97289-364-0	01	1	0211-0501	●	●	●	●
324	04.785 BRACKET 4JH1-TC ENG(RDM) (B)	8-97289-364-0	01	1	0502-		●	●
324	04.785 BRACKET (B)	8-97289-364-0	01	1	0502-				●

64 332 170 25 24 1 87 196 8 338 75 49 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.592 STEM ASM; PARKING BRK DARK GRAY	8-97996-542-2	01	1	0211-0501	●	●	●	●	●	●
1	04.592 STEM ASM; PARKING BRK INTERIOR COLOR GRAY(153) DARK GRAY	8-97996-542-2	01	1	0502-0709	●		●
1	04.592 STEM ASM; PARKING BRK INTERIOR COLOR GRAY(153) INDONESIA EQUIPMENT(S4S) DARK GRAY	8-97996-542-2	01	1	0710-1305	●		●
1	04.592 STEM ASM; PARKING BRK INTERIOR COLOR GRAY(153) INDONESIA EQUIPMENT(S4S) DARK GRAY	8-97427-541-0	01	1	1306-	●		●
1	04.592 STEM ASM; PARKING BRK INTERIOR COLOR BLUISH GRAY(158) GRAY	8-97582-333-2	01	1	0502-0610	●		●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97582-333-2	01	1	0502-0610		●		●		●
1	04.592 STEM ASM; PARKING BRK INTERIOR COLOR BLUISH GRAY(158) GRAY	8-97409-386-0	01	1	0611-0709	●		●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97409-386-0	01	1	0611-0709		●		●		●
1	04.592 STEM ASM; PARKING BRK INTERIOR COLOR BLUISH GRAY(158) EXC. INDONESIA EQUIPMENT(S4S) GRAY	8-97409-386-0	01	1	0710-1305	●		●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97409-386-0	01	1	0710-1305		●		●		●
1	04.592 STEM ASM; PARKING BRK INTERIOR COLOR BLUISH GRAY(158) EXC. INDONESIA EQUIPMENT(S4S) GRAY	8-97427-545-0	01	1	1306-	●		●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97427-545-0	01	1	1306-		●		●		●
8	04.592 GUIDE; PARKING BRK	8-97190-672-0	01	1	0211-0501	●	●	●	●	●	●
8	04.592 GUIDE; PARKING BRK	8-97190-672-0	01	1	0502-	●	●	●	●		●
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0211-0501	●	●	●	●	●	●
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0502-1305	●	●	●	●		●
24	04.589 SWITCH ASM; PARK BRK	8-98238-611-0	01	1	1306-	●	●	●	●		●
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	0502-	●	●	●	●		●
49	04.779 CABLE; PARKING BRK 4HF1-S ENG(RLS)	8-97350-540-0	01	1	0211-0501	●
49	04.779 CABLE; PARKING BRK 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW>	8-97350-540-0	01	1	0211-0501		●
49	04.779 CABLE; PARKING BRK 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97350-540-0	01	1	0211-0501			●
49	04.779 CABLE; PARKING BRK	8-97350-540-0	01	1	0211-0501						●
49	04.779 CABLE; PARKING BRK 4HF1-N ENG(RJZ)	8-97350-540-0	01	1	0502-	●
49	04.779 CABLE; PARKING BRK 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW>	8-97350-540-0	01	1	0502-		●
49	04.779 CABLE; PARKING BRK 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97350-540-0	01	1	0502-			●
49	04.779 CABLE; PARKING BRK	8-97350-540-0	01	1	0502-						●
49	04.779 CABLE; PARKING BRK 4JB1 ENG(RLF)	8-97184-270-0	01	1	0211-0501	●	●	●	●
49	04.779 CABLE; PARKING BRK	8-97184-270-0	01	1	0211-0501					●
49	04.779 CABLE; PARKING BRK 4JB1 ENG(RLF)	8-97184-270-0	01	1	0502-0609	●	●	●
49	04.779 CABLE; PARKING BRK 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97184-270-0	01	1	0610-0712	●
49	04.779 CABLE; PARKING BRK 4JB1 ENG(RLF)	8-97184-270-0	01	1	0610-0712		●	●
49	04.779 CABLE; PARKING BRK 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97184-270-0	01	1	0801-	●		●
49	04.779 CABLE; PARKING BRK 4JB1 ENG(RLF)	8-97184-270-0	01	1	0801-		●
49	04.779 CABLE; PARKING BRK 4JH1 ENG(RJX)	8-97350-539-0	01	1	0211-0501	●	●	●	●
49	04.779 CABLE; PARKING BRK 4JH1-TC ENG(RDM)	8-97350-539-0	01	1	0502-		●	●
49	04.779 CABLE; PARKING BRK	8-97350-539-0	01	1	0502-				●
49	04.779 CABLE; PARKING BRK FRAME-KICK UP<7EW>	8-97215-424-0	01	1	0211-0501		●
49	04.779 CABLE; PARKING BRK 4HG1-T ENG(RDP)	8-97361-329-0	01	1	0610-			●
64	04.595 NUT; PARKING BRK 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0211-0501	●	●	●	●	●	●
64	04.595 NUT; PARKING BRK 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0502-0610	●	●	●	●		●
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	0611-	●	●	●	●		●
75	04.790 RING; SNAP,HAND BRK CABLE 04.681 ID=12	9-09185-412-0	01	1	0211-0501	●	●	●	●	●	●
75	04.790 RING; SNAP,HAND BRK CABLE 04.681 ID=12	9-09185-412-0	01	1	0502-0604	●	●	●	●		●
75	04.790 RING; SNAP,HAND BRK CABLE ID=12	0-91805-512-0	01	1	0605-	●	●	●	●		●
87	04.785 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0211-0501	●	●	●	●	●	●
87	04.785 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0502-0602	●	●	●	●		●
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●		●
87	04.785 NUT (B) M6	8-97088-730-1	01	1	0211-0310	●	●	●	●	●	●
87	04.785 NUT (B) M6	1-71996-312-0	01	1	0311-0501	●	●	●	●	●	●
87	04.785 NUT (B) M6	1-71996-312-0	01	1	0502-0611	●	●	●	●		●
87	04.785 NUT (B) M6	8-98034-313-1	01	1	0612-	●	●	●	●		●
170	04.595 COVER; PARKING BRK LEVER DARK GRAY	8-97155-172-0	01	1	0211-0501	●	●	●	●	●	●
170	04.595 COVER; PARKING BRK LEVER INTERIOR COLOR GRAY(153) DARK GRAY	8-97155-172-1	01	1	0502-0709	●		●
170	04.595 COVER; PARKING BRK LEVER INTERIOR COLOR GRAY(153) INDONESIA EQUIPMENT(S4S) DARK GRAY	8-97155-172-1	01	1	0710-1001	●		●
170	04.595 COVER; PARKING BRK LEVER INTERIOR COLOR GRAY(153) INDONESIA EQUIPMENT(S4S) DARK GRAY	8-97412-945-0	01	1	1002-	●		●
170	04.595 COVER; PARKING BRK LEVER INTERIOR COLOR BLUISH GRAY(158) GRAY	8-97396-940-1	01	1	0502-0702	●		●
170	04.595 COVER; PARKING BRK LEVER GRAY	8-97396-940-1	01	1	0502-0702		●		●		●
170	04.595 COVER; PARKING BRK LEVER INTERIOR COLOR BLUISH GRAY(158) GRAY	8-97409-480-0	01	1	0703-0709	●		●
170	04.595 COVER; PARKING BRK LEVER GRAY	8-97409-480-0	01	1	0703-0709		●		●		●
170	04.595 COVER; PARKING BRK LEVER INTERIOR COLOR BLUISH GRAY(158) EXC. INDONESIA EQUIPMENT(S4S) GRAY	8-97409-480-0	01	1	0710-	●		●
170	04.595 COVER; PARKING BRK LEVER GRAY	8-97409-480-0	01	1	0710-		●		●		●
196	04.784 SPACER; CABLE TO LEVER	8-97066-277-2	01	1	0211-0501	●	●	●	●	●	●
196	04.784 SPACER; CABLE TO LEVER	8-97066-277-2	01	1	0502-0611	●	●	●	●		●
196	04.784 SPACER; CABLE TO LEVER	8-98034-201-0	01	1	0612-	●	●	●	●		●
332	04.785 CLIP; COVER 03.602 D6X12.5	8-94146-425-0	01	1	0211-0501	●	●	●	●	●	●
332	04.785 CLIP; COVER 03.602 D6X12.5	8-94146-425-0	01	1	0502-	●	●	●	●		●
338	04.785 SCREW; GUIDE 16.270 M6X10	9-03497-610-0	01	1	0211-0501	●	●	●	●	●	●
338	04.785 SCREW; GUIDE 16.270 M6X10	9-03497-610-0	01	1	0502-0604	●	●	●	●		●
338	04.785 SCREW; GUIDE M6X10	0-34218-610-0	01	1	0605-	●	●	●	●		●
