◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶
3-02 — FRONT DISC BRAKE CALIPER (#47667) — 195 parça

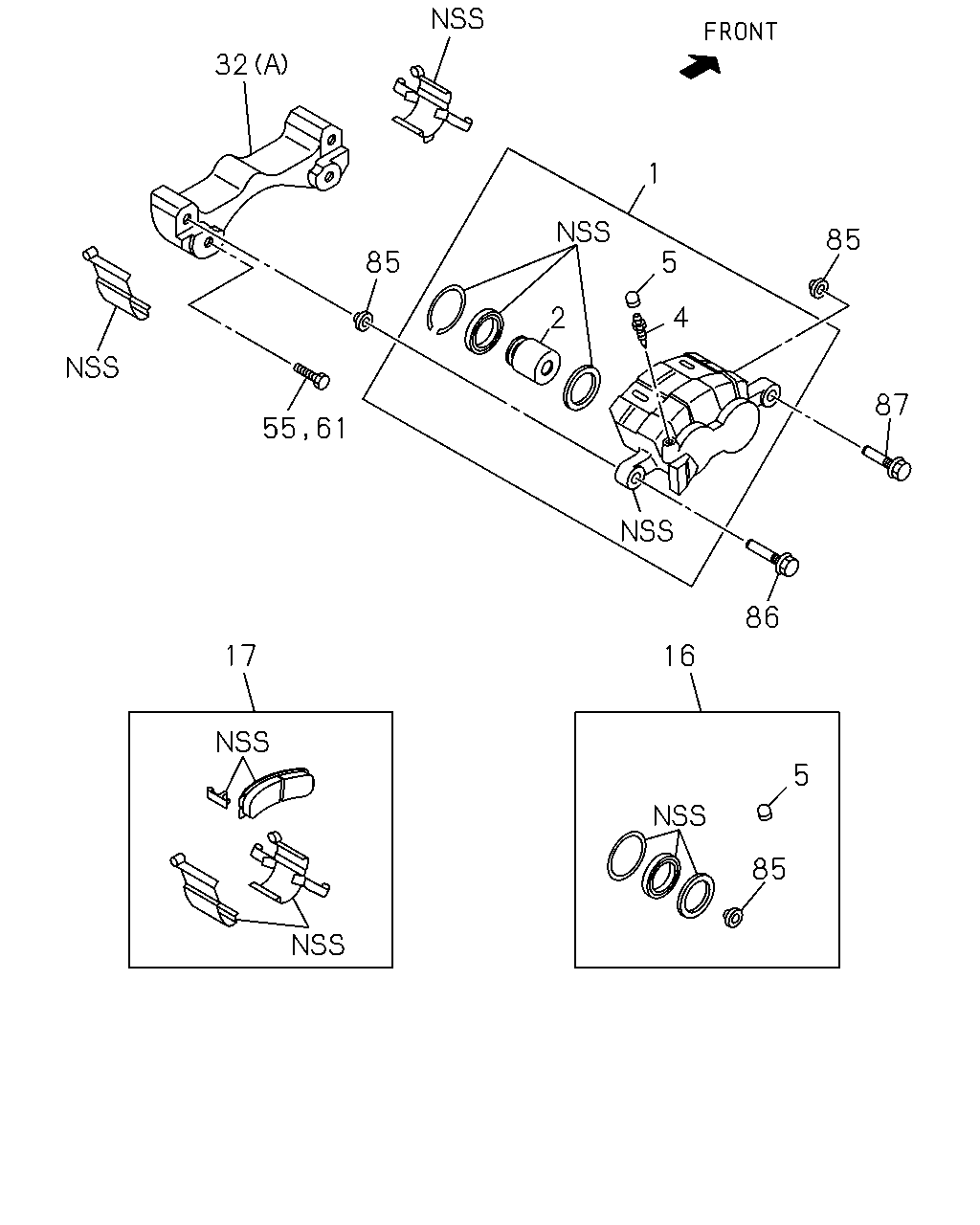

çizim 11307
32 1 85 85 5 4 2 87 86 17 16 5 85 55 61
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-399-1 01 1 0211-0501 ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97365-908-0 01 1 0502-0504 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-97365-908-0 01 1 0502-0504 ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-97365-908-0 01 1 0505-1310 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-97365-908-0 01 1 0505-1310 ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-98247-731-0 01 1 1311-1412 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-98247-731-0 01 1 1311-1412 ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-98303-462-0 01 1 1501- ● ●
1 04.665 CALIPER; FRT DISC BRK 8-98303-462-0 01 1 1501- ●
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-398-1 01 1 0211-0501 ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97365-907-0 01 1 0502-0504 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-97365-907-0 01 1 0502-0504 ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-97365-907-0 01 1 0505-1310 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-97365-907-0 01 1 0505-1310 ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-98247-730-0 01 1 1311-1412 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-98247-730-0 01 1 1311-1412 ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-98303-461-0 01 1 1501- ● ●
1 04.665 CALIPER; FRT DISC BRK 8-98303-461-0 01 1 1501- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-402-0 04 1 0211-0501 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97365-269-0 04 1 0502-0504 ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-269-0 04 1 0502-0504 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-97365-269-0 04 1 0505- ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-269-0 04 1 0505- ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		9-47615-027-0 02 1 0211-0501 ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		1-47615-027-0 02 1 0502-0504 ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 0502-0504 ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		1-47615-027-0 02 1 0505-1310 ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 0505-1310 ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-98050-476-0 02 1 1311- ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1311- ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		1-47619-009-0 02 1 0211-0501 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		1-47619-009-0 02 1 0502-0504 ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0502-0504 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		1-47619-009-0 02 1 0505-1310 ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0505-1310 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-98050-479-0 02 1 1311- ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1311- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) W/GREASE 		8-98120-357-0 01 1 0502-0504 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98120-357-0 01 1 0502-0504 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> W/GREASE 		8-98120-357-0 01 1 0505-1310 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98120-357-0 01 1 0505-1310 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> W/GREASE 		8-98248-904-0 01 1 1311-1412 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98248-904-0 01 1 1311-1412 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> W/GREASE 		8-98302-531-0 01 1 1501- ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98302-531-0 01 1 1501- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-410-2 01 1 0211-0501 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97318-894-0 01 1 0211-0304 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97368-980-0 01 1 0305-0501 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97329-266-0 01 1 0502-0504 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97329-266-0 01 1 0502-0504 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-97329-266-0 01 1 0505-1212 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97329-266-0 01 1 0505-1212 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-98216-922-0 01 1 1301- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-98216-922-0 01 1 1301- ●
32 04.665 SUPPORT; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97078-404-1 02 1 0211-0501 ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) (B) 		8-97168-583-2 01 1 0502- ● ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97168-583-2 01 1 0502- ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-592-1 01 1 0505- ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-591-1 01 1 0505- ● ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) (A) 		8-97365-271-0 02 1 0502-0504 ● ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97365-271-0 02 1 0502-0504 ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-97365-271-0 02 1 0505- ● ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97365-271-0 02 1 0505- ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) (B) 		8-97168-584-2 01 1 0502- ● ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97168-584-2 01 1 0502- ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97042-716-1 02 1 0211-0501 ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97168-639-0 04 1 0502-0504 ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK 8-97168-639-0 04 1 0502-0504 ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
DISC BRAKE FRT<J52> 		8-97168-639-0 04 1 0505-0611 ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK 8-97168-639-0 04 1 0505-0611 ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
DISC BRAKE FRT<J52> M16X31 FLANGE 		8-97359-816-0 04 1 0612- ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X31 FLANGE 		8-97359-816-0 04 1 0612- ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
FRT INDEPENDENT SUSPENSION(6PP) 04.681 		8-97042-716-1 02 1 0211-0501 ●
85 04.665 BOOT; PIN
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-977-0 04 1 0211-0501 ●
85 04.665 BOOT; PIN
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97365-265-0 04 1 0502-0504 ● ●
85 04.665 BOOT; PIN 8-97365-265-0 04 1 0502-0504 ●
85 04.665 BOOT; PIN
DISC BRAKE FRT<J52> 		8-97365-265-0 04 1 0505-0901 ● ●
85 04.665 BOOT; PIN 8-97365-265-0 04 1 0505-0901 ●
85 04.665 BOOT; PIN
DISC BRAKE FRT<J52> 		8-98120-354-0 04 1 0902- ● ●
85 04.665 BOOT; PIN 8-98120-354-0 04 1 0902- ●
86 04.665 PIN; GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-999-0 02 1 0211-0501 ●
86 04.665 PIN; GUIDE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97365-275-0 02 1 0502-0504 ● ●
86 04.665 PIN; GUIDE 8-97365-275-0 02 1 0502-0504 ●
86 04.665 PIN; GUIDE
DISC BRAKE FRT<J52> 		8-97365-275-0 02 1 0505-0610 ● ●
86 04.665 PIN; GUIDE 8-97365-275-0 02 1 0505-0610 ●
86 04.665 PIN; GUIDE
DISC BRAKE FRT<J52> 		8-98047-529-0 02 1 0611- ● ●
86 04.665 PIN; GUIDE 8-98047-529-0 02 1 0611- ●
87 04.665 PIN; LOCK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-998-0 02 1 0211-0501 ●
87 04.665 PIN; LOCK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97365-276-0 02 1 0502-0504 ● ●
87 04.665 PIN; LOCK 8-97365-276-0 02 1 0502-0504 ●
87 04.665 PIN; LOCK
DISC BRAKE FRT<J52> 		8-97365-276-0 02 1 0505-0610 ● ●
87 04.665 PIN; LOCK 8-97365-276-0 02 1 0505-0610 ●
87 04.665 PIN; LOCK
DISC BRAKE FRT<J52> 		8-98047-531-0 02 1 0611-1310 ● ●
87 04.665 PIN; LOCK 8-98047-531-0 02 1 0611-1310 ●
87 04.665 PIN; LOCK
DISC BRAKE FRT<J52> 		8-98248-005-0 02 1 1311- ● ●
87 04.665 PIN; LOCK 8-98248-005-0 02 1 1311- ●

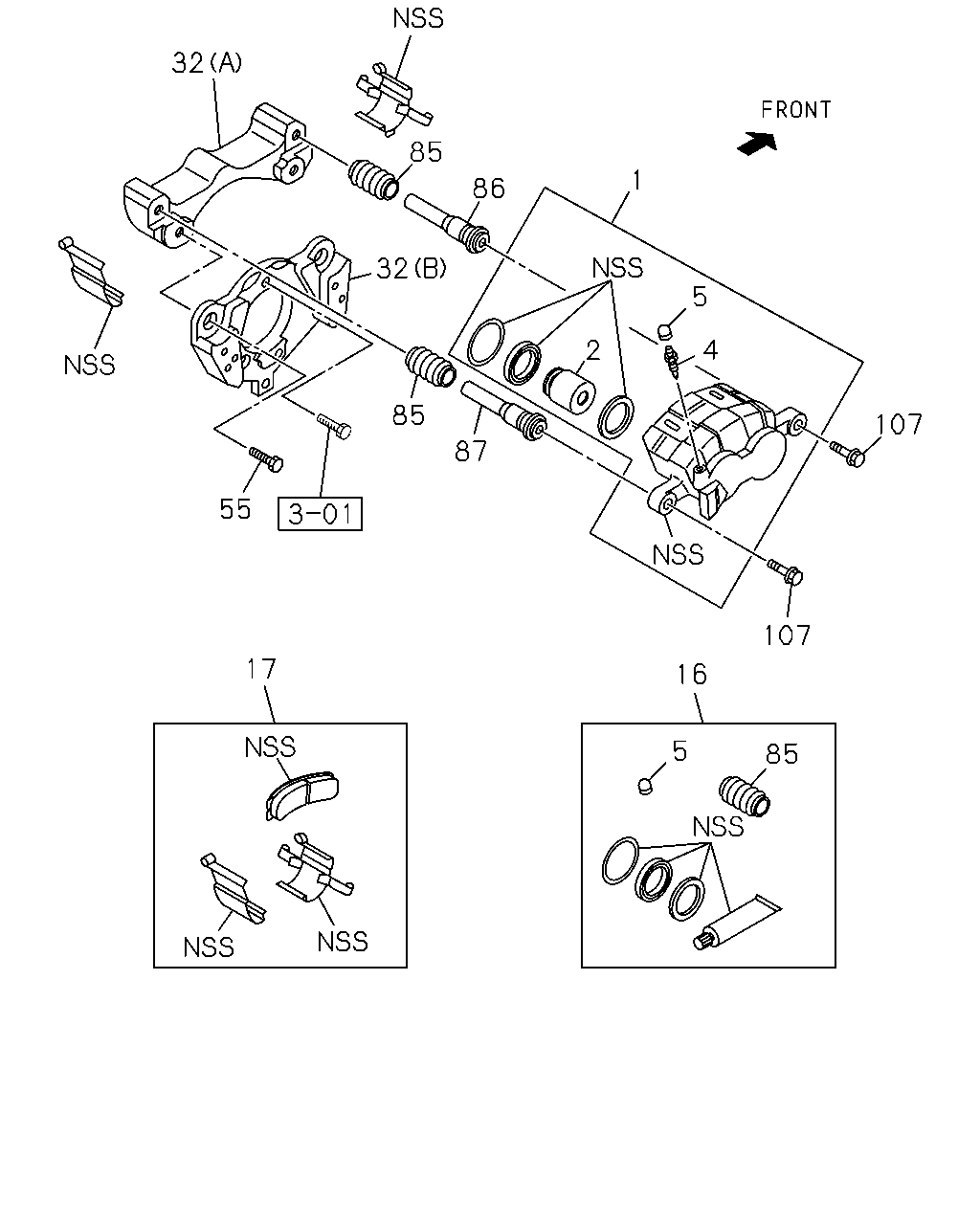

çizim 52257
32 85 1 86 32 5 2 4 85 107 87 55 107 17 16 5 85
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-399-1 01 1 0211-0501 ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97365-908-0 01 1 0502-0504 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-97365-908-0 01 1 0502-0504 ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-97365-908-0 01 1 0505-1310 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-97365-908-0 01 1 0505-1310 ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-98247-731-0 01 1 1311-1412 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-98247-731-0 01 1 1311-1412 ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-98303-462-0 01 1 1501- ● ●
1 04.665 CALIPER; FRT DISC BRK 8-98303-462-0 01 1 1501- ●
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-398-1 01 1 0211-0501 ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97365-907-0 01 1 0502-0504 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-97365-907-0 01 1 0502-0504 ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-97365-907-0 01 1 0505-1310 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-97365-907-0 01 1 0505-1310 ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-98247-730-0 01 1 1311-1412 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-98247-730-0 01 1 1311-1412 ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-98303-461-0 01 1 1501- ● ●
1 04.665 CALIPER; FRT DISC BRK 8-98303-461-0 01 1 1501- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-402-0 04 1 0211-0501 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97365-269-0 04 1 0502-0504 ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-269-0 04 1 0502-0504 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-97365-269-0 04 1 0505- ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-269-0 04 1 0505- ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		9-47615-027-0 02 1 0211-0501 ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		1-47615-027-0 02 1 0502-0504 ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 0502-0504 ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		1-47615-027-0 02 1 0505-1310 ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 0505-1310 ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-98050-476-0 02 1 1311- ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1311- ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		1-47619-009-0 02 1 0211-0501 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		1-47619-009-0 02 1 0502-0504 ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0502-0504 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		1-47619-009-0 02 1 0505-1310 ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0505-1310 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-98050-479-0 02 1 1311- ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1311- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) W/GREASE 		8-98120-357-0 01 1 0502-0504 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98120-357-0 01 1 0502-0504 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> W/GREASE 		8-98120-357-0 01 1 0505-1310 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98120-357-0 01 1 0505-1310 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> W/GREASE 		8-98248-904-0 01 1 1311-1412 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98248-904-0 01 1 1311-1412 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> W/GREASE 		8-98302-531-0 01 1 1501- ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98302-531-0 01 1 1501- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-410-2 01 1 0211-0501 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97318-894-0 01 1 0211-0304 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97368-980-0 01 1 0305-0501 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97329-266-0 01 1 0502-0504 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97329-266-0 01 1 0502-0504 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-97329-266-0 01 1 0505-1212 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97329-266-0 01 1 0505-1212 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-98216-922-0 01 1 1301- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-98216-922-0 01 1 1301- ●
32 04.665 SUPPORT; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97078-404-1 02 1 0211-0501 ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) (B) 		8-97168-583-2 01 1 0502- ● ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97168-583-2 01 1 0502- ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-592-1 01 1 0505- ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-591-1 01 1 0505- ● ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) (A) 		8-97365-271-0 02 1 0502-0504 ● ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97365-271-0 02 1 0502-0504 ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-97365-271-0 02 1 0505- ● ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97365-271-0 02 1 0505- ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) (B) 		8-97168-584-2 01 1 0502- ● ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97168-584-2 01 1 0502- ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97042-716-1 02 1 0211-0501 ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97168-639-0 04 1 0502-0504 ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK 8-97168-639-0 04 1 0502-0504 ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
DISC BRAKE FRT<J52> 		8-97168-639-0 04 1 0505-0611 ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK 8-97168-639-0 04 1 0505-0611 ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
DISC BRAKE FRT<J52> M16X31 FLANGE 		8-97359-816-0 04 1 0612- ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X31 FLANGE 		8-97359-816-0 04 1 0612- ●
85 04.665 BOOT; PIN
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-977-0 04 1 0211-0501 ●
85 04.665 BOOT; PIN
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97365-265-0 04 1 0502-0504 ● ●
85 04.665 BOOT; PIN 8-97365-265-0 04 1 0502-0504 ●
85 04.665 BOOT; PIN
DISC BRAKE FRT<J52> 		8-97365-265-0 04 1 0505-0901 ● ●
85 04.665 BOOT; PIN 8-97365-265-0 04 1 0505-0901 ●
85 04.665 BOOT; PIN
DISC BRAKE FRT<J52> 		8-98120-354-0 04 1 0902- ● ●
85 04.665 BOOT; PIN 8-98120-354-0 04 1 0902- ●
86 04.665 PIN; GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-999-0 02 1 0211-0501 ●
86 04.665 PIN; GUIDE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97365-275-0 02 1 0502-0504 ● ●
86 04.665 PIN; GUIDE 8-97365-275-0 02 1 0502-0504 ●
86 04.665 PIN; GUIDE
DISC BRAKE FRT<J52> 		8-97365-275-0 02 1 0505-0610 ● ●
86 04.665 PIN; GUIDE 8-97365-275-0 02 1 0505-0610 ●
86 04.665 PIN; GUIDE
DISC BRAKE FRT<J52> 		8-98047-529-0 02 1 0611- ● ●
86 04.665 PIN; GUIDE 8-98047-529-0 02 1 0611- ●
87 04.665 PIN; LOCK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-998-0 02 1 0211-0501 ●
87 04.665 PIN; LOCK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97365-276-0 02 1 0502-0504 ● ●
87 04.665 PIN; LOCK 8-97365-276-0 02 1 0502-0504 ●
87 04.665 PIN; LOCK
DISC BRAKE FRT<J52> 		8-97365-276-0 02 1 0505-0610 ● ●
87 04.665 PIN; LOCK 8-97365-276-0 02 1 0505-0610 ●
87 04.665 PIN; LOCK
DISC BRAKE FRT<J52> 		8-98047-531-0 02 1 0611-1310 ● ●
87 04.665 PIN; LOCK 8-98047-531-0 02 1 0611-1310 ●
87 04.665 PIN; LOCK
DISC BRAKE FRT<J52> 		8-98248-005-0 02 1 1311- ● ●
87 04.665 PIN; LOCK 8-98248-005-0 02 1 1311- ●
107 04.665 BOLT; PIN
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97365-264-0 04 1 0502-0504 ● ●
107 04.665 BOLT; PIN 8-97365-264-0 04 1 0502-0504 ●
107 04.665 BOLT; PIN
DISC BRAKE FRT<J52> 		8-97365-264-0 04 1 0505- ● ●
107 04.665 BOLT; PIN 8-97365-264-0 04 1 0505- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
