◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#47662) — 445 parça

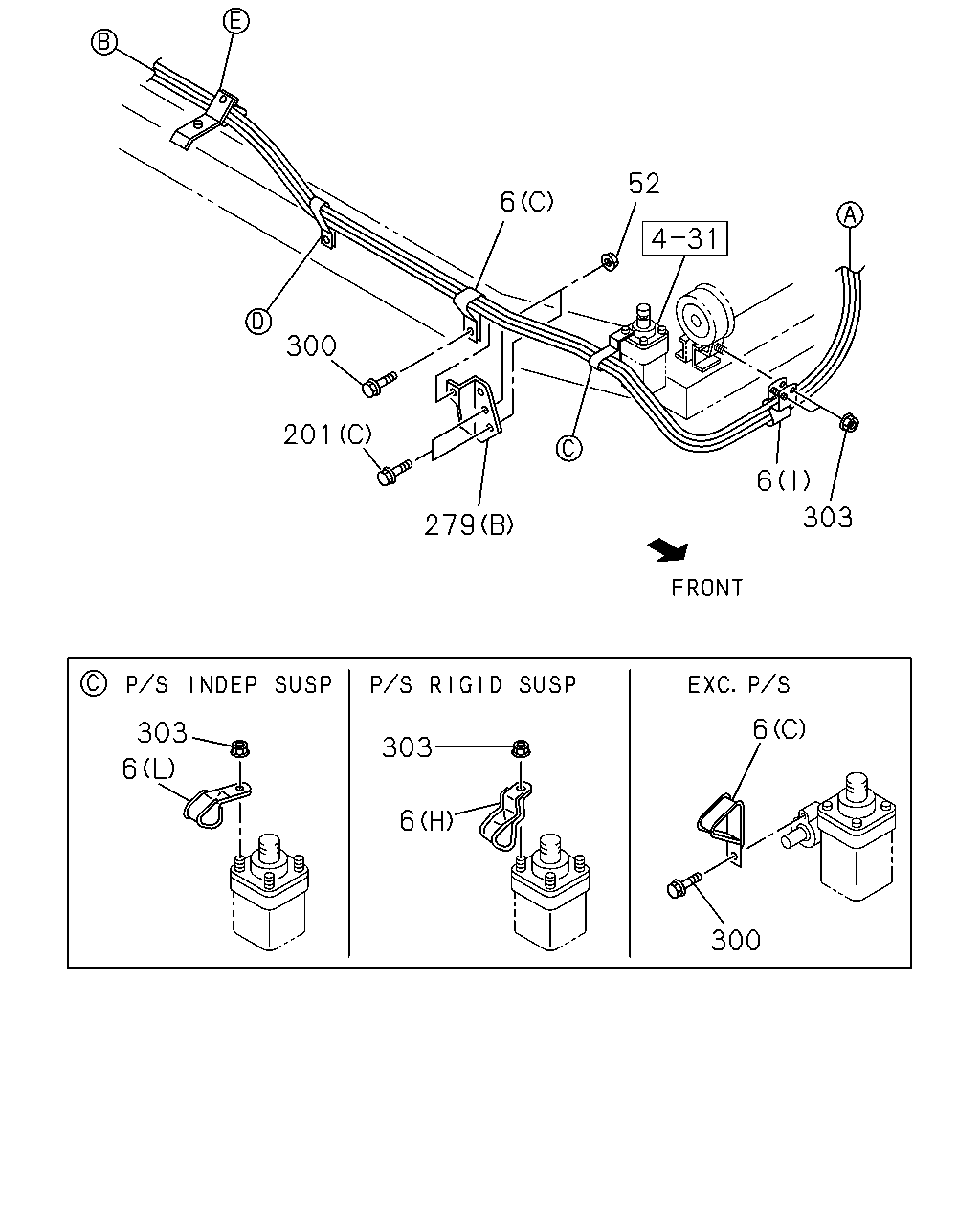

çizim 48424
52 6 300 201 6 303 279 6 303 303 6 6 300
BalonParca AdiParca NoAdetTipApplied Date A B C
6 04.047 CLIP; CABLE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> (O) 		8-98023-697-0 01 1 1212- ● ●
6 04.047 CLIP; CABLE
4HG1-T ENG(RDP) (G) 		8-97039-517-1 01 1 0703- ●
6 04.047 CLIP; CABLE
(D) 		8-97036-329-2 01 1 0211-0501 ● ●
6 04.047 CLIP; CABLE
4JB1 ENG(RLF) (D) 		8-97036-329-2 01 1 0502-0609 ● ●
6 04.047 CLIP; CABLE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (D) 		8-97036-329-2 01 1 0610- ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (G) 		8-97036-332-1 01 1 0211-0501 ● ●
6 04.047 CLIP; CABLE
4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> (G) 		8-97036-332-1 01 1 0502-0609 ● ●
6 04.047 CLIP; CABLE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> (G) 		8-97036-332-1 01 1 0610-1211 ● ●
6 04.047 CLIP; CABLE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40> (G) 		8-97036-332-1 01 1 1212- ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-97211-011-0 02 1 0211- ● ●
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 0211- ● ● ●
6 04.047 CLIP; CABLE
(I) 		8-97147-985-0 01 1 0211- ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (C) 		8-97036-333-1 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (C) 		8-97036-333-1 01 1 0211-0501 ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (C) 		8-97036-333-1 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (C) 		8-97036-333-1 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97036-334-2 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-97036-334-2 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> 00.854 (N) ID=22.2 		1-09701-209-1 01 1 0211- ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-97211-011-0 01 1 0211- ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP) (L) 		8-97039-296-1 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (F) 		8-97036-331-1 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (F) 		8-97036-331-1 01 1 0502- ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> (E) 		8-97039-295-0 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> (E) 		8-97039-295-0 01 1 0502-0609 ●
6 04.047 CLIP; CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> (E) 		8-97039-295-0 01 1 0610- ●
6 04.047 CLIP; CABLE
4HG1-T ENG(RDP) (G) 		8-97039-296-1 01 1 0610- ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 04.686 (J) ID=21 L=24 		8-94176-807-1 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
4JH1-TC ENG(RDM) FLOOR REMOTE SHIFT<M11> 04.686 (J) ID=21 L=24 		8-94176-807-1 01 1 0502- ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 04.785 (K) 		8-94458-385-1 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
4JH1-TC ENG(RDM) FLOOR REMOTE SHIFT<M11> 04.785 (K) 		8-94458-385-1 01 1 0502- ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (M) 		8-97036-330-1 01 1 0211-0501 ●
52 04.047 NUT; BRKT
EXC. POWER STEERING<N40>,FRT INDEPENDENTSUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ●
52 04.047 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ●
52 04.047 NUT; BRKT
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,DUMP CHASSIS(V4D) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ●
52 04.047 NUT; BRKT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ●
52 04.047 NUT; BRKT
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,DUMP CHASSIS(V4D) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0609 ● ● ●
52 04.047 NUT; BRKT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0609 ●
52 04.047 NUT; BRKT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,DUMP CHASSIS(V4D) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0610- ● ● ●
52 04.047 NUT; BRKT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0610- ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ● ●
201 04.032 BOLT; BRKT
02.559 (C) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ●
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ● ● ●
201 04.032 BOLT; BRKT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (C) M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ●
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0609 ● ● ●
201 04.032 BOLT; BRKT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0609 ●
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0610- ● ● ●
201 04.032 BOLT; BRKT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0610- ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ●
201 04.032 BOLT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ●
201 04.032 BOLT; BRKT
4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ●
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ●
201 04.032 BOLT; BRKT
4JB1 ENG(RLF) EXC. POWER STEERING<N40> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609 ● ●
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609 ●
201 04.032 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0610-0712 ● ●
201 04.032 BOLT; BRKT
4HG1-T ENG(RDP) POWER STEERING<N40> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0610-0712 ●
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0610-0712 ●
201 04.032 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0801- ● ●
201 04.032 BOLT; BRKT
4HG1-T ENG(RDP) POWER STEERING<N40> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0801- ●
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0801- ●
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0211- ●
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.428 (D) M6X12 FLANGE 		0-28080-612-0 01 1 0211-0501 ●
279 04.047 BRACKET; CABLE TO FRAME
EXC. POWER STEERING<N40> (C) 		8-97103-234-0 01 1 0211-0501 ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JB1 ENG(RLF) EXC. POWER STEERING<N40> (C) 		8-97103-234-0 01 1 0502-0609 ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. POWER STEERING<N40> (C) 		8-97103-234-0 01 1 0610- ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. POWER STEERING<N40> (B) 		8-97047-898-0 01 1 0211-0501 ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) 		8-97047-898-0 01 1 0211-0501 ●
279 04.047 BRACKET; CABLE TO FRAME
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. POWER STEERING<N40> (B) 		8-97047-898-0 01 1 0502-0609 ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 		8-97047-898-0 01 1 0502-0609 ●
279 04.047 BRACKET; CABLE TO FRAME
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. POWER STEERING<N40> (B) 		8-97047-898-0 01 1 0610- ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 		8-97047-898-0 01 1 0610- ●
279 04.047 BRACKET; CABLE TO FRAME
FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97066-629-5 01 1 0211-0501 ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97028-496-1 01 1 0211-0501 ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-97028-496-1 01 1 0502-0609 ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1-T ENG(RDP) POWER STEERING<N40> (A) 		8-97028-496-1 01 1 0610- ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-97028-496-1 01 1 0610- ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1-T ENG(RDP) (F) 		8-97205-549-1 01 1 0610- ●
279 04.047 BRACKET; CABLE TO FRAME
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97351-828-0 01 1 0211-0501 ●
279 04.047 BRACKET; CABLE TO FRAME
4JH1-TC ENG(RDM) (E) 		8-97351-828-0 01 1 0502- ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ●
300 00.854 BOLT; CLIP
4JH1 ENG(RJX),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ●
300 00.854 BOLT; CLIP
4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ●
300 00.854 BOLT; CLIP
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ●
300 00.854 BOLT; CLIP
4JH1-TC ENG(RDM),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ●
300 00.854 BOLT; CLIP
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ●
300 00.854 BOLT; CLIP
4JH1-TC ENG(RDM),4JB1 ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609 ● ● ●
300 00.854 BOLT; CLIP
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609 ● ● ●
300 00.854 BOLT; CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609 ● ● ●
300 00.854 BOLT; CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0610-0702 ● ● ●
300 00.854 BOLT; CLIP
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0610-0702 ● ● ●
300 00.854 BOLT; CLIP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0610-0702 ● ●
300 00.854 BOLT; CLIP
4HG1-T ENG(RDP) EXC. POWER STEERING<N40> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0610-0702 ●
300 00.854 BOLT; CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0703- ● ● ●
300 00.854 BOLT; CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0703- ● ● ●
300 00.854 BOLT; CLIP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0703- ● ●
300 00.854 BOLT; CLIP
4HG1-T ENG(RDP) EXC. POWER STEERING<N40> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0703- ●
300 00.854 BOLT; CLIP
EXC. POWER STEERING<N40> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0211-0512 ● ● ●
300 00.854 BOLT; CLIP
EXC. POWER STEERING<N40> 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ●
300 00.854 BOLT; CLIP
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0211-0501 ●
300 00.854 BOLT; CLIP
4JH1-TC ENG(RDM) FLOOR REMOTE SHIFT<M11> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0502-0512 ●
300 00.854 BOLT; CLIP
4JH1-TC ENG(RDM) FLOOR REMOTE SHIFT<M11> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ● ●
303 00.855 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ●
303 00.855 NUT; CLIP
POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ●
303 00.855 NUT; CLIP
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ● ●
303 00.855 NUT; CLIP
POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ● ●
303 00.855 NUT; CLIP
4JH1-TC ENG(RDM) FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
303 00.855 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0702 ● ● ●
303 00.855 NUT; CLIP
POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0702 ● ● ●
303 00.855 NUT; CLIP
4JH1-TC ENG(RDM) FLOOR REMOTE SHIFT<M11> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0702 ●
303 00.855 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0703- ● ● ●
303 00.855 NUT; CLIP
POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0703- ● ● ●
303 00.855 NUT; CLIP
4JH1-TC ENG(RDM) FLOOR REMOTE SHIFT<M11> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0703- ●
303 00.855 NUT; CLIP
4HG1-T ENG(RDP) EXC. POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0703- ●

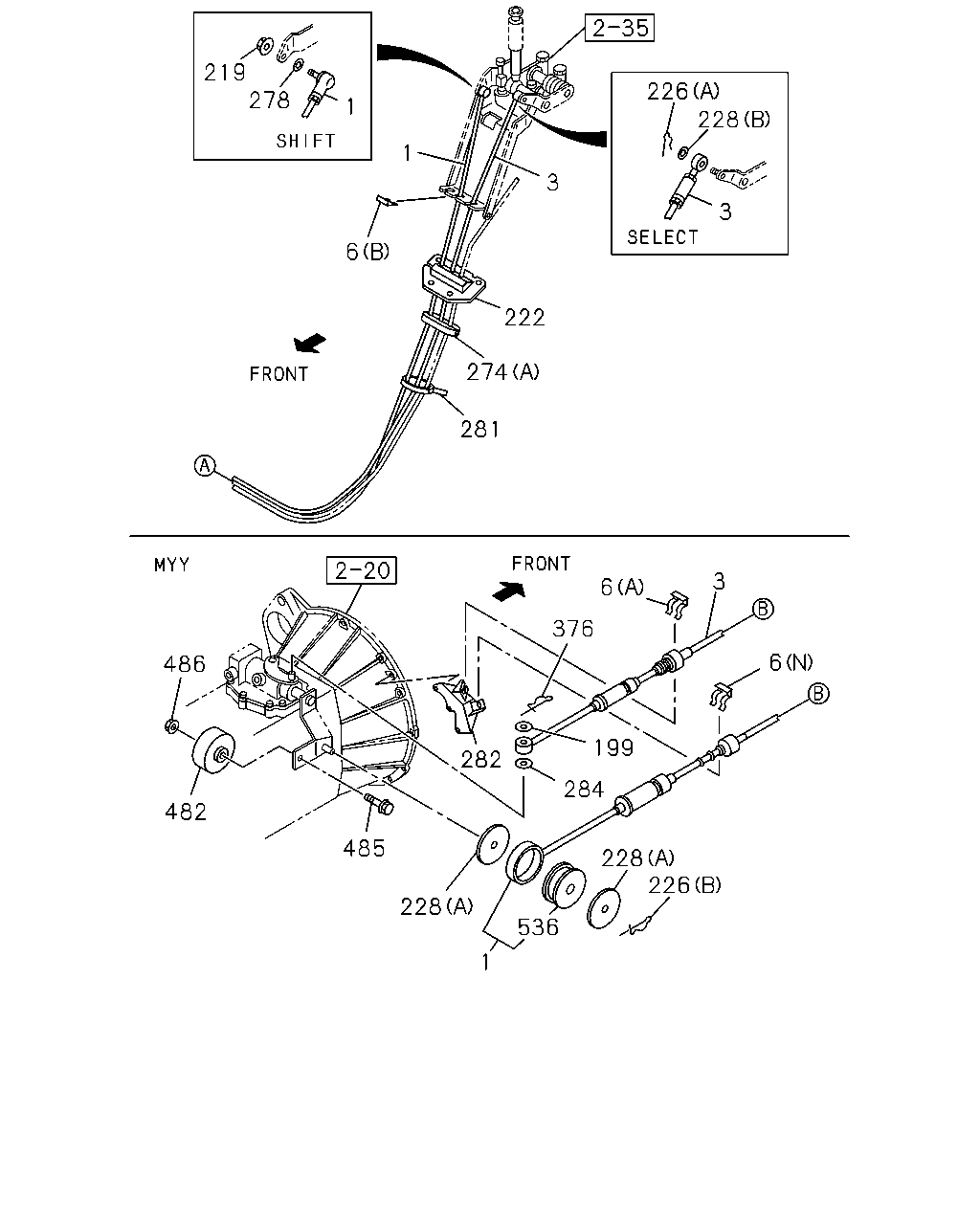

çizim 50808
219 278 226 228 1 1 3 3 6 222 274 281 3 6 376 6 486 199 282 284 482 485 228 226 228 536 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> L=2643 		8-97176-466-1 01 1 0211-0911 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> L=2643 		8-98146-810-0 01 1 0912- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> L=2805 		8-97351-820-1 01 1 0211-0609 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4JH1-TC ENG(RDM),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> L=2805 		8-97351-820-1 01 1 0610- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> L=2855 		8-97361-330-1 01 1 0610- ●
3 00.852 CABLE; SELECT,TRANS CONT
FLOOR REMOTE SHIFT<M11> L=2810 		8-97176-474-0 01 1 0211- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> L=2882 		8-97351-821-0 01 1 0211-0501 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> L=2882 		8-97351-821-0 01 1 0502- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> L=2917 		8-97361-331-0 01 1 0610- ●
3 00.852 CABLE; SELECT,TRANS CONT
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> L=2890 		8-97351-822-0 01 1 0211-0501 ●
3 00.852 CABLE; SELECT,TRANS CONT
4JH1-TC ENG(RDM) FLOOR REMOTE SHIFT<M11> L=2890 		8-97351-822-0 01 1 0502- ●
6 04.047 CLIP; CABLE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> (O) 		8-98023-697-0 01 1 1212- ● ●
6 04.047 CLIP; CABLE
4HG1-T ENG(RDP) (G) 		8-97039-517-1 01 1 0703- ●
6 04.047 CLIP; CABLE
(D) 		8-97036-329-2 01 1 0211-0501 ● ●
6 04.047 CLIP; CABLE
4JB1 ENG(RLF) (D) 		8-97036-329-2 01 1 0502-0609 ● ●
6 04.047 CLIP; CABLE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (D) 		8-97036-329-2 01 1 0610- ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (G) 		8-97036-332-1 01 1 0211-0501 ● ●
6 04.047 CLIP; CABLE
4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> (G) 		8-97036-332-1 01 1 0502-0609 ● ●
6 04.047 CLIP; CABLE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> (G) 		8-97036-332-1 01 1 0610-1211 ● ●
6 04.047 CLIP; CABLE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40> (G) 		8-97036-332-1 01 1 1212- ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-97211-011-0 02 1 0211- ● ●
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 0211- ● ● ●
6 04.047 CLIP; CABLE
(I) 		8-97147-985-0 01 1 0211- ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (C) 		8-97036-333-1 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (C) 		8-97036-333-1 01 1 0211-0501 ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (C) 		8-97036-333-1 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (C) 		8-97036-333-1 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97036-334-2 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-97036-334-2 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> 00.854 (N) ID=22.2 		1-09701-209-1 01 1 0211- ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-97211-011-0 01 1 0211- ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP) (L) 		8-97039-296-1 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (F) 		8-97036-331-1 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (F) 		8-97036-331-1 01 1 0502- ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> (E) 		8-97039-295-0 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> (E) 		8-97039-295-0 01 1 0502-0609 ●
6 04.047 CLIP; CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> (E) 		8-97039-295-0 01 1 0610- ●
6 04.047 CLIP; CABLE
4HG1-T ENG(RDP) (G) 		8-97039-296-1 01 1 0610- ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 04.686 (J) ID=21 L=24 		8-94176-807-1 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
4JH1-TC ENG(RDM) FLOOR REMOTE SHIFT<M11> 04.686 (J) ID=21 L=24 		8-94176-807-1 01 1 0502- ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 04.785 (K) 		8-94458-385-1 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
4JH1-TC ENG(RDM) FLOOR REMOTE SHIFT<M11> 04.785 (K) 		8-94458-385-1 01 1 0502- ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (M) 		8-97036-330-1 01 1 0211-0501 ●
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 0211-0605 ● ● ●
199 04.012 WASHER; PL,SELECT
03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 0606- ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 0211- ● ● ●
222 04.010 GROMMET; CABLE
FLOOR REMOTE SHIFT<M11> 		8-97061-403-2 01 1 0211- ● ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 0211- ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0211- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0211- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 0211-0605 ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
06.056 (B) ID=8.4 OD=16 		0-91614-508-0 01 1 0606- ● ● ●
274 04.008 CLIP; CONT CABLE
FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ> (A) 		8-97093-491-1 01 1 0211- ● ● ●
274 04.008 CLIP; CONT CABLE
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.047 (B) 		8-97036-333-1 01 1 0211-0501 ●
274 04.008 CLIP; CONT CABLE
4JH1-TC ENG(RDM) 04.047 (B) 		8-97036-333-1 01 1 0502- ●
278 00.854 WASHER; LK,SHIFT WIRE
01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 0211-0604 ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 0605- ● ● ●
281 04.042 CLIP; BAND
03.162 L=140 		5-09707-031-1 01 1 0211- ● ● ●
282 04.010 BRACKET; TRANS SIDE
FLOOR REMOTE SHIFT<M11> 		8-97034-142-1 01 1 0211- ● ●
282 04.010 BRACKET; TRANS SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97311-441-1 01 1 0211-0501 ●
282 04.010 BRACKET; TRANS SIDE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> 		8-97311-441-1 01 1 0502-0609 ●
282 04.010 BRACKET; TRANS SIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> 		8-97311-441-1 01 1 0610- ●
282 04.010 BRACKET; TRANS SIDE
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 		8-97350-449-0 01 1 0211-0501 ●
282 04.010 BRACKET; TRANS SIDE
4JH1-TC ENG(RDM) FLOOR REMOTE SHIFT<M11> 		8-97350-449-0 01 1 0502- ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 0211- ● ● ●
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 0211- ● ● ●
482 04.047 WEIGHT; SHIFT CABLE
DBL CAB&MIDDLE(NK**WF) 		8-97066-730-2 01 1 0211-0305 ● ●
482 04.047 WEIGHT; SHIFT CABLE 8-97066-730-2 01 1 0211-0305 ●
485 04.047 BOLT; WEIGHT
DBL CAB&MIDDLE(NK**WF) M12X60 FLANGE 		0-28091-260-0 01 1 0211-0305 ● ●
485 04.047 BOLT; WEIGHT
M12X60 FLANGE 		0-28091-260-0 01 1 0211-0305 ●
486 04.047 NUT; WEIGHT
DBL CAB&MIDDLE(NK**WF) 06.509 M12 FLANGE 		8-94436-194-0 01 1 0211-0305 ● ●
486 04.047 NUT; WEIGHT
06.509 M12 FLANGE 		8-94436-194-0 01 1 0211-0305 ●
536 00.854 DAMPER; CABLE
FLOOR REMOTE SHIFT<M11> 		8-98097-681-0 01 1 0211- ● ● ●

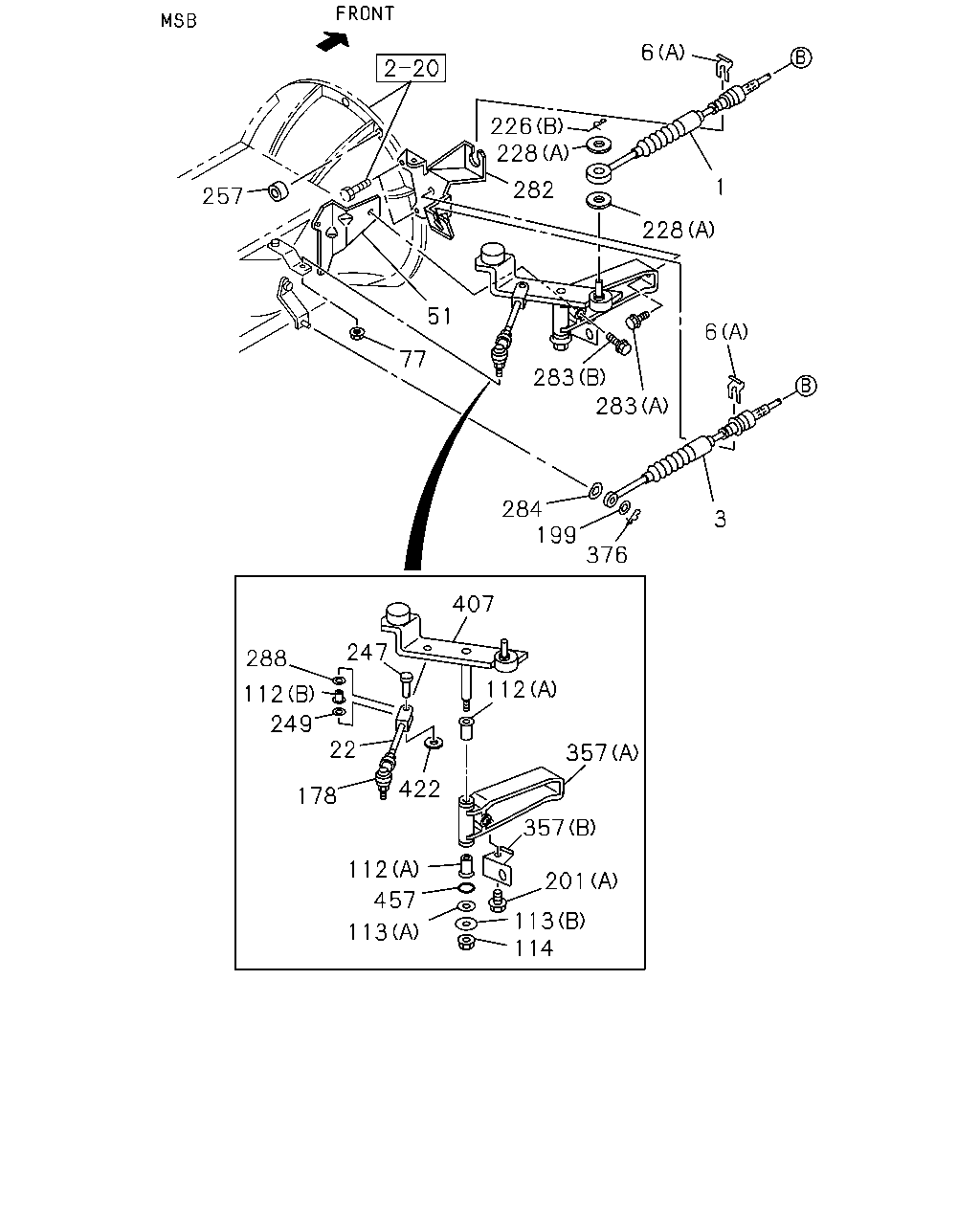

çizim 50856
6 226 228 1 282 257 228 51 6 77 283 283 284 199 3 376 407 247 288 112 112 249 22 357 422 178 357 112 201 457 113 114 113
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> L=2643 		8-97176-466-1 01 1 0211-0911 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> L=2643 		8-98146-810-0 01 1 0912- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> L=2805 		8-97351-820-1 01 1 0211-0609 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4JH1-TC ENG(RDM),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> L=2805 		8-97351-820-1 01 1 0610- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> L=2855 		8-97361-330-1 01 1 0610- ●
3 00.852 CABLE; SELECT,TRANS CONT
FLOOR REMOTE SHIFT<M11> L=2810 		8-97176-474-0 01 1 0211- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> L=2882 		8-97351-821-0 01 1 0211-0501 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> L=2882 		8-97351-821-0 01 1 0502- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> L=2917 		8-97361-331-0 01 1 0610- ●
3 00.852 CABLE; SELECT,TRANS CONT
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> L=2890 		8-97351-822-0 01 1 0211-0501 ●
3 00.852 CABLE; SELECT,TRANS CONT
4JH1-TC ENG(RDM) FLOOR REMOTE SHIFT<M11> L=2890 		8-97351-822-0 01 1 0502- ●
6 04.047 CLIP; CABLE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> (O) 		8-98023-697-0 01 1 1212- ● ●
6 04.047 CLIP; CABLE
4HG1-T ENG(RDP) (G) 		8-97039-517-1 01 1 0703- ●
6 04.047 CLIP; CABLE
(D) 		8-97036-329-2 01 1 0211-0501 ● ●
6 04.047 CLIP; CABLE
4JB1 ENG(RLF) (D) 		8-97036-329-2 01 1 0502-0609 ● ●
6 04.047 CLIP; CABLE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (D) 		8-97036-329-2 01 1 0610- ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (G) 		8-97036-332-1 01 1 0211-0501 ● ●
6 04.047 CLIP; CABLE
4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> (G) 		8-97036-332-1 01 1 0502-0609 ● ●
6 04.047 CLIP; CABLE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> (G) 		8-97036-332-1 01 1 0610-1211 ● ●
6 04.047 CLIP; CABLE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40> (G) 		8-97036-332-1 01 1 1212- ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-97211-011-0 02 1 0211- ● ●
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 0211- ● ● ●
6 04.047 CLIP; CABLE
(I) 		8-97147-985-0 01 1 0211- ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (C) 		8-97036-333-1 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (C) 		8-97036-333-1 01 1 0211-0501 ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (C) 		8-97036-333-1 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (C) 		8-97036-333-1 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97036-334-2 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-97036-334-2 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> 00.854 (N) ID=22.2 		1-09701-209-1 01 1 0211- ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-97211-011-0 01 1 0211- ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP) (L) 		8-97039-296-1 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (F) 		8-97036-331-1 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (F) 		8-97036-331-1 01 1 0502- ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> (E) 		8-97039-295-0 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> (E) 		8-97039-295-0 01 1 0502-0609 ●
6 04.047 CLIP; CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> (E) 		8-97039-295-0 01 1 0610- ●
6 04.047 CLIP; CABLE
4HG1-T ENG(RDP) (G) 		8-97039-296-1 01 1 0610- ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 04.686 (J) ID=21 L=24 		8-94176-807-1 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
4JH1-TC ENG(RDM) FLOOR REMOTE SHIFT<M11> 04.686 (J) ID=21 L=24 		8-94176-807-1 01 1 0502- ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 04.785 (K) 		8-94458-385-1 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
4JH1-TC ENG(RDM) FLOOR REMOTE SHIFT<M11> 04.785 (K) 		8-94458-385-1 01 1 0502- ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (M) 		8-97036-330-1 01 1 0211-0501 ●
22 04.035 ROD; CONT,SHIFT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97174-058-0 01 1 0211-0307 ● ●
22 04.035 ROD; CONT,SHIFT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97134-286-0 01 1 0211-0307 ●
22 04.035 ROD; CONT,SHIFT
FLOOR REMOTE SHIFT<M11> 		8-97134-286-1 01 1 0308- ● ●
51 04.010 BRACKET; GEAR CONT
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> INDONESIA EQUIPMENT(S4S) IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-335-1 01 1 1210-1210 ●
51 04.010 BRACKET; GEAR CONT
IN-HOUSE PRODUCTION VAR.2<TMW> EXC. INDONESIA EQUIPMENT(S4S) 		8-98189-335-1 01 1 1211- ● ●
51 04.010 BRACKET; GEAR CONT
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> INDONESIA EQUIPMENT(S4S) IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-335-1 01 1 1211- ●
51 04.010 BRACKET; GEAR CONT 8-97029-286-0 01 1 0211-0609 ● ●
51 04.010 BRACKET; GEAR CONT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 		8-97029-286-0 01 1 0610-1209 ● ●
51 04.010 BRACKET; GEAR CONT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97029-286-0 01 1 1210- ● ●
77 04.037 NUT; LK,BALL JOINT,CONT ROD
FLOOR REMOTE SHIFT<M11> M8 T=8.0 		8-94363-045-0 01 1 0211-1506 ● ●
77 04.037 NUT; LK,BALL JOINT,CONT ROD
M8 T=8.0 		8-94363-045-0 01 1 1507- ● ●
112 04.046 BUSHING; RELAY LEVER
FLOOR REMOTE SHIFT<M11> (A) 		8-97174-057-0 02 1 0211- ● ●
112 04.046 BUSHING; RELAY LEVER
FLOOR REMOTE SHIFT<M11> (B) 		8-97174-060-0 01 1 0211-0302 ● ●
112 04.046 BUSHING; RELAY LEVER
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97174-060-0 01 1 0303-0307 ● ●
112 04.046 BUSHING; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-157-0 01 1 0303-0307 ●
112 04.046 BUSHING; RELAY LEVER
FLOOR REMOTE SHIFT<M11> (B) 		8-97085-157-0 01 1 0308- ● ●
113 04.046 WASHER; RELAY LEVER
FLOOR REMOTE SHIFT<M11> 08.929 (B) ID=15 OD=36 		9-09164-714-0 01 1 0211-0302 ● ●
113 04.046 WASHER; RELAY LEVER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.929 (B) ID=15 OD=36 		9-09164-714-0 01 1 0303-0307 ● ●
113 04.046 WASHER; RELAY LEVER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 16.682 (A) ID=10.5 OD=22 		9-09160-610-0 02 1 0211-0307 ● ●
113 04.046 WASHER; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) 16.682 (A) ID=10.5 OD=22 		9-09160-610-0 01 1 0211-0307 ●
113 04.046 WASHER; RELAY LEVER
FLOOR REMOTE SHIFT<M11> 16.682 (A) ID=10.5 OD=22 		9-09160-610-0 01 1 0308-0605 ● ●
113 04.046 WASHER; RELAY LEVER
FLOOR REMOTE SHIFT<M11> (A) ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0606- ● ●
114 04.037 NUT; RELAY LEVER
FLOOR REMOTE SHIFT<M11> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0602 ● ●
114 04.037 NUT; RELAY LEVER
FLOOR REMOTE SHIFT<M11> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
178 04.040 JOINT; BALL,LINK ROD
FLOOR REMOTE SHIFT<M11> 04.037 L=45.5 		1-09760-118-1 01 1 0404- ● ●
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 0211-0605 ● ● ●
199 04.012 WASHER; PL,SELECT
03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 0606- ● ● ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ● ●
201 04.032 BOLT; BRKT
02.559 (C) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ●
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ● ● ●
201 04.032 BOLT; BRKT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (C) M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ●
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0609 ● ● ●
201 04.032 BOLT; BRKT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0609 ●
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0610- ● ● ●
201 04.032 BOLT; BRKT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0610- ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ●
201 04.032 BOLT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ●
201 04.032 BOLT; BRKT
4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ●
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ●
201 04.032 BOLT; BRKT
4JB1 ENG(RLF) EXC. POWER STEERING<N40> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609 ● ●
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609 ●
201 04.032 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0610-0712 ● ●
201 04.032 BOLT; BRKT
4HG1-T ENG(RDP) POWER STEERING<N40> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0610-0712 ●
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0610-0712 ●
201 04.032 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0801- ● ●
201 04.032 BOLT; BRKT
4HG1-T ENG(RDP) POWER STEERING<N40> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0801- ●
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0801- ●
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0211- ●
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.428 (D) M6X12 FLANGE 		0-28080-612-0 01 1 0211-0501 ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 0211- ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0211- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0211- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 0211-0605 ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
06.056 (B) ID=8.4 OD=16 		0-91614-508-0 01 1 0606- ● ● ●
247 04.010 PIN; CONT ROD TO LEVER
FLOOR REMOTE SHIFT<M11> 04.037 		9-09876-059-1 01 1 0211-0302 ● ●
247 04.010 PIN; CONT ROD TO LEVER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.037 		9-09876-059-1 01 1 0303-0403 ● ●
247 04.010 PIN; CONT ROD TO LEVER
FLOOR REMOTE SHIFT<M11> 		8-97373-728-0 01 1 0404- ● ●
249 04.010 WASHER; RUBBER,CONT ROD TO LEVER
FLOOR REMOTE SHIFT<M11> 04.037 ID=8.5 T=1.5 		9-09851-889-0 01 1 0211- ● ●
257 00.851 PIECE; DIST,RELAY LEVER
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94369-173-0 01 1 0211-0501 ● ●
257 00.851 PIECE; DIST,RELAY LEVER
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94369-173-0 01 1 0502-1106 ● ●
257 00.851 PIECE; DIST,RELAY LEVER
4JB1 ENG(RLF) IDENTIFICATION LABEL FOR KD<6UT> 		8-94369-173-0 01 1 1107- ● ●
282 04.010 BRACKET; TRANS SIDE
FLOOR REMOTE SHIFT<M11> 		8-97034-142-1 01 1 0211- ● ●
282 04.010 BRACKET; TRANS SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97311-441-1 01 1 0211-0501 ●
282 04.010 BRACKET; TRANS SIDE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> 		8-97311-441-1 01 1 0502-0609 ●
282 04.010 BRACKET; TRANS SIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> 		8-97311-441-1 01 1 0610- ●
282 04.010 BRACKET; TRANS SIDE
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 		8-97350-449-0 01 1 0211-0501 ●
282 04.010 BRACKET; TRANS SIDE
4JH1-TC ENG(RDM) FLOOR REMOTE SHIFT<M11> 		8-97350-449-0 01 1 0502- ●
283 04.037 BOLT; RELAY LEVER
FLOOR REMOTE SHIFT<M11> 03.405 (A) M10X25 FLANGE 		0-28681-025-0 01 1 0211-0512 ● ●
283 04.037 BOLT; RELAY LEVER
FLOOR REMOTE SHIFT<M11> 00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 0601-1506 ● ●
283 04.037 BOLT; RELAY LEVER
00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1507- ● ●
283 04.037 BOLT; RELAY LEVER
FLOOR REMOTE SHIFT<M11> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 0211-0512 ● ●
283 04.037 BOLT; RELAY LEVER
FLOOR REMOTE SHIFT<M11> 02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0601-1506 ● ●
283 04.037 BOLT; RELAY LEVER
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1507- ● ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 0211- ● ● ●
288 04.047 WASHER; CABLE TO RELAY LEVER
FLOOR REMOTE SHIFT<M11> 		8-97373-819-0 01 1 0404- ● ●
357 04.010 BRACKET; RELAY LEVER
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97182-166-0 01 1 0211-0501 ● ●
357 04.010 BRACKET; RELAY LEVER
FLOOR REMOTE SHIFT<M11> (A) 		8-97182-166-0 01 1 0502- ● ●
357 04.010 BRACKET; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97089-692-0 01 1 0211- ●
357 04.010 BRACKET; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97174-056-0 01 1 0211-0501 ●
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 0211- ● ● ●
407 04.030 LEVER; RELAY,SHIFT
FLOOR REMOTE SHIFT<M11> 		8-97174-055-2 01 1 0211- ● ●
422 04.032 NUT; CONT ROD TO LEVER
FLOOR REMOTE SHIFT<M11> 04.047 		8-97373-729-0 01 1 0404- ● ●
457 04.010 GASKET
FLOOR REMOTE SHIFT<M11> ID=13.8 		9-09561-114-0 02 1 0211- ● ●

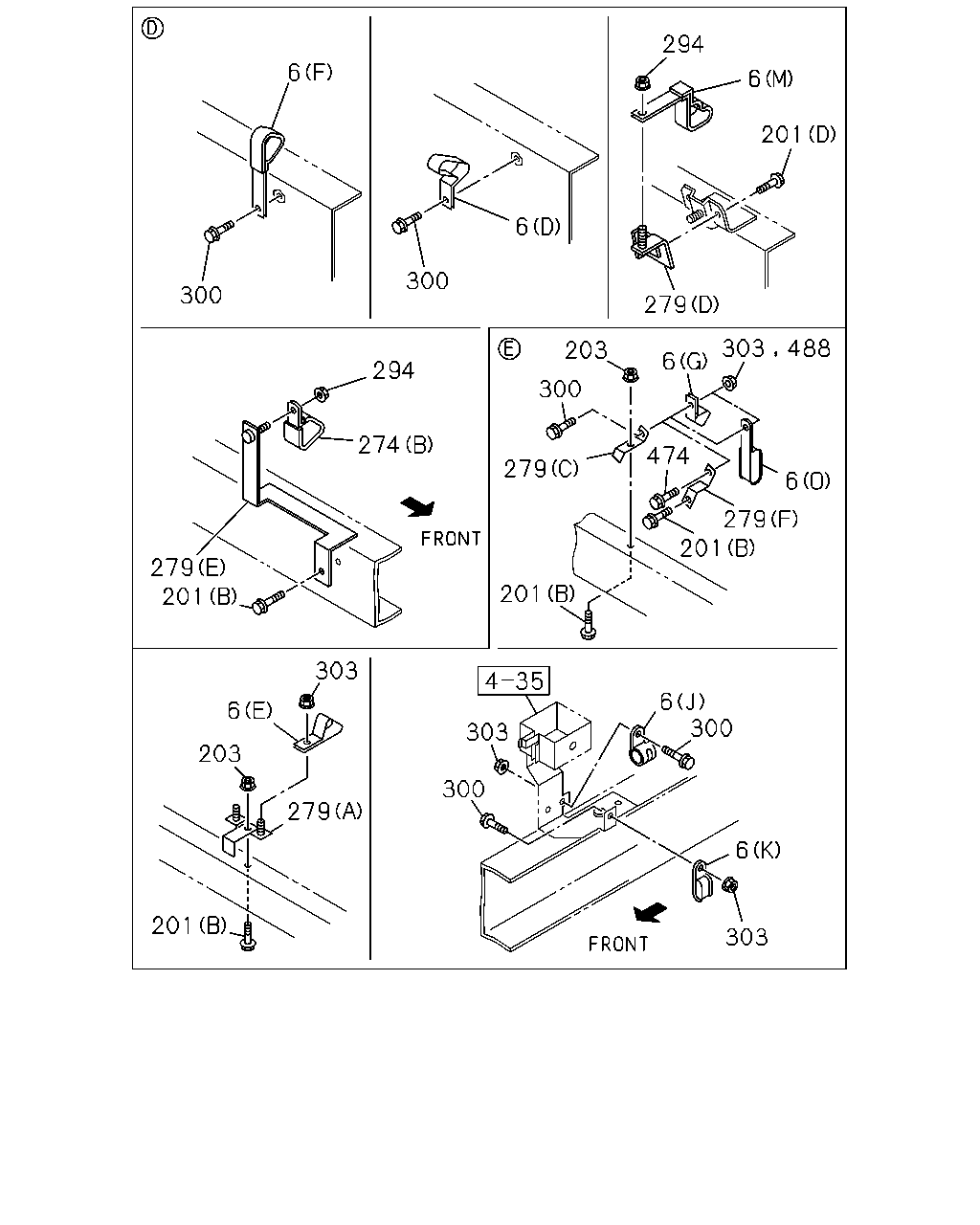

çizim 52504
303 6 300 303 300 203 279 201 6 303 6 201 201 279 6 488 303 6 474 279 300 203 279 201 6 294 300 6 300 6 294 274 279 201
BalonParca AdiParca NoAdetTipApplied Date A B C
6 04.047 CLIP; CABLE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> (O) 		8-98023-697-0 01 1 1212- ● ●
6 04.047 CLIP; CABLE
4HG1-T ENG(RDP) (G) 		8-97039-517-1 01 1 0703- ●
6 04.047 CLIP; CABLE
(D) 		8-97036-329-2 01 1 0211-0501 ● ●
6 04.047 CLIP; CABLE
4JB1 ENG(RLF) (D) 		8-97036-329-2 01 1 0502-0609 ● ●
6 04.047 CLIP; CABLE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (D) 		8-97036-329-2 01 1 0610- ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (G) 		8-97036-332-1 01 1 0211-0501 ● ●
6 04.047 CLIP; CABLE
4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> (G) 		8-97036-332-1 01 1 0502-0609 ● ●
6 04.047 CLIP; CABLE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> (G) 		8-97036-332-1 01 1 0610-1211 ● ●
6 04.047 CLIP; CABLE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40> (G) 		8-97036-332-1 01 1 1212- ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-97211-011-0 02 1 0211- ● ●
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 0211- ● ● ●
6 04.047 CLIP; CABLE
(I) 		8-97147-985-0 01 1 0211- ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (C) 		8-97036-333-1 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (C) 		8-97036-333-1 01 1 0211-0501 ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (C) 		8-97036-333-1 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (C) 		8-97036-333-1 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97036-334-2 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-97036-334-2 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> 00.854 (N) ID=22.2 		1-09701-209-1 01 1 0211- ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-97211-011-0 01 1 0211- ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP) (L) 		8-97039-296-1 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (F) 		8-97036-331-1 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (F) 		8-97036-331-1 01 1 0502- ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> (E) 		8-97039-295-0 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> (E) 		8-97039-295-0 01 1 0502-0609 ●
6 04.047 CLIP; CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> (E) 		8-97039-295-0 01 1 0610- ●
6 04.047 CLIP; CABLE
4HG1-T ENG(RDP) (G) 		8-97039-296-1 01 1 0610- ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 04.686 (J) ID=21 L=24 		8-94176-807-1 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
4JH1-TC ENG(RDM) FLOOR REMOTE SHIFT<M11> 04.686 (J) ID=21 L=24 		8-94176-807-1 01 1 0502- ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 04.785 (K) 		8-94458-385-1 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
4JH1-TC ENG(RDM) FLOOR REMOTE SHIFT<M11> 04.785 (K) 		8-94458-385-1 01 1 0502- ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (M) 		8-97036-330-1 01 1 0211-0501 ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ● ●
201 04.032 BOLT; BRKT
02.559 (C) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ●
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ● ● ●
201 04.032 BOLT; BRKT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (C) M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ●
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0609 ● ● ●
201 04.032 BOLT; BRKT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0609 ●
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0610- ● ● ●
201 04.032 BOLT; BRKT
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0610- ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ●
201 04.032 BOLT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ●
201 04.032 BOLT; BRKT
4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ●
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ●
201 04.032 BOLT; BRKT
4JB1 ENG(RLF) EXC. POWER STEERING<N40> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609 ● ●
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609 ●
201 04.032 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0610-0712 ● ●
201 04.032 BOLT; BRKT
4HG1-T ENG(RDP) POWER STEERING<N40> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0610-0712 ●
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0610-0712 ●
201 04.032 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0801- ● ●
201 04.032 BOLT; BRKT
4HG1-T ENG(RDP) POWER STEERING<N40> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0801- ●
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0801- ●
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0211- ●
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.428 (D) M6X12 FLANGE 		0-28080-612-0 01 1 0211-0501 ●
203 04.032 NUT; BRKT FIX
EXC. POWER STEERING<N40>,DUMP CHASSIS(V4D) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ●
203 04.032 NUT; BRKT FIX
4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
203 04.032 NUT; BRKT FIX
4JB1 ENG(RLF) EXC. POWER STEERING<N40>,DUMP CHASSIS(V4D) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ●
203 04.032 NUT; BRKT FIX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
203 04.032 NUT; BRKT FIX
4JB1 ENG(RLF) EXC. POWER STEERING<N40>,DUMP CHASSIS(V4D) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0609 ● ●
203 04.032 NUT; BRKT FIX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0609 ●
203 04.032 NUT; BRKT FIX
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,DUMP CHASSIS(V4D) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0610-0712 ● ●
203 04.032 NUT; BRKT FIX
4HG1-T ENG(RDP) POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0610-0712 ●
203 04.032 NUT; BRKT FIX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0610-0712 ●
203 04.032 NUT; BRKT FIX
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0801- ● ● ●
203 04.032 NUT; BRKT FIX
4HG1-T ENG(RDP) POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0801- ●
203 04.032 NUT; BRKT FIX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0801- ●
274 04.008 CLIP; CONT CABLE
FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ> (A) 		8-97093-491-1 01 1 0211- ● ● ●
274 04.008 CLIP; CONT CABLE
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.047 (B) 		8-97036-333-1 01 1 0211-0501 ●
274 04.008 CLIP; CONT CABLE
4JH1-TC ENG(RDM) 04.047 (B) 		8-97036-333-1 01 1 0502- ●
279 04.047 BRACKET; CABLE TO FRAME
EXC. POWER STEERING<N40> (C) 		8-97103-234-0 01 1 0211-0501 ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JB1 ENG(RLF) EXC. POWER STEERING<N40> (C) 		8-97103-234-0 01 1 0502-0609 ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. POWER STEERING<N40> (C) 		8-97103-234-0 01 1 0610- ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. POWER STEERING<N40> (B) 		8-97047-898-0 01 1 0211-0501 ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) 		8-97047-898-0 01 1 0211-0501 ●
279 04.047 BRACKET; CABLE TO FRAME
4JH1-TC ENG(RDM),4JB1 ENG(RLF) EXC. POWER STEERING<N40> (B) 		8-97047-898-0 01 1 0502-0609 ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 		8-97047-898-0 01 1 0502-0609 ●
279 04.047 BRACKET; CABLE TO FRAME
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. POWER STEERING<N40> (B) 		8-97047-898-0 01 1 0610- ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 		8-97047-898-0 01 1 0610- ●
279 04.047 BRACKET; CABLE TO FRAME
FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97066-629-5 01 1 0211-0501 ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97028-496-1 01 1 0211-0501 ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-97028-496-1 01 1 0502-0609 ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1-T ENG(RDP) POWER STEERING<N40> (A) 		8-97028-496-1 01 1 0610- ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-97028-496-1 01 1 0610- ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1-T ENG(RDP) (F) 		8-97205-549-1 01 1 0610- ●
279 04.047 BRACKET; CABLE TO FRAME
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97351-828-0 01 1 0211-0501 ●
279 04.047 BRACKET; CABLE TO FRAME
4JH1-TC ENG(RDM) (E) 		8-97351-828-0 01 1 0502- ●
294 00.854 NUT; CLIP
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
294 00.854 NUT; CLIP
4JH1-TC ENG(RDM) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
294 00.854 NUT; CLIP
4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ●
300 00.854 BOLT; CLIP
4JH1 ENG(RJX),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ●
300 00.854 BOLT; CLIP
4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ●
300 00.854 BOLT; CLIP
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ●
300 00.854 BOLT; CLIP
4JH1-TC ENG(RDM),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ●
300 00.854 BOLT; CLIP
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ●
300 00.854 BOLT; CLIP
4JH1-TC ENG(RDM),4JB1 ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609 ● ● ●
300 00.854 BOLT; CLIP
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609 ● ● ●
300 00.854 BOLT; CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609 ● ● ●
300 00.854 BOLT; CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0610-0702 ● ● ●
300 00.854 BOLT; CLIP
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0610-0702 ● ● ●
300 00.854 BOLT; CLIP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0610-0702 ● ●
300 00.854 BOLT; CLIP
4HG1-T ENG(RDP) EXC. POWER STEERING<N40> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0610-0702 ●
300 00.854 BOLT; CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0703- ● ● ●
300 00.854 BOLT; CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0703- ● ● ●
300 00.854 BOLT; CLIP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0703- ● ●
300 00.854 BOLT; CLIP
4HG1-T ENG(RDP) EXC. POWER STEERING<N40> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0703- ●
300 00.854 BOLT; CLIP
EXC. POWER STEERING<N40> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0211-0512 ● ● ●
300 00.854 BOLT; CLIP
EXC. POWER STEERING<N40> 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ●
300 00.854 BOLT; CLIP
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0211-0501 ●
300 00.854 BOLT; CLIP
4JH1-TC ENG(RDM) FLOOR REMOTE SHIFT<M11> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0502-0512 ●
300 00.854 BOLT; CLIP
4JH1-TC ENG(RDM) FLOOR REMOTE SHIFT<M11> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ● ●
303 00.855 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ●
303 00.855 NUT; CLIP
POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ●
303 00.855 NUT; CLIP
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ● ●
303 00.855 NUT; CLIP
POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ● ●
303 00.855 NUT; CLIP
4JH1-TC ENG(RDM) FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
303 00.855 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0702 ● ● ●
303 00.855 NUT; CLIP
POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0702 ● ● ●
303 00.855 NUT; CLIP
4JH1-TC ENG(RDM) FLOOR REMOTE SHIFT<M11> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0702 ●
303 00.855 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0703- ● ● ●
303 00.855 NUT; CLIP
POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0703- ● ● ●
303 00.855 NUT; CLIP
4JH1-TC ENG(RDM) FLOOR REMOTE SHIFT<M11> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0703- ●
303 00.855 NUT; CLIP
4HG1-T ENG(RDP) EXC. POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0703- ●
474 00.854 BOLT; BRKT
4HG1-T ENG(RDP) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0610- ●
488 04.047 NUT; CABLE
4HG1-T ENG(RDP) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0610- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
