◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#47655) — 91 parça
çizim 12302
8 1 9 64 7 2 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> KD PREPARATORY PACK VAR.4<7TV> 		8-98098-250-0 01 1 0710- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97162-963-0 01 1 0211-0501 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97162-963-0 01 1 0502-0609 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97162-963-0 01 1 0610-0803 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-98117-639-0 01 1 0804- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-97210-747-1 01 1 0211-0610 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-98004-782-2 01 1 0611-0709 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98062-277-0 01 1 0710- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1 ENG(RJX) EXC. POWER ASSIST CLUTCH<S2T> 		8-97300-210-0 01 1 0211-0501 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1-TC ENG(RDM) EXC. POWER ASSIST CLUTCH<S2T> 		8-97300-210-0 01 1 0502-0803 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1-TC ENG(RDM) EXC. POWER ASSIST CLUTCH<S2T> 		8-98117-641-0 01 1 0804- ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0211-0803 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87832-226-0 01 1 0804- ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87831-617-0 01 1 0211-0709 ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87832-221-0 01 1 0710- ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0211- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-148-0 01 1 0211-0709 ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98077-784-0 01 1 0710- ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97163-191-0 01 1 0211-0709 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 0710- ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-154-0 01 1 0211-0709 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0211-0709 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0710- ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-143-0 01 1 0211-0610 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98061-352-0 01 1 0611-0709 ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-767-0 01 1 0211-0709 ● ● ●
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 0710- ● ● ●

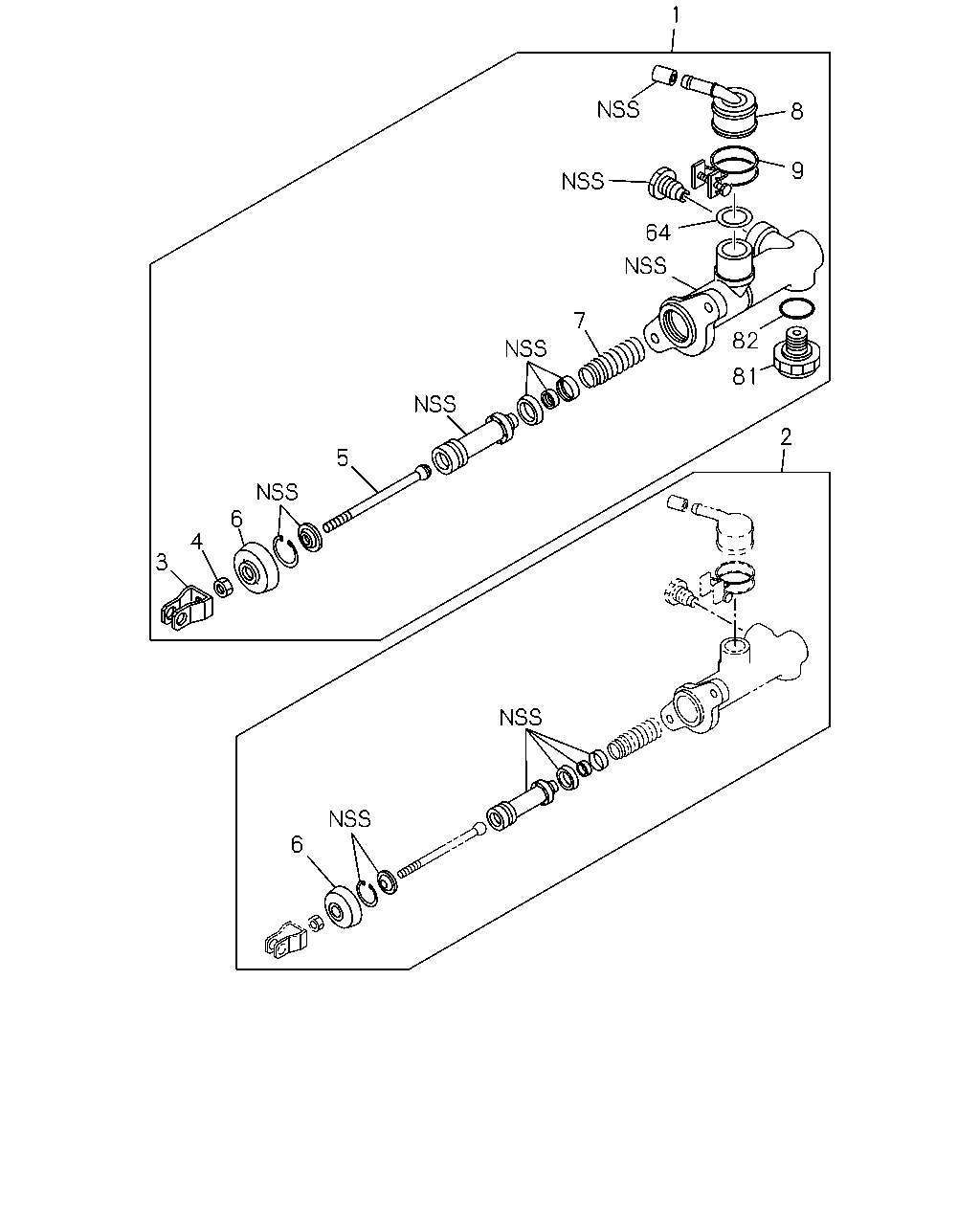

çizim 49371
1 8 9 64 7 82 81 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> KD PREPARATORY PACK VAR.4<7TV> 		8-98098-250-0 01 1 0710- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97162-963-0 01 1 0211-0501 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97162-963-0 01 1 0502-0609 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97162-963-0 01 1 0610-0803 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-98117-639-0 01 1 0804- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-97210-747-1 01 1 0211-0610 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-98004-782-2 01 1 0611-0709 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98062-277-0 01 1 0710- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1 ENG(RJX) EXC. POWER ASSIST CLUTCH<S2T> 		8-97300-210-0 01 1 0211-0501 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1-TC ENG(RDM) EXC. POWER ASSIST CLUTCH<S2T> 		8-97300-210-0 01 1 0502-0803 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1-TC ENG(RDM) EXC. POWER ASSIST CLUTCH<S2T> 		8-98117-641-0 01 1 0804- ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0211-0803 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87832-226-0 01 1 0804- ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87831-617-0 01 1 0211-0709 ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87832-221-0 01 1 0710- ●
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-770-0 01 1 0211- ● ● ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH<S2T> 00.787 M8 		9-09111-408-0 01 1 0211-0511 ● ● ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH<S2T> M8 		0-91111-508-0 01 1 0512- ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-768-0 01 1 0211- ● ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 0211- ● ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-153-0 01 1 0211-0709 ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0211- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-148-0 01 1 0211-0709 ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98077-784-0 01 1 0710- ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97163-191-0 01 1 0211-0709 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 0710- ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-154-0 01 1 0211-0709 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0211-0709 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0710- ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-143-0 01 1 0211-0610 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98061-352-0 01 1 0611-0709 ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-767-0 01 1 0211-0709 ● ● ●
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 0710- ● ● ●
81 00.777 DAMPER; MASTER CYL
4JH1 ENG(RJX) EXC. POWER ASSIST CLUTCH<S2T> 		8-97190-913-0 01 1 0211-0501 ●
81 00.777 DAMPER; MASTER CYL
4JH1-TC ENG(RDM) EXC. POWER ASSIST CLUTCH<S2T> 		8-97190-913-0 01 1 0502- ●
82 00.777 GASKET; DAMPER
4JH1 ENG(RJX) EXC. POWER ASSIST CLUTCH<S2T> 		8-97191-396-0 01 1 0211-0501 ●
82 00.777 GASKET; DAMPER
4JH1-TC ENG(RDM) EXC. POWER ASSIST CLUTCH<S2T> 		8-97191-396-0 01 1 0502- ●

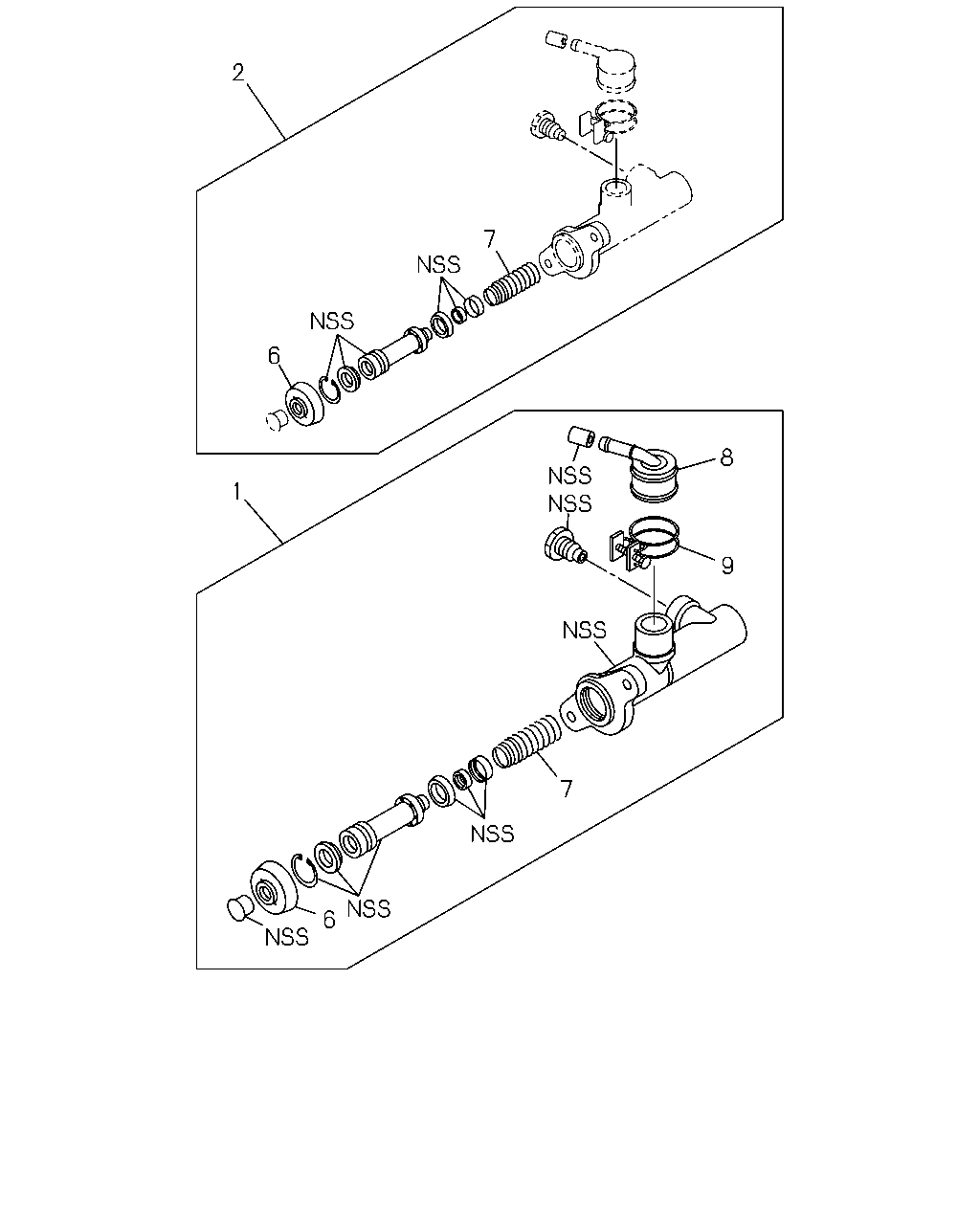

çizim 50148
2 7 6 8 1 9 7 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> KD PREPARATORY PACK VAR.4<7TV> 		8-98098-250-0 01 1 0710- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97162-963-0 01 1 0211-0501 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97162-963-0 01 1 0502-0609 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97162-963-0 01 1 0610-0803 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-98117-639-0 01 1 0804- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-97210-747-1 01 1 0211-0610 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-98004-782-2 01 1 0611-0709 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98062-277-0 01 1 0710- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1 ENG(RJX) EXC. POWER ASSIST CLUTCH<S2T> 		8-97300-210-0 01 1 0211-0501 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1-TC ENG(RDM) EXC. POWER ASSIST CLUTCH<S2T> 		8-97300-210-0 01 1 0502-0803 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1-TC ENG(RDM) EXC. POWER ASSIST CLUTCH<S2T> 		8-98117-641-0 01 1 0804- ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0211-0803 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87832-226-0 01 1 0804- ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87831-617-0 01 1 0211-0709 ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87832-221-0 01 1 0710- ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 0211- ● ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-153-0 01 1 0211-0709 ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0211- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-148-0 01 1 0211-0709 ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98077-784-0 01 1 0710- ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97163-191-0 01 1 0211-0709 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 0710- ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-154-0 01 1 0211-0709 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0211-0709 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0710- ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-143-0 01 1 0211-0610 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98061-352-0 01 1 0611-0709 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
