◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#47650) — 88 parça

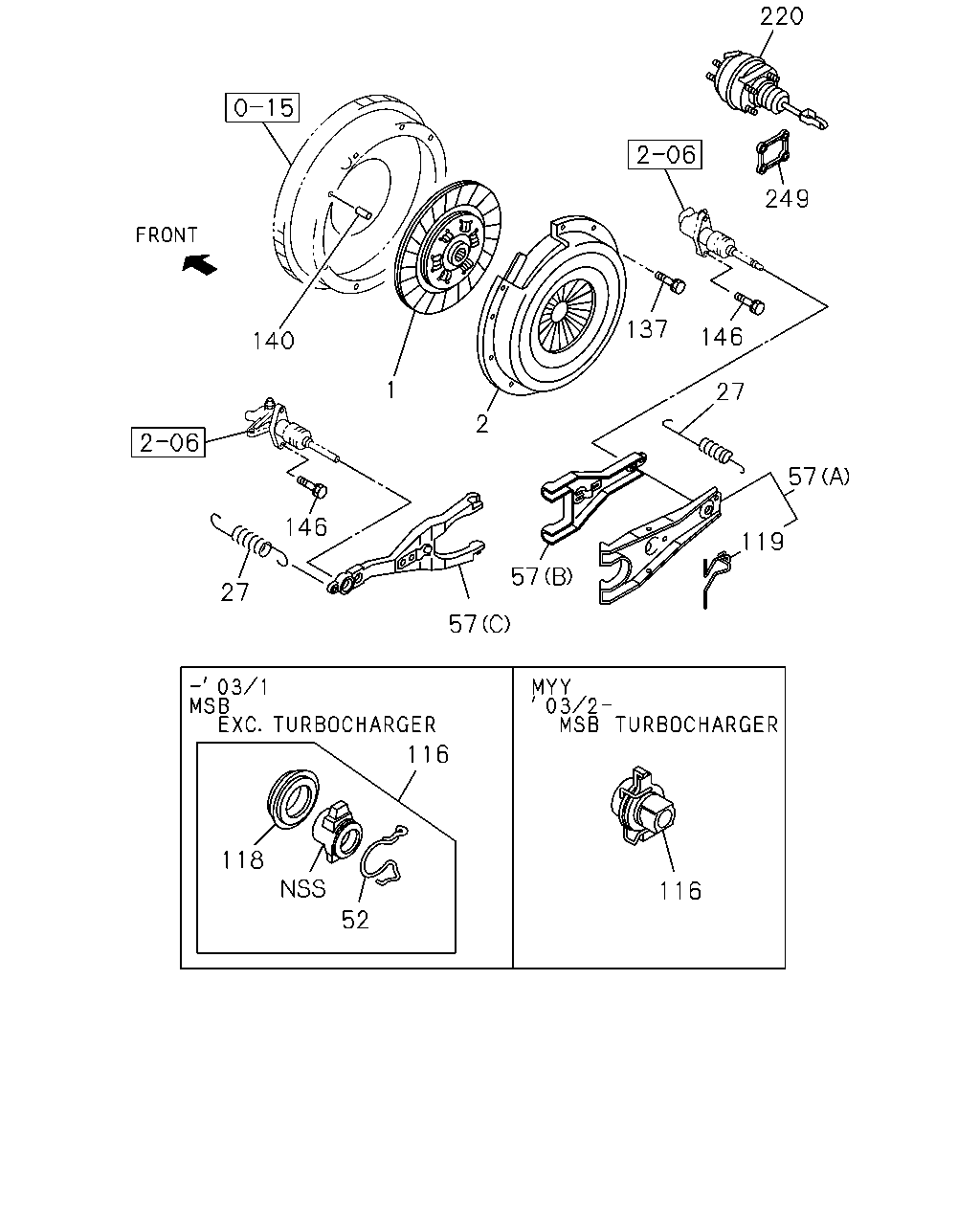

çizim 53017
220 249 137 146 140 1 27 2 57 146 119 57 27 57 116 118 116 52
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.886 DISC; CLUTCH
INDONESIA EQUIPMENT(S4S) 		8-98211-334-0 01 1 1210-1402 ●
1 00.886 DISC; CLUTCH
INDONESIA EQUIPMENT(S4S) 		8-98256-285-0 01 1 1403- ●
1 00.886 DISC; CLUTCH
4JB1-TC ENG(RDT) 		8-97377-899-0 01 1 0610-0705 ●
1 00.886 DISC; CLUTCH
4JB1-TC ENG(RDT) 		8-98080-661-0 01 1 0706- ●
1 00.886 DISC; CLUTCH
TURBOCHARGER<K51> 		8-97257-124-0 01 1 0211-0403 ● ●
1 00.886 DISC; CLUTCH
TURBOCHARGER<K51> 		8-97377-899-0 01 1 0404-0501 ● ●
1 00.886 DISC; CLUTCH
EXC. TURBOCHARGER<K51> 		8-97013-548-0 01 1 0211-0306 ● ●
1 00.886 DISC; CLUTCH
EXC. TURBOCHARGER<K51> 		8-97368-063-0 01 1 0307-0501 ● ●
1 00.886 DISC; CLUTCH 8-97368-063-0 01 1 0502-0609 ● ●
1 00.886 DISC; CLUTCH
4JB1 ENG(RLF) 		8-97368-063-0 01 1 0610- ● ●
1 00.886 DISC; CLUTCH 8-97320-355-0 01 1 0211-0412 ●
1 00.886 DISC; CLUTCH 8-97377-149-0 01 1 0501-1209 ●
1 00.886 DISC; CLUTCH
EXC. INDONESIA EQUIPMENT(S4S) 		8-97377-149-0 01 1 1210-1402 ●
1 00.886 DISC; CLUTCH
EXC. INDONESIA EQUIPMENT(S4S) 		8-98255-959-1 01 1 1403- ●
1 00.886 DISC; CLUTCH
BEST VALUE PARTS 		5-87610-049-0 01 1 0501-1209 ●
1 00.886 DISC; CLUTCH
EXC. INDONESIA EQUIPMENT(S4S) BEST VALUE PARTS 		5-87610-049-0 01 1 1210-1402 ●
1 00.886 DISC; CLUTCH
EXC. INDONESIA EQUIPMENT(S4S) BEST VALUE PARTS 		5-87610-049-2 01 1 1403- ●
1 00.886 DISC; CLUTCH
4JB1-TC ENG(RDT) BEST VALUE PARTS 		5-87610-083-0 01 1 0706- ●
1 00.886 DISC; CLUTCH
EXC. TURBOCHARGER<K51> BEST VALUE PARTS 		5-87610-084-0 01 1 0307-0501 ● ●
1 00.886 DISC; CLUTCH
BEST VALUE PARTS 		5-87610-084-0 01 1 0502-0609 ● ●
1 00.886 DISC; CLUTCH
4JB1 ENG(RLF) BEST VALUE PARTS 		5-87610-084-0 01 1 0610- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S) 		8-98211-371-0 01 1 1210- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JB1-TC ENG(RDT) 		8-97109-246-0 01 1 0610- ●
2 00.859 PLATE ASM; PRESSURE,CLU
TURBOCHARGER<K51> 		8-97109-246-0 01 1 0211-0501 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
EXC. TURBOCHARGER<K51> 		8-94259-132-1 01 1 0211-0501 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94259-132-1 01 1 0502-0609 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JB1 ENG(RLF) 		8-94259-132-1 01 1 0610- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97310-796-0 01 1 0211-0302 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97351-833-0 01 1 0303-0412 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97310-796-0 01 1 0501-0501 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97310-796-0 01 1 0502- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1-T ENG(RDP) 		8-97169-534-0 01 1 0610-1209 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1-T ENG(RDP) EXC. INDONESIA EQUIPMENT(S4S) 		8-97169-534-0 01 1 1210- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JH1 ENG(RJX) 		8-97259-693-0 01 1 0211-0501 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JH1-TC ENG(RDM) 		8-97259-693-0 01 1 0502- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JB1-TC ENG(RDT) BEST VALUE PARTS 		5-87610-082-0 01 1 0610- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1-T ENG(RDP) BEST VALUE PARTS 		5-87610-079-0 01 1 0610-1209 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1-T ENG(RDP) EXC. INDONESIA EQUIPMENT(S4S) BEST VALUE PARTS 		5-87610-079-0 01 1 1210- ●
2 00.859 PLATE ASM; PRESSURE,CLU
TURBOCHARGER<K51> BEST VALUE PARTS 		5-87610-082-0 01 1 0211-0501 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
EXC. TURBOCHARGER<K51> BEST VALUE PARTS 		5-87610-085-0 01 1 0211-0501 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-085-0 01 1 0502-0609 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JB1 ENG(RLF) BEST VALUE PARTS 		5-87610-085-0 01 1 0610- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS) BEST VALUE PARTS 		5-87610-050-0 01 1 0211-0412 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1-N ENG(RJZ) BEST VALUE PARTS 		5-87610-050-1 01 1 0502- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JH1 ENG(RJX) BEST VALUE PARTS 		5-87610-144-0 01 1 0211-0501 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JH1-TC ENG(RDM) BEST VALUE PARTS 		5-87610-144-0 01 1 0502- ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-97184-358-0 01 1 0211-0501 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JB1 ENG(RLF) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 0502-0609 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 0610-0812 ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98025-314-0 01 1 0901- ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-359-0 01 1 0211-0501 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JH1-TC ENG(RDM),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-359-0 01 1 0502-0609 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JH1-TC ENG(RDM),4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-359-0 01 1 0610-0812 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JH1-TC ENG(RDM),4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98025-313-0 01 1 0901- ●
52 00.797 SPRING; SHIFT BLOCK TO FORK
EXC. TURBOCHARGER<K51> 		8-94460-893-0 01 1 0211-0301 ● ●
57 00.795 FORK; SHIFT,CLU
4JB1-TC ENG(RDT) (B) 		8-97033-701-0 01 1 0610- ●
57 00.795 FORK; SHIFT,CLU
TURBOCHARGER<K51> (B) 		8-97033-701-0 01 1 0211-0501 ● ●
57 00.795 FORK; SHIFT,CLU
EXC. TURBOCHARGER<K51> (A) 		8-97024-528-0 01 1 0211-0501 ● ●
57 00.795 FORK; SHIFT,CLU
(A) 		8-97024-528-0 01 1 0502-0609 ● ●
57 00.795 FORK; SHIFT,CLU
4JB1 ENG(RLF) (A) 		8-97024-528-0 01 1 0610- ● ●
57 00.795 FORK; SHIFT,CLU
(C) 		8-97255-303-0 01 1 0211- ●
116 00.799 BLOCK; SHIFT,CLU
4JB1-TC ENG(RDT) 		8-97316-602-0 01 1 0610- ●
116 00.799 BLOCK; SHIFT,CLU
TURBOCHARGER<K51> 		8-97316-602-0 01 1 0211-0501 ● ●
116 00.799 BLOCK; SHIFT,CLU
EXC. TURBOCHARGER<K51> 		8-97258-191-0 01 1 0211-0301 ● ●
116 00.799 BLOCK; SHIFT,CLU
EXC. TURBOCHARGER<K51> 		8-97333-488-0 01 1 0302-0501 ● ●
116 00.799 BLOCK; SHIFT,CLU 8-97333-488-0 01 1 0502-0609 ● ●
116 00.799 BLOCK; SHIFT,CLU 8-98054-657-0 01 1 0610-0610 ● ●
116 00.799 BLOCK; SHIFT,CLU
4JB1 ENG(RLF) 		8-98054-657-0 01 1 0610- ● ●
116 00.799 BLOCK; SHIFT,CLU 8-97255-313-0 01 1 0211- ●
116 00.799 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-110-0 01 1 0211- ●
116 00.799 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-109-0 01 1 0610-0610 ● ●
116 00.799 BLOCK; SHIFT,CLU
4JB1 ENG(RLF) BEST VALUE PARTS 		5-87610-109-0 01 1 0610- ● ●
116 00.799 BLOCK; SHIFT,CLU
TURBOCHARGER<K51> BEST VALUE PARTS 		5-87610-116-0 01 1 0211-0501 ● ●
116 00.799 BLOCK; SHIFT,CLU
4JB1-TC ENG(RDT) BEST VALUE PARTS 		5-87610-116-0 01 1 0610- ●
118 00.799 BEARING; CLU RELEASE
EXC. TURBOCHARGER<K51> 		8-97258-195-0 01 1 0211-0301 ● ●
119 00.797 SPRING; SHIFT FORK
EXC. TURBOCHARGER<K51> 		5-31349-004-0 01 1 0211-0501 ● ●
119 00.797 SPRING; SHIFT FORK 5-31349-004-0 01 1 0502-0609 ● ●
119 00.797 SPRING; SHIFT FORK
4JB1 ENG(RLF) 		5-31349-004-0 01 1 0610- ● ●
137 00.862 BOLT; CLU COVER
01.062 M8X16 FLANGE 		0-28080-816-0 06 1 0211-0512 ● ●
137 00.862 BOLT; CLU COVER
02.343 M8X16 FLANGE 		0-28050-816-0 06 1 0601- ● ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0211-0512 ●
137 00.862 BOLT; CLU COVER
02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0601- ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 0211- ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0211- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0211-0512 ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH<S2T> 		8-97162-962-1 01 1 0211- ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH<S2T> 		8-97167-489-0 01 1 0211- ●
