◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20C - MANUAL TRANSMISSION ASM AND CASE ▶
2-20C — MANUAL TRANSMISSION ASM AND CASE (#4765) — 138 parça
çizim 6452
351
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
351 BRACKET; UNION,FLEX HOSE 1-47477-862-0 01 1 9609-9612 ●
351 BRACKET; UNION,FLEX HOSE 1-47477-904-0 01 1 9701-9803 ●
351 BRACKET; UNION,FLEX HOSE 1-47477-904-1 01 1 9804-9904 ● ●
351 BRACKET; UNION,FLEX HOSE 1-47477-904-1 01 1 9905-9910 ● ● ● ●
351 BRACKET; UNION,FLEX HOSE 1-47478-747-0 01 1 9911- ● ● ● ●

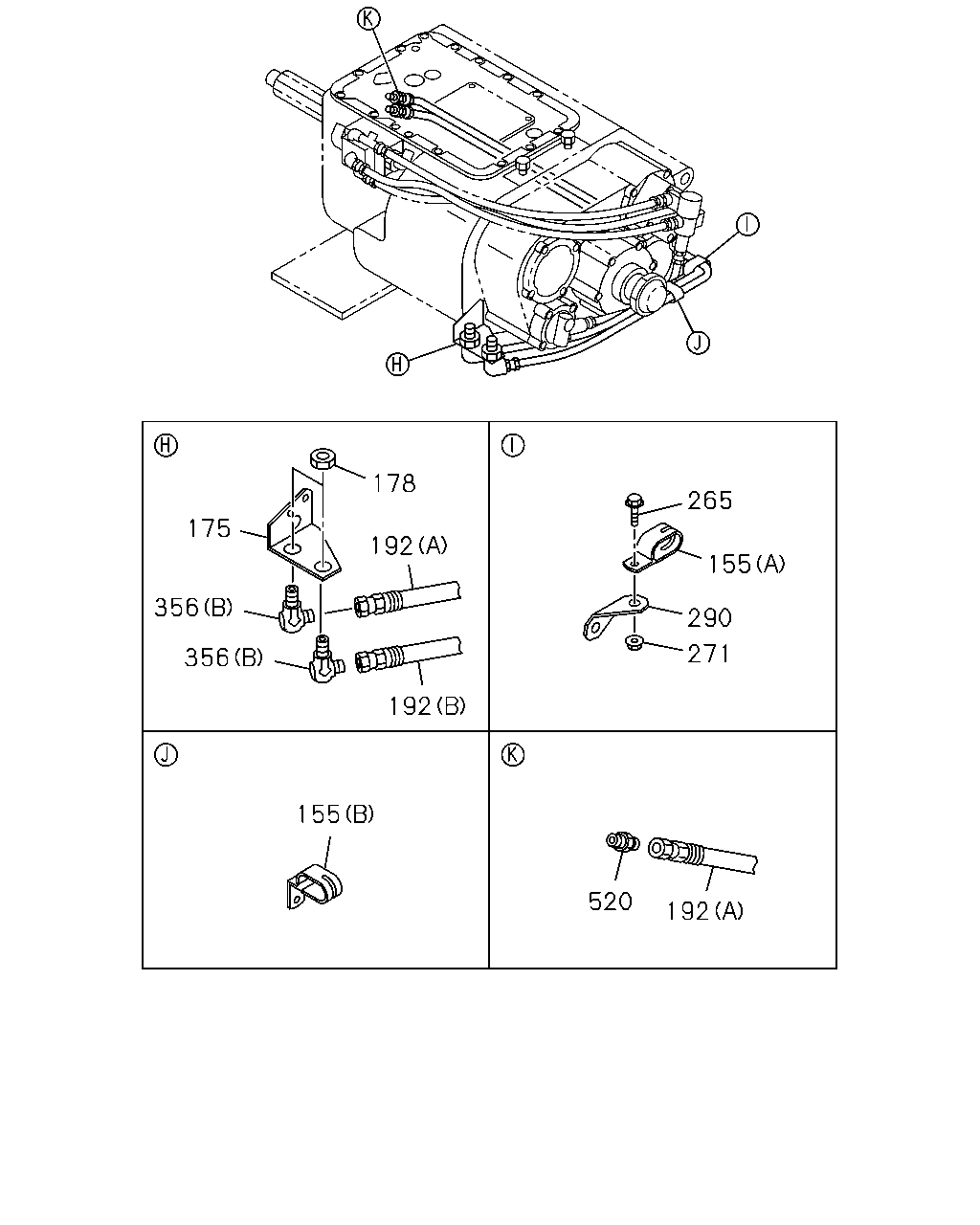

çizim 38757
178 265 175 192 155 356 290 271 356 192 155 520 192
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
155 CLIP; HOSE
(A) ID=24X2 L=35 		1-09701-121-0 01 1 9712-9803 ●
155 CLIP; HOSE
(A) ID=24X2 L=35 		1-09701-121-0 01 1 9804-9904 ● ●
155 CLIP; HOSE
(A) ID=24X2 L=35 		1-09701-121-0 01 1 9905-9907 ● ● ●
155 CLIP; HOSE
(A) ID=24X2 L=35 		1-09701-121-0 01 1 9908- ● ● ● ●
155 CLIP; HOSE
(B) 		8-97019-083-0 01 1 9712-9803 ●
155 CLIP; HOSE
(B) 		8-97019-083-0 01 1 9804-9904 ● ●
155 CLIP; HOSE
(B) 		8-97019-083-0 01 1 9905-9907 ● ● ●
155 CLIP; HOSE
(B) 		8-97019-083-0 01 1 9908- ● ● ● ●
175 BRACKET; UNION 1-47478-084-0 01 1 9712-9803 ●
175 BRACKET; UNION 1-47478-084-0 01 1 9804-9904 ● ●
175 BRACKET; UNION 1-47478-084-0 01 1 9905-9907 ● ● ●
175 BRACKET; UNION 1-47478-084-0 01 1 9908- ● ● ● ●
178 NUT; UNION
M22 		9-09111-522-0 02 1 9712-9803 ●
178 NUT; UNION
M22 		9-09111-522-0 02 1 9804-9904 ● ●
178 NUT; UNION
M22 		9-09111-522-0 02 1 9905-9907 ● ● ●
178 NUT; UNION
M22 		9-09111-522-0 02 1 9908- ● ● ● ●
192 HOSE; FLEX,TRANS
(A) L=460 		1-09365-008-0 01 1 9712-9803 ●
192 HOSE; FLEX,TRANS
(A) L=460 		1-09365-008-0 01 1 9804-9904 ● ●
192 HOSE; FLEX,TRANS
(B) L=520 		1-09365-009-0 01 1 9712-9803 ●
192 HOSE; FLEX,TRANS
(B) L=520 		1-09365-009-0 01 1 9804-9904 ● ●
192 HOSE; FLEX,TRANS
(A) L=460 		1-09365-008-0 01 1 9905-9907 ● ● ●
192 HOSE; FLEX,TRANS
(A) L=460 		1-09365-008-0 01 1 9908- ● ● ● ●
192 HOSE; FLEX,TRANS
(B) L=520 		1-09365-009-0 01 1 9905-9907 ● ● ●
192 HOSE; FLEX,TRANS
(B) L=520 		1-09365-009-0 01 1 9908- ● ● ● ●
265 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9712-9803 ●
265 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9804-9904 ● ●
265 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9905-9907 ● ● ●
265 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9908- ● ● ● ●
271 NUT; CLIP
M8 FLANGE 		0-91150-208-0 01 1 9712-9803 ●
271 NUT; CLIP
M8 FLANGE 		0-91150-208-0 01 1 9804-9904 ● ●
271 NUT; CLIP
M8 FLANGE 		0-91150-208-0 01 1 9905-9907 ● ● ●
271 NUT; CLIP
M8 FLANGE 		0-91150-208-0 01 1 9908- ● ● ● ●
290 BRACKET; CLIP 1-38329-074-0 01 1 9712-9803 ●
290 BRACKET; CLIP 1-38329-074-0 01 1 9804-9904 ● ●
290 BRACKET; CLIP 1-38329-074-0 01 1 9905-9907 ● ● ●
290 BRACKET; CLIP 1-38329-074-0 01 1 9908- ● ● ● ●
356 UNION
(A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9603-9802 ●
356 UNION
(A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9803-9904 ● ●
356 UNION
(A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9905-9907 ● ● ●
356 UNION
(A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 9908- ● ● ● ●
356 UNION
(B) 		1-09664-020-0 02 1 9712-9803 ●
356 UNION
(B) 		1-09664-020-1 02 1 9804-9904 ● ●
356 UNION
(B) 		1-09664-020-1 02 1 9905-9907 ● ● ●
356 UNION
(B) 		1-09664-020-1 02 1 9908- ● ● ● ●
520 CONNECTOR 1-09661-055-0 02 1 9712-9803 ●
520 CONNECTOR 1-09661-055-0 02 1 9804-9904 ● ●
520 CONNECTOR 1-09661-055-0 02 1 9905-9907 ● ● ●
520 CONNECTOR 1-09661-055-0 02 1 9908- ● ● ● ●

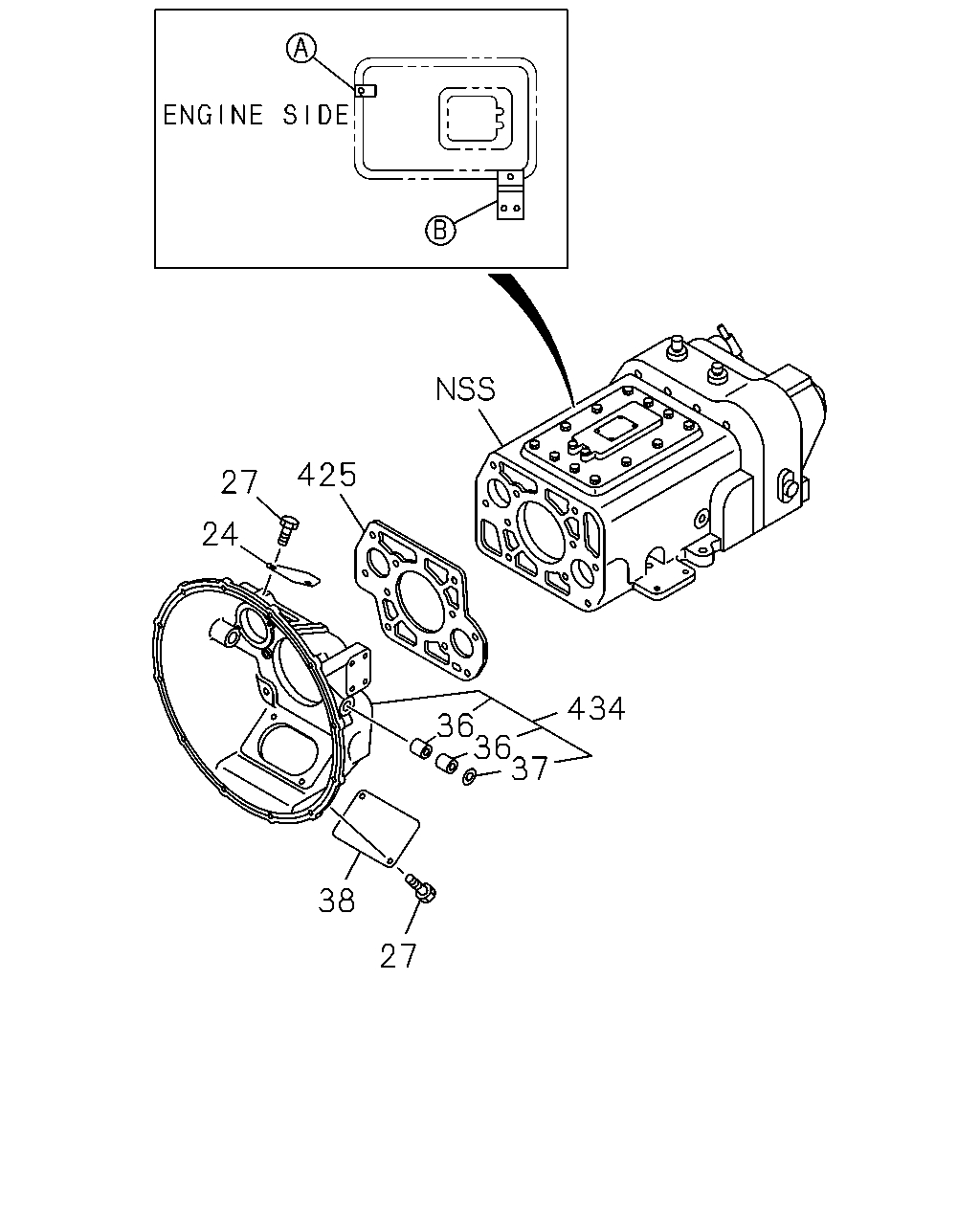

çizim 41327
425 27 24 434 36 36 37 38 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
24 COVER; CHECK HOLE,DUST 1-31131-003-0 01 1 9603-9902 ●
24 COVER; CHECK HOLE,DUST 1-31131-003-0 01 1 9903-9904 ● ●
24 COVER; CHECK HOLE,DUST 1-31131-003-0 01 1 9905-9907 ● ● ●
24 COVER; CHECK HOLE,DUST 1-31131-003-0 01 1 9908- ● ● ● ●
27 BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER 		0-50040-816-0 04 1 9603-9902 ●
27 BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER 		0-50040-816-0 04 1 9903-9904 ● ●
27 BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER 		0-50040-816-0 04 1 9905-9907 ● ● ●
27 BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER 		0-50040-816-0 04 1 9908- ● ● ● ●
36 BEARING; NEEDLE,CLU HSG
NTN 		1-09811-181-0 04 1 9603-9902 ●
36 BEARING; NEEDLE,CLU HSG
NTN 		1-09811-181-0 04 1 9903-9904 ● ●
36 BEARING; NEEDLE,CLU HSG
NTN 		1-09811-181-0 04 1 9905-9907 ● ● ●
36 BEARING; NEEDLE,CLU HSG
NTN 		1-09811-181-0 04 1 9908- ● ● ● ●
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-215-0 02 1 9603-9902 ●
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-215-0 02 1 9903-9904 ● ●
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-215-0 02 1 9905-9907 ● ● ●
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-215-0 02 1 9908- ● ● ● ●
38 COVER; CHECK HOLE,LWR 1-31131-014-0 01 1 9603-9902 ●
38 COVER; CHECK HOLE,LWR 1-31131-014-0 01 1 9903-9904 ● ●
38 COVER; CHECK HOLE,LWR 1-31131-014-0 01 1 9905-9907 ● ● ●
38 COVER; CHECK HOLE,LWR 1-31131-014-0 01 1 9908- ● ● ● ●
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-31121-004-0 01 1 9603-9902 ●
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-31121-004-0 01 1 9903-9904 ● ●
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-31121-004-0 01 1 9905-9907 ● ● ●
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-31121-004-0 01 1 9908- ● ● ● ●
434 HOUSING; CLU 1-31110-103-0 01 1 9603-9902 ●
434 HOUSING; CLU 1-31110-103-0 01 1 9903-9904 ● ●
434 HOUSING; CLU 1-31110-103-0 01 1 9905-9907 ● ● ●
434 HOUSING; CLU 1-31110-103-0 01 1 9908- ● ● ● ●
çizim 42297
190 199 169 167 172 356 197 436 164 382 367 303 272 189 188
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
164 CONNECTOR; ELBOW
DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9603-9605 ●
164 CONNECTOR; ELBOW
DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9606-9612 ●
164 CONNECTOR; ELBOW
DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9701-9802 ●
164 CONNECTOR; ELBOW
DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9803-9904 ● ●
164 CONNECTOR; ELBOW
DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9905-9907 ● ● ●
164 CONNECTOR; ELBOW
DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 9908- ● ● ● ●
167 BRACKET; CLIP,AIR TUBE 1-47465-769-0 01 1 9603-9606 ●
167 BRACKET; CLIP,AIR TUBE 1-82699-123-1 01 1 9607-9902 ●
167 BRACKET; CLIP,AIR TUBE 1-82699-123-1 01 1 9903-9904 ● ●
167 BRACKET; CLIP,AIR TUBE 1-82699-123-1 01 1 9905-9907 ● ● ●
167 BRACKET; CLIP,AIR TUBE 1-82699-123-1 01 1 9908- ● ● ● ●
169 BRACKET; CLIP,PIPE HOSE 1-47475-633-0 01 1 9603-9902 ●
169 BRACKET; CLIP,PIPE HOSE 1-47475-633-0 01 1 9903-9904 ● ●
169 BRACKET; CLIP,PIPE HOSE 1-47475-633-0 01 1 9905-9907 ● ● ●
169 BRACKET; CLIP,PIPE HOSE 1-47475-633-0 01 1 9908- ● ● ● ●
172 GASKET; AIR HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9603-9610 ●
188 CLIP; PIPE,BRKT
ID=16 L=28 		9-09525-556-0 01 1 9603-9802 ●
188 CLIP; PIPE,BRKT
ID=16 L=28 		9-09525-556-0 01 1 9803-9904 ● ●
188 CLIP; PIPE,BRKT
ID=16 L=28 		9-09525-556-0 01 1 9905- ● ● ● ●
189 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9603-9802 ●
189 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9803-9904 ● ●
189 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9905- ● ● ● ●
190 CLIP; BAND,CONT TUBE
L=140 		5-09707-031-0 02 1 9603-9606 ●
190 CLIP; BAND,CONT TUBE
L=250 		1-09707-126-0 05 1 9607-9802 ●
190 CLIP; BAND,CONT TUBE
L=250 		1-09707-126-0 05 1 9803-9904 ● ●
190 CLIP; BAND,CONT TUBE
L=250 		1-09707-126-0 05 1 9905- ● ● ● ●
197 BRACKET; UNION 1-47477-605-0 01 1 9603-9802 ●
197 BRACKET; UNION 1-47477-605-0 01 1 9803-9901 ● ●
197 BRACKET; UNION 1-47478-395-0 01 1 9902-9904 ● ●
197 BRACKET; UNION 1-47478-395-0 01 1 9905-0003 ● ● ● ●
199 CLIP; NYLON TUBE
L=250 		1-09707-126-0 01 1 9603-9802 ●
199 CLIP; NYLON TUBE
L=250 		1-09707-126-0 01 1 9803-9904 ● ●
199 CLIP; NYLON TUBE
L=250 		1-09707-126-0 01 1 9905- ● ● ● ●
272 BOLT
M8X16 FLANGE 		0-28080-816-0 01 1 9603-9802 ●
272 BOLT
M8X16 FLANGE 		0-28080-816-0 01 1 9803-9904 ● ●
272 BOLT
M8X16 FLANGE 		0-28080-816-0 01 1 9905- ● ● ● ●
303 TUBE; NYLON
(C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9603-9802 ● ●
303 TUBE; NYLON
(C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9904 ● ●
303 TUBE; NYLON
(C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9905-9910 ● ● ● ●
356 UNION
(A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9603-9802 ●
356 UNION
(A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9803-9904 ● ●
356 UNION
(A) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9905-9907 ● ● ●
356 UNION
(A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 9908- ● ● ● ●
356 UNION
(B) 		1-09664-020-0 02 1 9712-9803 ●
356 UNION
(B) 		1-09664-020-1 02 1 9804-9904 ● ●
356 UNION
(B) 		1-09664-020-1 02 1 9905-9907 ● ● ●
356 UNION
(B) 		1-09664-020-1 02 1 9908- ● ● ● ●
367 WASHER; PL,BRKT 1-53459-587-0 01 1 9603-9802 ●
367 WASHER; PL,BRKT 1-53459-587-0 01 1 9803-9904 ● ●
367 WASHER; PL,BRKT 1-53459-587-0 01 1 9905- ● ● ● ●
382 GASKET; ADAPTER
ID=11 OD=18 		9-09572-510-0 01 1 9603-9802 ●
382 GASKET; ADAPTER
ID=11 OD=18 		9-09572-510-0 01 1 9803-9904 ● ●
382 GASKET; ADAPTER
ID=11 OD=18 		9-09572-510-0 01 1 9905- ● ● ● ●
436 CONNECTOR; AIR HOSE,SUPPLY
L=35 		1-09660-039-0 01 1 9603-9902 ●
436 CONNECTOR; AIR HOSE,SUPPLY
L=35 		1-09660-039-0 01 1 9903-9904 ● ●
436 CONNECTOR; AIR HOSE,SUPPLY
L=35 		1-09660-039-0 01 1 9905-9907 ● ● ●
436 CONNECTOR; AIR HOSE,SUPPLY
L=35 		1-09660-039-0 01 1 9908- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
