Sayfa 1-45 - Isuzu EPC

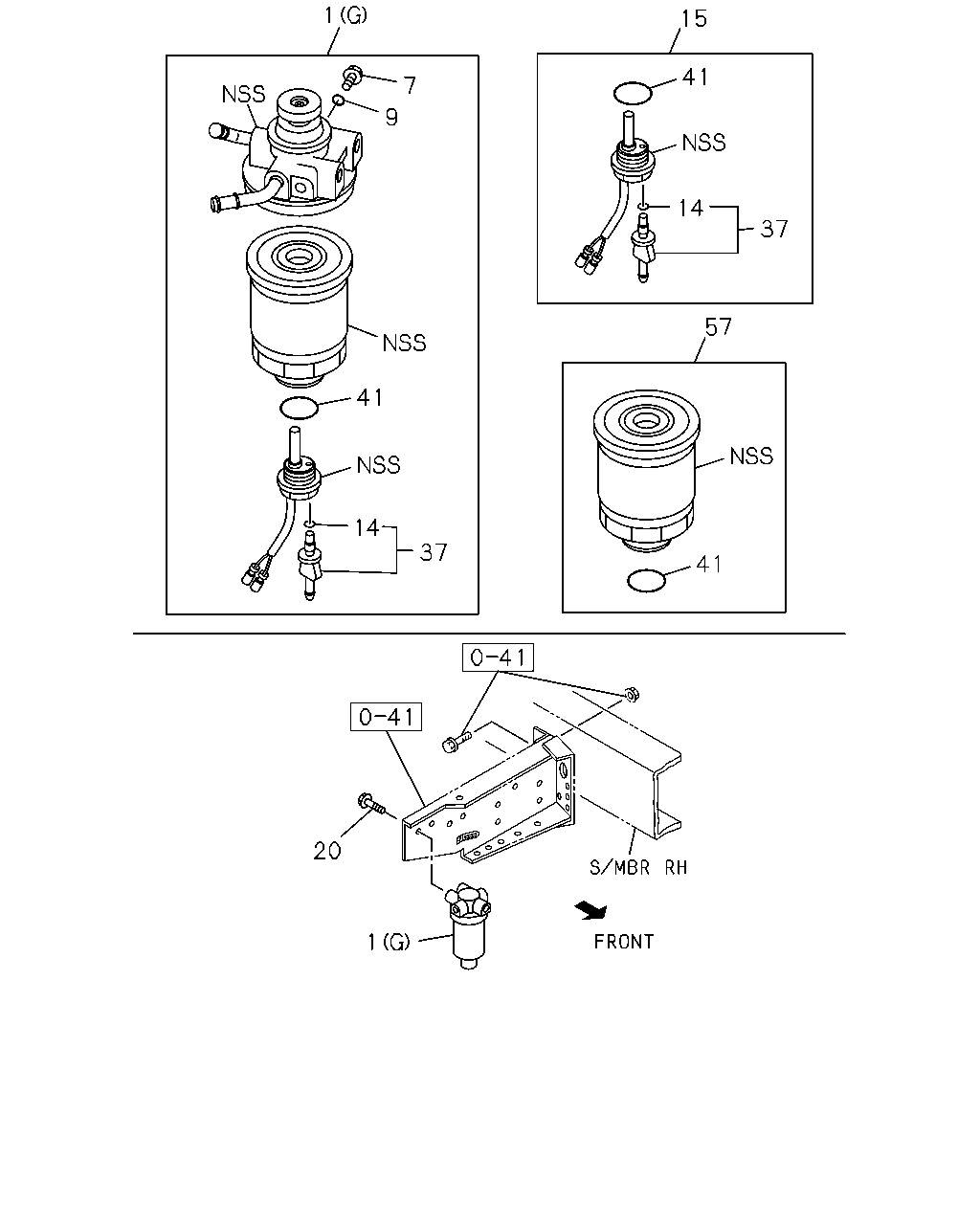

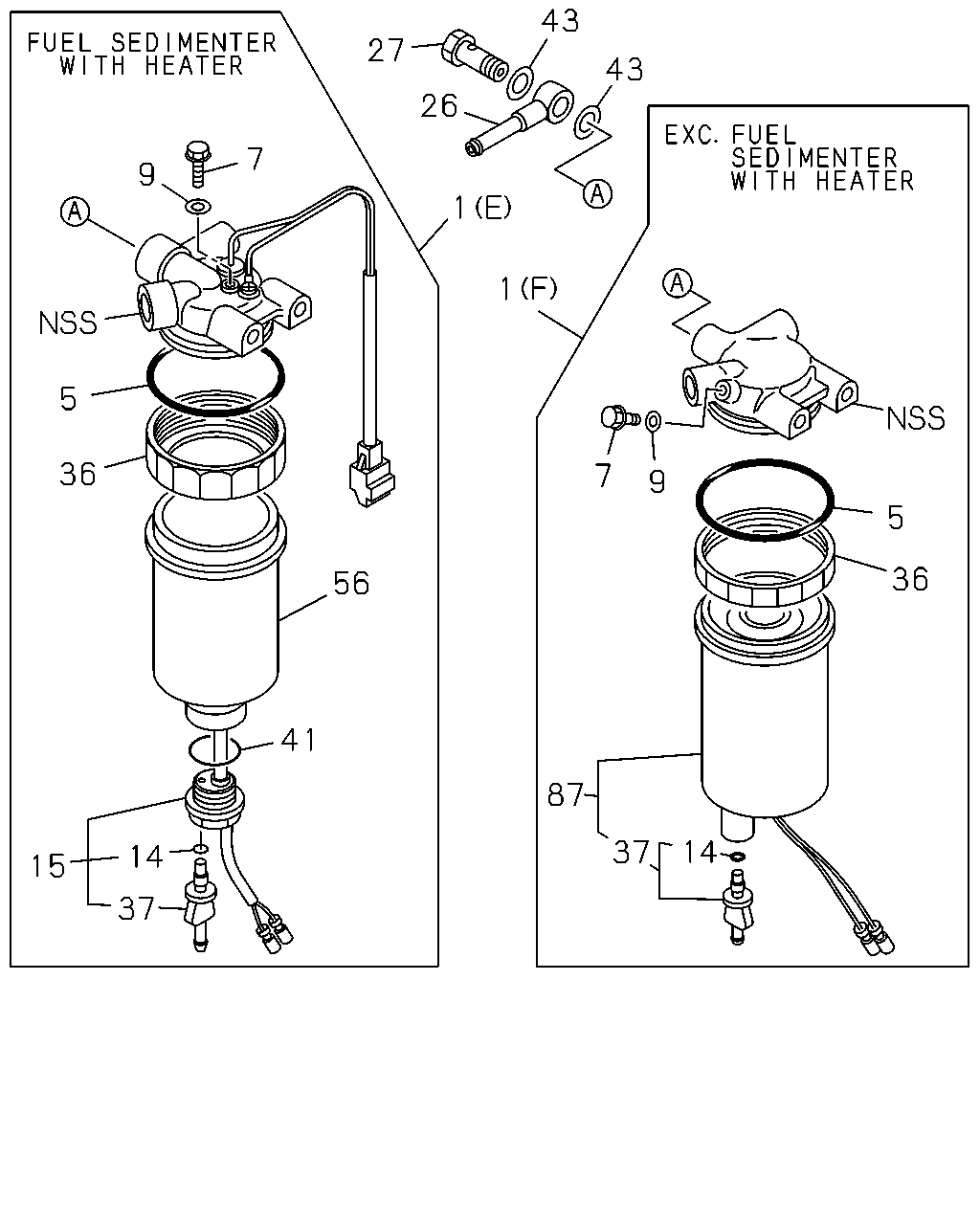

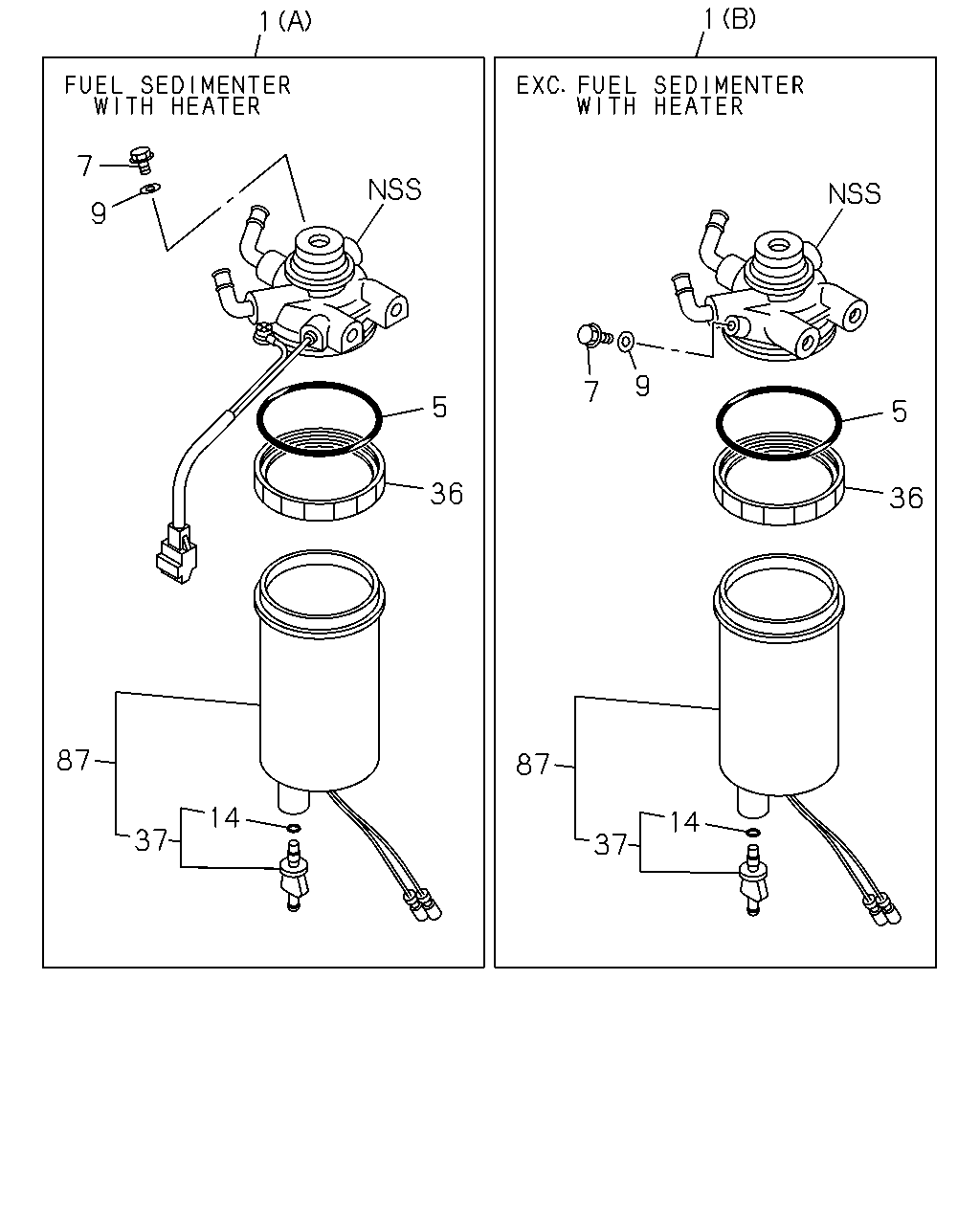

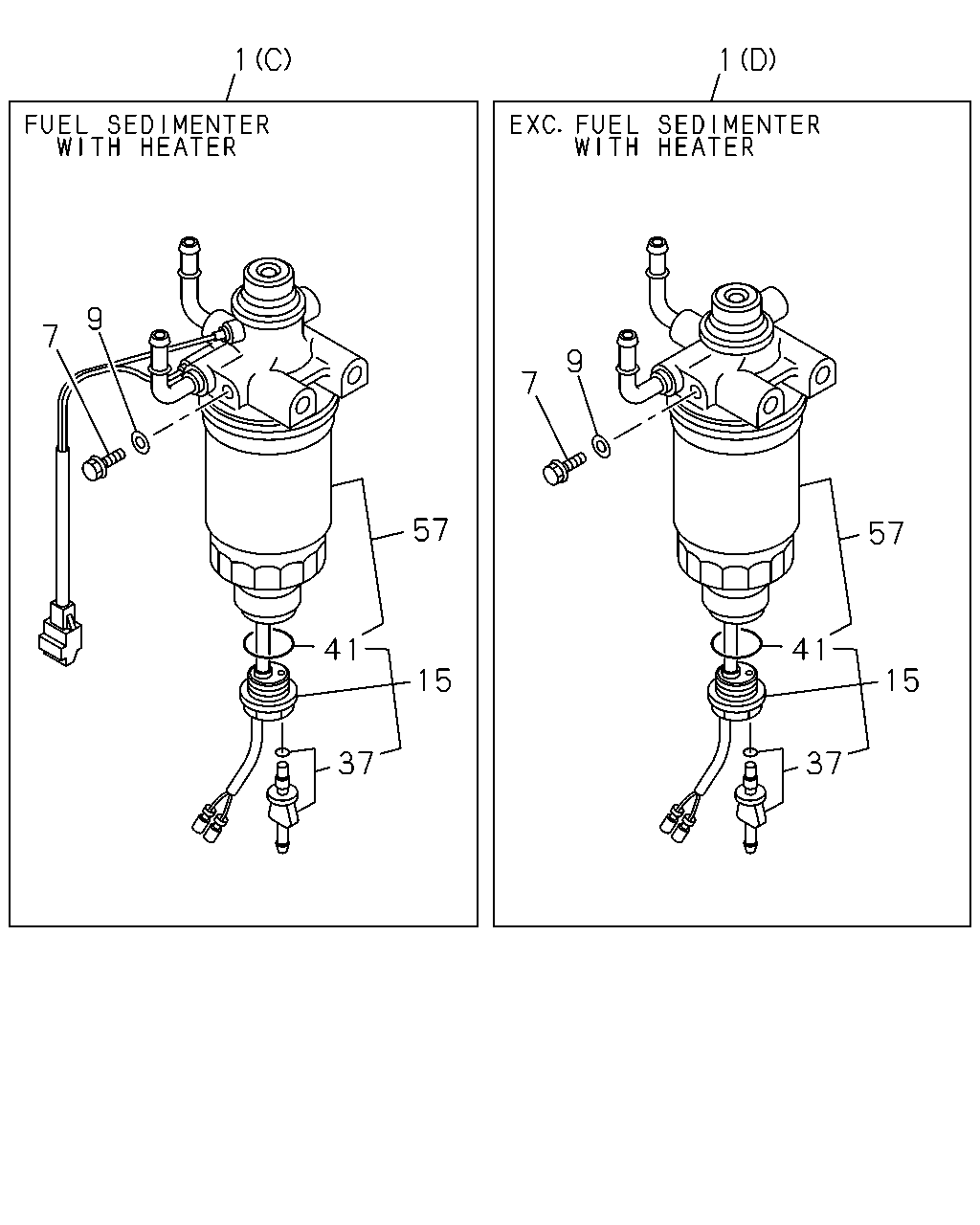

1-45 — WATER SEDIMENTER; FUEL (#47646) — 1545 parça

20 19 20 21 21 20 19 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

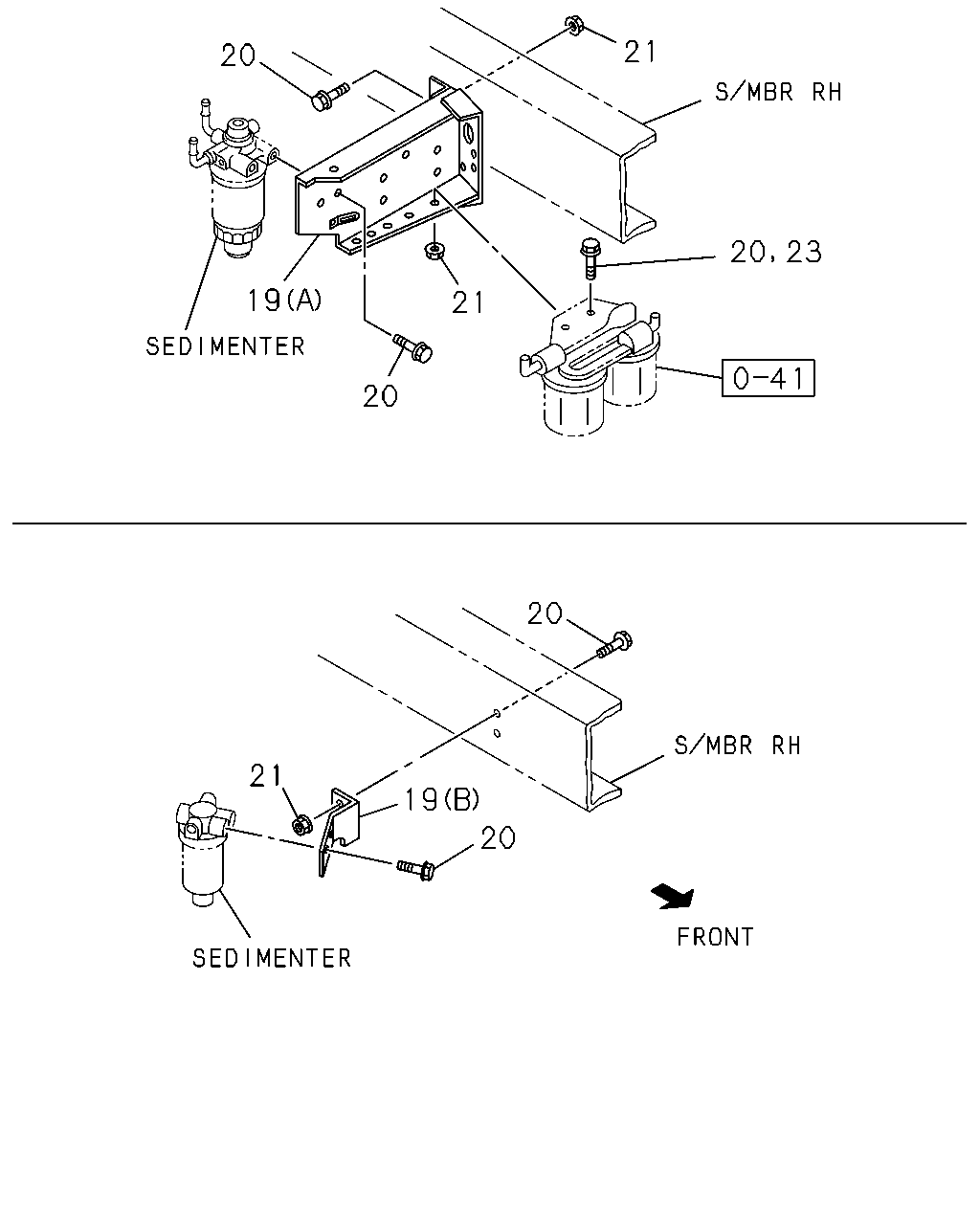

19	03.890 BRACKET; FUEL SEDIMENTER 4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) (C)	8-98259-879-1	01	1	1405-	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) MINI BUS CHASSIS(V4B) (D)	8-98271-644-0	01	1	1405-1405		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) MINI BUS CHASSIS(V4B) (D)	8-98271-644-0	01	1	1406-		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (D)	8-98271-643-0	01	1	1405-1405		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (D)	8-98271-643-0	01	1	1406-		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	0211-0501	●		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	0211-0501		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	0502-1404	●		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	0502-1404		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2014(VZE) (B)	8-94366-685-0	01	1	1405-	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	1405-			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	1405-		●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97090-294-3	01	1	0211-0501	●			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A)	8-97090-294-3	01	1	0211-0501	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97090-294-4	01	1	0502-0503	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97090-294-4	01	1	0502-0503	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-98017-562-0	01	1	0504-0609	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-98017-562-0	01	1	0504-0609	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF) (A)	8-98017-562-0	01	1	0610-1404	●	●	●		●
19	03.890 BRACKET; FUEL SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-98017-562-0	01	1	0610-1404		●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) (A)	8-98017-562-0	01	1	1405-	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) (A)	8-98017-562-0	01	1	1405-	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97226-277-0	01	1	0211-0501		●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	0211-0501			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	0211-0501		●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97226-277-0	01	1	0502-0612		●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	0502-0612			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	0502-0612		●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97226-277-0	01	1	0701-0712			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	0701-0712			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4JB1 ENG(RLF) (A)	8-97226-277-0	01	1	0701-0712		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	0701-0712		●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97226-277-0	01	1	0801-1404			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	0801-1404			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) (A)	8-97226-277-0	01	1	0801-1404		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	0801-1404		●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97226-277-0	01	1	1405-1405			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	1405-1405			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) (A)	8-97226-277-0	01	1	1405-1405		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	1405-1405		●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97226-277-0	01	1	1406-			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	1406-			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) (A)	8-97226-277-0	01	1	1406-		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	1406-		●
19	03.890 BRACKET; FUEL SEDIMENTER (A)	8-97103-344-1	01	1	0211-					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1405-1405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501					●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1 ENG(RJX),4JB1 ENG(RLF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ),4JB1 ENG(RLF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ),4JB1 ENG(RLF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512		●
20	03.890 BOLT; BRKT TO SEDIMENTER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512				●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0609	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0609			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ),4JB1 ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0609		●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0609				●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0610-0712	●	●	●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0610-0712		●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0801-1404	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1405-1405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1405-1405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1405-1405			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1405-1405				●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1406-			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1406-				●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF),4HF1-S ENG(RLS) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302					●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302						●
20	03.890 BOLT; BRKT TO SEDIMENTER EXC. FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501	●			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501					●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501						●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0601-0609	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0601-0609	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0601-0609	●
20	03.890 BOLT; BRKT TO SEDIMENTER M10X30 FLANGE	0-28051-030-0	02	1	0601-0609					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0610-0712	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0610-0712	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0610-0712	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0610-0712		●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0610-0712		●
20	03.890 BOLT; BRKT TO SEDIMENTER M10X30 FLANGE	0-28051-030-0	02	1	0610-0712					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0801-1404	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0801-1404	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0801-1404	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0801-1404			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0801-1404		●
20	03.890 BOLT; BRKT TO SEDIMENTER M10X30 FLANGE	0-28051-030-0	02	1	0801-1404					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1405-1405	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1405-1405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1405-1405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1405-1405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	1405-1405			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER M10X30 FLANGE	0-28051-030-0	02	1	1405-1405					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	1406-			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) M10X30 FLANGE	0-28051-030-0	02	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER M10X30 FLANGE	0-28051-030-0	02	1	1406-					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0211-0302	●			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0211-0302	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0211-0302						●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0303-0501	●			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0303-0501	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0303-0501					●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0502-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0502-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0502-0512					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0601-0609	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0601-0609	●
20	03.890 BOLT; BRKT TO SEDIMENTER 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0601-0609					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0610-1404	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0610-1404	●
20	03.890 BOLT; BRKT TO SEDIMENTER 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0610-1404					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	1405-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	1405-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 03.275 M8X25 FLANGE	0-28050-825-0	01	1	1405-					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0211-0302			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0211-0302		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0303-0501	●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0303-0501		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0502-0512	●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0502-0512		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-1003	●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-1003		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1004-1404	●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1004-1404		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2014(VZE) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1405-1405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1405-1405			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2014(VZE) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2014(VZE) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1406-			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0211-0501		●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0211-0501			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0211-0501		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0502-0512		●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0502-0512			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0502-0512		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	03	1	0601-0612		●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	0601-0612			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	0601-0612		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	03	1	0701-0712			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	0701-0712			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	03	1	0701-0712		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	0701-0712		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	03	1	0801-1404			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	0801-1404			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) M10X30 FLANGE	0-28051-030-0	03	1	0801-1404		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	0801-1404		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	03	1	1405-1405			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	1405-1405			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	03	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	03	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	03	1	1406-			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	1406-			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) M10X30 FLANGE	0-28051-030-0	03	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) M10X30 FLANGE	0-28051-030-0	03	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	02	1	0211-0302					●
21	03.890 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0302	●
21	03.890 NUT; BRKT TO FRAME EXC. FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0302					●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0302	●			●
21	03.890 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0302	●
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0302						●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0303-0501	●			●
21	03.890 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	01	1	0303-0501	●
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	01	1	0303-0501					●	●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602					●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0609	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0609	●
21	03.890 NUT; BRKT TO FRAME 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0609					●
21	03.890 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-1404	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-1404	●
21	03.890 NUT; BRKT TO FRAME 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-1404					●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) 01.062 M8 FLANGE	0-91180-108-0	01	1	1405-	●
21	03.890 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) 01.062 M8 FLANGE	0-91180-108-0	01	1	1405-	●
21	03.890 NUT; BRKT TO FRAME 01.062 M8 FLANGE	0-91180-108-0	01	1	1405-					●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501	●			●
21	03.890 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501	●
21	03.890 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501					●	●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602	●
21	03.890 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602					●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0609	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0609	●
21	03.890 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0609					●
21	03.890 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-1404	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-1404	●
21	03.890 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-1404					●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) 03.162 M10 FLANGE	0-91180-110-0	02	1	1405-	●
21	03.890 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) 03.162 M10 FLANGE	0-91180-110-0	02	1	1405-	●
21	03.890 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) 03.162 M10 FLANGE	0-91180-110-0	02	1	1405-	●
21	03.890 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	02	1	1405-					●
21	03.890 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0302			●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0302		●
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0302					●
21	03.890 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	0303-0501	●
21	03.890 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B), FRAME-KICKUP<7EW> 07.633 M8 FLANGE	0-91150-108-0	02	1	0303-0501			●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	0303-0501		●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B), FRAME-KICKUP<7EW> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602			●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-1404	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B), FRAME-KICKUP<7EW> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-1404			●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-1404		●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2014(VZE) 01.062 M8 FLANGE	0-91180-108-0	02	1	1405-	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B), FRAME-KICKUP<7EW> 01.062 M8 FLANGE	0-91180-108-0	02	1	1405-			●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 01.062 M8 FLANGE	0-91180-108-0	02	1	1405-		●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	03	1	0211-0501		●	●
21	03.890 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	03	1	0211-0501			●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	03	1	0211-0501		●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	03	1	0502-0602		●	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	03	1	0502-0602			●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	03	1	0502-0602		●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	03	1	0603-0612		●	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	03	1	0603-0612			●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	03	1	0603-0612		●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	03	1	0701-0712			●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	03	1	0701-0712			●
21	03.890 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4JB1 ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	03	1	0701-0712		●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	03	1	0701-0712		●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	03	1	0801-1404			●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	03	1	0801-1404			●
21	03.890 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	03	1	0801-1404		●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	03	1	0801-1404		●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	03	1	1405-1405			●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	03	1	1405-1405			●
21	03.890 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) 03.162 M10 FLANGE	0-91180-110-0	03	1	1405-1405		●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	03	1	1405-1405		●
21	03.890 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) 03.162 M10 FLANGE	0-91180-110-0	03	1	1405-1405		●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	03	1	1406-			●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	03	1	1406-			●
21	03.890 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 03.162 M10 FLANGE	0-91180-110-0	03	1	1406-		●
21	03.890 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 03.162 M10 FLANGE	0-91180-110-0	03	1	1406-		●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	03	1	1406-		●

43 27 43 26 7 9 1 1 5 36 7 9 5 36 56 41 87 14 37 14 15 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.890 SEDIMENTER; FUEL 4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV) (F)	8-94144-933-3	01	1	0211-0501	●		●
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV) (F)	8-94144-933-3	01	1	0211-0501		●
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (F)	8-94144-933-4	01	1	0502-		●
1	03.890 SEDIMENTER; FUEL 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97207-734-1	01	1	0211-0501	●	●	●
1	03.890 SEDIMENTER; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97207-734-1	01	1	0211-0501					●
1	03.890 SEDIMENTER; FUEL 4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97207-734-1	01	1	0502-	●	●	●
1	03.890 SEDIMENTER; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97207-734-1	01	1	0502-					●
1	03.890 SEDIMENTER; FUEL 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV) (C)	8-97207-735-1	01	1	0211-0501	●	●	●
1	03.890 SEDIMENTER; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-97207-735-1	01	1	0211-0501					●
1	03.890 SEDIMENTER; FUEL 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-97207-735-1	01	1	0502-	●	●	●
1	03.890 SEDIMENTER; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-97207-735-1	01	1	0502-					●
1	03.890 SEDIMENTER; FUEL 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. ENGINE POWER N-SPEC(7QV) (E)	8-94311-522-2	01	1	0211-0501	●	●	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-1	01	1	0211-0501	●	●	●	●
1	03.890 SEDIMENTER; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-1	01	1	0211-0501						●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-3	01	1	0502-0609	●	●	●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97081-815-3	01	1	0610-0712	●	●	●		●
1	03.890 SEDIMENTER; FUEL (A)	8-97081-815-3	01	1	0610-0712					●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-3	01	1	0801-1405	●	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-3	01	1	0801-1405			●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VIN MODEL YEAR 2014(VZE) (A)	8-97081-815-3	01	1	1406-	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-3	01	1	1406-			●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) (A)	8-97081-815-3	01	1	1406-		●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-2	01	1	0211-0501	●	●	●	●
1	03.890 SEDIMENTER; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-2	01	1	0211-0501						●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-2	01	1	0502-0609	●	●	●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (B)	8-97081-814-3	01	1	0610-0712	●	●	●		●
1	03.890 SEDIMENTER; FUEL (B)	8-97081-814-3	01	1	0610-0712					●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	0801-1404	●	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	0801-1404			●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) (B)	8-97081-814-3	01	1	0801-1404		●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	1405-1405	●	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	1405-1405			●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE) (B)	8-97081-814-3	01	1	1405-1405		●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	1406-	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	1406-			●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) (B)	8-97081-814-3	01	1	1406-		●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF),FUEL SEDIMENTER WIT H HEATER<6HU> (B)	8-97081-814-3	01	1	1406-		●
1	03.890 SEDIMENTER; FUEL 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (G)	8-97240-126-2	01	1	0211-0501	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (G)	8-97240-126-3	01	1	0502-		●	●
1	03.890 SEDIMENTER; FUEL (G)	8-97240-126-3	01	1	0502-				●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1 ENG(RLF)	5-09623-075-0	01	1	0211-0501	●	●	●	●		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	5-09623-075-0	01	1	0211-0501	●	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV)	5-09623-075-0	01	1	0211-0501		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1 ENG(RLF)	5-09623-075-0	01	1	0502-0504	●	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-09623-075-0	01	1	0502-0504		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1 ENG(RLF)	5-09623-075-0	01	1	0505-0609	●		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	5-09623-075-0	01	1	0505-0609		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-09623-075-0	01	1	0505-0609		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	5-09623-075-0	01	1	0610-0712	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1 ENG(RLF)	5-09623-075-0	01	1	0610-0712			●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	5-09623-075-0	01	1	0610-0712		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1-T ENG(RDP)	5-09623-075-0	01	1	0610-0712		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-09623-075-0	01	1	0610-0712		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	5-09623-075-0	01	1	0801-1404	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1 ENG(RLF)	5-09623-075-0	01	1	0801-1404			●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	5-09623-075-0	01	1	0801-1404		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1-T ENG(RDP)	5-09623-075-0	01	1	0801-1404		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-09623-075-0	01	1	0801-1404		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	5-09623-075-0	01	1	1405-1405	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1 ENG(RLF)	5-09623-075-0	01	1	1405-1405			●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	5-09623-075-0	01	1	1405-1405		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE)	5-09623-075-0	01	1	1405-1405		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-09623-075-0	01	1	1405-1405		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE)	5-09623-075-0	01	1	1406-	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1 ENG(RLF)	5-09623-075-0	01	1	1406-			●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-09623-075-0	01	1	1406-		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF)	5-09623-075-0	01	1	1406-		●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	0211-0501	●	●	●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94132-674-0	01	1	0502-0609	●	●	●		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0502-0609		●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94132-674-0	01	1	0610-1404	●	●	●		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0610-1404		●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	1405-1405	●			●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94132-674-0	01	1	1405-1405			●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1405-1405			●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE)	8-94132-674-0	01	1	1405-1405		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF)	8-94132-674-0	01	1	1405-1405		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1405-1405		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1-N ENG(RJZ)	8-94132-674-0	01	1	1406-	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE)	8-94132-674-0	01	1	1406-	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1-N ENG(RJZ),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1406-			●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1406-			●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1406-		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1406-		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF)	8-94132-674-0	01	1	1406-		●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	1406-				●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV) 03.895	9-09571-406-0	01	1	0211-0501	●		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV) 03.895	9-09571-406-0	01	1	0211-0501		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895	9-09571-406-0	01	1	0502-		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0211-0501	●	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0211-0501	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1 ENG(RLF),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0211-0501	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	0211-0501					●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0211-0501				●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94132-675-0	01	1	0502-0609	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0502-0609		●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0502-0609		●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	0502-0609				●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94132-675-0	01	1	0610-0712	●	●	●		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0610-0712		●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF)	8-94132-675-0	01	1	0801-1404	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0801-1404			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0801-1404			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP)	8-94132-675-0	01	1	0801-1404		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0801-1404		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0801-1404		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	0801-1404				●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF)	8-94132-675-0	01	1	1405-1405	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1405-1405			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1405-1405			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE)	8-94132-675-0	01	1	1405-1405		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1405-1405		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1405-1405		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	1405-1405				●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ)	8-94132-675-0	01	1	1406-	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE)	8-94132-675-0	01	1	1406-	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1406-			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1406-			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1406-		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1406-		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF)	8-94132-675-0	01	1	1406-		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	1406-				●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. ENGINE POWER N-SPEC(7QV)	8-94416-377-0	01	1	0211-0501	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0211-0501	●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0211-0501	●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-94447-156-0	01	1	0211-0501	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV)	8-94447-156-0	01	1	0211-0501	●		●
14	03.890 GASKET; SENSOR TO CENTER BOLT	8-94447-156-0	01	1	0211-0501					●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV)	8-94447-156-0	01	1	0211-0501		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94447-156-0	01	1	0502-0609	●	●	●		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0502-0609		●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94447-156-0	01	1	0610-1404	●	●	●		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0610-1404		●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT	8-94447-156-0	01	1	1405-1405	●			●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94447-156-0	01	1	1405-1405			●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	1405-1405			●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE)	8-94447-156-0	01	1	1405-1405		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF)	8-94447-156-0	01	1	1405-1405		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	1405-1405		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-N ENG(RJZ)	8-94447-156-0	01	1	1406-	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE)	8-94447-156-0	01	1	1406-	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-N ENG(RJZ),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	1406-			●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	1406-			●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	1406-		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	1406-		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF)	8-94447-156-0	01	1	1406-		●
14	03.890 GASKET; SENSOR TO CENTER BOLT	8-94447-156-0	01	1	1406-				●	●
15	03.890 SENSOR ASM; SEDIMENTER 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. ENGINE POWER N-SPEC(7QV)	8-94153-430-0	01	1	0211-0501	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	0211-0501	●	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97079-821-0	01	1	0211-0501	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER	8-97079-821-0	01	1	0211-0501					●
15	03.890 SENSOR ASM; SEDIMENTER 4HF1-N ENG(RJZ)	8-97079-821-0	01	1	0502-	●
15	03.890 SENSOR ASM; SEDIMENTER 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	0502-		●	●
15	03.890 SENSOR ASM; SEDIMENTER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	0502-		●	●
15	03.890 SENSOR ASM; SEDIMENTER	8-97079-821-0	01	1	0502-				●	●
26	03.163 PIPE; FUEL,IN & OUT 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	5-15411-223-1	02	1	0211-0501	●		●
26	03.163 PIPE; FUEL,IN & OUT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	5-15411-223-1	02	1	0211-0501		●
26	03.163 PIPE; FUEL,IN & OUT 4HG1 ENG(RJH)	5-15411-223-1	02	1	0502-		●
27	03.890 BOLT; EYE,FUEL PIPE TO SEDIMENTE 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.162 M14X29 EYE-BOLT	9-09906-325-1	02	1	0211-0501	●		●
27	03.890 BOLT; EYE,FUEL PIPE TO SEDIMENTE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.162 M14X29 EYE-BOLT	9-09906-325-1	02	1	0211-0501		●
27	03.890 BOLT; EYE,FUEL PIPE TO SEDIMENTE 4HG1 ENG(RJH) 03.162 M14X29 EYE-BOLT	9-09906-325-1	02	1	0502-		●
36	03.890 RING; BODY TO CASE 4JB1 ENG(RLF)	5-13234-001-0	01	1	0211-0501	●	●	●	●		●
36	03.890 RING; BODY TO CASE 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	5-13234-001-0	01	1	0211-0501	●	●	●
36	03.890 RING; BODY TO CASE 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV)	5-13234-001-0	01	1	0211-0501		●
36	03.890 RING; BODY TO CASE 4JB1 ENG(RLF)	5-13234-001-0	01	1	0502-0504	●	●	●
36	03.890 RING; BODY TO CASE 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-13234-001-0	01	1	0502-0504		●
36	03.890 RING; BODY TO CASE 4JB1 ENG(RLF)	5-13234-001-0	01	1	0505-0609	●		●
36	03.890 RING; BODY TO CASE 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	5-13234-001-0	01	1	0505-0609		●
36	03.890 RING; BODY TO CASE 4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-13234-001-0	01	1	0505-0609		●
36	03.890 RING; BODY TO CASE 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	5-13234-001-0	01	1	0610-0712	●
36	03.890 RING; BODY TO CASE 4JB1 ENG(RLF)	5-13234-001-0	01	1	0610-0712			●
36	03.890 RING; BODY TO CASE 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	5-13234-001-0	01	1	0610-0712		●
36	03.890 RING; BODY TO CASE 4HG1-T ENG(RDP)	5-13234-001-0	01	1	0610-0712		●
36	03.890 RING; BODY TO CASE 4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-13234-001-0	01	1	0610-0712		●
36	03.890 RING; BODY TO CASE 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	5-13234-001-0	01	1	0801-1404	●
36	03.890 RING; BODY TO CASE 4JB1 ENG(RLF)	5-13234-001-0	01	1	0801-1404			●
36	03.890 RING; BODY TO CASE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	5-13234-001-0	01	1	0801-1404		●
36	03.890 RING; BODY TO CASE 4HG1-T ENG(RDP)	5-13234-001-0	01	1	0801-1404		●
36	03.890 RING; BODY TO CASE 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-13234-001-0	01	1	0801-1404		●
36	03.890 RING; BODY TO CASE 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	5-13234-001-0	01	1	1405-1405	●
36	03.890 RING; BODY TO CASE 4JB1 ENG(RLF)	5-13234-001-0	01	1	1405-1405			●
36	03.890 RING; BODY TO CASE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	5-13234-001-0	01	1	1405-1405		●
36	03.890 RING; BODY TO CASE 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE)	5-13234-001-0	01	1	1405-1405		●
36	03.890 RING; BODY TO CASE 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-13234-001-0	01	1	1405-1405		●
36	03.890 RING; BODY TO CASE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE)	5-13234-001-0	01	1	1406-	●
36	03.890 RING; BODY TO CASE 4JB1 ENG(RLF)	5-13234-001-0	01	1	1406-			●
36	03.890 RING; BODY TO CASE 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-13234-001-0	01	1	1406-		●
36	03.890 RING; BODY TO CASE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF)	5-13234-001-0	01	1	1406-		●
37	03.890 PLUG; SENSOR 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. ENGINE POWER N-SPEC(7QV)	8-94416-376-0	01	1	0211-0501	●	●	●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	0211-0501	●	●	●	●
37	03.890 PLUG; SENSOR 4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV)	8-94453-746-0	01	1	0211-0501	●		●
37	03.890 PLUG; SENSOR	8-94453-746-0	01	1	0211-0501						●
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV)	8-94453-746-0	01	1	0211-0501		●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	0502-0504	●	●	●
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0502-0504		●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	0505-0609	●		●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0505-0609		●
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0505-0609		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-94453-746-0	01	1	0610-0712	●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	0610-0712			●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0610-0712		●
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP)	8-94453-746-0	01	1	0610-0712		●
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0610-0712		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-94453-746-0	01	1	0801-1404	●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	0801-1404			●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0801-1404		●
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP)	8-94453-746-0	01	1	0801-1404		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0801-1404		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-94453-746-0	01	1	1405-1405	●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	1405-1405			●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	1405-1405		●
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE)	8-94453-746-0	01	1	1405-1405		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	1405-1405		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE)	8-94453-746-0	01	1	1406-	●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	1406-			●
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	1406-		●
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF)	8-94453-746-0	01	1	1406-		●
37	03.890 PLUG; SENSOR 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0211-0501	●	●	●	●
37	03.890 PLUG; SENSOR 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97123-549-0	01	1	0211-0501	●	●	●
37	03.890 PLUG; SENSOR	8-97123-549-0	01	1	0211-0501					●
37	03.890 PLUG; SENSOR 4HF1-N ENG(RJZ)	8-97123-549-0	01	1	0502-	●
37	03.890 PLUG; SENSOR 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0502-		●	●
37	03.890 PLUG; SENSOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0502-		●	●
37	03.890 PLUG; SENSOR	8-97123-549-0	01	1	0502-				●	●
41	03.890 GASKET; SENSOR TO CASE 4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.417	1-09623-649-0	01	1	0612-		●	●
41	03.890 GASKET; SENSOR TO CASE 03.417	1-09623-649-0	01	1	0612-				●
41	03.890 GASKET; SENSOR TO CASE 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0211-0501	●	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0211-0501	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0211-0501	●	●	●
41	03.890 GASKET; SENSOR TO CASE 08.927	9-09563-334-0	01	1	0211-0501					●
41	03.890 GASKET; SENSOR TO CASE 4HF1-N ENG(RJZ) 08.927	9-09563-334-0	01	1	0502-0611	●
41	03.890 GASKET; SENSOR TO CASE 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0502-0611		●	●
41	03.890 GASKET; SENSOR TO CASE 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0502-0611		●	●
41	03.890 GASKET; SENSOR TO CASE 08.927	9-09563-334-0	01	1	0502-0611				●	●
41	03.890 GASKET; SENSOR TO CASE 4HF1-N ENG(RJZ) 08.927	9-09563-334-0	01	1	0612-	●	●	●
41	03.890 GASKET; SENSOR TO CASE 08.927	9-09563-334-0	01	1	0612-					●
43	03.890 GASKET; FUEL PIPE TO SEDIMENTER 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0211-0501	●		●
43	03.890 GASKET; FUEL PIPE TO SEDIMENTER 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0211-0501		●
43	03.890 GASKET; FUEL PIPE TO SEDIMENTER 4HG1 ENG(RJH) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0502-		●
56	03.890 CASE; FUEL SEDIMENTER 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. ENGINE POWER N-SPEC(7QV)	5-13211-030-1	01	1	0211-0501	●	●	●
87	03.890 CASE ASM; SEDIMENTER 4JB1 ENG(RLF)	8-97219-363-0	01	1	0211-0501	●	●	●	●
87	03.890 CASE ASM; SEDIMENTER 4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV)	8-97219-363-0	01	1	0211-0501	●		●
87	03.890 CASE ASM; SEDIMENTER	8-97219-363-0	01	1	0211-0501						●
87	03.890 CASE ASM; SEDIMENTER 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV)	8-97219-363-0	01	1	0211-0501		●
87	03.890 CASE ASM; SEDIMENTER 4JB1 ENG(RLF)	8-97219-363-0	01	1	0502-0504	●	●	●
87	03.890 CASE ASM; SEDIMENTER 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-0	01	1	0502-0504		●
87	03.890 CASE ASM; SEDIMENTER 4JB1 ENG(RLF)	8-97219-363-0	01	1	0505-0609	●		●
87	03.890 CASE ASM; SEDIMENTER 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-0	01	1	0505-0609		●
87	03.890 CASE ASM; SEDIMENTER 4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-0	01	1	0505-0609		●
87	03.890 CASE ASM; SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97219-363-1	01	1	0610-0712	●
87	03.890 CASE ASM; SEDIMENTER 4JB1 ENG(RLF)	8-97219-363-1	01	1	0610-0712			●
87	03.890 CASE ASM; SEDIMENTER 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-1	01	1	0610-0712		●
87	03.890 CASE ASM; SEDIMENTER 4HG1-T ENG(RDP)	8-97219-363-1	01	1	0610-0712		●
87	03.890 CASE ASM; SEDIMENTER 4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-1	01	1	0610-0712		●
87	03.890 CASE ASM; SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97219-363-1	01	1	0801-1404	●
87	03.890 CASE ASM; SEDIMENTER 4JB1 ENG(RLF)	8-97219-363-1	01	1	0801-1404			●
87	03.890 CASE ASM; SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-1	01	1	0801-1404		●
87	03.890 CASE ASM; SEDIMENTER 4HG1-T ENG(RDP)	8-97219-363-1	01	1	0801-1404		●
87	03.890 CASE ASM; SEDIMENTER 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-1	01	1	0801-1404		●
87	03.890 CASE ASM; SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97219-363-1	01	1	1405-1405	●
87	03.890 CASE ASM; SEDIMENTER 4JB1 ENG(RLF)	8-97219-363-1	01	1	1405-1405			●
87	03.890 CASE ASM; SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-1	01	1	1405-1405		●
87	03.890 CASE ASM; SEDIMENTER 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE)	8-97219-363-1	01	1	1405-1405		●
87	03.890 CASE ASM; SEDIMENTER 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-1	01	1	1405-1405		●
87	03.890 CASE ASM; SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE)	8-97219-363-1	01	1	1406-	●
87	03.890 CASE ASM; SEDIMENTER 4JB1 ENG(RLF)	8-97219-363-1	01	1	1406-			●
87	03.890 CASE ASM; SEDIMENTER 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-1	01	1	1406-		●
87	03.890 CASE ASM; SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF)	8-97219-363-1	01	1	1406-		●

1 1 7 9 9 7 5 5 36 36 87 87 14 14 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.890 SEDIMENTER; FUEL 4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV) (F)	8-94144-933-3	01	1	0211-0501	●		●
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV) (F)	8-94144-933-3	01	1	0211-0501		●
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (F)	8-94144-933-4	01	1	0502-		●
1	03.890 SEDIMENTER; FUEL 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97207-734-1	01	1	0211-0501	●	●	●
1	03.890 SEDIMENTER; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97207-734-1	01	1	0211-0501					●
1	03.890 SEDIMENTER; FUEL 4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97207-734-1	01	1	0502-	●	●	●
1	03.890 SEDIMENTER; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97207-734-1	01	1	0502-					●
1	03.890 SEDIMENTER; FUEL 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV) (C)	8-97207-735-1	01	1	0211-0501	●	●	●
1	03.890 SEDIMENTER; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-97207-735-1	01	1	0211-0501					●
1	03.890 SEDIMENTER; FUEL 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-97207-735-1	01	1	0502-	●	●	●
1	03.890 SEDIMENTER; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-97207-735-1	01	1	0502-					●
1	03.890 SEDIMENTER; FUEL 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. ENGINE POWER N-SPEC(7QV) (E)	8-94311-522-2	01	1	0211-0501	●	●	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-1	01	1	0211-0501	●	●	●	●
1	03.890 SEDIMENTER; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-1	01	1	0211-0501						●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-3	01	1	0502-0609	●	●	●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97081-815-3	01	1	0610-0712	●	●	●		●
1	03.890 SEDIMENTER; FUEL (A)	8-97081-815-3	01	1	0610-0712					●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-3	01	1	0801-1405	●	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-3	01	1	0801-1405			●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VIN MODEL YEAR 2014(VZE) (A)	8-97081-815-3	01	1	1406-	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-3	01	1	1406-			●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) (A)	8-97081-815-3	01	1	1406-		●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-2	01	1	0211-0501	●	●	●	●
1	03.890 SEDIMENTER; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-2	01	1	0211-0501						●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-2	01	1	0502-0609	●	●	●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (B)	8-97081-814-3	01	1	0610-0712	●	●	●		●
1	03.890 SEDIMENTER; FUEL (B)	8-97081-814-3	01	1	0610-0712					●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	0801-1404	●	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	0801-1404			●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) (B)	8-97081-814-3	01	1	0801-1404		●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	1405-1405	●	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	1405-1405			●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE) (B)	8-97081-814-3	01	1	1405-1405		●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	1406-	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	1406-			●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) (B)	8-97081-814-3	01	1	1406-		●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF),FUEL SEDIMENTER WIT H HEATER<6HU> (B)	8-97081-814-3	01	1	1406-		●
1	03.890 SEDIMENTER; FUEL 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (G)	8-97240-126-2	01	1	0211-0501	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (G)	8-97240-126-3	01	1	0502-		●	●
1	03.890 SEDIMENTER; FUEL (G)	8-97240-126-3	01	1	0502-				●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1 ENG(RLF)	5-09623-075-0	01	1	0211-0501	●	●	●	●		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	5-09623-075-0	01	1	0211-0501	●	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV)	5-09623-075-0	01	1	0211-0501		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1 ENG(RLF)	5-09623-075-0	01	1	0502-0504	●	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-09623-075-0	01	1	0502-0504		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1 ENG(RLF)	5-09623-075-0	01	1	0505-0609	●		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	5-09623-075-0	01	1	0505-0609		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-09623-075-0	01	1	0505-0609		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	5-09623-075-0	01	1	0610-0712	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1 ENG(RLF)	5-09623-075-0	01	1	0610-0712			●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	5-09623-075-0	01	1	0610-0712		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1-T ENG(RDP)	5-09623-075-0	01	1	0610-0712		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-09623-075-0	01	1	0610-0712		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	5-09623-075-0	01	1	0801-1404	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1 ENG(RLF)	5-09623-075-0	01	1	0801-1404			●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	5-09623-075-0	01	1	0801-1404		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1-T ENG(RDP)	5-09623-075-0	01	1	0801-1404		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-09623-075-0	01	1	0801-1404		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	5-09623-075-0	01	1	1405-1405	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1 ENG(RLF)	5-09623-075-0	01	1	1405-1405			●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	5-09623-075-0	01	1	1405-1405		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE)	5-09623-075-0	01	1	1405-1405		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-09623-075-0	01	1	1405-1405		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE)	5-09623-075-0	01	1	1406-	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JB1 ENG(RLF)	5-09623-075-0	01	1	1406-			●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-09623-075-0	01	1	1406-		●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF)	5-09623-075-0	01	1	1406-		●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	0211-0501	●	●	●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94132-674-0	01	1	0502-0609	●	●	●		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0502-0609		●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94132-674-0	01	1	0610-1404	●	●	●		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0610-1404		●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	1405-1405	●			●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94132-674-0	01	1	1405-1405			●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1405-1405			●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE)	8-94132-674-0	01	1	1405-1405		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF)	8-94132-674-0	01	1	1405-1405		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1405-1405		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1-N ENG(RJZ)	8-94132-674-0	01	1	1406-	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE)	8-94132-674-0	01	1	1406-	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1-N ENG(RJZ),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1406-			●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1406-			●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1406-		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1406-		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF)	8-94132-674-0	01	1	1406-		●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	1406-				●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV) 03.895	9-09571-406-0	01	1	0211-0501	●		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV) 03.895	9-09571-406-0	01	1	0211-0501		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895	9-09571-406-0	01	1	0502-		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0211-0501	●	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0211-0501	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1 ENG(RLF),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0211-0501	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	0211-0501					●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0211-0501				●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94132-675-0	01	1	0502-0609	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0502-0609		●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0502-0609		●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	0502-0609				●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94132-675-0	01	1	0610-0712	●	●	●		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0610-0712		●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF)	8-94132-675-0	01	1	0801-1404	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0801-1404			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0801-1404			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP)	8-94132-675-0	01	1	0801-1404		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0801-1404		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0801-1404		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	0801-1404				●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF)	8-94132-675-0	01	1	1405-1405	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1405-1405			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1405-1405			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE)	8-94132-675-0	01	1	1405-1405		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1405-1405		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1405-1405		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	1405-1405				●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ)	8-94132-675-0	01	1	1406-	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE)	8-94132-675-0	01	1	1406-	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1406-			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1406-			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1406-		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1406-		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF)	8-94132-675-0	01	1	1406-		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	1406-				●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. ENGINE POWER N-SPEC(7QV)	8-94416-377-0	01	1	0211-0501	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0211-0501	●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0211-0501	●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-94447-156-0	01	1	0211-0501	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV)	8-94447-156-0	01	1	0211-0501	●		●
14	03.890 GASKET; SENSOR TO CENTER BOLT	8-94447-156-0	01	1	0211-0501					●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV)	8-94447-156-0	01	1	0211-0501		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94447-156-0	01	1	0502-0609	●	●	●		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0502-0609		●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94447-156-0	01	1	0610-1404	●	●	●		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0610-1404		●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT	8-94447-156-0	01	1	1405-1405	●			●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94447-156-0	01	1	1405-1405			●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	1405-1405			●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE)	8-94447-156-0	01	1	1405-1405		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF)	8-94447-156-0	01	1	1405-1405		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	1405-1405		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-N ENG(RJZ)	8-94447-156-0	01	1	1406-	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE)	8-94447-156-0	01	1	1406-	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-N ENG(RJZ),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	1406-			●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	1406-			●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	1406-		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	1406-		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF)	8-94447-156-0	01	1	1406-		●
14	03.890 GASKET; SENSOR TO CENTER BOLT	8-94447-156-0	01	1	1406-				●	●
36	03.890 RING; BODY TO CASE 4JB1 ENG(RLF)	5-13234-001-0	01	1	0211-0501	●	●	●	●		●
36	03.890 RING; BODY TO CASE 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	5-13234-001-0	01	1	0211-0501	●	●	●
36	03.890 RING; BODY TO CASE 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV)	5-13234-001-0	01	1	0211-0501		●
36	03.890 RING; BODY TO CASE 4JB1 ENG(RLF)	5-13234-001-0	01	1	0502-0504	●	●	●
36	03.890 RING; BODY TO CASE 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-13234-001-0	01	1	0502-0504		●
36	03.890 RING; BODY TO CASE 4JB1 ENG(RLF)	5-13234-001-0	01	1	0505-0609	●		●
36	03.890 RING; BODY TO CASE 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	5-13234-001-0	01	1	0505-0609		●
36	03.890 RING; BODY TO CASE 4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-13234-001-0	01	1	0505-0609		●
36	03.890 RING; BODY TO CASE 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	5-13234-001-0	01	1	0610-0712	●
36	03.890 RING; BODY TO CASE 4JB1 ENG(RLF)	5-13234-001-0	01	1	0610-0712			●
36	03.890 RING; BODY TO CASE 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	5-13234-001-0	01	1	0610-0712		●
36	03.890 RING; BODY TO CASE 4HG1-T ENG(RDP)	5-13234-001-0	01	1	0610-0712		●
36	03.890 RING; BODY TO CASE 4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-13234-001-0	01	1	0610-0712		●
36	03.890 RING; BODY TO CASE 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	5-13234-001-0	01	1	0801-1404	●
36	03.890 RING; BODY TO CASE 4JB1 ENG(RLF)	5-13234-001-0	01	1	0801-1404			●
36	03.890 RING; BODY TO CASE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	5-13234-001-0	01	1	0801-1404		●
36	03.890 RING; BODY TO CASE 4HG1-T ENG(RDP)	5-13234-001-0	01	1	0801-1404		●
36	03.890 RING; BODY TO CASE 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-13234-001-0	01	1	0801-1404		●
36	03.890 RING; BODY TO CASE 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	5-13234-001-0	01	1	1405-1405	●
36	03.890 RING; BODY TO CASE 4JB1 ENG(RLF)	5-13234-001-0	01	1	1405-1405			●
36	03.890 RING; BODY TO CASE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	5-13234-001-0	01	1	1405-1405		●
36	03.890 RING; BODY TO CASE 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE)	5-13234-001-0	01	1	1405-1405		●
36	03.890 RING; BODY TO CASE 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-13234-001-0	01	1	1405-1405		●
36	03.890 RING; BODY TO CASE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE)	5-13234-001-0	01	1	1406-	●
36	03.890 RING; BODY TO CASE 4JB1 ENG(RLF)	5-13234-001-0	01	1	1406-			●
36	03.890 RING; BODY TO CASE 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	5-13234-001-0	01	1	1406-		●
36	03.890 RING; BODY TO CASE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF)	5-13234-001-0	01	1	1406-		●
37	03.890 PLUG; SENSOR 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. ENGINE POWER N-SPEC(7QV)	8-94416-376-0	01	1	0211-0501	●	●	●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	0211-0501	●	●	●	●
37	03.890 PLUG; SENSOR 4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV)	8-94453-746-0	01	1	0211-0501	●		●
37	03.890 PLUG; SENSOR	8-94453-746-0	01	1	0211-0501						●
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV)	8-94453-746-0	01	1	0211-0501		●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	0502-0504	●	●	●
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0502-0504		●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	0505-0609	●		●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0505-0609		●
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0505-0609		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-94453-746-0	01	1	0610-0712	●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	0610-0712			●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0610-0712		●
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP)	8-94453-746-0	01	1	0610-0712		●
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0610-0712		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-94453-746-0	01	1	0801-1404	●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	0801-1404			●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0801-1404		●
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP)	8-94453-746-0	01	1	0801-1404		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0801-1404		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-94453-746-0	01	1	1405-1405	●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	1405-1405			●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	1405-1405		●
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE)	8-94453-746-0	01	1	1405-1405		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	1405-1405		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE)	8-94453-746-0	01	1	1406-	●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	1406-			●
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	1406-		●
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF)	8-94453-746-0	01	1	1406-		●
37	03.890 PLUG; SENSOR 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0211-0501	●	●	●	●
37	03.890 PLUG; SENSOR 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97123-549-0	01	1	0211-0501	●	●	●
37	03.890 PLUG; SENSOR	8-97123-549-0	01	1	0211-0501					●
37	03.890 PLUG; SENSOR 4HF1-N ENG(RJZ)	8-97123-549-0	01	1	0502-	●
37	03.890 PLUG; SENSOR 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0502-		●	●
37	03.890 PLUG; SENSOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0502-		●	●
37	03.890 PLUG; SENSOR	8-97123-549-0	01	1	0502-				●	●
87	03.890 CASE ASM; SEDIMENTER 4JB1 ENG(RLF)	8-97219-363-0	01	1	0211-0501	●	●	●	●
87	03.890 CASE ASM; SEDIMENTER 4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV)	8-97219-363-0	01	1	0211-0501	●		●
87	03.890 CASE ASM; SEDIMENTER	8-97219-363-0	01	1	0211-0501						●
87	03.890 CASE ASM; SEDIMENTER 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV)	8-97219-363-0	01	1	0211-0501		●
87	03.890 CASE ASM; SEDIMENTER 4JB1 ENG(RLF)	8-97219-363-0	01	1	0502-0504	●	●	●
87	03.890 CASE ASM; SEDIMENTER 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-0	01	1	0502-0504		●
87	03.890 CASE ASM; SEDIMENTER 4JB1 ENG(RLF)	8-97219-363-0	01	1	0505-0609	●		●
87	03.890 CASE ASM; SEDIMENTER 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-0	01	1	0505-0609		●
87	03.890 CASE ASM; SEDIMENTER 4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-0	01	1	0505-0609		●
87	03.890 CASE ASM; SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97219-363-1	01	1	0610-0712	●
87	03.890 CASE ASM; SEDIMENTER 4JB1 ENG(RLF)	8-97219-363-1	01	1	0610-0712			●
87	03.890 CASE ASM; SEDIMENTER 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-1	01	1	0610-0712		●
87	03.890 CASE ASM; SEDIMENTER 4HG1-T ENG(RDP)	8-97219-363-1	01	1	0610-0712		●
87	03.890 CASE ASM; SEDIMENTER 4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-1	01	1	0610-0712		●
87	03.890 CASE ASM; SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97219-363-1	01	1	0801-1404	●
87	03.890 CASE ASM; SEDIMENTER 4JB1 ENG(RLF)	8-97219-363-1	01	1	0801-1404			●
87	03.890 CASE ASM; SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-1	01	1	0801-1404		●
87	03.890 CASE ASM; SEDIMENTER 4HG1-T ENG(RDP)	8-97219-363-1	01	1	0801-1404		●
87	03.890 CASE ASM; SEDIMENTER 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-1	01	1	0801-1404		●
87	03.890 CASE ASM; SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97219-363-1	01	1	1405-1405	●
87	03.890 CASE ASM; SEDIMENTER 4JB1 ENG(RLF)	8-97219-363-1	01	1	1405-1405			●
87	03.890 CASE ASM; SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-1	01	1	1405-1405		●
87	03.890 CASE ASM; SEDIMENTER 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE)	8-97219-363-1	01	1	1405-1405		●
87	03.890 CASE ASM; SEDIMENTER 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-1	01	1	1405-1405		●
87	03.890 CASE ASM; SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE)	8-97219-363-1	01	1	1406-	●
87	03.890 CASE ASM; SEDIMENTER 4JB1 ENG(RLF)	8-97219-363-1	01	1	1406-			●
87	03.890 CASE ASM; SEDIMENTER 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-1	01	1	1406-		●
87	03.890 CASE ASM; SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF)	8-97219-363-1	01	1	1406-		●

1 1 9 7 9 7 57 57 41 41 15 15 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.890 SEDIMENTER; FUEL 4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV) (F)	8-94144-933-3	01	1	0211-0501	●		●
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV) (F)	8-94144-933-3	01	1	0211-0501		●
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (F)	8-94144-933-4	01	1	0502-		●
1	03.890 SEDIMENTER; FUEL 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97207-734-1	01	1	0211-0501	●	●	●
1	03.890 SEDIMENTER; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97207-734-1	01	1	0211-0501					●
1	03.890 SEDIMENTER; FUEL 4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97207-734-1	01	1	0502-	●	●	●
1	03.890 SEDIMENTER; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97207-734-1	01	1	0502-					●
1	03.890 SEDIMENTER; FUEL 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV) (C)	8-97207-735-1	01	1	0211-0501	●	●	●
1	03.890 SEDIMENTER; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-97207-735-1	01	1	0211-0501					●
1	03.890 SEDIMENTER; FUEL 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-97207-735-1	01	1	0502-	●	●	●
1	03.890 SEDIMENTER; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-97207-735-1	01	1	0502-					●
1	03.890 SEDIMENTER; FUEL 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. ENGINE POWER N-SPEC(7QV) (E)	8-94311-522-2	01	1	0211-0501	●	●	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-1	01	1	0211-0501	●	●	●	●
1	03.890 SEDIMENTER; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-1	01	1	0211-0501						●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-3	01	1	0502-0609	●	●	●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97081-815-3	01	1	0610-0712	●	●	●		●
1	03.890 SEDIMENTER; FUEL (A)	8-97081-815-3	01	1	0610-0712					●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-3	01	1	0801-1405	●	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-3	01	1	0801-1405			●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VIN MODEL YEAR 2014(VZE) (A)	8-97081-815-3	01	1	1406-	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-3	01	1	1406-			●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) (A)	8-97081-815-3	01	1	1406-		●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-2	01	1	0211-0501	●	●	●	●
1	03.890 SEDIMENTER; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-2	01	1	0211-0501						●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-2	01	1	0502-0609	●	●	●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (B)	8-97081-814-3	01	1	0610-0712	●	●	●		●
1	03.890 SEDIMENTER; FUEL (B)	8-97081-814-3	01	1	0610-0712					●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	0801-1404	●	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	0801-1404			●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) (B)	8-97081-814-3	01	1	0801-1404		●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	1405-1405	●	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	1405-1405			●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE) (B)	8-97081-814-3	01	1	1405-1405		●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	1406-	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	1406-			●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) (B)	8-97081-814-3	01	1	1406-		●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF),FUEL SEDIMENTER WIT H HEATER<6HU> (B)	8-97081-814-3	01	1	1406-		●
1	03.890 SEDIMENTER; FUEL 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (G)	8-97240-126-2	01	1	0211-0501	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (G)	8-97240-126-3	01	1	0502-		●	●
1	03.890 SEDIMENTER; FUEL (G)	8-97240-126-3	01	1	0502-				●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	0211-0501	●	●	●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94132-674-0	01	1	0502-0609	●	●	●		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0502-0609		●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94132-674-0	01	1	0610-1404	●	●	●		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0610-1404		●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	1405-1405	●			●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94132-674-0	01	1	1405-1405			●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1405-1405			●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE)	8-94132-674-0	01	1	1405-1405		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF)	8-94132-674-0	01	1	1405-1405		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1405-1405		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1-N ENG(RJZ)	8-94132-674-0	01	1	1406-	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE)	8-94132-674-0	01	1	1406-	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1-N ENG(RJZ),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1406-			●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1406-			●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1406-		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1406-		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF)	8-94132-674-0	01	1	1406-		●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	1406-				●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV) 03.895	9-09571-406-0	01	1	0211-0501	●		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV) 03.895	9-09571-406-0	01	1	0211-0501		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895	9-09571-406-0	01	1	0502-		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0211-0501	●	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0211-0501	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1 ENG(RLF),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0211-0501	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	0211-0501					●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0211-0501				●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94132-675-0	01	1	0502-0609	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0502-0609		●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0502-0609		●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	0502-0609				●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94132-675-0	01	1	0610-0712	●	●	●		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0610-0712		●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF)	8-94132-675-0	01	1	0801-1404	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0801-1404			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0801-1404			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP)	8-94132-675-0	01	1	0801-1404		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0801-1404		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0801-1404		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	0801-1404				●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF)	8-94132-675-0	01	1	1405-1405	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1405-1405			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1405-1405			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE)	8-94132-675-0	01	1	1405-1405		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1405-1405		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1405-1405		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	1405-1405				●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ)	8-94132-675-0	01	1	1406-	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE)	8-94132-675-0	01	1	1406-	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1406-			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1406-			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1406-		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1406-		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF)	8-94132-675-0	01	1	1406-		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	1406-				●	●
15	03.890 SENSOR ASM; SEDIMENTER 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. ENGINE POWER N-SPEC(7QV)	8-94153-430-0	01	1	0211-0501	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	0211-0501	●	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97079-821-0	01	1	0211-0501	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER	8-97079-821-0	01	1	0211-0501					●
15	03.890 SENSOR ASM; SEDIMENTER 4HF1-N ENG(RJZ)	8-97079-821-0	01	1	0502-	●
15	03.890 SENSOR ASM; SEDIMENTER 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	0502-		●	●
15	03.890 SENSOR ASM; SEDIMENTER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	0502-		●	●
15	03.890 SENSOR ASM; SEDIMENTER	8-97079-821-0	01	1	0502-				●	●
37	03.890 PLUG; SENSOR 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. ENGINE POWER N-SPEC(7QV)	8-94416-376-0	01	1	0211-0501	●	●	●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	0211-0501	●	●	●	●
37	03.890 PLUG; SENSOR 4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV)	8-94453-746-0	01	1	0211-0501	●		●
37	03.890 PLUG; SENSOR	8-94453-746-0	01	1	0211-0501						●
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV)	8-94453-746-0	01	1	0211-0501		●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	0502-0504	●	●	●
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0502-0504		●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	0505-0609	●		●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0505-0609		●
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0505-0609		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-94453-746-0	01	1	0610-0712	●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	0610-0712			●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0610-0712		●
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP)	8-94453-746-0	01	1	0610-0712		●
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0610-0712		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-94453-746-0	01	1	0801-1404	●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	0801-1404			●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0801-1404		●
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP)	8-94453-746-0	01	1	0801-1404		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0801-1404		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-94453-746-0	01	1	1405-1405	●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	1405-1405			●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	1405-1405		●
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE)	8-94453-746-0	01	1	1405-1405		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	1405-1405		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE)	8-94453-746-0	01	1	1406-	●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	1406-			●
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	1406-		●
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF)	8-94453-746-0	01	1	1406-		●
37	03.890 PLUG; SENSOR 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0211-0501	●	●	●	●
37	03.890 PLUG; SENSOR 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97123-549-0	01	1	0211-0501	●	●	●
37	03.890 PLUG; SENSOR	8-97123-549-0	01	1	0211-0501					●
37	03.890 PLUG; SENSOR 4HF1-N ENG(RJZ)	8-97123-549-0	01	1	0502-	●
37	03.890 PLUG; SENSOR 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0502-		●	●
37	03.890 PLUG; SENSOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0502-		●	●
37	03.890 PLUG; SENSOR	8-97123-549-0	01	1	0502-				●	●
41	03.890 GASKET; SENSOR TO CASE 4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.417	1-09623-649-0	01	1	0612-		●	●
41	03.890 GASKET; SENSOR TO CASE 03.417	1-09623-649-0	01	1	0612-				●
41	03.890 GASKET; SENSOR TO CASE 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0211-0501	●	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0211-0501	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0211-0501	●	●	●
41	03.890 GASKET; SENSOR TO CASE 08.927	9-09563-334-0	01	1	0211-0501					●
41	03.890 GASKET; SENSOR TO CASE 4HF1-N ENG(RJZ) 08.927	9-09563-334-0	01	1	0502-0611	●
41	03.890 GASKET; SENSOR TO CASE 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0502-0611		●	●
41	03.890 GASKET; SENSOR TO CASE 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0502-0611		●	●
41	03.890 GASKET; SENSOR TO CASE 08.927	9-09563-334-0	01	1	0502-0611				●	●
41	03.890 GASKET; SENSOR TO CASE 4HF1-N ENG(RJZ) 08.927	9-09563-334-0	01	1	0612-	●	●	●
41	03.890 GASKET; SENSOR TO CASE 08.927	9-09563-334-0	01	1	0612-					●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> BEST VALUE PARTS	5-87610-094-0	01	1	0612-		●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER BEST VALUE PARTS	5-87610-094-0	01	1	0612-				●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98037-480-0	01	1	0612-		●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER	8-98037-480-0	01	1	0612-				●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	0211-0501	●	●	●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-94369-299-3	01	1	0211-0501	●	●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER	8-94369-299-3	01	1	0211-0501					●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4HF1-N ENG(RJZ)	8-94369-299-3	01	1	0502-0611	●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	0502-0611		●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	0502-0611		●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER	8-94369-299-3	01	1	0502-0611				●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4HF1-N ENG(RJZ)	8-94369-299-3	01	1	0612-	●	●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER	8-94369-299-3	01	1	0612-					●

21 20 19 21 20 20 21 19 20 20 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) (C)	8-98259-879-1	01	1	1405-	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) MINI BUS CHASSIS(V4B) (D)	8-98271-644-0	01	1	1405-1405		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) MINI BUS CHASSIS(V4B) (D)	8-98271-644-0	01	1	1406-		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (D)	8-98271-643-0	01	1	1405-1405		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (D)	8-98271-643-0	01	1	1406-		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	0211-0501	●		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	0211-0501		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	0502-1404	●		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	0502-1404		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2014(VZE) (B)	8-94366-685-0	01	1	1405-	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	1405-			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	1405-		●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97090-294-3	01	1	0211-0501	●			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A)	8-97090-294-3	01	1	0211-0501	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97090-294-4	01	1	0502-0503	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97090-294-4	01	1	0502-0503	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-98017-562-0	01	1	0504-0609	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-98017-562-0	01	1	0504-0609	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF) (A)	8-98017-562-0	01	1	0610-1404	●	●	●		●
19	03.890 BRACKET; FUEL SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-98017-562-0	01	1	0610-1404		●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) (A)	8-98017-562-0	01	1	1405-	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) (A)	8-98017-562-0	01	1	1405-	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97226-277-0	01	1	0211-0501		●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	0211-0501			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	0211-0501		●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97226-277-0	01	1	0502-0612		●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	0502-0612			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	0502-0612		●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97226-277-0	01	1	0701-0712			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	0701-0712			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4JB1 ENG(RLF) (A)	8-97226-277-0	01	1	0701-0712		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	0701-0712		●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97226-277-0	01	1	0801-1404			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	0801-1404			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) (A)	8-97226-277-0	01	1	0801-1404		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	0801-1404		●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97226-277-0	01	1	1405-1405			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	1405-1405			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) (A)	8-97226-277-0	01	1	1405-1405		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	1405-1405		●
19	03.890 BRACKET; FUEL SEDIMENTER 4JB1 ENG(RLF) (A)	8-97226-277-0	01	1	1406-			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	1406-			●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) (A)	8-97226-277-0	01	1	1406-		●
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	1406-		●
19	03.890 BRACKET; FUEL SEDIMENTER (A)	8-97103-344-1	01	1	0211-					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1405-1405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501					●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1 ENG(RJX),4JB1 ENG(RLF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ),4JB1 ENG(RLF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ),4JB1 ENG(RLF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512		●
20	03.890 BOLT; BRKT TO SEDIMENTER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512				●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0609	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0609			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ),4JB1 ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0609		●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0609				●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0610-0712	●	●	●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0610-0712		●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0801-1404	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1405-1405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1405-1405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1405-1405			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1405-1405				●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1406-			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1406-				●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF),4HF1-S ENG(RLS) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302					●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302						●
20	03.890 BOLT; BRKT TO SEDIMENTER EXC. FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501	●			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501					●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501						●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0601-0609	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0601-0609	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0601-0609	●
20	03.890 BOLT; BRKT TO SEDIMENTER M10X30 FLANGE	0-28051-030-0	02	1	0601-0609					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0610-0712	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0610-0712	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0610-0712	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0610-0712		●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0610-0712		●
20	03.890 BOLT; BRKT TO SEDIMENTER M10X30 FLANGE	0-28051-030-0	02	1	0610-0712					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0801-1404	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0801-1404	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0801-1404	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0801-1404			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0801-1404		●
20	03.890 BOLT; BRKT TO SEDIMENTER M10X30 FLANGE	0-28051-030-0	02	1	0801-1404					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1405-1405	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1405-1405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1405-1405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1405-1405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	1405-1405			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER M10X30 FLANGE	0-28051-030-0	02	1	1405-1405					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	1406-			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) M10X30 FLANGE	0-28051-030-0	02	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER M10X30 FLANGE	0-28051-030-0	02	1	1406-					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0211-0302	●			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0211-0302	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0211-0302						●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0303-0501	●			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0303-0501	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0303-0501					●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0502-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0502-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0502-0512					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0601-0609	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0601-0609	●
20	03.890 BOLT; BRKT TO SEDIMENTER 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0601-0609					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0610-1404	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0610-1404	●
20	03.890 BOLT; BRKT TO SEDIMENTER 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0610-1404					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	1405-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	1405-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 03.275 M8X25 FLANGE	0-28050-825-0	01	1	1405-					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0211-0302			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0211-0302		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0303-0501	●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0303-0501		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0502-0512	●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0502-0512		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-1003	●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-1003		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1004-1404	●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1004-1404		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2014(VZE) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1405-1405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1405-1405			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2014(VZE) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2014(VZE) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1406-			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0211-0501		●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0211-0501			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0211-0501		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0502-0512		●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0502-0512			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0502-0512		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	03	1	0601-0612		●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	0601-0612			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	0601-0612		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	03	1	0701-0712			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	0701-0712			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	03	1	0701-0712		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	0701-0712		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	03	1	0801-1404			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	0801-1404			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) M10X30 FLANGE	0-28051-030-0	03	1	0801-1404		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	0801-1404		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	03	1	1405-1405			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	1405-1405			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	03	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	03	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	03	1	1406-			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	1406-			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) M10X30 FLANGE	0-28051-030-0	03	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) M10X30 FLANGE	0-28051-030-0	03	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	02	1	0211-0302					●
21	03.890 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0302	●
21	03.890 NUT; BRKT TO FRAME EXC. FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0302					●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0302	●			●
21	03.890 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0302	●
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0302						●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0303-0501	●			●
21	03.890 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	01	1	0303-0501	●
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	01	1	0303-0501					●	●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602					●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0609	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0609	●
21	03.890 NUT; BRKT TO FRAME 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0609					●
21	03.890 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-1404	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-1404	●
21	03.890 NUT; BRKT TO FRAME 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-1404					●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) 01.062 M8 FLANGE	0-91180-108-0	01	1	1405-	●
21	03.890 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) 01.062 M8 FLANGE	0-91180-108-0	01	1	1405-	●
21	03.890 NUT; BRKT TO FRAME 01.062 M8 FLANGE	0-91180-108-0	01	1	1405-					●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501	●			●
21	03.890 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501	●
21	03.890 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501					●	●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602	●
21	03.890 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602					●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0609	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0609	●
21	03.890 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0609					●
21	03.890 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-1404	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-1404	●
21	03.890 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-1404					●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) 03.162 M10 FLANGE	0-91180-110-0	02	1	1405-	●
21	03.890 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) 03.162 M10 FLANGE	0-91180-110-0	02	1	1405-	●
21	03.890 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) 03.162 M10 FLANGE	0-91180-110-0	02	1	1405-	●
21	03.890 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	02	1	1405-					●
21	03.890 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0302			●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0302		●
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0302					●
21	03.890 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	0303-0501	●
21	03.890 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B), FRAME-KICKUP<7EW> 07.633 M8 FLANGE	0-91150-108-0	02	1	0303-0501			●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	0303-0501		●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B), FRAME-KICKUP<7EW> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602			●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-1404	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B), FRAME-KICKUP<7EW> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-1404			●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-1404		●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2014(VZE) 01.062 M8 FLANGE	0-91180-108-0	02	1	1405-	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B), FRAME-KICKUP<7EW> 01.062 M8 FLANGE	0-91180-108-0	02	1	1405-			●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 01.062 M8 FLANGE	0-91180-108-0	02	1	1405-		●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	03	1	0211-0501		●	●
21	03.890 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	03	1	0211-0501			●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	03	1	0211-0501		●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	03	1	0502-0602		●	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	03	1	0502-0602			●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	03	1	0502-0602		●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	03	1	0603-0612		●	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	03	1	0603-0612			●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	03	1	0603-0612		●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	03	1	0701-0712			●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	03	1	0701-0712			●
21	03.890 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4JB1 ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	03	1	0701-0712		●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	03	1	0701-0712		●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	03	1	0801-1404			●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	03	1	0801-1404			●
21	03.890 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	03	1	0801-1404		●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	03	1	0801-1404		●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	03	1	1405-1405			●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	03	1	1405-1405			●
21	03.890 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) 03.162 M10 FLANGE	0-91180-110-0	03	1	1405-1405		●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	03	1	1405-1405		●
21	03.890 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) 03.162 M10 FLANGE	0-91180-110-0	03	1	1405-1405		●
21	03.890 NUT; BRKT TO FRAME 4JB1 ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	03	1	1406-			●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	03	1	1406-			●
21	03.890 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 03.162 M10 FLANGE	0-91180-110-0	03	1	1406-		●
21	03.890 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 03.162 M10 FLANGE	0-91180-110-0	03	1	1406-		●
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	03	1	1406-		●
23	03.890 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302	●		●
23	03.890 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302		●
23	03.890 BOLT; BRKT TO FRAME FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302					●
23	03.890 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0311-0501	●		●
23	03.890 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0311-0501		●
23	03.890 BOLT; BRKT TO FRAME FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0311-0501					●
23	03.890 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512	●		●
23	03.890 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512		●
23	03.890 BOLT; BRKT TO FRAME FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512					●
23	03.890 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0601-1003	●		●
23	03.890 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0601-1003		●
23	03.890 BOLT; BRKT TO FRAME FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0601-1003					●
23	03.890 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	1004-1404	●		●
23	03.890 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	1004-1404		●
23	03.890 BOLT; BRKT TO FRAME FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	1004-1404					●
23	03.890 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1405-1405	●
23	03.890 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	1405-1405			●
23	03.890 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1405-1405		●
23	03.890 BOLT; BRKT TO FRAME FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	1405-1405					●
23	03.890 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1406-	●
23	03.890 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	1406-			●
23	03.890 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) M10X30 FLANGE	0-28051-030-0	02	1	1406-		●
23	03.890 BOLT; BRKT TO FRAME FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	1406-					●

1 7 9 41 14 37 15 41 14 37 57 41 1 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.890 SEDIMENTER; FUEL 4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV) (F)	8-94144-933-3	01	1	0211-0501	●		●
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV) (F)	8-94144-933-3	01	1	0211-0501		●
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (F)	8-94144-933-4	01	1	0502-		●
1	03.890 SEDIMENTER; FUEL 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97207-734-1	01	1	0211-0501	●	●	●
1	03.890 SEDIMENTER; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97207-734-1	01	1	0211-0501					●
1	03.890 SEDIMENTER; FUEL 4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97207-734-1	01	1	0502-	●	●	●
1	03.890 SEDIMENTER; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D)	8-97207-734-1	01	1	0502-					●
1	03.890 SEDIMENTER; FUEL 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV) (C)	8-97207-735-1	01	1	0211-0501	●	●	●
1	03.890 SEDIMENTER; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-97207-735-1	01	1	0211-0501					●
1	03.890 SEDIMENTER; FUEL 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-97207-735-1	01	1	0502-	●	●	●
1	03.890 SEDIMENTER; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-97207-735-1	01	1	0502-					●
1	03.890 SEDIMENTER; FUEL 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. ENGINE POWER N-SPEC(7QV) (E)	8-94311-522-2	01	1	0211-0501	●	●	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-1	01	1	0211-0501	●	●	●	●
1	03.890 SEDIMENTER; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-1	01	1	0211-0501						●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-3	01	1	0502-0609	●	●	●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97081-815-3	01	1	0610-0712	●	●	●		●
1	03.890 SEDIMENTER; FUEL (A)	8-97081-815-3	01	1	0610-0712					●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-3	01	1	0801-1405	●	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-3	01	1	0801-1405			●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VIN MODEL YEAR 2014(VZE) (A)	8-97081-815-3	01	1	1406-	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-3	01	1	1406-			●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) (A)	8-97081-815-3	01	1	1406-		●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-2	01	1	0211-0501	●	●	●	●
1	03.890 SEDIMENTER; FUEL EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-2	01	1	0211-0501						●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-2	01	1	0502-0609	●	●	●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (B)	8-97081-814-3	01	1	0610-0712	●	●	●		●
1	03.890 SEDIMENTER; FUEL (B)	8-97081-814-3	01	1	0610-0712					●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	0801-1404	●	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	0801-1404			●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) (B)	8-97081-814-3	01	1	0801-1404		●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	1405-1405	●	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	1405-1405			●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE) (B)	8-97081-814-3	01	1	1405-1405		●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	1406-	●
1	03.890 SEDIMENTER; FUEL 4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-3	01	1	1406-			●
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) (B)	8-97081-814-3	01	1	1406-		●
1	03.890 SEDIMENTER; FUEL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF),FUEL SEDIMENTER WIT H HEATER<6HU> (B)	8-97081-814-3	01	1	1406-		●
1	03.890 SEDIMENTER; FUEL 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (G)	8-97240-126-2	01	1	0211-0501	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (G)	8-97240-126-3	01	1	0502-		●	●
1	03.890 SEDIMENTER; FUEL (G)	8-97240-126-3	01	1	0502-				●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	0211-0501	●	●	●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94132-674-0	01	1	0502-0609	●	●	●		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0502-0609		●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94132-674-0	01	1	0610-1404	●	●	●		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0610-1404		●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	1405-1405	●			●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94132-674-0	01	1	1405-1405			●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1405-1405			●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE)	8-94132-674-0	01	1	1405-1405		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF)	8-94132-674-0	01	1	1405-1405		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1405-1405		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1-N ENG(RJZ)	8-94132-674-0	01	1	1406-	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE)	8-94132-674-0	01	1	1406-	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1-N ENG(RJZ),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1406-			●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1406-			●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1406-		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	1406-		●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF)	8-94132-674-0	01	1	1406-		●
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	1406-				●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV) 03.895	9-09571-406-0	01	1	0211-0501	●		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV) 03.895	9-09571-406-0	01	1	0211-0501		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895	9-09571-406-0	01	1	0502-		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0211-0501	●	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0211-0501	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1 ENG(RLF),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0211-0501	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	0211-0501					●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0211-0501				●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94132-675-0	01	1	0502-0609	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0502-0609		●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0502-0609		●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	0502-0609				●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94132-675-0	01	1	0610-0712	●	●	●		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0610-0712		●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF)	8-94132-675-0	01	1	0801-1404	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0801-1404			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0801-1404			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP)	8-94132-675-0	01	1	0801-1404		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0801-1404		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0801-1404		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	0801-1404				●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF)	8-94132-675-0	01	1	1405-1405	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1405-1405			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1405-1405			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE)	8-94132-675-0	01	1	1405-1405		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1405-1405		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1405-1405		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	1405-1405				●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ)	8-94132-675-0	01	1	1406-	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE)	8-94132-675-0	01	1	1406-	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1406-			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1406-			●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1406-		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	1406-		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF)	8-94132-675-0	01	1	1406-		●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	1406-				●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. ENGINE POWER N-SPEC(7QV)	8-94416-377-0	01	1	0211-0501	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0211-0501	●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0211-0501	●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-94447-156-0	01	1	0211-0501	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV)	8-94447-156-0	01	1	0211-0501	●		●
14	03.890 GASKET; SENSOR TO CENTER BOLT	8-94447-156-0	01	1	0211-0501					●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV)	8-94447-156-0	01	1	0211-0501		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94447-156-0	01	1	0502-0609	●	●	●		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0502-0609		●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94447-156-0	01	1	0610-1404	●	●	●		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0610-1404		●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT	8-94447-156-0	01	1	1405-1405	●			●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-N ENG(RJZ),4JB1 ENG(RLF)	8-94447-156-0	01	1	1405-1405			●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	1405-1405			●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE)	8-94447-156-0	01	1	1405-1405		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ), 4JB1ENG(RLF)	8-94447-156-0	01	1	1405-1405		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	1405-1405		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-N ENG(RJZ)	8-94447-156-0	01	1	1406-	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE)	8-94447-156-0	01	1	1406-	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-N ENG(RJZ),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	1406-			●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	1406-			●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	1406-		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	1406-		●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF)	8-94447-156-0	01	1	1406-		●
14	03.890 GASKET; SENSOR TO CENTER BOLT	8-94447-156-0	01	1	1406-				●	●
15	03.890 SENSOR ASM; SEDIMENTER 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. ENGINE POWER N-SPEC(7QV)	8-94153-430-0	01	1	0211-0501	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	0211-0501	●	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97079-821-0	01	1	0211-0501	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER	8-97079-821-0	01	1	0211-0501					●
15	03.890 SENSOR ASM; SEDIMENTER 4HF1-N ENG(RJZ)	8-97079-821-0	01	1	0502-	●
15	03.890 SENSOR ASM; SEDIMENTER 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	0502-		●	●
15	03.890 SENSOR ASM; SEDIMENTER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	0502-		●	●
15	03.890 SENSOR ASM; SEDIMENTER	8-97079-821-0	01	1	0502-				●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1405-1405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501					●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1 ENG(RJX),4JB1 ENG(RLF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ),4JB1 ENG(RLF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ),4JB1 ENG(RLF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512		●
20	03.890 BOLT; BRKT TO SEDIMENTER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512				●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0609	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0609			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH), 4HF1-NENG(RJZ),4JB1 ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0609		●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0609				●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0610-0712	●	●	●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0610-0712		●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HG1-T ENG(RDP), 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0801-1404	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1405-1405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1405-1405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1405-1405			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1405-1405				●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ), 4JB1ENG(RLF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1406-			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1406-				●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF),4HF1-S ENG(RLS) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302					●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302						●
20	03.890 BOLT; BRKT TO SEDIMENTER EXC. FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501	●			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501					●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501						●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0601-0609	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0601-0609	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0601-0609	●
20	03.890 BOLT; BRKT TO SEDIMENTER M10X30 FLANGE	0-28051-030-0	02	1	0601-0609					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0610-0712	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0610-0712	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0610-0712	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0610-0712		●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0610-0712		●
20	03.890 BOLT; BRKT TO SEDIMENTER M10X30 FLANGE	0-28051-030-0	02	1	0610-0712					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0801-1404	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0801-1404	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0801-1404	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	0801-1404			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0801-1404		●
20	03.890 BOLT; BRKT TO SEDIMENTER M10X30 FLANGE	0-28051-030-0	02	1	0801-1404					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1405-1405	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1405-1405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1405-1405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1405-1405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	1405-1405			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER M10X30 FLANGE	0-28051-030-0	02	1	1405-1405					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	02	1	1406-			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) M10X30 FLANGE	0-28051-030-0	02	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER M10X30 FLANGE	0-28051-030-0	02	1	1406-					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0211-0302	●			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0211-0302	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0211-0302						●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0303-0501	●			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0303-0501	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0303-0501					●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0502-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0502-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0502-0512					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0601-0609	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0601-0609	●
20	03.890 BOLT; BRKT TO SEDIMENTER 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0601-0609					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0610-1404	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0610-1404	●
20	03.890 BOLT; BRKT TO SEDIMENTER 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0610-1404					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) EXC. VIN MODEL YEAR 2014(VZE) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	1405-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	1405-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 03.275 M8X25 FLANGE	0-28050-825-0	01	1	1405-					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0211-0302			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0211-0302		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0303-0501	●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0303-0501		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0502-0512	●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0502-0512		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-1003	●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-1003		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1004-1404	●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1004-1404		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2014(VZE) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1405-1405	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1405-1405			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2014(VZE) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2014(VZE) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1406-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1406-			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0211-0501		●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0211-0501			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0211-0501		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0502-0512		●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0502-0512			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0502-0512		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	03	1	0601-0612		●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	0601-0612			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	0601-0612		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	03	1	0701-0712			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	0701-0712			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	03	1	0701-0712		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	0701-0712		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	03	1	0801-1404			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	0801-1404			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) M10X30 FLANGE	0-28051-030-0	03	1	0801-1404		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	0801-1404		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	03	1	1405-1405			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	1405-1405			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	03	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE) M10X30 FLANGE	0-28051-030-0	03	1	1405-1405		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JB1 ENG(RLF) M10X30 FLANGE	0-28051-030-0	03	1	1406-			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	1406-			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) M10X30 FLANGE	0-28051-030-0	03	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) M10X30 FLANGE	0-28051-030-0	03	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH),4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	1406-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	02	1	0211-0302					●
37	03.890 PLUG; SENSOR 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. ENGINE POWER N-SPEC(7QV)	8-94416-376-0	01	1	0211-0501	●	●	●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	0211-0501	●	●	●	●
37	03.890 PLUG; SENSOR 4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV)	8-94453-746-0	01	1	0211-0501	●		●
37	03.890 PLUG; SENSOR	8-94453-746-0	01	1	0211-0501						●
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,ENGINE POWER N-SPEC(7QV)	8-94453-746-0	01	1	0211-0501		●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	0502-0504	●	●	●
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0502-0504		●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	0505-0609	●		●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0505-0609		●
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0505-0609		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-94453-746-0	01	1	0610-0712	●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	0610-0712			●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0610-0712		●
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP)	8-94453-746-0	01	1	0610-0712		●
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0610-0712		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-94453-746-0	01	1	0801-1404	●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	0801-1404			●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0801-1404		●
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP)	8-94453-746-0	01	1	0801-1404		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0801-1404		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-94453-746-0	01	1	1405-1405	●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	1405-1405			●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	1405-1405		●
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE)	8-94453-746-0	01	1	1405-1405		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	1405-1405		●
37	03.890 PLUG; SENSOR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE)	8-94453-746-0	01	1	1406-	●
37	03.890 PLUG; SENSOR 4JB1 ENG(RLF)	8-94453-746-0	01	1	1406-			●
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	1406-		●
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT), 4JB1ENG(RLF) EXC. VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF)	8-94453-746-0	01	1	1406-		●
37	03.890 PLUG; SENSOR 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0211-0501	●	●	●	●
37	03.890 PLUG; SENSOR 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97123-549-0	01	1	0211-0501	●	●	●
37	03.890 PLUG; SENSOR	8-97123-549-0	01	1	0211-0501					●
37	03.890 PLUG; SENSOR 4HF1-N ENG(RJZ)	8-97123-549-0	01	1	0502-	●
37	03.890 PLUG; SENSOR 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0502-		●	●
37	03.890 PLUG; SENSOR 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0502-		●	●
37	03.890 PLUG; SENSOR	8-97123-549-0	01	1	0502-				●	●
41	03.890 GASKET; SENSOR TO CASE 4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.417	1-09623-649-0	01	1	0612-		●	●
41	03.890 GASKET; SENSOR TO CASE 03.417	1-09623-649-0	01	1	0612-				●
41	03.890 GASKET; SENSOR TO CASE 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0211-0501	●	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0211-0501	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0211-0501	●	●	●
41	03.890 GASKET; SENSOR TO CASE 08.927	9-09563-334-0	01	1	0211-0501					●
41	03.890 GASKET; SENSOR TO CASE 4HF1-N ENG(RJZ) 08.927	9-09563-334-0	01	1	0502-0611	●
41	03.890 GASKET; SENSOR TO CASE 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0502-0611		●	●
41	03.890 GASKET; SENSOR TO CASE 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0502-0611		●	●
41	03.890 GASKET; SENSOR TO CASE 08.927	9-09563-334-0	01	1	0502-0611				●	●
41	03.890 GASKET; SENSOR TO CASE 4HF1-N ENG(RJZ) 08.927	9-09563-334-0	01	1	0612-	●	●	●
41	03.890 GASKET; SENSOR TO CASE 08.927	9-09563-334-0	01	1	0612-					●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> BEST VALUE PARTS	5-87610-094-0	01	1	0612-		●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER BEST VALUE PARTS	5-87610-094-0	01	1	0612-				●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98037-480-0	01	1	0612-		●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER	8-98037-480-0	01	1	0612-				●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	0211-0501	●	●	●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-94369-299-3	01	1	0211-0501	●	●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER	8-94369-299-3	01	1	0211-0501					●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4HF1-N ENG(RJZ)	8-94369-299-3	01	1	0502-0611	●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	0502-0611		●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4JH1-TC ENG(RDM),4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	0502-0611		●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER	8-94369-299-3	01	1	0502-0611				●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4HF1-N ENG(RJZ)	8-94369-299-3	01	1	0612-	●	●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER	8-94369-299-3	01	1	0612-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
