Isuzu WW
▶
TRUCKS
▶
NKR
▶
50944 - NKR(RHD)EXC.EURO4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

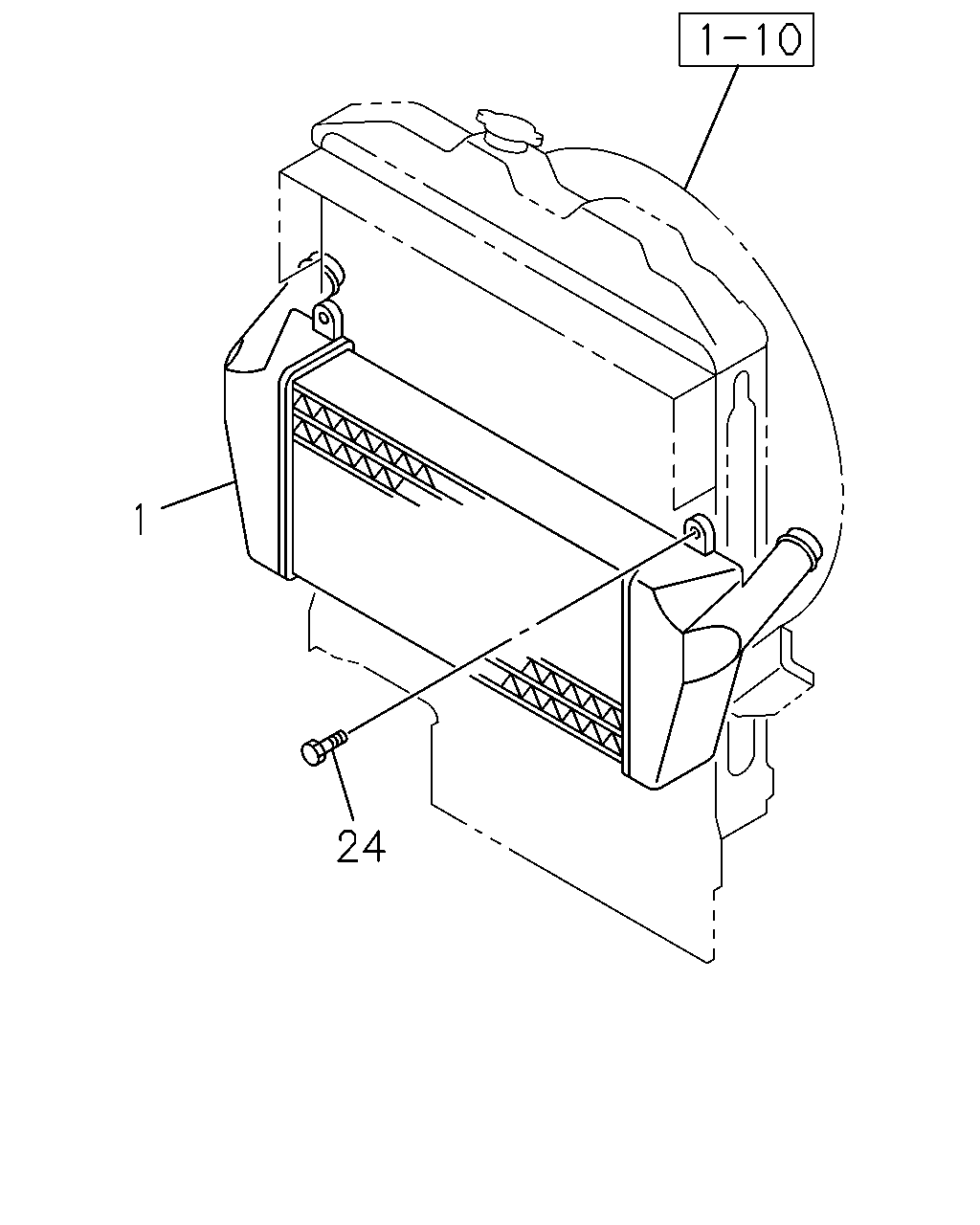

1-35 - CHARGE AIR COOLER
▶
1-35 — CHARGE AIR COOLER
(#47643) — 13 parça
Tümü
A - NKB5SC
B - NKC5SF
C - NKC5SC
D - NKN5SC
1
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
03.374 COOLER; CHARGE AIR
4JB1-TC ENG(RDT)
8-97210-644-0
01
1
0610-0712
●
1
03.374 COOLER; CHARGE AIR
4JB1-TC ENG(RDT)
8-97210-644-0
01
1
0801-
●
●
1
03.374 COOLER; CHARGE AIR
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>
8-97210-644-0
01
1
0211-0501
●
●
●
●
1
03.374 COOLER; CHARGE AIR
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>
8-97240-039-2
01
1
0211-0501
●
●
●
●
1
03.374 COOLER; CHARGE AIR
4JH1-TC ENG(RDM)
8-97240-039-2
01
1
0502-
●
●
1
03.374 COOLER; CHARGE AIR
8-97240-039-2
01
1
0502-
●
24
03.374 BOLT; COOLER TO RAD
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.531 M8X25 FLANGE
0-28080-825-0
04
1
0211-0501
●
●
●
●
24
03.374 BOLT; COOLER TO RAD
4JH1-TC ENG(RDM) 01.531 M8X25 FLANGE
0-28080-825-0
04
1
0502-0609
●
●
24
03.374 BOLT; COOLER TO RAD
01.531 M8X25 FLANGE
0-28080-825-0
04
1
0502-0609
●
24
03.374 BOLT; COOLER TO RAD
4JB1-TC ENG(RDT) 01.531 M8X25 FLANGE
0-28080-825-0
04
1
0610-0712
●
24
03.374 BOLT; COOLER TO RAD
4JH1-TC ENG(RDM) 01.531 M8X25 FLANGE
0-28080-825-0
04
1
0610-0712
●
●
24
03.374 BOLT; COOLER TO RAD
01.531 M8X25 FLANGE
0-28080-825-0
04
1
0610-0712
●
24
03.374 BOLT; COOLER TO RAD
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) 01.531 M8X25 FLANGE
0-28080-825-0
04
1
0801-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
