5 |
03.407 CLIP; AIR DUCT
4HG1-T ENG(RDP)
G.V.W. 4.0-4.5TON(RPR)
MINI BUS CHASSIS(V4B)
(D)
ID=127
|
1-14239-263-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
5 |
03.407 CLIP; AIR DUCT
4HF1-S ENG(RLS)
(C)
D=101.6
|
9-09915-502-1 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
5 |
03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1-S ENG(RLS)
(C)
D=101.6
|
9-09915-502-1 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
5 |
03.407 CLIP; AIR DUCT
4HF1-N ENG(RJZ)
(C)
D=101.6
|
9-09915-502-1 |
01 |
1 |
0502-0609 |
|
● |
● |
|
|
|
| |
5 |
03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
(C)
D=101.6
|
9-09915-502-1 |
01 |
1 |
0502-0609 |
● |
|
|
|
|
|
| |
5 |
03.407 CLIP; AIR DUCT
4HF1-N ENG(RJZ)
(C)
D=101.6
|
9-09915-502-1 |
01 |
1 |
0610-1404 |
|
● |
● |
|
|
|
| |
5 |
03.407 CLIP; AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ)
(C)
D=101.6
|
9-09915-502-1 |
01 |
1 |
0610-1404 |
● |
|
|
|
|
|
| |
5 |
03.407 CLIP; AIR DUCT
4HF1-N ENG(RJZ)
(C)
D=101.6
|
9-09915-502-1 |
01 |
1 |
1405- |
|
● |
● |
|
|
|
| |
5 |
03.407 CLIP; AIR DUCT
4HG1-T ENG(RDP)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
(C)
D=101.6
|
9-09915-502-1 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
5 |
03.407 CLIP; AIR DUCT
4HG1-T ENG(RDP)
EXC. MINI BUS CHASSIS(V4B)
(C)
D=101.6
|
9-09915-502-1 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
5 |
03.407 CLIP; AIR DUCT
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
(C)
D=101.6
|
9-09915-502-1 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
5 |
03.407 CLIP; AIR DUCT
4JB1 ENG(RLF)
(A)
ID=87
|
8-97087-432-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
5 |
03.407 CLIP; AIR DUCT
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
(A)
ID=87
|
8-97087-432-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
5 |
03.407 CLIP; AIR DUCT
4JB1 ENG(RLF)
(A)
ID=87
|
8-97087-432-0 |
01 |
1 |
0502-0609 |
● |
● |
● |
|
|
|
| |
5 |
03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT),4JB1 ENG(RLF)
(A)
ID=87
|
8-97087-432-0 |
01 |
1 |
0610-0712 |
|
● |
|
|
|
|
| |
5 |
03.407 CLIP; AIR DUCT
4JB1 ENG(RLF)
(A)
ID=87
|
8-97087-432-0 |
01 |
1 |
0610-0712 |
● |
|
● |
|
|
|
| |
5 |
03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT),4JB1 ENG(RLF)
(A)
ID=87
|
8-97087-432-0 |
01 |
1 |
0801- |
● |
● |
● |
|
|
|
| |
5 |
03.407 CLIP; AIR DUCT
4JH1 ENG(RJX)
(D)
ID=112
|
9-09915-074-1 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
5 |
03.407 CLIP; AIR DUCT
4JH1-TC ENG(RDM)
(D)
ID=112
|
9-09915-074-1 |
01 |
1 |
0502- |
● |
|
● |
|
|
|
| |
5 |
03.407 CLIP; AIR DUCT
(D)
ID=112
|
9-09915-074-1 |
01 |
1 |
0502- |
|
|
|
● |
|
|
| |
5 |
03.407 CLIP; AIR DUCT
(B)
ID=67
|
9-09915-069-1 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
5 |
03.407 CLIP; AIR DUCT
4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
(B)
ID=67
|
9-09915-069-1 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
5 |
03.407 CLIP; AIR DUCT
03.417
(A)
ID=82
|
9-09915-511-1 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
5 |
03.407 CLIP; AIR DUCT
4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
03.417
(A)
ID=82
|
9-09915-511-1 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
5 |
03.407 CLIP; AIR DUCT
03.417
(A)
ID=82
|
9-09915-511-1 |
01 |
1 |
0502- |
|
|
|
|
|
● |
| |
5 |
03.407 CLIP; AIR DUCT
(B)
ID=92
|
9-09915-072-1 |
01 |
1 |
0211- |
|
|
|
|
|
● |
| |
9 |
03.417 BRACKET; INT PIPE
4JB1 ENG(RLF)
EXC. IDENTIFICATION LABEL FOR KD<6UT>
(J)
|
8-98166-945-0 |
01 |
1 |
1107- |
● |
● |
● |
|
|
|
| |
9 |
03.417 BRACKET; INT PIPE
4JB1 ENG(RLF)
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(E)
|
8-97226-059-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
9 |
03.417 BRACKET; INT PIPE
4JB1 ENG(RLF)
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
(E)
|
8-97226-059-0 |
01 |
1 |
0211-0501 |
● |
|
● |
● |
|
|
| |
9 |
03.417 BRACKET; INT PIPE
4JB1 ENG(RLF)
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
FRT INDEPENDENT SUSPENSION(6PP)
(D)
|
8-97226-060-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
9 |
03.417 BRACKET; INT PIPE
4JB1-TC ENG(RDT)
(E)
|
8-97226-059-0 |
01 |
1 |
0610-0712 |
|
● |
|
|
|
|
| |
9 |
03.417 BRACKET; INT PIPE
4JB1-TC ENG(RDT)
(E)
|
8-97226-059-0 |
01 |
1 |
0801- |
● |
● |
|
|
|
|
| |
9 |
03.417 BRACKET; INT PIPE
4JH1 ENG(RJX)
FRT INDEPENDENT SUSPENSION(6PP)
(I)
|
8-97240-850-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
9 |
03.417 BRACKET; INT PIPE
4JH1 ENG(RJX)
FRT INDEPENDENT SUSPENSION(6PP)
(F)
|
8-97300-772-1 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
9 |
03.417 BRACKET; INT PIPE
4JH1 ENG(RJX)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(G)
|
8-97300-771-1 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
9 |
03.417 BRACKET; INT PIPE
4JH1 ENG(RJX)
(G)
|
8-97300-771-1 |
01 |
1 |
0211-0501 |
● |
|
● |
● |
|
|
| |
9 |
03.417 BRACKET; INT PIPE
4JH1-TC ENG(RDM)
(G)
|
8-97300-771-1 |
01 |
1 |
0502- |
● |
|
● |
|
|
|
| |
9 |
03.417 BRACKET; INT PIPE
(G)
|
8-97300-771-1 |
01 |
1 |
0502- |
|
|
|
● |
|
|
| |
9 |
03.417 BRACKET; INT PIPE
4JB1 ENG(RLF)
EXC. CHARGE AIR COOLER<6PL>
(A)
|
8-94155-425-1 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
9 |
03.417 BRACKET; INT PIPE
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. CHARGE AIR COOLER<6PL>
(A)
|
8-94155-425-1 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
9 |
03.417 BRACKET; INT PIPE
4JB1 ENG(RLF)
(A)
|
8-94155-425-1 |
01 |
1 |
0502-1106 |
● |
● |
● |
|
|
|
| |
9 |
03.417 BRACKET; INT PIPE
4JB1 ENG(RLF)
IDENTIFICATION LABEL FOR KD<6UT>
(A)
|
8-94155-425-1 |
01 |
1 |
1107- |
● |
● |
● |
|
|
|
| |
9 |
03.417 BRACKET; INT PIPE
4JH1 ENG(RJX)
(H)
|
8-97312-472-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
9 |
03.417 BRACKET; INT PIPE
4JH1-TC ENG(RDM)
(H)
|
8-97312-472-0 |
01 |
1 |
0502- |
● |
|
● |
|
|
|
| |
9 |
03.417 BRACKET; INT PIPE
(H)
|
8-97312-472-0 |
01 |
1 |
0502- |
|
|
|
● |
|
|
| |
9 |
03.417 BRACKET; INT PIPE
(B)
|
8-97089-655-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
9 |
03.417 BRACKET; INT PIPE
4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
(B)
|
8-97089-655-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
9 |
03.417 BRACKET; INT PIPE
(C)
|
8-97102-618-0 |
01 |
1 |
0211- |
|
|
|
|
|
● |
| |
17 |
03.403 GASKET; AIR DUCT
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S
ENG(RLS)
|
8-97853-699-2 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
17 |
03.403 GASKET; AIR DUCT
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1
ENG(RLF),4HF1-S ENG(RLS)
|
8-97853-699-2 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
17 |
03.403 GASKET; AIR DUCT
4JH1 ENG(RJX),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-97853-699-2 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
17 |
03.403 GASKET; AIR DUCT
|
8-97853-699-2 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
22 |
03.417 HOSE; CONNECTOR,ENG TO PIPE
4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>
|
8-97107-173-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
22 |
03.417 HOSE; CONNECTOR,ENG TO PIPE
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. TURBOCHARGER<K51>
|
8-97107-173-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
22 |
03.417 HOSE; CONNECTOR,ENG TO PIPE
4JB1 ENG(RLF)
|
8-97107-173-1 |
01 |
1 |
0502- |
● |
● |
● |
|
|
|
| |
40 |
03.417 NUT; AIR INT DUCT
4HG1-T ENG(RDP)
G.V.W. 4.0-4.5TON(RPR)
MINI BUS CHASSIS(V4B)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
40 |
03.417 NUT; AIR INT DUCT
4JB1 ENG(RLF)
EXC. IDENTIFICATION LABEL FOR KD<6UT>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1107- |
● |
● |
● |
|
|
|
| |
40 |
03.417 NUT; AIR INT DUCT
4JB1 ENG(RLF)
HALOGEN HEAD LAMP RECTANGULAR<TR4>
AIR INTAKE SYSTEM FRONT<6PC>
09.005
M8 CUTTING NUT W/FLANGE
|
1-09985-340-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
40 |
03.417 NUT; AIR INT DUCT
09.005
M8 CUTTING NUT W/FLANGE
|
1-09985-340-0 |
01 |
1 |
0502- |
|
|
|
|
|
● |
| |
48 |
03.417 BOLT; AIR DUCT
4JB1 ENG(RLF)
HEAVY DUTY AIR CLEANER<K46>
01.062
M8X16 FLANGE
|
0-28080-816-0 |
03 |
1 |
0211-0512 |
● |
● |
● |
|
|
|
| |
48 |
03.417 BOLT; AIR DUCT
4JB1 ENG(RLF)
HEAVY DUTY AIR CLEANER<K46>
02.343
M8X16 FLANGE
|
0-28050-816-0 |
03 |
1 |
0601- |
● |
● |
● |
|
|
|
| |
60 |
03.417 BRACKET; AIR DUCT,UPR
4HG1-T ENG(RDP)
G.V.W. 4.0-4.5TON(RPR)
MINI BUS CHASSIS(V4B)
|
8-97329-306-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
60 |
03.417 BRACKET; AIR DUCT,UPR
4HF1-S ENG(RLS)
|
8-97856-957-0 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
60 |
03.417 BRACKET; AIR DUCT,UPR
4HG1 ENG(RJH),4HF1-S ENG(RLS)
|
8-97856-957-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
60 |
03.417 BRACKET; AIR DUCT,UPR
4HF1-N ENG(RJZ)
|
8-97856-957-1 |
01 |
1 |
0502-0609 |
|
● |
● |
|
|
|
| |
60 |
03.417 BRACKET; AIR DUCT,UPR
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
|
8-97856-957-1 |
01 |
1 |
0502-0609 |
● |
|
|
|
|
|
| |
60 |
03.417 BRACKET; AIR DUCT,UPR
4HF1-N ENG(RJZ)
|
8-97856-957-1 |
01 |
1 |
0610-1404 |
|
● |
● |
|
|
|
| |
60 |
03.417 BRACKET; AIR DUCT,UPR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ)
|
8-97856-957-1 |
01 |
1 |
0610-1404 |
● |
|
|
|
|
|
| |
60 |
03.417 BRACKET; AIR DUCT,UPR
4HF1-N ENG(RJZ)
|
8-97856-957-1 |
01 |
1 |
1405- |
|
● |
● |
|
|
|
| |
60 |
03.417 BRACKET; AIR DUCT,UPR
4HG1-T ENG(RDP)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
|
8-97856-957-1 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
60 |
03.417 BRACKET; AIR DUCT,UPR
4HG1-T ENG(RDP)
EXC. MINI BUS CHASSIS(V4B)
|
8-97856-957-1 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
60 |
03.417 BRACKET; AIR DUCT,UPR
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
|
8-97856-957-1 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
60 |
03.417 BRACKET; AIR DUCT,UPR
4JH1 ENG(RJX),4JB1 ENG(RLF)
|
8-97856-956-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
60 |
03.417 BRACKET; AIR DUCT,UPR
4JH1 ENG(RJX),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-97856-956-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
60 |
03.417 BRACKET; AIR DUCT,UPR
4JB1 ENG(RLF)
|
8-97856-956-1 |
01 |
1 |
0502-0609 |
|
● |
|
|
|
|
| |
60 |
03.417 BRACKET; AIR DUCT,UPR
4JH1-TC ENG(RDM),4JB1 ENG(RLF)
|
8-97856-956-1 |
01 |
1 |
0502-0609 |
● |
|
● |
|
|
|
| |
60 |
03.417 BRACKET; AIR DUCT,UPR
|
8-97856-956-1 |
01 |
1 |
0502-0609 |
|
|
|
● |
|
|
| |
60 |
03.417 BRACKET; AIR DUCT,UPR
4JB1-TC ENG(RDT),4JB1 ENG(RLF)
|
8-97856-956-1 |
01 |
1 |
0610-0712 |
|
● |
|
|
|
|
| |
60 |
03.417 BRACKET; AIR DUCT,UPR
4JH1-TC ENG(RDM),4JB1 ENG(RLF)
|
8-97856-956-1 |
01 |
1 |
0610-0712 |
● |
|
● |
|
|
|
| |
60 |
03.417 BRACKET; AIR DUCT,UPR
|
8-97856-956-1 |
01 |
1 |
0610-0712 |
|
|
|
● |
|
|
| |
60 |
03.417 BRACKET; AIR DUCT,UPR
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),
4JB1 ENG(RLF)
|
8-97856-956-1 |
01 |
1 |
0801- |
● |
● |
● |
● |
|
|
| |
64 |
03.417 BOLT; BRKT,AIR DUCT
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S
ENG(RLS)
03.483
M8X20.5 W/LK&PL WASHER
|
8-94279-207-0 |
03 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
64 |
03.417 BOLT; BRKT,AIR DUCT
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1
ENG(RLF),4HF1-S ENG(RLS)
03.483
M8X20.5 W/LK&PL WASHER
|
8-94279-207-0 |
03 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
64 |
03.417 BOLT; BRKT,AIR DUCT
4JH1 ENG(RJX),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
03.483
M8X20.5 W/LK&PL WASHER
|
8-94279-207-0 |
03 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
64 |
03.417 BOLT; BRKT,AIR DUCT
03.483
M8X20.5 W/LK&PL WASHER
|
8-94279-207-0 |
03 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
76 |
03.403 VALVE; PRE ACL
4JB1 ENG(RLF)
HEAVY DUTY AIR CLEANER<K46>
03.415
|
8-94447-157-0 |
01 |
1 |
0211- |
● |
● |
● |
|
|
|
| |
147 |
03.417 CLIP; HOSE TO ENG
4HF1-S ENG(RLS)
03.008
ID=95
|
9-09915-733-1 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
147 |
03.417 CLIP; HOSE TO ENG
4HG1 ENG(RJH),4HF1-S ENG(RLS)
03.008
ID=95
|
9-09915-733-1 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
147 |

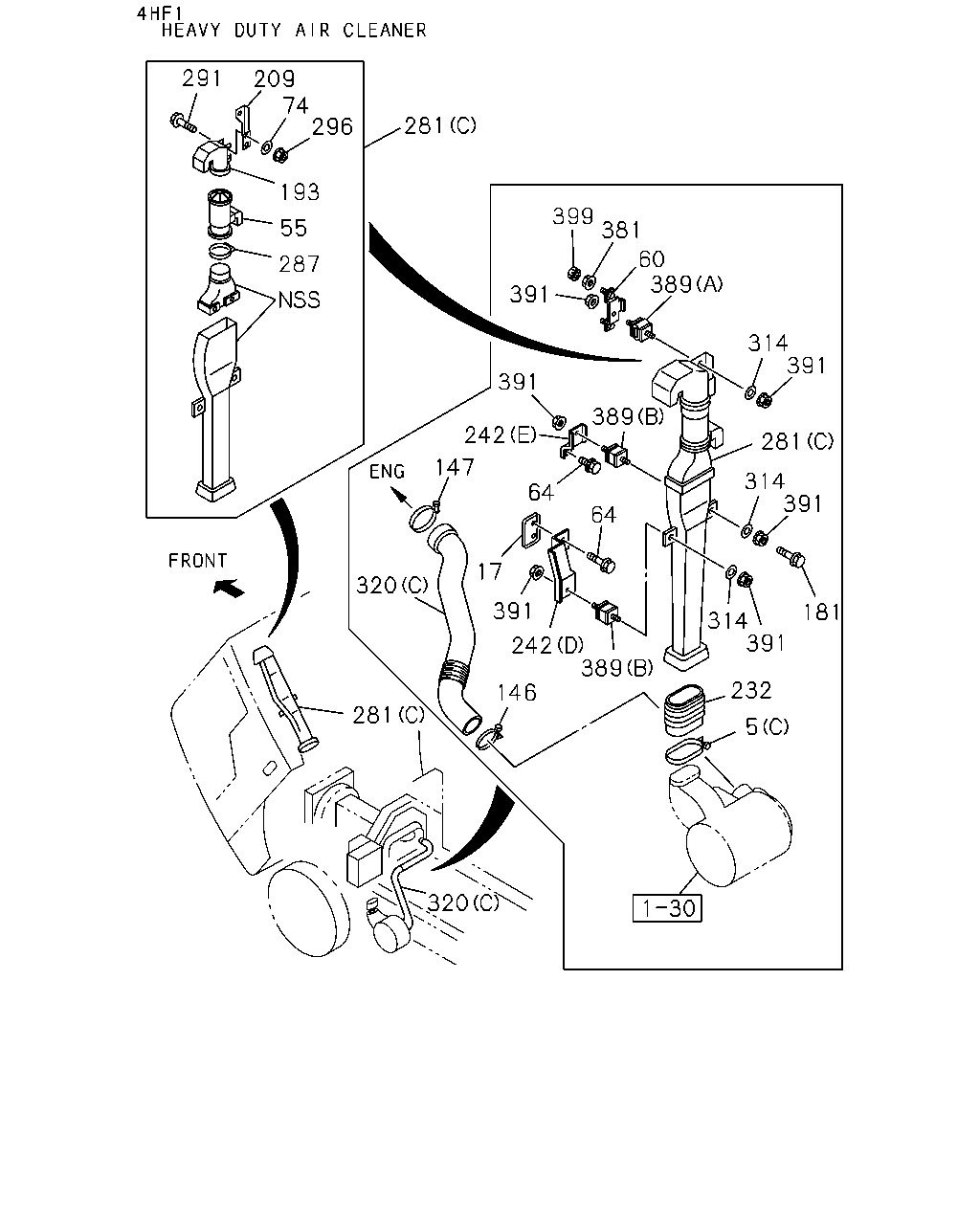

03.417 CLIP; HOSE TO ENG
4HF1-N ENG(RJZ)
03.008
ID=95
|
9-09915-733-1 |
01 |
1 |
0502- |
|
● |
● |
|
|
|
| |
147 |
03.417 CLIP; HOSE TO ENG
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
03.008
ID=95
|
9-09915-733-1 |
01 |
1 |
0502- |
● |
|
|
|
|
|
| |
147 |
03.417 CLIP; HOSE TO ENG
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. TURBOCHARGER<K51>
03.407
ID=79
|
9-09915-734-1 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
147 |
03.417 CLIP; HOSE TO ENG
4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
03.407
ID=79
|
9-09915-734-1 |
01 |
1 |
0211-0501 |
|
|
|
● |
● |
|
| |
147 |
03.417 CLIP; HOSE TO ENG
4JB1 ENG(RLF)
03.407
ID=79
|
9-09915-734-1 |
01 |
1 |
0502- |
● |
● |
● |
|
|
|
| |
147 |
03.417 CLIP; HOSE TO ENG
03.407
ID=92
|
9-09915-072-1 |
01 |
1 |
0211- |
|
|
|
|
|
● |
| |
192 |
03.407 CLIP; HOSE
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT)
EXC. IDENTIFICATION LABEL FOR KD<6UT>
(B)
ID=58-79
|
1-09707-136-0 |
02 |
1 |
1002- |
● |
● |
● |
● |
|
|
| |
192 |

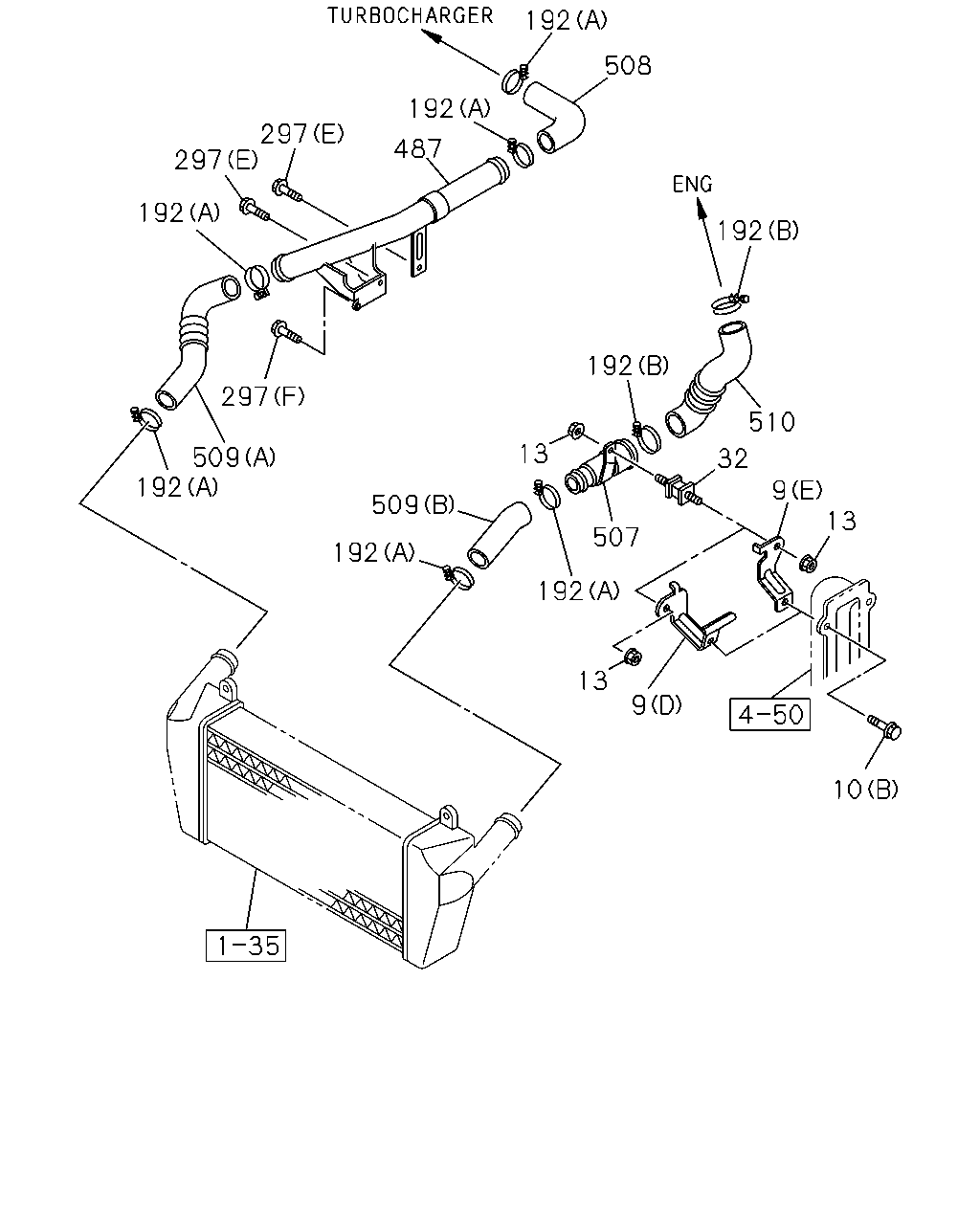

03.407 CLIP; HOSE
4JB1-TC ENG(RDT)
EXC. IDENTIFICATION LABEL FOR KD<6UT>
01.166
(A)
ID=44-60
|
8-94175-940-0 |
07 |
1 |
1002- |
● |
● |
|
|
|
|
| |
192 |
03.407 CLIP; HOSE
4JH1-TC ENG(RDM)
EXC. IDENTIFICATION LABEL FOR KD<6UT>
(A)
ID=60-65
|
8-98096-418-0 |
06 |
1 |
1002- |
● |
|
● |
● |
|
|
| |
192 |
03.407 CLIP; HOSE
4JB1-TC ENG(RDT)
(A)
ID=44-57
|
1-09707-207-0 |
07 |
1 |
0610-0712 |
|
● |
|
|
|
|
| |
192 |
03.407 CLIP; HOSE
4JB1-TC ENG(RDT)
(A)
ID=44-57
|
1-09707-207-0 |
07 |
1 |
0801-0810 |
● |
● |
|
|
|
|
| |
192 |
03.407 CLIP; HOSE
4JB1-TC ENG(RDT)
03.417
(A)
ID=40-50
|
8-98133-347-0 |
07 |
1 |
0811-1001 |
● |
● |
|
|
|
|
| |
192 |
03.407 CLIP; HOSE
4JB1-TC ENG(RDT)
IDENTIFICATION LABEL FOR KD<6UT>
03.417
(A)
ID=40-50
|
8-98133-347-0 |
07 |
1 |
1002- |
● |
● |
|
|
|
|
| |
192 |
03.407 CLIP; HOSE
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXC. CHARGE AIR COOLER<6PL>
01.166
(A)
ID=44-60
|
8-94175-940-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
192 |
03.407 CLIP; HOSE
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER<K51>
EXC. CHARGE AIR COOLER<6PL>
01.166
(A)
ID=44-60
|
8-94175-940-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
192 |
03.407 CLIP; HOSE
4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>
(C)
ID=79
|
9-09915-734-1 |
02 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
192 |
03.407 CLIP; HOSE
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. TURBOCHARGER<K51>
(C)
ID=79
|
9-09915-734-1 |
02 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
192 |
03.407 CLIP; HOSE
4JB1 ENG(RLF)
(C)
ID=79
|
9-09915-734-1 |
02 |
1 |
0502- |
● |
● |
● |
|
|
|
| |
192 |
03.407 CLIP; HOSE
4JB1 ENG(RLF)
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
01.166
(A)
ID=44-60
|
8-94175-940-0 |
07 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
192 |
03.407 CLIP; HOSE
4JH1 ENG(RJX)
(A)
ID=50-69
|
1-09707-135-0 |
06 |
1 |
0211-0410 |
● |
● |
● |
● |
|
|
| |
192 |
03.407 CLIP; HOSE
4JH1 ENG(RJX)
(A)
ID=50-65
|
1-09707-204-0 |
06 |
1 |
0411-0501 |
● |
● |
● |
● |
|
|
| |
192 |
03.407 CLIP; HOSE
4JH1-TC ENG(RDM)
(A)
ID=50-65
|
1-09707-204-0 |
06 |
1 |
0502-0810 |
● |
|
● |
|
|
|
| |
192 |
03.407 CLIP; HOSE
(A)
ID=50-65
|
1-09707-204-0 |
06 |
1 |
0502-0810 |
|
|
|
● |
|
|
| |
192 |
03.407 CLIP; HOSE
4JH1-TC ENG(RDM)
(A)
ID=45-65
|
8-98133-348-0 |
06 |
1 |
0811-1001 |
● |
|
● |
|
|
|
| |
192 |
03.407 CLIP; HOSE
(A)
ID=45-65
|
8-98133-348-0 |
06 |
1 |
0811-1001 |
|
|
|
● |
|
|
| |
192 |
03.407 CLIP; HOSE
4JH1-TC ENG(RDM)
IDENTIFICATION LABEL FOR KD<6UT>
(A)
ID=45-65
|
8-98133-348-0 |
06 |
1 |
1002- |
● |
|
● |
● |
|
|
| |
192 |
03.407 CLIP; HOSE
4JH1 ENG(RJX)
03.417
(B)
ID=58-79
|
8-94126-771-0 |
02 |
1 |
0211-0403 |
● |
● |
● |
● |
|
|
| |
192 |
03.407 CLIP; HOSE
4JB1 ENG(RLF)
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
03.417
(B)
ID=58-79
|
8-94126-771-0 |
02 |
1 |
0211-0403 |
● |
● |
● |
● |
|
|
| |
192 |
03.407 CLIP; HOSE
4JH1 ENG(RJX)
01.159
(B)
ID=58-76
|
1-09707-203-0 |
02 |
1 |
0404-0501 |
● |
● |
● |
● |
|
|
| |
192 |
03.407 CLIP; HOSE
4JB1 ENG(RLF)
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
01.159
(B)
ID=58-76
|
1-09707-203-0 |
02 |
1 |
0404-0501 |
● |
● |
● |
● |
|
|
| |
192 |
03.407 CLIP; HOSE
4JH1-TC ENG(RDM)
01.159
(B)
ID=58-76
|
1-09707-203-0 |
02 |
1 |
0502-0609 |
● |
|
● |
|
|
|
| |
192 |
03.407 CLIP; HOSE
01.159
(B)
ID=58-76
|
1-09707-203-0 |
02 |
1 |
0502-0609 |
|
|
|
● |
|
|
| |
192 |
03.407 CLIP; HOSE
4JB1-TC ENG(RDT)
01.159
(B)
ID=58-76
|
1-09707-203-0 |
02 |
1 |
0610-0712 |
|
● |
|
|
|
|
| |
192 |
03.407 CLIP; HOSE
4JH1-TC ENG(RDM)
01.159
(B)
ID=58-76
|
1-09707-203-0 |
02 |
1 |
0610-0712 |
● |
|
● |
|
|
|
| |
192 |
03.407 CLIP; HOSE
01.159
(B)
ID=58-76
|
1-09707-203-0 |
02 |
1 |
0610-0712 |
|
|
|
● |
|
|
| |
192 |
03.407 CLIP; HOSE
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT)
01.159
(B)
ID=58-76
|
1-09707-203-0 |
02 |
1 |
0801-0811 |
● |
● |
● |
● |
|
|
| |
192 |
03.407 CLIP; HOSE
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT)
(B)
ID=55-75
|
8-98133-349-0 |
02 |
1 |
0812-1001 |
● |
● |
● |
● |
|
|
| |
192 |
03.407 CLIP; HOSE
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT)
IDENTIFICATION LABEL FOR KD<6UT>
(B)
ID=55-75
|
8-98133-349-0 |
02 |
1 |
1002- |
● |
● |
● |
● |
|
|
| |
232 |

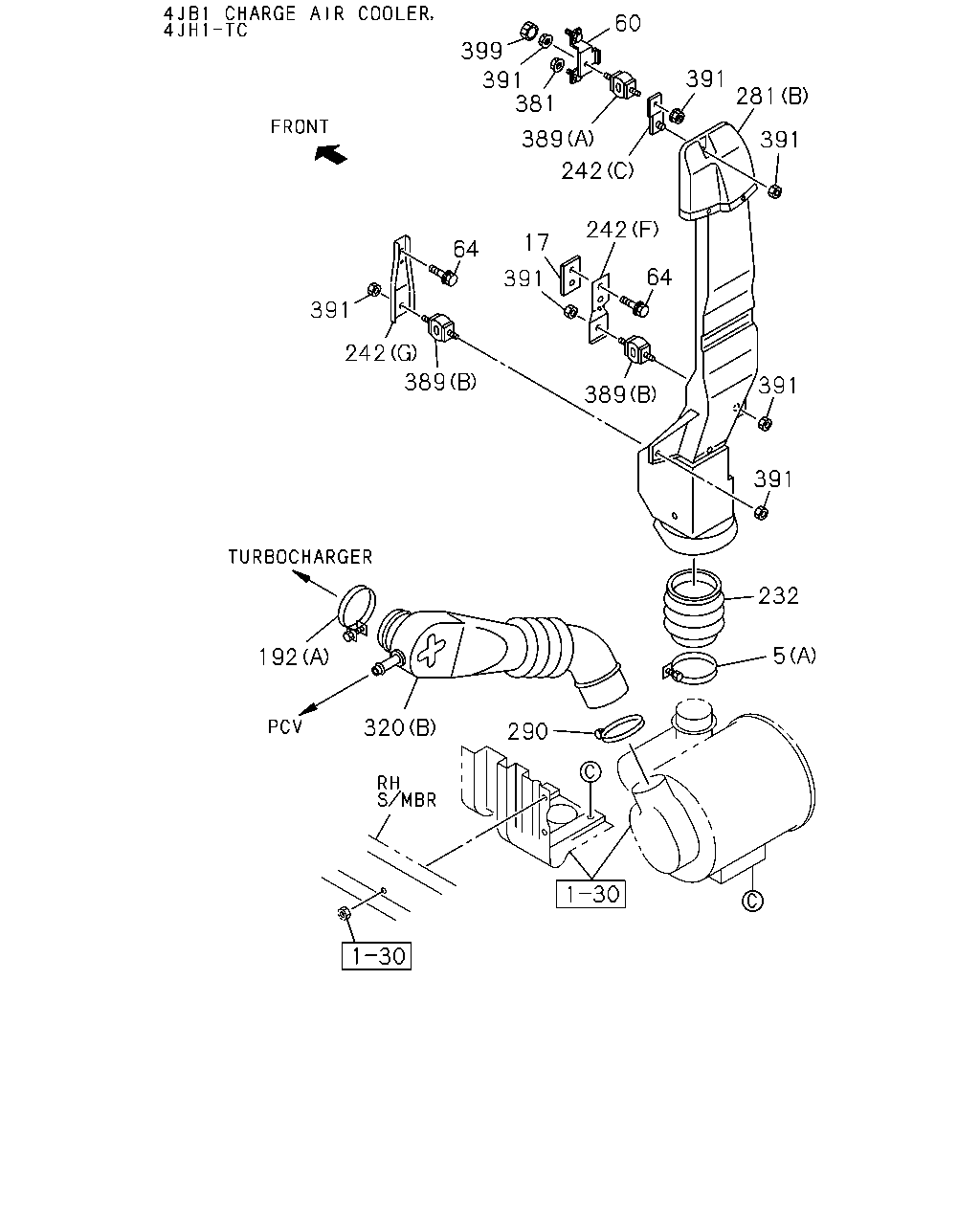

03.417 HOSE; CONN
4JB1-TC ENG(RDT)
|
8-97224-994-0 |
01 |
1 |
0610-0712 |
|
● |
|
|
|
|
| |
232 |
03.417 HOSE; CONN
4JB1-TC ENG(RDT)
|
8-97224-994-0 |
01 |
1 |
0801- |
● |
● |
|
|
|
|
| |
232 |
03.417 HOSE; CONN
4HF1-S ENG(RLS)
|
8-97109-423-0 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
232 |
03.417 HOSE; CONN
4HG1 ENG(RJH),4HF1-S ENG(RLS)
|
8-97109-423-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
232 |
03.417 HOSE; CONN
4HF1-N ENG(RJZ)
|
8-97109-423-0 |
01 |
1 |
0502-0609 |
|
● |
● |
|
|
|
| |
232 |
03.417 HOSE; CONN
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
|
8-97109-423-0 |
01 |
1 |
0502-0609 |
● |
|
|
|
|
|
| |
232 |
03.417 HOSE; CONN
4HF1-N ENG(RJZ)
|
8-97109-423-0 |
01 |
1 |
0610-0802 |
|
● |
● |
|
|
|
| |
232 |
03.417 HOSE; CONN
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ)
|
8-97109-423-0 |
01 |
1 |
0610-0802 |
● |
|
|
|
|
|
| |
232 |
03.417 HOSE; CONN
4HF1-N ENG(RJZ)
03.407
|
8-98115-594-0 |
01 |
1 |
0803-1404 |
|
● |
● |
|
|
|
| |
232 |
03.417 HOSE; CONN
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ)
03.407
|
8-98115-594-0 |
01 |
1 |
0803-1404 |
● |
|
|
|
|
|
| |
232 |
03.417 HOSE; CONN
4HF1-N ENG(RJZ)
03.407
|
8-98115-594-0 |
01 |
1 |
1405- |
|
● |
● |
|
|
|
| |
232 |
03.417 HOSE; CONN
4HG1-T ENG(RDP)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
03.407
|
8-98115-594-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
232 |
03.417 HOSE; CONN
4HG1-T ENG(RDP)
EXC. MINI BUS CHASSIS(V4B)
03.407
|
8-98115-594-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
232 |
03.417 HOSE; CONN
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
03.407
|
8-98115-594-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
232 |
03.417 HOSE; CONN
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
|
8-97224-994-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
232 |
03.417 HOSE; CONN
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
CHARGE AIR COOLER<6PL>
|
8-97224-994-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
232 |
03.417 HOSE; CONN
4JB1 ENG(RLF)
EXC. CHARGE AIR COOLER<6PL>
|
5-14231-115-1 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
232 |
03.417 HOSE; CONN
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. CHARGE AIR COOLER<6PL>
|
5-14231-115-1 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
232 |
03.417 HOSE; CONN
4JB1 ENG(RLF)
|
5-14231-115-1 |
01 |
1 |
0502- |
● |
● |
● |
|
|
|
| |
232 |
03.417 HOSE; CONN
4JH1 ENG(RJX)
|
8-94456-844-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
232 |
03.417 HOSE; CONN
4JH1-TC ENG(RDM)
|
8-94456-844-1 |
01 |
1 |
0502- |
● |
|
● |
|
|
|
| |
232 |
03.417 HOSE; CONN
|
8-94456-844-1 |
01 |
1 |
0502- |
|
|
|
● |
|
|
| |
232 |
03.417 HOSE; CONN
|
8-97096-429-1 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
232 |
03.417 HOSE; CONN
4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97096-429-1 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
232 |
03.417 HOSE; CONN
|
8-97102-361-1 |
01 |
1 |
0211- |
|
|
|
|
|
● |
| |
242 |

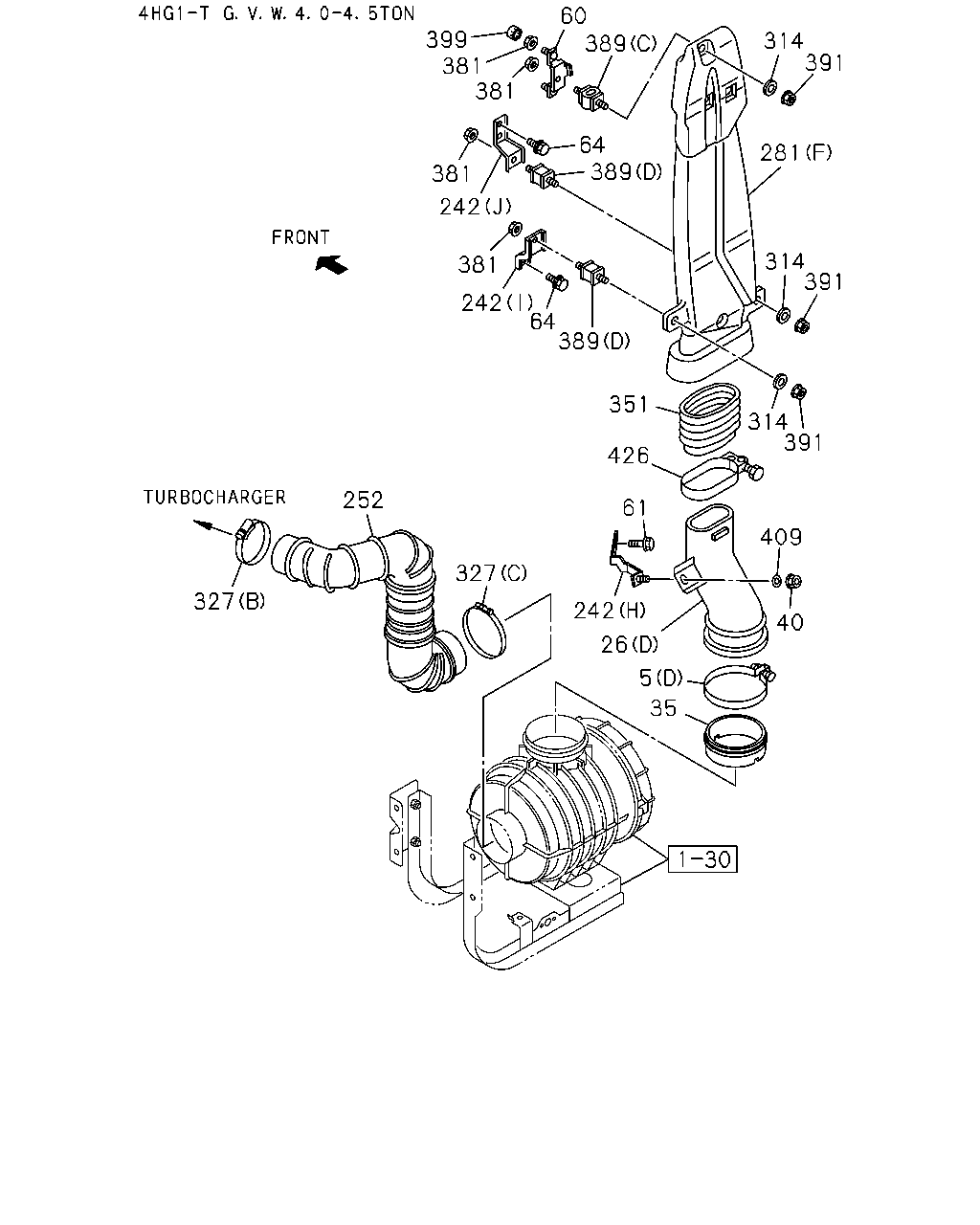

03.417 BRACKET; AIR DUCT
4HG1-T ENG(RDP)
G.V.W. 4.0-4.5TON(RPR)
MINI BUS CHASSIS(V4B)
(I)
|
8-97312-894-1 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4HG1-T ENG(RDP)
G.V.W. 4.0-4.5TON(RPR)
MINI BUS CHASSIS(V4B)
(J)
|
8-97329-201-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4HG1-T ENG(RDP)
G.V.W. 4.0-4.5TON(RPR)
MINI BUS CHASSIS(V4B)
(H)
|
8-98177-804-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4HF1-S ENG(RLS)
(E)
|
8-97853-633-1 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4HG1 ENG(RJH),4HF1-S ENG(RLS)
(E)
|
8-97853-633-1 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4HF1-N ENG(RJZ)
(E)
|
8-97853-633-2 |
01 |
1 |
0502-0609 |
|
● |
● |
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
(E)
|
8-97853-633-2 |
01 |
1 |
0502-0609 |
● |
|
|
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4HF1-N ENG(RJZ)
(E)
|
8-97853-633-2 |
01 |
1 |
0610-1404 |
|
● |
● |
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ)
(E)
|
8-97853-633-2 |
01 |
1 |
0610-1404 |
● |
|
|
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4HF1-N ENG(RJZ)
(E)
|
8-97853-633-2 |
01 |
1 |
1405- |
|
● |
● |
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4HG1-T ENG(RDP)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
(E)
|
8-97853-633-2 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4HG1-T ENG(RDP)
EXC. MINI BUS CHASSIS(V4B)
(E)
|
8-97853-633-2 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
(E)
|
8-97853-633-2 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4HF1-S ENG(RLS)
(D)
|
8-97857-844-0 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4HG1 ENG(RJH),4HF1-S ENG(RLS)
(D)
|
8-97857-844-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4HF1-N ENG(RJZ)
(D)
|
8-97857-844-1 |
01 |
1 |
0502-0609 |
|
● |
● |
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
(D)
|
8-97857-844-1 |
01 |
1 |
0502-0609 |
● |
|
|
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4HF1-N ENG(RJZ)
(D)
|
8-97857-844-1 |
01 |
1 |
0610-1404 |
|
● |
● |
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ)
(D)
|
8-97857-844-1 |
01 |
1 |
0610-1404 |
● |
|
|
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4HF1-N ENG(RJZ)
(D)
|
8-97857-844-1 |
01 |
1 |
1405- |
|
● |
● |
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4HG1-T ENG(RDP)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
(D)
|
8-97857-844-1 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4HG1-T ENG(RDP)
EXC. MINI BUS CHASSIS(V4B)
(D)
|
8-97857-844-1 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
(D)
|
8-97857-844-1 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX),4JB1 ENG(RLF)
(C)
|
8-97856-958-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
(C)
|
8-97856-958-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF)
(C)
|
8-97856-958-0 |
01 |
1 |
0502-0609 |
|
● |
|
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM),4JB1 ENG(RLF)
(C)
|
8-97856-958-0 |
01 |
1 |
0502-0609 |
● |
|
● |
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
(C)
|
8-97856-958-0 |
01 |
1 |
0502-0609 |
|
|
|
● |
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT),4JB1 ENG(RLF)
(C)
|
8-97856-958-0 |
01 |
1 |
0610-0712 |
|
● |
|
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM),4JB1 ENG(RLF)
(C)
|
8-97856-958-0 |
01 |
1 |
0610-0712 |
● |
|
● |
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
(C)
|
8-97856-958-0 |
01 |
1 |
0610-0712 |
|
|
|
● |
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),
4JB1 ENG(RLF)
(C)
|
8-97856-958-0 |
01 |
1 |
0801- |
● |
● |
● |
● |
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX),4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
(F)
|
8-97856-932-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
CHARGE AIR COOLER<6PL>
(F)
|
8-97856-932-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM)
(F)
|
8-97856-932-0 |
01 |
1 |
0502-0609 |
● |
|
● |
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
(F)
|
8-97856-932-0 |
01 |
1 |
0502-0609 |
|
|
|
● |
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT)
(F)
|
8-97856-932-0 |
01 |
1 |
0610-0712 |
|
● |
|
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM)
(F)
|
8-97856-932-0 |
01 |
1 |
0610-0712 |
● |
|
● |
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
(F)
|
8-97856-932-0 |
01 |
1 |
0610-0712 |
|
|
|
● |
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT)
(F)
|
8-97856-932-0 |
01 |
1 |
0801- |
● |
● |
● |
● |
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX),4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
(G)
|
8-97856-933-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
CHARGE AIR COOLER<6PL>
(G)
|
8-97856-933-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM)
(G)
|
8-97856-933-0 |
01 |
1 |
0502-0609 |
● |
|
● |
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
(G)
|
8-97856-933-0 |
01 |
1 |
0502-0609 |
|
|
|
● |
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT)
(G)
|
8-97856-933-0 |
01 |
1 |
0610-0712 |
|
● |
|
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM)
(G)
|
8-97856-933-0 |
01 |
1 |
0610-0712 |
● |
|
● |
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
(G)
|
8-97856-933-0 |
01 |
1 |
0610-0712 |
|
|
|
● |
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT)
(G)
|
8-97856-933-0 |
01 |
1 |
0801- |
● |
● |
● |
● |
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX),4JB1 ENG(RLF)
EXC. CHARGE AIR COOLER<6PL>
(B)
|
8-97856-935-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. CHARGE AIR COOLER<6PL>
(B)
|
8-97856-935-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF)
(B)
|
8-97856-935-0 |
01 |
1 |
0502- |
● |
● |
● |
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX),4JB1 ENG(RLF)
EXC. CHARGE AIR COOLER<6PL>
(A)
|
8-97856-967-1 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. CHARGE AIR COOLER<6PL>
(A)
|
8-97856-967-1 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
242 |
03.417 BRACKET; AIR DUCT
4JB1 ENG(RLF)
(A)
|
8-97856-967-1 |
01 |
1 |
0502- |
● |
● |
● |
|
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
4HG1-T ENG(RDP)
G.V.W. 4.0-4.5TON(RPR)
MINI BUS CHASSIS(V4B)
(F)
|
8-97369-706-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
4HF1-S ENG(RLS)
EXC. HEAVY DUTY AIR CLEANER<K46>
(D)
|
8-97161-847-1 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH),4HF1-S ENG(RLS)
EXC. HEAVY DUTY AIR CLEANER<K46>
(D)
|
8-97161-847-1 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
4HF1-N ENG(RJZ)
EXC. HEAVY DUTY AIR CLEANER<K46>
(D)
|
8-97161-847-2 |
01 |
1 |
0502- |
|
● |
● |
|
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
EXC. HEAVY DUTY AIR CLEANER<K46>
(D)
|
8-97161-847-2 |
01 |
1 |
0502- |
● |
|
|
|
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
4HF1-S ENG(RLS)
HEAVY DUTY AIR CLEANER<K46>
(C)
|
8-97120-084-1 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
4HF1-N ENG(RJZ)
HEAVY DUTY AIR CLEANER<K46>
(C)
|
8-97120-084-2 |
01 |
1 |
0502- |
● |
● |
● |
|
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
4JB1 ENG(RLF)
HEAVY DUTY AIR CLEANER<K46>
EXC. CHARGE AIR COOLER<6PL>
(A)
|
8-97089-948-2 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
4JB1 ENG(RLF)
HEAVY DUTY AIR CLEANER<K46>
(A)
|
8-97089-948-2 |
01 |
1 |
0502- |
● |
● |
● |
|
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
4JB1 ENG(RLF)
EXC. HEAVY DUTY AIR CLEANER<K46>,
CHARGE AIR COOLER<6PL>
(E)
|
8-97076-959-2 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. CHARGE AIR COOLER<6PL>
(E)
|
8-97076-959-2 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
4JB1 ENG(RLF)
EXC. HEAVY DUTY AIR CLEANER<K46>
(E)
|
8-97076-959-2 |
01 |
1 |
0502- |
● |
● |
● |
|
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
4JH1 ENG(RJX)
(B)
|
8-97300-255-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
4JB1 ENG(RLF)
CHARGE AIR COOLER<6PL>
(B)
|
8-97300-255-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
CHARGE AIR COOLER<6PL>
(B)
|
8-97300-255-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
4JH1-TC ENG(RDM)
(B)
|
8-97300-255-1 |
01 |
1 |
0502-0609 |
● |
|
● |
|
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
(B)
|
8-97300-255-1 |
01 |
1 |
0502-0609 |
|
|
|
● |
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
4JB1-TC ENG(RDT)
(B)
|
8-97300-255-1 |
01 |
1 |
0610-0712 |
|
● |
|
|
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
4JH1-TC ENG(RDM)
(B)
|
8-97300-255-1 |
01 |
1 |
0610-0712 |
● |
|
● |
|
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
(B)
|
8-97300-255-1 |
01 |
1 |
0610-0712 |
|
|
|
● |
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT)
(B)
|
8-97300-255-1 |
01 |
1 |
0801- |
● |
● |
● |
● |
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
4HG1-T ENG(RDP)
(D)
|
8-97125-174-2 |
01 |
1 |
0610-1404 |
● |
|
|
|
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
4HG1-T ENG(RDP)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
(D)
|
8-97125-174-2 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
281 |
03.417 DUCT; AIR,VERTICAL INT
4HG1-T ENG(RDP)
EXC. MINI BUS CHASSIS(V4B)
(D)
|
8-97125-174-2 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
290 |
03.374 CLIP; ACL TO AIR DUCT
4JB1-TC ENG(RDT)
03.407
ID=87
|
8-97087-432-0 |
01 |
1 |
0610-0712 |
|
● |
|
|
|
|
| |
290 |
03.374 CLIP; ACL TO AIR DUCT
4JB1-TC ENG(RDT)
03.407
ID=87
|
8-97087-432-0 |
01 |
1 |
0801- |
● |
● |
|
|
|
|
| |
290 |
03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF)
TURBOCHARGER<K51>
03.407
ID=87
|
8-97087-432-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
290 |
03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER<K51>
03.407
ID=87
|
8-97087-432-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
290 |
03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>
03.407
ID=92
|
9-09915-072-1 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
290 |
03.374 CLIP; ACL TO AIR DUCT
03.407
ID=92
|
9-09915-072-1 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
290 |
03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. TURBOCHARGER<K51>
03.407
ID=92
|
9-09915-072-1 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
290 |
03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
03.407
ID=92
|
9-09915-072-1 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
290 |
03.374 CLIP; ACL TO AIR DUCT
4JB1 ENG(RLF)
03.407
ID=92
|
9-09915-072-1 |
01 |
1 |
0502- |
● |
● |
● |
|
|
|
| |
290 |
03.374 CLIP; ACL TO AIR DUCT
03.407
ID=92
|
9-09915-072-1 |
01 |
1 |
0502- |
|
|
|
|
|
● |
| |
297 |
03.417 BOLT; DUCT
4JB1-TC ENG(RDT)
02.343
(E)
M8X12 FLANGE
|
0-28050-812-0 |
02 |
1 |
0610-0712 |
|
● |
|
|
|
|
| |
297 |
03.417 BOLT; DUCT
4JB1-TC ENG(RDT)
02.343
(E)
M8X12 FLANGE
|
0-28050-812-0 |
02 |
1 |
0801- |
● |
● |
|
|
|
|
| |
297 |
03.417 BOLT; DUCT
4JB1-TC ENG(RDT)
06.225
(F)
M10X12 FLANGE
|
0-28051-012-0 |
01 |
1 |
0610-0712 |
|
● |
|
|
|
|
| |
297 |
03.417 BOLT; DUCT
4JB1-TC ENG(RDT)
06.225
(F)
M10X12 FLANGE
|
0-28051-012-0 |
01 |
1 |
0801- |
● |
● |
|
|
|
|
| |
297 |
03.417 BOLT; DUCT
4JB1 ENG(RLF)
EXC. CHARGE AIR COOLER<6PL>
02.559
(A)
M10X16 FLANGE
|
0-28081-016-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
297 |
03.417 BOLT; DUCT
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. CHARGE AIR COOLER<6PL>
02.559
(A)
M10X16 FLANGE
|
0-28081-016-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
297 |
03.417 BOLT; DUCT
4JB1 ENG(RLF)
02.559
(A)
M10X16 FLANGE
|
0-28081-016-0 |
02 |
1 |
0502-0512 |
● |
● |
● |
|
|
|
| |
297 |
03.417 BOLT; DUCT
4JB1 ENG(RLF)
02.483
(A)
M10X16 FLANGE
|
0-28051-016-0 |
02 |
1 |
0601-1106 |
● |
● |
● |
|
|
|
| |
297 |
03.417 BOLT; DUCT
4JB1 ENG(RLF)
IDENTIFICATION LABEL FOR KD<6UT>
02.483
(A)
M10X16 FLANGE
|
0-28051-016-0 |
02 |
1 |
1107- |
● |
● |
● |
|
|
|
| |
297 |
03.417 BOLT; DUCT
4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>
08.900
(B)
M8X12 FLANGE
|
0-28080-812-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
297 |
03.417 BOLT; DUCT
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. TURBOCHARGER<K51>
08.900
(B)
M8X12 FLANGE
|
0-28080-812-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
297 |
03.417 BOLT; DUCT
4JB1 ENG(RLF)
08.900
(B)
M8X12 FLANGE
|
0-28080-812-0 |
01 |
1 |
0502-0512 |
● |
● |
● |
|
|
|
| |
297 |
03.417 BOLT; DUCT
4JB1 ENG(RLF)
02.343
(B)
M8X12 FLANGE
|
0-28050-812-0 |
01 |
1 |
0601- |
● |
● |
● |
|
|
|
| |
297 |
03.417 BOLT; DUCT
4JB1 ENG(RLF)
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
08.900
(E)
M8X12 FLANGE
|
0-28080-812-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
297 |
03.417 BOLT; DUCT
4JB1 ENG(RLF)
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
04.640
(F)
M10X12 FLANGE
|
0-28081-012-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
297 |
03.417 BOLT; DUCT
02.334
(D)
M8X40 W/LK&PL WASHER
|
0-51240-840-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
297 |
03.417 BOLT; DUCT
4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
EXC. HALOGEN HEAD LAMP
RECTANGULAR<TR4>
02.334
(D)
M8X40 W/LK&PL WASHER
|
0-51240-840-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
297 |
03.417 BOLT; DUCT
16.550
(C)
M8X16 W/LK&PL WASHER
|
8-94310-730-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
297 |
03.417 BOLT; DUCT
4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
16.550
(C)
M8X16 W/LK&PL WASHER
|
8-94310-730-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
297 |
03.417 BOLT; DUCT
16.550
(C)
M8X16 W/LK&PL WASHER
|
8-94310-730-0 |
01 |
1 |
0502- |
|
|
|
|
|
● |
| |
320 |
03.417 HOSE; CONN,ACL
4HF1-S ENG(RLS)
(C)
|
8-97217-471-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
320 |
03.417 HOSE; CONN,ACL
4HF1-N ENG(RJZ)
(C)
|
8-97217-471-1 |
01 |
1 |
0502- |
|
● |
|
|
|
|
| |
320 |
03.417 HOSE; CONN,ACL
4JB1-TC ENG(RDT)
(B)
|
8-97205-771-0 |
01 |
1 |
0610-0712 |
|
● |
|
|
|
|
| |
320 |
03.417 HOSE; CONN,ACL
4JB1-TC ENG(RDT)
(B)
|
8-97205-771-0 |
01 |
1 |
0801- |
● |
● |
|
|
|
|
| |
320 |
03.417 HOSE; CONN,ACL
4JB1 ENG(RLF)
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
(B)
|
8-97205-771-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
320 |
03.417 HOSE; CONN,ACL
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER<K51>
CHARGE AIR COOLER<6PL>
(B)
|
8-97205-771-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
320 |
03.417 HOSE; CONN,ACL
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXC. CHARGE AIR COOLER<6PL>
(B)
|
8-97168-373-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
320 |
03.417 HOSE; CONN,ACL
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER<K51>
EXC. CHARGE AIR COOLER<6PL>
(B)
|
8-97168-373-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
320 |
03.417 HOSE; CONN,ACL
4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>
(A)
|
8-94110-075-2 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
320 |
03.417 HOSE; CONN,ACL
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. TURBOCHARGER<K51>
(A)
|
8-94110-075-2 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
320 |
03.417 HOSE; CONN,ACL
4JB1 ENG(RLF)
(A)
|
8-94110-075-3 |
01 |
1 |
0502- |
● |
● |
● |
|
|
|
| |
320 |
03.417 HOSE; CONN,ACL
4HF1-S ENG(RLS)
(C)
|
8-97069-875-1 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
| |
320 |
03.417 HOSE; CONN,ACL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
(C)
|
8-97069-875-1 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
320 |
03.417 HOSE; CONN,ACL
4HF1-N ENG(RJZ)
(C)
|
8-97069-875-2 |
01 |
1 |
0502- |
|
|
● |
|
|
|
| |
320 |
03.417 HOSE; CONN,ACL
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
(C)
|
8-97069-875-2 |
01 |
1 |
0502- |
● |
|
|
|
|
|
| |
381 |
03.417 NUT; BRKT,AIR DUCT
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S
ENG(RLS)
16.800
M6 FLANGE
|
1-09984-018-0 |
02 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
381 |
03.417 NUT; BRKT,AIR DUCT
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1
ENG(RLF),4HF1-S ENG(RLS)
16.800
M6 FLANGE
|
1-09984-018-0 |
02 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
381 |
03.417 NUT; BRKT,AIR DUCT
4JH1 ENG(RJX),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
16.800
M6 FLANGE
|
1-09984-018-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
381 |
03.417 NUT; BRKT,AIR DUCT
16.800
M6 FLANGE
|
1-09984-018-0 |
02 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4HG1-T ENG(RDP)
G.V.W. 4.0-4.5TON(RPR)
MINI BUS CHASSIS(V4B)
(C)
|
8-98036-825-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4HG1-T ENG(RDP)
G.V.W. 4.0-4.5TON(RPR)
MINI BUS CHASSIS(V4B)
03.417
(D)
|
8-98036-826-0 |
02 |
1 |
1405- |
● |
|
|
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
03.417
(A)
|
8-97080-149-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3>
03.417
(A)
|
8-97080-149-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4HF1-N ENG(RJZ),4JB1 ENG(RLF)
03.417
(A)
|
8-97080-149-0 |
01 |
1 |
0502-0609 |
|
● |
|
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ),
4JB1ENG(RLF)
03.417
(A)
|
8-97080-149-0 |
01 |
1 |
0502-0609 |
|
|
● |
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM),4HG1 ENG(RJH),
4HF1-NENG(RJZ),4JB1 ENG(RLF)
03.417
(A)
|
8-97080-149-0 |
01 |
1 |
0502-0609 |
● |
|
|
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
03.417
(A)
|
8-97080-149-0 |
01 |
1 |
0502-0609 |
|
|
|
● |
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ),
4JB1ENG(RLF)
03.417
(A)
|
8-97080-149-0 |
01 |
1 |
0610-0712 |
|
● |
|
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ),
4JB1ENG(RLF)
03.417
(A)
|
8-97080-149-0 |
01 |
1 |
0610-0712 |
|
|
● |
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM),4HG1-T ENG(RDP),
4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1
ENG(RLF)
03.417
(A)
|
8-97080-149-0 |
01 |
1 |
0610-0712 |
● |
|
|
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
03.417
(A)
|
8-97080-149-0 |
01 |
1 |
0610-0712 |
|
|
|
● |
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ),
4JB1ENG(RLF)
03.417
(A)
|
8-97080-149-0 |
01 |
1 |
0801-1404 |
|
● |
|
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ),
4JB1ENG(RLF)
03.417
(A)
|
8-97080-149-0 |
01 |
1 |
0801-1404 |
|
|
● |
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM),4HG1-T ENG(RDP),
4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4JB1 ENG(RLF)
03.417
(A)
|
8-97080-149-0 |
01 |
1 |
0801-1404 |
● |
|
|
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
03.417
(A)
|
8-97080-149-0 |
01 |
1 |
0801-1404 |
|
|
|
● |
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
03.417
(A)
|
8-97080-149-0 |
01 |
1 |
1405- |
|
● |
● |
● |
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4HG1-T ENG(RDP)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
03.417
(A)
|
8-97080-149-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4HG1-T ENG(RDP)
EXC. MINI BUS CHASSIS(V4B)
03.417
(A)
|
8-97080-149-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1
ENG(RLF)
03.417
(A)
|
8-97080-149-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
03.417
(B)
|
8-97081-886-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3>
03.417
(B)
|
8-97081-886-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4HF1-N ENG(RJZ),4JB1 ENG(RLF)
03.417
(B)
|
8-97081-886-0 |
02 |
1 |
0502-0609 |
|
● |
|
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ),
4JB1ENG(RLF)
03.417
(B)
|
8-97081-886-0 |
02 |
1 |
0502-0609 |
|
|
● |
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM),4HG1 ENG(RJH),
4HF1-NENG(RJZ),4JB1 ENG(RLF)
03.417
(B)
|
8-97081-886-0 |
02 |
1 |
0502-0609 |
● |
|
|
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
03.417
(B)
|
8-97081-886-0 |
02 |
1 |
0502-0609 |
|
|
|
● |
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ),
4JB1ENG(RLF)
03.417
(B)
|
8-97081-886-0 |
02 |
1 |
0610-0712 |
|
● |
|
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ),
4JB1ENG(RLF)
03.417
(B)
|
8-97081-886-0 |
02 |
1 |
0610-0712 |
|
|
● |
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM),4HG1-T ENG(RDP),
4HG1ENG(RJH),4HF1-N ENG(RJZ),4JB1
ENG(RLF)
03.417
(B)
|
8-97081-886-0 |
02 |
1 |
0610-0712 |
● |
|
|
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
03.417
(B)
|
8-97081-886-0 |
02 |
1 |
0610-0712 |
|
|
|
● |
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ),
4JB1ENG(RLF)
03.417
(B)
|
8-97081-886-0 |
02 |
1 |
0801-1404 |
|
● |
|
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ),
4JB1ENG(RLF)
03.417
(B)
|
8-97081-886-0 |
02 |
1 |
0801-1404 |
|
|
● |
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM),4HG1-T ENG(RDP),
4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4JB1 ENG(RLF)
03.417
(B)
|
8-97081-886-0 |
02 |
1 |
0801-1404 |
● |
|
|
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
03.417
(B)
|
8-97081-886-0 |
02 |
1 |
0801-1404 |
|
|
|
● |
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
03.417
(B)
|
8-97081-886-0 |
02 |
1 |
1405- |
|
● |
● |
● |
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4HG1-T ENG(RDP)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
03.417
(B)
|
8-97081-886-0 |
02 |
1 |
1405- |
● |
|
|
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4HG1-T ENG(RDP)
EXC. MINI BUS CHASSIS(V4B)
03.417
(B)
|
8-97081-886-0 |
02 |
1 |
1405- |
● |
|
|
|
|
|
| |
389 |
03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1
ENG(RLF)
03.417
(B)
|
8-97081-886-0 |
02 |
1 |
1405- |
● |
|
|
|
|
|
| |
391 |
03.417 NUT; SUPPORT RUBBER,UPR
4HF1-S ENG(RLS)
M8 FLANGE
|
8-94279-517-0 |
06 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
391 |
03.417 NUT; SUPPORT RUBBER,UPR
4HG1 ENG(RJH),4HF1-S ENG(RLS)
M8 FLANGE
|
8-94279-517-0 |
06 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
391 |
03.417 NUT; SUPPORT RUBBER,UPR
4HF1-N ENG(RJZ)
M8 FLANGE
|
8-94279-517-0 |
06 |
1 |
0502-0609 |
|
● |
● |
|
|
|
| |
391 |
03.417 NUT; SUPPORT RUBBER,UPR
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
M8 FLANGE
|
8-94279-517-0 |
06 |
1 |
0502-0609 |
● |
|
|
|
|
|
| |
391 |
03.417 NUT; SUPPORT RUBBER,UPR
4JB1-TC ENG(RDT),4JB1 ENG(RLF)
M8 FLANGE
|
8-94279-517-0 |
07 |
1 |
0610-0712 |
|
● |
|
|
|
|
| |
391 |
03.417 NUT; SUPPORT RUBBER,UPR
4JH1-TC ENG(RDM),4JB1 ENG(RLF)
M8 FLANGE
|
8-94279-517-0 |
07 |
1 |
0610-0712 |
● |
|
● |
|
|
|
| |
391 |
03.417 NUT; SUPPORT RUBBER,UPR
M8 FLANGE
|
8-94279-517-0 |
07 |
1 |
0610-0712 |
|
|
|
● |
|
|
| |
391 |
03.417 NUT; SUPPORT RUBBER,UPR
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),
4JB1 ENG(RLF)
M8 FLANGE
|
8-94279-517-0 |
07 |
1 |
0801-0910 |
● |
● |
● |
● |
|
|
| |
391 |
03.417 NUT; SUPPORT RUBBER,UPR
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),
4JB1 ENG(RLF)
M8 W/LK WASHER
|
8-97581-234-0 |
07 |
1 |
0911- |
● |
● |
● |
● |
|
|
| |
391 |
03.417 NUT; SUPPORT RUBBER,UPR
4JH1 ENG(RJX),4JB1 ENG(RLF)
M8 FLANGE
|
8-94279-517-0 |
07 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
391 |
03.417 NUT; SUPPORT RUBBER,UPR
4JH1 ENG(RJX),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
M8 FLANGE
|
8-94279-517-0 |
07 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
391 |
03.417 NUT; SUPPORT RUBBER,UPR
4JB1 ENG(RLF)
M8 FLANGE
|
8-94279-517-0 |
07 |
1 |
0502-0609 |
|
● |
|
|
|
|
| |
391 |
03.417 NUT; SUPPORT RUBBER,UPR
4JH1-TC ENG(RDM),4JB1 ENG(RLF)
M8 FLANGE
|
8-94279-517-0 |
07 |
1 |
0502-0609 |
● |
|
● |
|
|
|
| |
391 |
03.417 NUT; SUPPORT RUBBER,UPR
M8 FLANGE
|
8-94279-517-0 |
07 |
1 |
0502-0609 |
|
|
|
● |
|
|
| |
391 |
03.417 NUT; SUPPORT RUBBER,UPR
4HF1-N ENG(RJZ)
M8 FLANGE
|
8-94279-517-0 |
06 |
1 |
0610-0910 |
|
● |
● |
|
|
|
| |
391 |
03.417 NUT; SUPPORT RUBBER,UPR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ)
M8 FLANGE
|
8-94279-517-0 |
06 |
1 |
0610-0910 |
● |
|
|
|
|
|
| |
391 |
03.417 NUT; SUPPORT RUBBER,UPR
4HF1-N ENG(RJZ)
M8 W/LK WASHER
|
8-97581-234-0 |
06 |
1 |
0911- |
|
● |
● |
|
|
|
| |
391 |
03.417 NUT; SUPPORT RUBBER,UPR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ)
M8 W/LK WASHER
|
8-97581-234-0 |
06 |
1 |
0911- |
● |
|
|
|
|
|
| |
399 |
03.417 CAP; BRKT,AIR DUCT
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S
ENG(RLS)
|
8-94273-605-0 |
02 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
399 |
03.417 CAP; BRKT,AIR DUCT
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1-S
ENG(RLS)
EXC. AUSTRALIA EQUIPMENT(RR3)
|
8-94273-605-0 |
02 |
1 |
0211-0501 |
|
|
● |
|
|
|
| |
399 |
03.417 CAP; BRKT,AIR DUCT
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1
ENG(RLF),4HF1-S ENG(RLS)
EXC. AUSTRALIA EQUIPMENT(RR3)
|
8-94273-605-0 |
02 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
399 |
03.417 CAP; BRKT,AIR DUCT
4JH1 ENG(RJX),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. AUSTRALIA EQUIPMENT(RR3)
|
8-94273-605-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
399 |
03.417 CAP; BRKT,AIR DUCT
|
8-94273-605-0 |
02 |
1 |
0502-0610 |
|
● |
|
|
|
|
| |
399 |
03.417 CAP; BRKT,AIR DUCT
EXC. AUSTRALIA EQUIPMENT(RR3)
|
8-94273-605-0 |
02 |
1 |
0502-0610 |
● |
|
● |
|
|
|
| |
399 |
03.417 CAP; BRKT,AIR DUCT
|
8-94273-605-0 |
02 |
1 |
0611- |
|
● |
|
|
|
|
| |
399 |
03.417 CAP; BRKT,AIR DUCT
EXC. AUSTRALIA EQUIPMENT(RR3)
|
8-94273-605-0 |
02 |
1 |
0611- |
● |
|
● |
|
|
|
| |
399 |
03.417 CAP; BRKT,AIR DUCT
AUSTRALIA EQUIPMENT(RR3)
EXC. INTERIOR DELUXE<RBB>
|
8-94273-605-0 |
02 |
1 |
0611- |
● |
|
● |
|
|
|
| |
399 |
03.417 CAP; BRKT,AIR DUCT
EXC. INTERIOR DELUXE<RBB>
|
8-94273-605-0 |
02 |
1 |
0611- |
|
|
|
● |
|
|
