1 |

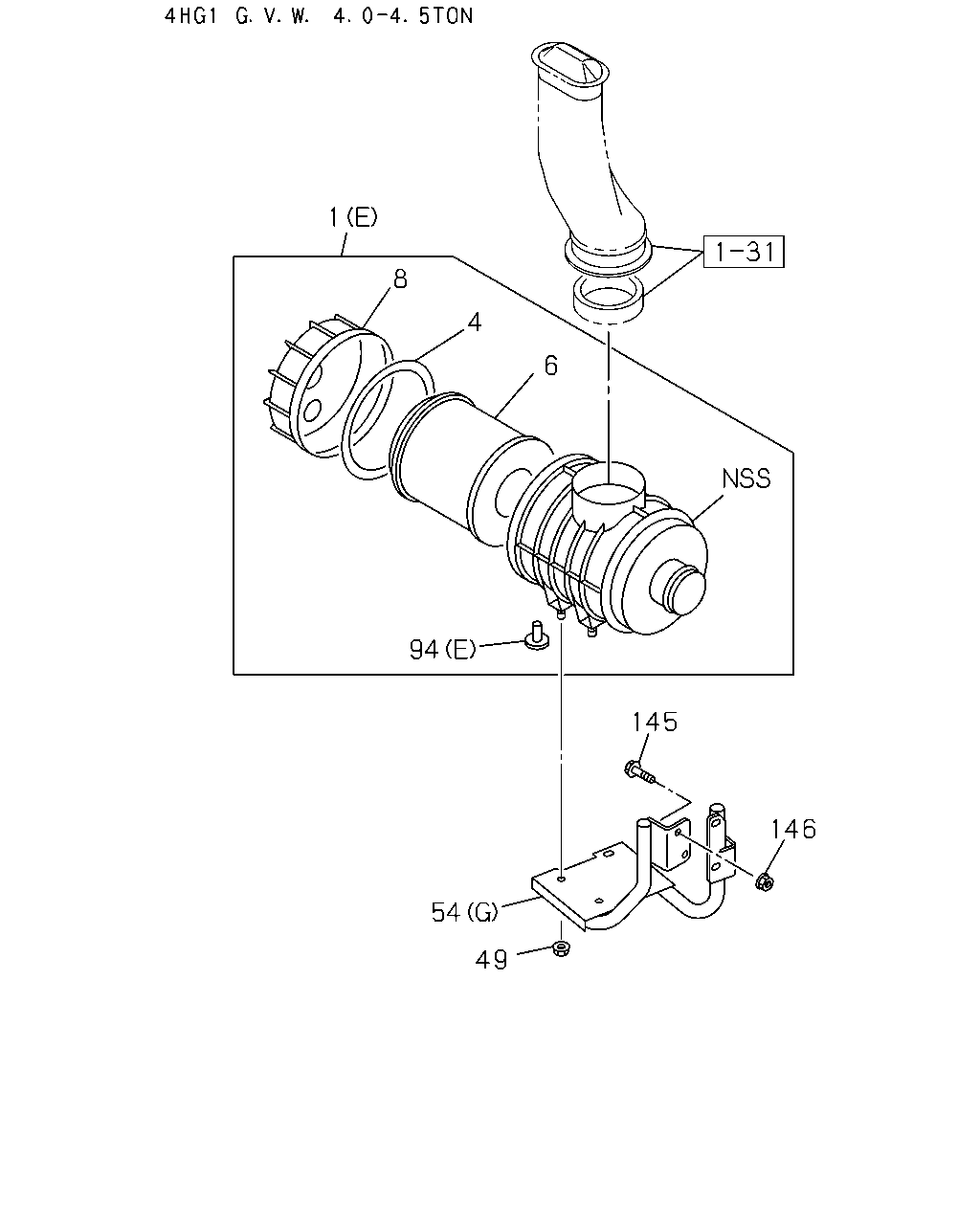

03.402 CLEANER ASM; AIR
4HG1-T ENG(RDP)
G.V.W. 4.0-4.5TON(RPR)
MINI BUS CHASSIS(V4B)
(E)
|
8-98050-415-2 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR

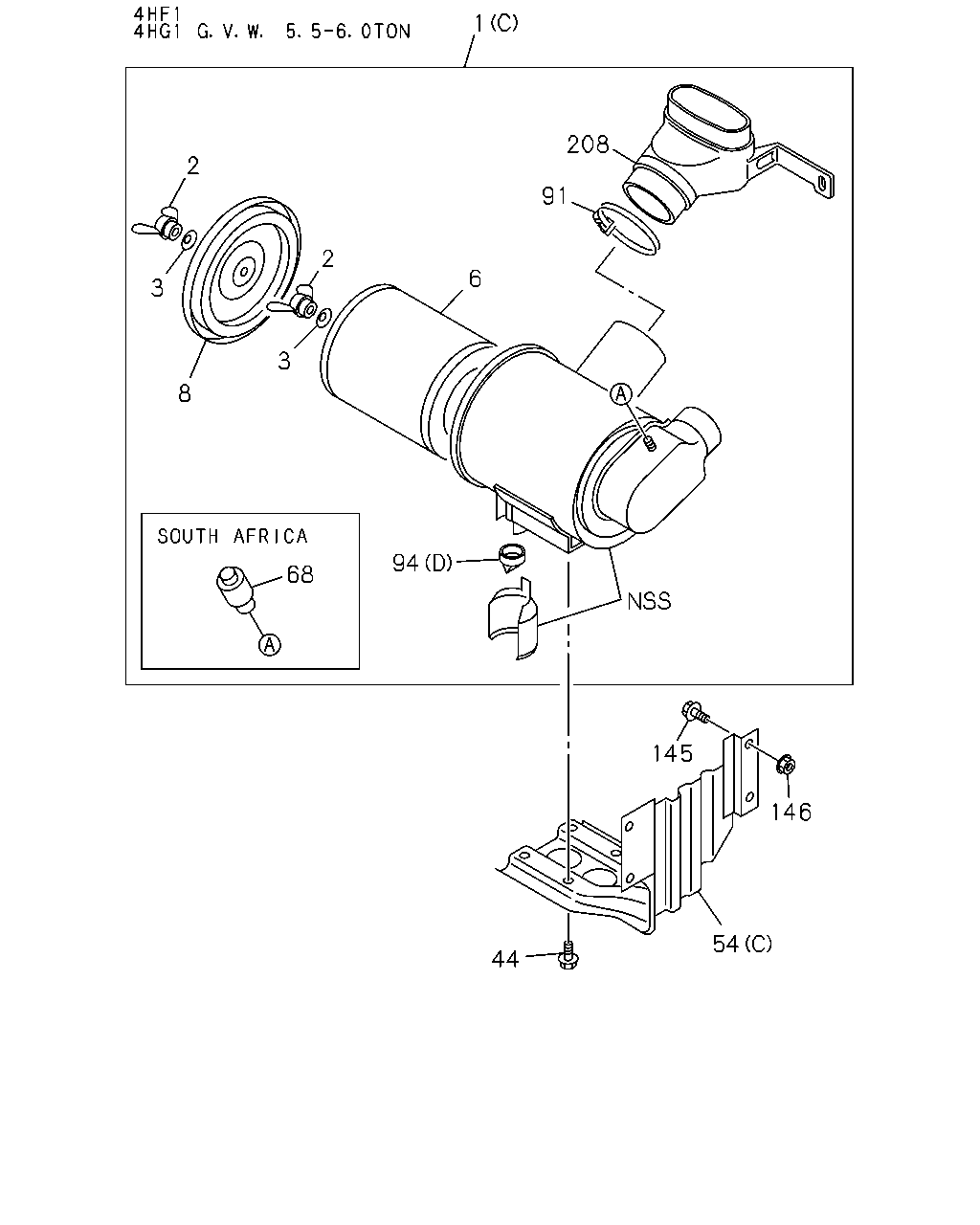

4HF1-S ENG(RLS)
(C)
|
8-97217-441-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HF1-N ENG(RJZ)
(C)
|
8-97217-441-0 |
01 |
1 |
0502- |
|
● |
|
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR

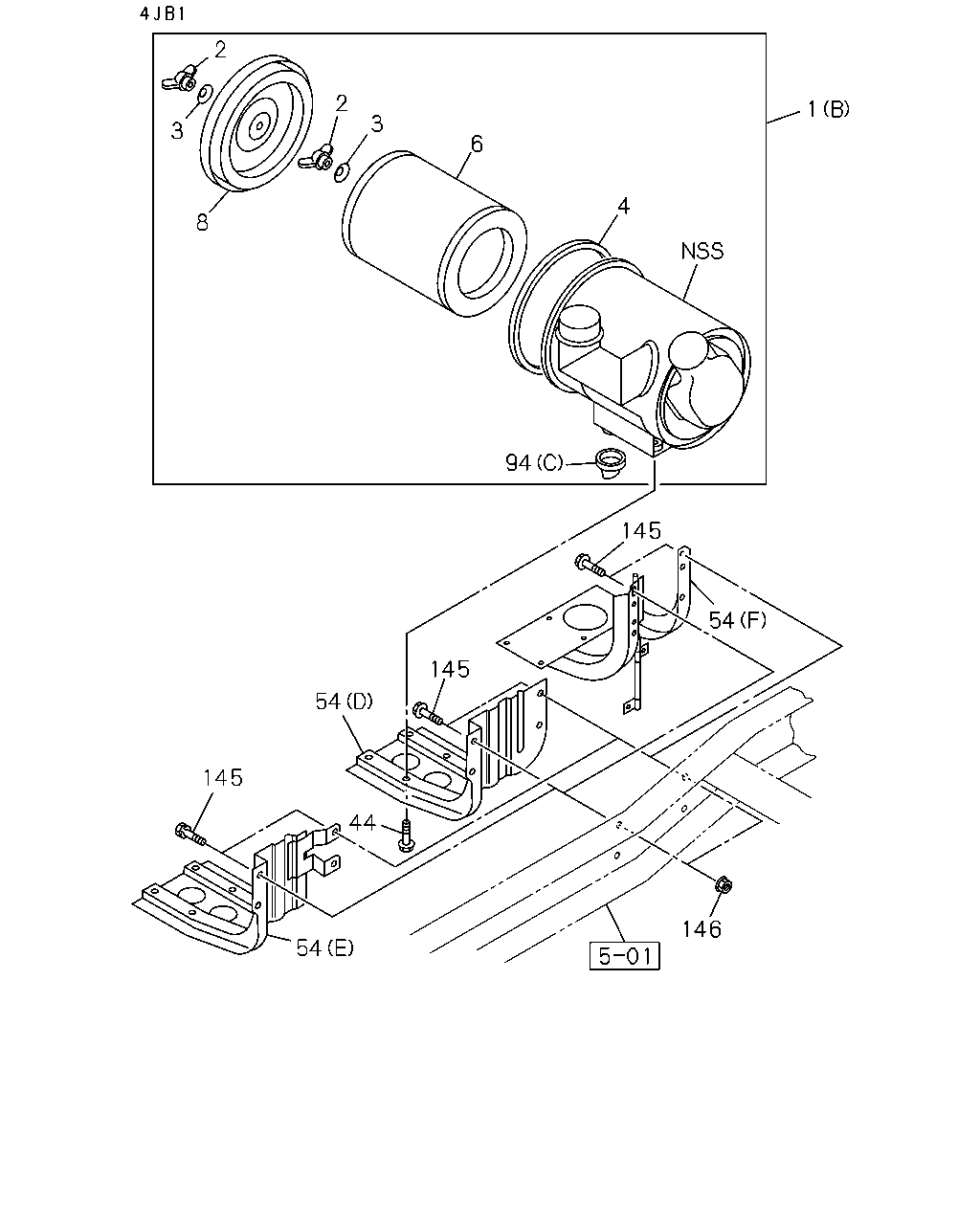

4JB1 ENG(RLF)
(B)
|
8-97062-053-1 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4JB1 ENG(RLF)
EXC. SOUTH AFRICA EQUIPMENT(SW2)
(B)
|
8-97062-053-1 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
(B)
|
8-97062-053-1 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4JB1 ENG(RLF)
(B)
|
8-97062-053-1 |
01 |
1 |
0502-0609 |
● |
● |
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4JB1-TC ENG(RDT),4JB1 ENG(RLF)
(B)
|
8-97062-053-1 |
01 |
1 |
0610-0712 |
|
● |
|
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4JB1 ENG(RLF)
(B)
|
8-97062-053-1 |
01 |
1 |
0610-0712 |
● |
|
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4JB1-TC ENG(RDT),4JB1 ENG(RLF)
(B)
|
8-97062-053-1 |
01 |
1 |
0801- |
● |
● |
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR

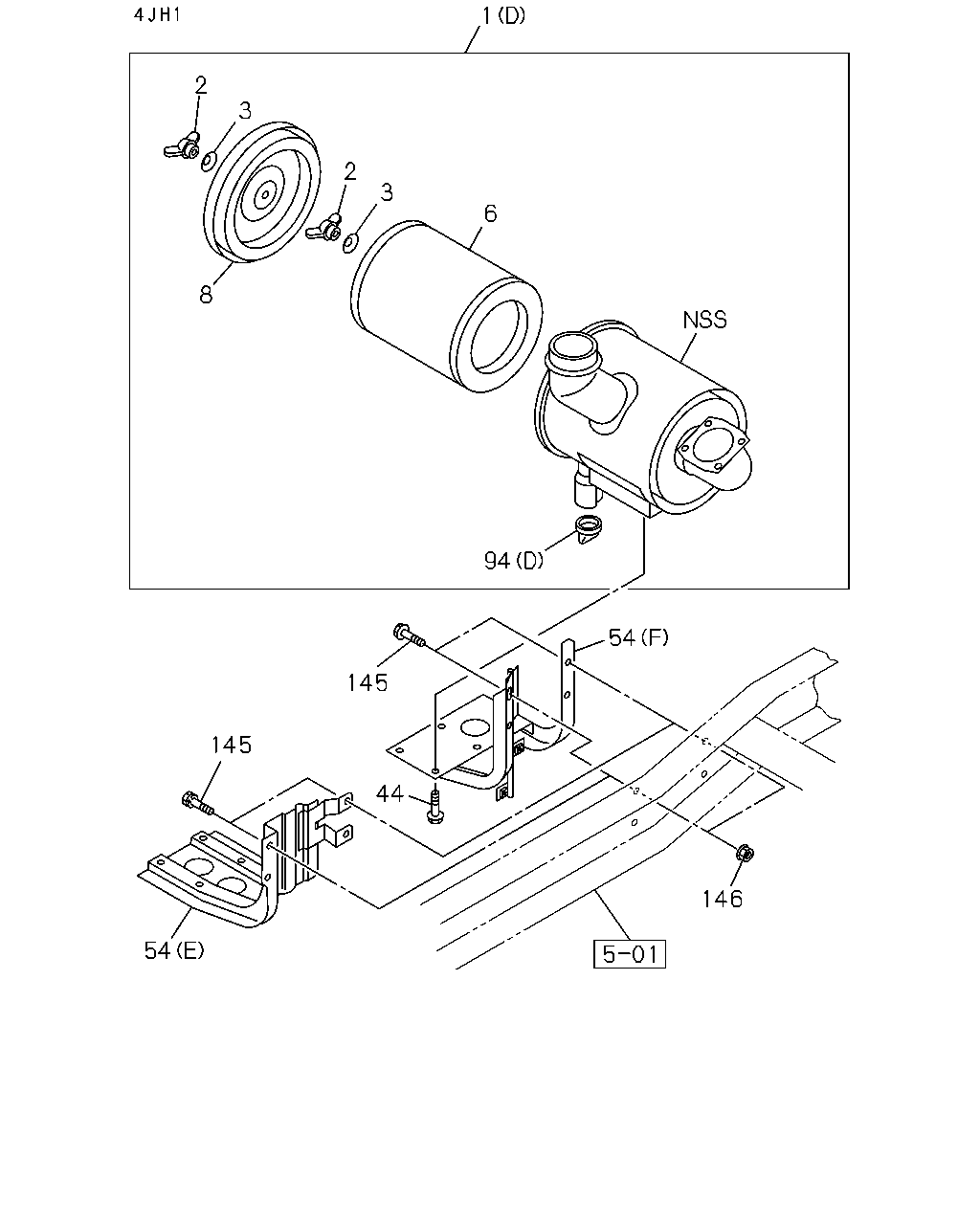

4JH1 ENG(RJX)
(D)
|
8-97240-054-2 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4JH1-TC ENG(RDM)
(D)
|
8-97240-054-2 |
01 |
1 |
0502- |
● |
|
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
(D)
|
8-97240-054-2 |
01 |
1 |
0502- |
|
|
|
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR

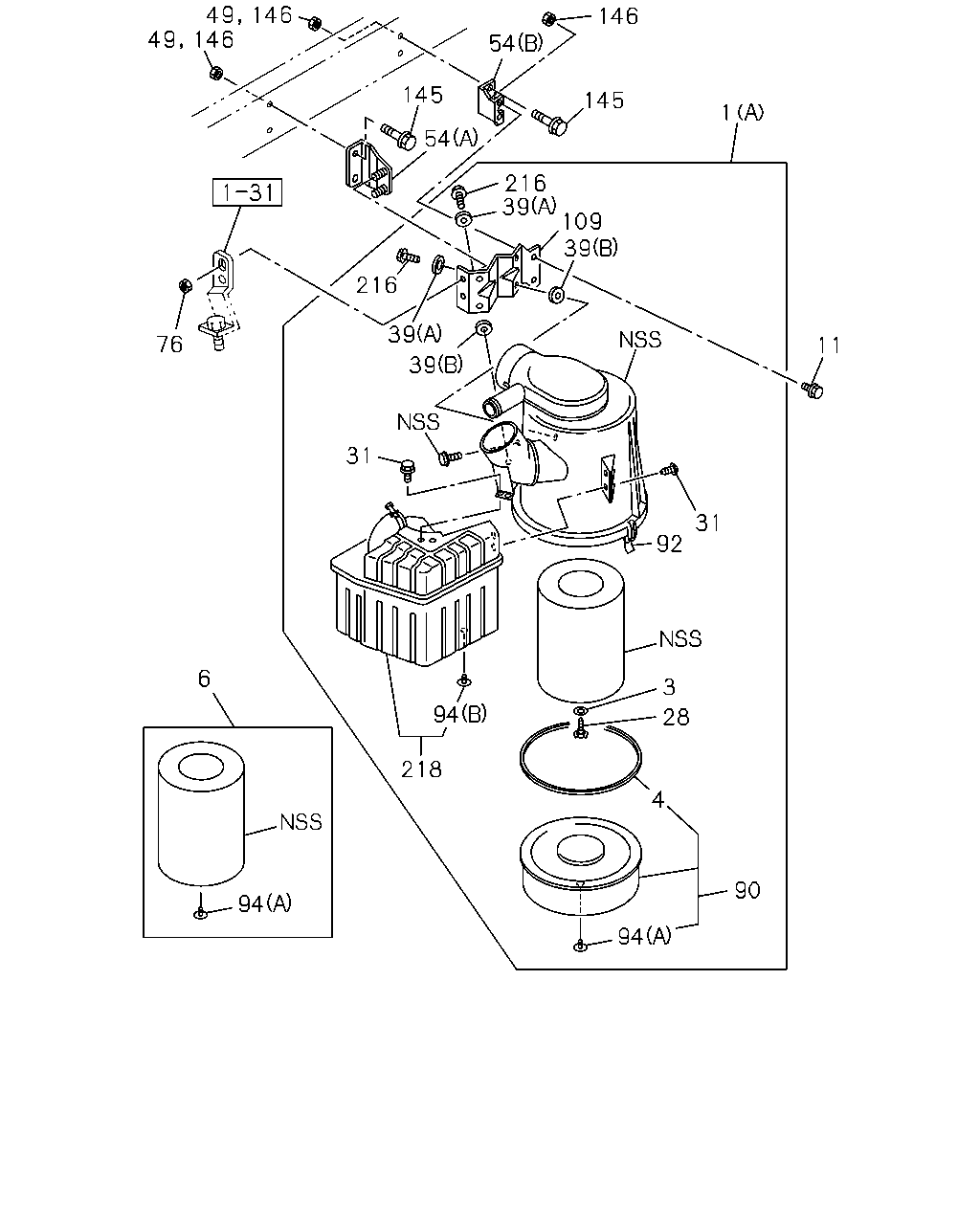

(A)
|
8-97090-029-2 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
1 |
03.402 CLEANER ASM; AIR
4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
|
8-97090-029-2 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HF1-S ENG(RLS)
(C)
|
8-97162-699-2 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1-S ENG(RLS)
(C)
|
8-97162-699-2 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HF1-N ENG(RJZ)
(C)
|
8-97162-699-2 |
01 |
1 |
0502-0609 |
|
|
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
(C)
|
8-97162-699-2 |
01 |
1 |
0502-0609 |
● |
|
|
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HF1-N ENG(RJZ)
(C)
|
8-97162-699-2 |
01 |
1 |
0610-1404 |
|
|
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ)
(C)
|
8-97162-699-2 |
01 |
1 |
0610-1404 |
● |
|
|
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HF1-N ENG(RJZ)
(C)
|
8-97162-699-2 |
01 |
1 |
1405- |
|
|
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HG1-T ENG(RDP)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
(C)
|
8-97162-699-2 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HG1-T ENG(RDP)
EXC. MINI BUS CHASSIS(V4B)
(C)
|
8-97162-699-2 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
(C)
|
8-97162-699-2 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4JB1 ENG(RLF)
SOUTH AFRICA EQUIPMENT(SW2)
(B)
|
8-97256-796-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
(A)
|
8-97102-675-2 |
01 |
1 |
0211- |
|
|
|
|
|
● |
| |
2 |
03.403 NUT; WING,ELEMENT
|
1-14217-068-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
2 |
03.403 NUT; WING,ELEMENT
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
|
1-14217-068-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
2 |
03.403 NUT; WING,ELEMENT
4JH1 ENG(RJX)
|
1-14217-068-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
2 |
03.403 NUT; WING,ELEMENT
|
1-14217-068-0 |
02 |
1 |
0502-1404 |
● |
● |
● |
● |
|
|
| |
2 |
03.403 NUT; WING,ELEMENT
|
1-14217-068-0 |
02 |
1 |
1405- |
|
● |
● |
● |
|
|
| |
2 |
03.403 NUT; WING,ELEMENT
4HG1-T ENG(RDP)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
|
1-14217-068-0 |
02 |
1 |
1405- |
|
|
● |
|
|
|
| |
2 |
03.403 NUT; WING,ELEMENT
4HG1-T ENG(RDP)
EXC. MINI BUS CHASSIS(V4B)
|
1-14217-068-0 |
02 |
1 |
1405- |
● |
|
|
|
|
|
| |
2 |
03.403 NUT; WING,ELEMENT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1
ENG(RLF)
|
1-14217-068-0 |
02 |
1 |
1405- |
● |
|
|
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
|
1-14219-225-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
|
1-14219-225-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4JH1 ENG(RJX)
|
1-14219-225-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
|
1-14219-225-0 |
02 |
1 |
0502-1404 |
● |
● |
● |
● |
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
|
1-14219-225-0 |
02 |
1 |
1405- |
|
● |
● |
● |
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HG1-T ENG(RDP)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
|
1-14219-225-0 |
02 |
1 |
1405- |
|
|
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HG1-T ENG(RDP)
EXC. MINI BUS CHASSIS(V4B)
|
1-14219-225-0 |
02 |
1 |
1405- |
● |
|
|
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1
ENG(RLF)
|
1-14219-225-0 |
02 |
1 |
1405- |
● |
|
|
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
|
9-14219-279-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
3 |
03.403 WASHER; SEAL,WING NUT
4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
|
9-14219-279-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
|
9-14219-279-0 |
01 |
1 |
0502- |
|
|
|
|
|
● |
| |
6 |
03.410 FILTER; ACL
4HG1-T ENG(RDP)
G.V.W. 4.0-4.5TON(RPR)
MINI BUS CHASSIS(V4B)
|
8-97062-294-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
6 |
03.410 FILTER; ACL
|
8-94156-052-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94156-052-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
6 |
03.410 FILTER; ACL
4JH1 ENG(RJX)
|
8-94156-052-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
6 |
03.410 FILTER; ACL
|
8-94156-052-0 |
01 |
1 |
0502-1404 |
● |
● |
● |
● |
|
|
| |
6 |
03.410 FILTER; ACL
|
8-94156-052-0 |
01 |
1 |
1405- |
|
● |
● |
● |
|
|
| |
6 |
03.410 FILTER; ACL
4HG1-T ENG(RDP)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
|
8-94156-052-0 |
01 |
1 |
1405- |
|
|
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4HG1-T ENG(RDP)
EXC. MINI BUS CHASSIS(V4B)
|
8-94156-052-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
6 |
03.410 FILTER; ACL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1
ENG(RLF)
|
8-94156-052-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
6 |
03.410 FILTER; ACL
|
8-97173-210-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
6 |
03.410 FILTER; ACL
4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97173-210-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
6 |
03.410 FILTER; ACL
|
8-97173-027-0 |
01 |
1 |
0211- |
|
|
|
|
|
● |
| |
6 |
03.410 FILTER; ACL
BEST VALUE PARTS
|
5-87610-029-3 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
BEST VALUE PARTS
|
5-87610-029-3 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
6 |
03.410 FILTER; ACL
4JH1 ENG(RJX)
BEST VALUE PARTS
|
5-87610-029-3 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
6 |
03.410 FILTER; ACL
BEST VALUE PARTS
|
5-87610-029-3 |
01 |
1 |
0502-1404 |
● |
● |
● |
● |
|
|
| |
6 |
03.410 FILTER; ACL
BEST VALUE PARTS
|
5-87610-029-3 |
01 |
1 |
1405- |
|
● |
● |
● |
|
|
| |
6 |
03.410 FILTER; ACL
4HG1-T ENG(RDP)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
BEST VALUE PARTS
|
5-87610-029-3 |
01 |
1 |
1405- |
|
|
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4HG1-T ENG(RDP)
EXC. MINI BUS CHASSIS(V4B)
BEST VALUE PARTS
|
5-87610-029-3 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
6 |
03.410 FILTER; ACL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1
ENG(RLF)
BEST VALUE PARTS
|
5-87610-029-3 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
6 |
03.410 FILTER; ACL
BEST VALUE PARTS
|
5-87610-148-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
6 |
03.410 FILTER; ACL
4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
BEST VALUE PARTS
|
5-87610-148-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
6 |
03.410 FILTER; ACL
4HG1-T ENG(RDP)
G.V.W. 4.0-4.5TON(RPR)
MINI BUS CHASSIS(V4B)
BEST VALUE PARTS
|
5-87610-020-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
8 |
03.410 COVER ASM; ACL
4HG1-T ENG(RDP)
G.V.W. 4.0-4.5TON(RPR)
MINI BUS CHASSIS(V4B)
|
8-98050-434-1 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
8 |
03.410 COVER ASM; ACL
4HF1-S ENG(RLS)
|
8-97093-023-0 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
8 |
03.410 COVER ASM; ACL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
|
8-97093-023-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
8 |
03.410 COVER ASM; ACL
4HF1-N ENG(RJZ)
|
8-97093-023-0 |
01 |
1 |
0502-0609 |
|
● |
● |
|
|
|
| |
8 |
03.410 COVER ASM; ACL
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
|
8-97093-023-0 |
01 |
1 |
0502-0609 |
● |
|
|
|
|
|
| |
8 |
03.410 COVER ASM; ACL
4HF1-N ENG(RJZ)
|
8-97093-023-0 |
01 |
1 |
0610-1404 |
|
● |
● |
|
|
|
| |
8 |
03.410 COVER ASM; ACL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ)
|
8-97093-023-0 |
01 |
1 |
0610-1404 |
● |
|
|
|
|
|
| |
8 |
03.410 COVER ASM; ACL
4HF1-N ENG(RJZ)
|
8-97093-023-0 |
01 |
1 |
1405- |
|
● |
● |
|
|
|
| |
8 |
03.410 COVER ASM; ACL
4HG1-T ENG(RDP)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
|
8-97093-023-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
8 |
03.410 COVER ASM; ACL
4HG1-T ENG(RDP)
EXC. MINI BUS CHASSIS(V4B)
|
8-97093-023-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
8 |
03.410 COVER ASM; ACL
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
|
8-97093-023-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
8 |
03.410 COVER ASM; ACL
4JB1 ENG(RLF)
|
8-94156-050-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
8 |
03.410 COVER ASM; ACL
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94156-050-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
8 |
03.410 COVER ASM; ACL
4JB1 ENG(RLF)
|
8-94156-050-0 |
01 |
1 |
0502-0609 |
● |
● |
● |
|
|
|
| |
8 |
03.410 COVER ASM; ACL
4JB1-TC ENG(RDT),4JB1 ENG(RLF)
|
8-94156-050-0 |
01 |
1 |
0610-0712 |
|
● |
|
|
|
|
| |
8 |
03.410 COVER ASM; ACL
4JB1 ENG(RLF)
|
8-94156-050-0 |
01 |
1 |
0610-0712 |
● |
|
● |
|
|
|
| |
8 |
03.410 COVER ASM; ACL
4JB1-TC ENG(RDT),4JB1 ENG(RLF)
|
8-94156-050-0 |
01 |
1 |
0801- |
● |
● |
● |
|
|
|
| |
8 |
03.410 COVER ASM; ACL
4JH1 ENG(RJX)
|
8-97313-386-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
8 |
03.410 COVER ASM; ACL
4JH1-TC ENG(RDM)
|
8-97313-386-0 |
01 |
1 |
0502- |
● |
|
● |
|
|
|
| |
8 |
03.410 COVER ASM; ACL
|
8-97313-386-0 |
01 |
1 |
0502- |
|
|
|
● |
|
|
| |
44 |
03.403 BOLT; ACL
4HF1-S ENG(RLS)
02.510
M8X25 W/LK&PL WASHER
|
0-50140-825-0 |
04 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
44 |
03.403 BOLT; ACL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
02.510
M8X25 W/LK&PL WASHER
|
0-50140-825-0 |
04 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
44 |
03.403 BOLT; ACL
4HF1-N ENG(RJZ)
02.510
M8X25 W/LK&PL WASHER
|
0-50140-825-0 |
04 |
1 |
0502-0512 |
|
● |
● |
|
|
|
| |
44 |
03.403 BOLT; ACL
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
02.510
M8X25 W/LK&PL WASHER
|
0-50140-825-0 |
04 |
1 |
0502-0512 |
● |
|
|
|
|
|
| |
44 |
03.403 BOLT; ACL
4HF1-N ENG(RJZ)
M8X25 W/LK&PL WASHER
|
0-50640-825-0 |
04 |
1 |
0601-0702 |
|
● |
● |
|
|
|
| |
44 |
03.403 BOLT; ACL
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
M8X25 W/LK&PL WASHER
|
0-50640-825-0 |
04 |
1 |
0601-0702 |
● |
|
|
|
|
|
| |
44 |
03.403 BOLT; ACL
4HF1-N ENG(RJZ)
M8X25 W/LK&PL WASHER
|
0-50640-825-0 |
04 |
1 |
0703-1404 |
|
● |
● |
|
|
|
| |
44 |
03.403 BOLT; ACL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ)
M8X25 W/LK&PL WASHER
|
0-50640-825-0 |
04 |
1 |
0703-1404 |
● |
|
|
|
|
|
| |
44 |
03.403 BOLT; ACL
4HF1-N ENG(RJZ)
M8X25 W/LK&PL WASHER
|
0-50640-825-0 |
04 |
1 |
1405- |
|
● |
● |
|
|
|
| |
44 |
03.403 BOLT; ACL
4HG1-T ENG(RDP)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
M8X25 W/LK&PL WASHER
|
0-50640-825-0 |
04 |
1 |
1405- |
● |
|
|
|
|
|
| |
44 |
03.403 BOLT; ACL
4HG1-T ENG(RDP)
EXC. MINI BUS CHASSIS(V4B)
M8X25 W/LK&PL WASHER
|
0-50640-825-0 |
04 |
1 |
1405- |
● |
|
|
|
|
|
| |
44 |
03.403 BOLT; ACL
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
M8X25 W/LK&PL WASHER
|
0-50640-825-0 |
04 |
1 |
1405- |
● |
|
|
|
|
|
| |
44 |
03.403 BOLT; ACL
4JH1 ENG(RJX),4JB1 ENG(RLF)
04.785
M8X18 W/LK WASHER
|
0-50040-818-0 |
04 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
44 |
03.403 BOLT; ACL
4JH1 ENG(RJX),4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
04.785
M8X18 W/LK WASHER
|
0-50040-818-0 |
04 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
44 |
03.403 BOLT; ACL
4JB1 ENG(RLF)
04.785
M8X18 W/LK WASHER
|
0-50040-818-0 |
04 |
1 |
0502-0609 |
|
● |
|
|
|
|
| |
44 |
03.403 BOLT; ACL
4JH1-TC ENG(RDM),4JB1 ENG(RLF)
04.785
M8X18 W/LK WASHER
|
0-50040-818-0 |
04 |
1 |
0502-0609 |
● |
|
● |
|
|
|
| |
44 |
03.403 BOLT; ACL
04.785
M8X18 W/LK WASHER
|
0-50040-818-0 |
04 |
1 |
0502-0609 |
|
|
|
● |
|
|
| |
44 |
03.403 BOLT; ACL
4JB1-TC ENG(RDT),4JB1 ENG(RLF)
04.785
M8X18 W/LK WASHER
|
0-50040-818-0 |
04 |
1 |
0610-0712 |
|
● |
|
|
|
|
| |
44 |
03.403 BOLT; ACL
4JH1-TC ENG(RDM),4JB1 ENG(RLF)
04.785
M8X18 W/LK WASHER
|
0-50040-818-0 |
04 |
1 |
0610-0712 |
● |
|
● |
|
|
|
| |
44 |
03.403 BOLT; ACL
04.785
M8X18 W/LK WASHER
|
0-50040-818-0 |
04 |
1 |
0610-0712 |
|
|
|
● |
|
|
| |
44 |
03.403 BOLT; ACL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),
4JB1 ENG(RLF)
04.785
M8X18 W/LK WASHER
|
0-50040-818-0 |
04 |
1 |
0801-0909 |
● |
● |
● |
● |
|
|
| |
44 |
03.403 BOLT; ACL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),
4JB1 ENG(RLF)
09.171
M8X18 W/LK WASHER
|
0-50540-818-0 |
04 |
1 |
0910- |
● |
● |
● |
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1-T ENG(RDP)
G.V.W. 4.0-4.5TON(RPR)
MINI BUS CHASSIS(V4B)
(G)
|
8-98272-213-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1-S ENG(RLS)
(C)
|
8-97216-715-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1-N ENG(RJZ)
(C)
|
8-97216-715-0 |
01 |
1 |
0502- |
|
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JB1 ENG(RLF)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(D)
|
8-94140-144-3 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
(D)
|
8-94140-144-3 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4JB1 ENG(RLF)
(D)
|
8-94140-144-3 |
01 |
1 |
0502-0612 |
|
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JB1-TC ENG(RDT),4JB1 ENG(RLF)
(D)
|
8-94140-144-3 |
01 |
1 |
0701- |
|
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JH1 ENG(RJX),4JB1 ENG(RLF)
FRT INDEPENDENT SUSPENSION(6PP)
(F)
|
8-97315-605-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JH1 ENG(RJX)
AIR INTAKE REAR VERTICAL<KJ3>
(F)
|
8-97315-605-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
54 |
03.405 BRACKET; ACL
(F)
|
8-97315-605-0 |
01 |
1 |
0502- |
|
|
|
● |
|
|
| |
54 |
03.405 BRACKET; ACL
(A)
|
8-97038-519-1 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
54 |
03.405 BRACKET; ACL
4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
|
8-97038-519-1 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
54 |
03.405 BRACKET; ACL
(A)
|
8-97038-519-1 |
01 |
1 |
0502- |
|
|
|
|
|
● |
| |
54 |
03.405 BRACKET; ACL
(B)
|
8-97084-884-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
54 |
03.405 BRACKET; ACL
(B)
|
8-97084-884-0 |
01 |
1 |
0502- |
|
|
|
|
|
● |
| |
54 |
03.405 BRACKET; ACL
4HF1-S ENG(RLS)
FRAME-KICK UP<7EW>
(C)
|
8-97217-525-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1-N ENG(RJZ)
FRAME-KICK UP<7EW>
(C)
|
8-97217-525-0 |
01 |
1 |
0502- |
|
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1-S ENG(RLS)
EXC. FRAME-KICK UP<7EW>
(C)
|
8-97091-040-1 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
(C)
|
8-97091-040-1 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1-N ENG(RJZ)
EXC. FRAME-KICK UP<7EW>
(C)
|
8-97091-040-1 |
01 |
1 |
0502-0609 |
|
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
(C)
|
8-97091-040-1 |
01 |
1 |
0502-0609 |
● |
|
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1-N ENG(RJZ)
EXC. FRAME-KICK UP<7EW>
(C)
|
8-97091-040-1 |
01 |
1 |
0610-1404 |
|
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ)
(C)
|
8-97091-040-1 |
01 |
1 |
0610-1404 |
● |
|
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1-N ENG(RJZ)
EXC. FRAME-KICK UP<7EW>
(C)
|
8-97091-040-1 |
01 |
1 |
1405- |
|
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1-T ENG(RDP)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
(C)
|
8-97091-040-1 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1-T ENG(RDP)
EXC. MINI BUS CHASSIS(V4B)
(C)
|
8-97091-040-1 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
(C)
|
8-97091-040-1 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JH1 ENG(RJX),4JB1 ENG(RLF)
EXC. FRAME-KICK UP<7EW>
(E)
|
8-97107-139-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JH1 ENG(RJX),4JB1 ENG(RLF)
(E)
|
8-97107-139-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JH1-TC ENG(RDM),4JB1 ENG(RLF)
EXC. FRAME-KICK UP<7EW>
(E)
|
8-97107-139-0 |
01 |
1 |
0502-0606 |
|
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JH1-TC ENG(RDM),4JB1 ENG(RLF)
(E)
|
8-97107-139-0 |
01 |
1 |
0502-0606 |
● |
|
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JB1 ENG(RLF)
(E)
|
8-97107-139-0 |
01 |
1 |
0607-0609 |
|
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JH1-TC ENG(RDM),4JB1 ENG(RLF)
EXC. FRAME-KICK UP<7EW>
(E)
|
8-97107-139-0 |
01 |
1 |
0607-0609 |
|
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JH1-TC ENG(RDM),4JB1 ENG(RLF)
(E)
|
8-97107-139-0 |
01 |
1 |
0607-0609 |
● |
|
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JB1-TC ENG(RDT),4JB1 ENG(RLF)
(E)
|
8-97107-139-0 |
01 |
1 |
0610-0612 |
|
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JH1-TC ENG(RDM),4JB1 ENG(RLF)
EXC. FRAME-KICK UP<7EW>
(E)
|
8-97107-139-0 |
01 |
1 |
0610-0612 |
|
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JH1-TC ENG(RDM),4JB1 ENG(RLF)
(E)
|
8-97107-139-0 |
01 |
1 |
0610-0612 |
● |
|
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JH1-TC ENG(RDM),4JB1 ENG(RLF)
EXC. FRAME-KICK UP<7EW>
(E)
|
8-97107-139-0 |
01 |
1 |
0701-0712 |
|
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JH1-TC ENG(RDM),4JB1 ENG(RLF)
(E)
|
8-97107-139-0 |
01 |
1 |
0701-0712 |
● |
|
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JH1-TC ENG(RDM),4JB1 ENG(RLF)
EXC. FRAME-KICK UP<7EW>
(E)
|
8-97107-139-0 |
01 |
1 |
0801- |
|
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),
4JB1 ENG(RLF)
(E)
|
8-97107-139-0 |
01 |
1 |
0801- |
● |
|
|
|
|
|
| |
68 |
03.415 INDICATOR; SERVICE
4JB1 ENG(RLF)
SOUTH AFRICA EQUIPMENT(SW2)
|
1-14219-212-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
91 |
03.403 CLAMP
4HF1-S ENG(RLS)
|
8-97093-696-2 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
91 |
03.403 CLAMP
4HG1 ENG(RJH),4HF1-S ENG(RLS)
|
8-97093-696-2 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
91 |
03.403 CLAMP
4HF1-N ENG(RJZ)
|
8-97093-696-2 |
01 |
1 |
0502-0609 |
|
● |
● |
|
|
|
| |
91 |
03.403 CLAMP
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
|
8-97093-696-2 |
01 |
1 |
0502-0609 |
● |
|
|
|
|
|
| |
91 |
03.403 CLAMP
4HF1-N ENG(RJZ)
|
8-97093-696-2 |
01 |
1 |
0610-1404 |
|
● |
● |
|
|
|
| |
91 |
03.403 CLAMP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ)
|
8-97093-696-2 |
01 |
1 |
0610-1404 |
● |
|
|
|
|
|
| |
91 |
03.403 CLAMP
4HF1-N ENG(RJZ)
|
8-97093-696-2 |
01 |
1 |
1405- |
|
● |
● |
|
|
|
| |
91 |
03.403 CLAMP
4HG1-T ENG(RDP)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
|
8-97093-696-2 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
91 |
03.403 CLAMP
4HG1-T ENG(RDP)
EXC. MINI BUS CHASSIS(V4B)
|
8-97093-696-2 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
91 |
03.403 CLAMP
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
|
8-97093-696-2 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HG1-T ENG(RDP)
G.V.W. 4.0-4.5TON(RPR)
MINI BUS CHASSIS(V4B)
(E)
|
8-97093-694-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4JH1-TC ENG(RDM)
(D)
|
8-98081-174-0 |
01 |
1 |
0502- |
● |
|
● |
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
(D)
|
8-98081-174-0 |
01 |
1 |
0502- |
|
|
|
● |
|
|
| |
94 |
03.415 VALVE; VACUATOR
4JH1 ENG(RJX),4HF1-S ENG(RLS)
(D)
|
8-94447-157-0 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1-S
ENG(RLS)
(D)
|
8-94447-157-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4JH1 ENG(RJX)
(D)
|
8-94447-157-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HF1-N ENG(RJZ)
(D)
|
8-94447-157-0 |
01 |
1 |
0502-0609 |
|
● |
● |
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
(D)
|
8-94447-157-0 |
01 |
1 |
0502-0609 |
● |
|
|
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HF1-N ENG(RJZ)
(D)
|
8-94447-157-0 |
01 |
1 |
0610-1404 |
|
● |
● |
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ)
(D)
|
8-94447-157-0 |
01 |
1 |
0610-1404 |
● |
|
|
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HF1-N ENG(RJZ)
(D)
|
8-94447-157-0 |
01 |
1 |
1405- |
|
● |
● |
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HG1-T ENG(RDP)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
(D)
|
8-94447-157-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HG1-T ENG(RDP)
EXC. MINI BUS CHASSIS(V4B)
(D)
|
8-94447-157-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
(D)
|
8-94447-157-0 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4JB1 ENG(RLF)
(C)
|
8-94160-187-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4JB1 ENG(RLF)
AIR INTAKE REAR VERTICAL<KJ3>
(C)
|
8-94160-187-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
94 |
03.415 VALVE; VACUATOR
4JB1 ENG(RLF)
(C)
|
8-94160-187-0 |
01 |
1 |
0502-0609 |
● |
● |
● |
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4JB1-TC ENG(RDT),4JB1 ENG(RLF)
(C)
|
8-94160-187-0 |
01 |
1 |
0610-0712 |
|
● |
|
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4JB1 ENG(RLF)
(C)
|
8-94160-187-0 |
01 |
1 |
0610-0712 |
● |
|
● |
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4JB1-TC ENG(RDT),4JB1 ENG(RLF)
(C)
|
8-94160-187-0 |
01 |
1 |
0801- |
● |
● |
● |
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
(A)
|
8-94439-205-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
94 |
03.415 VALVE; VACUATOR
4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
|
8-94439-205-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
94 |
03.415 VALVE; VACUATOR
(A)
|
8-94439-205-0 |
01 |
1 |
0502- |
|
|
|
|
|
● |
| |
94 |
03.415 VALVE; VACUATOR
(B)
|
8-97148-258-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
94 |
03.415 VALVE; VACUATOR
4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
(B)
|
8-97148-258-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
94 |
03.415 VALVE; VACUATOR
(B)
|
8-97148-258-0 |
01 |
1 |
0502- |
|
|
|
|
|
● |
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1-T ENG(RDP)
G.V.W. 4.0-4.5TON(RPR)
MINI BUS CHASSIS(V4B)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
1405- |
● |
|
|
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
03.162
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
AIR INTAKE REAR VERTICAL<KJ3>
03.162
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
03.162
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
0502-0512 |
● |
● |
● |
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
02.277
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
0601-1404 |
● |
● |
● |
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
02.277
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
1405- |
|
● |
● |
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1-T ENG(RDP)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
02.277
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
1405- |
● |
|
|
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1-T ENG(RDP)
EXC. MINI BUS CHASSIS(V4B)
02.277
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
1405- |
● |
|
|
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1
ENG(RLF)
02.277
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
1405- |
● |
|
|
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
145 |
03.405 BOLT; BRKT TO FRAME
4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
0502-0512 |
|
|
|
|
|
● |
| |
145 |
03.405 BOLT; BRKT TO FRAME
00.029
M10X25 FLANGE
|
0-28651-025-0 |
02 |
1 |
0601- |
|
|
|
|
|
● |
| |
145 |
03.405 BOLT; BRKT TO FRAME
03.162
M10X35 FLANGE
|
0-28681-035-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
145 |
03.405 BOLT; BRKT TO FRAME
03.162
M10X35 FLANGE
|
0-28681-035-0 |
02 |
1 |
0502-0512 |
|
|
|
|
|
● |
| |
145 |
03.405 BOLT; BRKT TO FRAME
02.277
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0601- |
|
|
|
|
|
● |
| |
146 |
03.405 NUT; BRKT TO FRAME
4HF1-N ENG(RJZ)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1004- |
|
● |
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
AIR INTAKE REAR VERTICAL<KJ3>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0502-0602 |
● |
● |
● |
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0603-0702 |
● |
● |
● |
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ),
4JB1ENG(RLF)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0703-0712 |
|
● |
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ),
4JB1ENG(RLF)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0703-0712 |
|
|
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JH1-TC ENG(RDM),4HG1 ENG(RJH),
4HF1-NENG(RJZ),4JB1 ENG(RLF)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0703-0712 |
● |
|
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0703-0712 |
|
|
|
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ),
4JB1ENG(RLF)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0801-1003 |
|
● |
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ),
4JB1ENG(RLF)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0801-1003 |
|
|
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1
ENG(RLF)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0801-1003 |
● |
|
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0801-1003 |
|
|
|
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JB1-TC ENG(RDT),4JB1 ENG(RLF)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1004-1404 |
|
● |
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JH1-TC ENG(RDM),4HF1-N ENG(RJZ),
4JB1ENG(RLF)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1004-1404 |
|
|
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1
ENG(RLF)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1004-1404 |
● |
|
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1004-1404 |
|
|
|
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1405- |
|
● |
● |
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HG1-T ENG(RDP)
G.V.W. 4.0-4.5TON(RPR)
MINI BUS CHASSIS(V4B)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1405- |
● |
|
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT),
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1
ENG(RLF)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1405- |
● |
|
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
146 |
03.405 NUT; BRKT TO FRAME
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
● |
| |
146 |
03.405 NUT; BRKT TO FRAME
4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4JB1 ENG(RLF)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0502-0602 |
|
|
|
|
|
● |
| |
146 |
03.405 NUT; BRKT TO FRAME
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0502-0602 |
|
|
|
|
|
● |
| |
146 |
03.405 NUT; BRKT TO FRAME
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0603-0702 |
|
|
|
|
|
● |
| |
146 |
03.405 NUT; BRKT TO FRAME
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0603-0702 |
|
|
|
|
|
● |
| |
146 |
03.405 NUT; BRKT TO FRAME
4HG1-T ENG(RDP)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0703-1404 |
● |
|
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0703-1404 |
|
|
|
|
|
● |
| |
146 |
03.405 NUT; BRKT TO FRAME
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0703-1404 |
|
|
|
|
|
● |
| |
146 |
03.405 NUT; BRKT TO FRAME
4HG1-T ENG(RDP)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1405- |
● |
|
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HG1-T ENG(RDP)
EXC. MINI BUS CHASSIS(V4B)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1405- |
● |
|
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1405- |
|
|
|
|
|
● |
| |
146 |
03.405 NUT; BRKT TO FRAME
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1405- |
|
|
|
|
|
● |
| |
208 |
03.407 DUCT; ACL
4HF1-S ENG(RLS)
|
8-97074-904-1 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
208 |
03.407 DUCT; ACL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
|
8-97074-904-1 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
208 |
03.407 DUCT; ACL
4HF1-N ENG(RJZ)
|
8-97074-904-1 |
01 |
1 |
0502-0609 |
|
● |
● |
|
|
|
| |
208 |
03.407 DUCT; ACL
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
|
8-97074-904-1 |
01 |
1 |
0502-0609 |
● |
|
|
|
|
|
| |
208 |
03.407 DUCT; ACL
4HF1-N ENG(RJZ)
|
8-97074-904-1 |
01 |
1 |
0610-1404 |
|
● |
● |
|
|
|
| |
208 |
03.407 DUCT; ACL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ)
|
8-97074-904-1 |
01 |
1 |
0610-1404 |
● |
|
|
|
|
|
| |
208 |
03.407 DUCT; ACL
4HF1-N ENG(RJZ)
|
8-97074-904-1 |
01 |
1 |
1405- |
|
● |
● |
|
|
|
| |
208 |
03.407 DUCT; ACL
4HG1-T ENG(RDP)
G.V.W. 5.5-6.0TON(RPU)
MINI BUS CHASSIS(V4B)
|
8-97074-904-1 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
208 |
03.407 DUCT; ACL
4HG1-T ENG(RDP)
EXC. MINI BUS CHASSIS(V4B)
|
8-97074-904-1 |
01 |
1 |
1405- |
● |
|
|
|
|
|
| |
208 |
03.407 DUCT; ACL
4HG1 ENG(RJH),4HF1-N ENG(RJZ)
|
8-97074-904-1 |
01 |
1 |
1405- |
● |
|
|
|
|
|
