◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50944 - NKR(RHD)EXC.EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶
1-11 — RADIATOR HOSE AND SUB TANK (#47640) — 761 parça

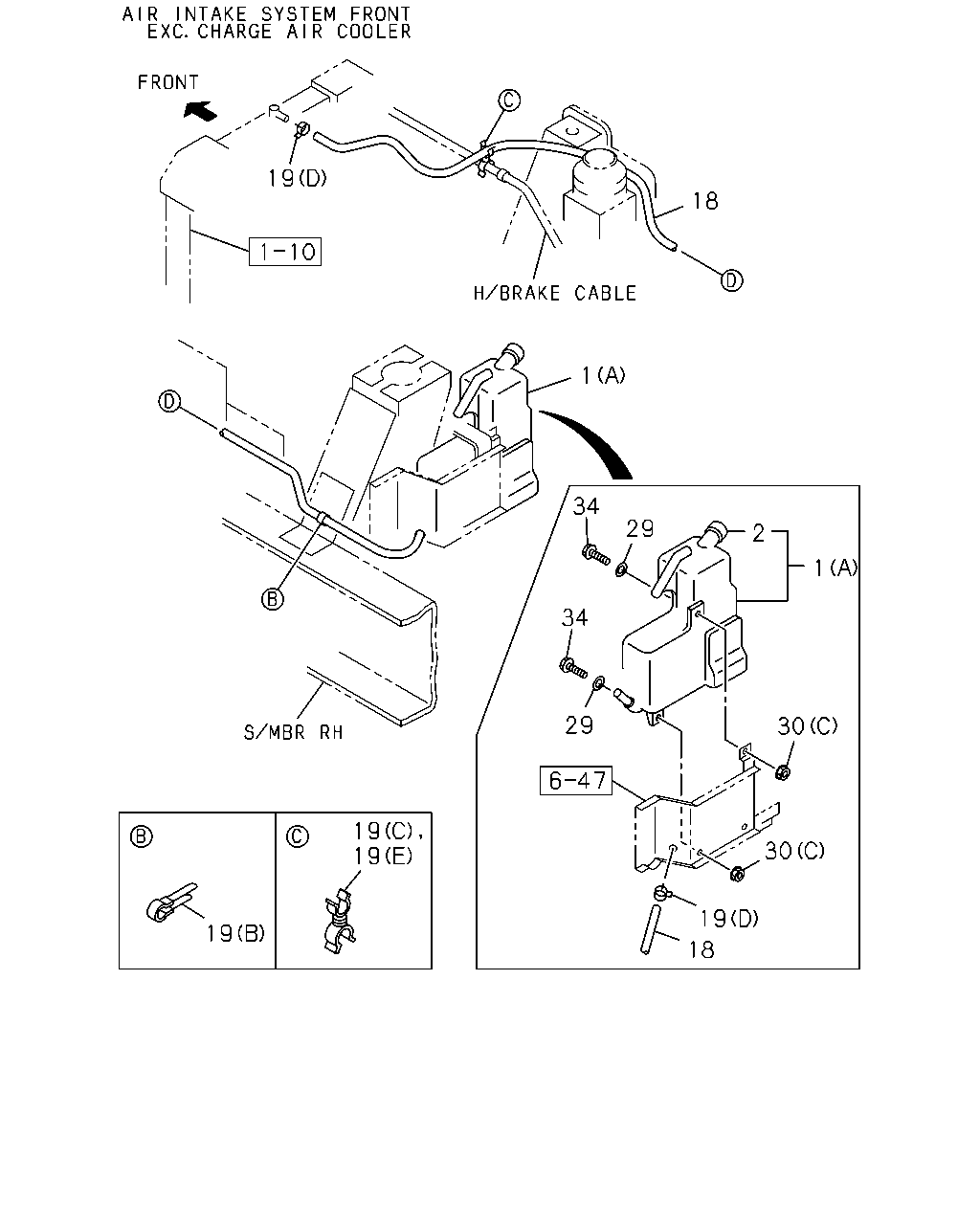

çizim 50147
19 8 1 34 29 2 1 34 29 30 19 19 30 19 19 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 TANK; SURGE,RAD
4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0211-0501 ● ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4HF1-N ENG(RJZ) (A) 		8-97210-844-0 01 1 0502-0609 ● ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-97210-844-0 01 1 0502-0609 ●
1 01.219 TANK; SURGE,RAD
4HF1-N ENG(RJZ) (A) 		8-97210-844-0 01 1 0610-1010 ● ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-97210-844-0 01 1 0610-1010 ●
1 01.219 TANK; SURGE,RAD
4HF1-N ENG(RJZ) (A) 		8-98178-177-0 01 1 1011- ● ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-98178-177-0 01 1 1011- ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 0211-0501 ● ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4JH1-TC ENG(RDM) (D) 		8-97205-136-1 01 1 0502-0609 ● ●
1 01.219 TANK; SURGE,RAD
(D) 		8-97205-136-1 01 1 0502-0609 ●
1 01.219 TANK; SURGE,RAD
4JB1-TC ENG(RDT) (D) 		8-97205-136-1 01 1 0610-0712 ●
1 01.219 TANK; SURGE,RAD
4JH1-TC ENG(RDM) (D) 		8-97205-136-1 01 1 0610-0712 ● ●
1 01.219 TANK; SURGE,RAD
(D) 		8-97205-136-1 01 1 0610-0712 ●
1 01.219 TANK; SURGE,RAD
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) (D) 		8-97205-136-1 01 1 0801- ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) 		8-97205-136-0 01 1 0211-0501 ● ● ●
1 01.219 TANK; SURGE,RAD
4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (D) 		8-97205-136-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) (B) 		8-97138-509-0 01 1 0502- ● ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 0211-0501 ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 0502- ●
2 01.203 CAP; SURGE TANK
4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0211-0501 ● ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4HF1-N ENG(RJZ) 		8-97217-796-0 01 1 0502-0609 ● ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97217-796-0 01 1 0502-0609 ●
2 01.203 CAP; SURGE TANK
4HF1-N ENG(RJZ) 		8-97217-796-0 01 1 0610-1010 ● ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97217-796-0 01 1 0610-1010 ●
2 01.203 CAP; SURGE TANK
4HF1-N ENG(RJZ) 		8-98178-074-0 01 1 1011- ● ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-98178-074-0 01 1 1011- ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 0211-0501 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0211-0501 ● ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) 		8-94449-363-0 01 1 0502- ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0502- ●
8 01.166 HOSE; VINYL
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.240 L=500 		1-09366-179-0 01 1 0211-0501 ● ● ●
8 01.166 HOSE; VINYL
4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 01.240 L=500 		1-09366-179-0 01 1 0211-0501 ●
8 01.166 HOSE; VINYL
4JH1-TC ENG(RDM) 01.240 L=500 		1-09366-179-0 01 1 0502-0609 ● ●
8 01.166 HOSE; VINYL
01.240 L=500 		1-09366-179-0 01 1 0502-0609 ●
8 01.166 HOSE; VINYL
4JB1-TC ENG(RDT) 01.240 L=500 		1-09366-179-0 01 1 0610-0712 ●
8 01.166 HOSE; VINYL
4JH1-TC ENG(RDM) 01.240 L=500 		1-09366-179-0 01 1 0610-0712 ● ●
8 01.166 HOSE; VINYL
01.240 L=500 		1-09366-179-0 01 1 0610-0712 ●
8 01.166 HOSE; VINYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) 01.240 L=500 		1-09366-179-0 01 1 0801- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1-TC ENG(RDT) L=1740 		8-97225-444-1 01 1 0610-0712 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1-TC ENG(RDT) L=1740 		8-97225-444-1 01 1 0801- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-S ENG(RLS) L=1595 		8-97162-125-1 01 1 0211-0501 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) L=1595 		8-97162-125-1 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-N ENG(RJZ) L=1595 		8-97162-125-1 01 1 0502-0609 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=1595 		8-97162-125-1 01 1 0502-0609 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-N ENG(RJZ) L=1595 		8-97162-125-1 01 1 0610- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=1595 		8-97162-125-1 01 1 0610- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> L=1740 		8-97225-444-1 01 1 0211-0501 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1740 		8-97225-444-1 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) L=860 		8-97163-002-1 01 1 0502- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 0211-0501 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> L=1580 		8-97356-350-0 01 1 0211-0501 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1-TC ENG(RDM) L=1580 		8-97356-350-0 01 1 0502- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1580 		8-97356-350-0 01 1 0502- ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-2 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1595 		8-97148-533-2 01 1 0211- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-2 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 0211-0501 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 0502-0911 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=12 		8-98150-358-0 02 1 0912- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS) (A) ID=10 & 12 		8-94416-613-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) ID=10 & 12 		8-94416-613-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
(A) ID=10 & 12 		8-94416-613-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-N ENG(RJZ) (A) ID=10 & 12 		8-94416-613-0 01 1 0502-0609 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) ID=10 & 12 		8-94416-613-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
(A) ID=10 & 12 		8-94416-613-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) ID=10 & 12 		8-94416-613-0 01 1 0610- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-N ENG(RJZ) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0502-0609 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0610- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (B) ID=14 L=47 		5-09700-319-0 01 1 0502-0609 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) (B) ID=14 L=47 		5-09700-319-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) (B) ID=14 L=47 		5-09700-319-0 01 1 0610- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B) ID=14 L=47 		5-09700-319-0 02 1 0211-0501 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM) (B) ID=14 L=47 		5-09700-319-0 02 1 0502-0609 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 02 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1-TC ENG(RDT) (B) ID=14 L=47 		5-09700-319-0 02 1 0610-0712 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM) (B) ID=14 L=47 		5-09700-319-0 02 1 0610-0712 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 02 1 0610-0712 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) (B) ID=14 L=47 		5-09700-319-0 02 1 0801- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11 		8-94438-996-0 02 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11 		8-94438-996-0 02 1 0211-0501 ●
29 01.203 WASHER; PL,RESERVE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0211-0501 ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HF1-S ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0211-0501 ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0211-0501 ●
29 01.203 WASHER; PL,RESERVE TANK
4HF1-N ENG(RJZ),4JB1 ENG(RLF) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0502-0605 ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0502-0605 ●
29 01.203 WASHER; PL,RESERVE TANK
4HF1-N ENG(RJZ),4JB1 ENG(RLF) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0606-0609 ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0606-0609 ●
29 01.203 WASHER; PL,RESERVE TANK
4HF1-N ENG(RJZ),4JB1 ENG(RLF) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0610- ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0610- ●
30 01.203 NUT
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ● ● ● ●
30 01.203 NUT
4HF1-S ENG(RLS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ● ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ●
30 01.203 NUT
4HF1-N ENG(RJZ),4JB1 ENG(RLF) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0502-0602 ● ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0502-0602 ●
30 01.203 NUT
4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0603-0609 ● ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0603-0609 ●
30 01.203 NUT
4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0610- ● ●
30 01.203 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0610- ●
30 01.203 NUT
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0211-0501 ● ● ● ●
30 01.203 NUT
4JH1-TC ENG(RDM) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0502-0602 ● ●
30 01.203 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0502-0602 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0603-0609 ● ●
30 01.203 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0603-0609 ●
30 01.203 NUT
4JB1-TC ENG(RDT) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0610-0712 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0610-0712 ● ●
30 01.203 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0610-0712 ●
30 01.203 NUT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0801- ● ● ● ●
30 01.203 NUT
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0211-0501 ● ● ● ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0502-0602 ● ●
30 01.203 NUT
01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0502-0602 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0603-0609 ● ●
30 01.203 NUT
01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0603-0609 ●
30 01.203 NUT
4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0610-0712 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0610-0712 ● ●
30 01.203 NUT
01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0610-0712 ●
30 01.203 NUT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0801- ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4HF1-S ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0211-0501 ● ●
34 01.203 BOLT; RESERVE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0211-0501 ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0211-0501 ●
34 01.203 BOLT; RESERVE TANK
4HF1-N ENG(RJZ) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0502-0512 ● ●
34 01.203 BOLT; RESERVE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0502-0512 ●
34 01.203 BOLT; RESERVE TANK
4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0601-0609 ● ●
34 01.203 BOLT; RESERVE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0601-0609 ●
34 01.203 BOLT; RESERVE TANK
4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0610- ● ●
34 01.203 BOLT; RESERVE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0610- ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0211-0501 ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0211-0501 ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0502-0512 ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) 09.242 M6X16 FLANGE 		0-28050-616-0 03 1 0601- ● ● ●
34 01.203 BOLT; RESERVE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0211-0501 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0502-0512 ● ●
34 01.203 BOLT; RESERVE TANK
02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0502-0512 ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0601-0609 ● ●
34 01.203 BOLT; RESERVE TANK
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0601-0609 ●
34 01.203 BOLT; RESERVE TANK
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0610-0712 ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0610-0712 ● ●
34 01.203 BOLT; RESERVE TANK
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0610-0712 ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0801- ● ● ● ●

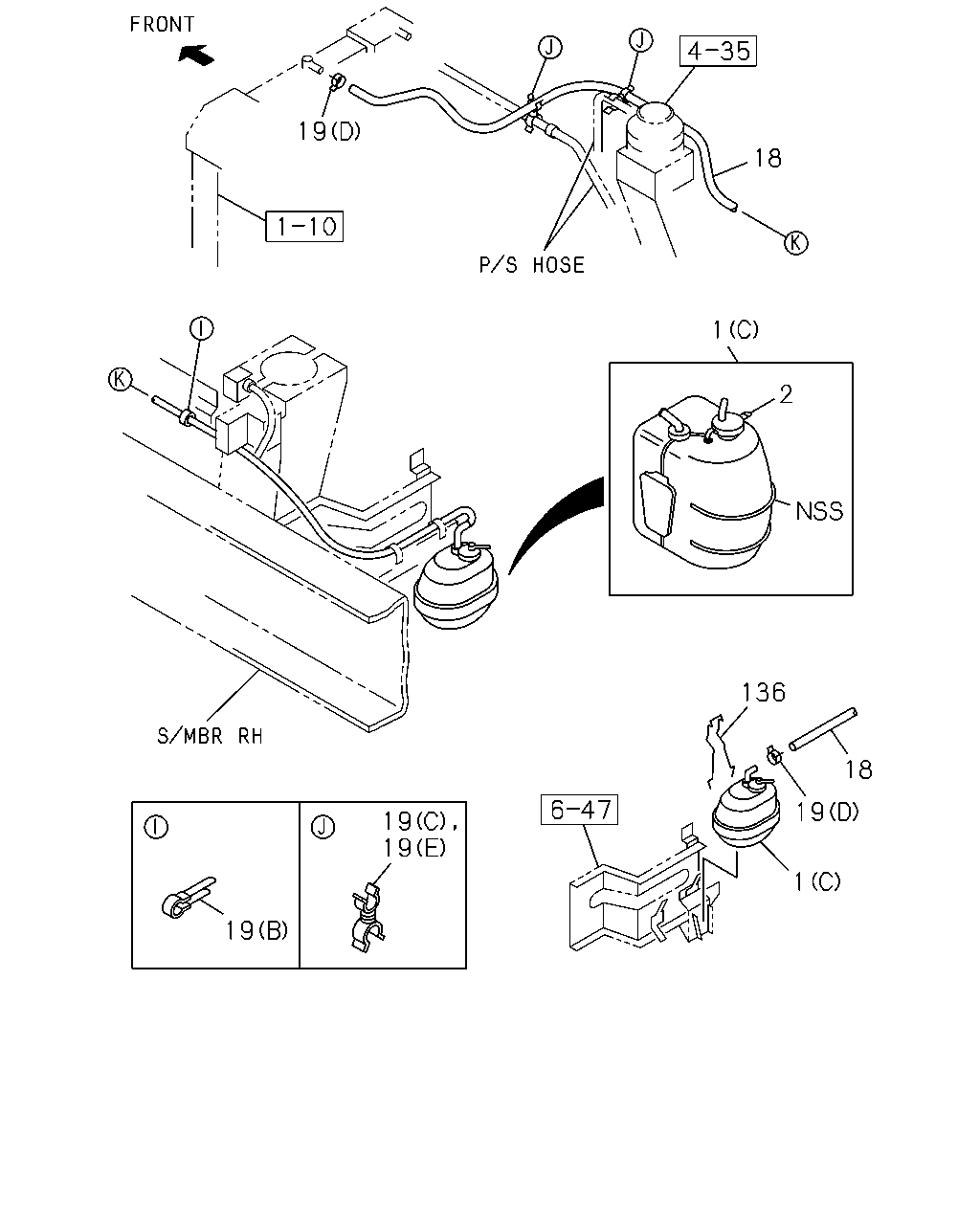

çizim 52191
19 18 1 2 136 18 19 19 19 1 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 TANK; SURGE,RAD
4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0211-0501 ● ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4HF1-N ENG(RJZ) (A) 		8-97210-844-0 01 1 0502-0609 ● ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-97210-844-0 01 1 0502-0609 ●
1 01.219 TANK; SURGE,RAD
4HF1-N ENG(RJZ) (A) 		8-97210-844-0 01 1 0610-1010 ● ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-97210-844-0 01 1 0610-1010 ●
1 01.219 TANK; SURGE,RAD
4HF1-N ENG(RJZ) (A) 		8-98178-177-0 01 1 1011- ● ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-98178-177-0 01 1 1011- ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 0211-0501 ● ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4JH1-TC ENG(RDM) (D) 		8-97205-136-1 01 1 0502-0609 ● ●
1 01.219 TANK; SURGE,RAD
(D) 		8-97205-136-1 01 1 0502-0609 ●
1 01.219 TANK; SURGE,RAD
4JB1-TC ENG(RDT) (D) 		8-97205-136-1 01 1 0610-0712 ●
1 01.219 TANK; SURGE,RAD
4JH1-TC ENG(RDM) (D) 		8-97205-136-1 01 1 0610-0712 ● ●
1 01.219 TANK; SURGE,RAD
(D) 		8-97205-136-1 01 1 0610-0712 ●
1 01.219 TANK; SURGE,RAD
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) (D) 		8-97205-136-1 01 1 0801- ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) 		8-97205-136-0 01 1 0211-0501 ● ● ●
1 01.219 TANK; SURGE,RAD
4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (D) 		8-97205-136-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) (B) 		8-97138-509-0 01 1 0502- ● ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 0211-0501 ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 0502- ●
2 01.203 CAP; SURGE TANK
4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0211-0501 ● ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4HF1-N ENG(RJZ) 		8-97217-796-0 01 1 0502-0609 ● ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97217-796-0 01 1 0502-0609 ●
2 01.203 CAP; SURGE TANK
4HF1-N ENG(RJZ) 		8-97217-796-0 01 1 0610-1010 ● ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97217-796-0 01 1 0610-1010 ●
2 01.203 CAP; SURGE TANK
4HF1-N ENG(RJZ) 		8-98178-074-0 01 1 1011- ● ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-98178-074-0 01 1 1011- ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 0211-0501 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0211-0501 ● ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) 		8-94449-363-0 01 1 0502- ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0502- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1-TC ENG(RDT) L=1740 		8-97225-444-1 01 1 0610-0712 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1-TC ENG(RDT) L=1740 		8-97225-444-1 01 1 0801- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-S ENG(RLS) L=1595 		8-97162-125-1 01 1 0211-0501 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) L=1595 		8-97162-125-1 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-N ENG(RJZ) L=1595 		8-97162-125-1 01 1 0502-0609 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=1595 		8-97162-125-1 01 1 0502-0609 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-N ENG(RJZ) L=1595 		8-97162-125-1 01 1 0610- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=1595 		8-97162-125-1 01 1 0610- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> L=1740 		8-97225-444-1 01 1 0211-0501 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1740 		8-97225-444-1 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) L=860 		8-97163-002-1 01 1 0502- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 0211-0501 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> L=1580 		8-97356-350-0 01 1 0211-0501 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1-TC ENG(RDM) L=1580 		8-97356-350-0 01 1 0502- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1580 		8-97356-350-0 01 1 0502- ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-2 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1595 		8-97148-533-2 01 1 0211- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-2 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 0211-0501 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 0502-0911 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=12 		8-98150-358-0 02 1 0912- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS) (A) ID=10 & 12 		8-94416-613-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) ID=10 & 12 		8-94416-613-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
(A) ID=10 & 12 		8-94416-613-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-N ENG(RJZ) (A) ID=10 & 12 		8-94416-613-0 01 1 0502-0609 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) ID=10 & 12 		8-94416-613-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
(A) ID=10 & 12 		8-94416-613-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) ID=10 & 12 		8-94416-613-0 01 1 0610- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-N ENG(RJZ) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0502-0609 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0610- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (B) ID=14 L=47 		5-09700-319-0 01 1 0502-0609 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) (B) ID=14 L=47 		5-09700-319-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) (B) ID=14 L=47 		5-09700-319-0 01 1 0610- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B) ID=14 L=47 		5-09700-319-0 02 1 0211-0501 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM) (B) ID=14 L=47 		5-09700-319-0 02 1 0502-0609 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 02 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1-TC ENG(RDT) (B) ID=14 L=47 		5-09700-319-0 02 1 0610-0712 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM) (B) ID=14 L=47 		5-09700-319-0 02 1 0610-0712 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 02 1 0610-0712 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) (B) ID=14 L=47 		5-09700-319-0 02 1 0801- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11 		8-94438-996-0 02 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11 		8-94438-996-0 02 1 0211-0501 ●
136 01.219 STOPPER; SURGE TANK 8-97087-220-0 01 1 0211-0501 ● ●
136 01.219 STOPPER; SURGE TANK 8-97087-220-0 01 1 0502- ●

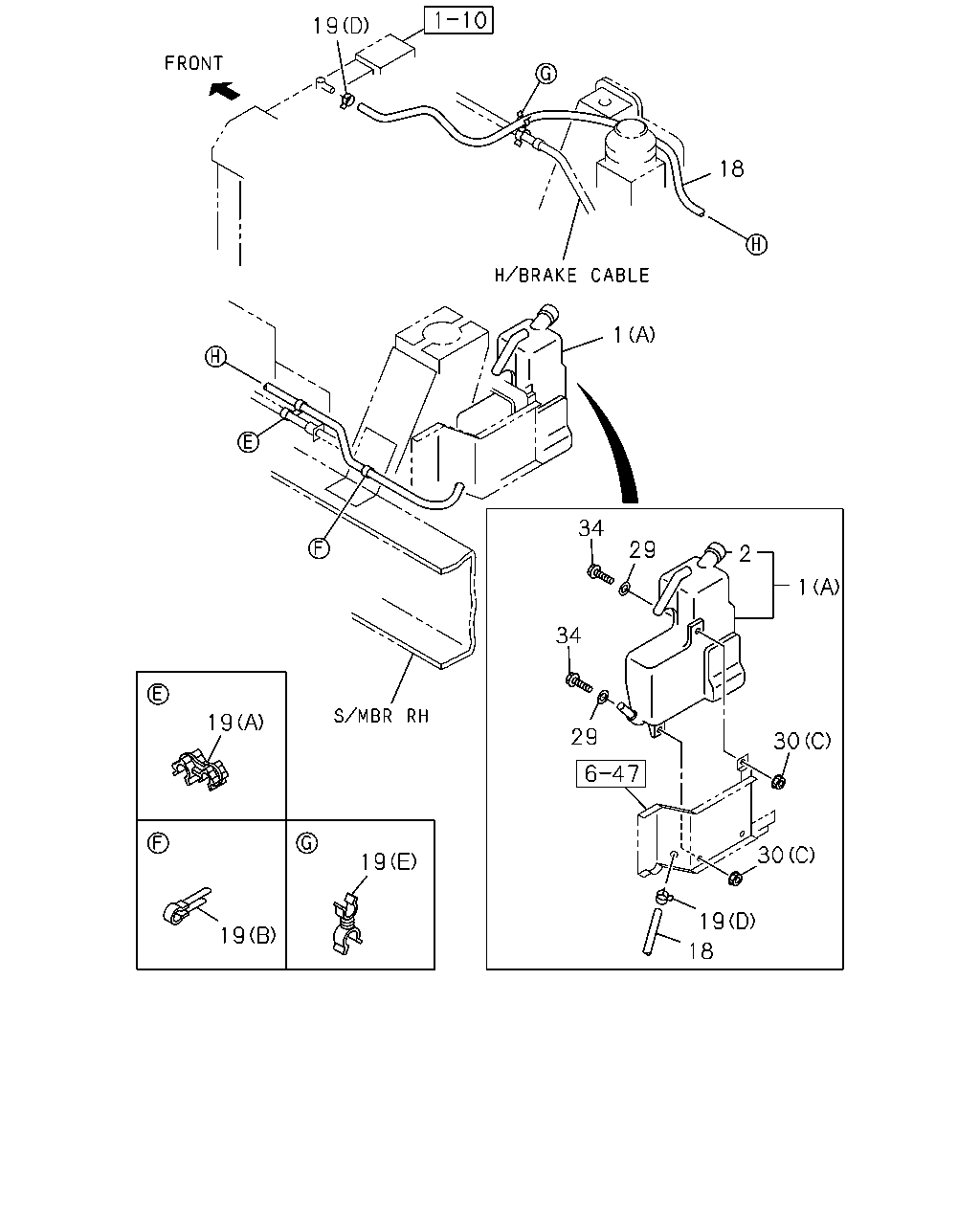

çizim 52554
19 18 1 34 29 2 1 34 19 29 30 30 19 19 19 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 TANK; SURGE,RAD
4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0211-0501 ● ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4HF1-N ENG(RJZ) (A) 		8-97210-844-0 01 1 0502-0609 ● ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-97210-844-0 01 1 0502-0609 ●
1 01.219 TANK; SURGE,RAD
4HF1-N ENG(RJZ) (A) 		8-97210-844-0 01 1 0610-1010 ● ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-97210-844-0 01 1 0610-1010 ●
1 01.219 TANK; SURGE,RAD
4HF1-N ENG(RJZ) (A) 		8-98178-177-0 01 1 1011- ● ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-98178-177-0 01 1 1011- ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 0211-0501 ● ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4JH1-TC ENG(RDM) (D) 		8-97205-136-1 01 1 0502-0609 ● ●
1 01.219 TANK; SURGE,RAD
(D) 		8-97205-136-1 01 1 0502-0609 ●
1 01.219 TANK; SURGE,RAD
4JB1-TC ENG(RDT) (D) 		8-97205-136-1 01 1 0610-0712 ●
1 01.219 TANK; SURGE,RAD
4JH1-TC ENG(RDM) (D) 		8-97205-136-1 01 1 0610-0712 ● ●
1 01.219 TANK; SURGE,RAD
(D) 		8-97205-136-1 01 1 0610-0712 ●
1 01.219 TANK; SURGE,RAD
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) (D) 		8-97205-136-1 01 1 0801- ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) 		8-97205-136-0 01 1 0211-0501 ● ● ●
1 01.219 TANK; SURGE,RAD
4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (D) 		8-97205-136-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) (B) 		8-97138-509-0 01 1 0502- ● ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 0211-0501 ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 0502- ●
2 01.203 CAP; SURGE TANK
4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0211-0501 ● ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4HF1-N ENG(RJZ) 		8-97217-796-0 01 1 0502-0609 ● ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97217-796-0 01 1 0502-0609 ●
2 01.203 CAP; SURGE TANK
4HF1-N ENG(RJZ) 		8-97217-796-0 01 1 0610-1010 ● ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97217-796-0 01 1 0610-1010 ●
2 01.203 CAP; SURGE TANK
4HF1-N ENG(RJZ) 		8-98178-074-0 01 1 1011- ● ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-98178-074-0 01 1 1011- ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 0211-0501 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0211-0501 ● ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) 		8-94449-363-0 01 1 0502- ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0502- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1-TC ENG(RDT) L=1740 		8-97225-444-1 01 1 0610-0712 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1-TC ENG(RDT) L=1740 		8-97225-444-1 01 1 0801- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-S ENG(RLS) L=1595 		8-97162-125-1 01 1 0211-0501 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) L=1595 		8-97162-125-1 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-N ENG(RJZ) L=1595 		8-97162-125-1 01 1 0502-0609 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=1595 		8-97162-125-1 01 1 0502-0609 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-N ENG(RJZ) L=1595 		8-97162-125-1 01 1 0610- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=1595 		8-97162-125-1 01 1 0610- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> L=1740 		8-97225-444-1 01 1 0211-0501 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1740 		8-97225-444-1 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) L=860 		8-97163-002-1 01 1 0502- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 0211-0501 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> L=1580 		8-97356-350-0 01 1 0211-0501 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1-TC ENG(RDM) L=1580 		8-97356-350-0 01 1 0502- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1580 		8-97356-350-0 01 1 0502- ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-2 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1595 		8-97148-533-2 01 1 0211- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-2 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 0211-0501 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 0502-0911 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=12 		8-98150-358-0 02 1 0912- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS) (A) ID=10 & 12 		8-94416-613-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) ID=10 & 12 		8-94416-613-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
(A) ID=10 & 12 		8-94416-613-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-N ENG(RJZ) (A) ID=10 & 12 		8-94416-613-0 01 1 0502-0609 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) ID=10 & 12 		8-94416-613-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
(A) ID=10 & 12 		8-94416-613-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) ID=10 & 12 		8-94416-613-0 01 1 0610- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-N ENG(RJZ) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0502-0609 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0610- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (B) ID=14 L=47 		5-09700-319-0 01 1 0502-0609 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) (B) ID=14 L=47 		5-09700-319-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) (B) ID=14 L=47 		5-09700-319-0 01 1 0610- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B) ID=14 L=47 		5-09700-319-0 02 1 0211-0501 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM) (B) ID=14 L=47 		5-09700-319-0 02 1 0502-0609 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 02 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1-TC ENG(RDT) (B) ID=14 L=47 		5-09700-319-0 02 1 0610-0712 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM) (B) ID=14 L=47 		5-09700-319-0 02 1 0610-0712 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 02 1 0610-0712 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) (B) ID=14 L=47 		5-09700-319-0 02 1 0801- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11 		8-94438-996-0 02 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11 		8-94438-996-0 02 1 0211-0501 ●
29 01.203 WASHER; PL,RESERVE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0211-0501 ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HF1-S ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0211-0501 ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0211-0501 ●
29 01.203 WASHER; PL,RESERVE TANK
4HF1-N ENG(RJZ),4JB1 ENG(RLF) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0502-0605 ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0502-0605 ●
29 01.203 WASHER; PL,RESERVE TANK
4HF1-N ENG(RJZ),4JB1 ENG(RLF) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0606-0609 ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0606-0609 ●
29 01.203 WASHER; PL,RESERVE TANK
4HF1-N ENG(RJZ),4JB1 ENG(RLF) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0610- ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0610- ●
30 01.203 NUT
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ● ● ● ●
30 01.203 NUT
4HF1-S ENG(RLS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ● ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ●
30 01.203 NUT
4HF1-N ENG(RJZ),4JB1 ENG(RLF) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0502-0602 ● ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0502-0602 ●
30 01.203 NUT
4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0603-0609 ● ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0603-0609 ●
30 01.203 NUT
4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0610- ● ●
30 01.203 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0610- ●
30 01.203 NUT
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0211-0501 ● ● ● ●
30 01.203 NUT
4JH1-TC ENG(RDM) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0502-0602 ● ●
30 01.203 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0502-0602 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0603-0609 ● ●
30 01.203 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0603-0609 ●
30 01.203 NUT
4JB1-TC ENG(RDT) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0610-0712 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0610-0712 ● ●
30 01.203 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0610-0712 ●
30 01.203 NUT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0801- ● ● ● ●
30 01.203 NUT
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0211-0501 ● ● ● ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0502-0602 ● ●
30 01.203 NUT
01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0502-0602 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0603-0609 ● ●
30 01.203 NUT
01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0603-0609 ●
30 01.203 NUT
4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0610-0712 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0610-0712 ● ●
30 01.203 NUT
01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0610-0712 ●
30 01.203 NUT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0801- ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4HF1-S ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0211-0501 ● ●
34 01.203 BOLT; RESERVE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0211-0501 ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0211-0501 ●
34 01.203 BOLT; RESERVE TANK
4HF1-N ENG(RJZ) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0502-0512 ● ●
34 01.203 BOLT; RESERVE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0502-0512 ●
34 01.203 BOLT; RESERVE TANK
4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0601-0609 ● ●
34 01.203 BOLT; RESERVE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0601-0609 ●
34 01.203 BOLT; RESERVE TANK
4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0610- ● ●
34 01.203 BOLT; RESERVE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0610- ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0211-0501 ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0211-0501 ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0502-0512 ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) 09.242 M6X16 FLANGE 		0-28050-616-0 03 1 0601- ● ● ●
34 01.203 BOLT; RESERVE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0211-0501 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0502-0512 ● ●
34 01.203 BOLT; RESERVE TANK
02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0502-0512 ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0601-0609 ● ●
34 01.203 BOLT; RESERVE TANK
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0601-0609 ●
34 01.203 BOLT; RESERVE TANK
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0610-0712 ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0610-0712 ● ●
34 01.203 BOLT; RESERVE TANK
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0610-0712 ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0801- ● ● ● ●

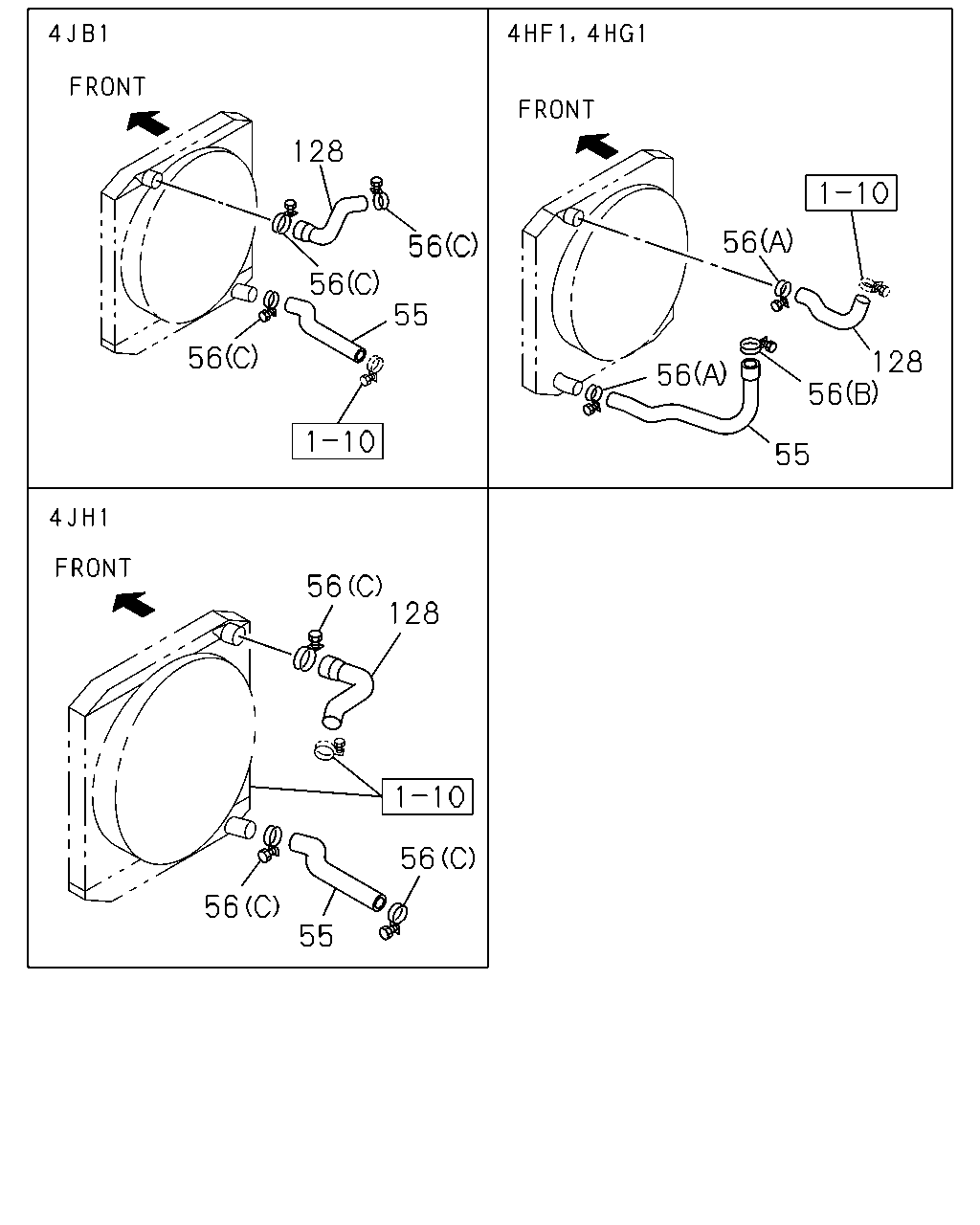

çizim 53227
128 56 56 56 55 56 128 56 56 55 56 128 56 56 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
55 01.173 HOSE; WATER,RAD OUTLET
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-186-1 01 1 0211-0501 ●
55 01.173 HOSE; WATER,RAD OUTLET
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-187-1 01 1 0211-0501 ●
55 01.173 HOSE; WATER,RAD OUTLET
4JH1 ENG(RJX) 		8-97260-187-1 01 1 0211-0501 ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4JH1-TC ENG(RDM) 		8-97260-187-2 01 1 0502- ● ●
55 01.173 HOSE; WATER,RAD OUTLET 8-97260-187-2 01 1 0502- ●
55 01.173 HOSE; WATER,RAD OUTLET
4HF1-S ENG(RLS) 		8-97124-740-0 01 1 0211-0501 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97124-740-0 01 1 0211-0501 ●
55 01.173 HOSE; WATER,RAD OUTLET 8-97124-740-0 01 1 0211-0501 ●
55 01.173 HOSE; WATER,RAD OUTLET
4HF1-N ENG(RJZ) 		8-97124-740-0 01 1 0502-0609 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97124-740-0 01 1 0502-0609 ●
55 01.173 HOSE; WATER,RAD OUTLET 8-97124-740-0 01 1 0502-0609 ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97124-740-0 01 1 0610- ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4JB1 ENG(RLF) 		8-97089-916-1 01 1 0211-0501 ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET 8-97089-916-1 01 1 0211-0501 ●
55 01.173 HOSE; WATER,RAD OUTLET
4JB1 ENG(RLF) 		8-97089-916-1 01 1 0502-0609 ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 		8-97089-916-1 01 1 0610- ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HF1-S ENG(RLS) (A) ID=40 		8-97245-216-0 02 1 0211-0501 ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) ID=40 		8-97245-216-0 02 1 0211-0501 ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40 		8-97245-216-0 02 1 0211-0501 ●
56 01.166 CLIP; WATER HOSE,RAD
4HF1-N ENG(RJZ) (A) ID=40 		8-97245-216-0 02 1 0502-0609 ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) ID=40 		8-97245-216-0 02 1 0502-0609 ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40 		8-97245-216-0 02 1 0502-0609 ●
56 01.166 CLIP; WATER HOSE,RAD
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) ID=40 		8-97245-216-0 02 1 0610- ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HF1-S ENG(RLS) (B) ID=50 		8-97245-217-0 01 1 0211-0501 ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) ID=50 		8-97245-217-0 01 1 0211-0501 ●
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=50 		8-97245-217-0 01 1 0211-0501 ●
56 01.166 CLIP; WATER HOSE,RAD
4HF1-N ENG(RJZ) (B) ID=50 		8-97245-217-0 01 1 0502-0609 ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) ID=50 		8-97245-217-0 01 1 0502-0609 ●
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=50 		8-97245-217-0 01 1 0502-0609 ●
56 01.166 CLIP; WATER HOSE,RAD
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) ID=50 		8-97245-217-0 01 1 0610- ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JH1 ENG(RJX),4JB1 ENG(RLF) (C) ID=48 		5-09704-049-0 03 1 0211-0501 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(C) ID=48 		5-09704-049-0 03 1 0211-0501 ●
56 01.166 CLIP; WATER HOSE,RAD
4JB1 ENG(RLF) (C) ID=48 		5-09704-049-0 03 1 0502-0609 ●
56 01.166 CLIP; WATER HOSE,RAD
4JH1-TC ENG(RDM),4JB1 ENG(RLF) (C) ID=48 		5-09704-049-0 03 1 0502-0609 ● ●
56 01.166 CLIP; WATER HOSE,RAD
(C) ID=48 		5-09704-049-0 03 1 0502-0609 ●
56 01.166 CLIP; WATER HOSE,RAD
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) (C) ID=48 		5-09704-049-0 03 1 0610-0610 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) (C) ID=48 		8-98036-282-0 03 1 0611-0712 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) (C) ID=48 		8-98036-282-0 03 1 0801-0901 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT), 4JB1 ENG(RLF) (C) ID=48 		8-98133-956-0 03 1 0902- ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4JB1-TC ENG(RDT) 		8-97177-853-0 01 1 0610-0712 ●
128 01.159 HOSE; WATER,RAD INL
4JB1-TC ENG(RDT) 		8-97177-853-0 01 1 0801- ● ●
128 01.159 HOSE; WATER,RAD INL
4HF1-S ENG(RLS) 		8-97162-163-0 01 1 0211-0501 ● ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97162-163-0 01 1 0211-0501 ●
128 01.159 HOSE; WATER,RAD INL 8-97162-163-0 01 1 0211-0501 ●
128 01.159 HOSE; WATER,RAD INL
4HF1-N ENG(RJZ) 		8-97162-163-0 01 1 0502-0609 ● ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97162-163-0 01 1 0502-0609 ●
128 01.159 HOSE; WATER,RAD INL 8-97162-163-0 01 1 0502-0609 ●
128 01.159 HOSE; WATER,RAD INL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97162-163-0 01 1 0610- ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97177-853-0 01 1 0211-0501 ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4JB1 ENG(RLF) 		8-97147-473-0 01 1 0502- ● ● ●
128 01.159 HOSE; WATER,RAD INL
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97147-473-0 01 1 0211-0501 ● ● ● ●
128 01.159 HOSE; WATER,RAD INL 8-97147-473-0 01 1 0211-0501 ●
128 01.159 HOSE; WATER,RAD INL
4JH1 ENG(RJX) 		8-97289-369-0 01 1 0211-0501 ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4JH1-TC ENG(RDM) 		8-97289-369-1 01 1 0502- ● ●
128 01.159 HOSE; WATER,RAD INL 8-97289-369-1 01 1 0502- ●

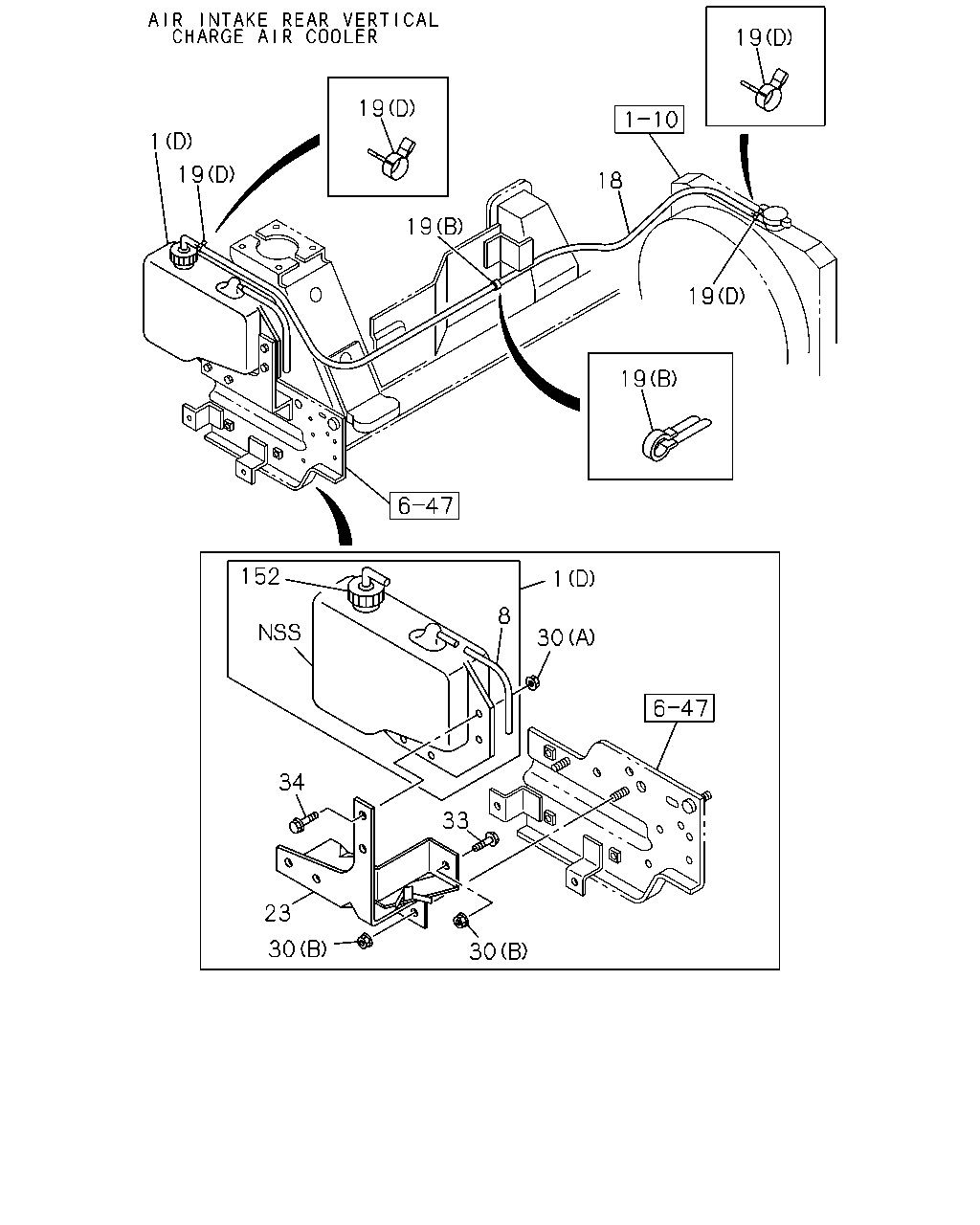

çizim 53334
19 19 1 19 18 19 19 19 152 1 8 30 34 33 23 30 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 TANK; SURGE,RAD
4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0211-0501 ● ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4HF1-N ENG(RJZ) (A) 		8-97210-844-0 01 1 0502-0609 ● ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-97210-844-0 01 1 0502-0609 ●
1 01.219 TANK; SURGE,RAD
4HF1-N ENG(RJZ) (A) 		8-97210-844-0 01 1 0610-1010 ● ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-97210-844-0 01 1 0610-1010 ●
1 01.219 TANK; SURGE,RAD
4HF1-N ENG(RJZ) (A) 		8-98178-177-0 01 1 1011- ● ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-98178-177-0 01 1 1011- ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 0211-0501 ● ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4JH1-TC ENG(RDM) (D) 		8-97205-136-1 01 1 0502-0609 ● ●
1 01.219 TANK; SURGE,RAD
(D) 		8-97205-136-1 01 1 0502-0609 ●
1 01.219 TANK; SURGE,RAD
4JB1-TC ENG(RDT) (D) 		8-97205-136-1 01 1 0610-0712 ●
1 01.219 TANK; SURGE,RAD
4JH1-TC ENG(RDM) (D) 		8-97205-136-1 01 1 0610-0712 ● ●
1 01.219 TANK; SURGE,RAD
(D) 		8-97205-136-1 01 1 0610-0712 ●
1 01.219 TANK; SURGE,RAD
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) (D) 		8-97205-136-1 01 1 0801- ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) 		8-97205-136-0 01 1 0211-0501 ● ● ●
1 01.219 TANK; SURGE,RAD
4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (D) 		8-97205-136-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) (B) 		8-97138-509-0 01 1 0502- ● ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 0211-0501 ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 0502- ●
8 01.166 HOSE; VINYL
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.240 L=500 		1-09366-179-0 01 1 0211-0501 ● ● ●
8 01.166 HOSE; VINYL
4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 01.240 L=500 		1-09366-179-0 01 1 0211-0501 ●
8 01.166 HOSE; VINYL
4JH1-TC ENG(RDM) 01.240 L=500 		1-09366-179-0 01 1 0502-0609 ● ●
8 01.166 HOSE; VINYL
01.240 L=500 		1-09366-179-0 01 1 0502-0609 ●
8 01.166 HOSE; VINYL
4JB1-TC ENG(RDT) 01.240 L=500 		1-09366-179-0 01 1 0610-0712 ●
8 01.166 HOSE; VINYL
4JH1-TC ENG(RDM) 01.240 L=500 		1-09366-179-0 01 1 0610-0712 ● ●
8 01.166 HOSE; VINYL
01.240 L=500 		1-09366-179-0 01 1 0610-0712 ●
8 01.166 HOSE; VINYL
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) 01.240 L=500 		1-09366-179-0 01 1 0801- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1-TC ENG(RDT) L=1740 		8-97225-444-1 01 1 0610-0712 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1-TC ENG(RDT) L=1740 		8-97225-444-1 01 1 0801- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-S ENG(RLS) L=1595 		8-97162-125-1 01 1 0211-0501 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) L=1595 		8-97162-125-1 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-N ENG(RJZ) L=1595 		8-97162-125-1 01 1 0502-0609 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=1595 		8-97162-125-1 01 1 0502-0609 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-N ENG(RJZ) L=1595 		8-97162-125-1 01 1 0610- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=1595 		8-97162-125-1 01 1 0610- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> L=1740 		8-97225-444-1 01 1 0211-0501 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1740 		8-97225-444-1 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) L=860 		8-97163-002-1 01 1 0502- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 0211-0501 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> L=1580 		8-97356-350-0 01 1 0211-0501 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1-TC ENG(RDM) L=1580 		8-97356-350-0 01 1 0502- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1580 		8-97356-350-0 01 1 0502- ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-2 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1595 		8-97148-533-2 01 1 0211- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-2 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 0211-0501 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 0502-0911 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=12 		8-98150-358-0 02 1 0912- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS) (A) ID=10 & 12 		8-94416-613-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) ID=10 & 12 		8-94416-613-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
(A) ID=10 & 12 		8-94416-613-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-N ENG(RJZ) (A) ID=10 & 12 		8-94416-613-0 01 1 0502-0609 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) ID=10 & 12 		8-94416-613-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
(A) ID=10 & 12 		8-94416-613-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) ID=10 & 12 		8-94416-613-0 01 1 0610- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-N ENG(RJZ) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0502-0609 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0610- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (B) ID=14 L=47 		5-09700-319-0 01 1 0502-0609 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) (B) ID=14 L=47 		5-09700-319-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) (B) ID=14 L=47 		5-09700-319-0 01 1 0610- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B) ID=14 L=47 		5-09700-319-0 02 1 0211-0501 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM) (B) ID=14 L=47 		5-09700-319-0 02 1 0502-0609 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 02 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1-TC ENG(RDT) (B) ID=14 L=47 		5-09700-319-0 02 1 0610-0712 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM) (B) ID=14 L=47 		5-09700-319-0 02 1 0610-0712 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 02 1 0610-0712 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) (B) ID=14 L=47 		5-09700-319-0 02 1 0801- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11 		8-94438-996-0 02 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11 		8-94438-996-0 02 1 0211-0501 ●
23 01.219 BRACKET; RESERVE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97225-271-1 01 1 0211-0501 ● ● ● ●
23 01.219 BRACKET; RESERVE TANK
4JH1-TC ENG(RDM) 		8-97225-271-1 01 1 0502-0609 ● ●
23 01.219 BRACKET; RESERVE TANK 8-97225-271-1 01 1 0502-0609 ●
23 01.219 BRACKET; RESERVE TANK
4JB1-TC ENG(RDT) 		8-97225-271-1 01 1 0610-0712 ●
23 01.219 BRACKET; RESERVE TANK
4JH1-TC ENG(RDM) 		8-97225-271-1 01 1 0610-0712 ● ●
23 01.219 BRACKET; RESERVE TANK 8-97225-271-1 01 1 0610-0712 ●
23 01.219 BRACKET; RESERVE TANK
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) 		8-97225-271-1 01 1 0801- ● ● ● ●
30 01.203 NUT
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ● ● ● ●
30 01.203 NUT
4HF1-S ENG(RLS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ● ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ●
30 01.203 NUT
4HF1-N ENG(RJZ),4JB1 ENG(RLF) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0502-0602 ● ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0502-0602 ●
30 01.203 NUT
4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0603-0609 ● ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0603-0609 ●
30 01.203 NUT
4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0610- ● ●
30 01.203 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0610- ●
30 01.203 NUT
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0211-0501 ● ● ● ●
30 01.203 NUT
4JH1-TC ENG(RDM) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0502-0602 ● ●
30 01.203 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0502-0602 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0603-0609 ● ●
30 01.203 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0603-0609 ●
30 01.203 NUT
4JB1-TC ENG(RDT) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0610-0712 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0610-0712 ● ●
30 01.203 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0610-0712 ●
30 01.203 NUT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0801- ● ● ● ●
30 01.203 NUT
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0211-0501 ● ● ● ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0502-0602 ● ●
30 01.203 NUT
01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0502-0602 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0603-0609 ● ●
30 01.203 NUT
01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0603-0609 ●
30 01.203 NUT
4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0610-0712 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0610-0712 ● ●
30 01.203 NUT
01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0610-0712 ●
30 01.203 NUT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0801- ● ● ● ●
33 01.277 BOLT; BRKT
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ●
33 01.277 BOLT; BRKT
4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ●
33 01.277 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ●
33 01.277 BOLT; BRKT
4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609 ● ●
33 01.277 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609 ●
33 01.277 BOLT; BRKT
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0610-0712 ●
33 01.277 BOLT; BRKT
4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0610-0712 ● ●
33 01.277 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0610-0712 ●
33 01.277 BOLT; BRKT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0801- ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4HF1-S ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0211-0501 ● ●
34 01.203 BOLT; RESERVE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0211-0501 ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0211-0501 ●
34 01.203 BOLT; RESERVE TANK
4HF1-N ENG(RJZ) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0502-0512 ● ●
34 01.203 BOLT; RESERVE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0502-0512 ●
34 01.203 BOLT; RESERVE TANK
4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0601-0609 ● ●
34 01.203 BOLT; RESERVE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0601-0609 ●
34 01.203 BOLT; RESERVE TANK
4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0610- ● ●
34 01.203 BOLT; RESERVE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0610- ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0211-0501 ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0211-0501 ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0502-0512 ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) 09.242 M6X16 FLANGE 		0-28050-616-0 03 1 0601- ● ● ●
34 01.203 BOLT; RESERVE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0211-0501 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0502-0512 ● ●
34 01.203 BOLT; RESERVE TANK
02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0502-0512 ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0601-0609 ● ●
34 01.203 BOLT; RESERVE TANK
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0601-0609 ●
34 01.203 BOLT; RESERVE TANK
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0610-0712 ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0610-0712 ● ●
34 01.203 BOLT; RESERVE TANK
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0610-0712 ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0801- ● ● ● ●
152 01.203 CAP ASM; SURGE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 		8-97217-799-0 01 1 0211-0501 ● ● ●
152 01.203 CAP ASM; SURGE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 		8-97217-799-0 01 1 0211-0501 ●
152 01.203 CAP ASM; SURGE TANK
4JH1-TC ENG(RDM) 		8-97217-799-0 01 1 0502-0609 ● ●
152 01.203 CAP ASM; SURGE TANK 8-97217-799-0 01 1 0502-0609 ●
152 01.203 CAP ASM; SURGE TANK
4JB1-TC ENG(RDT) 		8-97217-799-0 01 1 0610-0712 ●
152 01.203 CAP ASM; SURGE TANK
4JH1-TC ENG(RDM) 		8-97217-799-0 01 1 0610-0712 ● ●
152 01.203 CAP ASM; SURGE TANK 8-97217-799-0 01 1 0610-0712 ●
152 01.203 CAP ASM; SURGE TANK
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) 		8-97217-799-0 01 1 0801- ● ● ● ●
çizim 53648
19 18 1 19 19 34 1 2 29 34 30 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 TANK; SURGE,RAD
4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0211-0501 ● ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4HF1-N ENG(RJZ) (A) 		8-97210-844-0 01 1 0502-0609 ● ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-97210-844-0 01 1 0502-0609 ●
1 01.219 TANK; SURGE,RAD
4HF1-N ENG(RJZ) (A) 		8-97210-844-0 01 1 0610-1010 ● ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-97210-844-0 01 1 0610-1010 ●
1 01.219 TANK; SURGE,RAD
4HF1-N ENG(RJZ) (A) 		8-98178-177-0 01 1 1011- ● ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-98178-177-0 01 1 1011- ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 0211-0501 ● ● ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97138-509-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4JH1-TC ENG(RDM) (D) 		8-97205-136-1 01 1 0502-0609 ● ●
1 01.219 TANK; SURGE,RAD
(D) 		8-97205-136-1 01 1 0502-0609 ●
1 01.219 TANK; SURGE,RAD
4JB1-TC ENG(RDT) (D) 		8-97205-136-1 01 1 0610-0712 ●
1 01.219 TANK; SURGE,RAD
4JH1-TC ENG(RDM) (D) 		8-97205-136-1 01 1 0610-0712 ● ●
1 01.219 TANK; SURGE,RAD
(D) 		8-97205-136-1 01 1 0610-0712 ●
1 01.219 TANK; SURGE,RAD
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) (D) 		8-97205-136-1 01 1 0801- ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) 		8-97205-136-0 01 1 0211-0501 ● ● ●
1 01.219 TANK; SURGE,RAD
4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (D) 		8-97205-136-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) (B) 		8-97138-509-0 01 1 0502- ● ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 0211-0501 ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 0502- ●
2 01.203 CAP; SURGE TANK
4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0211-0501 ● ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4HF1-N ENG(RJZ) 		8-97217-796-0 01 1 0502-0609 ● ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97217-796-0 01 1 0502-0609 ●
2 01.203 CAP; SURGE TANK
4HF1-N ENG(RJZ) 		8-97217-796-0 01 1 0610-1010 ● ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97217-796-0 01 1 0610-1010 ●
2 01.203 CAP; SURGE TANK
4HF1-N ENG(RJZ) 		8-98178-074-0 01 1 1011- ● ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-98178-074-0 01 1 1011- ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 0211-0501 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0211-0501 ● ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94449-363-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4JB1 ENG(RLF) 		8-94449-363-0 01 1 0502- ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0502- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1-TC ENG(RDT) L=1740 		8-97225-444-1 01 1 0610-0712 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1-TC ENG(RDT) L=1740 		8-97225-444-1 01 1 0801- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-S ENG(RLS) L=1595 		8-97162-125-1 01 1 0211-0501 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) L=1595 		8-97162-125-1 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-N ENG(RJZ) L=1595 		8-97162-125-1 01 1 0502-0609 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=1595 		8-97162-125-1 01 1 0502-0609 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-N ENG(RJZ) L=1595 		8-97162-125-1 01 1 0610- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=1595 		8-97162-125-1 01 1 0610- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> L=1740 		8-97225-444-1 01 1 0211-0501 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1740 		8-97225-444-1 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) L=860 		8-97163-002-1 01 1 0502- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 0211-0501 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860 		8-97163-002-1 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> L=1580 		8-97356-350-0 01 1 0211-0501 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1-TC ENG(RDM) L=1580 		8-97356-350-0 01 1 0502- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1580 		8-97356-350-0 01 1 0502- ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-2 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1595 		8-97148-533-2 01 1 0211- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-2 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 0211-0501 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 0502-0911 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=12 		8-98150-358-0 02 1 0912- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS) (A) ID=10 & 12 		8-94416-613-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) ID=10 & 12 		8-94416-613-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
(A) ID=10 & 12 		8-94416-613-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-N ENG(RJZ) (A) ID=10 & 12 		8-94416-613-0 01 1 0502-0609 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) ID=10 & 12 		8-94416-613-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
(A) ID=10 & 12 		8-94416-613-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) ID=10 & 12 		8-94416-613-0 01 1 0610- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-N ENG(RJZ) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0502-0609 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 0610- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-N ENG(RJZ),4JB1 ENG(RLF) (B) ID=14 L=47 		5-09700-319-0 01 1 0502-0609 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) (B) ID=14 L=47 		5-09700-319-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 01 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) (B) ID=14 L=47 		5-09700-319-0 01 1 0610- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B) ID=14 L=47 		5-09700-319-0 02 1 0211-0501 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM) (B) ID=14 L=47 		5-09700-319-0 02 1 0502-0609 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 02 1 0502-0609 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1-TC ENG(RDT) (B) ID=14 L=47 		5-09700-319-0 02 1 0610-0712 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM) (B) ID=14 L=47 		5-09700-319-0 02 1 0610-0712 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 02 1 0610-0712 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) (B) ID=14 L=47 		5-09700-319-0 02 1 0801- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11 		8-94438-996-0 02 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11 		8-94438-996-0 02 1 0211-0501 ●
29 01.203 WASHER; PL,RESERVE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0211-0501 ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HF1-S ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0211-0501 ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0211-0501 ●
29 01.203 WASHER; PL,RESERVE TANK
4HF1-N ENG(RJZ),4JB1 ENG(RLF) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0502-0605 ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0502-0605 ●
29 01.203 WASHER; PL,RESERVE TANK
4HF1-N ENG(RJZ),4JB1 ENG(RLF) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0606-0609 ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0606-0609 ●
29 01.203 WASHER; PL,RESERVE TANK
4HF1-N ENG(RJZ),4JB1 ENG(RLF) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0610- ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0610- ●
30 01.203 NUT
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ● ● ● ●
30 01.203 NUT
4HF1-S ENG(RLS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ● ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ●
30 01.203 NUT
4HF1-N ENG(RJZ),4JB1 ENG(RLF) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0502-0602 ● ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 04.594 (C) M6 FLANGE 		0-91150-106-0 03 1 0502-0602 ●
30 01.203 NUT
4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0603-0609 ● ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0603-0609 ●
30 01.203 NUT
4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0610- ● ●
30 01.203 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4JB1 ENG(RLF) 01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0610- ●
30 01.203 NUT
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0211-0501 ● ● ● ●
30 01.203 NUT
4JH1-TC ENG(RDM) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0502-0602 ● ●
30 01.203 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0502-0602 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0603-0609 ● ●
30 01.203 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0603-0609 ●
30 01.203 NUT
4JB1-TC ENG(RDT) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0610-0712 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0610-0712 ● ●
30 01.203 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0610-0712 ●
30 01.203 NUT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0801- ● ● ● ●
30 01.203 NUT
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0211-0501 ● ● ● ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0502-0602 ● ●
30 01.203 NUT
01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0502-0602 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0603-0609 ● ●
30 01.203 NUT
01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0603-0609 ●
30 01.203 NUT
4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0610-0712 ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0610-0712 ● ●
30 01.203 NUT
01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0610-0712 ●
30 01.203 NUT
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0801- ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4HF1-S ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0211-0501 ● ●
34 01.203 BOLT; RESERVE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0211-0501 ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0211-0501 ●
34 01.203 BOLT; RESERVE TANK
4HF1-N ENG(RJZ) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0502-0512 ● ●
34 01.203 BOLT; RESERVE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 0502-0512 ●
34 01.203 BOLT; RESERVE TANK
4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0601-0609 ● ●
34 01.203 BOLT; RESERVE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0601-0609 ●
34 01.203 BOLT; RESERVE TANK
4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0610- ● ●
34 01.203 BOLT; RESERVE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.386 M6X20 FLANGE 		0-28050-620-0 03 1 0610- ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0211-0501 ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0211-0501 ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 0502-0512 ● ● ●
34 01.203 BOLT; RESERVE TANK
4JB1 ENG(RLF) 09.242 M6X16 FLANGE 		0-28050-616-0 03 1 0601- ● ● ●
34 01.203 BOLT; RESERVE TANK
4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0211-0501 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0502-0512 ● ●
34 01.203 BOLT; RESERVE TANK
02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0502-0512 ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0601-0609 ● ●
34 01.203 BOLT; RESERVE TANK
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0601-0609 ●
34 01.203 BOLT; RESERVE TANK
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0610-0712 ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0610-0712 ● ●
34 01.203 BOLT; RESERVE TANK
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0610-0712 ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM),4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0801- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
