Sayfa 2-20B - Isuzu EPC

2-20B — MANUAL TRANSMISSION ASM AND CASE (#4764) — 355 parça

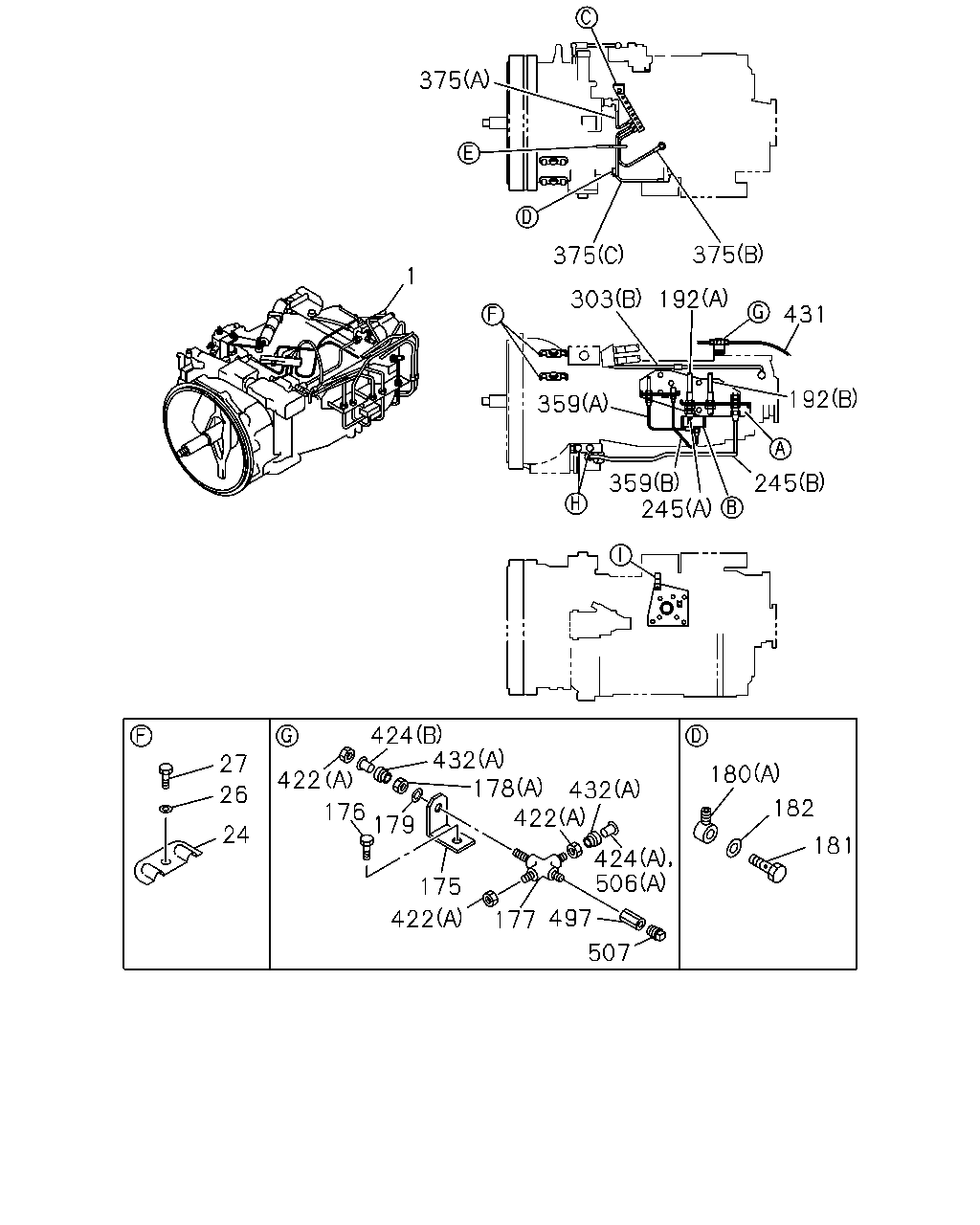

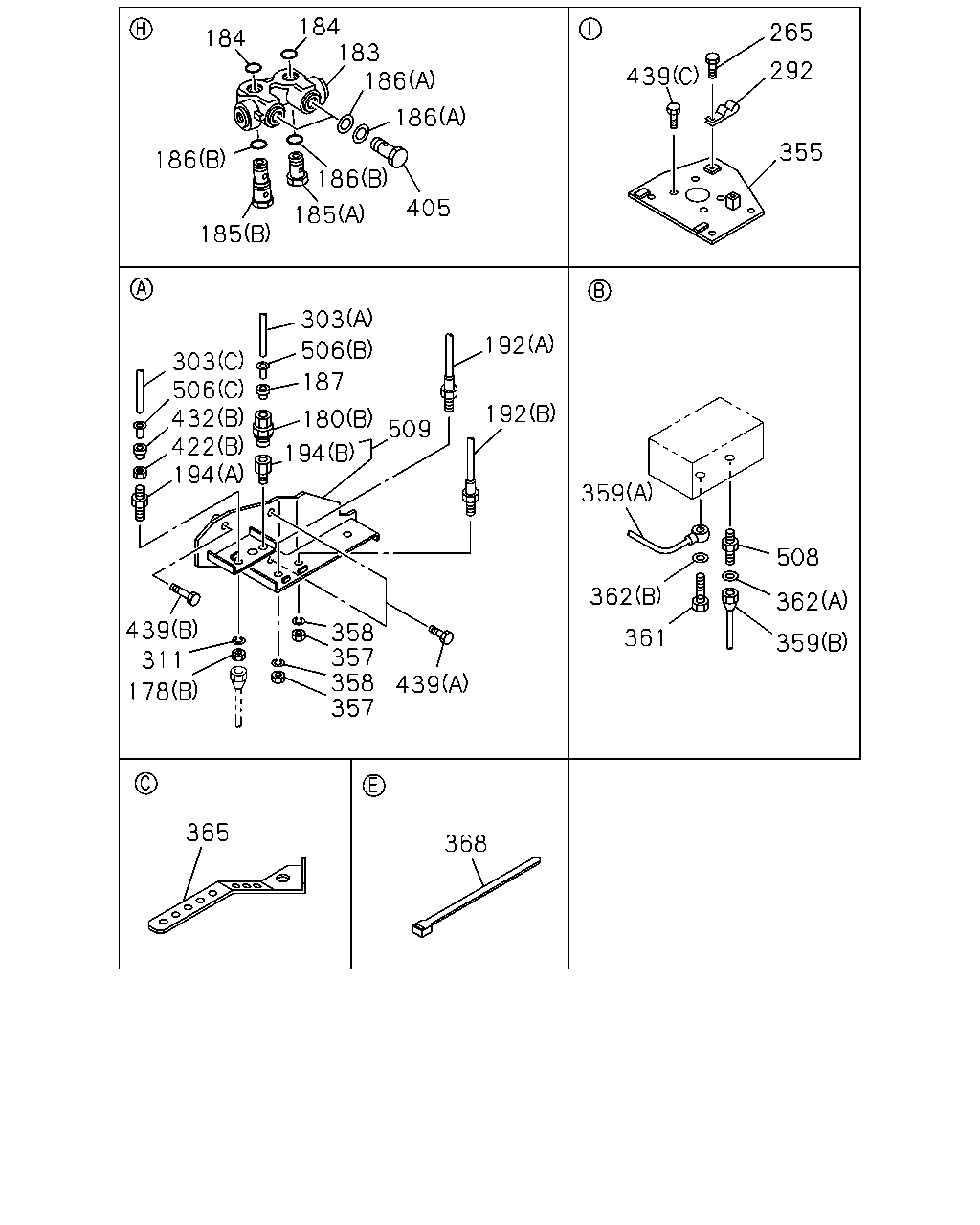

184 183 186 265 184 292 439 186 355 186 186 405 185 185 303 192 506 303 506 432 422 194 187 192 180 509 194 359 508 362 362 439 311 358 357 358 357 361 359 439 178 365 368

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
178	NUT; UNION (A) M14	9-99110-414-0	01	1	9603-9904	●
178	NUT; UNION (B) M14	9-99111-414-0	01	1	9603-	●
180	CONNECTOR; NYLON TUBE (A)	1-09660-239-0	01	1	9603-9904	●
180	CONNECTOR; NYLON TUBE (A)	1-09660-239-0	01	1	9905-	●	●
180	CONNECTOR; NYLON TUBE (B)	1-09660-466-0	01	1	9603-9904	●
183	VALVE; BYPASS,TRANS	1-32569-046-0	01	1	9603-	●
184	GASKET; BYPASS VLV	1-32568-003-0	02	1	9603-	●
185	UNION; SCREW,BYPASS VLV (A) M22	1-32567-011-0	01	1	9603-	●
185	UNION; SCREW,BYPASS VLV (B) L=67	1-32567-014-0	01	1	9603-9701	●
185	UNION; SCREW,BYPASS VLV (B)	1-32567-016-0	01	1	9702-	●
186	RING; SEAL (A) ID=22	1-32568-001-0	04	1	9603-9904	●
186	RING; SEAL (A) ID=22	1-32568-001-0	04	1	9905-	●	●
186	RING; SEAL (B) ID=22	1-32568-002-0	02	1	9603-	●
187	GASKET; CONNECTOR ID=10.2 OD=15.2	1-09630-083-0	01	1	9603-9904	●
192	HOSE; FLEX,TRANS (B) L=400	1-09364-913-0	01	1	9603-9701	●
192	HOSE; FLEX,TRANS (B) L=500	1-09364-914-0	01	1	9702-9711	●
192	HOSE; FLEX,TRANS 6WA1 TC-S(56L) (A) L=500	1-09364-914-0	01	1	9712-9904	●
192	HOSE; FLEX,TRANS (A) L=500	1-09364-914-0	01	1	9603-9603	●
192	HOSE; FLEX,TRANS 6WA1 TC-S(56L) (A) L=500	1-09364-914-0	01	1	9604-9701	●
192	HOSE; FLEX,TRANS 6WA1 TC-S(56L) (B) L=400	1-09364-913-0	01	1	9702-9804	●
192	HOSE; FLEX,TRANS 6WA1 TC-S(56L) (B) L=311	1-09364-921-0	01	1	9805-9904	●
192	HOSE; FLEX,TRANS 10PE1S(60L) (B) L=410	1-09364-935-0	01	1	9604-9609	●
192	HOSE; FLEX,TRANS 10PE1S(60L) (A) L=535	1-09364-936-0	01	1	9604-9609	●
192	HOSE; FLEX,TRANS 10PE1S(60L) (B) L=406	1-09364-961-0	01	1	9610-9904	●
192	HOSE; FLEX,TRANS L TYPE ENG<90L> (A) L=535	1-09364-936-0	01	1	9905-	●	●
192	HOSE; FLEX,TRANS V TYPE ENG<91L> (A) L=400	1-09364-913-0	01	1	9905-	●	●
192	HOSE; FLEX,TRANS V TYPE ENG<91L> (B) L=500	1-09364-914-0	01	1	9905-	●	●
192	HOSE; FLEX,TRANS L TYPE ENG<90L> (B) L=406	1-09364-961-0	01	1	9905-	●	●
194	UNION; NYLON TUBE (A) M14	1-09664-230-0	01	1	9603-	●
194	UNION; NYLON TUBE (B)	1-09664-234-0	01	1	9603-9904	●
265	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	9603-9904	●
265	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	9905-	●	●
292	CLIP; OIL PIPE ID=16 & 16 L=28	1-09701-219-0	01	1	9603-9904	●
292	CLIP; OIL PIPE ID=16 & 16 L=28	1-09701-219-0	01	1	9905-	●	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	9905-9909	●	●
303	TUBE; NYLON L TYPE ENG<90L> (C) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	9910-9910	●	●
303	TUBE; NYLON L TYPE ENG<90L> (C) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	9911-	●
303	TUBE; NYLON (B) SERVICED BY L=30000 OD=8	1-09369-578-0	01	1	9603-9904	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9603-9802	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9904	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9905-9910	●	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9905-9910	●	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9911-0002	●	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9911-0002	●	●
303	TUBE; NYLON V TYPE ENG<91L> (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9911-0002	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0003-	●	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0003-	●	●
303	TUBE; NYLON (A) SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9603-9904	●
303	TUBE; NYLON V TYPE ENG<91L> (C) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0003-	●
311	WASHER; LK ID=14.2	9-09150-514-0	01	1	9603-	●
355	BRACKET; OIL PIPE	1-47477-465-1	01	1	9603-9904	●
355	BRACKET; OIL PIPE	1-47478-217-1	01	1	9905-	●	●
357	NUT; UNION,FLEX HOSE M22	9-09111-522-0	02	1	9603-9904	●
357	NUT; UNION,FLEX HOSE M22	9-09111-522-0	02	1	9905-	●	●
358	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	9603-9904	●
358	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	9905-	●	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49115-055-0	01	1	9603-9608	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49117-645-0	01	1	9609-9710	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49118-936-0	01	1	9711-9904	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49119-463-1	01	1	9905-	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49115-949-0	01	1	9603-9608	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49117-647-0	01	1	9609-9710	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49118-938-0	01	1	9711-9904	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49119-464-1	01	1	9905-	●
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	9708-	●
361	BOLT; EYE,AIR PIPE M12X24 EYE-BOLT	1-09675-082-0	01	1	9603-9611	●
361	BOLT; EYE,AIR PIPE M12X24 EYE-BOLT	1-09675-229-0	01	1	9612-	●
362	GASKET; AIR PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9603-	●
362	GASKET; AIR PIPE (B) ID=12.2	1-09630-084-0	02	1	9603-	●
365	BRACKET; HARNESS	1-82699-490-2	01	1	9603-9904	●
365	BRACKET; HARNESS	1-82699-490-2	01	1	9905-	●	●
368	CLIP; BAND,CABLE L=140	5-09707-031-1	02	1	9603-9904	●
368	CLIP; BAND,CABLE L=140	5-09707-031-1	02	1	9905-	●	●
405	BOLT; EYE,OIL PIPE M22X37	1-09675-060-0	02	1	9603-9904	●
405	BOLT; EYE,OIL PIPE M22X37	1-09675-060-0	02	1	9905-	●	●
422	NUT; SLEEVE (A) M14	1-09660-212-0	04	1	9603-9904	●
422	NUT; SLEEVE (A) M14	1-09660-212-0	01	1	9905-	●	●
422	NUT; SLEEVE (B) M14	1-09660-767-0	01	1	9603-	●
432	SLEEVE; TUBE (A) ID=8.15 OD=11 L=9.5	1-09666-042-0	04	1	9603-9904	●
432	SLEEVE; TUBE (A) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	9905-	●	●
432	SLEEVE; TUBE (B) ID=8.2 L=9.5	1-09666-067-0	01	1	9603-	●
439	BOLT; BRKT (B) M10X20 FLANGE	0-28781-020-0	01	1	9603-9904	●
439	BOLT; BRKT (B) M16X35 FLANGE	0-28881-635-0	04	1	9905-	●	●
439	BOLT; BRKT (C) M10X40 FLANGE	0-28781-040-0	04	1	9603-9904	●
439	BOLT; BRKT (C) M10X40 FLANGE	0-28781-040-0	04	1	9905-	●	●
439	BOLT; BRKT (A) M16X25 FLANGE	0-28881-625-0	02	1	9603-9904	●
506	INSERT (A) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	9603-9904	●
506	INSERT (A) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	9905-	●	●
506	INSERT (B) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9603-9904	●
506	INSERT (C) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	9603-	●
508	UNION; AIR M10 & M12 STRAIGHT	1-09664-235-0	01	1	9603-	●
509	BRACKET; PIPE	1-47477-551-0	01	1	9603-9904	●
509	BRACKET; PIPE	1-47478-215-2	01	1	9905-	●	●

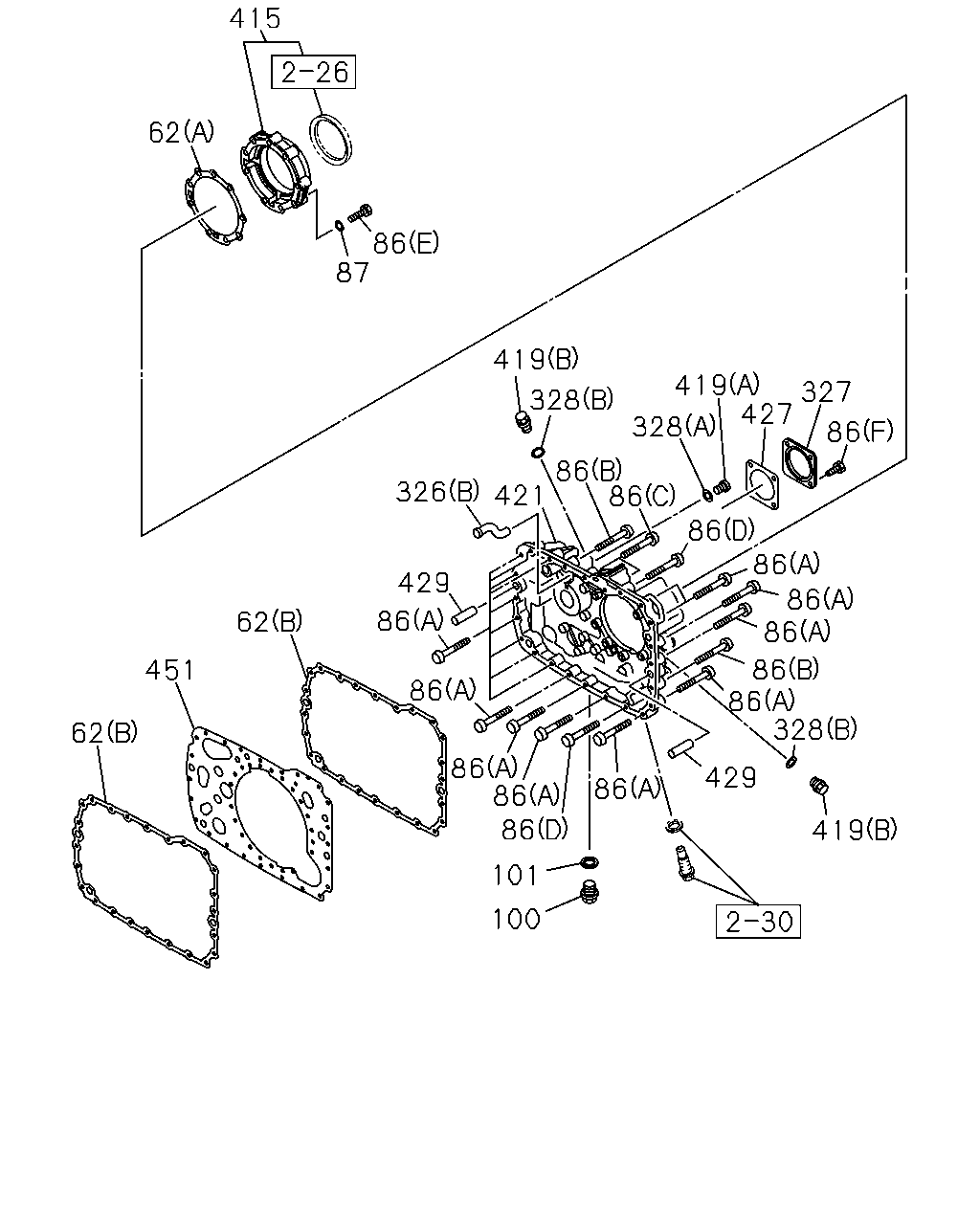

415 62 86 87 419 419 327 427 328 328 86 86 86 86 86 326 421 429 86 86 86 62 86 86 328 451 86 62 86 86 86 429 86 419 101 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33132-065-0	02	1	9603-9707	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. PTO ZF TRANS RR(BDM) (B)	1-33132-065-0	02	1	9708-9904	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33139-053-0	01	1	9603-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). PTO ZF TRANS RR(BDM) (B)	1-33119-399-0	02	1	9708-9904	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33119-399-0	02	1	9905-	●
86	BOLT; RR COVER (A)	1-33119-266-0	18	1	9603-	●
86	BOLT; RR COVER (E)	1-33139-054-0	09	1	9603-	●
86	BOLT; RR COVER (B)	1-33139-056-0	02	1	9603-	●
86	BOLT; RR COVER (C) M10X110	1-33139-057-0	02	1	9603-	●
86	BOLT; RR COVER (D) M10X50	1-33139-058-0	02	1	9603-	●
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM) (F) M12X28	1-33139-051-0	04	1	9603-9707	●
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM) (F) M12X25	1-33119-400-0	04	1	9708-	●
87	WASHER; LK,RR COVER	1-09469-010-0	09	1	9603-	●
100	PLUG; DRAIN RR COVER	1-33119-268-0	01	1	9603-	●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	01	1	9603-	●
326	NOZZLE; OIL,OUTLET (A)	1-33119-282-0	01	1	9603-	●
326	NOZZLE; OIL,OUTLET (B)	1-33139-021-0	01	1	9603-	●
327	COVER; RR,COUNTER EXC. PTO ZF TRANS RR(BDM)	1-33131-165-0	01	1	9603-	●
328	GASKET; PLUG (B)	1-33119-249-0	02	1	9603-	●
328	GASKET; PLUG (C)	1-33119-264-0	02	1	9603-9707	●
328	GASKET; PLUG PTO ZF TRANS RR(BDM) (C)	1-33119-264-0	02	1	9708-9904	●
328	GASKET; PLUG (C)	1-33119-264-0	01	1	9905-	●
328	GASKET; PLUG (A)	1-33139-023-0	01	1	9603-	●
328	GASKET; PLUG EXC. PTO ZF TRANS RR(BDM) (C)	1-33119-264-0	03	1	9708-9904	●
415	COVER; BRG	1-33159-039-0	01	1	9603-	●
419	PLUG; RR COVER (B)	1-33119-171-0	02	1	9603-	●
419	PLUG; RR COVER (A)	1-34119-008-0	01	1	9603-	●
421	COVER; RR,TRANS	1-33131-219-0	01	1	9603-9904	●
421	COVER; RR,TRANS	1-33131-244-0	01	1	9905-	●
427	GASKET; RR COVER EXC. PTO ZF TRANS RR(BDM)	1-33132-054-0	01	1	9603-	●
429	PIN; STRAIGHT	1-33119-265-0	07	1	9603-	●
451	PLATE; RR COVER	1-33139-055-0	01	1	9603-	●

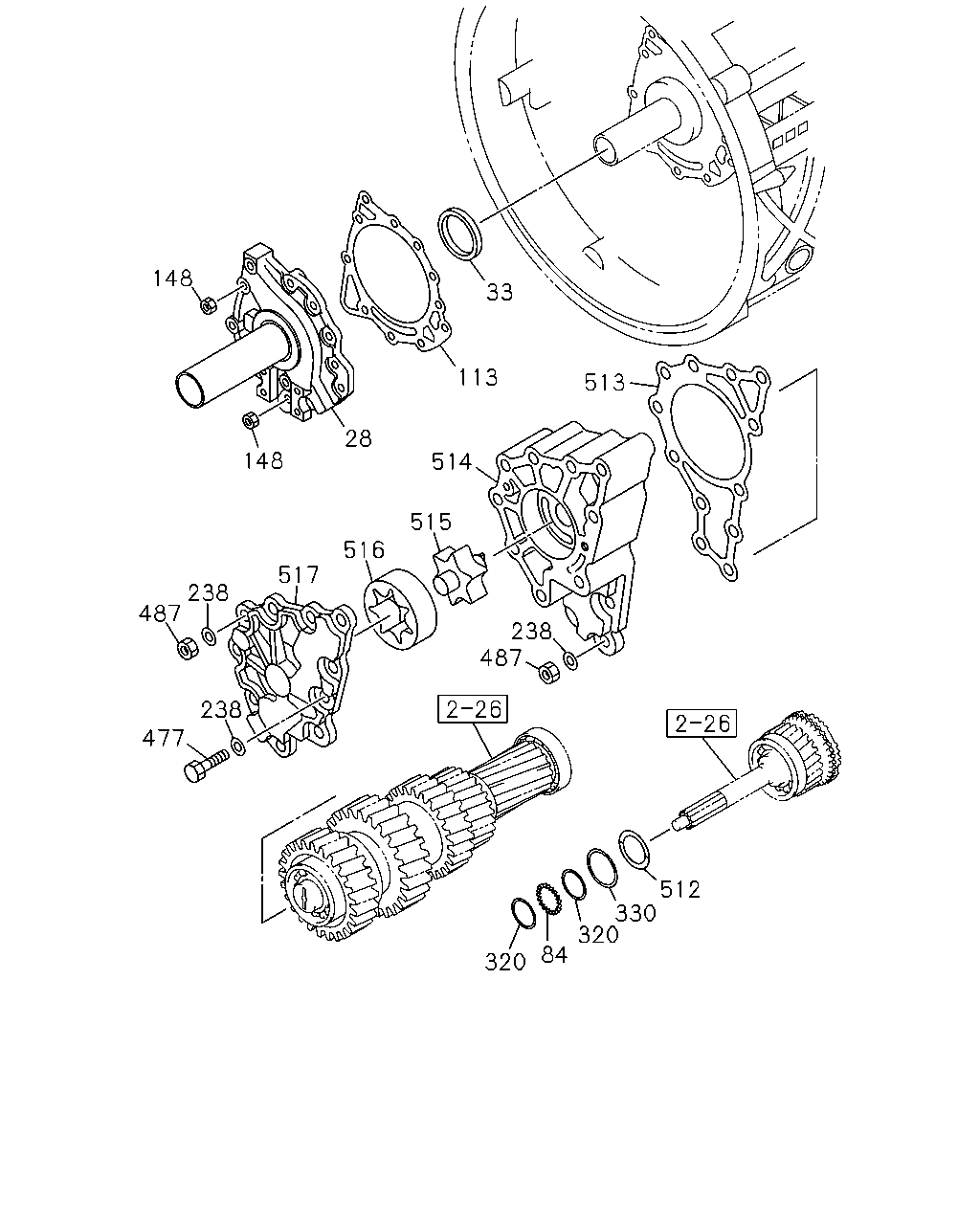

148 33 113 513 28 148 514 515 516 517 238 487 238 487 238 477 512 330 320 84 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
28	COVER; FRT,TRANS CASE	1-33121-149-0	01	1	9603-9707	●
28	COVER; FRT,TRANS CASE PTO ZF TRANS RR(BDM)	1-33121-149-0	01	1	9708-9904	●
28	COVER; FRT,TRANS CASE	1-33121-149-0	01	1	9905-	●
28	COVER; FRT,TRANS CASE EXC. PTO ZF TRANS RR(BDM)	1-33121-132-0	01	1	9708-9904	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-058-0	01	1	9603-9805	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-248-0	01	1	9806-	●
84	SPACER; COVER,TRANS	1-33129-006-0	01	1	9603-	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-018-0	01	1	9603-	●
148	NUT	1-33529-056-0	11	1	9603-	●
238	WASHER; PL	1-09469-010-0	14	1	9603-	●
320	WASHER; COVER	1-33129-007-0	02	1	9603-	●
330	RING; RET	1-33219-030-0	01	1	9603-9707	●
330	RING; RET EXC. PTO ZF TRANS RR(BDM)	1-33219-030-0	01	1	9708-9904	●
477	BOLT; OIL PUMP	1-33529-055-0	02	1	9603-	●
487	NUT; COVER,OIL PUMP	1-33529-056-0	12	1	9603-	●
512	WASHER; THRUST T=4.20	1-33219-144-0	AR	1	9603-9707	●
512	WASHER; THRUST EXC. PTO ZF TRANS RR(BDM) T=4.20	1-33219-144-0	AR	1	9708-9904	●
512	WASHER; THRUST T=4.15	1-33219-145-0	AR	1	9603-9707	●
512	WASHER; THRUST EXC. PTO ZF TRANS RR(BDM) T=4.15	1-33219-145-0	AR	1	9708-9904	●
512	WASHER; THRUST T=4.10	1-33219-146-0	AR	1	9603-9707	●
512	WASHER; THRUST EXC. PTO ZF TRANS RR(BDM) T=4.10	1-33219-146-0	AR	1	9708-9904	●
512	WASHER; THRUST T=4.05	1-33219-147-0	AR	1	9603-9707	●
512	WASHER; THRUST EXC. PTO ZF TRANS RR(BDM) T=4.05	1-33219-147-0	AR	1	9708-9904	●
512	WASHER; THRUST T=4.00	1-33219-148-0	AR	1	9603-9707	●
512	WASHER; THRUST EXC. PTO ZF TRANS RR(BDM) T=4.00	1-33219-148-0	AR	1	9708-9904	●
512	WASHER; THRUST T=3.95	1-33219-149-0	AR	1	9603-9707	●
512	WASHER; THRUST EXC. PTO ZF TRANS RR(BDM) T=3.95	1-33219-149-0	AR	1	9708-9904	●
512	WASHER; THRUST T=3.90	1-33219-150-0	AR	1	9603-9707	●
512	WASHER; THRUST EXC. PTO ZF TRANS RR(BDM) T=3.90	1-33219-150-0	AR	1	9708-9904	●
512	WASHER; THRUST T=3.85	1-33219-151-0	AR	1	9603-9707	●
512	WASHER; THRUST EXC. PTO ZF TRANS RR(BDM) T=3.85	1-33219-151-0	AR	1	9708-9904	●
512	WASHER; THRUST T=3.80	1-33219-152-0	AR	1	9603-9707	●
512	WASHER; THRUST EXC. PTO ZF TRANS RR(BDM) T=3.80	1-33219-152-0	AR	1	9708-9904	●
512	WASHER; THRUST T=3.75	1-33219-153-0	AR	1	9603-9707	●
512	WASHER; THRUST EXC. PTO ZF TRANS RR(BDM) T=3.75	1-33219-153-0	AR	1	9708-9904	●
512	WASHER; THRUST T=3.70	1-33219-154-0	AR	1	9603-9707	●
512	WASHER; THRUST EXC. PTO ZF TRANS RR(BDM) T=3.70	1-33219-154-0	AR	1	9708-9904	●
513	GASKET; HOUSING	1-34159-058-0	01	1	9603-	●
514	HOUSING; OIL PUMP	1-34155-027-0	01	1	9603-	●
515	SHAFT; OIL PUMP	1-34159-070-0	01	1	9603-	●
516	ROTOR; OIL PUMP	1-34159-060-0	01	1	9603-	●
517	COVER; OIL PUMP	1-34159-071-0	01	1	9603-	●

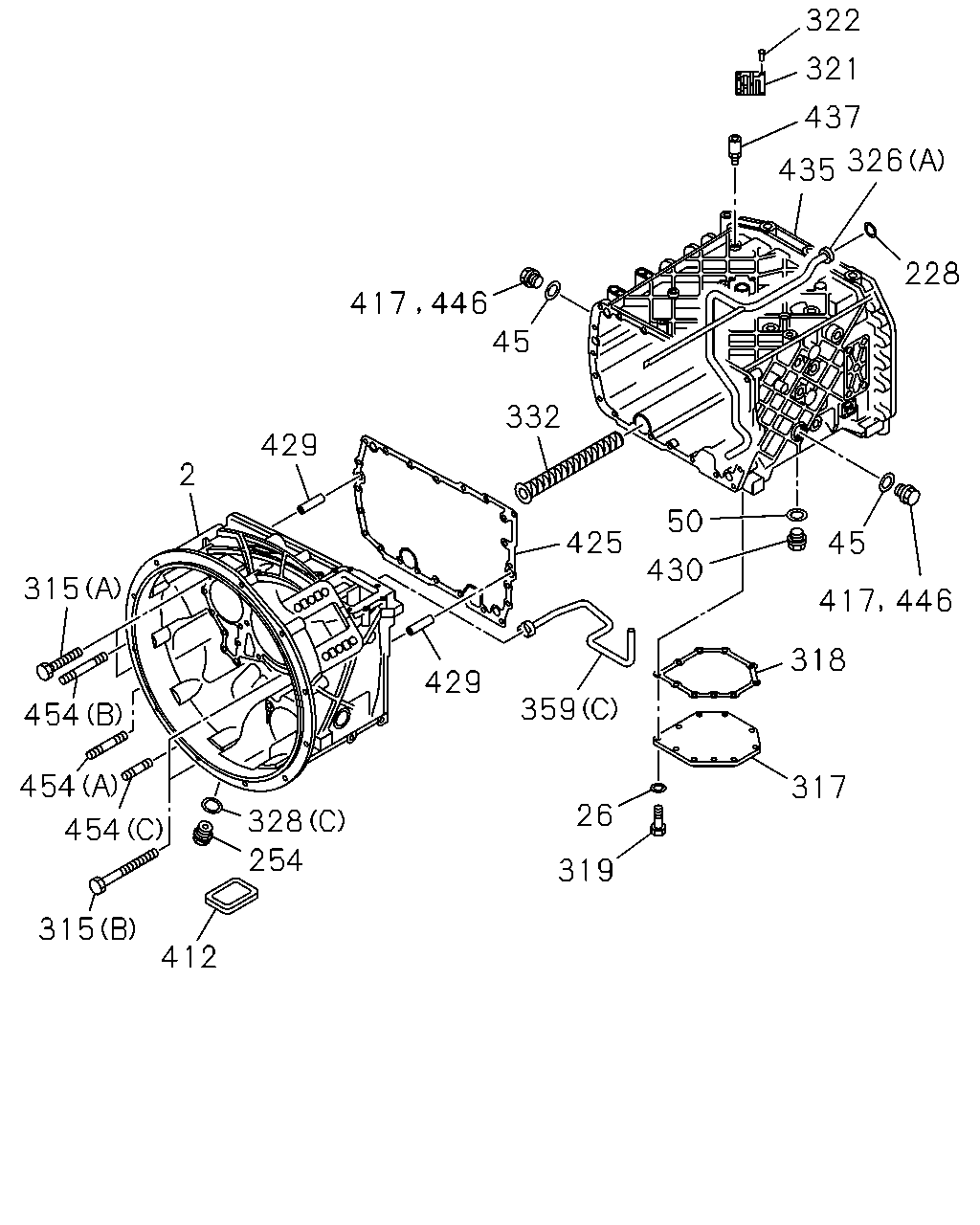

322 321 437 326 435 228 417 45 332 429 2 50 425 45 430 315 417 318 429 454 359 454 317 26 328 454 254 319 315 412 446 446

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
2	HOUSING; CLU	1-31111-189-0	01	1	9603-9707	●
2	HOUSING; CLU EXC. PTO ZF TRANS RR(BDM)	1-31111-189-0	01	1	9708-9904	●
2	HOUSING; CLU PTO ZF TRANS RR(BDM)	1-31111-194-0	01	1	9708-9904	●
2	HOUSING; CLU	1-31111-194-0	01	1	9905-	●
26	WASHER; PL,COVER	1-09469-010-0	10	1	9603-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). PTO ZF TRANS RR(BDM)	1-33119-264-0	01	1	9708-9904	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	02	1	9905-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	01	1	9603-	●
228	GASKET; NOZZLE	1-33119-273-0	01	1	9603-	●
254	PLUG; DRAIN,OIL	1-33119-263-0	01	1	9603-9707	●
254	PLUG; DRAIN,OIL	1-33119-376-0	01	1	9708-	●
315	BOLT; CASE (A)	1-33119-266-0	15	1	9603-	●
315	BOLT; CASE (B)	1-33119-267-0	07	1	9603-	●
317	COVER; CASE	1-33119-274-0	01	1	9603-	●
318	GASKET; COVER	1-33119-275-0	01	1	9603-9904	●
318	GASKET; COVER	1-33119-409-0	01	1	9905-	●
319	BOLT; COVER	1-33119-276-0	10	1	9603-	●
321	PLATE; NAME	1-33119-277-0	01	1	9603-	●
322	RIVET; NAME PLATE	1-36119-006-0	04	1	9603-9707	●
322	RIVET; NAME PLATE PTO ZF TRANS RR(BDM)	1-33119-398-0	04	1	9708-9807	●
322	RIVET; NAME PLATE	1-33119-398-0	04	1	9808-	●
322	RIVET; NAME PLATE EXC. PTO ZF TRANS RR(BDM)	1-33449-398-0	04	1	9708-9807	●
326	NOZZLE; OIL,OUTLET (A)	1-33119-282-0	01	1	9603-	●
326	NOZZLE; OIL,OUTLET (B)	1-33139-021-0	01	1	9603-	●
328	GASKET; PLUG (B)	1-33119-249-0	02	1	9603-	●
328	GASKET; PLUG (C)	1-33119-264-0	02	1	9603-9707	●
328	GASKET; PLUG PTO ZF TRANS RR(BDM) (C)	1-33119-264-0	02	1	9708-9904	●
328	GASKET; PLUG (C)	1-33119-264-0	01	1	9905-	●
328	GASKET; PLUG (A)	1-33139-023-0	01	1	9603-	●
328	GASKET; PLUG EXC. PTO ZF TRANS RR(BDM) (C)	1-33119-264-0	03	1	9708-9904	●
332	FILTER; OIL	1-33119-157-0	01	1	9603-9707	●
332	FILTER; OIL	1-33119-370-0	01	1	9708-	●
332	FILTER; OIL EXC. PTO ZF TRANS RR(BDM)	1-33119-157-0	01	1	9708-9904	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49115-055-0	01	1	9603-9608	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49117-645-0	01	1	9609-9710	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49118-936-0	01	1	9711-9904	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49119-463-1	01	1	9905-	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49115-949-0	01	1	9603-9608	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49117-647-0	01	1	9609-9710	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49118-938-0	01	1	9711-9904	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49119-464-1	01	1	9905-	●
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	9708-	●
412	CAP; CLU HSG	1-31119-022-0	01	1	9603-	●
417	PLUG; OIL FILLER,TRANS	1-33119-268-0	01	1	9708-9904	●
417	PLUG; OIL FILLER,TRANS	1-33119-268-0	02	1	9905-	●
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33119-262-0	01	1	9603-	●
429	PIN; STRAIGHT	1-33119-265-0	07	1	9603-	●
430	PLUG; OIL DRAIN	1-33119-268-0	01	1	9603-	●
435	CASE; TRANS	1-33111-275-0	01	1	9603-9904	●
435	CASE; TRANS	1-33111-286-0	01	1	9905-	●
437	BREATHER; TRANS	1-36122-004-0	01	1	9603-	●
446	PLUG; CASE,TRANS	1-33119-268-0	02	1	9603-9707	●
446	PLUG; CASE,TRANS PTO ZF TRANS RR(BDM)	1-33119-268-0	01	1	9708-9904	●
446	PLUG; CASE,TRANS EXC. PTO ZF TRANS RR(BDM)	1-33119-268-0	02	1	9708-9904	●
454	STUD; CLU HSG PTO ZF TRANS RR(BDM) (A) M10 L=50	1-33119-381-0	04	1	9708-9904	●
454	STUD; CLU HSG (A) M10 L=50	1-33119-381-0	04	1	9905-	●
454	STUD; CLU HSG PTO ZF TRANS RR(BDM) (B) M10 L=80	1-33119-393-0	08	1	9708-9904	●
454	STUD; CLU HSG (B) M10 L=80	1-33119-393-0	08	1	9905-	●
454	STUD; CLU HSG PTO ZF TRANS RR(BDM) (C) M10 L=25	1-33119-394-0	11	1	9708-9904	●
454	STUD; CLU HSG (C) M10 L=25	1-33119-394-0	11	1	9905-	●

375 375 375 1 303 192 431 192 359 359 245 245 424 432 178 27 180 422 432 26 182 176 179 422 24 181 424 506 175 177 497 422 507

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33042-012-0	01	1	9905-	●
1	TRANSMISSION ASM; MANUAL PTO TRANS RR RATIO 0.98(BEX)	1-33041-810-0	01	1	9712-9904	●
1	TRANSMISSION ASM; MANUAL PTO TRANS RR RATIO 1.68(BEY)	1-33041-811-0	01	1	9712-9904	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) ASSISTER SHIFT CONTROL<WX8> TRANS SELECT DETENT HEAVY<BFU>	1-33042-165-0	01	1	9905-	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM)	1-33040-359-2	01	1	9603-9707	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM)	1-33041-633-0	01	1	9708-9904	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) ASSISTER SHIFT CONTROL<WX8> EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33042-011-0	01	1	9905-	●
1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM)	1-33040-584-2	01	1	9603-9707	●
1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM)	1-33041-634-0	01	1	9708-9904	●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8> TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM)	1-33042-166-0	01	1	9905-	●
24	COVER; CHECK HOLE,DUST	1-31131-038-0	02	1	9603-9704	●
24	COVER; CHECK HOLE,DUST	1-31131-038-0	03	1	9705-9904	●
24	COVER; CHECK HOLE,DUST	1-31131-038-0	03	1	9905-	●	●
26	WASHER; PL,COVER	1-09469-010-0	10	1	9603-	●
27	BOLT; COVER TO CLU HSG M16X25 FLANGE	0-28881-625-0	02	1	9603-9904	●
27	BOLT; COVER TO CLU HSG M16X25 FLANGE	0-28881-625-0	02	1	9905-	●	●
175	BRACKET; UNION	1-47477-545-0	01	1	9603-9904	●
175	BRACKET; UNION	1-47477-545-0	01	1	9905-	●	●
176	BOLT; UNION BRKT M16X25 FLANGE	0-28881-625-0	02	1	9603-9904	●
176	BOLT; UNION BRKT M16X25 FLANGE	0-28881-625-0	02	1	9905-	●	●
177	UNION; NYLON TUBE	1-09664-070-0	01	1	9603-9904	●
178	NUT; UNION (A) M14	9-99110-414-0	01	1	9603-9904	●
178	NUT; UNION (B) M14	9-99111-414-0	01	1	9603-	●
179	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9603-9904	●
180	CONNECTOR; NYLON TUBE (A)	1-09660-239-0	01	1	9603-9904	●
180	CONNECTOR; NYLON TUBE (A)	1-09660-239-0	01	1	9905-	●	●
180	CONNECTOR; NYLON TUBE (B)	1-09660-466-0	01	1	9603-9904	●
181	BOLT; EYE,NYLON TUBE M12 L=35.5	1-09675-169-0	01	1	9603-9904	●
181	BOLT; EYE,NYLON TUBE M12 L=35.5	1-09675-169-0	01	1	9905-	●	●
182	GASKET; EYE BOLT,NYLON TUBE ID=12.2	9-09571-412-0	01	1	9603-9904	●
182	GASKET; EYE BOLT,NYLON TUBE ID=12.2	9-09571-412-0	01	1	9905-	●	●
192	HOSE; FLEX,TRANS (B) L=400	1-09364-913-0	01	1	9603-9701	●
192	HOSE; FLEX,TRANS (B) L=500	1-09364-914-0	01	1	9702-9711	●
192	HOSE; FLEX,TRANS 6WA1 TC-S(56L) (A) L=500	1-09364-914-0	01	1	9712-9904	●
192	HOSE; FLEX,TRANS (A) L=500	1-09364-914-0	01	1	9603-9603	●
192	HOSE; FLEX,TRANS 6WA1 TC-S(56L) (A) L=500	1-09364-914-0	01	1	9604-9701	●
192	HOSE; FLEX,TRANS 6WA1 TC-S(56L) (B) L=400	1-09364-913-0	01	1	9702-9804	●
192	HOSE; FLEX,TRANS 6WA1 TC-S(56L) (B) L=311	1-09364-921-0	01	1	9805-9904	●
192	HOSE; FLEX,TRANS 10PE1S(60L) (B) L=410	1-09364-935-0	01	1	9604-9609	●
192	HOSE; FLEX,TRANS 10PE1S(60L) (A) L=535	1-09364-936-0	01	1	9604-9609	●
192	HOSE; FLEX,TRANS 10PE1S(60L) (B) L=406	1-09364-961-0	01	1	9610-9904	●
192	HOSE; FLEX,TRANS L TYPE ENG<90L> (A) L=535	1-09364-936-0	01	1	9905-	●	●
192	HOSE; FLEX,TRANS V TYPE ENG<91L> (A) L=400	1-09364-913-0	01	1	9905-	●	●
192	HOSE; FLEX,TRANS V TYPE ENG<91L> (B) L=500	1-09364-914-0	01	1	9905-	●	●
192	HOSE; FLEX,TRANS L TYPE ENG<90L> (B) L=406	1-09364-961-0	01	1	9905-	●	●
245	PIPE; OIL (B)	1-47428-569-0	01	1	9603-9608	●
245	PIPE; OIL (B)	1-49161-057-0	01	1	9609-9904	●
245	PIPE; OIL (B)	1-49119-467-1	01	1	9905-9906	●	●
245	PIPE; OIL (B)	1-49122-031-0	01	1	9907-	●	●
245	PIPE; OIL (A)	1-47428-570-0	01	1	9603-9608	●
245	PIPE; OIL (A)	1-49161-058-0	01	1	9609-9904	●
245	PIPE; OIL (A)	1-49119-468-1	01	1	9905-	●	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	9905-9909	●	●
303	TUBE; NYLON L TYPE ENG<90L> (C) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	9910-9910	●	●
303	TUBE; NYLON L TYPE ENG<90L> (C) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	9911-	●
303	TUBE; NYLON (B) SERVICED BY L=30000 OD=8	1-09369-578-0	01	1	9603-9904	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9603-9802	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9904	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9905-9910	●	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9905-9910	●	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9911-0002	●	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9911-0002	●	●
303	TUBE; NYLON V TYPE ENG<91L> (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9911-0002	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0003-	●	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0003-	●	●
303	TUBE; NYLON (A) SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9603-9904	●
303	TUBE; NYLON V TYPE ENG<91L> (C) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0003-	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49115-055-0	01	1	9603-9608	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49117-645-0	01	1	9609-9710	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49118-936-0	01	1	9711-9904	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49119-463-1	01	1	9905-	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49115-949-0	01	1	9603-9608	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49117-647-0	01	1	9609-9710	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49118-938-0	01	1	9711-9904	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49119-464-1	01	1	9905-	●
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	9708-	●
375	CABLE; TRANS (A) L=250	1-82659-134-1	01	1	9603-9904	●
375	CABLE; TRANS (A) L=250	1-82659-134-1	01	1	9905-	●	●
375	CABLE; TRANS (B) L=580	1-82659-135-1	01	1	9603-9904	●
375	CABLE; TRANS (B) L=580	1-82659-135-1	01	1	9905-	●	●
375	CABLE; TRANS (C) L=880	1-82659-137-1	01	1	9603-	●
422	NUT; SLEEVE (A) M14	1-09660-212-0	04	1	9603-9904	●
422	NUT; SLEEVE (A) M14	1-09660-212-0	01	1	9905-	●	●
422	NUT; SLEEVE (B) M14	1-09660-767-0	01	1	9603-	●
424	RING; INSERT (A) ID=4.5 OD=5.8 L=18	1-09669-054-0	02	1	9603-9904	●
424	RING; INSERT (B) ID=4.2 OD=5 L=18	1-09669-089-0	01	1	9603-9904	●
431	TUBE; NYLON 10PE1S(60L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=1300 SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9603-9711	●
431	TUBE; NYLON 10PE1S(60L) L=1300 SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9712-9904	●
432	SLEEVE; TUBE (A) ID=8.15 OD=11 L=9.5	1-09666-042-0	04	1	9603-9904	●
432	SLEEVE; TUBE (A) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	9905-	●	●
432	SLEEVE; TUBE (B) ID=8.2 L=9.5	1-09666-067-0	01	1	9603-	●
497	ADAPTER; PLUG	1-09660-880-0	01	1	9603-9904	●
506	INSERT (A) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	9603-9904	●
506	INSERT (A) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	9905-	●	●
506	INSERT (B) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9603-9904	●
506	INSERT (C) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	9603-	●
507	PLUG; UNION PT1/4	9-99204-513-0	01	1	9603-9904	●

1 511 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33042-012-0	01	1	9905-	●
1	TRANSMISSION ASM; MANUAL PTO TRANS RR RATIO 0.98(BEX)	1-33041-810-0	01	1	9712-9904	●
1	TRANSMISSION ASM; MANUAL PTO TRANS RR RATIO 1.68(BEY)	1-33041-811-0	01	1	9712-9904	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) ASSISTER SHIFT CONTROL<WX8> TRANS SELECT DETENT HEAVY<BFU>	1-33042-165-0	01	1	9905-	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM)	1-33040-359-2	01	1	9603-9707	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM)	1-33041-633-0	01	1	9708-9904	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) ASSISTER SHIFT CONTROL<WX8> EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33042-011-0	01	1	9905-	●
1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM)	1-33040-584-2	01	1	9603-9707	●
1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM)	1-33041-634-0	01	1	9708-9904	●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8> TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM)	1-33042-166-0	01	1	9905-	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	9905-9909	●	●
303	TUBE; NYLON L TYPE ENG<90L> (C) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	9910-9910	●	●
303	TUBE; NYLON L TYPE ENG<90L> (C) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	9911-	●
303	TUBE; NYLON (B) SERVICED BY L=30000 OD=8	1-09369-578-0	01	1	9603-9904	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9603-9802	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9803-9904	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9905-9910	●	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9905-9910	●	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9911-0002	●	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9911-0002	●	●
303	TUBE; NYLON V TYPE ENG<91L> (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9911-0002	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0003-	●	●
303	TUBE; NYLON (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0003-	●	●
303	TUBE; NYLON (A) SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9603-9904	●
303	TUBE; NYLON V TYPE ENG<91L> (C) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0003-	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	9905-9909	●	●
511	TUBE; CORRUGATE L TYPE ENG<90L> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	9910-9910	●	●
511	TUBE; CORRUGATE L TYPE ENG<90L> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	9911-	●
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	AR	1	9603-	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	9603-9904	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9603-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
