◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50812 - NKR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-52 - OIL AND VACUUM PIPING; ENGINE ▶
0-52 — OIL AND VACUUM PIPING; ENGINE (#47639) — 327 parça
çizim 9097
202 65 202 202 89 86 89 83 202 27 65 83 27 340 53 480 157 472
BalonParca AdiParca NoAdetTipApplied Date A B C D E
27 01.531 BOLT; OIL PIPE FIX
GENERATOR DENSO(7KH) (B) M8X12,M10X20 L=42 		8-97118-911-0 01 1 9811-0105 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 9811- ● ●
53 01.531 NUT; OIL PIPE
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0002 ●
53 01.531 NUT; OIL PIPE
GENERATOR DENSO(7KH) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0003-0105 ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 9811- ● ●
65 01.531 BOLT; JOINT,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 9811- ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
GENERATOR DENSO(7KH) (A) 		8-97117-095-0 01 1 9811-0105 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. GENERATOR DENSO(7KH) (B) 		8-97139-538-0 01 1 9811-9910 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. GENERATOR DENSO(7KH) (C) 		8-97228-670-0 01 1 9911-0105 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
(C) 		8-97228-671-0 01 1 0106- ● ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 9811- ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 9811- ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 9811- ● ●
157 01.519 BRACKET; OIL PIPE
EXC. POWER STEERING<N40>,GENERATOR DENSO(7KH) 		8-97209-355-0 01 1 9811-0006 ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9811- ● ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9811- ● ●
340 03.280 HOSE; VAC PUMP,RETURN
GENERATOR DENSO(7KH) 04.681 		8-97117-121-0 01 1 9811-0105 ●
340 03.280 HOSE; VAC PUMP,RETURN
EXC. GENERATOR DENSO(7KH) 04.681 		8-94339-073-3 01 1 9811-0105 ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 0106- ● ●
472 01.519 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE POWER N-SPEC(7QV) 01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 9811-0003 ●
472 01.519 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 0008- ●
480 01.519 PLUG; OIL FILTER
ENGINE POWER N-SPEC(7QV) 08.971 M10X7 		9-09202-310-0 02 1 9811-9901 ●
480 01.519 PLUG; OIL FILTER
ENGINE POWER N-SPEC(7QV) M10X10 		1-09604-074-0 02 1 9902-0003 ●
480 01.519 PLUG; OIL FILTER
INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 04.640 M10X12 FLANGE 		0-28081-012-0 02 1 0008- ●

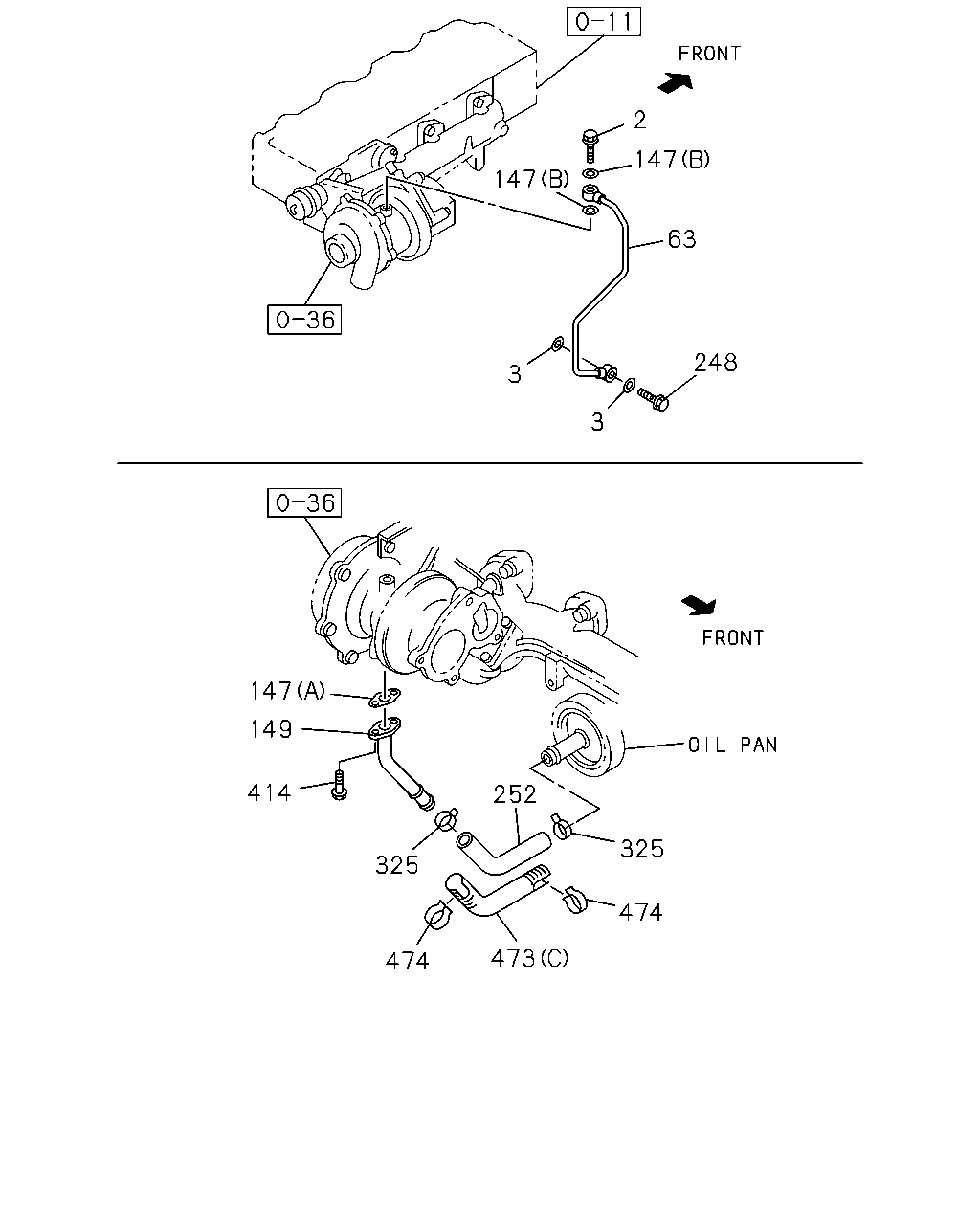

çizim 44243
2 147 147 63 248 3 3 147 149 414 252 325 325 474 473 474
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER<K51> 03.358 M10X23 FLANGE 		8-94332-831-1 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. ENGINE POWER N-SPEC(7QV) M10X21 FLANGE 		1-09675-077-0 02 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
M10X21 FLANGE 		1-09675-077-0 02 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
M10X27 		8-94443-535-0 01 1 0106- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 9811-0105 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 0106- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 0106- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV). ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER<K51> 		8-97214-267-0 01 1 9811- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97239-974-4 01 1 0106- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. (A) ID=14 		8-97041-638-0 01 1 9811- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14 		8-97041-638-0 01 1 9811- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9811- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9811- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
TURBOCHARGER<K51> 		8-97166-389-0 01 1 9811- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97258-833-0 01 1 0106- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
TURBOCHARGER<K51> 03.162 M14X27 FLANGE 		1-09675-086-0 01 1 9811- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
03.162 M14X27 FLANGE 		1-09675-086-0 01 1 9811- ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN
TURBOCHARGER<K51> 		8-97176-141-0 01 1 9811- ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN 8-97258-872-1 01 1 0106- ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
TURBOCHARGER<K51> 06.672 ID=21 		8-94242-034-0 02 1 9811-9901 ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 02 1 9902- ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
01.166 ID=20.8 		8-94125-862-1 02 1 9902- ●
414 01.531 BOLT; OIL PIPE
TURBOCHARGER<K51> 02.559 M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9811- ●
414 01.531 BOLT; OIL PIPE
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0106- ●
473 01.540 INSULATOR; HOSE
HONG KONG EQUIPMENT(PQ1) (A) 		8-97101-331-0 01 1 9811-0105 ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 0106- ●
473 01.540 INSULATOR; HOSE
HONG KONG EQUIPMENT(PQ1) (B) 		8-97101-333-1 01 1 9811-0105 ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 0106- ●
473 01.540 INSULATOR; HOSE
TURBOCHARGER<K51> (A) 		8-97101-331-0 02 1 9811- ●
473 01.540 INSULATOR; HOSE
(C) 		8-97305-283-1 01 1 0106- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 9811-0105 ●
474 01.540 CLIP; INSULATOR
TURBOCHARGER<K51> 		8-97101-337-0 04 1 9811-0105 ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 06 1 0106- ●
474 01.540 CLIP; INSULATOR
TURBOCHARGER<K51> 		8-97101-337-0 04 1 0106- ●

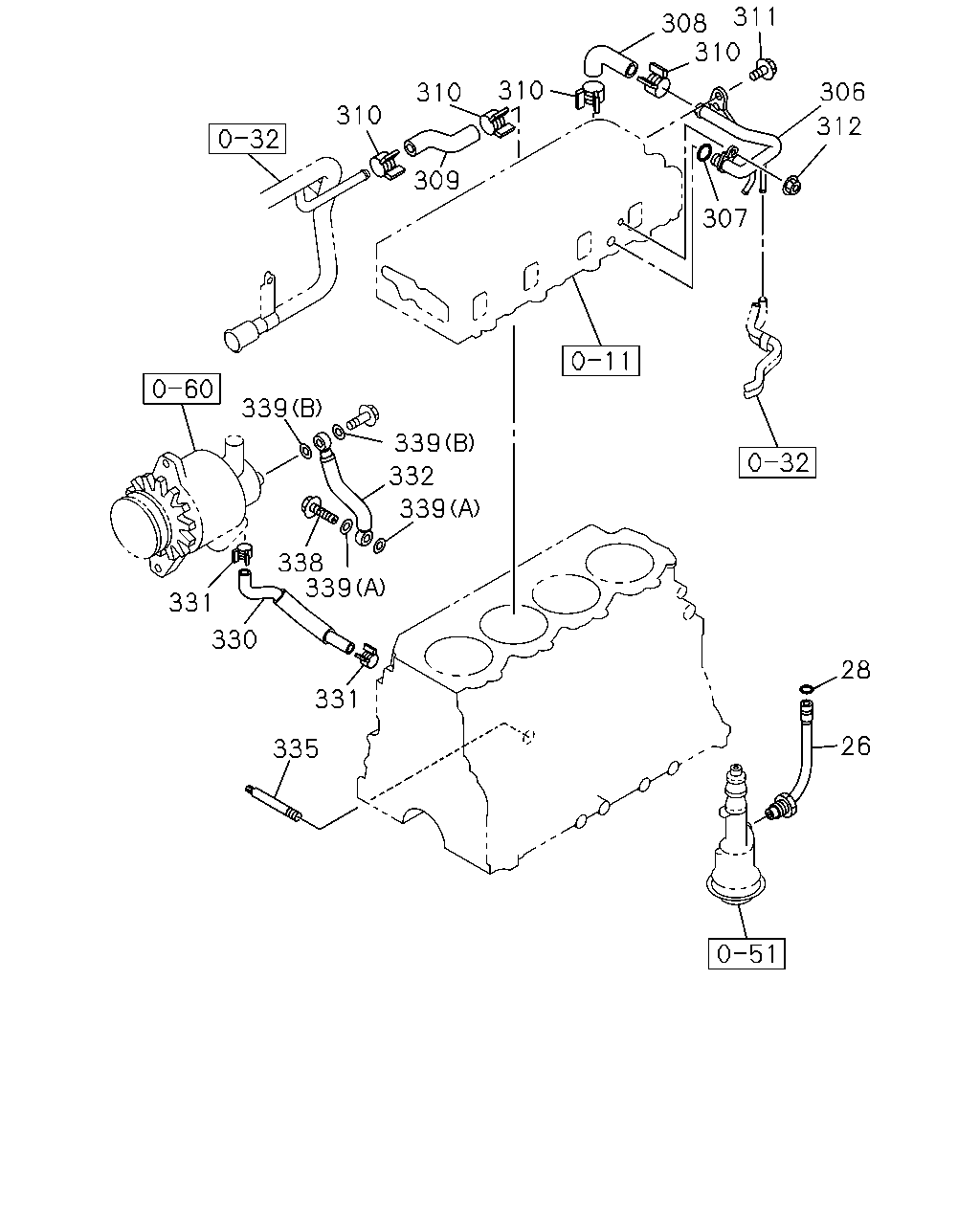

çizim 45435
311 308 310 310 306 310 310 312 309 307 339 339 332 339 338 339 331 330 28 331 26 335
BalonParca AdiParca NoAdetTipApplied Date A B C D E
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-0 01 1 9811-0105 ● ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-2 01 1 0106- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 9811-0105 ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 0106- ● ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
HONG KONG EQUIPMENT(PQ1) 		8-97176-316-0 01 1 9811-0105 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97239-979-2 01 1 0106- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-94450-627-0 01 1 9811- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> 		8-97169-754-1 01 1 9811- ●
307 01.531 GASKET; WATER PIPE 8-97124-640-0 01 1 9811-0105 ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97124-640-0 01 1 9811-0105 ●
307 01.531 GASKET; WATER PIPE
TURBOCHARGER<K51> 		8-97124-640-0 01 1 9811-0105 ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> EXC. TURBOCHARGER<K51>. 		8-97264-168-0 01 1 0106- ●
307 01.531 GASKET; WATER PIPE
TURBOCHARGER<K51>. 		8-97264-168-0 01 1 0106- ●
307 01.531 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 0106- ●
308 01.540 HOSE; OIL COOLER FEED
HONG KONG EQUIPMENT(PQ1) 		8-97078-193-3 01 1 9811-0105 ●
308 01.540 HOSE; OIL COOLER FEED 8-97300-062-0 01 1 0106- ●
308 01.540 HOSE; OIL COOLER FEED
OIL COOLER<KC4> 		8-94174-464-0 01 1 9811- ●
309 01.540 HOSE; OIL COOLER RETURN
HONG KONG EQUIPMENT(PQ1) 		8-97147-960-0 01 1 9811-0105 ●
309 01.540 HOSE; OIL COOLER RETURN 8-97300-063-0 01 1 0106- ●
309 01.540 HOSE; OIL COOLER RETURN
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97022-314-0 01 1 9811- ●
309 01.540 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> 		8-97176-138-0 01 1 9811- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 9811-0105 ●
310 01.540 CLIP; WATER HOSE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 9811-0105 ●
310 01.540 CLIP; WATER HOSE FIX
TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 9811-0105 ●
310 01.540 CLIP; WATER HOSE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 0106- ●
310 01.540 CLIP; WATER HOSE FIX
TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 0106- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 0106- ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0105 ●
311 01.531 BOLT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0105 ●
311 01.531 BOLT; PIPE FIX
TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0105 ●
311 01.531 BOLT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0106- ●
311 01.531 BOLT; PIPE FIX
TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0106- ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0106- ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0105 ●
312 01.531 NUT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0105 ●
312 01.531 NUT; PIPE FIX
TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0105 ●
312 01.531 NUT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 0106- ●
312 01.531 NUT; PIPE FIX
TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 0106- ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 0106- ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-1 01 1 9811-0105 ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. THAILAND EQUIPMENT(PM9) 		8-97073-920-1 01 1 9811-0105 ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-1 01 1 0106- ● ●
330 03.278 HOSE; VAC PUMP,RETURN
THAILAND EQUIPMENT(PM9) 		8-97207-067-0 01 1 9811-0105 ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 9811-0105 ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 0106- ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 9811-0105 ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. THAILAND EQUIPMENT(PM9) 		8-94443-644-1 01 1 9811-0105 ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 0106- ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
THAILAND EQUIPMENT(PM9) 		8-94310-221-1 01 1 9811-0105 ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 9811-0105 ● ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 0106- ● ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 9811-0105 ● ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 0106- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9811-0105 ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 0106- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9811-0105 ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0106- ● ●
çizim 46511
202 202 202 89 65 86 89 83 157 340 202 65 83 27 480 53 472
BalonParca AdiParca NoAdetTipApplied Date A B C D E
27 01.531 BOLT; OIL PIPE FIX
GENERATOR DENSO(7KH) (B) M8X12,M10X20 L=42 		8-97118-911-0 01 1 9811-0105 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 9811- ● ●
53 01.531 NUT; OIL PIPE
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0002 ●
53 01.531 NUT; OIL PIPE
GENERATOR DENSO(7KH) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0003-0105 ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 9811- ● ●
65 01.531 BOLT; JOINT,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 9811- ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
GENERATOR DENSO(7KH) (A) 		8-97117-095-0 01 1 9811-0105 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. GENERATOR DENSO(7KH) (B) 		8-97139-538-0 01 1 9811-9910 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. GENERATOR DENSO(7KH) (C) 		8-97228-670-0 01 1 9911-0105 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
(C) 		8-97228-671-0 01 1 0106- ● ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 9811- ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 9811- ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 9811- ● ●
157 01.519 BRACKET; OIL PIPE
EXC. POWER STEERING<N40>,GENERATOR DENSO(7KH) 		8-97209-355-0 01 1 9811-0006 ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9811- ● ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9811- ● ●
340 03.280 HOSE; VAC PUMP,RETURN
GENERATOR DENSO(7KH) 04.681 		8-97117-121-0 01 1 9811-0105 ●
340 03.280 HOSE; VAC PUMP,RETURN
EXC. GENERATOR DENSO(7KH) 04.681 		8-94339-073-3 01 1 9811-0105 ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 0106- ● ●
472 01.519 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE POWER N-SPEC(7QV) 01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 9811-0003 ●
472 01.519 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 0008- ●
480 01.519 PLUG; OIL FILTER
ENGINE POWER N-SPEC(7QV) 08.971 M10X7 		9-09202-310-0 02 1 9811-9901 ●
480 01.519 PLUG; OIL FILTER
ENGINE POWER N-SPEC(7QV) M10X10 		1-09604-074-0 02 1 9902-0003 ●
480 01.519 PLUG; OIL FILTER
INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 04.640 M10X12 FLANGE 		0-28081-012-0 02 1 0008- ●
çizim 47859
3 3 3 1 2 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
EXC. ENGINE POWER N-SPEC(7QV) 		8-97093-547-1 01 1 9811- ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-1 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER<K51> 03.358 M10X23 FLANGE 		8-94332-831-1 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. ENGINE POWER N-SPEC(7QV) M10X21 FLANGE 		1-09675-077-0 02 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
M10X21 FLANGE 		1-09675-077-0 02 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
M10X27 		8-94443-535-0 01 1 0106- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 9811-0105 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 0106- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 0106- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV). ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811- ●

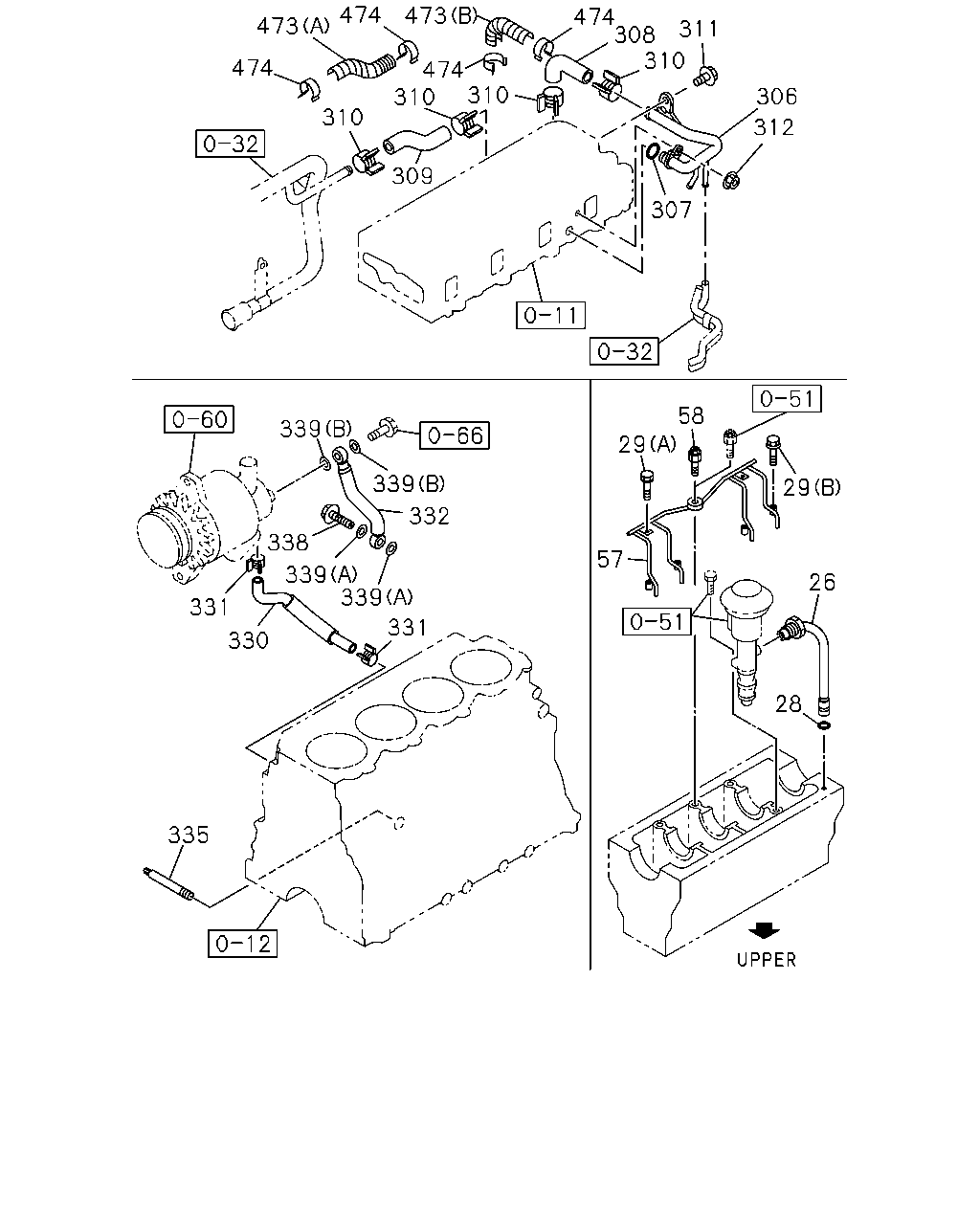

çizim 47938
474 473 474 308 310 473 311 474 474 2 306 310 312 309 307 58 339 29 29 339 332 338 57 339 339 26 331 331 330 28 335 310 310
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER<K51> 03.358 M10X23 FLANGE 		8-94332-831-1 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. ENGINE POWER N-SPEC(7QV) M10X21 FLANGE 		1-09675-077-0 02 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
M10X21 FLANGE 		1-09675-077-0 02 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
M10X27 		8-94443-535-0 01 1 0106- ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-0 01 1 9811-0105 ● ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-2 01 1 0106- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 9811-0105 ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 0106- ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 9811-0105 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 9811-0105 ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0106-0202 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0203- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0203- ●
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9811-0105 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9811-0105 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 0106- ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 0106-0202 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0106- ●
57 01.519 PIPE; OIL,OIL JET
HONG KONG EQUIPMENT(PQ1) 		8-97043-741-1 01 1 9811-0105 ●
57 01.519 PIPE; OIL,OIL JET 8-97116-971-1 01 1 0106- ●
57 01.519 PIPE; OIL,OIL JET
TURBOCHARGER<K51> 		8-94469-709-3 01 1 9811- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
TURBOCHARGER<K51> 		8-97145-612-0 01 1 9811-0104 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
TURBOCHARGER<K51> 01.639 		8-97311-976-0 01 1 0105- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-0 01 1 0106- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
HONG KONG EQUIPMENT(PQ1) 		8-97176-316-0 01 1 9811-0105 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97239-979-2 01 1 0106- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-94450-627-0 01 1 9811- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> 		8-97169-754-1 01 1 9811- ●
307 01.531 GASKET; WATER PIPE 8-97124-640-0 01 1 9811-0105 ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97124-640-0 01 1 9811-0105 ●
307 01.531 GASKET; WATER PIPE
TURBOCHARGER<K51> 		8-97124-640-0 01 1 9811-0105 ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> EXC. TURBOCHARGER<K51>. 		8-97264-168-0 01 1 0106- ●
307 01.531 GASKET; WATER PIPE
TURBOCHARGER<K51>. 		8-97264-168-0 01 1 0106- ●
307 01.531 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 0106- ●
308 01.540 HOSE; OIL COOLER FEED
HONG KONG EQUIPMENT(PQ1) 		8-97078-193-3 01 1 9811-0105 ●
308 01.540 HOSE; OIL COOLER FEED 8-97300-062-0 01 1 0106- ●
308 01.540 HOSE; OIL COOLER FEED
OIL COOLER<KC4> 		8-94174-464-0 01 1 9811- ●
309 01.540 HOSE; OIL COOLER RETURN
HONG KONG EQUIPMENT(PQ1) 		8-97147-960-0 01 1 9811-0105 ●
309 01.540 HOSE; OIL COOLER RETURN 8-97300-063-0 01 1 0106- ●
309 01.540 HOSE; OIL COOLER RETURN
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97022-314-0 01 1 9811- ●
309 01.540 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> 		8-97176-138-0 01 1 9811- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 9811-0105 ●
310 01.540 CLIP; WATER HOSE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 9811-0105 ●
310 01.540 CLIP; WATER HOSE FIX
TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 9811-0105 ●
310 01.540 CLIP; WATER HOSE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 0106- ●
310 01.540 CLIP; WATER HOSE FIX
TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 0106- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 0106- ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0105 ●
311 01.531 BOLT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0105 ●
311 01.531 BOLT; PIPE FIX
TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0105 ●
311 01.531 BOLT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0106- ●
311 01.531 BOLT; PIPE FIX
TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0106- ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0106- ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0105 ●
312 01.531 NUT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0105 ●
312 01.531 NUT; PIPE FIX
TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0105 ●
312 01.531 NUT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 0106- ●
312 01.531 NUT; PIPE FIX
TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 0106- ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 0106- ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-1 01 1 9811-0105 ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. THAILAND EQUIPMENT(PM9) 		8-97073-920-1 01 1 9811-0105 ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-1 01 1 0106- ● ●
330 03.278 HOSE; VAC PUMP,RETURN
THAILAND EQUIPMENT(PM9) 		8-97207-067-0 01 1 9811-0105 ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 9811-0105 ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 0106- ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 9811-0105 ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. THAILAND EQUIPMENT(PM9) 		8-94443-644-1 01 1 9811-0105 ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 0106- ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
THAILAND EQUIPMENT(PM9) 		8-94310-221-1 01 1 9811-0105 ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 9811-0105 ● ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 0106- ● ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 9811-0105 ● ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 0106- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9811-0105 ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 0106- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9811-0105 ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0106- ● ●
473 01.540 INSULATOR; HOSE
HONG KONG EQUIPMENT(PQ1) (A) 		8-97101-331-0 01 1 9811-0105 ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 0106- ●
473 01.540 INSULATOR; HOSE
HONG KONG EQUIPMENT(PQ1) (B) 		8-97101-333-1 01 1 9811-0105 ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 0106- ●
473 01.540 INSULATOR; HOSE
TURBOCHARGER<K51> (A) 		8-97101-331-0 02 1 9811- ●
473 01.540 INSULATOR; HOSE
(C) 		8-97305-283-1 01 1 0106- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 9811-0105 ●
474 01.540 CLIP; INSULATOR
TURBOCHARGER<K51> 		8-97101-337-0 04 1 9811-0105 ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 06 1 0106- ●
474 01.540 CLIP; INSULATOR
TURBOCHARGER<K51> 		8-97101-337-0 04 1 0106- ●

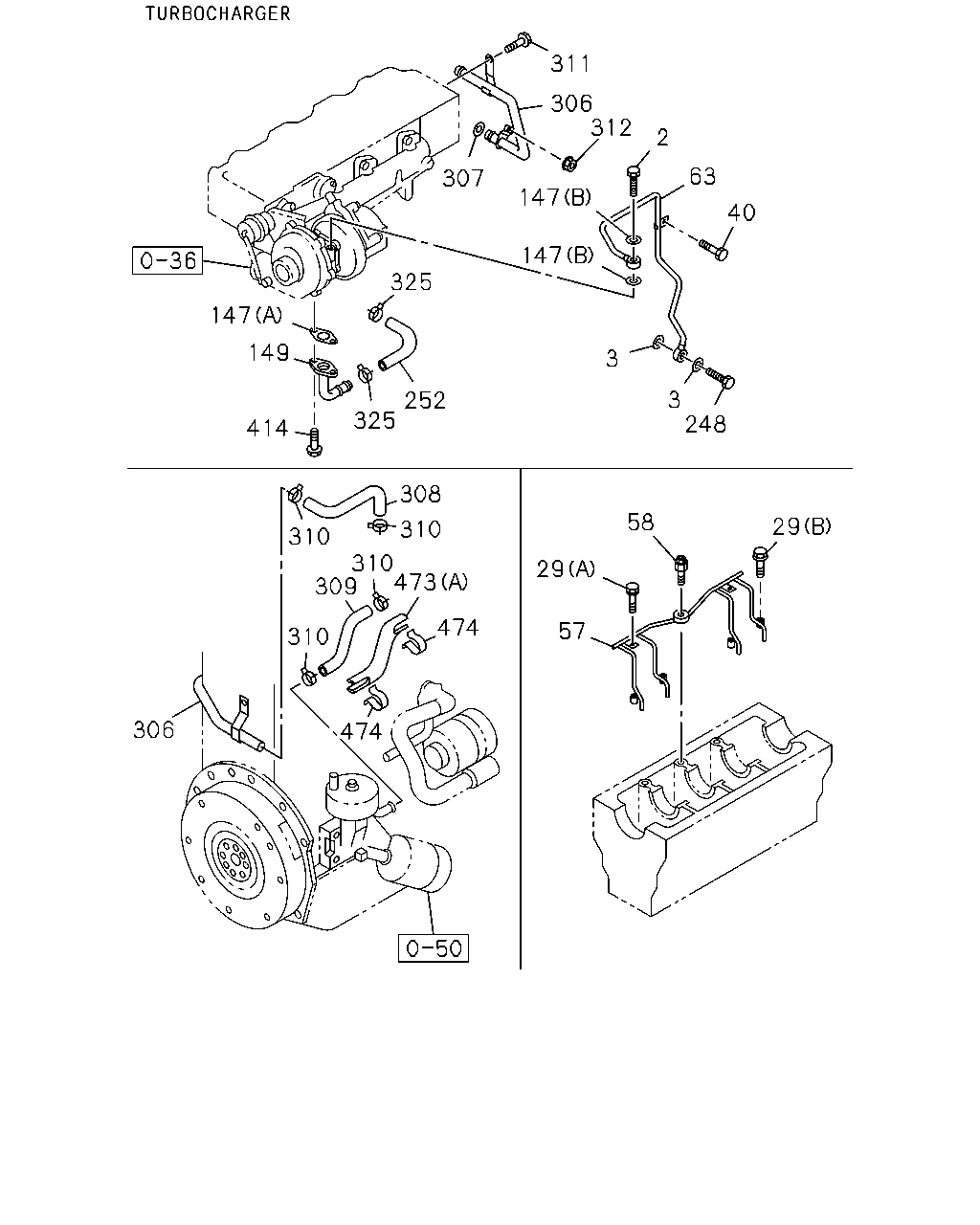

çizim 48680
311 306 312 2 63 307 147 40 147 325 147 149 3 3 248 252 325 414 308 58 29 310 310 310 309 473 29 474 57 310 474 306
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER<K51> 03.358 M10X23 FLANGE 		8-94332-831-1 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. ENGINE POWER N-SPEC(7QV) M10X21 FLANGE 		1-09675-077-0 02 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
M10X21 FLANGE 		1-09675-077-0 02 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
M10X27 		8-94443-535-0 01 1 0106- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 9811-0105 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 0106- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 0106- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV). ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 9811-0105 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 9811-0105 ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0106-0202 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0203- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0203- ●
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9811-0105 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9811-0105 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 0106- ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 0106-0202 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0106- ●
40 01.531 BOLT; OIL PIPE
TURBOCHARGER<K51> 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9811- ●
57 01.519 PIPE; OIL,OIL JET
HONG KONG EQUIPMENT(PQ1) 		8-97043-741-1 01 1 9811-0105 ●
57 01.519 PIPE; OIL,OIL JET 8-97116-971-1 01 1 0106- ●
57 01.519 PIPE; OIL,OIL JET
TURBOCHARGER<K51> 		8-94469-709-3 01 1 9811- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
TURBOCHARGER<K51> 		8-97145-612-0 01 1 9811-0104 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
TURBOCHARGER<K51> 01.639 		8-97311-976-0 01 1 0105- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-0 01 1 0106- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER<K51> 		8-97214-267-0 01 1 9811- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97239-974-4 01 1 0106- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. (A) ID=14 		8-97041-638-0 01 1 9811- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14 		8-97041-638-0 01 1 9811- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9811- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9811- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
TURBOCHARGER<K51> 		8-97166-389-0 01 1 9811- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97258-833-0 01 1 0106- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
TURBOCHARGER<K51> 03.162 M14X27 FLANGE 		1-09675-086-0 01 1 9811- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
03.162 M14X27 FLANGE 		1-09675-086-0 01 1 9811- ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN
TURBOCHARGER<K51> 		8-97176-141-0 01 1 9811- ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN 8-97258-872-1 01 1 0106- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
HONG KONG EQUIPMENT(PQ1) 		8-97176-316-0 01 1 9811-0105 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97239-979-2 01 1 0106- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-94450-627-0 01 1 9811- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> 		8-97169-754-1 01 1 9811- ●
307 01.531 GASKET; WATER PIPE 8-97124-640-0 01 1 9811-0105 ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97124-640-0 01 1 9811-0105 ●
307 01.531 GASKET; WATER PIPE
TURBOCHARGER<K51> 		8-97124-640-0 01 1 9811-0105 ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> EXC. TURBOCHARGER<K51>. 		8-97264-168-0 01 1 0106- ●
307 01.531 GASKET; WATER PIPE
TURBOCHARGER<K51>. 		8-97264-168-0 01 1 0106- ●
307 01.531 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 0106- ●
308 01.540 HOSE; OIL COOLER FEED
HONG KONG EQUIPMENT(PQ1) 		8-97078-193-3 01 1 9811-0105 ●
308 01.540 HOSE; OIL COOLER FEED 8-97300-062-0 01 1 0106- ●
308 01.540 HOSE; OIL COOLER FEED
OIL COOLER<KC4> 		8-94174-464-0 01 1 9811- ●
309 01.540 HOSE; OIL COOLER RETURN
HONG KONG EQUIPMENT(PQ1) 		8-97147-960-0 01 1 9811-0105 ●
309 01.540 HOSE; OIL COOLER RETURN 8-97300-063-0 01 1 0106- ●
309 01.540 HOSE; OIL COOLER RETURN
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97022-314-0 01 1 9811- ●
309 01.540 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> 		8-97176-138-0 01 1 9811- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 9811-0105 ●
310 01.540 CLIP; WATER HOSE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 9811-0105 ●
310 01.540 CLIP; WATER HOSE FIX
TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 9811-0105 ●
310 01.540 CLIP; WATER HOSE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 0106- ●
310 01.540 CLIP; WATER HOSE FIX
TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 04 1 0106- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 0106- ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0105 ●
311 01.531 BOLT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0105 ●
311 01.531 BOLT; PIPE FIX
TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0105 ●
311 01.531 BOLT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0106- ●
311 01.531 BOLT; PIPE FIX
TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0106- ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0106- ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0105 ●
312 01.531 NUT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0105 ●
312 01.531 NUT; PIPE FIX
TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0105 ●
312 01.531 NUT; PIPE FIX
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 0106- ●
312 01.531 NUT; PIPE FIX
TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 01 1 0106- ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 0106- ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
TURBOCHARGER<K51> 06.672 ID=21 		8-94242-034-0 02 1 9811-9901 ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 02 1 9902- ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
01.166 ID=20.8 		8-94125-862-1 02 1 9902- ●
414 01.531 BOLT; OIL PIPE
TURBOCHARGER<K51> 02.559 M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9811- ●
414 01.531 BOLT; OIL PIPE
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0106- ●
473 01.540 INSULATOR; HOSE
HONG KONG EQUIPMENT(PQ1) (A) 		8-97101-331-0 01 1 9811-0105 ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 0106- ●
473 01.540 INSULATOR; HOSE
HONG KONG EQUIPMENT(PQ1) (B) 		8-97101-333-1 01 1 9811-0105 ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 0106- ●
473 01.540 INSULATOR; HOSE
TURBOCHARGER<K51> (A) 		8-97101-331-0 02 1 9811- ●
473 01.540 INSULATOR; HOSE
(C) 		8-97305-283-1 01 1 0106- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 9811-0105 ●
474 01.540 CLIP; INSULATOR
TURBOCHARGER<K51> 		8-97101-337-0 04 1 9811-0105 ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 06 1 0106- ●
474 01.540 CLIP; INSULATOR
TURBOCHARGER<K51> 		8-97101-337-0 04 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
