Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#47636) — 235 parça

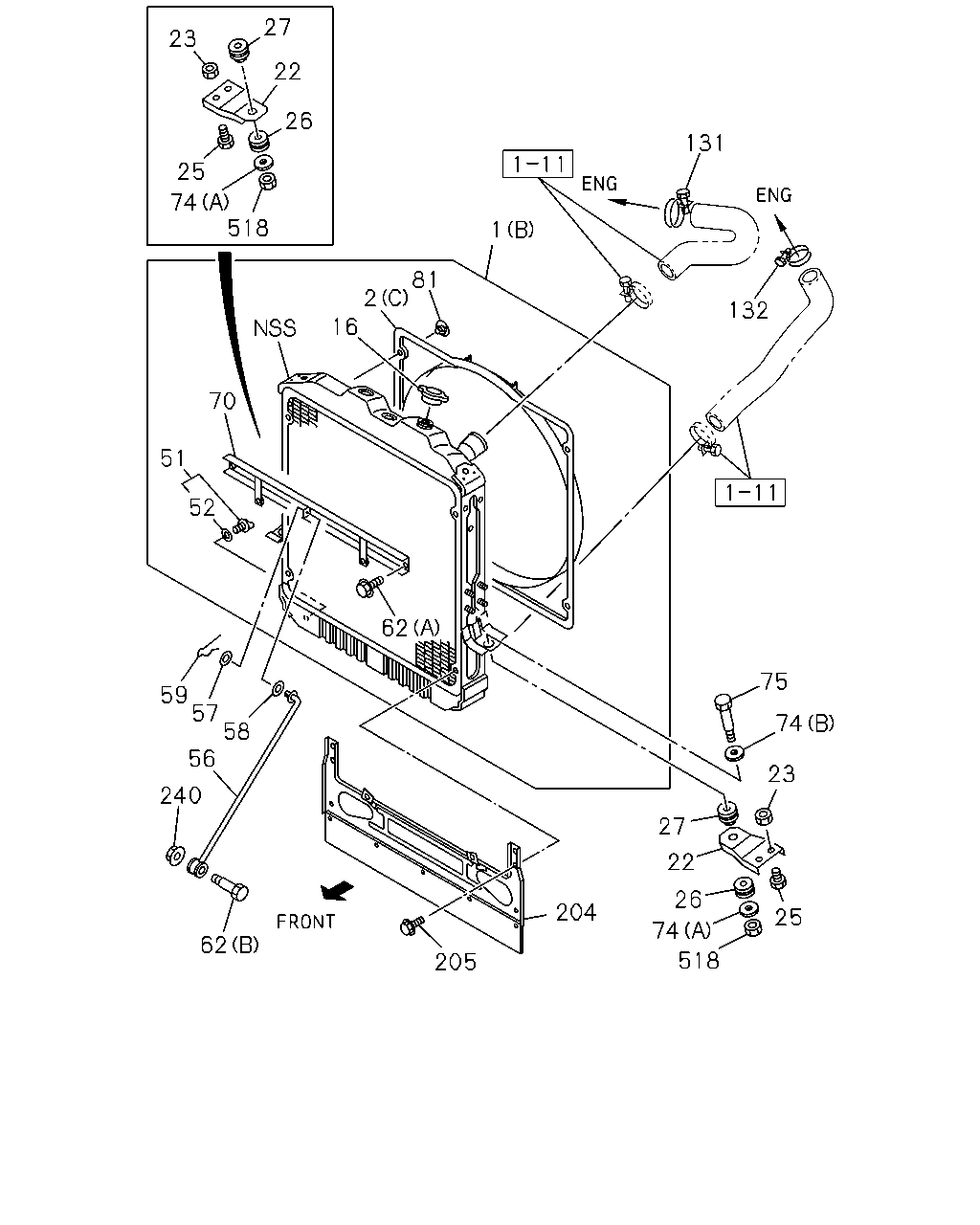

27 23 22 26 131 25 74 518 1 81 2 132 16 70 51 52 62 75 59 57 58 56 74 23 240 27 22 26 204 25 74 62 518 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97213-663-1	01	1	0102-0112
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (A)	8-97213-663-1	01	1	0201-0209
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (A)	8-97354-365-0	01	1	0210-0501
1	01.219 RADIATOR ASM 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> (A)	8-97377-238-1	01	1	0502-
1	01.219 RADIATOR ASM 4HF1 ENG(RLS) M/T MXA5R(RMT) (B)	8-97148-287-1	01	1	0201-0301
1	01.219 RADIATOR ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) (B)	8-97148-287-1	01	1	0302-0305
1	01.219 RADIATOR ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) (B)	8-97371-010-0	01	1	0306-0501
1	01.219 RADIATOR ASM 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> (B)	8-97371-010-0	01	1	0502-
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97068-803-0	01	1	0102-0501
2	01.277 GUIDE; FAN 4HE1-TCS ENG(RDS) (A)	8-97068-803-0	01	1	0502-
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97218-802-1	01	1	0102-0301
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (B)	8-97218-802-1	01	1	0302-0501
2	01.277 GUIDE; FAN 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> (B)	8-97218-802-1	01	1	0502-
2	01.277 GUIDE; FAN 4HF1 ENG(RLS) M/T MXA5R(RMT) (C)	8-97066-016-0	01	1	0201-0301
2	01.277 GUIDE; FAN 4HF1 ENG(RLS) M/T MYY5T(RSM) (C)	8-97066-016-0	01	1	0302-0501
2	01.277 GUIDE; FAN 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> (C)	8-97066-016-0	01	1	0502-
16	01.203 CAP; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97239-187-0	01	1	0102-0301
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97239-187-0	01	1	0302-0501
16	01.203 CAP; RAD 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11>	8-97239-187-0	01	1	0502-
16	01.203 CAP; RAD 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97177-872-0	01	1	0201-0301
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0201-0301
16	01.203 CAP; RAD 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97177-872-0	01	1	0302-0305
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0302-0305
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0306-0501
16	01.203 CAP; RAD 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97371-017-0	01	1	0306-0501
16	01.203 CAP; RAD 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97371-017-0	01	1	0502-
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	0102-0501
22	01.270 BRACKET; RAD MTG 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	0502-
22	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97096-452-0	02	1	0201-
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	0102-0501
23	01.271 NUT; RAD MTG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 07.874 M10 FLANGE	5-09440-006-0	04	1	0502-
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0102-0501
25	01.271 BOLT; BRKT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0502-0512
25	01.271 BOLT; BRKT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0601-
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0102-
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0102-
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	0102-0301
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	0302-0501
51	08.951 PLUG; DRAIN 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> W/GASKET	1-09609-023-0	01	1	0502-
51	08.951 PLUG; DRAIN 4HF1 ENG(RLS) M/T MXA5R(RMT) 08.915 W/GASKET	8-94321-236-0	01	1	0201-0301
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0201-0301
51	08.951 PLUG; DRAIN 4HF1 ENG(RLS) M/T MYY5T(RSM) 08.915 W/GASKET	8-94321-236-0	01	1	0302-0501
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0302-0501
51	08.951 PLUG; DRAIN 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 08.915 W/GASKET	8-94321-236-0	01	1	0502-
52	08.951 GASKET; DRAIN PLUG 4HF1 ENG(RLS) M/T MXA5R(RMT) 01.203 ID=10	9-09720-557-0	01	1	0201-0301
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	0201-0301
52	08.951 GASKET; DRAIN PLUG 4HF1 ENG(RLS) M/T MYY5T(RSM) 01.203 ID=10	9-09720-557-0	01	1	0302-0501
52	08.951 GASKET; DRAIN PLUG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	0302-0501
52	08.951 GASKET; DRAIN PLUG 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 01.203 ID=10	9-09720-557-0	01	1	0502-
56	01.270 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97073-424-2	01	1	0102-0501
56	01.270 STAY; RAD 4HE1-TCS ENG(RDS)	8-97073-424-2	01	1	0502-
56	01.270 STAY; RAD 4HF1 ENG(RLS)	8-97032-798-2	01	1	0201-0301
56	01.270 STAY; RAD 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97032-798-2	01	1	0302-
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0102-0605
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0102-
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0102-0610
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0102-
62	01.271 BOLT; STAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0102-0112
62	01.271 BOLT; STAY 4HF1 ENG(RLS) M/T MXA5R(RMT) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0201-0301
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0201-0301
62	01.271 BOLT; STAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0201-0301
62	01.271 BOLT; STAY 4HF1 ENG(RLS) M/T MYY5T(RSM) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0501
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0501
62	01.271 BOLT; STAY 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-
70	01.271 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	0102-0112
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	0201-0301
70	01.271 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	0201-0301
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97073-125-0	01	1	0302-0501
70	01.271 STAY; RAD 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11>	8-97073-125-0	01	1	0502-
70	01.271 STAY; RAD 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97047-899-0	01	1	0201-0301
70	01.271 STAY; RAD 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97047-899-0	01	1	0302-0501
70	01.271 STAY; RAD 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97047-899-0	01	1	0502-
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0102-0610
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0102-0501
74	01.270 WASHER; PL,CUSHION RUBBER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0502-
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	0102-0501
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 01.274 M8X63	8-94249-446-0	01	1	0502-
81	01.277 SCREW; FAN GUIDE,RAD 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97088-810-0	04	1	0201-0301
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	0201-0301
81	01.277 SCREW; FAN GUIDE,RAD 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97088-810-0	04	1	0302-0501
81	01.277 SCREW; FAN GUIDE,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97088-810-0	04	1	0302-0501
81	01.277 SCREW; FAN GUIDE,RAD 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97088-810-0	04	1	0502-
131	01.166 CLIP; ENG SIDE TOP 4HE1 ENG(RLY) ID=40	8-97245-216-0	01	1	0102-0112
131	01.166 CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0201-0301
131	01.166 CLIP; ENG SIDE TOP 4HF1 ENG(RLS),4HE1 ENG(RLY) ID=40	8-97245-216-0	01	1	0302-0501
131	01.166 CLIP; ENG SIDE TOP 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) ID=40	8-97245-216-0	01	1	0502-
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HE1 ENG(RLY) ID=50	8-97245-217-0	01	1	0102-0112
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0201-0301
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HF1 ENG(RLS),4HE1 ENG(RLY) ID=50	8-97245-217-0	01	1	0302-0501
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) ID=50	8-97245-217-0	01	1	0502-
204	01.267 GUIDE ASM; AIR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97376-880-0	01	1	0507-
205	01.267 BOLT; AIR GUIDE 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0507-0512
205	01.267 BOLT; AIR GUIDE 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-
240	01.271 NUT; STAY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	0102-0112
240	01.271 NUT; STAY EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	0201-0301
240	01.271 NUT; STAY POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	0201-0301
240	01.271 NUT; STAY 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	0302-0501
240	01.271 NUT; STAY 4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	0302-0501
240	01.271 NUT; STAY 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	0502-
240	01.271 NUT; STAY 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	0502-
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	0102-0610
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0611-

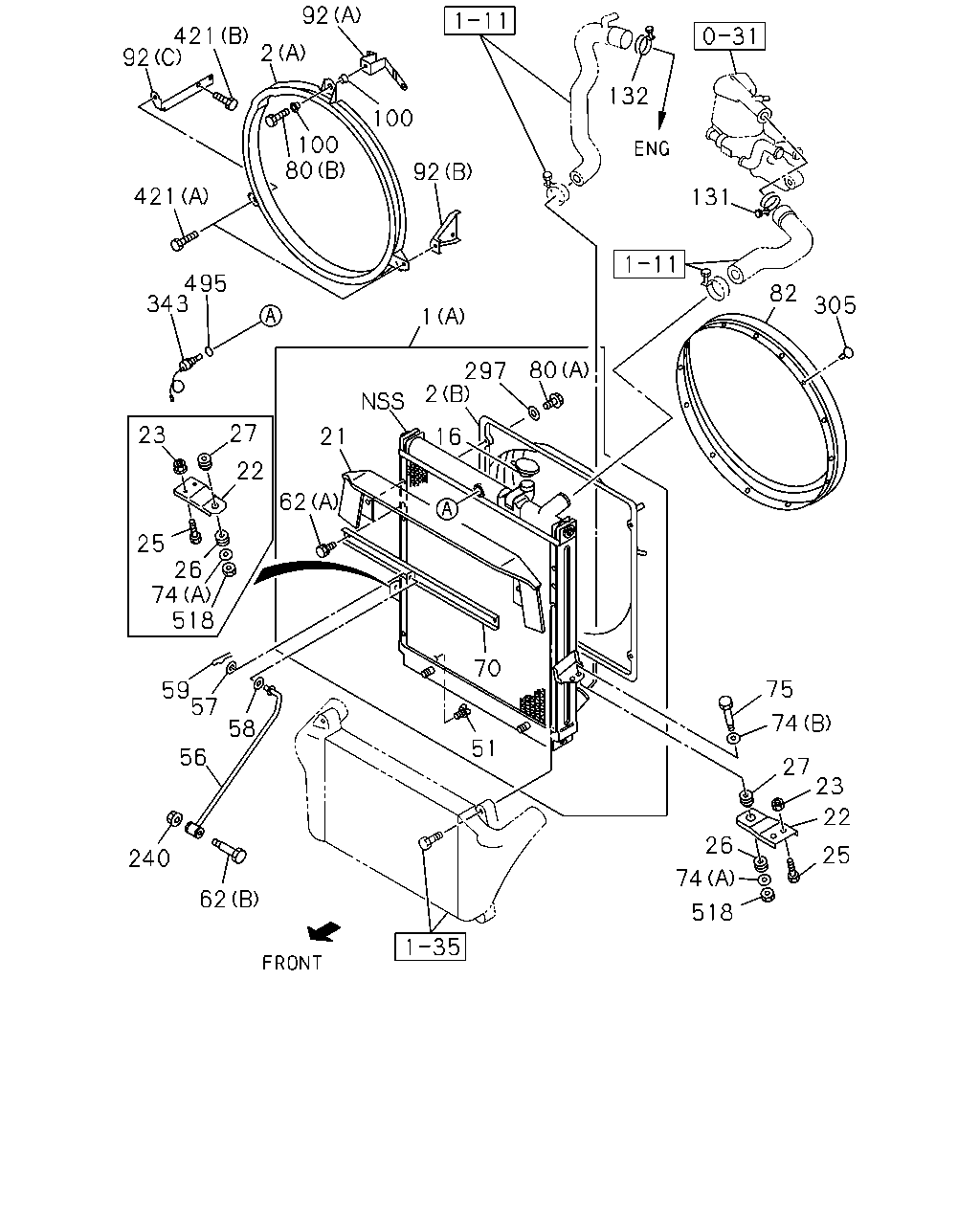

92 421 92 2 132 100 100 80 92 421 131 495 343 82 305 1 80 297 2 27 23 21 16 22 62 25 26 74 518 70 75 59 57 74 58 51 56 27 23 22 26 25 240 74 62 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97213-663-1	01	1	0102-0112
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (A)	8-97213-663-1	01	1	0201-0209
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (A)	8-97354-365-0	01	1	0210-0501
1	01.219 RADIATOR ASM 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> (A)	8-97377-238-1	01	1	0502-
1	01.219 RADIATOR ASM 4HF1 ENG(RLS) M/T MXA5R(RMT) (B)	8-97148-287-1	01	1	0201-0301
1	01.219 RADIATOR ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) (B)	8-97148-287-1	01	1	0302-0305
1	01.219 RADIATOR ASM 4HF1 ENG(RLS) M/T MYY5T(RSM) (B)	8-97371-010-0	01	1	0306-0501
1	01.219 RADIATOR ASM 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> (B)	8-97371-010-0	01	1	0502-
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97068-803-0	01	1	0102-0501
2	01.277 GUIDE; FAN 4HE1-TCS ENG(RDS) (A)	8-97068-803-0	01	1	0502-
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97218-802-1	01	1	0102-0301
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (B)	8-97218-802-1	01	1	0302-0501
2	01.277 GUIDE; FAN 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> (B)	8-97218-802-1	01	1	0502-
2	01.277 GUIDE; FAN 4HF1 ENG(RLS) M/T MXA5R(RMT) (C)	8-97066-016-0	01	1	0201-0301
2	01.277 GUIDE; FAN 4HF1 ENG(RLS) M/T MYY5T(RSM) (C)	8-97066-016-0	01	1	0302-0501
2	01.277 GUIDE; FAN 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> (C)	8-97066-016-0	01	1	0502-
16	01.203 CAP; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97239-187-0	01	1	0102-0301
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97239-187-0	01	1	0302-0501
16	01.203 CAP; RAD 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11>	8-97239-187-0	01	1	0502-
16	01.203 CAP; RAD 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97177-872-0	01	1	0201-0301
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0201-0301
16	01.203 CAP; RAD 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97177-872-0	01	1	0302-0305
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0302-0305
16	01.203 CAP; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97177-872-0	01	1	0306-0501
16	01.203 CAP; RAD 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97371-017-0	01	1	0306-0501
16	01.203 CAP; RAD 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97371-017-0	01	1	0502-
21	01.276 SEAL; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97218-801-1	01	1	0102-0301
21	01.276 SEAL; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97218-801-1	01	1	0302-0501
21	01.276 SEAL; RAD 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11>	8-97376-998-1	01	1	0502-
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	0102-0501
22	01.270 BRACKET; RAD MTG 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ>	8-97074-093-0	02	1	0502-
22	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97096-452-0	02	1	0201-
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	0102-0501
23	01.271 NUT; RAD MTG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 07.874 M10 FLANGE	5-09440-006-0	04	1	0502-
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0102-0501
25	01.271 BOLT; BRKT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0502-0512
25	01.271 BOLT; BRKT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0601-
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0102-
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0102-
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	0102-0301
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	0302-0501
51	08.951 PLUG; DRAIN 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> W/GASKET	1-09609-023-0	01	1	0502-
51	08.951 PLUG; DRAIN 4HF1 ENG(RLS) M/T MXA5R(RMT) 08.915 W/GASKET	8-94321-236-0	01	1	0201-0301
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0201-0301
51	08.951 PLUG; DRAIN 4HF1 ENG(RLS) M/T MYY5T(RSM) 08.915 W/GASKET	8-94321-236-0	01	1	0302-0501
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0302-0501
51	08.951 PLUG; DRAIN 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 08.915 W/GASKET	8-94321-236-0	01	1	0502-
56	01.270 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97073-424-2	01	1	0102-0501
56	01.270 STAY; RAD 4HE1-TCS ENG(RDS)	8-97073-424-2	01	1	0502-
56	01.270 STAY; RAD 4HF1 ENG(RLS)	8-97032-798-2	01	1	0201-0301
56	01.270 STAY; RAD 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97032-798-2	01	1	0302-
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0102-0605
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0102-
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0102-0610
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0102-
62	01.271 BOLT; STAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0102-0112
62	01.271 BOLT; STAY 4HF1 ENG(RLS) M/T MXA5R(RMT) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0201-0301
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0201-0301
62	01.271 BOLT; STAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0201-0301
62	01.271 BOLT; STAY 4HF1 ENG(RLS) M/T MYY5T(RSM) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0501
62	01.271 BOLT; STAY 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0501
62	01.271 BOLT; STAY 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-
70	01.271 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	0102-0112
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	0201-0301
70	01.271 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97073-125-0	01	1	0201-0301
70	01.271 STAY; RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97073-125-0	01	1	0302-0501
70	01.271 STAY; RAD 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11>	8-97073-125-0	01	1	0502-
70	01.271 STAY; RAD 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97047-899-0	01	1	0201-0301
70	01.271 STAY; RAD 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97047-899-0	01	1	0302-0501
70	01.271 STAY; RAD 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97047-899-0	01	1	0502-
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0102-0610
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0102-0501
74	01.270 WASHER; PL,CUSHION RUBBER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0502-
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	0102-0501
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 01.274 M8X63	8-94249-446-0	01	1	0502-
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0102-0301
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0302-0501
80	01.277 BOLT; FAN GUIDE 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0502-
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0102-0501
80	01.277 BOLT; FAN GUIDE 4HE1-TCS ENG(RDS) 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0502-0512
80	01.277 BOLT; FAN GUIDE 4HE1-TCS ENG(RDS) 01.252 (B) M8X30 W/LK&PL WASHER	0-50640-830-0	03	1	0601-0806
80	01.277 BOLT; FAN GUIDE 4HE1-TCS ENG(RDS) 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	0807-
82	01.277 COVER; FAN,RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97218-799-0	01	1	0102-0301
82	01.277 COVER; FAN,RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97218-799-0	01	1	0302-0501
82	01.277 COVER; FAN,RAD 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11>	8-97218-799-0	01	1	0502-
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97148-940-0	01	1	0102-0501
92	01.277 BRACKET; FAN GUIDE 4HE1-TCS ENG(RDS) (B)	8-97148-940-0	01	1	0502-
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C)	8-97148-941-1	01	1	0102-0501
92	01.277 BRACKET; FAN GUIDE 4HE1-TCS ENG(RDS) (C)	8-97148-941-1	01	1	0502-
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97189-394-1	01	1	0102-0501
92	01.277 BRACKET; FAN GUIDE 4HE1-TCS ENG(RDS) (A)	8-97189-394-1	01	1	0502-
100	01.277 RUBBER; MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-09337-027-0	06	1	0102-0501
100	01.277 RUBBER; MTG 4HE1-TCS ENG(RDS)	1-09337-027-0	06	1	0502-
131	01.166 CLIP; ENG SIDE TOP 4HE1 ENG(RLY) ID=40	8-97245-216-0	01	1	0102-0112
131	01.166 CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0201-0301
131	01.166 CLIP; ENG SIDE TOP 4HF1 ENG(RLS),4HE1 ENG(RLY) ID=40	8-97245-216-0	01	1	0302-0501
131	01.166 CLIP; ENG SIDE TOP 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) ID=40	8-97245-216-0	01	1	0502-
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HE1 ENG(RLY) ID=50	8-97245-217-0	01	1	0102-0112
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0201-0301
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HF1 ENG(RLS),4HE1 ENG(RLY) ID=50	8-97245-217-0	01	1	0302-0501
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) ID=50	8-97245-217-0	01	1	0502-
240	01.271 NUT; STAY 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	0102-0112
240	01.271 NUT; STAY EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	0201-0301
240	01.271 NUT; STAY POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	0201-0301
240	01.271 NUT; STAY 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	0302-0501
240	01.271 NUT; STAY 4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	0302-0501
240	01.271 NUT; STAY 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER STEERING<N40> M8 FLANGE	8-94178-701-0	01	1	0502-
240	01.271 NUT; STAY 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	8-94178-701-0	01	1	0502-
297	01.277 WASHER; PL,FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0102-0301
297	01.277 WASHER; PL,FAN GUIDE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0302-0501
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 16.742 D6.8X11 PUSH RIVET	1-73318-230-0	12	1	0102-0209
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-09470-009-0	12	1	0210-0301
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	1-09470-009-0	12	1	0302-0501
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11>	1-09470-009-0	12	1	0502-
343	01.271 PLUG; WATER LEVEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M18X12	1-09604-081-0	01	1	0102-0301
343	01.271 PLUG; WATER LEVEL 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> M18X12	1-09604-081-0	01	1	0302-0501
343	01.271 PLUG; WATER LEVEL 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> M18X12	1-09604-081-0	01	1	0502-
421	01.277 BOLT; BRKT FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0102-0501
421	01.277 BOLT; BRKT FAN GUIDE 4HE1-TCS ENG(RDS) 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0502-
421	01.277 BOLT; BRKT FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	0102-0501
421	01.277 BOLT; BRKT FAN GUIDE 4HE1-TCS ENG(RDS) 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	0502-0512
421	01.277 BOLT; BRKT FAN GUIDE 4HE1-TCS ENG(RDS) 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	0601-
495	01.274 GASKET; SENSOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.097	1-09623-185-0	01	1	0102-0301
495	01.274 GASKET; SENSOR 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 01.097	1-09623-185-0	01	1	0302-0501
495	01.274 GASKET; SENSOR 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> 01.097	1-09623-185-0	01	1	0502-
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	0102-0610
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0611-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
