1-01 — ACCELERATOR PEDAL AND CONTROL (#47635) — 248 parça

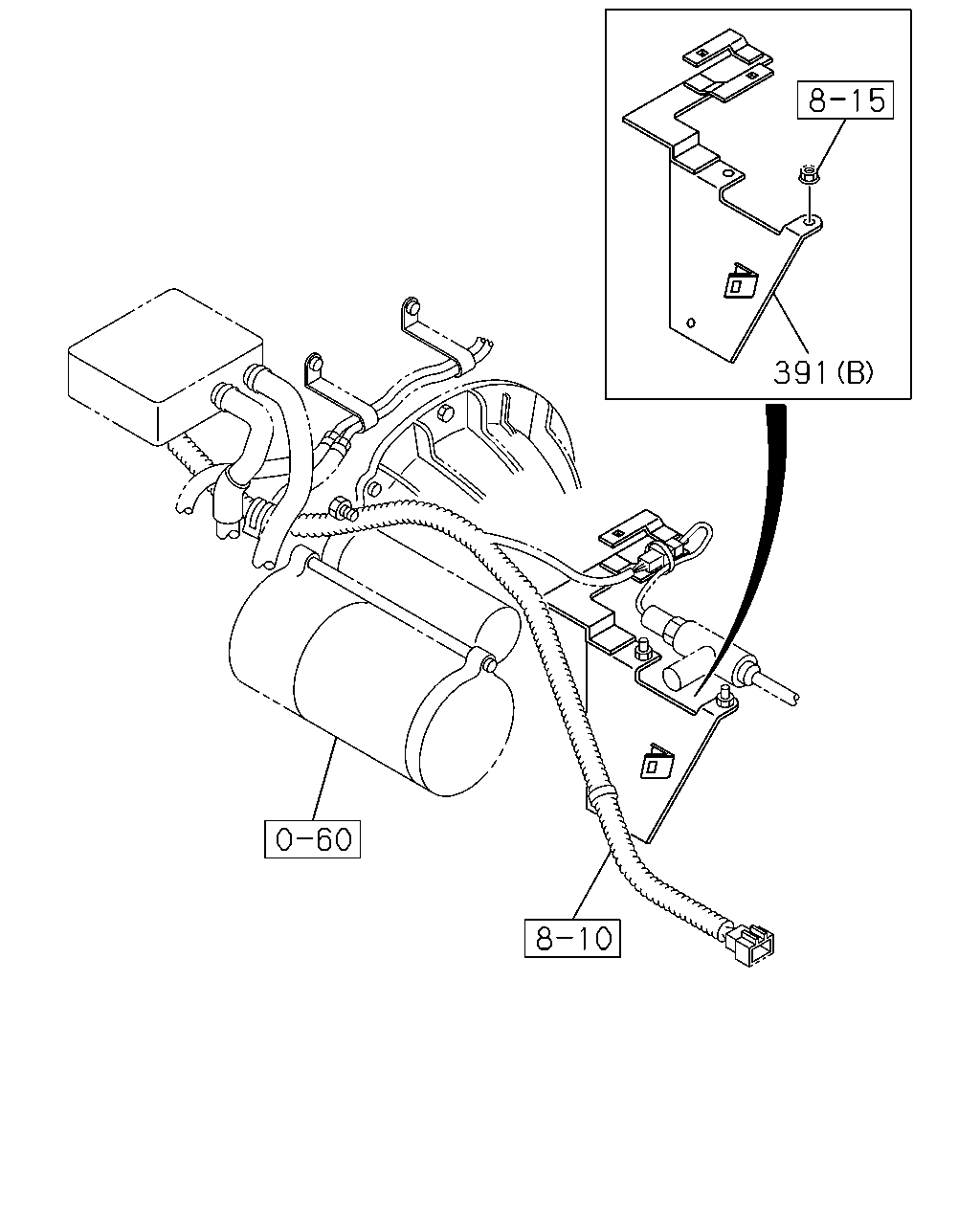

391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
391	03.452 BRACKET; ENG CONT EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	0201-0301
391	03.452 BRACKET; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	0302-0501
391	03.452 BRACKET; ENG CONT 4HF1 ENG(RLS) (A)	8-97172-882-0	01	1	0502-
391	03.452 BRACKET; ENG CONT 4HE1 ENG(RLY) M/T MZZ6U(RSF) (B)	8-97351-929-0	01	1	0208-0301
391	03.452 BRACKET; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (B)	8-97357-141-0	01	1	0302-0501
391	03.452 BRACKET; ENG CONT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (B)	8-97357-141-0	01	1	0502-

54 99 54 99 100 101 108 729 218 101 104 110 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL> (B) L=293	8-97115-730-0	01	1	0201-0301
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B) L=293	8-97115-730-0	01	1	0302-0501
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B) L=293	8-97115-730-0	01	1	0502-
54	03.430 CABLE; ENG CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2283	8-97122-494-1	01	1	0201-0301
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2283	8-97122-494-2	01	1	0302-0501
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A) L=2283	8-97122-494-2	01	1	0502-
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	0102-0501
54	03.430 CABLE; ENG CONT 4HE1-TCS ENG(RDS) (B) L=384	8-97168-299-1	01	1	0502-
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=2451	8-97148-583-3	01	1	0102-0112
54	03.430 CABLE; ENG CONT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=2451	8-97148-583-3	01	1	0201-0301
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=2451	8-97148-583-4	01	1	0302-0501
54	03.430 CABLE; ENG CONT 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> (A) L=2451	8-97148-583-4	01	1	0502-
99	03.463 BRACKET ASM; ENG CONT,INL MANIF FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B)	8-97118-729-0	01	1	0201-0301
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B)	8-97118-729-0	01	1	0302-0501
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> (B)	8-97118-729-0	01	1	0502-
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-871-3	01	1	0102-0501
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1-TCS ENG(RDS) (A)	8-97167-871-3	01	1	0502-
100	03.463 SHAFT ASM; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B)	8-97118-737-0	01	1	0201-0301
100	03.463 SHAFT ASM; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B)	8-97118-737-0	01	1	0302-0501
100	03.463 SHAFT ASM; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> (B)	8-97118-737-0	01	1	0502-
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-870-2	01	1	0102-0501
100	03.463 SHAFT ASM; ENG CONT 4HE1-TCS ENG(RDS) (A)	8-97167-870-2	01	1	0502-
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	0102-0112
101	03.463 WASHER; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	0201-0301
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	0201-0301
101	03.463 WASHER; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	0302-0501
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	0302-0501
101	03.463 WASHER; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	0502-
101	03.463 WASHER; ENG CONT 4HE1-TCS ENG(RDS) 01.276	8-94142-117-0	02	1	0502-
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0102-0112
104	03.463 NUT; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0301
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0301
104	03.463 NUT; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0501
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0501
104	03.463 NUT; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602
104	03.463 NUT; ENG CONT 4HE1-TCS ENG(RDS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602
104	03.463 NUT; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
104	03.463 NUT; ENG CONT 4HE1-TCS ENG(RDS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	0102-0112
108	03.463 BUSHING; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	0201-0301
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	0201-0301
108	03.463 BUSHING; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	0302-0501
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	0302-0501
108	03.463 BUSHING; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	0502-
108	03.463 BUSHING; ENG CONT 4HE1-TCS ENG(RDS)	8-97120-004-0	01	1	0502-
110	03.463 BOLT; BRKT TO HANGER EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0201-0301
110	03.463 BOLT; BRKT TO HANGER 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0302-0501
110	03.463 BOLT; BRKT TO HANGER 4HF1 ENG(RLS) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0502-0512
110	03.463 BOLT; BRKT TO HANGER 4HF1 ENG(RLS) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0601-
110	03.463 BOLT; BRKT TO HANGER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0102-0501
110	03.463 BOLT; BRKT TO HANGER 4HE1-TCS ENG(RDS) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512
110	03.463 BOLT; BRKT TO HANGER 4HE1-TCS ENG(RDS) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-
218	03.452 NUT; BRKT EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0301
218	03.452 NUT; BRKT 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0501
218	03.452 NUT; BRKT 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602
218	03.452 NUT; BRKT 4HF1 ENG(RLS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
391	03.452 BRACKET; ENG CONT EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	0201-0301
391	03.452 BRACKET; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	0302-0501
391	03.452 BRACKET; ENG CONT 4HF1 ENG(RLS) (A)	8-97172-882-0	01	1	0502-
391	03.452 BRACKET; ENG CONT 4HE1 ENG(RLY) M/T MZZ6U(RSF) (B)	8-97351-929-0	01	1	0208-0301
391	03.452 BRACKET; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (B)	8-97357-141-0	01	1	0302-0501
391	03.452 BRACKET; ENG CONT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (B)	8-97357-141-0	01	1	0502-
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	0102-0112
729	03.451 COLLAR; JOINT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	0201-0301
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	0201-0301
729	03.451 COLLAR; JOINT 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	0302-0501
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	0302-0501
729	03.451 COLLAR; JOINT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	0502-
729	03.451 COLLAR; JOINT 4HE1-TCS ENG(RDS)	8-97118-760-0	01	1	0502-

54 99 54 114 99 108 729 101 101 100 104 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL> (B) L=293	8-97115-730-0	01	1	0201-0301
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B) L=293	8-97115-730-0	01	1	0302-0501
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B) L=293	8-97115-730-0	01	1	0502-
54	03.430 CABLE; ENG CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2283	8-97122-494-1	01	1	0201-0301
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2283	8-97122-494-2	01	1	0302-0501
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A) L=2283	8-97122-494-2	01	1	0502-
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	0102-0501
54	03.430 CABLE; ENG CONT 4HE1-TCS ENG(RDS) (B) L=384	8-97168-299-1	01	1	0502-
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=2451	8-97148-583-3	01	1	0102-0112
54	03.430 CABLE; ENG CONT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=2451	8-97148-583-3	01	1	0201-0301
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=2451	8-97148-583-4	01	1	0302-0501
54	03.430 CABLE; ENG CONT 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> (A) L=2451	8-97148-583-4	01	1	0502-
99	03.463 BRACKET ASM; ENG CONT,INL MANIF FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B)	8-97118-729-0	01	1	0201-0301
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B)	8-97118-729-0	01	1	0302-0501
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> (B)	8-97118-729-0	01	1	0502-
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-871-3	01	1	0102-0501
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1-TCS ENG(RDS) (A)	8-97167-871-3	01	1	0502-
100	03.463 SHAFT ASM; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B)	8-97118-737-0	01	1	0201-0301
100	03.463 SHAFT ASM; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B)	8-97118-737-0	01	1	0302-0501
100	03.463 SHAFT ASM; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> (B)	8-97118-737-0	01	1	0502-
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-870-2	01	1	0102-0501
100	03.463 SHAFT ASM; ENG CONT 4HE1-TCS ENG(RDS) (A)	8-97167-870-2	01	1	0502-
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	0102-0112
101	03.463 WASHER; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	0201-0301
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	0201-0301
101	03.463 WASHER; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	0302-0501
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	0302-0501
101	03.463 WASHER; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	0502-
101	03.463 WASHER; ENG CONT 4HE1-TCS ENG(RDS) 01.276	8-94142-117-0	02	1	0502-
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0102-0112
104	03.463 NUT; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0301
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0301
104	03.463 NUT; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0501
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0501
104	03.463 NUT; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602
104	03.463 NUT; ENG CONT 4HE1-TCS ENG(RDS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602
104	03.463 NUT; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
104	03.463 NUT; ENG CONT 4HE1-TCS ENG(RDS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	0102-0112
108	03.463 BUSHING; ENG CONT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	0201-0301
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	0201-0301
108	03.463 BUSHING; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	0302-0501
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	0302-0501
108	03.463 BUSHING; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	0502-
108	03.463 BUSHING; ENG CONT 4HE1-TCS ENG(RDS)	8-97120-004-0	01	1	0502-
110	03.463 BOLT; BRKT TO HANGER EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0201-0301
110	03.463 BOLT; BRKT TO HANGER 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0302-0501
110	03.463 BOLT; BRKT TO HANGER 4HF1 ENG(RLS) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0502-0512
110	03.463 BOLT; BRKT TO HANGER 4HF1 ENG(RLS) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0601-
110	03.463 BOLT; BRKT TO HANGER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0102-0501
110	03.463 BOLT; BRKT TO HANGER 4HE1-TCS ENG(RDS) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512
110	03.463 BOLT; BRKT TO HANGER 4HE1-TCS ENG(RDS) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-
114	03.483 CLIP; HARNESS CONNECTOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 ID=7-10	8-94472-578-0	01	1	0102-0301
114	03.483 CLIP; HARNESS CONNECTOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 ID=7-10	8-94472-578-0	01	1	0302-0501
114	03.483 CLIP; HARNESS CONNECTOR 4HE1-TCS ENG(RDS) 02.559 ID=7-10	8-94472-578-0	01	1	0502-
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	0102-0112
729	03.451 COLLAR; JOINT FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	0201-0301
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	0201-0301
729	03.451 COLLAR; JOINT 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	0302-0501
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	0302-0501
729	03.451 COLLAR; JOINT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	0502-
729	03.451 COLLAR; JOINT 4HE1-TCS ENG(RDS)	8-97118-760-0	01	1	0502-

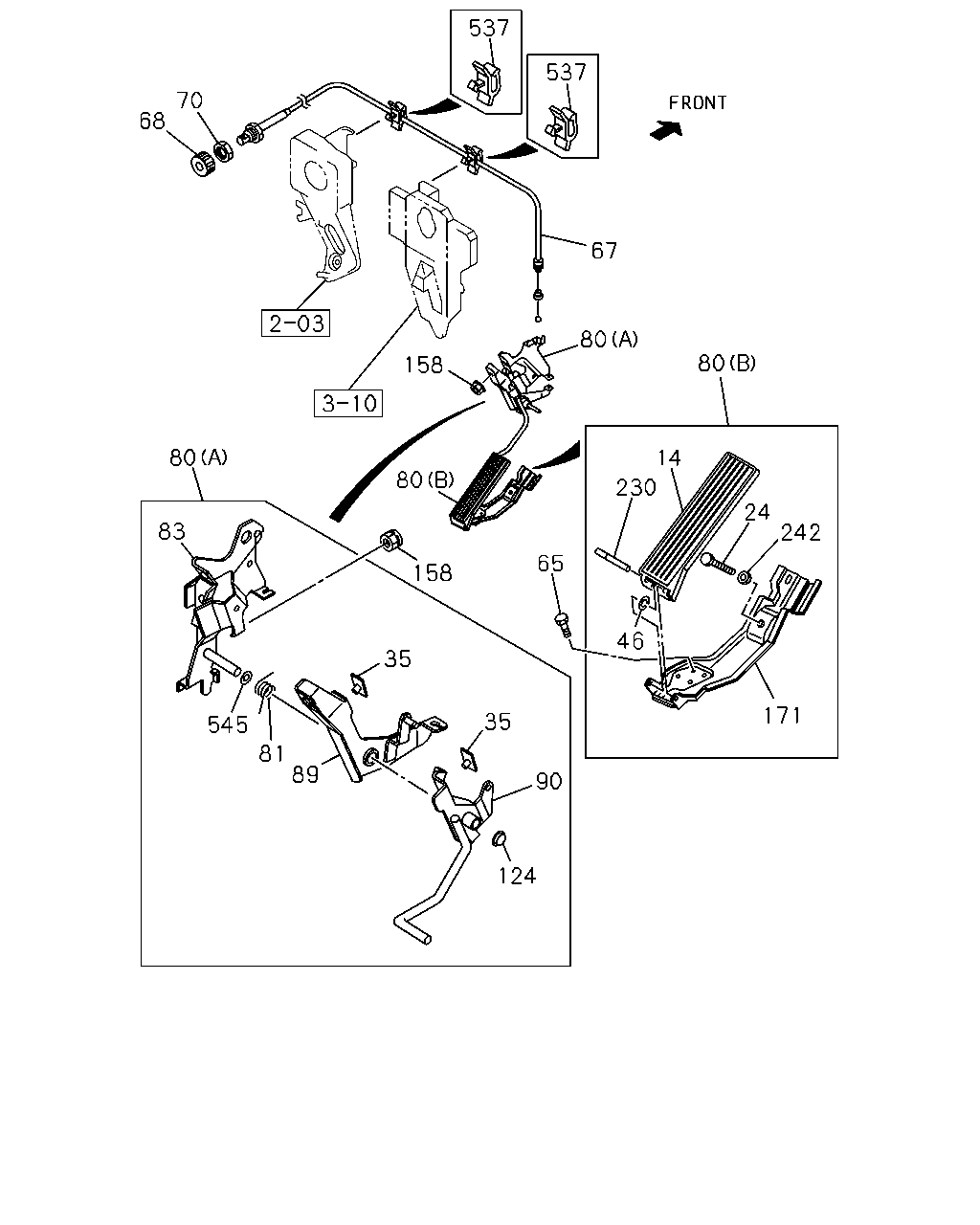

537 537 70 68 67 80 80 158 80 14 230 80 24 242 83 65 158 46 35 171 35 545 81 89 90 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	03.451 PAD; PEDAL,ACCEL	8-97859-101-0	01	1	0102-
24	03.483 BOLT; BRKT 03.459	0-20800-840-0	01	1	0102-
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	02	1	0102-0112
35	03.459 STOPPER; ACCEL PEDAL M/T MXA5R(RMT),M/T MBP6P(RNC)	8-97302-305-0	02	1	0201-0207
35	03.459 STOPPER; ACCEL PEDAL M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF)	8-97302-305-0	02	1	0208-0301
35	03.459 STOPPER; ACCEL PEDAL 4HF1 ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM)	8-97302-305-0	02	1	0302-0501
35	03.459 STOPPER; ACCEL PEDAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M/T MZZ6U(RSF),M/T MYY5T(RSM)	8-97302-305-0	02	1	0502-
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0102-0604
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0102-
67	03.480 CABLE ASM; IDLE CONT L=945	8-97856-223-4	01	1	0102-0301
67	03.480 CABLE ASM; IDLE CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) L=945	8-97856-223-4	01	1	0302-0501
67	03.480 CABLE ASM; IDLE CONT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) L=945	8-97856-223-4	01	1	0502-
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	0102-0301
68	03.480 KNOB; IDLE CONT 4HF1 ENG(RLS),4HE1 ENG(RLY)	8-97853-765-1	01	1	0302-0501
68	03.480 KNOB; IDLE CONT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97853-765-1	01	1	0502-
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	0102-0301
70	03.483 NUT; CONT CABLE 4HF1 ENG(RLS),4HE1 ENG(RLY) M18	8-97853-233-0	01	1	0302-0501
70	03.483 NUT; CONT CABLE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M18	8-97853-233-0	01	1	0502-
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	0102-
80	03.452 LINK ASM; ENG CONT (A)	8-97859-518-3	01	1	0102-0112
80	03.452 LINK ASM; ENG CONT M/T MXA5R(RMT),M/T MBP6P(RNC) (A)	8-97859-518-3	01	1	0201-0207
80	03.452 LINK ASM; ENG CONT M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF) (A)	8-97859-518-3	01	1	0208-0301
80	03.452 LINK ASM; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM) (A)	8-97859-518-3	01	1	0302-0501
80	03.452 LINK ASM; ENG CONT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M/T MZZ6U(RSF),M/T MYY5T(RSM) (A)	8-97859-518-3	01	1	0502-
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0102-0112
81	03.459 SPRING; RETURN,ENG CONT LEVER M/T MXA5R(RMT),M/T MBP6P(RNC)	8-97853-205-1	01	1	0201-0207
81	03.459 SPRING; RETURN,ENG CONT LEVER M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF)	8-97853-205-1	01	1	0208-0301
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HF1 ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM)	8-97853-205-1	01	1	0302-0501
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M/T MZZ6U(RSF),M/T MYY5T(RSM)	8-97853-205-1	01	1	0502-
83	03.452 BRACKET; CONT LINK	8-97859-519-0	01	1	0102-0112
83	03.452 BRACKET; CONT LINK M/T MXA5R(RMT),M/T MBP6P(RNC)	8-97859-519-0	01	1	0201-0207
83	03.452 BRACKET; CONT LINK M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF)	8-97859-519-0	01	1	0208-0301
83	03.452 BRACKET; CONT LINK 4HF1 ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM)	8-97859-519-0	01	1	0302-0501
83	03.452 BRACKET; CONT LINK 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M/T MZZ6U(RSF),M/T MYY5T(RSM)	8-97859-519-0	01	1	0502-
89	03.454 LEVER; RELAY	8-97857-617-4	01	1	0102-0112
89	03.454 LEVER; RELAY M/T MXA5R(RMT),M/T MBP6P(RNC)	8-97857-617-4	01	1	0201-0207
89	03.454 LEVER; RELAY M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF)	8-97857-617-4	01	1	0208-0301
89	03.454 LEVER; RELAY 4HF1 ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM)	8-97857-617-4	01	1	0302-0501
89	03.454 LEVER; RELAY 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M/T MZZ6U(RSF),M/T MYY5T(RSM)	8-97857-617-4	01	1	0502-
90	03.454 LEVER; RELAY,ENG CONT	8-97857-613-6	01	1	0102-0112
90	03.454 LEVER; RELAY,ENG CONT M/T MXA5R(RMT),M/T MBP6P(RNC)	8-97857-613-6	01	1	0201-0207
90	03.454 LEVER; RELAY,ENG CONT M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF)	8-97857-613-6	01	1	0208-0301
90	03.454 LEVER; RELAY,ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM)	8-97857-613-6	01	1	0302-0501
90	03.454 LEVER; RELAY,ENG CONT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M/T MZZ6U(RSF),M/T MYY5T(RSM)	8-97857-613-6	01	1	0502-
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0102-0112
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MBP6P(RNC) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0201-0207
124	03.463 NUT; LEVER M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0208-0301
124	03.463 NUT; LEVER 4HF1 ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0302-0501
124	03.463 NUT; LEVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M/T MZZ6U(RSF),M/T MYY5T(RSM) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0502-
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0102-
171	03.483 BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	0102-
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0102-
242	03.483 NUT; ACCEL PEDAL 02.559 M8	9-09110-408-0	01	1	0102-0512
242	03.483 NUT; ACCEL PEDAL 02.334 M8	0-91110-508-0	01	1	0601-
537	03.483 CLIP; IDLING CONT CABLE 04.342 ID=7	5-09707-053-0	02	1	0102-0301
537	03.483 CLIP; IDLING CONT CABLE 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.342 ID=7	5-09707-053-0	02	1	0302-0501
537	03.483 CLIP; IDLING CONT CABLE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.342 ID=7	5-09707-053-0	02	1	0502-
545	03.463 WASHER; NYLON 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	0102-0112
545	03.463 WASHER; NYLON M/T MXA5R(RMT),M/T MBP6P(RNC) 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	0201-0207
545	03.463 WASHER; NYLON M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF) 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	0208-0301
545	03.463 WASHER; NYLON 4HF1 ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM) 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	0302-0501
545	03.463 WASHER; NYLON 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M/T MZZ6U(RSF),M/T MYY5T(RSM) 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	0502-

389 648 54 60 320 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL> (B) L=293	8-97115-730-0	01	1	0201-0301
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B) L=293	8-97115-730-0	01	1	0302-0501
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B) L=293	8-97115-730-0	01	1	0502-
54	03.430 CABLE; ENG CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2283	8-97122-494-1	01	1	0201-0301
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2283	8-97122-494-2	01	1	0302-0501
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A) L=2283	8-97122-494-2	01	1	0502-
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	0102-0501
54	03.430 CABLE; ENG CONT 4HE1-TCS ENG(RDS) (B) L=384	8-97168-299-1	01	1	0502-
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=2451	8-97148-583-3	01	1	0102-0112
54	03.430 CABLE; ENG CONT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=2451	8-97148-583-3	01	1	0201-0301
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS),4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=2451	8-97148-583-4	01	1	0302-0501
54	03.430 CABLE; ENG CONT 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> (A) L=2451	8-97148-583-4	01	1	0502-
60	08.155 BOLT; CABLE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0201-0301
60	08.155 BOLT; CABLE 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0302-0501
60	08.155 BOLT; CABLE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512
60	08.155 BOLT; CABLE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0102-0112
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0102-0112
60	08.155 BOLT; CABLE FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0201-0301
60	08.155 BOLT; CABLE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0201-0301
60	08.155 BOLT; CABLE 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0501
60	08.155 BOLT; CABLE 4HF1 ENG(RLS),4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0501
60	08.155 BOLT; CABLE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
60	08.155 BOLT; CABLE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
60	08.155 BOLT; CABLE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-
60	08.155 BOLT; CABLE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-
320	03.483 CLIP; FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 06.672	8-94178-110-0	01	1	0102-0112
320	03.483 CLIP; FRAME FRAME STRAIGHT TYPE<7KJ> 06.672	8-94178-110-0	01	1	0201-0301
320	03.483 CLIP; FRAME 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 06.672	8-94178-110-0	01	1	0302-0501
320	03.483 CLIP; FRAME 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 06.672	8-94178-110-0	01	1	0502-
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0102-0112
389	03.483 NUT; ACCEL CONT CABLE FIX 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0201-0301
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0302-0501
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0602
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0102-0112
389	03.483 NUT; ACCEL CONT CABLE FIX FRAME STRAIGHT TYPE<7KJ> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0201-0301
389	03.483 NUT; ACCEL CONT CABLE FIX FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0201-0301
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0302-0501
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0302-0501
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0502-0805
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0502-0805
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.417 (B) M8 W/LK WASHER	8-97581-234-0	01	1	0806-
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.417 (B) M8 W/LK WASHER	8-97581-234-0	01	1	0806-
648	03.483 PROTECTOR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 03.008 L=80	5-22439-006-0	01	1	0102-0112
648	03.483 PROTECTOR FRAME STRAIGHT TYPE<7KJ> 03.008 L=80	5-22439-006-0	01	1	0201-0301
648	03.483 PROTECTOR 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 03.008 L=80	5-22439-006-0	01	1	0302-0501
648	03.483 PROTECTOR 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.008 L=80	5-22439-006-0	01	1	0502-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
