Sayfa 0-86 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 50915 - NP/NQ BUS LHDEXC.EU4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-86 - MISCELLANEOUS PARTS; INJECTION PUMP ▶

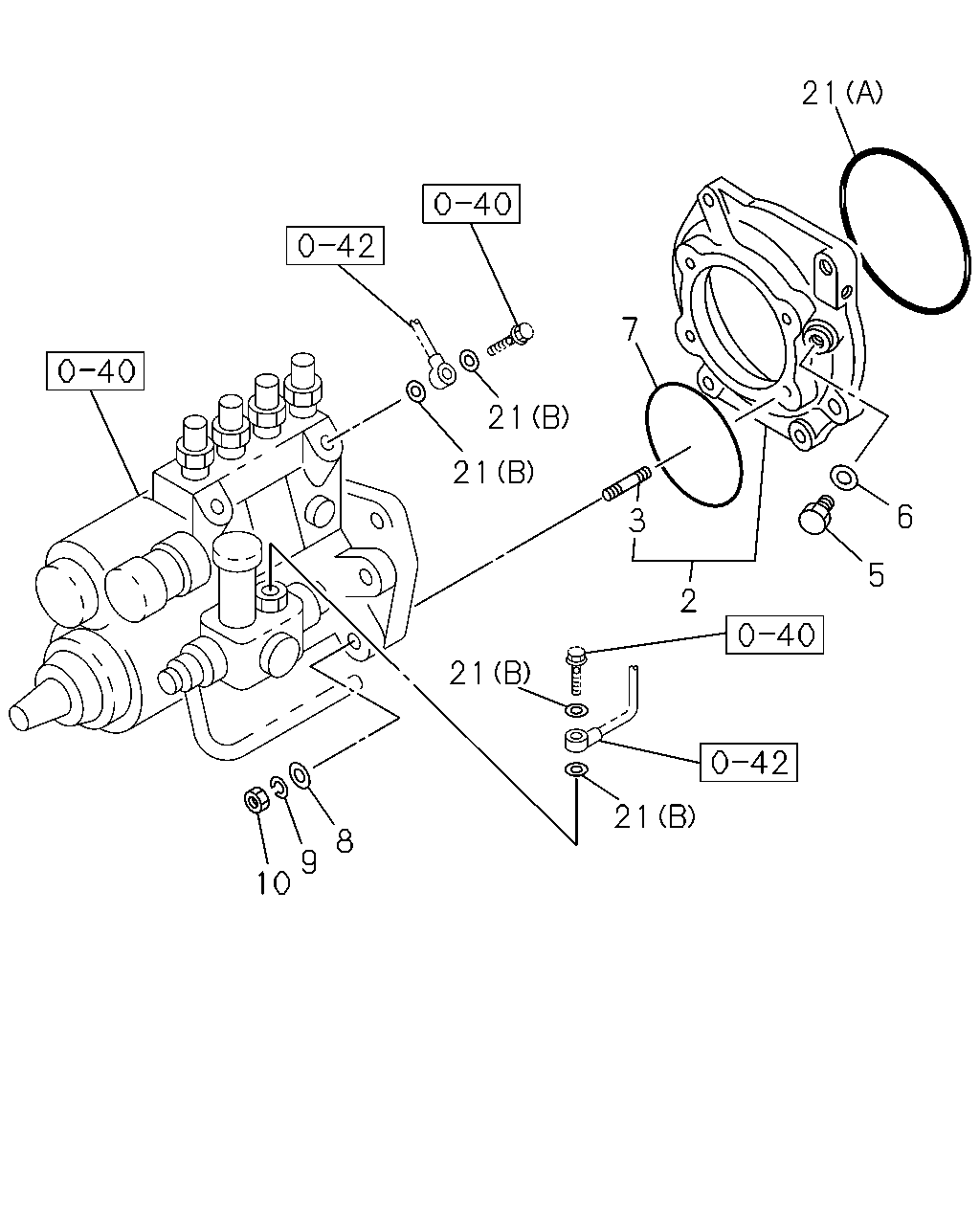

0-86 — MISCELLANEOUS PARTS; INJECTION PUMP (#47633) — 27 parça

21 7 21 21 6 3 5 2 21 21 8 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97188-880-1	01	1	0102-0501	●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97188-880-1	01	1	0502-		●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97121-616-0	01	1	0201-			●
3	03.330 STUD; HSG BRKT,INJ PUMP 08.981 M10X30 L=45	9-04101-030-0	04	1	0201-			●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	0102-0112	●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	0201-0501	●		●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	0502-		●	●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	0102-0112	●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	0201-0501	●		●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	0502-		●	●
7	03.306 GASKET; HSG BRKT,ENG SIDE	8-97188-881-0	01	1	0102-0501	●
7	03.306 GASKET; HSG BRKT,ENG SIDE	8-97188-881-0	01	1	0502-		●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	0102-0112	●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	0201-0501	●		●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	0502-		●	●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	0102-0301	●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-510-0	04	1	0302-0501	●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	0502-		●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	0102-0112	●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	0201-0501	●		●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	0502-		●	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	0102-0112	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	0201-0501	●		●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	0502-		●	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	02	1	0102-0501	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	02	1	0502-		●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	0201-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
