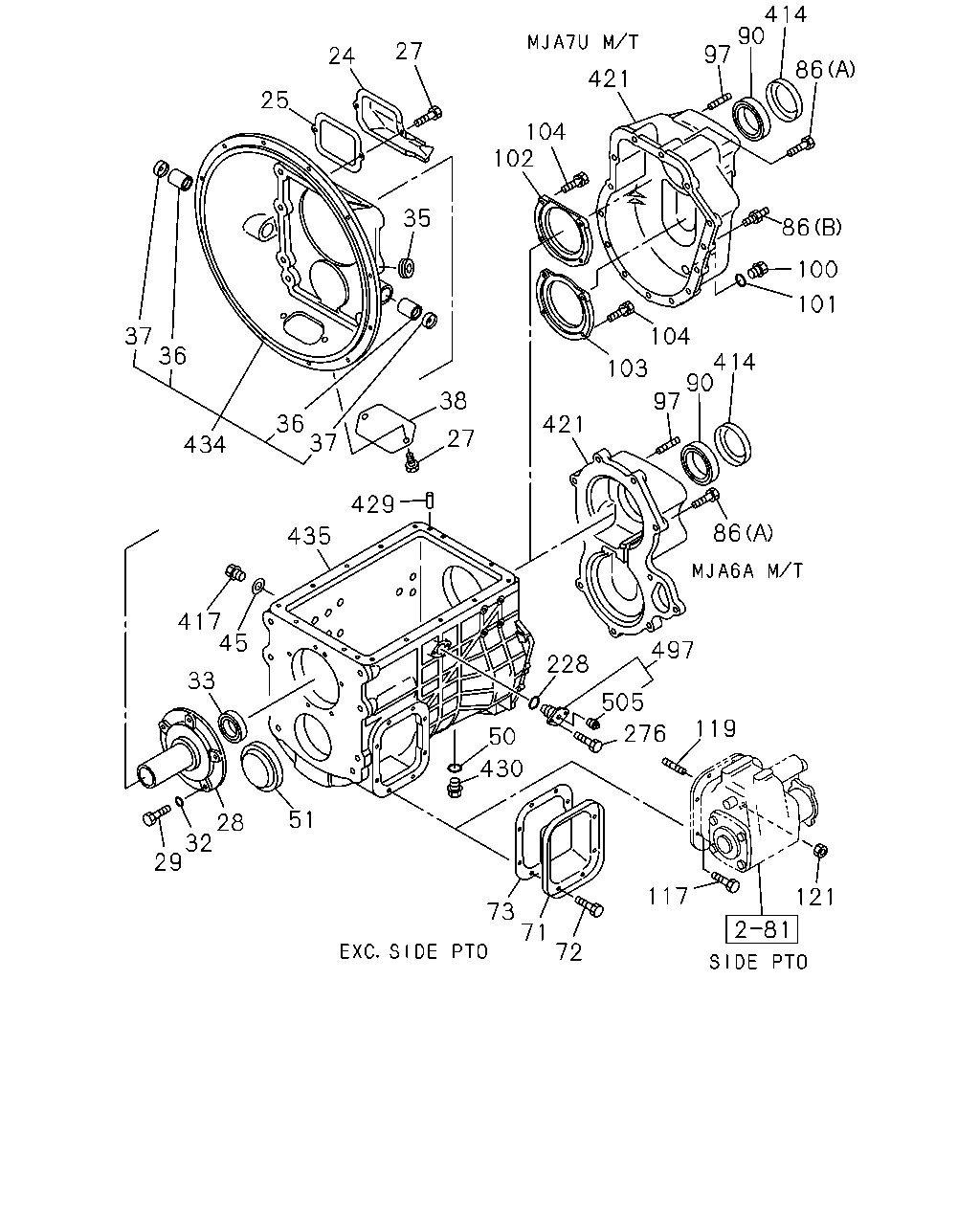

2-20A — MANUAL TRANSMISSION ASM AND CASE (#4763) — 70 parça

414 90 97 27 24 86 421 25 104 102 35 86 100 101 37 36 104 414 90 97 103 38 36 37 421 27 434 429 86 435 417 45 497 228 33 505 119 276 50 430 51 28 32 29 117 121 73 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	9603-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9603-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9603-	●	●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	9603-	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	9603-	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	9603-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	9603-	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	9603-	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	9603-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	9603-	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	9603-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9603-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9603-	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-055-1	01	1	9603-9707	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	9708-	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-030-1	01	1	9603-	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9603-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-043-0	01	1	9603-	●	●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	09	1	9603-	●
86	BOLT; RR COVER (A) M12X65	1-09044-077-0	02	1	9603-0011	●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	0012-	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	9603-	●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	10	1	9603-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	9603-	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9603-	●	●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	9603-	●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9603-	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-035-1	01	1	9603-	●
103	RETAINER; BRG	1-33151-035-1	01	1	9603-	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9603-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	04	1	9603-	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	0-28181-050-0	02	1	9603-	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9603-	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9603-	●	●
228	GASKET; NOZZLE	1-09623-183-0	01	1	9603-9904	●	●
228	GASKET; NOZZLE ID=24.4	1-09623-057-0	01	1	9905-	●	●
276	BOLT; ADAPTER M14X20	1-09044-078-0	02	1	9603-	●	●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	9603-	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9603-9802	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9803-	●	●
421	COVER; RR,TRANS	1-33131-138-1	01	1	9603-9604	●
421	COVER; RR,TRANS	1-33131-197-2	01	1	9605-	●
421	COVER; RR,TRANS	1-33131-109-1	01	1	9603-9604		●
421	COVER; RR,TRANS	1-33131-196-1	01	1	9605-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9603-	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9603-	●	●
434	HOUSING; CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31110-173-2	01	1	9603-	●
434	HOUSING; CLU EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31110-171-2	01	1	9603-	●
434	HOUSING; CLU	1-31110-171-2	01	1	9603-		●
435	CASE; TRANS	1-33111-195-1	01	1	9603-	●
435	CASE; TRANS	1-33111-223-1	01	1	9603-		●
497	ADAPTER; PLUG	1-33119-255-0	01	1	9603-	●	●
505	PLUG; ADAPTER,OIL INLET PT1/4	9-99204-513-0	01	1	9603-9704	●	●
505	PLUG; ADAPTER,OIL INLET PT1/4	9-99204-513-0	01	1	9905-	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

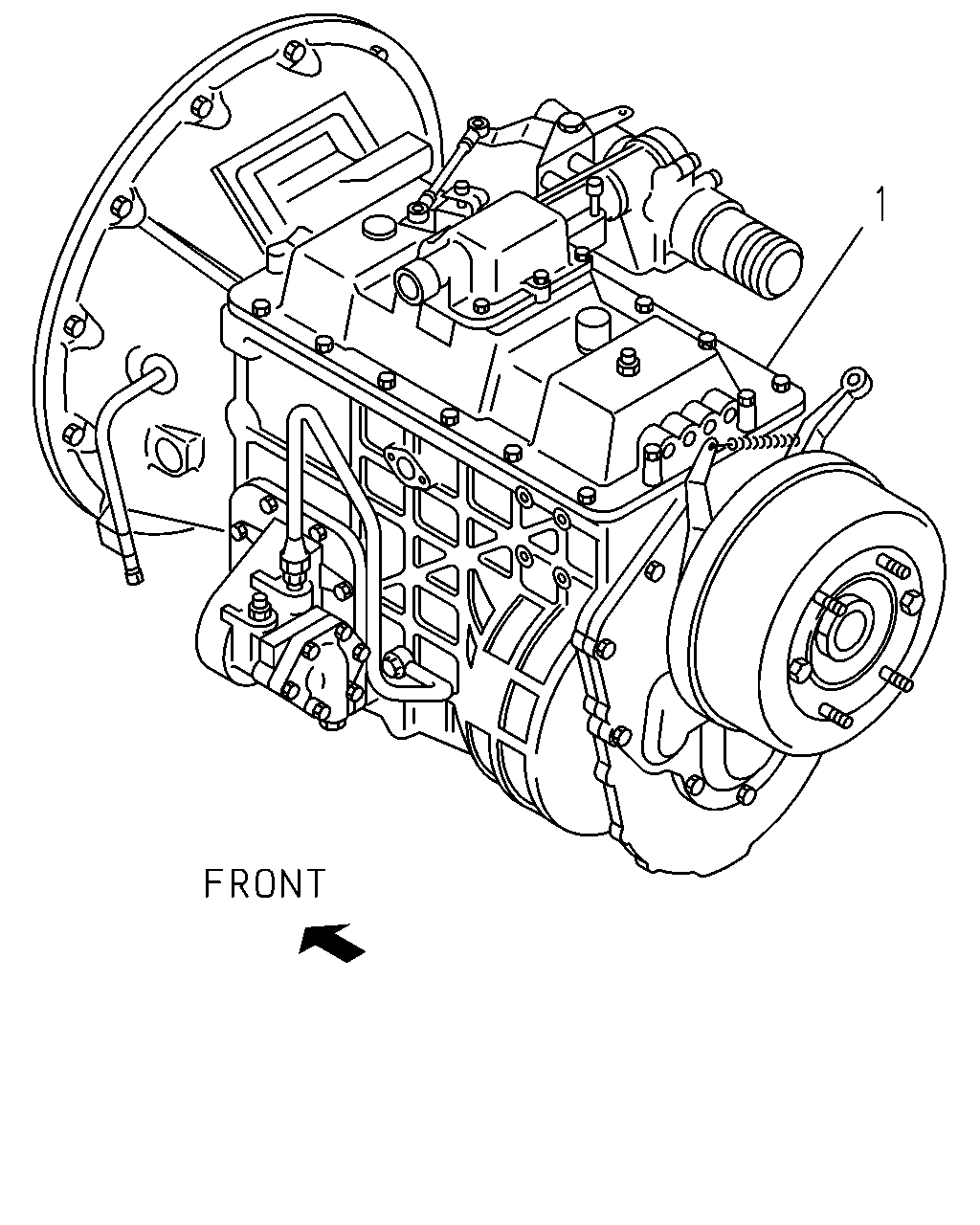

1	TRANSMISSION ASM; MANUAL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-33040-686-0	01	1	9603-9904	●
1	TRANSMISSION ASM; MANUAL P115 PROP SHAFT<C5X>	1-33042-137-0	01	1	9905-	●
1	TRANSMISSION ASM; MANUAL P90 PROP SHAFT<C5T> ASSISTER SHIFT CONTROL<WX8>	1-33040-601-0	01	1	9603-9904	●
1	TRANSMISSION ASM; MANUAL P90 PROP SHAFT<C5T> ASSISTER SHIFT CONTROL<WX8>	1-33042-130-0	01	1	9905-0001	●
1	TRANSMISSION ASM; MANUAL SHORT CHASSIS&RHD(EXZ5MC) P90 PROP SHAFT<C5T> ASSISTER SHIFT CONTROL<WX8>	1-33042-130-0	01	1	0002-	●
1	TRANSMISSION ASM; MANUAL SHORT CHASSIS&LHD(EXZ6MC) P90 PROP SHAFT<C5T> ASSISTER SHIFT CONTROL<WX8> EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-33042-130-0	01	1	0002-	●
1	TRANSMISSION ASM; MANUAL P90 PROP SHAFT<C5T> EXC. ASSISTER SHIFT CONTROL<WX8>	1-33040-599-0	01	1	9603-9904	●
1	TRANSMISSION ASM; MANUAL P90 PROP SHAFT<C5T> EXC. ASSISTER SHIFT CONTROL<WX8>	1-33042-129-0	01	1	9905-0001	●
1	TRANSMISSION ASM; MANUAL SHORT CHASSIS&RHD(EXZ5MC) P90 PROP SHAFT<C5T> EXC. ASSISTER SHIFT CONTROL<WX8>	1-33042-129-0	01	1	0002-	●
1	TRANSMISSION ASM; MANUAL SHORT CHASSIS&LHD(EXZ6MC) P90 PROP SHAFT<C5T> EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>,ASSISTER SHIFT CONTROL<WX8>	1-33042-129-0	01	1	0002-	●
1	TRANSMISSION ASM; MANUAL SHORT CHASSIS&LHD(EXZ6MC) P90 PROP SHAFT<C5T> ASSISTER SHIFT CONTROL<WX8> CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-33043-061-0	01	1	0002-	●
1	TRANSMISSION ASM; MANUAL SHORT CHASSIS&LHD(EXZ6MC) P90 PROP SHAFT<C5T> CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> EXC. ASSISTER SHIFT CONTROL<WX8>	1-33043-060-0	01	1	0002-	●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8>	1-33040-596-0	01	1	9603-9904		●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8>	1-33042-122-0	01	1	9905-		●
1	TRANSMISSION ASM; MANUAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33040-595-0	01	1	9603-9904		●
1	TRANSMISSION ASM; MANUAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33042-121-0	01	1	9905-		●
