◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 50915 - NP/NQ BUS LHDEXC.EU4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-83B - ANEROID COMPENSATOR; INJECTION GOVERNOR ▶
0-83B — ANEROID COMPENSATOR; INJECTION GOVERNOR (#47629) — 47 parça

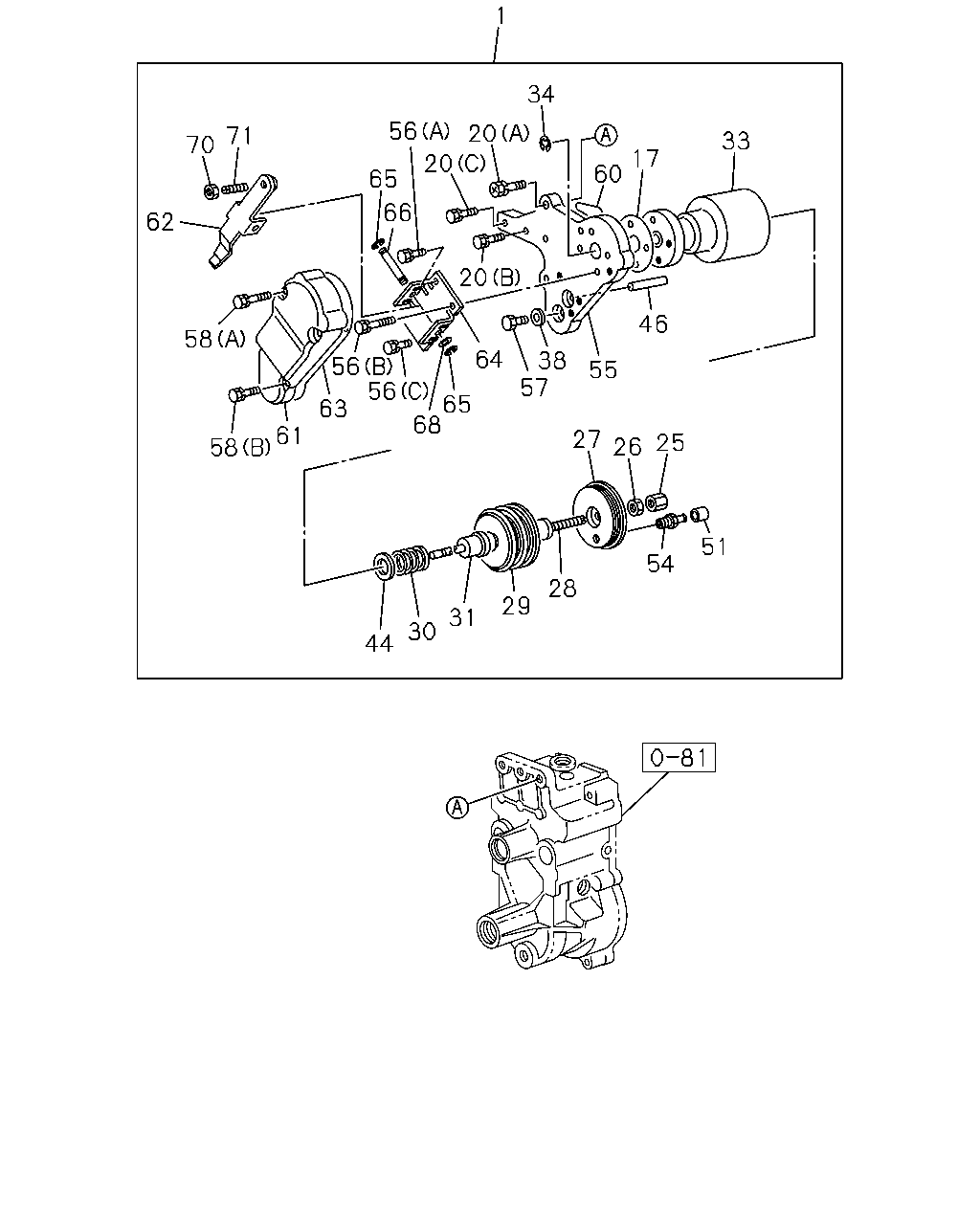

çizim 12455
1 34 56 20 20 71 33 70 17 60 65 66 62 20 46 58 64 38 57 56 56 55 65 68 63 61 58 27 25 26 51 54 28 29 31 30 44
BalonParca AdiParca NoAdetTipApplied Date
1 03.320 COMPENSATOR ASM; ANEROID,INJ PUM
ASM PART: A = 8-97203-383-0, 97203383 		8-97102-854-0 01 1 -
17 03.308 GASKET; HSG,ANEROID COMPENSATOR
ASM PART: A = 8-97203-383-0, 97203383 		8-97102-855-0 01 1 -
20 03.485 BOLT; SPACER FIX,ANEROID COMPENS
(A), M8X25 ASM PART: A = 8-97203-383-0, 97203383 		5-15729-281-0 01 1 -
20 03.485 BOLT; SPACER FIX,ANEROID COMPENS
(B), M6X18 ASM PART: A = 8-97203-383-0, 97203383 		9-81325-186-0 01 1 -
20 03.485 BOLT; SPACER FIX,ANEROID COMPENS
03.306, (C) ASM PART: A = 8-97203-383-0, 97203383 		9-88410-094-0 02 1 -
25 03.330 NUT; CAP,SET BOLT,ANEROID COMPEN
CAP NUT ASM PART: A = 8-97203-383-0, 97203383 		1-15729-093-0 01 1 -
26 03.308 NUT; SET BOLT,ANEROID COMPENSATO
ASM PART: A = 8-97203-383-0, 97203383 		9-81325-081-0 01 1 -
27 03.320 COVER; HSG,ANEROID COMPENSATOR
03.330 ASM PART: A = 8-97203-383-0, 97203383 		1-15721-103-0 01 1 -
28 03.330 BOLT; BELLOWS SET,ANEROID COMPEN
03.306 ASM PART: A = 8-97203-383-0, 97203383 		1-15729-342-0 01 1 -
29 03.320 BELLOWS; ANEROID COMPENSATOR
ASM PART: A = 8-97203-383-0, 97203383 		1-15729-622-0 01 1 -
30 03.320 SPRING; PUSH ROD,ANEROID COMPENS
ASM PART: A = 8-97203-383-0, 97203383 		8-94413-736-0 01 1 -
31 03.320 ROD; PUSH,BELLOWS,ANEROID COMPEN
ASM PART: A = 8-97203-383-0, 97203383 		5-15729-270-0 01 1 -
33 03.320 HOUSING; ANEROID COMPENSATOR
ASM PART: A = 8-97203-383-0, 97203383 		1-15779-159-0 01 1 -
34 03.330 RING; SNAP,PUSH ROD,ANEROID COMP
ASM PART: A = 8-97203-383-0, 97203383 		5-15729-271-0 01 1 -
38 03.485 GASKET; SPACER BOLT,GOV
09.170 ASM PART: A = 8-97203-383-0, 97203383 		5-15729-099-0 01 1 -
44 03.306 SHIM; SPRING,ANEROID COMPENSATOR
03.322 ASM PART: A = 8-97203-383-0, 97203383 		9-81393-301-0 01 1 -
46 03.330 ROD; PUSH,LEVER SIDE,ANEROID COM
03.320, L=102.0 ASM PART: A = 8-97203-383-0, 97203383 		1-15729-346-0 01 1 -
46 03.330 ROD; PUSH,LEVER SIDE,ANEROID COM
03.320, L=102.5 ASM PART: A = 8-97203-383-0, 97203383 		1-15729-347-0 01 1 -
46 03.330 ROD; PUSH,LEVER SIDE,ANEROID COM
03.320, L=103.0 ASM PART: A = 8-97203-383-0, 97203383 		1-15729-348-0 01 1 -
46 03.330 ROD; PUSH,LEVER SIDE,ANEROID COM
03.320, L=103.5 ASM PART: A = 8-97203-383-0, 97203383 		1-15729-623-0 01 1 -
46 03.330 ROD; PUSH,LEVER SIDE,ANEROID COM
03.320, L=104.0 ASM PART: A = 8-97203-383-0, 97203383 		1-15729-624-0 01 1 -
46 03.330 ROD; PUSH,LEVER SIDE,ANEROID COM
03.320, L=97.0 ASM PART: A = 8-97203-383-0, 97203383 		1-15729-631-0 01 1 -
46 03.330 ROD; PUSH,LEVER SIDE,ANEROID COM
03.320, L=98.0 ASM PART: A = 8-97203-383-0, 97203383 		1-15729-632-0 01 1 -
46 03.330 ROD; PUSH,LEVER SIDE,ANEROID COM
03.320, L=99.0 ASM PART: A = 8-97203-383-0, 97203383 		1-15729-633-0 01 1 -
46 03.330 ROD; PUSH,LEVER SIDE,ANEROID COM
03.320, L=100.0 ASM PART: A = 8-97203-383-0, 97203383 		1-15729-634-0 01 1 -
46 03.330 ROD; PUSH,LEVER SIDE,ANEROID COM
03.320, L=101.0 ASM PART: A = 8-97203-383-0, 97203383 		1-15729-635-0 01 1 -
46 03.330 ROD; PUSH,LEVER SIDE,ANEROID COM
L=95.0 ASM PART: A = 8-97203-383-0, 97203383 		1-15779-065-0 01 1 -
46 03.330 ROD; PUSH,LEVER SIDE,ANEROID COM
L=96.0 ASM PART: A = 8-97203-383-0, 97203383 		1-15779-066-0 01 1 -
51 03.320 CAP; HOSE JOINT,ANEROID COMPENSA
ASM PART: A = 8-97203-383-0, 97203383 		8-94424-221-0 01 1 -
54 03.320 JOINT; HOSE,ANEROID COMPENSATOR
ASM PART: A = 8-97203-383-0, 97203383 		1-15729-360-0 01 1 -
55 03.320 SPACER; HSG,ANEROID COMPENSATOR
03.485 ASM PART: A = 8-97203-383-0, 97203383 		5-15729-273-0 01 1 -
56 03.485 BOLT; PLATE TO SPACER,GOV
08.857, (A) ASM PART: A = 8-97203-383-0, 97203383 		5-15719-013-0 02 1 -
56 03.485 BOLT; PLATE TO SPACER,GOV
08.856, (B) ASM PART: A = 8-97203-383-0, 97203383 		5-15729-279-0 02 1 -
56 03.485 BOLT; PLATE TO SPACER,GOV
(C), M5X8 ASM PART: A = 8-97203-383-0, 97203383 		5-15729-280-0 02 1 -
57 03.485 BOLT; SPACER,GOV
M6X12 ASM PART: A = 8-97203-383-0, 97203383 		5-15729-282-0 01 1 -
58 03.485 BOLT; COVER TO SPACER,GOV
(B) ASM PART: A = 8-97203-383-0, 97203383 		1-83569-079-0 02 1 -
58 03.485 BOLT; COVER TO SPACER,GOV
08.856, (A) ASM PART: A = 8-97203-383-0, 97203383 		5-15729-279-0 02 1 -
60 03.485 RING; SPACER,GOV
ASM PART: A = 8-97203-383-0, 97203383 		8-94424-220-0 01 1 -
61 03.485 COVER; LEVER,GOV
ASM PART: A = 8-97203-383-0, 97203383 		5-15721-047-0 01 1 -
62 03.485 LEVER; ANEROID COMPENSATOR,GOV
ASM PART: A = 8-97203-383-0, 97203383 		5-15725-141-0 01 1 -
63 03.485 GASKET; LEVER COVER,GOV
ASM PART: A = 8-97203-383-0, 97203383 		8-97102-856-0 01 1 -
64 03.485 PLATE; LEVER,GOV
ASM PART: A = 8-97203-383-0, 97203383 		5-15729-274-0 01 1 -
65 03.485 RING; SNAP,LEVER PIN,GOV
ASM PART: A = 8-97203-383-0, 97203383 		1-09588-170-0 02 1 -
66 03.485 SHAFT; LEVER,GOV
ASM PART: A = 8-97203-383-0, 97203383 		5-15729-275-0 01 1 -
68 03.485 WASHER; LEVER PIN,GOV
ASM PART: A = 8-97203-383-0, 97203383 		9-81393-309-0 02 1 -
70 03.485 NUT; LEVER SCREW,GOV
ASM PART: A = 8-97203-383-0, 97203383 		5-15729-278-0 01 1 -
71 03.485 SCREW; LEVER,GOV
ASM PART: A = 8-97203-383-0, 97203383 		5-15729-277-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
