◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 50915 - NP/NQ BUS LHDEXC.EU4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-82A - BOOST COMPENSATOR; INJECTION GOVERNOR ▶
0-82A — BOOST COMPENSATOR; INJECTION GOVERNOR (#47628) — 36 parça

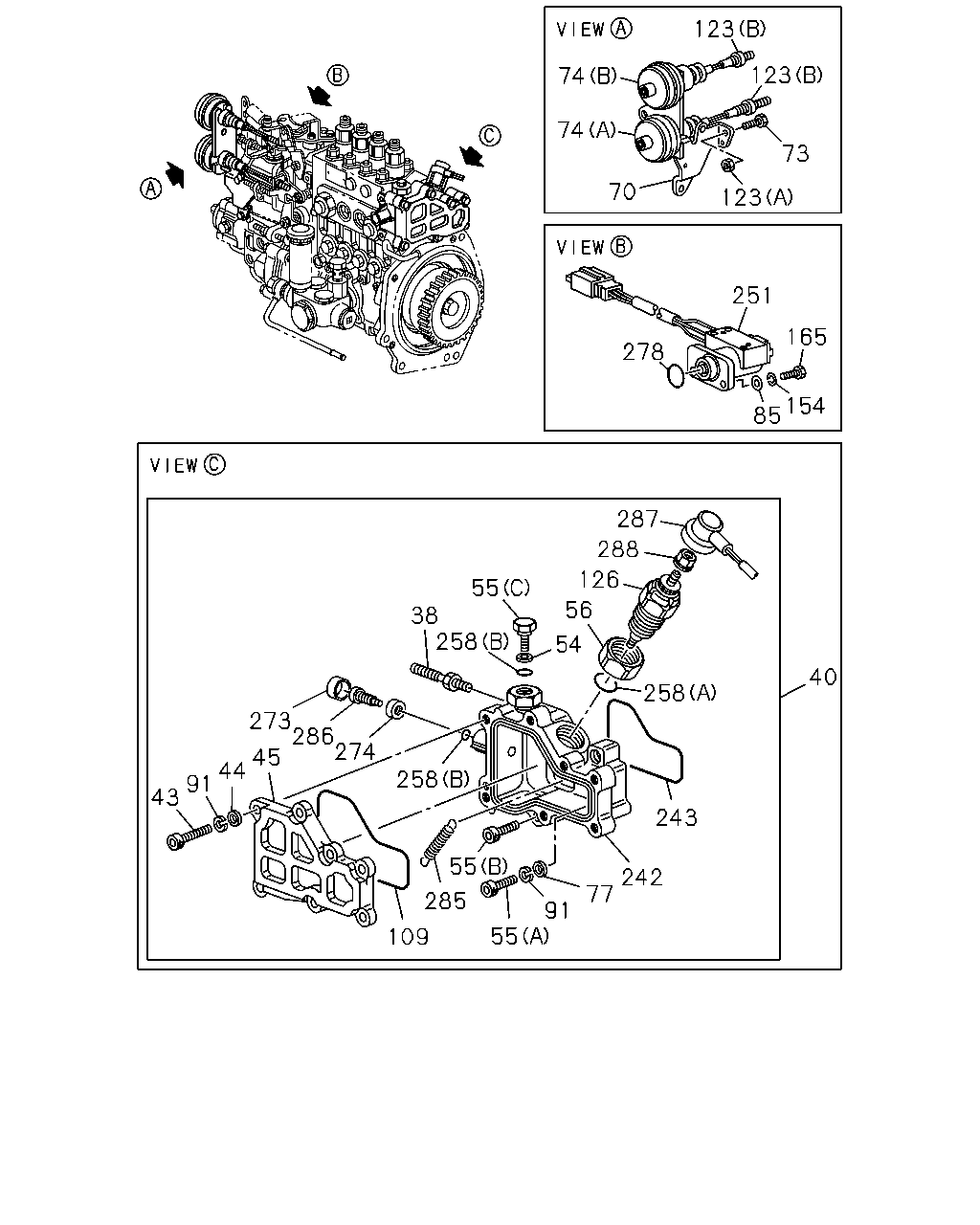

çizim 12109
123 123 74 74 73 70 123 251 165 278 154 85 287 288 126 55 56 38 258 54 40 258 273 286 274 45 44 91 43 258 243 55 242 77 285 91 55 109
BalonParca AdiParca NoAdetTipApplied Date
38 03.335 STUD; START ADVANCE TO HSG
ASM PART: B = 8-97212-935-1, 97212935 		8-97212-809-0 01 1 -
40 03.308 ADVANCER ASM; STARTING,GOV
ASM PART: B = 8-97212-935-1, 97212935 		8-97212-753-0 01 1 -
40 03.308 ADVANCER ASM; STARTING,GOV
ASM PART: A = 8-97212-186-1, 97212186 		8-97213-290-0 01 1 -
43 03.320 BOLT; COVER FIX,INJ PUMP
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-97212-804-0 07 1 -
44 03.320 WASHER; COVER FIX,INJ PUMP
03.330 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		1-15619-351-0 07 1 -
45 03.320 COVER; START ADVANCE,INJ PUMP
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-97212-802-0 01 1 -
54 03.320 GASKET; HSG BOLT,START ADVANCE
03.306 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-94227-602-0 01 1 -
55 03.320 BOLT; HSG,START ADVANCE
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		1-09054-030-0 02 1 -
55 03.320 BOLT; HSG,START ADVANCE
(B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-97212-804-0 02 1 -
55 03.320 BOLT; HSG,START ADVANCE
(C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-97212-805-1 01 1 -
56 03.330 NUT; START ADVANCE FIX
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-97212-797-0 01 1 -
70 03.314 BRACKET; ACTUATOR,FAST IDLE,INJ
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-97201-139-0 01 1 -
73 03.330 BOLT; ACTUATOR
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		1-15729-122-0 01 1 -
74 03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-97201-148-0 01 1 -
74 03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ
(B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-97201-149-0 01 1 -
77 03.330 WASHER; LK,START ADVANCE FIX
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		1-15619-351-0 04 1 -
85 03.330 WASHER; SENSOR
02.183, ID=6.4 OD=14 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		9-09160-606-0 02 1 -
91 03.306 WASHER; LK
03.302 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-94128-928-0 11 1 -
109 03.320 GASKET; COVER,START ADVANCE
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-97212-783-0 01 1 -
123 03.330 NUT; ACTUATOR
03.308, (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		9-81325-081-0 01 1 -
123 03.330 NUT; ACTUATOR
08.845, (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		9-88410-525-0 04 1 -
126 03.314 SWITCH; SOLENOID,FUEL AID,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-97212-787-1 01 1 -
154 03.320 WASHER; LK
03.302 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-94128-928-0 02 1 -
165 03.320 BOLT; SENSOR
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		1-09054-022-0 02 1 -
242 03.320 HOUSING; START ADVANCE,INJ PUMP
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-97212-781-1 01 1 -
243 03.306 GASKET; HSG
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-97212-782-0 01 1 -
251 03.320 SENSOR; RACK,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-97188-487-0 01 1 -
258 03.306 GASKET; HSG
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-97212-788-0 01 1 -
258 03.306 GASKET; HSG
(B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-97212-789-0 02 1 -
273 03.306 PLUG; HSG
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-97212-808-1 01 1 -
274 03.306 NUT; HSG
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-97212-798-0 01 1 -
278 03.320 GASKET; SENSOR
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		1-15779-185-0 01 1 -
285 03.308 SPRING; START ADVANCE
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-97212-786-0 01 1 -
286 03.308 SCREW; START ADVANCE
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-97212-806-0 01 1 -
287 03.308 WIRE; START ADVANCE
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-97212-807-0 01 1 -
288 03.308 NUT; SOLENOID
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935 		8-94473-135-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
