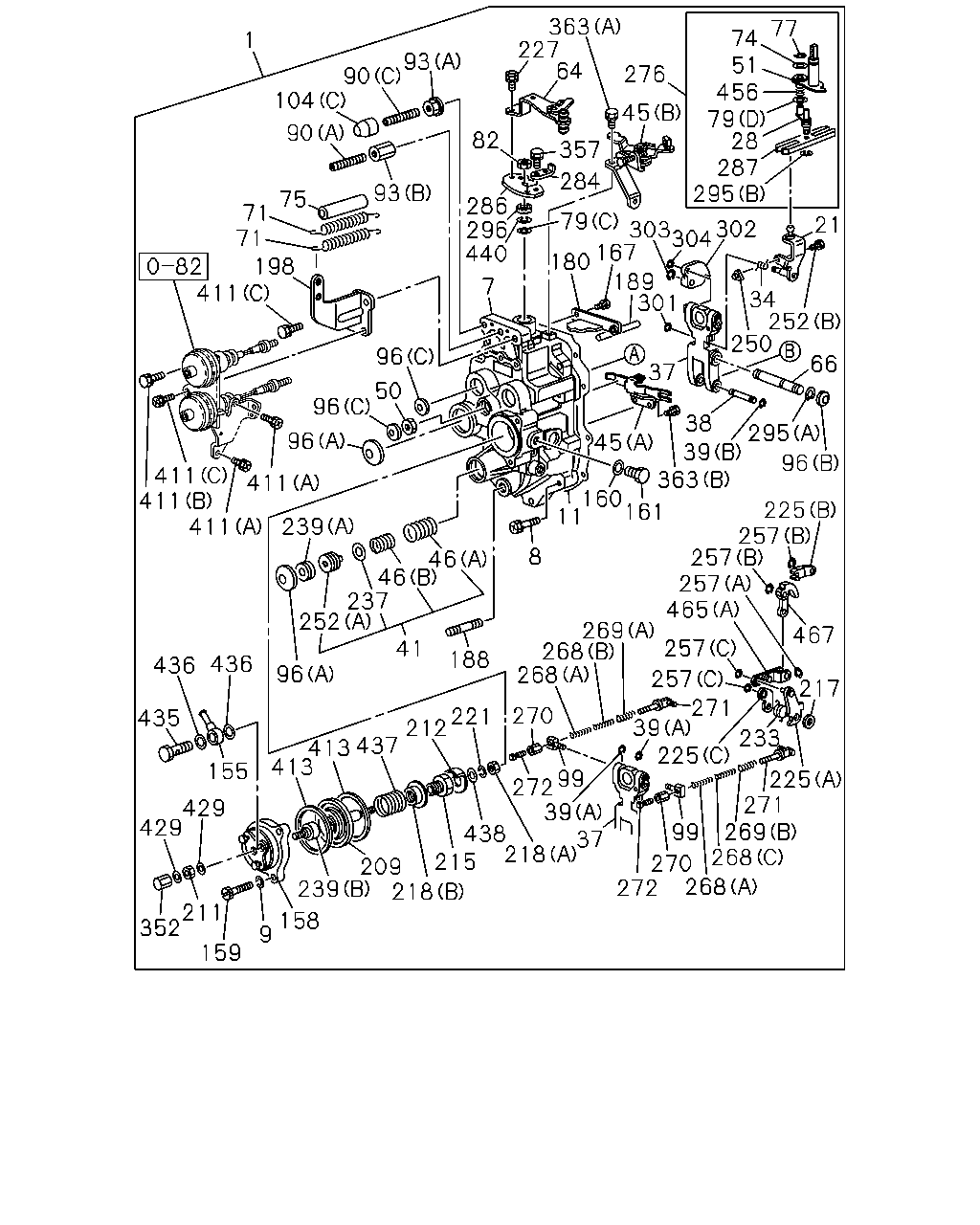

0-81A — GOVERNOR; INJECTION PUMP (#47626) — 276 parça

363 227 64 77 74 51 456 79 28 287 295 1 93 90 104 276 45 90 82 357 284 93 75 286 296 440 71 71 198 411 79 21 303 302 304 167 180 189 301 7 34 252 250 37 96 66 50 96 38 96 295 39 363 45 411 411 411 96 411 160 161 11 225 257 257 257 465 239 8 46 46 237 252 269 268 268 257 467 217 41 188 436 436 96 257 271 39 233 225 270 221 212 413 437 413 435 155 99 272 39 37 225 271 269 268 429 429 99 438 218 215 270 209 239 218 211 352 158 9 159 272 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.308 GOVERNOR ASM; INJ PUMP ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97215-868-0	01	1	-
7	03.308 COVER; GOV HSG,INJ PUMP ASM PART: A = 8-97212-186-1, 97212186	8-97201-079-0	01	1	-0209
7	03.308 COVER; GOV HSG,INJ PUMP ASM PART: B = 8-97212-935-1, 97212935	8-97201-079-0	01	1	-
7	03.308 COVER; GOV HSG,INJ PUMP ASM PART: A = 8-97212-186-1, 97212186	8-97329-808-0	01	1	0210-
8	01.531 BOLT; GOV COVER,INJ PUMP ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	5-15729-033-0	09	1	-
9	03.308 WASHER; LK,GOV COVER 00.206, ID=6.1 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-09150-506-0	03	1	-
11	03.308 GASKET; COVER TO HSG,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-137-0	01	1	-
21	03.308 LEVER ASM; GUIDE,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-081-0	01	1	-
28	03.308 LEVER; SUPPORTING,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15725-780-0	01	1	-
34	03.308 SPRING; SPD CONT LEVER,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15723-549-0	01	1	-
37	03.308 LEVER ASM; TENSION,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-080-0	01	1	-
38	03.308 PIN; TENSION LEVER,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-271-0	01	1	-
39	03.308 RING; SNAP,LEVER PIN,GOV 03.485, (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-09588-170-0	02	1	-
39	03.308 RING; SNAP,LEVER PIN,GOV 03.330, (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-94244-599-0	02	1	-
41	03.308 SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-132-0	01	1	-
45	03.308 LEVER ASM; GOV,INJ PUMP (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15725-819-0	01	1	-
45	03.308 LEVER ASM; GOV,INJ PUMP (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-150-0	01	1	-
46	03.308 SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15723-481-0	01	1	-
46	03.308 SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-075-0	01	1	-
50	03.308 NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-94171-147-0	01	1	-
51	03.308 SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-528-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	5-86647-319-0	01	1	-
66	03.308 SHAFT; LEVER ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-234-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-076-0	02	1	-
74	03.330 WASHER; LEVER SPR 03.308 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-232-0	01	1	-
75	03.308 TUBE; RETURN SPRING,STOPPER LEVE ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-141-0	02	1	-
77	03.308 RING; SNAP,CONT LEVER,GOV 03.320 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	5-15729-023-0	01	1	-
79	03.308 SHIM; LEVER SETTING,GOV (C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15729-988-0	01	1	-
79	03.308 SHIM; LEVER SETTING,GOV (D) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-232-0	01	1	-
82	03.308 NUT; CONT LEVER FIX,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15729-236-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), M10X70 ASM PART: A = 8-97212-186-1, 97212186	1-15779-248-0	01	1	0210-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), L=53 ASM PART: B = 8-97212-935-1, 97212935	1-15779-296-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), L=53 ASM PART: A = 8-97212-186-1, 97212186	1-15779-296-0	01	1	-0209
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M8X50 ASM PART: A = 8-97212-186-1, 97212186	8-97201-123-0	01	1	0210-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M8X54 ASM PART: A = 8-97212-186-1, 97212186	8-97201-124-0	01	1	0210-
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), M8X86 ASM PART: A = 8-97212-186-1, 97212186	8-97201-125-0	01	1	0210-
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), M10X58 ASM PART: A = 8-97212-186-1, 97212186	8-97201-127-0	01	1	0210-
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), M10X68.5 ASM PART: A = 8-97212-186-1, 97212186	8-97201-128-0	01	1	0210-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), L=50 ASM PART: B = 8-97212-935-1, 97212935	8-97202-347-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), L=50 ASM PART: A = 8-97212-186-1, 97212186	8-97202-347-0	01	1	-0209
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), ID=18 L=54 ASM PART: A = 8-97212-186-1, 97212186	8-97202-348-0	01	1	-0209
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), ID=18 L=54 ASM PART: B = 8-97212-935-1, 97212935	8-97202-348-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), L=58 ASM PART: A = 8-97212-186-1, 97212186	8-97202-349-0	01	1	-0209
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), L=58 ASM PART: B = 8-97212-935-1, 97212935	8-97202-349-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), L=62 ASM PART: A = 8-97212-186-1, 97212186	8-97202-350-0	01	1	-0209
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), L=62 ASM PART: B = 8-97212-935-1, 97212935	8-97202-350-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), L=68.5 ASM PART: A = 8-97212-186-1, 97212186	8-97202-351-0	01	1	-0209
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), L=68.5 ASM PART: B = 8-97212-935-1, 97212935	8-97202-351-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97160-586-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-133-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-134-0	01	1	-
96	03.308 PLUG; LEVER SHAFT,GOV (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-293-0	02	1	-
96	03.308 PLUG; LEVER SHAFT,GOV (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	5-15729-076-0	02	1	-
96	03.308 PLUG; LEVER SHAFT,GOV (C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-94171-148-0	03	1	-
99	03.308 PIN; TENSION LEVER,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-082-0	02	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-158-0	02	1	-
155	03.308 JOINT; HOSE,HSG 03.326 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-94171-178-0	01	1	-
158	03.308 COVER; GOV HSG ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97160-589-0	01	1	-
159	03.308 BOLT; COVER ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-505-0	03	1	-
160	03.308 GASKET; PLUG TO HSG 08.955, ID=12.2 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-09571-412-0	01	1	-
161	03.308 PLUG; HSG 03.306 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97037-288-0	01	1	-
167	03.308 BOLT; PLATE 03.318, M6X16 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	5-15729-071-0	02	1	-
180	03.308 PLATE; GOV COVER ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-532-0	01	1	-
188	03.308 STUD; COVER ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-140-0	01	1	-
189	03.308 ROD; PUSH,GOV L=72.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-336-0	01	1	-
189	03.308 ROD; PUSH,GOV L=73.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-337-0	01	1	-
189	03.308 ROD; PUSH,GOV L=73.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-338-0	01	1	-
189	03.308 ROD; PUSH,GOV L=74.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-339-0	01	1	-
189	03.308 ROD; PUSH,GOV L=74.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-340-0	01	1	-
189	03.308 ROD; PUSH,GOV L=75.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-341-0	01	1	-
189	03.308 ROD; PUSH,GOV L=75.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-342-0	01	1	-
189	03.308 ROD; PUSH,GOV L=76.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-343-0	01	1	-
189	03.308 ROD; PUSH,GOV L=76.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-344-0	01	1	-
189	03.308 ROD; PUSH,GOV L=77.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-345-0	01	1	-
189	03.308 ROD; PUSH,GOV L=77.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-346-0	01	1	-
189	03.308 ROD; PUSH,GOV L=78.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-347-0	01	1	-
189	03.308 ROD; PUSH,GOV L=78.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-348-0	01	1	-
189	03.308 ROD; PUSH,GOV L=79.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-349-0	01	1	-
189	03.308 ROD; PUSH,GOV L=79.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-350-0	01	1	-
189	03.308 ROD; PUSH,GOV L=80.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-351-0	01	1	-
189	03.308 ROD; PUSH,GOV L=80.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-352-0	01	1	-
189	03.308 ROD; PUSH,GOV L=81.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-353-0	01	1	-
189	03.308 ROD; PUSH,GOV L=81.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-354-0	01	1	-
189	03.308 ROD; PUSH,GOV L=82.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-355-0	01	1	-
189	03.308 ROD; PUSH,GOV L=82.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-356-0	01	1	-
189	03.308 ROD; PUSH,GOV L=83.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-426-0	01	1	-
189	03.308 ROD; PUSH,GOV L=83.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-427-0	01	1	-
189	03.308 ROD; PUSH,GOV L=84.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-428-0	01	1	-
189	03.308 ROD; PUSH,GOV L=84.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-429-0	01	1	-
189	03.308 ROD; PUSH,GOV L=85.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-430-0	01	1	-
189	03.308 ROD; PUSH,GOV L=85.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-431-0	01	1	-
189	03.308 ROD; PUSH,GOV L=86.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-432-0	01	1	-
189	03.308 ROD; PUSH,GOV L=86.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-433-0	01	1	-
189	03.308 ROD; PUSH,GOV L=87.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-434-0	01	1	-
189	03.308 ROD; PUSH,GOV L=87.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-435-0	01	1	-
189	03.308 ROD; PUSH,GOV L=88.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-436-0	01	1	-
189	03.308 ROD; PUSH,GOV L=88.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-437-0	01	1	-
189	03.308 ROD; PUSH,GOV L=89.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-438-0	01	1	-
189	03.308 ROD; PUSH,GOV L=89.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-439-0	01	1	-
189	03.308 ROD; PUSH,GOV L=90.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-440-0	01	1	-
198	03.306 BRACKET; COVER ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-138-0	01	1	-
209	03.308 DIAPHRAGM; GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15713-006-0	01	1	-
211	03.308 NUT; LOCK,GOV 08.845 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-88410-525-0	01	1	-
212	03.306 PLATE; GOV 03.314 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-94122-719-0	01	1	-
215	03.308 BOLT; DIAPH 03.306 ASM PART: A = 8-97212-186-1, 97212186	8-97037-284-0	01	1	-0209
215	03.308 BOLT; DIAPH 03.306 ASM PART: B = 8-97212-935-1, 97212935	8-97037-284-0	01	1	-
215	03.308 BOLT; DIAPH 03.306 ASM PART: A = 8-97212-186-1, 97212186	8-97104-945-0	01	1	0210-
217	03.308 SHIM; GOV T=0.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-88410-122-0	01	1	-
218	03.308 NUT; DIAPH 03.320, (A) ASM PART: A = 8-97212-186-1, 97212186	1-15729-249-0	01	1	-0209
218	03.308 NUT; DIAPH 03.320, (A) ASM PART: B = 8-97212-935-1, 97212935	1-15729-249-0	01	1	-
218	03.308 NUT; DIAPH 03.318, (B) ASM PART: A = 8-97212-186-1, 97212186	8-94122-726-0	01	1	-0209
218	03.308 NUT; DIAPH 03.318, (B) ASM PART: B = 8-97212-935-1, 97212935	8-94122-726-0	01	1	-
218	03.308 NUT; DIAPH 03.320, (B) ASM PART: A = 8-97212-186-1, 97212186	8-97104-978-0	01	1	0210-
218	03.308 NUT; DIAPH 08.845, (A) ASM PART: A = 8-97212-186-1, 97212186	9-88410-525-0	01	1	0210-
221	03.308 WASHER; LK,DIAPH 00.206, ID=6.1 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-09150-506-0	01	1	-
225	03.308 LEVER; GOV (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-066-0	01	1	-
225	03.308 LEVER; GOV (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-067-0	01	1	-
225	03.308 LEVER; GOV (C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97202-343-0	01	1	-
227	03.308 BOLT; GOV LEVER 03.330 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15719-005-0	02	1	-
233	03.308 SPRING; LEVER ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-077-0	01	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=2.00 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15729-891-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=3.00 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15729-892-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=4.00 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15729-893-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	5-15729-286-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.50 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	5-15729-287-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-81325-088-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-81325-551-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.40 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-81325-552-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-81325-553-0	AR	1	-
239	03.308 SCREW; GOV (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-239-0	01	1	-
239	03.308 SCREW; GOV 03.320, (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97037-287-0	01	1	-
250	03.308 NUT; GUIDE SCREW,GOV SHAFT ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-287-0	01	1	-
252	03.308 SCREW; GUIDE (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-238-0	01	1	-
252	03.308 SCREW; GUIDE (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-122-0	01	1	-
257	03.308 RING; SNAP,GOV 03.320, (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	5-15729-023-0	01	1	-
257	03.308 RING; SNAP,GOV 03.330, (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-94244-599-0	02	1	-
257	03.308 RING; SNAP,GOV 04.040, (C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-09185-404-0	02	1	-
268	03.308 SPRING; ROD INNER,TORQUE CAM,GOV (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15723-445-0	02	1	-
268	03.308 SPRING; ROD INNER,TORQUE CAM,GOV (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15723-446-0	01	1	-
268	03.308 SPRING; ROD INNER,TORQUE CAM,GOV (C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-074-0	01	1	-
269	03.308 SPRING; ROD OUTER,TORQUE CAM,GOV (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15723-459-0	01	1	-
269	03.308 SPRING; ROD OUTER,TORQUE CAM,GOV (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-073-0	01	1	-
270	03.308 NUT; TORQUE ROD LK,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-272-0	02	1	-
271	03.308 ROD; TORQUE CAM,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-235-1	02	1	-
272	03.308 SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-289-0	02	1	-
276	03.308 LEVER ASM; LOAD CONT,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15725-901-0	01	1	-
284	03.306 PLATE; LEVER ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-135-0	01	1	-
286	03.306 LEVER; GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15725-782-0	01	1	-
287	03.308 LEVER; GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15725-781-0	01	1	-
295	03.308 RING; SNAP (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-273-0	02	1	-
295	03.308 RING; SNAP 03.320, (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	5-15729-023-0	01	1	-
296	03.308 SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97024-879-0	01	1	-
301	03.308 RING; SNAP 04.040, ID=4 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-09185-404-0	01	1	-
302	03.308 PLATE; CAM,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97215-871-0	01	1	-
303	03.308 RING; SNAP,CAM PLATE,GOV 03.320 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	5-15729-023-0	01	1	-
304	03.308 RING; SNAP,LINK TO CAM PLATE,GOV 04.040, ID=4 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-09185-404-0	01	1	-
352	03.308 NUT; CAP 03.330, CAP NUT ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15729-093-0	01	1	-
357	03.308 BOLT; PLATE,GOV 03.330 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15719-005-0	02	1	-
363	03.308 BOLT; LEVER FIX 03.330, (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15719-005-0	02	1	-
363	03.308 BOLT; LEVER FIX (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-94247-029-0	02	1	-
411	03.306 BOLT; BRKT 03.330, (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15719-005-0	02	1	-
411	03.306 BOLT; BRKT 03.023, (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-02041-025-0	01	1	-
411	03.306 BOLT; BRKT 03.485, (C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-81325-186-0	02	1	-
413	03.308 GASKET; GOV COVER 03.320 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-129-0	02	1	-
429	03.308 GASKET; CAP NUT 09.170 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	5-15729-099-0	02	1	-
435	03.308 BOLT; EYE,GOV COVER 03.485 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15729-325-0	01	1	-
436	03.308 GASKET; EYE BOLT 03.306 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15639-009-0	02	1	-
437	03.308 SPRING; DIAPHRAGM ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15723-538-0	01	1	-
438	03.308 DISK; DIAPHRAGM ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-333-0	01	1	-
440	03.308 RING; SNAP,LEVER ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15729-989-0	01	1	-
456	03.308 SPRING; LEVER,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15723-551-0	01	1	-
465	03.308 LINK; GOVERNOR (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-146-0	01	1	-
465	03.308 LINK; GOVERNOR (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-154-0	01	1	-
467	03.308 CAM; TIMING,GOVERNOR ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97202-356-0	01	1	-

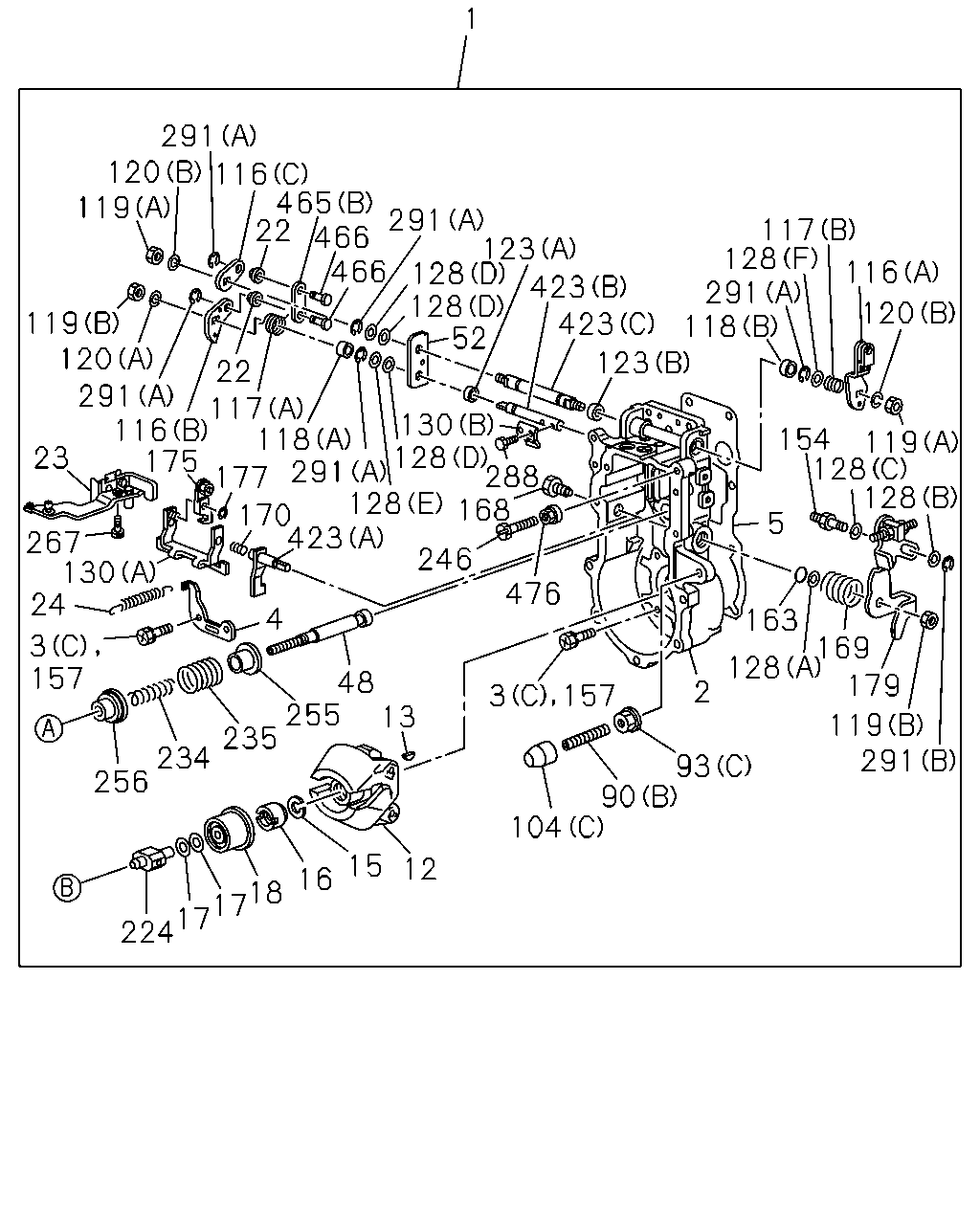

1 291 120 119 116 465 22 466 466 291 123 128 128 119 52 120 22 291 117 116 130 118 175 128 291 288 128 170 168 423 117 128 291 118 123 116 423 423 120 154 119 128 128 23 177 5 267 130 24 246 476 4 163 3 157 169 128 48 255 13 235 234 256 179 2 3 157 119 291 93 90 104 15 12 16 18 17 17 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.308 GOVERNOR ASM; INJ PUMP ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97215-868-0	01	1	-
2	03.308 HOUSING; GOV,INJ PUMP ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-060-0	01	1	-
3	03.318 BOLT; GOV HSG,INJ PUMP (C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-226-0	08	1	-
4	03.306 PLATE; START SPRING,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-524-0	01	1	-
5	03.308 GASKET; GOV TO INJ PUMP HSG ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-136-0	01	1	-
12	03.308 FLYWEIGHT ASM; GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97202-344-0	01	1	-
13	03.308 KEY; FLYWEIGHT,GOV 13MM ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-81325-030-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	5-15729-034-0	01	1	-
16	03.308 NUT; FLYWEIGHT FIX,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-81325-086-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15729-891-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15729-892-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15729-893-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	5-15729-286-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	5-15729-287-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-81325-088-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-81325-551-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-81325-552-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-81325-553-0	AR	1	-
18	03.308 SLEEVE; GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	5-15729-372-0	01	1	-
22	03.308 COLLAR; LEVER,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-157-0	02	1	-
23	03.308 LINK; LEVER TO CONT RACK,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15725-900-1	01	1	-
24	03.308 SPRING; START,GOV,INJ PUMP ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15723-450-0	01	1	-
48	03.308 SHAFT; GOV,INJ PUMP ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-240-0	01	1	-
52	03.308 WASHER; CONT SHAFT,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-071-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), M10X70 ASM PART: A = 8-97212-186-1, 97212186	1-15779-248-0	01	1	0210-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), L=53 ASM PART: B = 8-97212-935-1, 97212935	1-15779-296-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), L=53 ASM PART: A = 8-97212-186-1, 97212186	1-15779-296-0	01	1	-0209
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M8X50 ASM PART: A = 8-97212-186-1, 97212186	8-97201-123-0	01	1	0210-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M8X54 ASM PART: A = 8-97212-186-1, 97212186	8-97201-124-0	01	1	0210-
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), M8X86 ASM PART: A = 8-97212-186-1, 97212186	8-97201-125-0	01	1	0210-
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), M10X58 ASM PART: A = 8-97212-186-1, 97212186	8-97201-127-0	01	1	0210-
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), M10X68.5 ASM PART: A = 8-97212-186-1, 97212186	8-97201-128-0	01	1	0210-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), L=50 ASM PART: B = 8-97212-935-1, 97212935	8-97202-347-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), L=50 ASM PART: A = 8-97212-186-1, 97212186	8-97202-347-0	01	1	-0209
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), ID=18 L=54 ASM PART: A = 8-97212-186-1, 97212186	8-97202-348-0	01	1	-0209
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), ID=18 L=54 ASM PART: B = 8-97212-935-1, 97212935	8-97202-348-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), L=58 ASM PART: A = 8-97212-186-1, 97212186	8-97202-349-0	01	1	-0209
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), L=58 ASM PART: B = 8-97212-935-1, 97212935	8-97202-349-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), L=62 ASM PART: A = 8-97212-186-1, 97212186	8-97202-350-0	01	1	-0209
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), L=62 ASM PART: B = 8-97212-935-1, 97212935	8-97202-350-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), L=68.5 ASM PART: A = 8-97212-186-1, 97212186	8-97202-351-0	01	1	-0209
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), L=68.5 ASM PART: B = 8-97212-935-1, 97212935	8-97202-351-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97160-586-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-133-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-134-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-158-0	02	1	-
116	03.300 LEVER; ENG STOP,GOV (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-064-0	01	1	-
116	03.300 LEVER; ENG STOP,GOV (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-068-0	01	1	-
116	03.300 LEVER; ENG STOP,GOV (C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-069-0	01	1	-
117	03.308 SPRING; STOP LEVER,GOV (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-072-0	01	1	-
117	03.308 SPRING; STOP LEVER,GOV (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-078-1	01	1	-
118	03.308 COLLAR; CONT SHAFT,GOV (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-389-0	01	1	-
118	03.308 COLLAR; CONT SHAFT,GOV (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-155-1	01	1	-
119	03.308 NUT; ENG STOP LEVER,GOV 03.318, (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15729-006-0	02	1	-
119	03.308 NUT; ENG STOP LEVER,GOV (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15729-236-0	02	1	-
120	03.308 WASHER; LK,SPD ADJ LEVER,GOV 09.181, (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-83579-492-0	01	1	-
120	03.308 WASHER; LK,SPD ADJ LEVER,GOV 00.206, (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-09150-506-0	02	1	-
123	03.308 SEAL; OIL,CONT SHAFT,GOV (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-282-0	01	1	-
123	03.308 SEAL; OIL,CONT SHAFT,GOV (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	5-15619-024-0	02	1	-
128	03.306 SHIM; CONT SHAFT,GOV (A), T=0.60 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15729-897-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV (A), T=0.80 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15729-898-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV (A), T=0.90 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15729-899-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV 03.330, (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15749-097-0	01	1	-
128	03.306 SHIM; CONT SHAFT,GOV 03.330, (C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15749-099-0	01	1	-
128	03.306 SHIM; CONT SHAFT,GOV (D), T=0.50 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-230-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV (D), T=0.20 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-231-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV (E) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-388-0	01	1	-
128	03.306 SHIM; CONT SHAFT,GOV (F) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-152-0	01	1	-
128	03.306 SHIM; CONT SHAFT,GOV (A), T=0.50 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-81325-556-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV (A), T=0.30 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-81325-557-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV (A), T=0.40 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-81325-558-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV (A), T=0.25 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-81325-559-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV (A), T=0.35 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-81325-560-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV (A), T=0.20 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	9-88410-421-0	AR	1	-
130	03.306 LEVER; CONT,GOV (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15725-895-0	01	1	-
130	03.306 LEVER; CONT,GOV (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-063-0	01	1	-
154	03.308 BOLT; GOV HSG ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-147-0	01	1	-
157	03.308 BOLT; START SPRING PLATE,GOV 03.318 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-226-0	02	1	-
163	03.306 GASKET; CONT SHAFT,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-227-0	01	1	-
168	03.306 PLUG; CONT SHAFT,GOV HSG ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-285-0	01	1	-
169	03.306 SPRING; LEVER SET,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15723-548-0	01	1	-
170	03.306 SPRING; LEVER TO LEVER,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	5-15723-033-0	01	1	-
175	03.306 LEVER; GOV,INJ PUMP ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15725-893-0	01	1	-
177	03.306 RING; SNAP,GOV LEVER,INJ PUMP ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-94324-735-0	01	1	-
179	03.308 LEVER; SPD ADJ,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97212-766-0	01	1	-
224	03.308 SHIFTER; TENSION LEVER,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-334-0	01	1	-
234	03.308 SPRING; INNER,GOV,INJ PUMP ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15723-500-0	01	1	-
235	03.308 SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15723-517-0	01	1	-
246	03.306 BOLT; GOV 03.308, M6X42 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-104-0	01	1	-
255	03.308 SEAT; GOV SPRING,INJ PUMP ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-241-0	01	1	-
256	03.308 SEAT; GOV SPRING ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-242-0	01	1	-
267	03.308 BOLT; CONN,CONT RACK,GOV ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15749-747-0	01	1	-
288	03.308 BOLT; LEVER ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15729-197-0	02	1	-
291	03.308 RING; SNAP,CONT SHAFT,GOV (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-196-0	05	1	-
291	03.308 RING; SNAP,CONT SHAFT,GOV 03.330, (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-94244-599-0	01	1	-
423	03.306 SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	1-15779-525-0	01	1	-
423	03.306 SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-070-0	01	1	-
423	03.306 SHAFT; CONT,GOV HSG,INJ PUMP (C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-151-1	01	1	-
465	03.308 LINK; GOVERNOR (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-146-0	01	1	-
465	03.308 LINK; GOVERNOR (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-154-0	01	1	-
466	03.308 PIN; LINK ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-156-0	02	1	-
476	03.308 NUT; HSG,GOVERNOR 03.162 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-935-1, 97212935	8-97201-153-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
