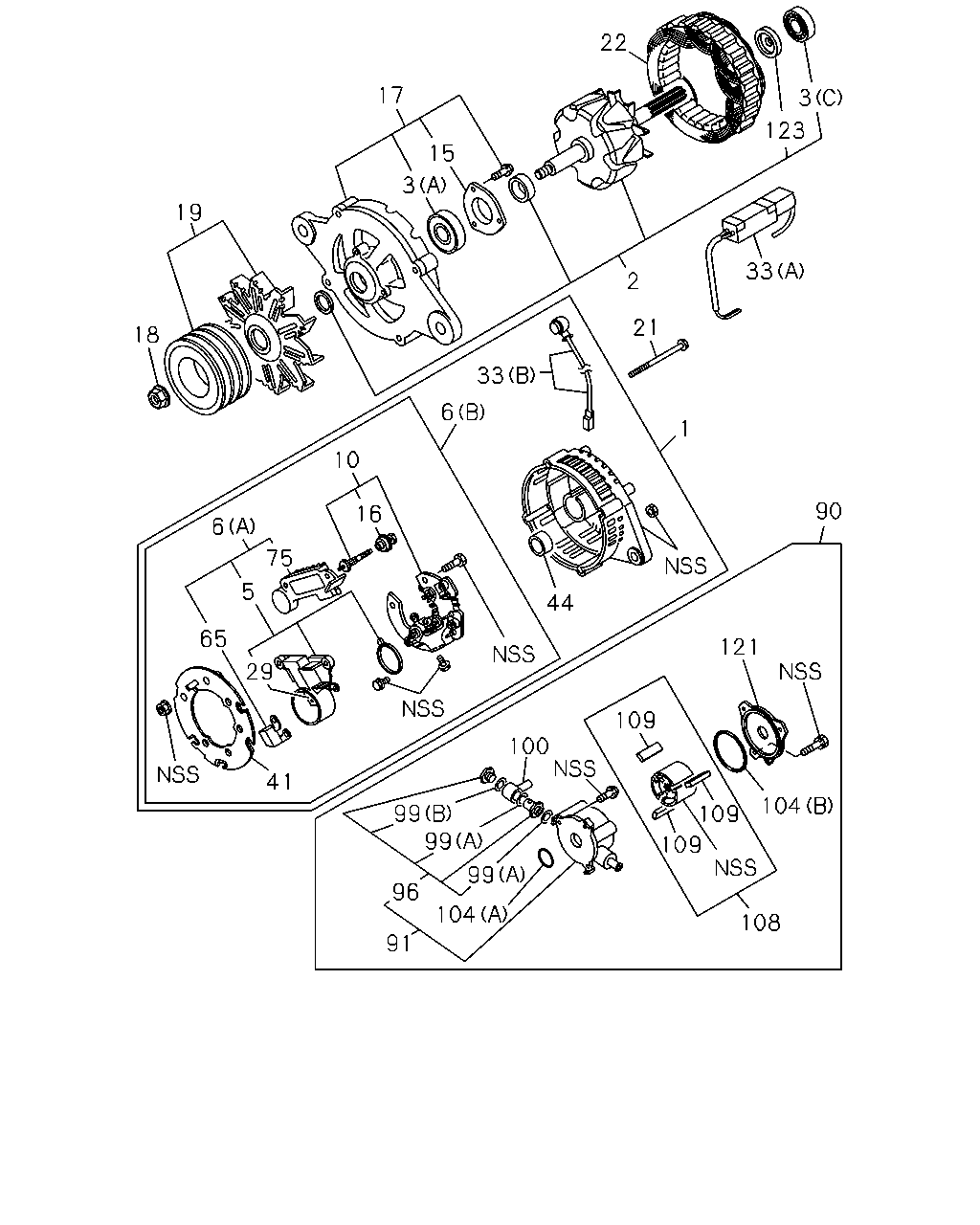

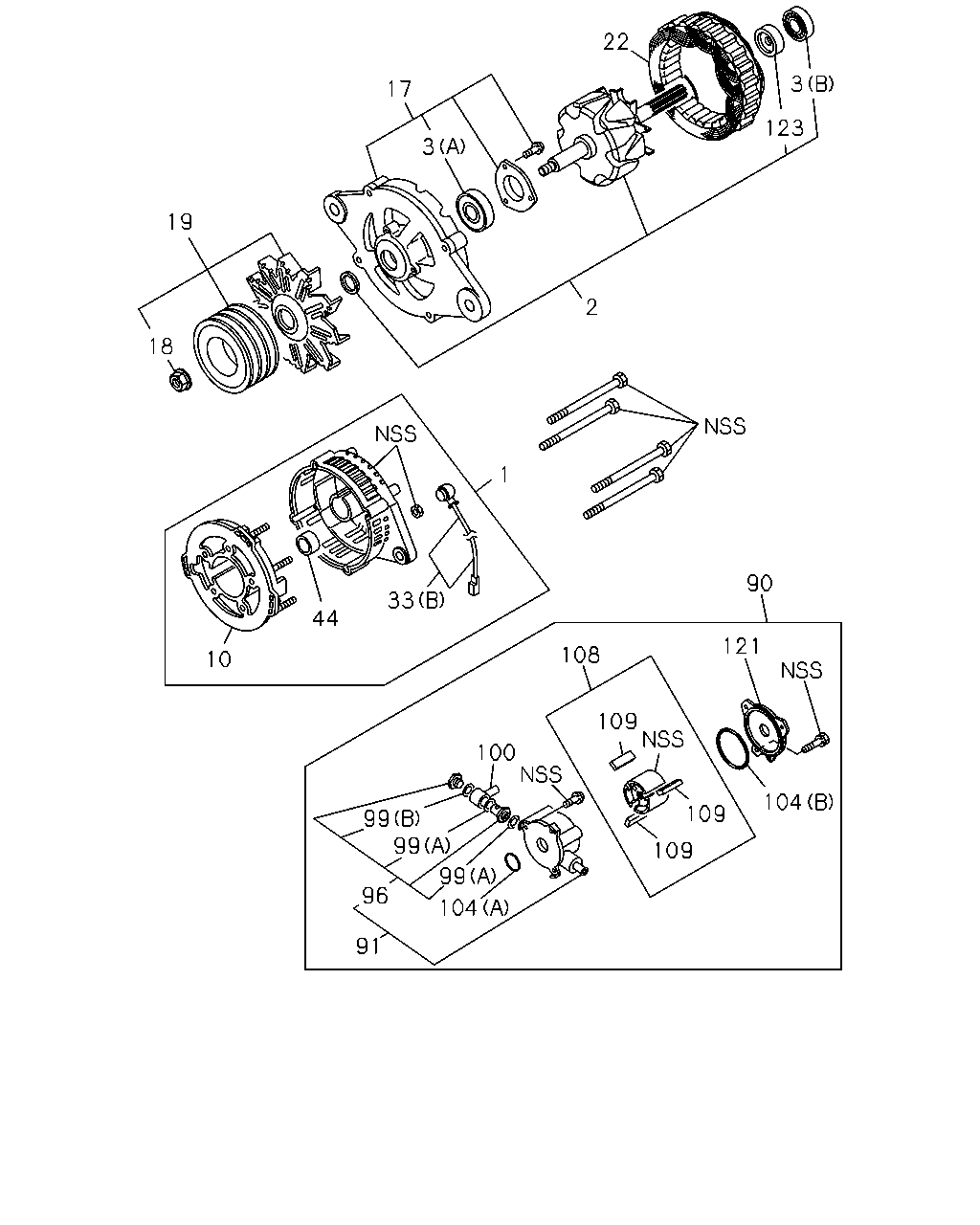

0-66 — GENERATOR (#47623) — 119 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97170-163-2, 97170163	8-97173-433-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97175-390-1, 97175390	8-97189-263-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: C = 8-97250-258-2, 97250258	8-97258-681-0	01	1	-

22 17 3 123 15 3 19 33 2 21 18 33 6 1 10 90 16 6 75 5 44 65 121 29 109 100 41 104 99 99 109 109 99 96 104 108 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97175-390-1, 97175390	8-97211-162-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97170-163-2, 97170163	8-97253-379-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97250-258-2, 97250258	8-97264-867-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97300-353-0, 97300353	8-97302-702-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97351-573-0, 97351573	8-97302-702-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97351-573-0, 97351573	8-98230-321-0	01	1	1209-
2	02.279 ROTOR; GEN ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258	8-97147-621-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97170-163-2, 97170163	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97302-700-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: E = 8-97351-573-0, 97351573	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97170-163-2, 97170163	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97170-163-2, 97170163, D = 8-97300-353-0, 97300353	8-97248-128-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: E = 8-97351-573-0, 97351573	8-98146-442-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258	8-97083-283-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258	8-97111-263-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258	8-97111-264-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97175-390-1, 97175390	8-97083-286-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97351-573-0, 97351573	8-97249-333-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97300-353-0, 97300353	8-97249-333-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97170-163-2, 97170163	8-97253-381-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97250-258-2, 97250258	8-97264-868-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97351-573-0, 97351573	8-98230-331-0	01	1	1209-
15	02.279 RETAINER; ROTOR,GEN ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258	8-97083-291-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 8-97175-390-1, 97175390	8-97083-287-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: C = 8-97250-258-2, 97250258	8-97264-869-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97170-163-2, 97170163	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97302-703-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97083-293-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97170-163-2, 97170163	8-97148-113-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258	8-97168-206-0	04	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258	8-97147-622-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97170-163-2, 97170163	8-97148-106-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97302-701-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258	8-97084-356-0	02	1	-
33	02.500 WIRE; LEAD,GEN (A) ASM PART: B = 8-97175-390-1, 97175390	8-97178-244-0	01	1	-
33	02.500 WIRE; LEAD,GEN (B) ASM PART: A = 8-97170-163-2, 97170163, C = 8-97250-258-2, 97250258	8-97210-711-0	01	1	-
33	02.500 WIRE; LEAD,GEN (A) ASM PART: C = 8-97250-258-2, 97250258	8-97264-870-0	01	1	-
41	02.274 GUIDE; FAN,GEN ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258	8-97083-288-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97170-163-2, 97170163, B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-94156-589-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258	8-97084-357-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258	8-97111-267-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97175-390-1, 97175390, D = 8-97300-353-0, 97300353	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97170-163-2, 97170163	8-97253-433-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97250-258-2, 97250258	8-97258-675-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97351-573-0, 97351573	8-97351-707-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97148-117-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: A = 8-97170-163-2, 97170163, B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97170-163-2, 97170163, B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97170-163-2, 97170163, B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	5-19679-003-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353	8-97083-303-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97170-163-2, 97170163, B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97170-163-2, 97170163, B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97083-304-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97148-115-1	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97083-298-0	03	1	-
121	02.297 COVER; RR,VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97148-116-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: A = 8-97170-163-2, 97170163, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97062-644-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258	8-97083-274-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97170-163-2, 97170163	8-97173-433-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97175-390-1, 97175390	8-97189-263-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: C = 8-97250-258-2, 97250258	8-97258-681-0	01	1	-

22 3 17 123 3 19 2 18 1 90 33 44 121 108 10 109 100 104 109 99 99 109 99 96 104 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97175-390-1, 97175390	8-97211-162-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97170-163-2, 97170163	8-97253-379-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97250-258-2, 97250258	8-97264-867-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97300-353-0, 97300353	8-97302-702-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97351-573-0, 97351573	8-97302-702-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97351-573-0, 97351573	8-98230-321-0	01	1	1209-
2	02.279 ROTOR; GEN ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258	8-97147-621-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97170-163-2, 97170163	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97302-700-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: E = 8-97351-573-0, 97351573	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97170-163-2, 97170163	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97170-163-2, 97170163, D = 8-97300-353-0, 97300353	8-97248-128-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: E = 8-97351-573-0, 97351573	8-98146-442-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97175-390-1, 97175390	8-97083-286-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97351-573-0, 97351573	8-97249-333-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97300-353-0, 97300353	8-97249-333-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97170-163-2, 97170163	8-97253-381-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97250-258-2, 97250258	8-97264-868-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97351-573-0, 97351573	8-98230-331-0	01	1	1209-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97170-163-2, 97170163	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97302-703-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97083-293-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97170-163-2, 97170163	8-97148-113-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258	8-97147-622-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97170-163-2, 97170163	8-97148-106-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97302-701-0	01	1	-
33	02.500 WIRE; LEAD,GEN (A) ASM PART: B = 8-97175-390-1, 97175390	8-97178-244-0	01	1	-
33	02.500 WIRE; LEAD,GEN (B) ASM PART: A = 8-97170-163-2, 97170163, C = 8-97250-258-2, 97250258	8-97210-711-0	01	1	-
33	02.500 WIRE; LEAD,GEN (A) ASM PART: C = 8-97250-258-2, 97250258	8-97264-870-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97170-163-2, 97170163, B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-94156-589-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97175-390-1, 97175390, D = 8-97300-353-0, 97300353	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97170-163-2, 97170163	8-97253-433-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97250-258-2, 97250258	8-97258-675-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97351-573-0, 97351573	8-97351-707-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97148-117-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: A = 8-97170-163-2, 97170163, B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97170-163-2, 97170163, B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97170-163-2, 97170163, B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	5-19679-003-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353	8-97083-303-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97170-163-2, 97170163, B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97170-163-2, 97170163, B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97083-304-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97148-115-1	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97083-298-0	03	1	-
121	02.297 COVER; RR,VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97148-116-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: A = 8-97170-163-2, 97170163, D = 8-97300-353-0, 97300353, E = 8-97351-573-0, 97351573	8-97062-644-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: B = 8-97175-390-1, 97175390, C = 8-97250-258-2, 97250258	8-97083-274-0	01	1	-
