0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#47621) — 281 parça

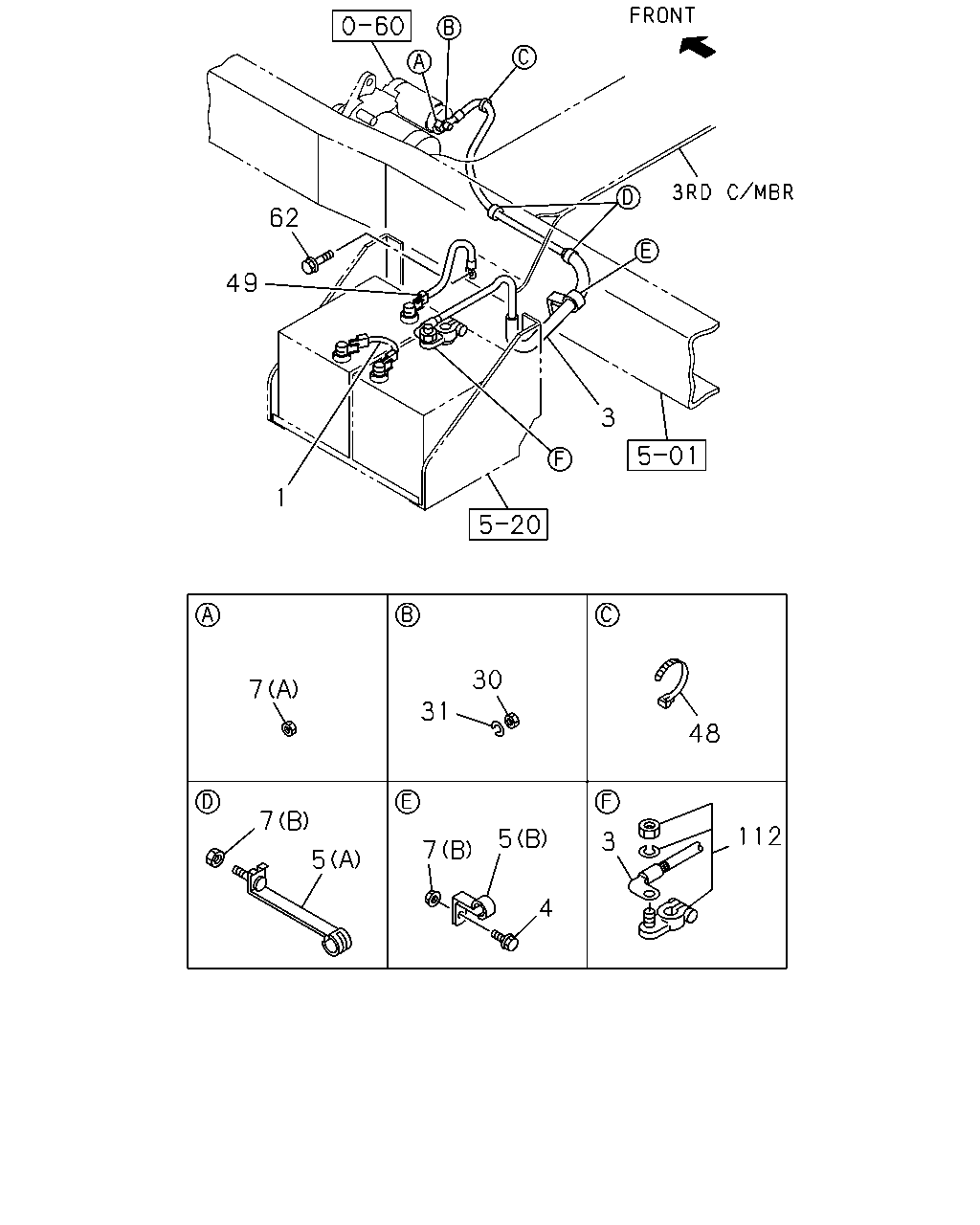

çizim 48500
62 49 3 1 30 7 31 48 7 112 5 3 7 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.341 CABLE; BATTERY
L=180 		1-82650-265-0 01 1 0102-0112 ●
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-1 01 1 0201-0501 ● ●
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-2 01 1 0502- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 		8-97377-769-0 01 1 0706- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> 		8-97231-286-0 01 1 0102-0112 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MBP6P(RNC) BATTERY 115E41R<6XD> 		8-97231-286-0 01 1 0201-0301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 		8-97215-916-0 01 1 0102-0112 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MBP6P(RNC) FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 		8-97215-916-0 01 1 0201-0301 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 		8-97357-101-0 01 1 0302-0302 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 		8-97357-101-1 01 1 0303-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41R<6XD> 		8-97377-770-0 01 1 0502-0705 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41R<6XD> 		8-97377-770-0 01 1 0706- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF) BATTERY 115E41R<6XD> 		8-97352-504-0 01 1 0208-0301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FLOOR REMOTE SHIFT<M11> BATTERY 115E41R<6XD> 		8-97352-504-1 01 1 0302-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MYY5T(RSM) BATTERY 115E41R<6XD> 		8-97352-504-1 01 1 0502-0505 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MYY5T(RSM) BATTERY 115E41R<6XD> 		8-98019-816-0 01 1 0506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF) EXC. BATTERY 115E41R<6XD> 		8-97352-486-0 01 1 0208-0301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,BATTERY 115E41R<6XD> 		8-97352-486-1 01 1 0303-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MYY5T(RSM) EXC. BATTERY 115E41R<6XD> 		8-97377-772-1 01 1 0502-0705 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MYY5T(RSM) EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41R<6XD> 		8-97377-772-1 01 1 0706- ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> M8X25 FLANGE 		0-28680-825-0 01 1 0102-0301 ●
4 02.559 BOLT; BATTERY CABLE
EXC. BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0102-0112 ●
4 02.559 BOLT; BATTERY CABLE
EXC. BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0201-0301 ● ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (A) ID=13 L=90 		8-97015-782-1 01 1 0706- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 04.047 (C) 		8-97028-508-2 03 1 0706- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> 03.483 (B) ID=13 H=18 L=20 		1-09700-813-0 01 1 0102-0301 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. BATTERY 115E41R<6XD> 03.430 (B) ID=13 H=15 L=25 		1-09700-888-0 01 1 0102-0112 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. BATTERY 115E41R<6XD> 03.430 (B) ID=13 H=15 L=25 		1-09700-888-0 01 1 0201-0301 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
FRAME STRAIGHT TYPE<7KJ> (A) ID=13 L=90 		8-97015-782-1 02 1 0102-0112 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
FRAME STRAIGHT TYPE<7KJ> (A) ID=13 L=90 		8-97015-782-1 02 1 0201-0201 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
M/T MXA5R(RMT),M/T MBP6P(RNC) (A) ID=13 L=90 		8-97015-782-1 02 1 0201-0301 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> (A) ID=13 L=90 		8-97015-782-1 02 1 0302-0303 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> 03.483 (B) ID=13 H=18 L=20 		1-09700-813-0 01 1 0502-0505 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> 03.280 (B) ID=13 L=16 		9-09525-222-0 01 1 0506-0606 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> (B) ID=13 L=16 		0-95235-222-0 01 1 0607- ●
7 02.343 NUT; (+) CABLE
00.002 (A) M8 		9-09110-508-0 01 1 0102-0112 ●
7 02.343 NUT; (+) CABLE
00.002 (A) M8 		9-09110-508-0 01 1 0201-0201 ● ●
7 02.343 NUT; (+) CABLE
M/T MXA5R(RMT),M/T MBP6P(RNC) 00.002 (A) M8 		9-09110-508-0 01 1 0201-0203 ● ●
7 02.343 NUT; (+) CABLE
00.002 (A) M8 		9-09110-508-0 01 1 0204-0301 ● ●
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0102-0112 ●
7 02.343 NUT; (+) CABLE
M/T MBP6P(RNC) BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0201-0301 ●
7 02.343 NUT; (+) CABLE
M/T MYY5T(RSM) BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0302-0303 ●
7 02.343 NUT; (+) CABLE
EXC. BATTERY 115E41R<6XD> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0102-0112 ●
7 02.343 NUT; (+) CABLE
EXC. BATTERY 115E41R<6XD> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0201-0301 ● ●
7 02.343 NUT; (+) CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0102-0112 ●
7 02.343 NUT; (+) CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0201-0201 ● ●
7 02.343 NUT; (+) CABLE
M/T MXA5R(RMT),M/T MBP6P(RNC) EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0201-0301 ● ●
7 02.343 NUT; (+) CABLE
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0302-0303 ● ●
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603-0705 ●
7 02.343 NUT; (+) CABLE
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0706- ●
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0706- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0102-0112 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0201-0501 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0502-0512 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0601- ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0102-0112 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0201-0501 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0502-0603 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 0604- ● ●
48 02.343 CLIP; CABLE
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250 		5-09707-030-1 01 1 0706- ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0102-0112 ●
48 02.343 CLIP; CABLE
M/T MXA5R(RMT),M/T MBP6P(RNC) 03.162 L=140 		5-09707-031-1 01 1 0201-0301 ● ●
48 02.343 CLIP; CABLE
M/T MZZ6U(RSF),M/T MYY5T(RSM) 03.162 L=140 		5-09707-031-1 01 1 0302-0303 ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0304-0501 ● ●
48 02.343 CLIP; CABLE
M/T MZZ6U(RSF) 03.162 L=140 		5-09707-031-1 01 1 0304-0501 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0502-1101 ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 1102- ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 1102- ● ●
48 02.343 CLIP; CABLE
IDENTIFICATION LABEL FOR KD<6UT> EXC. TAIWAN EQUIPMENT(RWV),EGYPT EQUIPMENT(YJ4) 03.162 L=140 		5-09707-031-1 01 1 1102- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> L=1500 		8-98008-834-0 01 1 0706- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97231-489-0 01 1 0102-0301 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97350-717-1 01 1 0302-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97350-717-1 01 1 0502- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. BATTERY 115E41R<6XD> L=200 30BY 		9-82933-456-0 01 1 0102-0112 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. BATTERY 115E41R<6XD> L=200 30BY 		9-82933-456-0 01 1 0201-0301 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=200 30BY 		9-82933-456-0 01 1 0201-0301 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. BATTERY 115E41R<6XD> L=200 		8-97231-243-1 01 1 0302-0302 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=200 		8-97231-243-1 01 1 0302-0302 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. BATTERY 115E41R<6XD> L=200 		8-97231-243-1 01 1 0303-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=200 		8-97231-243-1 01 1 0303-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> L=300 		8-97230-536-1 01 1 0502-0705 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41R<6XD> L=300 		8-97230-536-1 01 1 0706- ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0102-0108 ●
62 02.343 BOLT; EARTH CABLE FIX
CHARGE AIR COOLER<6PL> M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0109-0112 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0201-0501 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0502-1004 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ●
62 02.343 BOLT; EARTH CABLE FIX
M8X30 W/LK&PL WASHER 		8-97087-204-0 01 1 0201- ●
112 02.343 TERMINAL; BATTERY
M/T MZZ6U(RSF) <+> 		8-94361-935-0 01 1 0208-0301 ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97356-925-1 01 1 0302-0501 ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97356-925-1 01 1 0502- ● ●

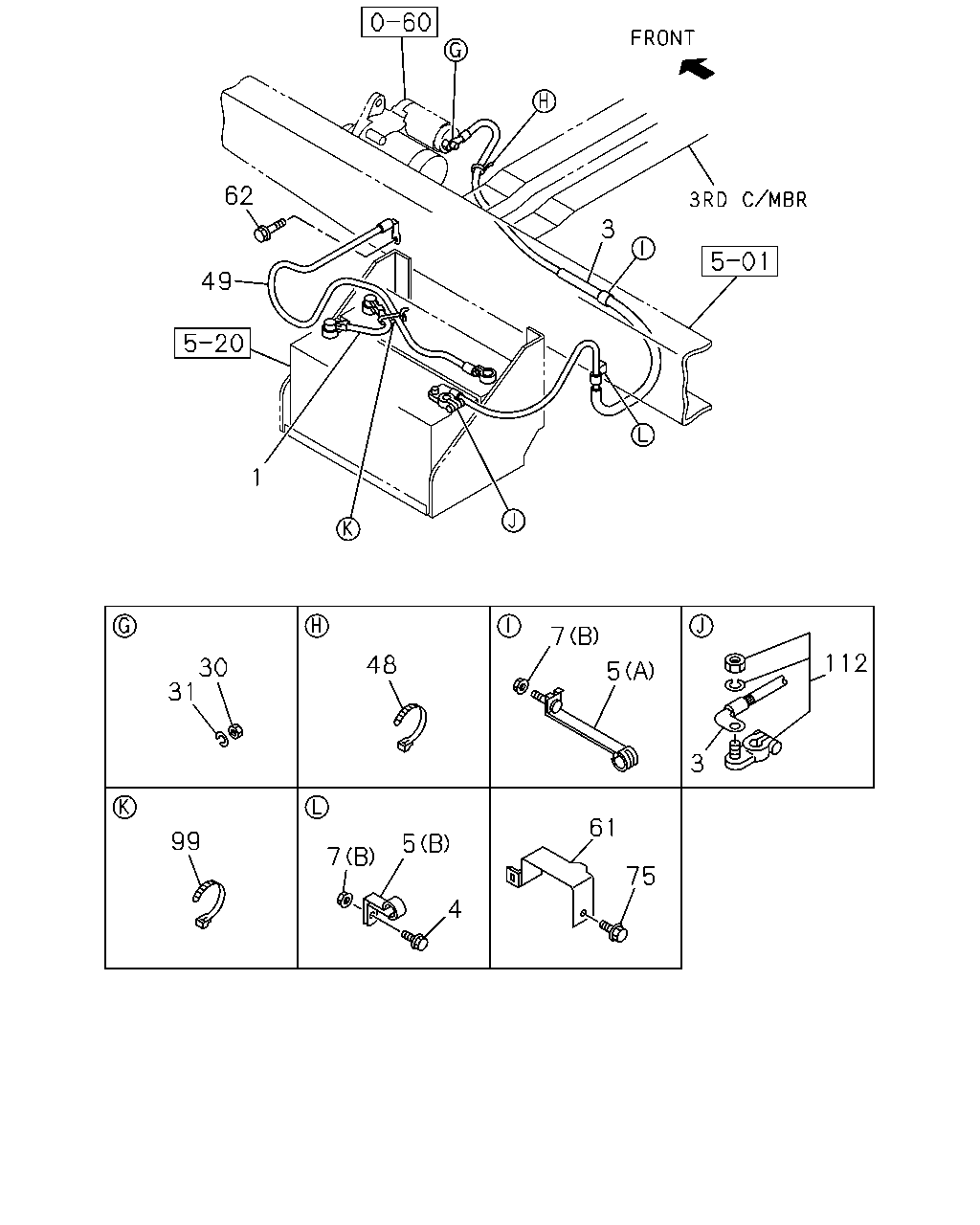

çizim 49809
62 3 49 1 7 112 48 30 31 5 3 61 99 5 7 75 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.341 CABLE; BATTERY
L=180 		1-82650-265-0 01 1 0102-0112 ●
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-1 01 1 0201-0501 ● ●
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-2 01 1 0502- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 		8-97377-769-0 01 1 0706- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> 		8-97231-286-0 01 1 0102-0112 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MBP6P(RNC) BATTERY 115E41R<6XD> 		8-97231-286-0 01 1 0201-0301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 		8-97215-916-0 01 1 0102-0112 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MBP6P(RNC) FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 		8-97215-916-0 01 1 0201-0301 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 		8-97357-101-0 01 1 0302-0302 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 		8-97357-101-1 01 1 0303-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41R<6XD> 		8-97377-770-0 01 1 0502-0705 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41R<6XD> 		8-97377-770-0 01 1 0706- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF) BATTERY 115E41R<6XD> 		8-97352-504-0 01 1 0208-0301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FLOOR REMOTE SHIFT<M11> BATTERY 115E41R<6XD> 		8-97352-504-1 01 1 0302-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MYY5T(RSM) BATTERY 115E41R<6XD> 		8-97352-504-1 01 1 0502-0505 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MYY5T(RSM) BATTERY 115E41R<6XD> 		8-98019-816-0 01 1 0506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF) EXC. BATTERY 115E41R<6XD> 		8-97352-486-0 01 1 0208-0301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,BATTERY 115E41R<6XD> 		8-97352-486-1 01 1 0303-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MYY5T(RSM) EXC. BATTERY 115E41R<6XD> 		8-97377-772-1 01 1 0502-0705 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MYY5T(RSM) EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41R<6XD> 		8-97377-772-1 01 1 0706- ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> M8X25 FLANGE 		0-28680-825-0 01 1 0102-0301 ●
4 02.559 BOLT; BATTERY CABLE
EXC. BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0102-0112 ●
4 02.559 BOLT; BATTERY CABLE
EXC. BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0201-0301 ● ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (A) ID=13 L=90 		8-97015-782-1 01 1 0706- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 04.047 (C) 		8-97028-508-2 03 1 0706- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> 03.483 (B) ID=13 H=18 L=20 		1-09700-813-0 01 1 0102-0301 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. BATTERY 115E41R<6XD> 03.430 (B) ID=13 H=15 L=25 		1-09700-888-0 01 1 0102-0112 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. BATTERY 115E41R<6XD> 03.430 (B) ID=13 H=15 L=25 		1-09700-888-0 01 1 0201-0301 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
FRAME STRAIGHT TYPE<7KJ> (A) ID=13 L=90 		8-97015-782-1 02 1 0102-0112 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
FRAME STRAIGHT TYPE<7KJ> (A) ID=13 L=90 		8-97015-782-1 02 1 0201-0201 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
M/T MXA5R(RMT),M/T MBP6P(RNC) (A) ID=13 L=90 		8-97015-782-1 02 1 0201-0301 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> (A) ID=13 L=90 		8-97015-782-1 02 1 0302-0303 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> 03.483 (B) ID=13 H=18 L=20 		1-09700-813-0 01 1 0502-0505 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> 03.280 (B) ID=13 L=16 		9-09525-222-0 01 1 0506-0606 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> (B) ID=13 L=16 		0-95235-222-0 01 1 0607- ●
7 02.343 NUT; (+) CABLE
00.002 (A) M8 		9-09110-508-0 01 1 0102-0112 ●
7 02.343 NUT; (+) CABLE
00.002 (A) M8 		9-09110-508-0 01 1 0201-0201 ● ●
7 02.343 NUT; (+) CABLE
M/T MXA5R(RMT),M/T MBP6P(RNC) 00.002 (A) M8 		9-09110-508-0 01 1 0201-0203 ● ●
7 02.343 NUT; (+) CABLE
00.002 (A) M8 		9-09110-508-0 01 1 0204-0301 ● ●
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0102-0112 ●
7 02.343 NUT; (+) CABLE
M/T MBP6P(RNC) BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0201-0301 ●
7 02.343 NUT; (+) CABLE
M/T MYY5T(RSM) BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0302-0303 ●
7 02.343 NUT; (+) CABLE
EXC. BATTERY 115E41R<6XD> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0102-0112 ●
7 02.343 NUT; (+) CABLE
EXC. BATTERY 115E41R<6XD> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0201-0301 ● ●
7 02.343 NUT; (+) CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0102-0112 ●
7 02.343 NUT; (+) CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0201-0201 ● ●
7 02.343 NUT; (+) CABLE
M/T MXA5R(RMT),M/T MBP6P(RNC) EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0201-0301 ● ●
7 02.343 NUT; (+) CABLE
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0302-0303 ● ●
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603-0705 ●
7 02.343 NUT; (+) CABLE
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0706- ●
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0706- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0102-0112 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0201-0501 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0502-0512 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0601- ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0102-0112 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0201-0501 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0502-0603 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 0604- ● ●
48 02.343 CLIP; CABLE
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250 		5-09707-030-1 01 1 0706- ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0102-0112 ●
48 02.343 CLIP; CABLE
M/T MXA5R(RMT),M/T MBP6P(RNC) 03.162 L=140 		5-09707-031-1 01 1 0201-0301 ● ●
48 02.343 CLIP; CABLE
M/T MZZ6U(RSF),M/T MYY5T(RSM) 03.162 L=140 		5-09707-031-1 01 1 0302-0303 ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0304-0501 ● ●
48 02.343 CLIP; CABLE
M/T MZZ6U(RSF) 03.162 L=140 		5-09707-031-1 01 1 0304-0501 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0502-1101 ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 1102- ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 1102- ● ●
48 02.343 CLIP; CABLE
IDENTIFICATION LABEL FOR KD<6UT> EXC. TAIWAN EQUIPMENT(RWV),EGYPT EQUIPMENT(YJ4) 03.162 L=140 		5-09707-031-1 01 1 1102- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> L=1500 		8-98008-834-0 01 1 0706- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97231-489-0 01 1 0102-0301 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97350-717-1 01 1 0302-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97350-717-1 01 1 0502- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. BATTERY 115E41R<6XD> L=200 30BY 		9-82933-456-0 01 1 0102-0112 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. BATTERY 115E41R<6XD> L=200 30BY 		9-82933-456-0 01 1 0201-0301 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=200 30BY 		9-82933-456-0 01 1 0201-0301 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. BATTERY 115E41R<6XD> L=200 		8-97231-243-1 01 1 0302-0302 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=200 		8-97231-243-1 01 1 0302-0302 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. BATTERY 115E41R<6XD> L=200 		8-97231-243-1 01 1 0303-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=200 		8-97231-243-1 01 1 0303-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> L=300 		8-97230-536-1 01 1 0502-0705 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41R<6XD> L=300 		8-97230-536-1 01 1 0706- ● ● ●
61 02.333 BRACKET; BATTERY CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 		8-97369-198-1 01 1 0502- ●
61 02.333 BRACKET; BATTERY CABLE
EXC. BATTERY 115E41R<6XD> 		8-97369-198-1 01 1 0502- ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0102-0108 ●
62 02.343 BOLT; EARTH CABLE FIX
CHARGE AIR COOLER<6PL> M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0109-0112 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0201-0501 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0502-1004 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ●
62 02.343 BOLT; EARTH CABLE FIX
M8X30 W/LK&PL WASHER 		8-97087-204-0 01 1 0201- ●
75 02.333 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ●
75 02.333 BOLT; BRKT
EXC. BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ●
75 02.333 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601- ●
75 02.333 BOLT; BRKT
EXC. BATTERY 115E41R<6XD> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601- ●
99 02.343 CLIP; BATTERY CABLE
BATTERY 115E41R<6XD> 03.162 L=140 		5-09707-031-1 01 1 0102-0501 ●
99 02.343 CLIP; BATTERY CABLE
BATTERY 115E41R<6XD> 03.162 L=140 		5-09707-031-1 01 1 0502- ●
112 02.343 TERMINAL; BATTERY
M/T MZZ6U(RSF) <+> 		8-94361-935-0 01 1 0208-0301 ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97356-925-1 01 1 0302-0501 ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97356-925-1 01 1 0502- ● ●

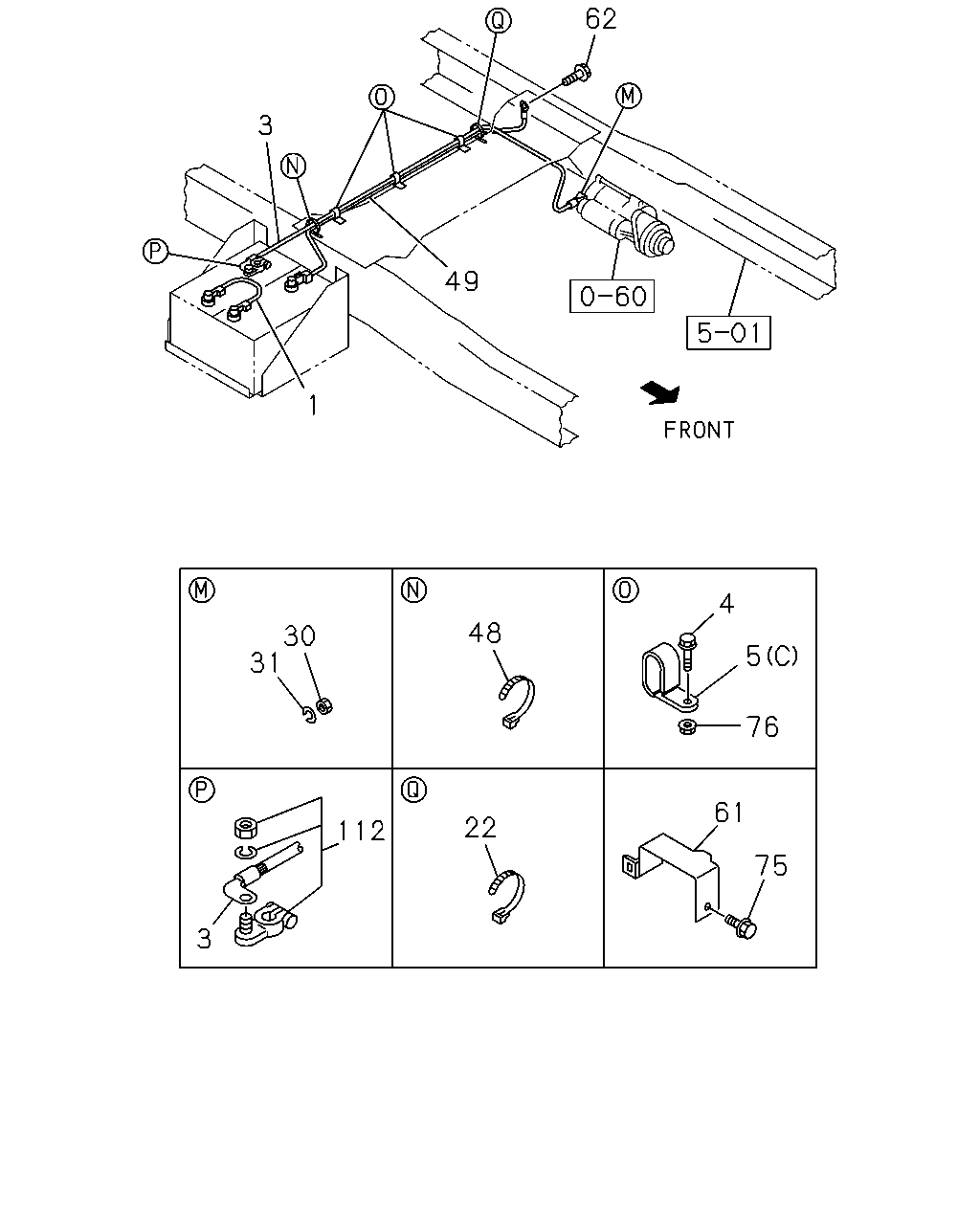

çizim 50929
62 3 49 1 4 48 30 31 5 76 61 22 112 75 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.341 CABLE; BATTERY
L=180 		1-82650-265-0 01 1 0102-0112 ●
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-1 01 1 0201-0501 ● ●
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-2 01 1 0502- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 		8-97377-769-0 01 1 0706- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> 		8-97231-286-0 01 1 0102-0112 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MBP6P(RNC) BATTERY 115E41R<6XD> 		8-97231-286-0 01 1 0201-0301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 		8-97215-916-0 01 1 0102-0112 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MBP6P(RNC) FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 		8-97215-916-0 01 1 0201-0301 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 		8-97357-101-0 01 1 0302-0302 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 		8-97357-101-1 01 1 0303-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41R<6XD> 		8-97377-770-0 01 1 0502-0705 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41R<6XD> 		8-97377-770-0 01 1 0706- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF) BATTERY 115E41R<6XD> 		8-97352-504-0 01 1 0208-0301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FLOOR REMOTE SHIFT<M11> BATTERY 115E41R<6XD> 		8-97352-504-1 01 1 0302-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MYY5T(RSM) BATTERY 115E41R<6XD> 		8-97352-504-1 01 1 0502-0505 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MYY5T(RSM) BATTERY 115E41R<6XD> 		8-98019-816-0 01 1 0506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF) EXC. BATTERY 115E41R<6XD> 		8-97352-486-0 01 1 0208-0301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,BATTERY 115E41R<6XD> 		8-97352-486-1 01 1 0303-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MYY5T(RSM) EXC. BATTERY 115E41R<6XD> 		8-97377-772-1 01 1 0502-0705 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MYY5T(RSM) EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41R<6XD> 		8-97377-772-1 01 1 0706- ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> M8X25 FLANGE 		0-28680-825-0 01 1 0102-0301 ●
4 02.559 BOLT; BATTERY CABLE
EXC. BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0102-0112 ●
4 02.559 BOLT; BATTERY CABLE
EXC. BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0201-0301 ● ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (A) ID=13 L=90 		8-97015-782-1 01 1 0706- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 04.047 (C) 		8-97028-508-2 03 1 0706- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> 03.483 (B) ID=13 H=18 L=20 		1-09700-813-0 01 1 0102-0301 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. BATTERY 115E41R<6XD> 03.430 (B) ID=13 H=15 L=25 		1-09700-888-0 01 1 0102-0112 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. BATTERY 115E41R<6XD> 03.430 (B) ID=13 H=15 L=25 		1-09700-888-0 01 1 0201-0301 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
FRAME STRAIGHT TYPE<7KJ> (A) ID=13 L=90 		8-97015-782-1 02 1 0102-0112 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
FRAME STRAIGHT TYPE<7KJ> (A) ID=13 L=90 		8-97015-782-1 02 1 0201-0201 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
M/T MXA5R(RMT),M/T MBP6P(RNC) (A) ID=13 L=90 		8-97015-782-1 02 1 0201-0301 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> (A) ID=13 L=90 		8-97015-782-1 02 1 0302-0303 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> 03.483 (B) ID=13 H=18 L=20 		1-09700-813-0 01 1 0502-0505 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> 03.280 (B) ID=13 L=16 		9-09525-222-0 01 1 0506-0606 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> (B) ID=13 L=16 		0-95235-222-0 01 1 0607- ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 03.162 L=140 		5-09707-031-1 01 1 0706- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0102-0112 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0201-0501 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0502-0512 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0601- ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0102-0112 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0201-0501 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0502-0603 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 0604- ● ●
48 02.343 CLIP; CABLE
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250 		5-09707-030-1 01 1 0706- ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0102-0112 ●
48 02.343 CLIP; CABLE
M/T MXA5R(RMT),M/T MBP6P(RNC) 03.162 L=140 		5-09707-031-1 01 1 0201-0301 ● ●
48 02.343 CLIP; CABLE
M/T MZZ6U(RSF),M/T MYY5T(RSM) 03.162 L=140 		5-09707-031-1 01 1 0302-0303 ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0304-0501 ● ●
48 02.343 CLIP; CABLE
M/T MZZ6U(RSF) 03.162 L=140 		5-09707-031-1 01 1 0304-0501 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0502-1101 ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 1102- ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 1102- ● ●
48 02.343 CLIP; CABLE
IDENTIFICATION LABEL FOR KD<6UT> EXC. TAIWAN EQUIPMENT(RWV),EGYPT EQUIPMENT(YJ4) 03.162 L=140 		5-09707-031-1 01 1 1102- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> L=1500 		8-98008-834-0 01 1 0706- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97231-489-0 01 1 0102-0301 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97350-717-1 01 1 0302-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97350-717-1 01 1 0502- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. BATTERY 115E41R<6XD> L=200 30BY 		9-82933-456-0 01 1 0102-0112 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. BATTERY 115E41R<6XD> L=200 30BY 		9-82933-456-0 01 1 0201-0301 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=200 30BY 		9-82933-456-0 01 1 0201-0301 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. BATTERY 115E41R<6XD> L=200 		8-97231-243-1 01 1 0302-0302 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=200 		8-97231-243-1 01 1 0302-0302 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. BATTERY 115E41R<6XD> L=200 		8-97231-243-1 01 1 0303-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=200 		8-97231-243-1 01 1 0303-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> L=300 		8-97230-536-1 01 1 0502-0705 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41R<6XD> L=300 		8-97230-536-1 01 1 0706- ● ● ●
61 02.333 BRACKET; BATTERY CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 		8-97369-198-1 01 1 0502- ●
61 02.333 BRACKET; BATTERY CABLE
EXC. BATTERY 115E41R<6XD> 		8-97369-198-1 01 1 0502- ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0102-0108 ●
62 02.343 BOLT; EARTH CABLE FIX
CHARGE AIR COOLER<6PL> M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0109-0112 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0201-0501 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0502-1004 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ●
62 02.343 BOLT; EARTH CABLE FIX
M8X30 W/LK&PL WASHER 		8-97087-204-0 01 1 0201- ●
75 02.333 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ●
75 02.333 BOLT; BRKT
EXC. BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ●
75 02.333 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601- ●
75 02.333 BOLT; BRKT
EXC. BATTERY 115E41R<6XD> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601- ●
76 02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE 		0-91180-106-0 03 1 0706- ●
112 02.343 TERMINAL; BATTERY
M/T MZZ6U(RSF) <+> 		8-94361-935-0 01 1 0208-0301 ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97356-925-1 01 1 0302-0501 ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97356-925-1 01 1 0502- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
